0UsingtheTV'sfeatures

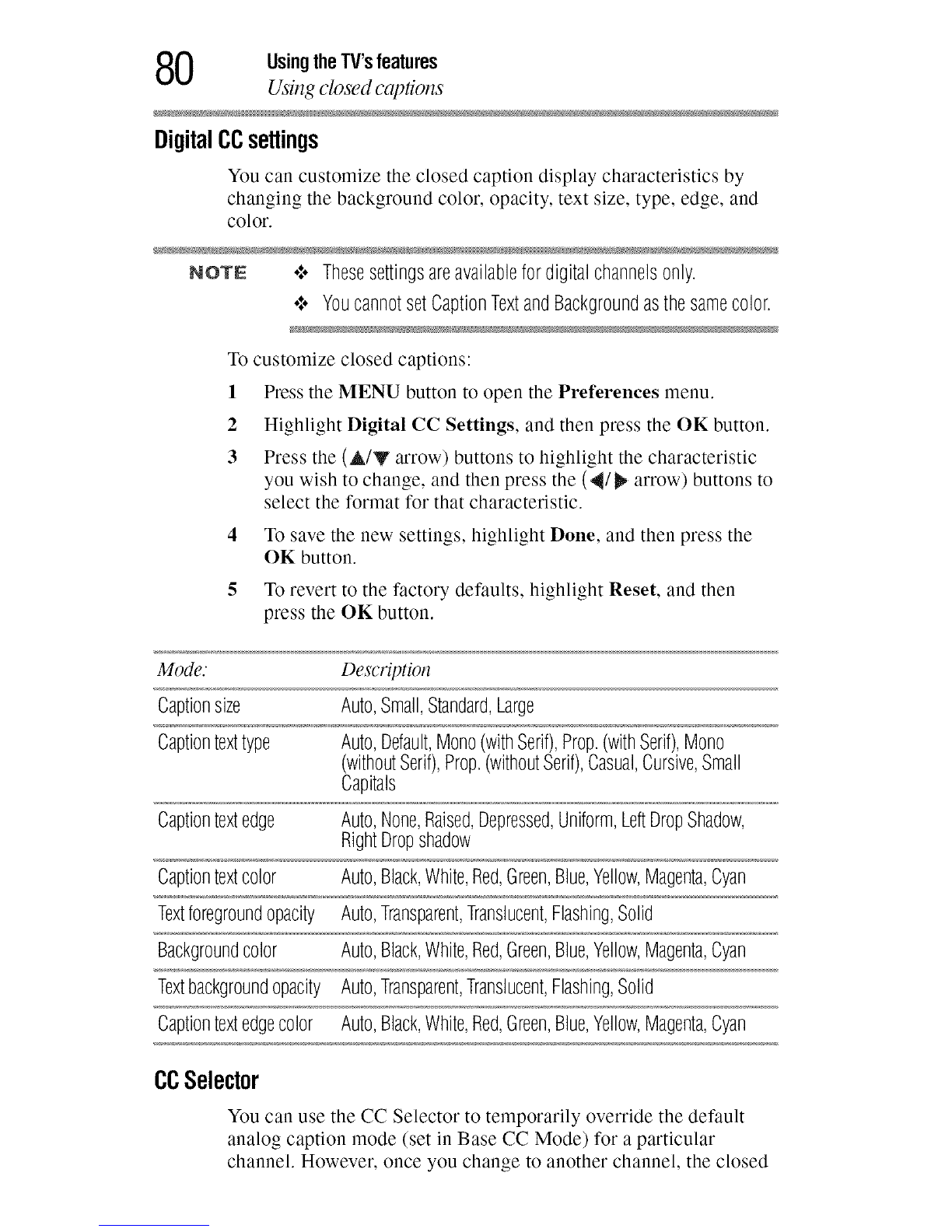

Using closed captions
DigitalCCsettings
You can customize the closed caption display characteristics by
changing the background color, opacity, text size, type, edge, and
color.
NOTE .:.Thesesettingsareavailablefor digital channelsonly.
¢ Youcannot setCaptionTextandBackgroundasthe samecolor.
To customize closed captions:
1 Press the MENU button to open the Preferences menu.
2 Highlight Digital CC Settings, and then press the OK button.
3 Press the (&/y arrow) buttons to highlight the characteristic
you wish to change, and then press the (_11/_ arrow) buttons to
select the format for that characteristic.
4 To save the new settings, highlight Done, and then press the
OK button.
gTo revert to the factory defaults, highlight Reset, and then
press the OK button.
Mode. Description
Captionsize Auto,Small,Standard,Large
Captiontexttype Auto,Default,Mono(withSerif),Prop.(withSerif),Mono
(withoutSerif),Prop.(withoutSerif),Casual,Cursive,Small
Capitals
Captiontextedge Auto,None,Raised,Depressed,Uniform,LeftDropShadow,
RightDropshadow
Captiontextcolor Auto,Black,White,Red,Green,Blue,Yellow,Magenta,Cyan
Textforegroundopacity Auto,Transparent,Translucent,Flashing,Solid
Backgroundcolor Auto,Black,White,Red,Green,Blue,Yellow,Magenta,Cyan
Textbackgroundopacity Auto,Transparent,Translucent,Flashing,Solid
Captiontextedgecolor Auto,Black,White,Red,Green,Blue,Yellow,Magenta,Cyan
CCSelector
You can use the CC Selector to temporarily override the default
analog caption mode (set in Base CC Mode) for a particular
channel. However, once you change to another channel, the closed

UsingtheTV'sfeatures _1
Adjusting the audio
caption setting will automatically change back to the current Base
CC Mode setting.
You can also use the CC Selector to select digital closed caption
services, if available. When such services are not available, the CC
Selector presents a default list of services. If the selected service is
not available, the next best service will be used.
To select closed captions:
1 Press the MENU button to open the Preferences menu.
2 Highlight CC Selector, and then press the OK button.
3 Press the (A/V arrow) buttons to select the Closed Caption,
and then press the (_/_ arrow) buttons to select the desired
service.
4
5
To save the new settings, highlight Done, and then press the
OK button.
Press the EXIT button.
NOTE YoucanalsopresstheSUBTITLEbuttontoopenCCSelectorand
followtheinstructions.
Adjustingtheaudio
Mutingthesound
Press the MUTE button to partially reduce (1/2 Mute) or turn off
(Mute) the sound. Each time you press the MUTE button, the mute
mode changes in the following order: 1/2 Mute, Mute, Volume, 1/2
Mute, etc.
112Mu_e --_ Mute _ Volume _
(Sanlple In,age) Le_,eL_"qf n_ute
If closed caption mode is set to Off when selecting MUTE mode,
the closed caption feature becomes active if the TV program is
closed captioned. To mute the audio without activating the closed
captioning, press the VOL (-) button to set the volume to 0.
For more information, see "Using closed captions" on page 78.
NOTE Ifyoumodifyitemsin theSOUNDmenuwhileMuteisactive,Mute
iscancelled.

2UsingtheTV'sfeatures
Adjusting the audio
Usingthe digitalaudioselector
You can use the Digital Audio Selector to conveniently switch
between audio tracks on a digital channel (for those channels that
have multiple audio tracks). This temporarily overrides tile audio
track chosen by tile language option under Audio Setup, see
"Selecting stereo/SAP broadcasts" on page 82.
1 Press tile MENU button to open tile Sound menu.
2 Highlight Digital Audio Selector, and then press tile OK
button.
(Sample Image) Digital Audio Selector sc_en
3 Press the (_1 _ arrow) buttons to select the desired service.
4 Press the EXIT button.
Selectingstereo/SAPbroadcasts
The multi-channel TV sound (MTS) feature allows you to output
high-fidelity stereo sound. MTS also can transmit a second audio
program (SAP) containing a second language, music or other audio
information (when provided by individual stations).
When the TV receives a stereo or SAP broadcast, the stereo mark or
word "SAP" appears when the DISPLAY button is pressed. The
MTS feature is only available for analog signals on the
ANT/CABLE input.
To listen in stereo sound:
1
2
3
4
Press the MENU button to open the Sound menu.
Highlight Audio Setup, and then press the OK button.
In the MTS field, select Stereo.
To save the new settings, highlight Done, and then press the
OK button.
To reset the settings to the factory defaults, highlight Reset,
and then press the OK button.

UsingtheTV'sfeatures _
Adjusting the audio _,t !,,J
NOTE o}oYoucantypicallyleavetheTVinStereomodebecauseitoutputs
thetypeofsoundbeingbroadcast(stereoormonaural).
¢ Ifthe sound is noisy, select Mono to reducethe noise,
To listen to an alternate language on an ATSC digital station (if
available), highlight the Language field in step 3 above, and then
press the (4/_ arrow) buttons to select the language you prefer.
To listen to a second audio program on an analog station, if
available, select SAP in step 3 above.
1 Press the MENU button. Select Settings, SOUND, MTS.
2 Press the (,_/_ arrow) buttons to select SAP. Press the EXIT
button.
NOTE o:oA secondaudioprogram(SAP)canbeheardonlyonthoseTV
stationsthatofferit. Forexample,astationmightbroadcast
anotherlanguageasasecondaudioprogram.IfyouhaveSAP
on,youwillseethecurrentprogramonthescreenbuthearthe
otherlanguageinsteadoftheprogram'snormalaudio.
¢ IfyouhaveSAPonandthestationyouarewatchingisnot
broadcastingasecondaudioprogram,thestation'snormal
audiowill beoutput.However,occasionallythereisnosoundat
all in SAPmode.Ifthis happens,settheMTSfeaturetoStereo
mode.
Usingthe IVlTSbutton
If you press the AUDIO button when an analog channel is tuned,
the Analog Audio bar appears and displays Stereo, SAE Mono as
the options.
If you press the AUDIO button when a digital channel is tuned, the
Digital Audio bar will appear and offer different audio choices for
the digital channel.
If you press the AUDIO button when an external input is selected,
no Audio bar appears.
Adjustingthe audioquality
You can adjust the audio quality by adjusting the bass, treble and
balance.

4UsingtheW's features
Adjusting the audio
To adjust the audio quality:
1 Press tile MENU button to open tile Sound menu.
2 Highlight Audio Setup, and then press tile OK button.
3Press tile (A/Y arrow) buttons to highlight tile item you wish
to adjust (Bass, Treble, or Balance).
4 Press tile (4/_ arrow) buttons to adjust tile level.
°:° 4 makes tile bass or treble weaker or increases tile balance
in tile left channel (depending on tile item selected).
•:* _ makes tile bass or treble stronger or increases tile
balance in tile right channel (depending on tile item
selected).
5To save tile new settings, highlight Done, and then press tile
OK button.
6 To reset tile settings to tile factory defaults, highlight Reset,
and then press tile OK button.
AudysseyPremium TelevisionTM
These televisions use a suite of technologies for better sound
including:
•",o Audyssey EQ% provides clear, accurate and natural sound
right out of the box. This technology ensures you enjoy your
audio experience as much as your video.
•",o Audyssey ABX TM-technology uses sophisticated driver
analysis and low frequency monitoring to extend the range and
bass of small speakers .This enables the system to produce
lower frequencies than otherwise would be possible.
•",o Audyssey _'_Dynamic Volume- automatically adjusts volume to
provide a consistent sound level between television programs,
commercials, and between the loud and soft passages of
movies.
AudysseyABXrM
Audyssey ABX rMtechnology uses sophisticated driver analysis and
low frequency monitoring to extend tile range and bass of small
speakers.
To turn on Audyssey ABXrM:
1 Press tile MENU button and open tile Sound menu.
2 Highlight Audio Settings, and tile press tile OK button.

UsingtheTV'sfeatures _
Adjusting the audio
3 Press the (A/Y arrow) buttons to highlight the Audyssey
ABX TM field.
4Press the (_/_ arrow) buttons to select On.
UsingAudysseyDynamicVolume®
This feature provides a consistent sound volume between television
programs, commercials, and between the loud and soft passages of
movies.
1 Press the MENU button. Select Settings, SOUND, Audyssey
Premium Television, Dynamic Volume.
2 Press the (_/_ arrow) buttons to select ON or Off.
NOTE .:. If DynamicRangeControl is setto On,this featureis
automatically setto Off.
•:. This featuredoes not affectthe audio signal output from the
DIGITALAUDIOOUTterminal.
Selectingtheopticalaudiooutputformat
You can select the optical audio output format when you connect a
Dolby _>Digital decoder or other digital audio systems to the TV's
Digital Audio Out terminal.
To select the optical audio output format:
1 Press the MENU button to open the Sound menu.
2 Highlight Audio Setup, and then press the OK button.
3 In the Digital Output Format field, select either Dolby
Digital or PCM, depending on your device.
4 To save the new settings, highlight Done, and then press the
OK button.
5 To reset the settings to the factory defaults, highlight Reset,
and then press the OK button.
Usingthe Dolby_DigitalDynamicRangeControlfeature
You can further compress Dolby ®Digital dynamic range, allowing
you to switch from digital to analog broadcasts at the same dynamic
range.
To use the Dolby ®Digital Dynamic Range Control:
1 Press the MENU button to open the Sound menu.

6UsingtheTV'sfeatures

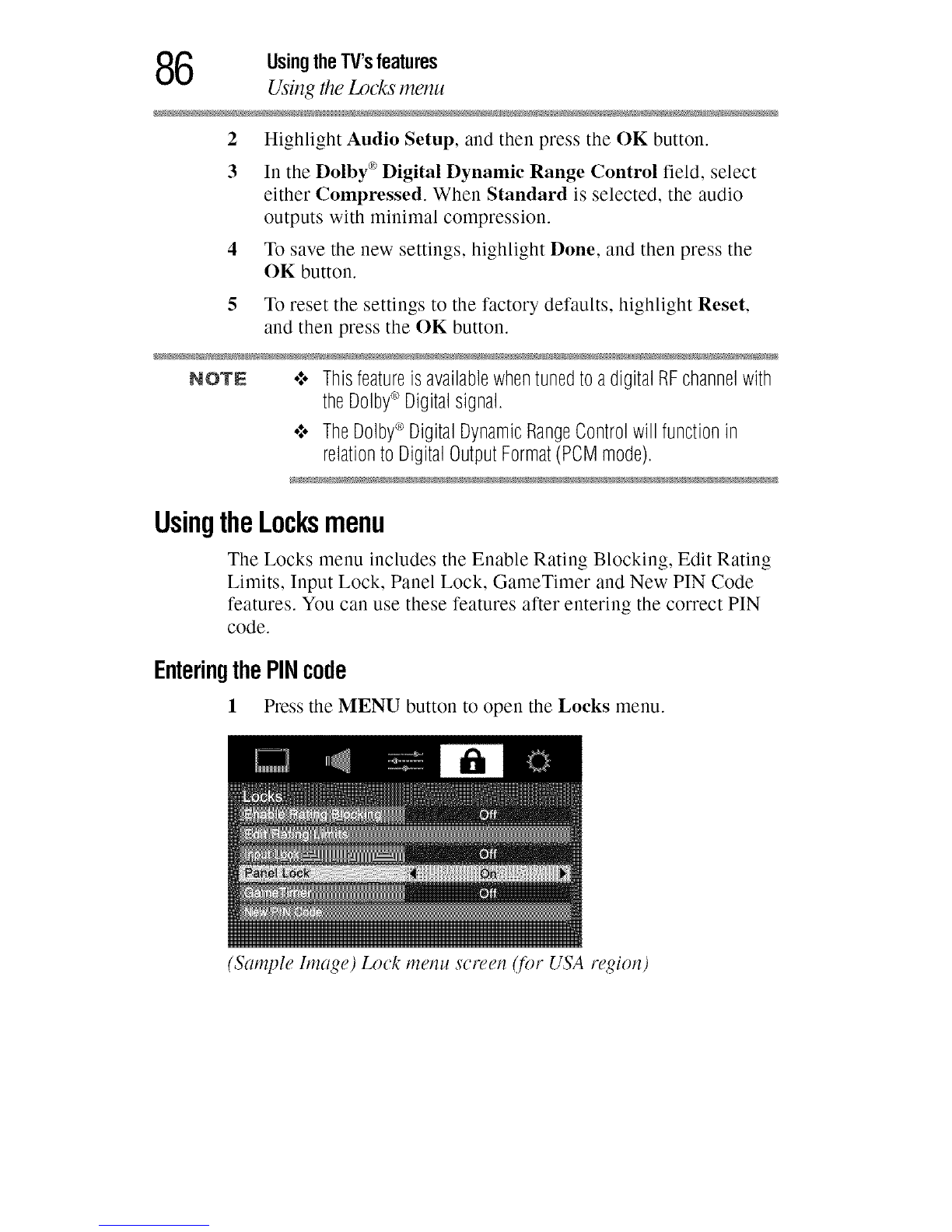

Using &e Locksmenu
2 Highlight Audio Setup, and then press tile OK button.
3 In tile Dolby _ Digital Dynamic Range Control field, select
either Compressed. When Standard is selected, tile audio
outputs with minimal compression.
4 To save tile new settings, highlight Done, and then press tile
OK button.
5 To reset the settings to the factory defaults, highlight Reset,
and then press tile OK button.
NOTE .:.Thisfeatureisavailablewhentunedtoa digitalRFchannelwith
theDolby_'_Digitalsignal.
¢ TheDolby_ DigitalDynamicRangeControlwillfunctionin
relationtoDigitalOutputFormat(PCMmode).
UsingtheLocksmenu
Tile Locks menu includes tile Enable Rating Blocking, Edit Rating
Limits, Input Lock, Panel Lock, GameTimer and New PIN Code
features. You can use these features after entering the correct PIN
code.
EnteringthePINcode
1Press tile MENU button to open tile Locks menu.
(Sample Image) Lock menu screen (fbr USA region)

UsingtheTV'sfeatures _'7
Using the I_cks menu
2 Press the (y arrow) button to display the PIN code entry
screen.
Tile Lock System screen appears if a PIN code has not been
stored.
(Sample Image) Lock menu -store PIN screen
3 Press tile Channel Number buttons to enter a new four-digit
code, enter tile code a second time to confirm, and then press
tile OK button.
Tile Locks/Active screen appears if tile PIN code is already
stored.
4 Use tile Number buttons to enter your four-digit code, and then
press tile OK button.
NOTE IfthewrongPINcodeisentered,themessage"IncorrectPINcode,
pleasetryagain!"appears.
5 Highlight Retry, and then press the OK button.
6 Enter tile code again, and then press tile OK button.
When tile correct PIN code is entered, tile Locks menu opens.
ForgottenPINcode
While tile PIN code entering screen is displayed, press tile INFO
button four times within five seconds. Tile PIN code will be cleared
and you can enter a new PIN code.
ChangingyourPINcode
1 Press tile MENU button to open tile Locks menu.
2 Press tile (y arrow) button to display tile PIN code entering
screen.
3 Enter your four-digit PIN code, and then press tile OK button.

8UsingtheTV'sfeatures
Using parental contivls qbr USA region)
4 Press the (y arrow) button to highlight New PIN Code, and
then press the OK button.
5Press the Number buttons to enter a new four-digit code.
Reenter the PIN code to confirm it.
6 Press the OK button.
The new PIN code is now active.
NOTE The PiNcodecannot besetto "0000."
Usingparentalcontrols(forUSAregion)
BlockingTVprogramsandmoviesbyrating(V-Chip)
Some TV programs and movies include signals that classify the
content of the program (as unsuitable for younger viewers). The
V-Chip feature in this TV detects the signals and blocks the
programs according to the ratings you select.
1 Press the MENU button to open the Locks menu.
2 Press the (y arrow) button to display the PIN code entering
screen.
3 Enter your four-digit PIN code, and then press the OK button.
4 Press the (y arrow) button to highlight Enable Rating
Blocking, and then press the OK button.
5Press the (_ arrow) button to select On.
(Sample h_zage) Locks menu -Enable Rating Blocking selection
(tbr USA region)
