SERVICE MANUAL
COLOR TELEVISION
FILE NO. 050-200203
24AF42
DOCUMENT CREATED IN JAPAN, Mar., 2002

The parts in this equipment have the specific
characters of incombustibility and withstand
voltage for safety. Therefore, the part which is
replaced should be used the part which has the
same character.
Especially as to the important parts for safety
which is indicated in the circuit diagram or the
table of parts as a mark, the designated parts
must be used.
SERVICING NOTICES ON CHECKING
6. AVOID AN X-RAY1. KEEP THE NOTICES
As for the places which need special attentions,
they are indicated with the labels or seals on the
cabinet, chassis and parts. Make sure to keep the
indications and notices in the operation manual.
2. AVOID AN ELECTRIC SHOCK
There is a high voltage part inside. Avoid an
electric shock while the electric current is flowing.
3. USE THE DESIGNATED PARTS
4. PUT PARTS AND WIRES IN THE
ORIGINAL POSITION AFTER
ASSEMBLING OR WIRING
There are parts which use the insulation material
such as a tube or tape for safety, or which are
assembled in the condition that these do not
contact with the printed board. The inside wiring is
designed not to get closer to the pyrogenic parts
and high voltage parts. Therefore, put these parts
in the original positions.
5. TAKE CARE TO DEAL WITH THE
CATHODE-RAY TUBE
In the condition that an explosion-proof cathode-
ray tube is set in this equipment, safety is secured
against implosion. However, when removing it or
serving from backward, it is dangerous to give a
shock. Take enough care to deal with it.
Safety is secured against an X-ray by consider-
ing about the cathode-ray tube and the high
voltage peripheral circuit, etc.
Therefore, when repairing the high voltage pe-
ripheral circuit, use the designated parts and
make sure not modify the circuit.
Repairing except indicates causes rising of high
voltage, and it emits an X-ray from the cathode-
ray tube.
7. PERFORM A SAFETY CHECK AFTER
SERVICING
Confirm that the screws, parts and wiring which
were removed in order to service are put in the
original positions, or whether there are the
portions which are deteriorated around the
serviced places serviced or not. Check the
insulation between the antenna terminal or
external metal and the AC cord plug blades.
And be sure the safety of that.
(INSULATION CHECK PROCEDURE)
1.
2.
3.
4.
Unplug the plug from the AC outlet.
Remove the antenna terminal on TV and turn
on the TV.
Insulation resistance between the cord plug
terminals and the eternal exposure metal
[Note 2] should be more than 1M ohm by
using the 500V insulation resistance meter
[Note 1].
If the insulation resistance is less than 1M
ohm, the inspection repair should be
required.
[Note 1]
If you have not the 500V insulation
resistance meter, use a Tester.
[Note 2]
External exposure metal: Antenna terminal
HOW TO ORDER PARTS
Please include the following informations when you order parts. (Particularly the VERSION LETTER.)
1. MODEL NUMBER and VERSION LETTER
The MODEL NUMBER can be found on the back of each product and the VERSION LETTER can be
found at the end of the SERIAL NUMBER.
2. PART NO. and DESCRIPTION
You can find it in your SERVICE MANUAL.
IMPORTANT
Inferior silicon grease can damage IC's and transistors.
When replacing an IC's or transistors, use only specified silicon grease (YG6260M).
Remove all old silicon before applying new silicon.
Licensed by BBE Sound, Inc. under USP4638258 and 4482866.
BBE and BBE symbol are registered trademarks of BBE
Sound, Inc.

GENERAL SPECIFICATIONS
G-1 TV CRT CRT Size / Visual Size 24 inch / 600mmV
System CRT Type Flat
Deflection 101 degree
Magnetic Field BV/BH +0.45G/0.18G
Color System NTSC
Speaker 2 Speaker
Position Front Side
Size 2 x 4.7 Inch
Impedance 8 ohm
Sound Output MAX 5.0+5.0 W
10%(Typical) 4.0+4.0 W
NTSC3.58+4.43 /PAL60Hz No
G-2 Tuning Broadcasting System US System M
System Tuner and System 1Tuner
Receive CH Destination Others
Tuning System F-Synth
Input Impedance VHF/UHF 75 ohm
2 - 69, 4A, A-5 - A-1,
CH Coverage A - I, J - W, W+1 - W+84
Intermediate Picture(FP) 45.75MHz
Frequency Sound(FS) 41.25MHz
FP-FS 4.50MHz
Preset CH No
Stereo/Dual TV Sound Yes
Tuner Sound Muting Yes
G-3 Power Power Source AC 120V AC 60Hz
DC
Power Consumption at AC 125 W at AC 120 V 60 Hz
Stand by (at AC) 4 W at AC 120 V 60 Hz
Per Year -- kWh/Year
Protector Power Fuse Yes
G-4 Regulation Safety CSA
Radiation Icon
X-Radiation WHC
G-5 Temperature Operation
+5
o
C
~
+40
o
C
Storage -
20
o
C
~
+60
o
C
G-6 Operating Humidity Less then 80% RH

GENERAL SPECIFICATIONS
G-7 On Screen Menu Yes
Display Menu Type Icon
Picture Yes
Contrast Yes
Brightness Yes
Color Yes
Tint Yes
Sharpness Yes
Sound Yes
Bass Yes
Treble Yes
Balance Yes
BBE On/Off Yes
Stable Sound On/Off Yes
Set Up Yes
TV/CATV Yes
Auto CH Memory Yes
Add/ Delete Yes
Option Yes
Language Yes
CH Label Yes
Favorite CH Yes
V-Chip No
Lock Yes
Color Stream DVD/DTV Yes
Control Level Yes
Volume Yes
Brightness Yes
Contrast Yes
Color Yes
Tint (NTSC Only) Yes
Sharpness Yes
Tuning No
Bass Yes
Treble Yes
Balance Yes
Back Light No
Stereo,Audio Output,SAP Yes
Video Yes
Color Stream Yes
Channel(TV/Cable) Yes
CH Label Yes
Game Timer Yes
Sleep Timer Yes
Sound Mute Yes
V-chip Rating No
G-8 OSD Language English French Spanish
OSD Language Setting English
G-9 Clock and Sleep Timer Max Time 120 Min
Timer Step 10 Min
On/Off Timer Program(On Tim / Off Tim) No
Wake Up Timer No
Timer Back-up (at Power Off Mode) more than -- Min Sec

GENERAL SPECIFICATIONS
G-10 Remote Unit RC-DU
Control Glow in Dark Remocon Yes
Format Toshiba
Custom Code TV:40-BFh
Power Source Voltage(D.C) 3V
UM size x pcs UM-4 x 2 pcs
Total Keys 42 Keys
Keys Power Yes
1 Yes
2 Yes
3 Yes
4 Yes
5 Yes
6 Yes
7 Yes
8 Yes
9 Yes
0 Yes
100 Yes
CH Up/+ Yes
CH Down/- Yes
Volume Up/+ Yes
Volume Down/- Yes
C.C.(TV/Caption/Text) Yes
CH1/CH2 Yes
TV/Video(Input Select) Yes
CH RTN(Quick View) Yes
SLEEP Yes
RECALL(Call) Yes
Reset Yes
Menu/Enter Yes
Mute Yes
Exit Yes
MTS(Audio Select) Yes
Fav. Up Yes
Fav. Down Yes
Multi Brand Keys CH Up(VCR) Yes
CH Down(VCR) Yes
Pause/Still Yes
TV/VCR(VCR) Yes
FF Yes
Rew Yes
Rec Yes
Play Yes
Stop Yes
TV Yes
VCR Yes
Cable Yes
CODE Yes
G-11 Features Auto Degauss Yes
Auto Shut Off Yes
Canal+ No
CATV Yes
Anti-theft No
Rental No
Memory(Last CH) Yes
Memory(Last Volume) Yes
V-Chip No
Type -- Type
BBE Yes
Auto Search No
CH Allocation No
SAP Yes
Just Clock Function No
CH Label Yes
VM Circuit Yes
Full OSD No
Premiere No
Comb Filter Yes
3 Lines
Auto CH Memory Yes
Hotel Lock No
Closed Caption Yes
Stable Sound Yes
FBT Leak Test Protect Yes
CH Lock Yes
Video Lock Yes
Game Timer Yes
Energy Star No
Favorite CH Yes

GENERAL SPECIFICATIONS
G-12 Accessories Owner's Manual Language English / French
W/ Warranty
Remote Control Unit Yes
Rod Antenna No
Poles
Terminal
Loop Antenna No
Terminal -
U/V Mixer No
DC Car Cord (Center+) No
Guarantee Card No
Warning Sheet No
Circuit Diagram No
Antenna Change Plug No
Service Station List Yes
Important Safety Instruction Yes
Dew/AHC Caution Sheet No
AC Plug Adapter No
Quick Set-up Sheet No
Battery Yes
UM size x pcs UM-4 x 2
OEM Brand No
AC Cord No
AV Cord (2Pin-1Pin) No
Registration Card (NDL Card) Yes
Envelope Yes No
ESP Card N
300 ohm to 75 ohm Antenna Adapter No
G-13 Interface Switch Front Power Yes
System Select No
Main Power SW No
Sub Power No
Channel Up Yes
Channel Down Yes
Volume Up Yes
Volume Down Yes
Rear AC/DC No
TV/CATV Selector No
Degauss No
Main Power SW No
Indicator Power Yes(RED)
Stand-by No
On Timer No
Terminals Front Video Input = VIDEO3 RCA
Audio Input = VIDEO3 RCA x 2
Other Terminal Head Phone
Rear Video Input(Rear1) = VIDEO1 RCA
Video Input(Rear2) = VIDEO2 RCA
Audio Input(Rear1) = VIDEO1 RCA x 2
Audio Input(Rear2) = VIDEO2 RCA x 2
Video Output RCA
Audio Output RCA x 2
Euro Scart No
Color Stream RCA x 3
S Input Yes
Diversity No
Ext Speaker No
DC Jack 12V(Center +) No
VHF/UHF Antenna Input F Type
AC Outlet No
G-14 Set Size Approx. W x D x H (mm) 670 x 471.5 x 509
G-15 Weight Net (Approx.) 33 kg
(
72.8 lbs
)
Gross (Approx.) 36.5 kg
(
80.5 lbs
)
G-16 Carton Master Carton No
Content ---- Sets
Material -- /--
Dimensions W x D x H(mm) -- x -- x --
Description of Origin No
Gift Box Yes
Material Double/Brown
Dimensions W x D x H(mm) 760 x 589 x 614
Design As per Buyer's
Description of Origin Yes
Drop Test Natural Dropping At 1
C
orner
/
3 Edges
/
6
Su
rf
aces
Height (cm) 31
Container Stuffing 180 Sets/40' container
G-17 Cabinet Material Cabinet Front PS 94V0 DECABROM
Cabinet Rear PS 94V0

1. REMOVAL OF ANODE CAP
Read the following NOTED items before starting work.
After turning the power off there might still be a potential
voltage that is very dangerous. When removing the
Anode Cap, make sure to discharge the Anode Cap's
potential voltage.
Do not use pliers to loosen or tighten the Anode Cap
terminal, this may cause the spring to be damaged.
*
*
REMOVAL

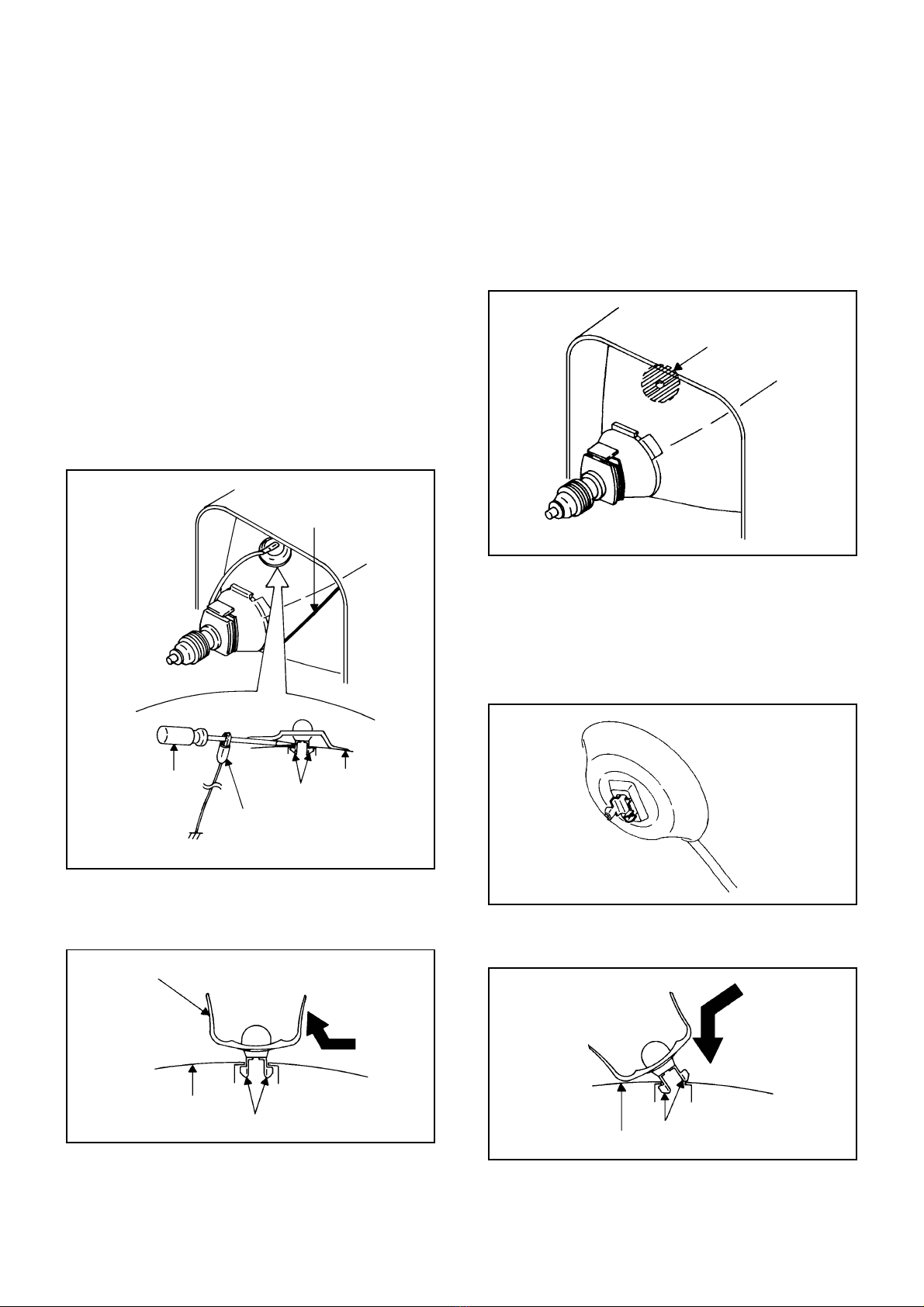

1. Follow the steps as follows to discharge the Anode Cap.
(Refer to Fig. 1-1.)
Connect one end of an Alligator Clip to the metal part of a
flat-blade screwdriver and the other end to ground.
While holding the plastic part of the insulated Screwdriver,
touch the support of the Anode with the tip of the
Screwdriver.
A cracking noise will be heard as the voltage is discharged.
Flip up the sides of the Rubber Cap in the direction of the
arrow and remove one side of the support.
(Refer to Fig. 1-2.)
2.
DISASSEMBLY INSTRUCTIONS
GND on the CRT
Screwdriver
Alligator Clip
Support CRT
GND on the CRT
Rubber Cap
CRT Support
Fig. 1-1
Fig. 1-2
3. After one side is removed, pull in the opposite direction to
remove the other.
NOTE
Take care not to damage the Rubber Cap.
INSTALLATION
1. Clean the spot where the cap was located with a small
amount of alcohol. (Refer to Fig. 1-3.)
Location of Anode Cap
Fig. 1-3
NOTE
Confirm that there is no dirt, dust, etc. at the spot where
the cap was located.
2.
3.
Arrange the wire of the Anode Cap and make sure the
wire is not twisted.
Turn over the Rubber Cap. (Refer to Fig. 1-4.)
Fig. 1-4
4. Insert one end of the Anode Support into the anode button,
then the other as shown in Fig. 1-5.
5.
6. Confirm that the Support is securely connected. Put on the Rubber Cap without moving any parts.
CRT Support Fig. 1-5

Masking Tape
(Cotton Tape)

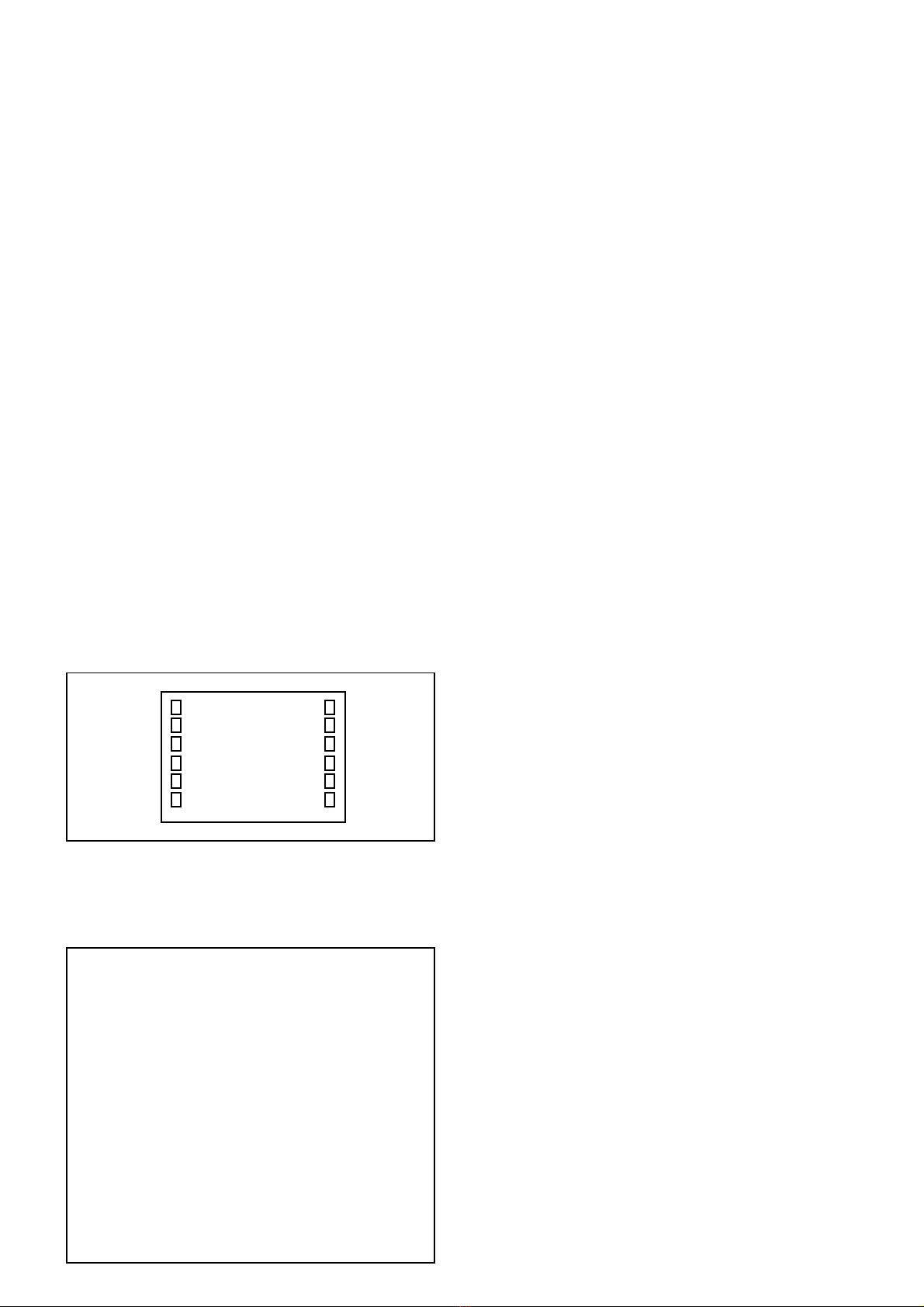

DISASSEMBLY INSTRUCTIONS
2.
REMOVAL
IC
Put the Masking Tape (cotton tape) around the Flat
Package IC to protect other parts from any damage.
(Refer to Fig. 2-1.)
1.
Fig. 2-1
NOTE

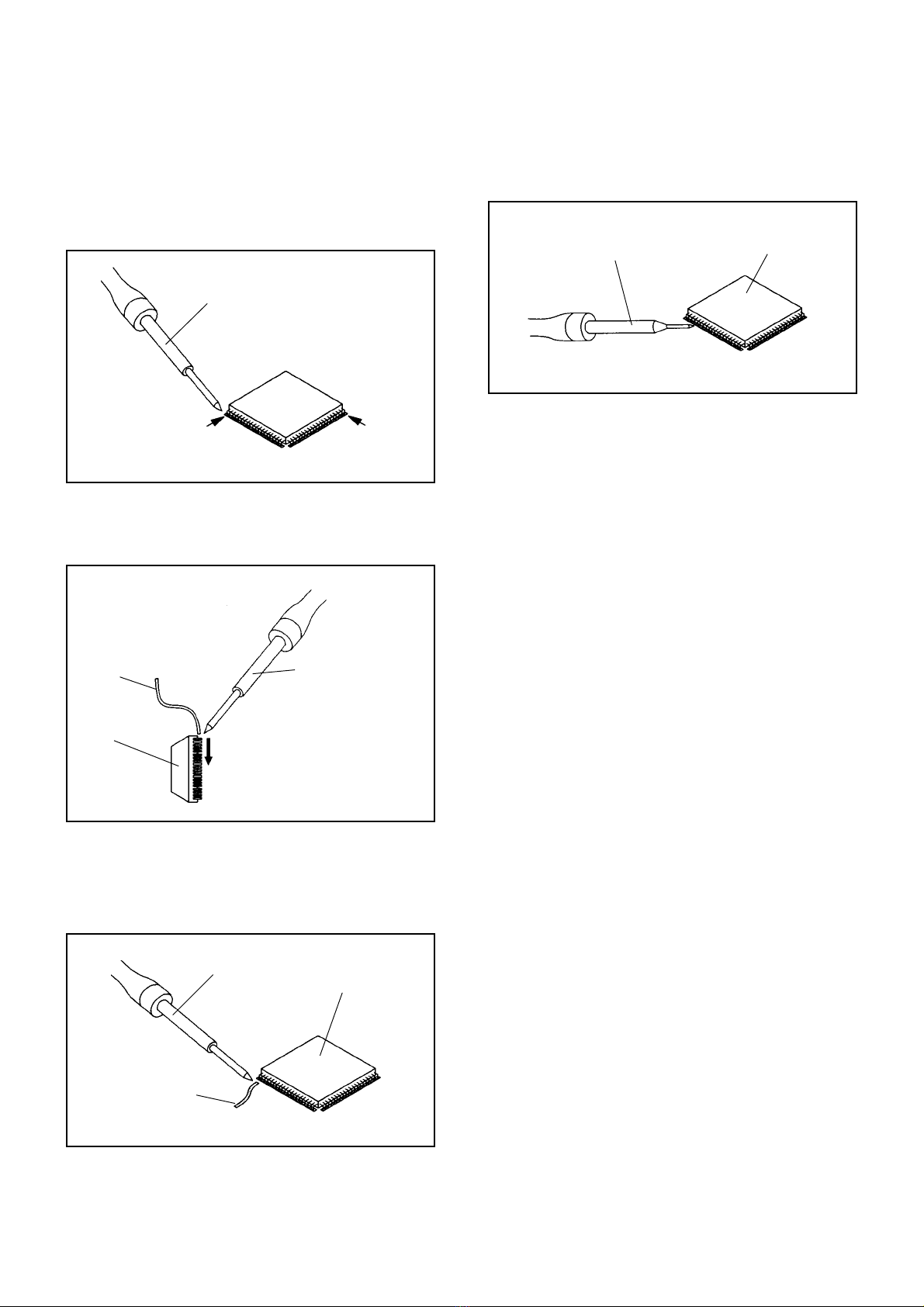

REMOVAL AND INSTALLATION OF
FLAT PACKAGE IC
Some ICs on the PCB are affixed with glue, so be
careful not to break or damage the foil of each IC
leads or solder lands under the IC when removing it.
NOTE
Masking is carried out on all the parts located within
10 mm distance from IC leads.
Blower type IC
desoldering machine
IC
Heat the IC leads using a blower type IC desoldering
machine. (Refer to Fig. 2-2.)
2.
Fig. 2-2
NOTE
Do not add the rotating and the back and forth
directions force on the IC, until IC can move back and
forth easily after desoldering the IC leads completely.
When IC starts moving back and forth easily after
desoldering completely, pickup the corner of the IC using
a tweezers and remove the IC by moving with the IC
desoldering machine. (Refer to Fig. 2-3.)
3.
Blower type IC
desoldering
machine
IC Fig. 2-3
Tweezers
Peel off the Masking Tape.4.
Absorb the solder left on the pattern using the Braided
Shield Wire. (Refer to Fig. 2-4.)
5.
NOTE
Do not move the Braided Shield Wire in the vertical
direction towards the IC pattern.
Braided Shield Wire
Soldering Iron
Fig. 2-4
IC pattern

DISASSEMBLY INSTRUCTIONS
Supply soldering
from upper position
to lower position
IC
Supply the solder from the upper position of IC leads
sliding to the lower position of the IC leads.
(Refer to Fig. 2-6.)
2.
Fig. 2-6
Soldering IronSolder
IC
Absorb the solder left on the lead using the Braided
Shield Wire. (Refer to Fig. 2-7.)
3.
Fig. 2-7
Soldering Iron
Braided Shield Wire
NOTE
Do not absorb the solder to excess.
IC
When bridge-soldering between terminals and/or the
soldering amount are not enough, resolder using a Thin-
tip Soldering Iron. (Refer to Fig. 2-8.)
4.
Fig. 2-8
Thin-tip Soldering Iron
NOTE
When the IC leads are bent during soldering and/or
repairing, do not repair the bending of leads. If the
bending of leads are repaired, the pattern may be
damaged. So, be always sure to replace the IC in this
case.
Finally, confirm the soldering status on four sides of the
IC using a magnifying glass.
Confirm that no abnormality is found on the soldering
position and installation position of the parts around the
IC. If some abnormality is found, correct by resoldering.
5.
Solder temporarily
Soldering Iron
INSTALLATION
Take care of the polarity of new IC and then install the
new IC fitting on the printed circuit pattern. Then solder
each lead on the diagonal positions of IC temporarily.
(Refer to Fig. 2-5.)
1.
Fig. 2-5
Solder temporarily

A1 C3 CF 00 31 B3 27 36 (*1) 00
+0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +A +B +C +D +E +F
INI
0F 00 00 00 00 00 00 00 0010 00 00 00 0F 96 45 45
00 44 04 0A 0A 0A 3F
20 60 64 68 69 6A 6B 6C 6D20 40 6E 6F 6F 70 70 71
71 72 73 73 73 74 74 74 7530 72 75 75 76 76 76 77
77 77 78 78 78 78 79 79 7940 77 79 7A 7A 7A 7B 7B
7B 7C 7C 7C 7D 7D 7D 7D 7E50 7C 7E 7E 7E 7F 7F 7F
SERVICE MODE LIST
This unit provided with the following SERVICE MODES so you can repair, examine and adjust easily.
To enter the Service Mode, press both set key and remote control key for more than 1 second.
Set Key Remocon Key Operations
VOL. (-) MIN 0Releasing of V-CHIP PASSWORD.
VOL. (-) MIN 1
Initialization of the factory.
NOTE: Do not use this for the normal servicing.
If you set a factory initialization, the memories are reset such as the
channel setting, and the POWER ON total hours.
VOL. (-) MIN 6
POWER ON total hours is displayed on the screen.
Refer to the "CONFIRMATION OF HOURS USED".
Can be checked of the INITIAL DATA of MEMORY IC.
Refer to the "WHEN REPLACING EEPROM (MEMORY) IC".
VOL. (-) MIN 8 Writing of EEPROM initial data.
NOTE: Do not use this for the normal servicing.
VOL. (-) MIN Display of the Adjustment MENU on the screen.
Refer to the "ELECTRICAL ADJUSTMENT" (On-Screen Display Adjustment).
9
CONFIRMATION OF HOURS USED
POWER ON total hours can be checked on the screen. Total hours are displayed in 16 system of notation.
NOTE: If you set a factory initialization, the total hours is reset to "0".
1.
2.
3.
Set the VOLUME to minimum.
Press both VOL. DOWN button on the set and Channel
button (6) on the remote control for more than 1 second.
After the confirmation of using hours, turn off the power.
WHEN REPLACING EEPROM (MEMORY) IC
If a service repair is undertaken where it has been required to change the MEMORY IC, the following steps should be taken to
ensure correct data settings while making reference to TABLE 1.
Table 1
1.
2.
3.
4.
5.
6.
7.
8.
The unit will now have the correct DATA for the new MEMORY IC.
Enter DATA SET mode by setting VOLUME to minimum.
Press both VOL. DOWN button on the set and Channel button (6) on the remote control for more than 1 second.
ADDRESS and DATA should appear as FIG 1.
ADDRESS is now selected and should "blink". Using the VOL. UP/DOWN button on the remote, step through the
ADDRESS until required ADDRESS to be changed is reached.
Press ENTER to select DATA. When DATA is selected, it will "blink".
Again, step through the DATA using VOL. UP/DOWN button until required DATA value has been selected.
Pressing ENTER will take you back to ADDRESS for further selection if necessary.
Repeat steps 3 to 6 until all data has been checked.
When satisfied correct DATA has been entered, turn POWER off (return to STANDBY MODE) to finish DATA input.
ADDRESS DATA
INIT 00 A1
CRT ON 0010
FIG. 1
Initial setting content of MEMORY IC.
POWER ON total hours.
= (16 x 16 x 16 x thousands digit value)
+ (16 x 16 x hundreds digit value)
+ (16 x tens digit value)
+ (ones digit value)
(*1)
3F
Data
3EFor CANADA
For USA

ELECTRICAL ADJUSTMENTS
1. ADJUSTMENT PROCEDURE
Read and perform these adjustments when repairing the
circuits or replacing electrical parts or PCB assemblies.
CAUTION
•
•
•
•
Use an isolation transformer when performing any
service on this chassis.
Before removing the anode cap, discharge electricity
because it contains high voltage.
When removing a PCB or related component, after
unfastening or changing a wire, be sure to put the wire
back in its original position.
When you exchange IC and Transistor for a heat sink,
apply the silicon grease on the contact section of the
heat sink. Before applying new silicon grease, remove
all the old silicon grease. (Old grease may cause
damages to the IC and Transistor.)
2. BASIC ADJUSTMENTS
Prepare the following measurement tools for electrical
adjustments.
2-1: CONSTANT VOLTAGE
1.
2.
3.
Set condition is AV MODE without signal.
Connect the digital voltmeter to the TP002.
Adjust the VR502 until the DC voltage is 115 ±1V.
2-2: RF AGC
1.
2.
3.
4.
5.
Place the set with Aging Test for more than 15 minutes.
Receive the VHF HIGH (63dB).
Connect the digital voltmeter between the pin 5 of
CP101 and the pin 1 (GND) of CP101.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (02) on the remote control to
select “RF AGC”.
Press the VOL. UP/DOWN button on the remote control
until the digital voltmeter is 2.2 ±0.05V.
2-3: CUT OFF
1.
2.
3.
4.
5.
Adjust the unit to the following settings.
G. DRIVE=64, B. DRIVE=64, R. BIAS=64, G. BIAS=64,
B. BIAS=64
Place the set with Aging Test for more than 15 minutes.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (01) on the remote control to
select “CUT OFF”.
Adjust the Screen Volume until a dim raster is obtained.
2-5: FOCUS
1.
2.
3.
Receive the monoscope pattern.
Turn the Focus Volume fully counterclockwise once.
Adjust the Focus Volume until picture is distinct.
2-4: WHITE BALANCE
NOTE: Adjust after performing CUT OFF adjustment.
1.
2.
3.
4.
5.
6.
7.
Place the set with Aging Test for more than 10 minutes.
Receive the gray scale pattern from the Pattern Generator.
Using the remote control, set the brightness and contrast
to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (13) on the remote control to
select “R. BIAS”.
Press the CH. UP/DOWN button on the remote control to
select the “R. BIAS”, “G. BIAS”, “B. BIAS”, “B. DRIVE” or
“G. DRIVE”.
Adjust the VOL. UP/DOWN button on the remote control
to whiten the R. BIAS, G. BIAS, B. BIAS, B. DRIVE, and
G. DRIVE at each step tone sections equally.
Perform the above adjustments 5 and 6 until the white
color is looked like a white.
1. Oscilloscope
2. Digital Voltmeter
3. Multi-sound Generator
4. Pattern Generator
On-Screen Display Adjustment
1. In the condition of NO indication on the screen.
Press the VOL. DOWN button on the set and the
Channel button (9) on the remote control for more than 1
second to appear the adjustment mode on the screen as
shown in Fig. 1-1.
Fig. 1-1
TV
00 OSD 15
3.
4.
Use the Channel UP/DOWN button or Channel button
(0-9) on the remote control to select the options shown
in Fig. 1-2.
Press the MENU button on the remote control to end the
adjustments.
Fig. 1-2
NO.
00
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
FUNCTION
OSD H
CUT OFF
RF.AGC
---
H.POSI
V.POSI
H.SIZE
V.SIZE
V.CENT
V.LIN
VS CORR
G.DRV
B.DRV
R.BIAS
G.BIAS
B.BIAS
BRI.CENT
SUB CONT
CONT.MAX
CONT.CENT
CONT.MIN
NO.
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
88
FUNCTION
BRI.MAX
BRI.MIN
COL.MAX
COL.CENT
COL.MIN
TINT
SHARPNESS
RGB CONTRAST
PARABORA
TRAPEZIU
COR TOP
COR BTM
V EHT
H EHT
FM.LVL
LEVEL
SEP 1
SEP 2
T.STE
X-RAY
READ DATA
2-6: HORIZONTAL POSITION
1.
2.
3.
4.
Receive the monoscope pattern.
Using the remote control, set the brightness and contrast
to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (04) on the remote control to
select “H. POSI”.
Press the VOL. UP/DOWN button on the remote control
until the SHIFT quantity of the OVER SCAN on right and
left becomes minimum.

ELECTRICAL ADJUSTMENTS
2-9: VERTICAL SIZE
1.
2.
3.
4.
Receive the monoscope pattern.
Using the remote control, set the brightness and contrast
to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (07) on the remote control to
select “V. SIZE”.
Press the VOL. UP/DOWN button on the remote control
until the SHIFT quantity of the OVER SCAN on upside
and downside becomes 9 ±2%.
2-8: VERTICAL POSITION
1.
2.
3.
4.
Receive the monoscope pattern.
Using the remote control, set the brightness and contrast
to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (05) on the remote control to
select “V. POSI”.
Press the VOL. UP/DOWN button on the remote control
until the horizontal line becomes fit to the notch of the
shadow mask.
2-11: SUB BRIGHTNESS
1.
2.
3.
4.
5.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (16) on the remote control to
select “BRI. CENT”.
Press the VOL. UP/DOWN button on the remote control
until the brightness step No. becomes “50”.
Receive a broadcast and check if the picture is normal.
Press the INPUT button on the remote control to set to
the AV mode. Then perform the above adjustments 1~3.
Press the INPUT button on the remote control to set to
the CS mode. Then perform the above adjustments 1~3.
2-10: VERTICAL LINEARITY
NOTE: Adjust after performing adjustments in section 2-9.
After the adjustment of Vertical Linearity, reconfirm
the Vertical Position and Vertical Size adjustments.
Receive the monoscope pattern.
Using the remote control, set the brightness and contrast
to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (09) on the remote control to
select “V. LIN”.
Press the VOL. UP/DOWN button on the remote control
until the SHIFT quantity of the OVER SCAN on upside
and downside becomes minimum.
1.
2.
3.
4.
2-7: HORIZONTAL SIZE
1.
2.
3.
4.
Receive the monoscope pattern.
Using the remote control, set the brightness and contrast
to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (06) on the remote control to
select “H. SIZE”.
Press the VOL. UP/DOWN button on the remote control
until the SHIFT quantity of the OVER SCAN on right and
left becomes 11 ±1%.
2-12: TINT/COLOR CENT
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14
15.
16.
Fig. 2-1
Receive the color bar pattern. (RF Input)
Connect the oscilloscope to TP806.
Using the remote control, set the brightness, contrast,
color and tint to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (26) on the remote control to
select “TINT”.
Press the VOL. UP/DOWN button on the remote control
until the section “A” becomes a straight line
(Refer to Fig. 2-1).
Connect the oscilloscope to TP804.
Press the CH DOWN button 2 times to set to “COL.
CENT” mode.
Adjust the VOLTS RANGE VARIABLE knob of the
oscilloscope until the range between white 100% and
0% is set to 4.4 scales on the screen of the oscilloscope.
Press the VOL. UP/DOWN button on the remote control
until the red color level is adjusted to 115 ±10% of the
white level. (Refer to Fig. 2-2)
Receive the color bar pattern. (Audio Video Input)
Press the INPUT button on the remote control to set
to the AV mode. Then perform the above adjustments
2~9.
Press the INPUT button on the remote control to set to
the CS mode.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (26) on the remote control to
select “TINT”.
Press the VOL. UP/DOWN button on the remote control
until the tint step No. becomes “50”.
Press the CH DOWN button 2 times to set to
“COL.CENT” mode.
Press the VOL. UP/DOWN button on the remote control
until the color step No. becomes “62”.
“A”
Fig. 2-2
White 100% RED Level
100%

ELECTRICAL ADJUSTMENTS
2-13: CONTRAST MAX MANUAL
1.
2.
3.
4.
5.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (18) on the remote control to
select “CONT. MAX”.
Press the VOL. UP/DOWN button on the remote
control until the contrast step No. becomes “85”.
Receive a broadcast and check if the picture is normal.
Press the INPUT button on the remote control to set
to the AV mode. Then perform the above adjustments
1~3.
Press the INPUT button on the remote control to set
to the CS mode. Then perform the above adjustments
1~3.
2-16: OSD HORIZONTAL
1.
2. Activate the adjustment mode display of Fig. 1-1. Press the VOL. UP/DOWN button on the remote control
until the difference ofAand B becomes minimum.
(Refer to Fig. 2-3)
Fig. 2-3
TV
00 OSD 15
AB
2-14: SEPARATION 1, 2
Please do the method (1) or method (2) adjustment.
Method (1)
1.
2.
3.
4.
5.
Set the multi-sound signal generator for each different L-
ch and R-ch frequency (Ex. L-ch=2KHz, R-ch=400Hz)
and receive the RF.
Connect the oscilloscope to the Audio Out Jack.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (37) on the remote control to
select “SEP 1”.
Press the VOL. UP/DOWN button on the remote control
to adjust it until the audio output wave becomes a fine
sine wave.
Press the CH UP button once the set to “SEP 2” mode.
Then perform the above adjustment 4.
Method (2)
1.
2.
3.
4.
5.
6.
7.
8.
9.
Set the multi-sound signal generator L-ch=1KHz, R-ch
=Non input and receive the RF.
Connect the oscilloscope to the Audio Out Jack (R-ch).
Press the AUDIO SELECT button on the remote control
to set to the stereo mode.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (37) on the remote control to
select “SEP 1”.
Press the VOL. UP/DOWN button on the remote control
to adjust it until the R-ch output becomes minimum.
Set the multi-sound signal generator L-ch=Non input,
R-ch=1KHz and receive the RF.
Connect the oscilloscope to the Audio Out Jack (L-ch).
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (38) on the remote control to
select “SEP 2”.
Press the VOL. UP/DOWN button on the remote control
to adjust it until the L-ch output becomes minimum.
2-17: CORNER CORR TOP
1.
2.
3.
4.
Receive the crosshatch signal from the Pattern Generator.
Using the remote control, set the brightness and contrast
to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (31) on the remote control to
select “COR TOP”.
Press the VOL. UP/DOWN button on the remote control
until the upper section of the both ends vertical lines are
straight.
2-18: CORNER CORR BOTTOM
1.
2.
3.
4.
Receive the crosshatch signal from the Pattern Generator.
Using the remote control, set the brightness and contrast
to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (32) on the remote control to
select “COR BTM”.
Press the VOL. UP/DOWN button on the remote control
until the bottom section of the both ends vertical lines are
straight.
2-19: TRAPEZIUM
1.
2.
3.
4.
Receive the crosshatch signal from the Pattern Generator.
Using the remote control, set the brightness and contrast
to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (30) on the remote control to
select “TRAPEZIU”.
Press the VOL. UP/DOWN button on the remote control
until the both vertical lines of the screen become parallel.
2-20: PARABOLA
1.
2.
3.
4.
Receive the crosshatch signal from the Pattern Generator.
Using the remote control, set the brightness and contrast
to normal position.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (29) on the remote control to
select “PARABOLA”.
Press the VOL. UP/DOWN button on the remote control
until the right and left vertical lines are straight.
2-15: LEVEL
1.
2.
3.
4.
Receive the monoscope pattern (70dB).
Connect the AC voltmeter to pin 6 of CP101 and the pin
1 (GND) of CP101.
Activate the adjustment mode display of Fig. 1-1 and
press the channel button (36) on the remote control to
select “LEVEL”.
Press the VOL. UP/DOWN button on the remote control
until the AC voltmeter is 75 ±2mV.

ELECTRICAL ADJUSTMENTS
3. PURITY AND CONVERGENCE
ADJUSTMENTS
NOTE
1.
2.
3.
Turn the unit on and let it warm up for at least 30
minutes before performing the following adjustments.
Place the CRT surface facing east or west to reduce the
terrestrial magnetism.
Turn ON the unit and demagnetize with a Degauss Coil.
3-1: STATIC CONVERGENCE (ROUGH ADJUSTMENT)
1.
2.
3.
4.
5.
6.
7.
8.
Tighten the screw for the magnet. Refer to the adjusted
CRT for the position. (Refer to Fig. 3-1)
If the deflection yoke and magnet are in one body,
untighten the screw for the body.
Receive the green raster pattern from the color bar
generator.
Slide the deflection yoke until it touches the funnel side
of the CRT.
Adjust center of screen to green, with red and blue on
the sides, using the pair of purity magnets.
Switch the color bar generator from the green raster
pattern to the crosshatch pattern.
Combine red and blue of the 3 color crosshatch
pattern on the center of the screen by adjusting the pair
of 4 pole magnets.
Combine red/blue (magenta) and green by adjusting the
pair of 6 pole magnets.
Adjust the crosshatch pattern to change to white by
repeating steps 6 and 7.
3-2: PURITY
NOTE
Adjust after performing adjustments in section 3-1.
1.
2.
3.
4.
5.
Receive the green raster pattern from color bar generator.
Adjust the pair of purity magnets to center the color on
the screen.
Adjust the pair of purity magnets so the color at the ends
are equally wide.
Move the deflection yoke backward (to neck side)
slowly, and stop it at the position when the whole screen
is green.
Confirm red and blue color.
Adjust the slant of the deflection yoke while watching the
screen, then tighten the fixing screw.

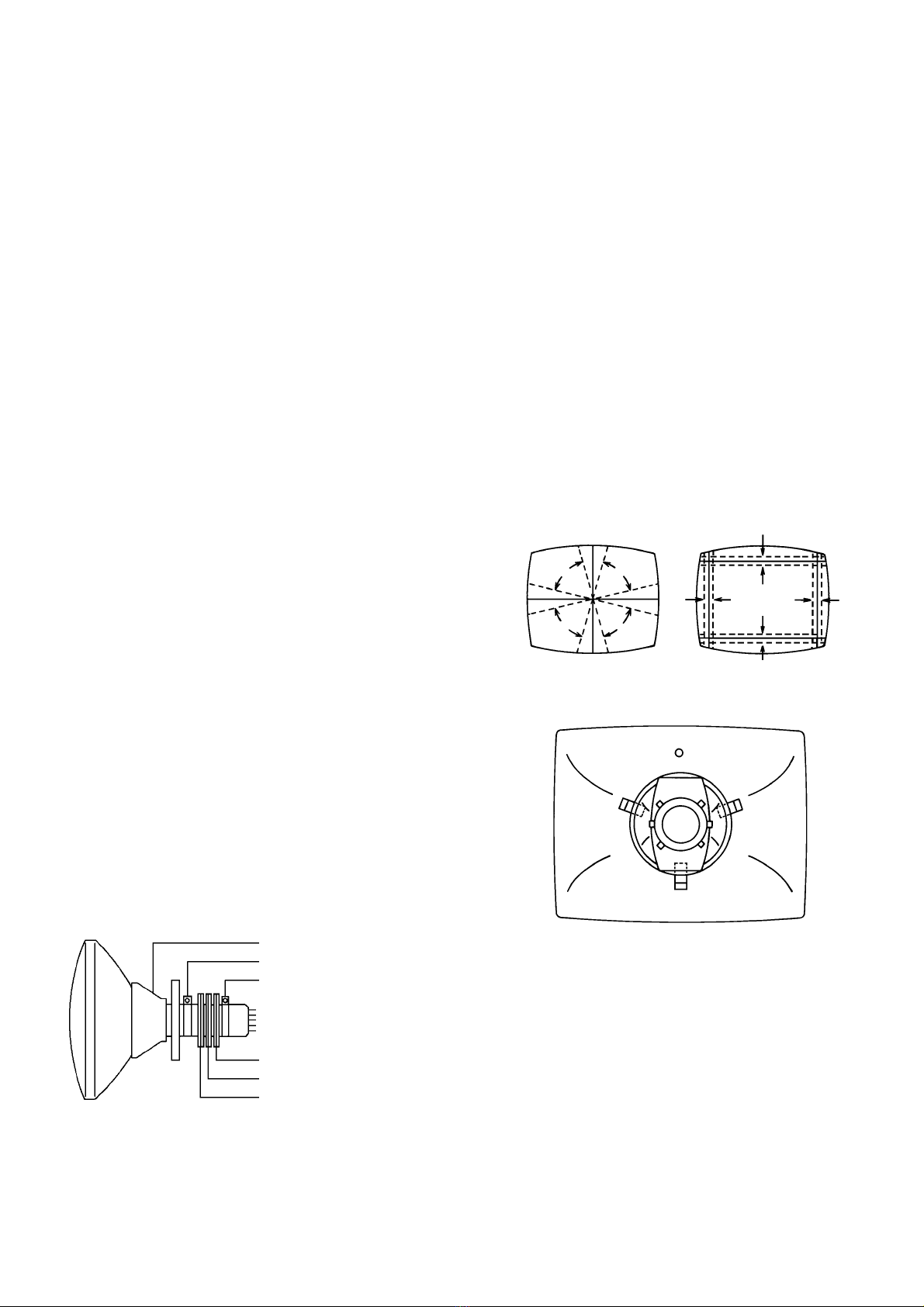

DEFLECTION YOKE
DEFLECTION YOKE SCREW
MAGNET SCREW
PURITY MAGNETS
6 POLE MAGNETS
4 POLE MAGNETS
Fig. 3-1
3-3: STATIC CONVERGENCE
NOTE
Adjust after performing adjustments in section 3-2.
1.
2.
3.
Receive the crosshatch pattern from the color bar
generator.
Combine red and blue of the 3 color crosshatch
pattern on the center of the screen by adjusting the pair
of 4 pole magnets.
Combine red/blue (magenta) and green by adjusting the
pair of 6 pole magnets.
3-4: DYNAMIC CONVERGENCE
NOTE
Adjust after performing adjustments in section 3-3.
1.
2.
Adjust the differences around the screen by moving the
deflection yoke upward/downward and right/left.
(Refer to Fig. 3-2-a)
Insert three wedges between the deflection yoke and
CRT funnel to fix the deflection yoke.
(Refer to Fig. 3-2-b)
R G B
R
G
BR
G
B
R G B
UPWARD/DOWNWARD SLANT RIGHT/LEFT SLANT
Fig. 3-2-a
WEDGE WEDGE
WEDGE
WEDGE POSITION
Fig. 3-2-b

ELECTRICAL ADJUSTMENTS

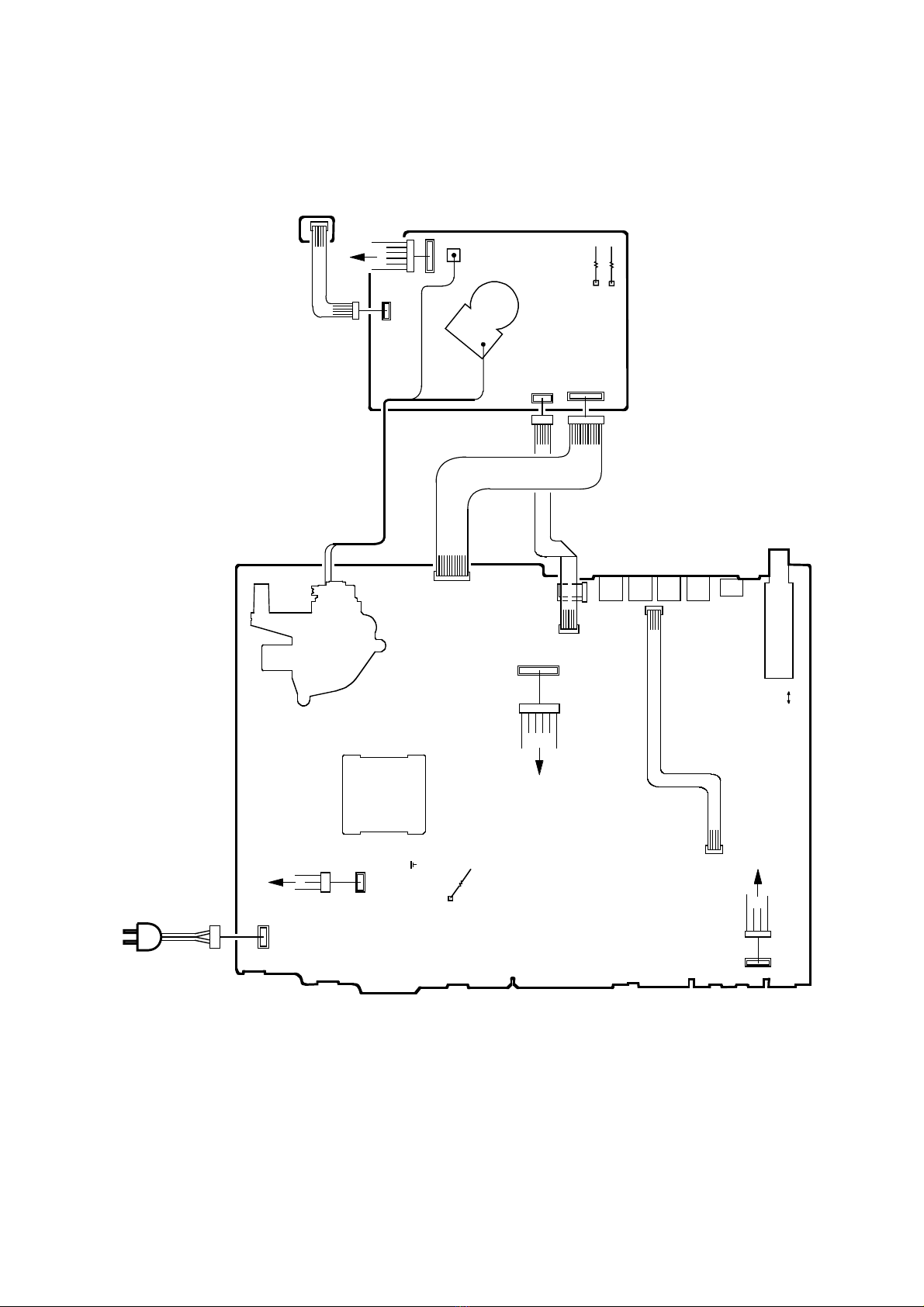

4. ELECTRICAL ADJUSTMENT PARTS LOCATION GUIDE (WIRING CONNECTION)
CP803
CP804
TP806 TP804
R808
R804
CP852
CP801_1
CP851_1
J801
CP401
CP851A
TP002
CP801A
T501
VR502
TU001
CD701A
J702 J701 J703 J708
CD701B
CP1001
W169
R527
CP101
J704
FB401
CP501
CD801
CD851
CP852B
CD803
CRT
CRT
SPEAKER
CD1001
L503 CP502
CRT
VM COIL PCB CRT PCB
MAIN PCB
AC IN CD501
CD852

TU001
MICON
IC101 OEC7074A
CHROMA IC
IC201 TB1253N
SOUND DECORDER
IC902
AN5829S
AV SWITCH
IC701
MM1311AD
SOUND AMP
IC1001
AN5276
BBE
IC301
NJM2150AM
CRT
V801
V.OUTPUT
IC401
LA78041
FBT
FB401
CRT DRIVE
R
L
R
G
B
+14V
SOUND+B
+B
SPEAKER
SP1001 SPEAKER SP1002
LINE1
TONE CONTROL
IC303
M62420SP
HEAD
PHONE JACK
J1001
COMB FILTER
IC1501
LA76600M-TLM
+180V
+25V
LINE3
LINE2
YUV IN
Y
S INPUT
IF
11 SCL
4
SDA
5
30
31 SCL SDA
SCL
24
SDA
25
18 19
18
17
12 7
2 5
14 7
20 1
14 7
19 2
24 23
21 22
30
32
31
25
22
20
27 29
9
3
5
2
4
1
7
14 15 13 810
Y
C
L
R
V
9
15
35
T501
18
16
34 28 16 15 14 42 47 55
38
31
8
6
11
51
14
4
6
3
HV
1
79
F10
S
1
5
6
R
G
B
DY
7F10 LRVLRV
V OUT
FBP IN
H OUT
ABCL
B OUT
G OUT R OUT
C IN
CVBSLNT IN IF DET OUT
IF IN
IF IN
9
10 SCL
SDA
SCL
SDA
43 44
YUV IN
H. OUT
Q402
Q405

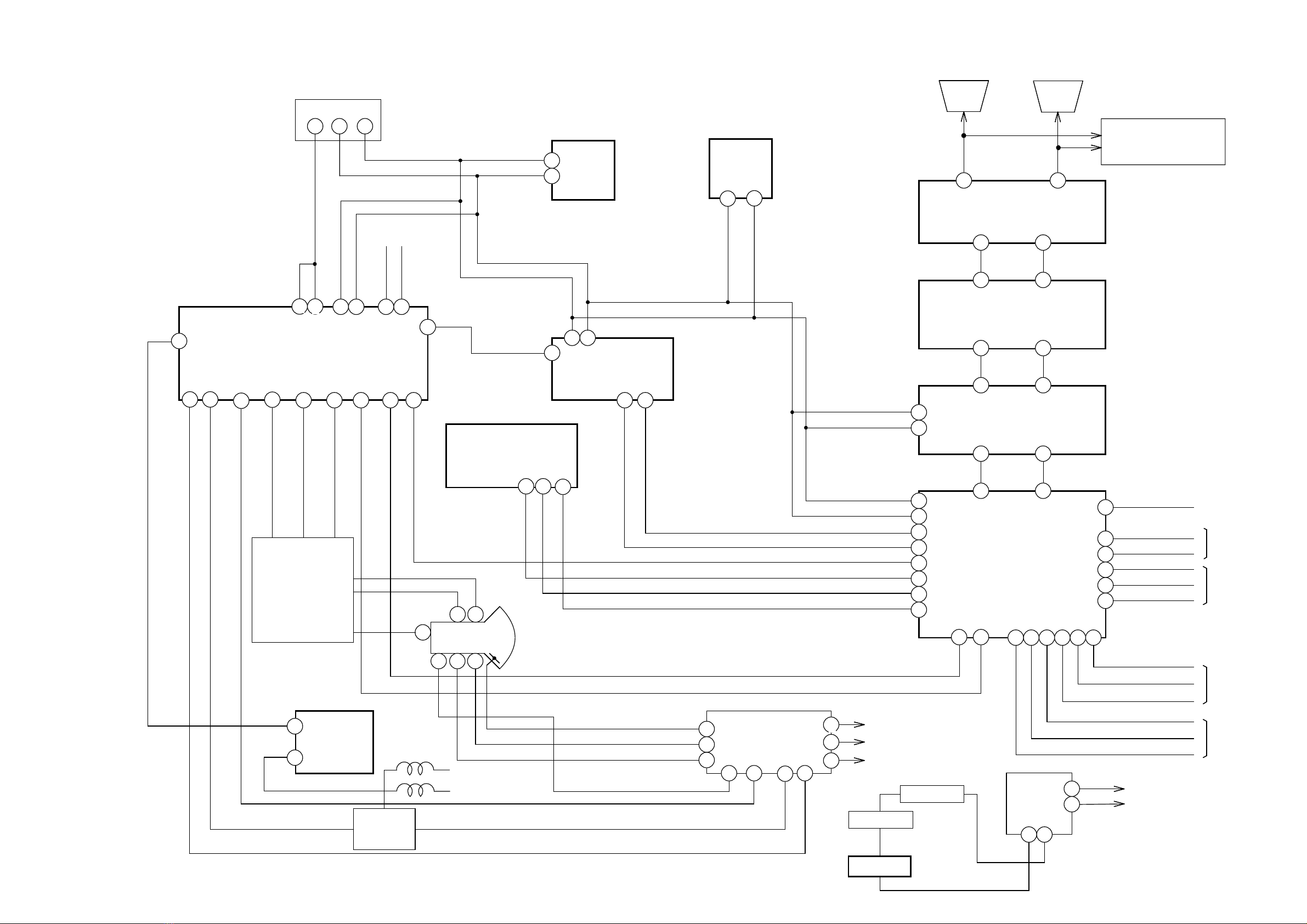

BLOCK DIAGRAM
SWITCHING
Q502
SWITCHING
Q514
IC504
LTV-817M-VB
FEED BACK
7
3
MEMORY IC
IC198
S-24C16AFJA-TB-01
56
SCL
SDA

D406
R430
C408
R429 R433
R416
R413
R420
CP401
W065
CP851A
R426
TP004
TP002
R443
R437
C417
R441
R436
C402
R414
R428
W031
C411
W001
C427
IC401 Q405
C415
R432
R438
L402
R439
C426
C420_1
D404
W091
D415
SW102SW101SW104
SW103
C123
SW105
CP801A
Q402
R410_1
D405
W073
W007
W011
D605
D410
D403
W030
W077
R452_1
D414 W008
Q508
R541_1
Q502
T501
R540
R539
R519 W043
W018
C517
C512
W002
R501
R527
W017
D519
W016
W047
R512
R520
Q510
R535
C539
R536
C531
D511
C518
D514
C501
C516
Q512
R521
R522
C532
C530
C528
D512
C527_1
C521
D510
B504
Q501
B501
C509
D509
D523
Q514
D506
C535
RY501
C506
CP502
IC504
D503
D504
C507_1
D502
D501
R518
L501
FH502
C505 F501 FH501
TH501_1
R500
C502
C503
D528
D513
R515
Q504
D516
R508
Q507
R553
C533
R554
VR502
HS502 IC502
IC503
W042
D517
D520
D505
W044
W021
Q503
R505
Q505
R001
R002
W026
R137
D108
W128
R112
R106
W035
C118
R128
W040
W151
D107
D102
R142
C122
W150
C117
W147
X101
C111
D103
IC103
W025
W024
R537
W058
W041
W045
W056
W060
W059
W104
R442
W046
W067
W055
W053
W057
W033
W118
W152
W061
W039
D515
W037
C439
R454
C741
W116
R638
W052
W051
W822
W062
W156
W146
W148
W149
W153
TU001
IC701
W159
C003
W162
W161
C735
IC1001
HS1001
W163
W081
W090
L204
CF203
CF201
X601
IC201
L203
W165
W178
W177
W075
W076
W164
W069
W109
W166
R734
W137
W103
C624
C625
W082
W083
W158
W167
D617
W839
W170
L604
L603
L703
L002
W168
C619
W172
W160
CD701A
W099
L201
R221
D711
J702
J701 J703 J708
C1009
C1011_1
C1008
C004
C1003_1
C747
C711
C1007
L701
W093 W092
C715
W066
W078
C204
C211
W063
W176
W174
L1512
L1510
W115
C1525
W084
W068
W085
W105
R517
W071
W080
W110
W107
D614
D613
D611
D608
W102
W100
W101
W106
W139
W135
W142
W096
W173
W175
W094
W140
W138
W141
W126
W129 W131 W133
R1521
L1511
C311
C313
R631
D615
D612
D606
C608
C604
C216
C214
C616
CD701B
W188
L602
D201
L205
L601
W183
R608
C640
W143
L302
L901
C304
C305
C924
C303
C213
C329
C328
W181
W180
W179
W193
W191
W119
C917
C918
C919
C925
W192
C725
C724
CP1001
R1002
R1001
R330
R335
C314
C312
C310 R326
IC303
W186
W187
C612
J707 J706 J705
C1501
C1502
L1503
C1518
C1510
L1505
W155
L301
C704
W144
W145
W834
W154
W124
W127
W125
W189
W022
W029
W169
W136
W182
W157
D109
C413
W184
W070
W048
C1528
C733 C326
C1001
C1002
C406
C436
W012
W013
C714
C713
W123
W812
C1530_2
C409
W132
W134
C615
C929
C921
C203
C002
C729
C630
C209
C935
C315
C441
W111
W032
C403
R406
C504
W038
C1004
C430
C705
W019
D416
W006
D411
R720
D001
D407
R421
B502
C418
C513_1
C522_1
CP101
D402
J704
OS101
R502
D507
J1001
W015
W049
W014
W004
W003
W108
W074 W072
W036
B401
B402
W112
W113
W130
C407
W801
W185
HS501
W005
W114
FB401
HS402
C425
W849 W034
W826
D524
C1516
R542
R546
R547
D525
W844
W864
W804
W820
W838
W840
W854
W817
W803
W856
R1525
W851
W809
CP507
CP508
C442
HS401
C421
C412_1
T401_1
R1527
D409
L403
W862
W861
R459_2
D408
Q408
Q410
R455
R457
Q409
R434
W841
CF202_1
W098
W028
W010
CP501
CF204
S801Y
S801X
C519_1
W824
R427
R548
C115
TP005
R507_1
C1527_1
W872
W064
W859
W171
W087
W079
R549
S101X
S101Y

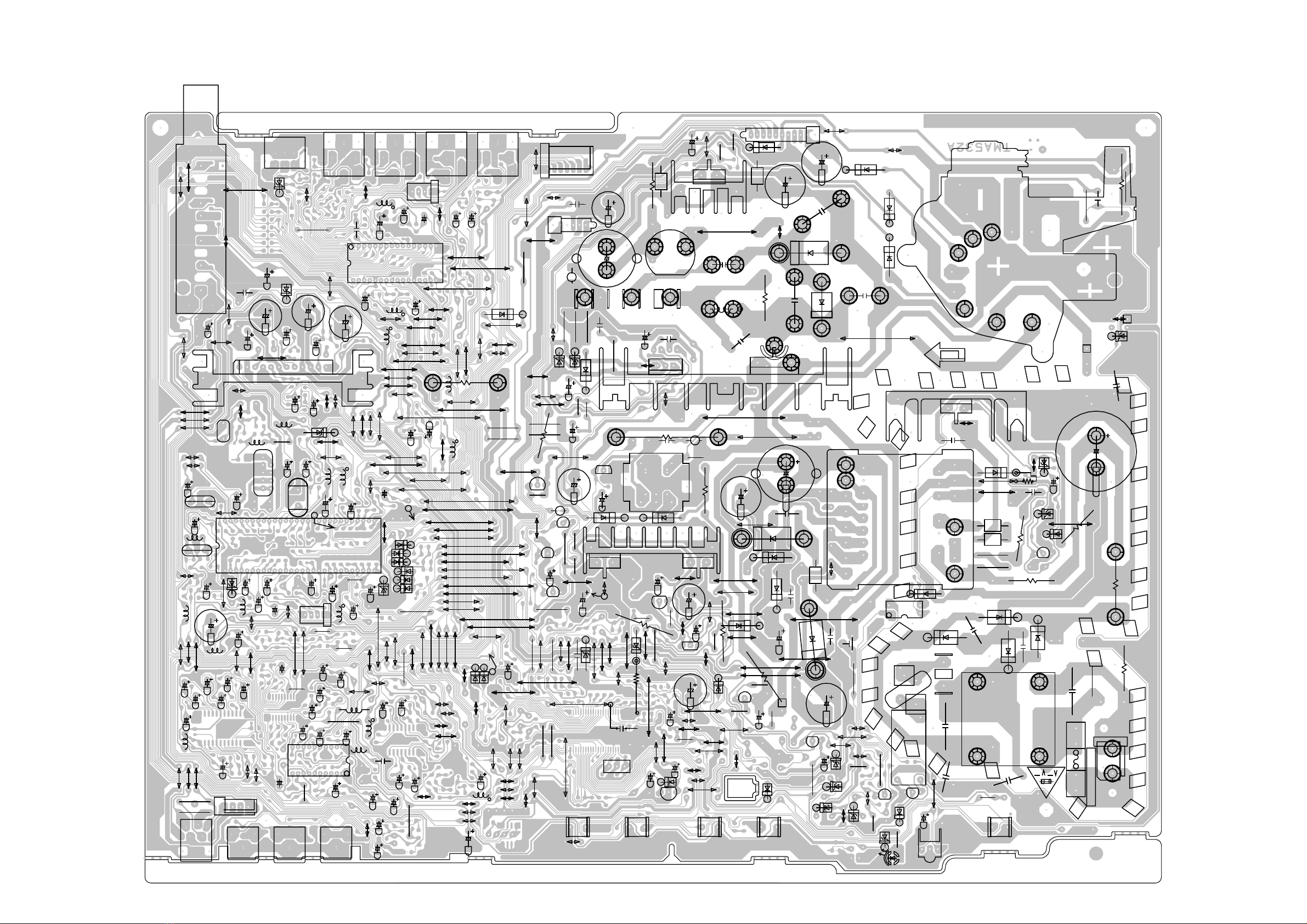

PRINTED CIRCUIT BOARDS
MAIN (INSERTED PARTS)
SOLDER SIDE
RISK OF FIRE
- REPLACE AS MARKED.
6.3A125VOR250V

R403
R412
Q406
R417
R415
C405
R104
R101 R126
C524
R532
R533
R510
C554
R511
R513
Q509
R111
R146
R131
C139
R103
C128 C121 C143
R108
C109
R141
R139
Q109
C132 R150
R525
Q506
C107
R134
R116
R151
R124
R123
C125
R140
R122
R121
R144
C140_1
R102
C103 C105 R156
R155
R127
R130
Q102
Q101
R114
R115
IC101
IC198
R133
Q103
R407
R524
C124
R147
R453
Q407
R605
R640
C112
R125
R119
R157
C138
C108
R109
R707
C748
C727
C726
C744
R711
R728
R748
R749
R006
R007
R715
R752
C731
R740
R721 R722
Q701
R1004
R1003
R724
R726
Q709
R725 C706
R214
Q203
C633 R601
C601 C634 C215 C212 C210 R212
Q202
R211
R215
R213
R210
R201
C201
C626
R625 C636 C623
C622C621
R623 R615
C620
R609 R611 R613
R612
C618
R610
R618
R624
R619
C220
C218
C208
C629 C222 R209 C206 C202 R202
C221
R219 R220
R218
Q204
R217
C638
C001
C720
C1012C1010
C602
R1013
Q1001
C734
R1009
C722
C750 C637_1
R716
R714
R717
R723
C793
R770
C728 C712
C721
C745
C746
C737
C739
C738
C708
C707
C730
R705
R702
C743
R708
R713 R751
R741
R1011
R1010
C229
R1522
C1533
R1520
R1519
Q1507
R1516
C641
C1526
Q603
R636
Q604
R635
R138
C1531
Q601
C227
R747
R750
R607
R223
C742
C740
R314
C609
IC902
R906 C922
C927
C930
C932
R904
R905
C926
C928
C931
R731
R727
R739
R737
R738
R732
Q705
Q704
R302
C307
R304 C309
R331
R333
R305
C338
R327
C339 C308
R303
C306
R301
R328 C337
C336
R323
R320
C325
R325 C335
C333
C330
R319
R321
C334
R324
C332 C331
R322
IC301
C617
R603
R602
R205
C605
C606
C607
R204
Q201 R203
Q1506
C1535
Q1505
R1515 R1517
R1513
R1514
C1504
R1502
C1508 C1503
C1506
C1507
C1515
C1512
R1504
C1514
Q1504
R1509
R1508
R1510
C1521
C1517
R1506
Q1503
R1507
C1519C1509
R1505
R730 R736
R1503
R1511
R604
R003
C1505
R1518
R516
R129 R132
C627
IC1501
R545
C541
R544
C526
C1523
W857
W805
W842
W814
W843
W836
W833
W852
C1513
R458
R449
R448
R456
R1528
R718_1
R614
R543
C614

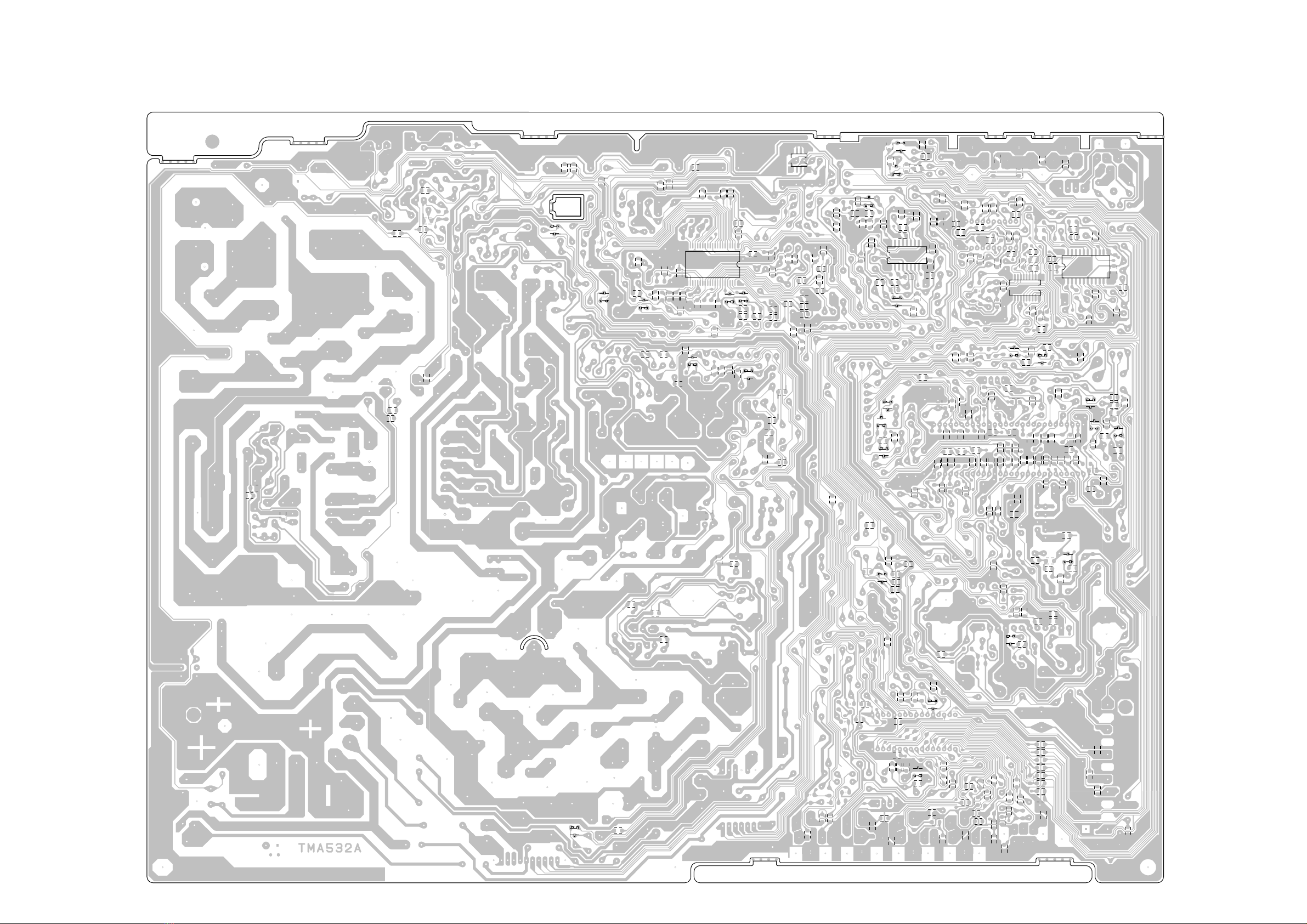

PRINTED CIRCUIT BOARDS
MAIN (CHIP MOUNTED PARTS)
SOLDER SIDE

CP803
CP804
C809
TP805
TP806
TP804
D801
D802
D803
Q812
Q811
Q810
R830
R828
R829
R808
R804
R806
Q802
Q803
Q801
R801
R803
C813
B852
R802
Q856
Q855
Q857
Q854
Q852
Q853
Q851
R881
C854
R879 R878
B851
C865
C864
R877
R880
R851 C853
C852
C851
R857
C860
C861
D852
J801
R872
D855
R869
R875
R871
D856
R866
D853
R868
R873
R874
R876
R870
R867
C808
C815
L802
L803
L804
C862
C863
C866
IC851
D858
D857
W002
W003
D854
W004
B853
C858
C859
Q858
Q859
HS851
CP852B
S851
S852
C821
C868
C823
R814
R813
R810 R815
R809
R811
C804
W006
R817
C806
R821
R819
C805
R812
W007
R862
R863
R865
R864
C857
W008
R858
R861
R860 C855 R854
C856
R859
R856
R852
R853
C867
CP852
CP801_1 CP851_1
W805
R855
W005
D804
D805
D806
W001
W802
W804
PRINTED CIRCUIT BOARDS
CRT/VM COIL
SOLDER SIDE

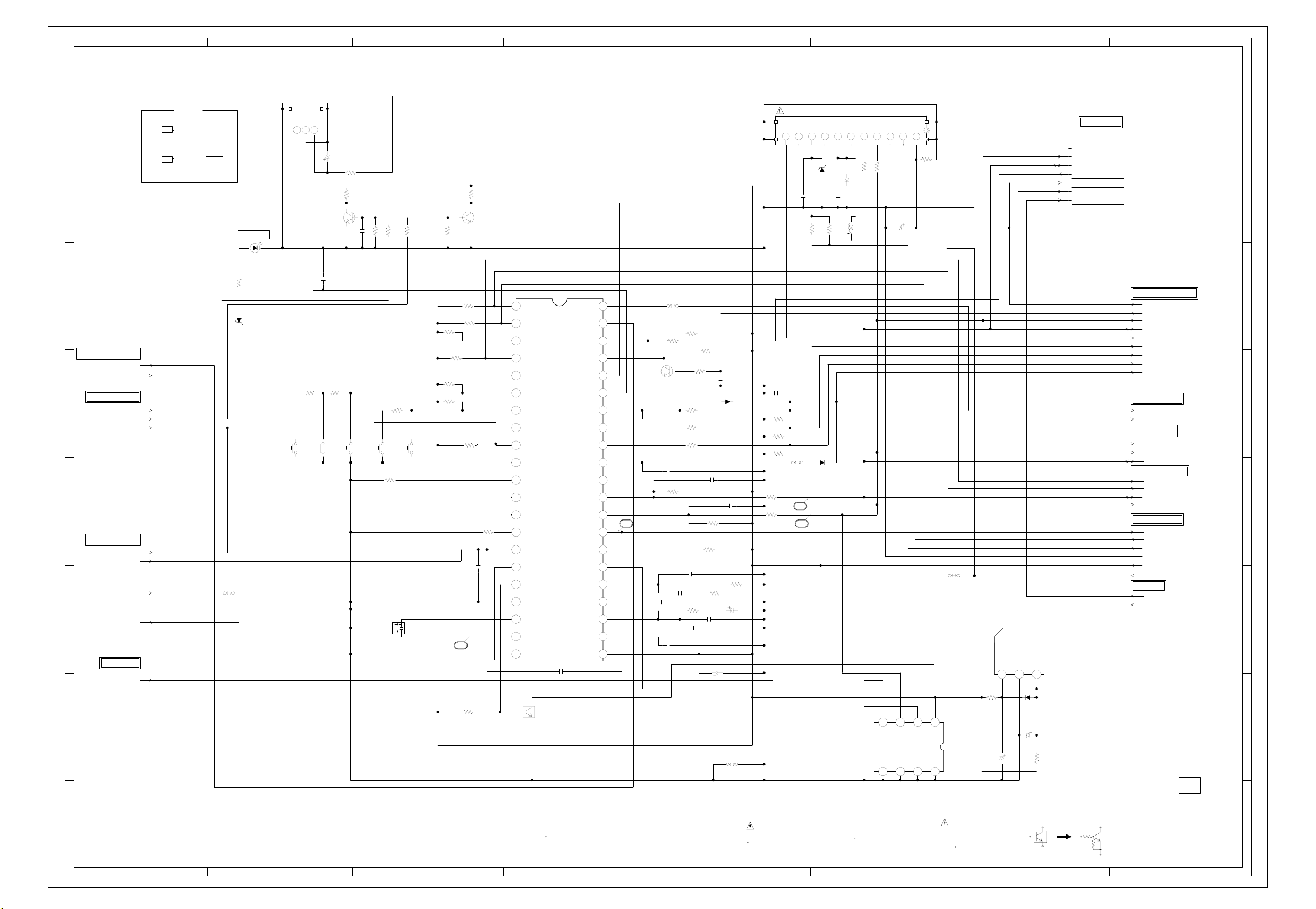

ABC D E F GH
ABC D E F GH
2
1
3
4
5
6
7
8
2
1
3
4
5
6
7
8
OF PRINTING AND SUBJECT TO CHANGE WITHOUT NOTICE
NOTE:THIS SCHEMATIC DIAGRAM IS THE LATEST AT THE TIME
THE DC VOLTAGE AT EACH PART WAS MEASURED
WITH THE DIGITAL TESTER WHEN THE COLOR BROADCAST
WAS RECEIVED IN GOOD CONDITION AND PICTURE IS NORMAL.
NOTE:
DESCRIBED IN PARTS LIST ONLY
CRITICAL FOR SAFETY,USE ONES
ARESINCE THESE PARTS MARKED BYCAUTION:
DANS LA NOMENCLATURE DES PIECES
N’UTILISER QUE CELLS DECRITES
DANGEREUSES AN POINT DE VUE SECURITE
ETANTLES PIECES REPAREES PAR UNATTENTION:
R156
10K
R115
47K
R144
10K
R155
4.7K
R101
560
R114
2.2K
R116
2.2K
R102
1K
R134
10K
R133
10K
R007
270
R006
270
R003
330K
R001
68K 1/2W
R108
2.2K
R157
10K
R146
4.7K
R123
4.7K
R122
4.7K
R121
4.7K
R150
4.7K
R151
4.7K
R126
2.7K
R104
560
R137
150 1/4W
R124 47K
R127
1K
R128 33K 1/4W R129 3.9K
R130
820
R132
33K
R131
10K
R002
68K 1/2W
R109 2.2K
R142
10K 1/4W
R106
100 1/4W
R112
100 1/4W
R140
1K
R139
1K
R141
1K
R119
47K
R125
47K
R138 1K
R111
47
R147
1K
R103
1M
C115 180P B
C140_1
0.01 B
C109 68P CH
C121
100P CH
C108
68P CH
C004
0.022 M
C112
0.0022 B
C128
0.001 B
C124
0.1 B
C105
150P CH
C103
56P CH
C132 820P CH
C107
0.1 B
C139
0.01 B
C138
0.01 B
C143
100P CH
C125
10P CH
C001
0.01 B
W824
W805
W809
W822
W834
D001
MTZJ33A
D108
MTZJ5.6B
C122
150V KA
C117
0.4750V KA
C111
150V KA
C002
4706.3V YK
C118
22006.3V YK
C003
2.250V KA
C123
1016V KA
D103
1SS133
D102
1SS133
D107
1SS133
Q109
2SC2412K
SYNC SEP.
Q101
2SC2412K
V-BUFFER
Q102
2SC2412K
H-BUFFER
L002
100uH
TU001 ENV56DB6G3
1
10
11
12 13 14 15
2 3 4 5 6
7
8 9
GND B+ Vout
OS101
RPM7138-H5
1 2 3
IC103 PST600C
RESET IC
123
SW103
SKHVBED010
VOL UP
SW102
SKHVBED010
CH DOWN
SW104
SKHVBED010
VOL DOWN
SW101
SKHVBED010
CH UP SW105
SKHVBED010
POWER
IC198
S-24C16AFJA-TB-01
MEMORY IC
1234
5678
Q103
KRC102SRTK
X-RAY TEST
X101
EFOEC8004T4
1
2
3
D109
SLR-342VCT32
POWER ON
CP101
173979-7
1
2
3
4
5
6
7
CAUTION: DIGITAL TRANSISTOR
TM101
SBKMOP006B
BT001
R03(AB)E_20_T
BT002
R03(AB)E_20_T
IC101 OEC7074A
MICON IC
110111213141516171819 22021
22 23 24 25 26 27 28 29
3
30 31 32 33 34 35 36 37 38 39
4
40 41 42
56789
AGC
SYNC_OUT
SCL
SDA
IF
OSD_B
OSD_G
OSD_R
PROTECT
OSD_BLK
AFT_OUT
V.OUT1 H_CTL
AFC X-RAY_TEST
X-RAY
EXT_MUTE
SCL
SDA
BBE_SW
TV_MUTE
SDA
SCL
POWER
P.CON+5V
P.CON+B
X-RAY GND
P.FAIL AT+5V
AT+5V2
P.CON+9V AUDIO_JIG_R
AUDIO_JIG_L
GND GND
DEGAUSS_H
SW_VIDEO_OUT
FROM/TO CHROMA/IF
FROM DEFLECTION
FROM/TO POWER
FROM AV
(MAIN PCB)
MICON/TUNER SCHEMATIC DIAGRAM
PCB010
TMA532
NC
NC
1
2
SDA SCL
MODE
VCC
VSS E2 E1
E0
5.005.05.0
0000
05.0 5.0
VCC GND V.OUT
IF
BTL BPL V.S SDA SCL
ADRES
AGC
30.0
5.0 5.0 5.0 4.6 6.2 1.3
NC NC NC NC
0 0
1.3
ACCESORY
0
0.3
0
15.9
0
0
4.9
0
0
4.8 4.8
0
0
RED LED
GND
AGC
P FAIL
STANDBY_H
BBE SW
AFT
KEY 1
KEY 2
REMOCON
X RAY
SYNC
CNVSS
X.IN
X.OUT
VSS VCC
FILT
HLF
VHOLD
CVIN
RESET
POWER
SCL1
SDA1
BLANK
RED R
GREEN G
BLUE B
V SYNC
H SYNC
12C_OFF
H_CTL
FSC IN
CLOCK CONT
NC
NC
AUDIO MUTE
ON_TIMER
DEGAUSS H
X-RAY TEST
PIP AFT
AV2
AV1
EXT MUTE
PIP SD
PROTECT
NC
NC NC
NC NC
0
5.0
5.0
NC
4.0
0
0
2.4
5.0
5.0
2.2
5.0
0
0
0
0
0
3.5
5.0
3.2
14.6
2.3
1.7
05.0
1.0
2.0
2.0
2.4
5.0
5.0
5.0
0
5.0
5.0
0
0
0
0
4.8
4.0
2.1
5.0
2.0
0
L
R
3
4
I2C_SCL
I2C_SDA
I2C_OFF
FROM/TO CHROMA/IF
TO DEFLECTION
FROM/TO AV
FROM/TO SOUND
FROM/TO POWER
TEST POINT
FROM AV
