SERVICE DATA
FILE NO. 050-751
PAL-B/G SYSTEM
TOSHIBA
COLOUR TELEVISION
2837DD,
2537DD
7037DD
Note: The specifications of model 7037DD are the same as
those of model 2837DD which are described below.
SPECIFICATIONS
Input Power Rating:
Aerial Input Impedance:
Receiving Channels:
Intermediate Frequencies:
Picture Tube:
Sound Output:
Speakers:
Aux. Terminals:
Cabinet:
Dimensions:
Weight:
Features:
147 W (2837DD), 143 W (2537DD), AC 220 ~ 240 V, 50 Hz
75 ohm unbalanced type for VHF, UHF and CATV
CCIR (B/G.PAL) TV Broadcast Standard:
channels 2 to 4, 5 to 12, S1 to S41
channels 21 to 69
Picture I-F carrier frequency 38.9 MHz
Sound I-F carrier frequency ...
Colour sub-carrier frequency .. 34.47 MHz
28 inches, A66ECY 13X31, 660 mm (measured on diagonal of viewable picture area)(2837DD),
25 inches, AS9ECY 13X31, 590 mm (measured on diagonal of viewable picture area)(2537DD),
110° deflection
10.0 W x 2 (at 10% Distortion MAIN), 5.0 W x 2 (at 10% Distortion Dolby)
120 mm x 80 mm oval 2 pcs
21 pin socket (FULL), 21 pin socket (S-VIDEO/AUDIO) S-VIDEO, VIDEO/AUDIO INPUT socket
Table type
(2837DD) (2537DD)
516 mm
640 mm
447 mm
33 kg (2837DD), 27.5 kg (2537DD)
Video input of PAL-B/G, TELETEXT reception, OFF-timer, German stereo/bilingual,
Dolby surround
Specifications are subject to change without notice.
Printed in Japan Jul. 1994

SAFETY INSTRUCTIONS
WARNING: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY
PRECAUTION" AND "PRODUCT SAFETY NOTICE" INSTRUCTIONS BELOW.
X-RAY RADIATION PRECAUTION
1. The E.H.T. must be checked every time the
receiver is serviced to ensure that the C.R.T. does
not emit X-ray radiation as result of excessive
E.H.T. voltage. The nominal E.H.T. for this receiver
is 26.5 kV at zero beam current (minimum
brightness) operating at 220V a.c. The maximum
E.H.T. voltage permissible in any operating
circumstances must not exceed 29.0 kV. When
checking the E.H.T., use the ‘High Voltage Check’
procedure in this manual using an accurate E.H.T.
voltmeter.
2. The only source of X-RAY radiation in this receiver
is the C.R.T. To prevent X-ray radiation, the
replacement C.R.T. must be identical to the original
fitted as specified in the Parts List.
. Some components used in this receiver have safety
related characteristics preventing the C.R.T. from
emitting X-ray radiation.
For continued safety, replacement component
should only be made after referring the Product
Safety Notice below.
SAFETY PRECAUTION
. This receiver has a nominal working E.H.T. voltage
of 24.5 kV. Extreme caution should be exercised
when working on the receiver with the back
removed.
Do not attempt to service this receiver if you are
not conversant with the precautions and procedures
for working on high voltage equipment.
When handling or working on the C.R.T., always
discharge the anode to the receiver chassis before
removing the anode cap
The C.R.T., if broken, will violently expel glass
fragments. Use shatter proof goggles and take
extreme care while handling.
Do not hold the C.R.T. by the neck as this is a very
dangerous practice.
. It is essential that to maintain the safety of the
customer all cable forms be replaced exactly as
supplied from factory.
3. A small part of the chassis used in this receiver is,
when operating, at approximately half mains
potential at all times. It is therefore essential in the
interest of safety that when serving or connecting
any test equipment the receiver should be supplied
via a suitable isolating transformer of adequate
rating.
. Replace blown fuses within the receiver with the
fuse specified in the parts list.
. When replacing wires or components to terminals
or tags, wind the leads around the terminal before
soldering. When replacing safety components
identified by the international hazard symbols on
the circuit diagram and parts list, it must be a
Toshiba approved type and must be mounted as
the original.
. Keep wires away from high temperature compo-
nents.
PRODUCT SAFETY NOTICE
Many electrical and mechanical components in this chassis have special safety-related characteristics, These
characteristics are often passed unnoticed by a visual inspection and the X-ray radiation protection afforded by
them cannot necessarily be obtained by using replacements rated at higher voltages or wattage,
Components which have these special safety characteristics in this manual and its supplements are identified by
the international hazard symbols on the schematic diagram and parts list. Before replacing any of these
components read the parts list in this manual carefully. Substitute replacement components which do not have
the same safety characteristics as specified in the parts list may create X-ray radiation.
etc.

FRONT CONTROLS AND REAR VIEWS
VIDEO-3: S-VIDEO TERMINAL MAINS SWITCH
VIDEO-3: INPUT SOCKET POWER INDICATOR
MENU SELECT REMOTE EYE
VOLUME DOWN POSITION UP
VOLUME UP POSITION DOWN
21-pin SOCKET 2 (S-VIDEO/AV)
21-pin SOCKET 1 (FULL)
HORIZ. PICTURE POSITION
AERIAL TERMINAL

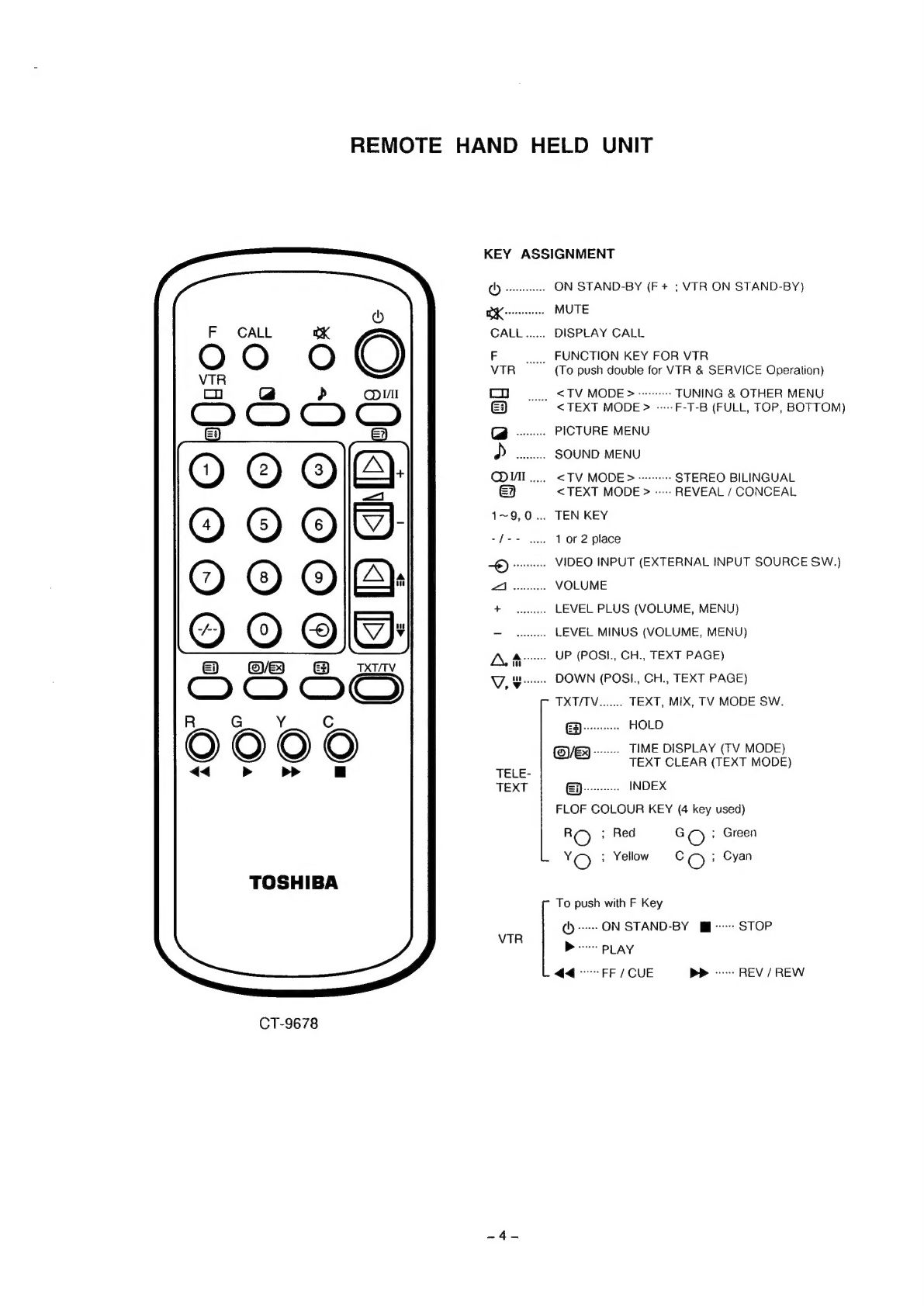

REMOTE HAND HELD UNIT
KEY ASSIGNMENT
(0) dseasenied ON STAND-BY (F + ; VTR ON STAND-BY)
DK vreresescees MUTE
CALL ...... DISPLAY CALL
Few eet FUNCTION KEY FOR VTR
VTR (To push double for VTR & SERVICE Operation)
co. <TV MODE > --------- TUNING & OTHER MENU
<TEXT MODE > -----F-T-B (FULL, TOP, BOTTOM)
>” eens PICTURE MENU
d seeeines SOUND MENU
OOM ..... <TV MODE > «++ STEREO BILINGUAL
=? <TEXT MODE > ---- REVEAL / CONCEAL
1~9,0... TEN KEY
-fee 1 or 2 place
Eb) ce VIDEO INPUT (EXTERNAL INPUT SOURCE SW.)
ZA eile VOLUME
RY ah iectea: LEVEL PLUS (VOLUME, MENU)
ee ecietctas LEVEL MINUS (VOLUME, MENU)
A Ao UP (POSI., CH., TEXT PAGE)
We esesees DOWN (POSI., CH., TEXT PAGE)
TXT/TV....... TEXT, MIX, TV MODE SW.
Sas TIME DISPLAY (TV MODE)
ae oes TEXT CLEAR (TEXT MODE)
TEXT | Ghee INDEX
FLOF COLOUR KEY (4 key used)
RC) ; Red GO: Green
YO ; Yellow CO ; Cyan
TOSHIBA
To push with F Key
(ly ON STAND-BY [gl - STOP
VTR
440°" FF / CUE »> = REV / REW
CT-9678

“Lad
4
NIVW
a
(NOLLdO)
yaNVadS
GNNOYYNS
"1X3
U} U
U}
U}
“SNVUL YSLYSANOD
gozgs-uis ff
ATYBAH
€SZZaSZ
BOVLIOA at
LNO ‘H
€01-ZEEG8dxXO
=
XO7S730d"
d6S88VL
=f
aso
ALZ7OVL
Noo-7
Ex
wots
ve
MS
G9U
SNE
9z1
(o)
EX
6ISEISZ
0°
“430
08
LNO
OSOIA
O3OIA
Satie
ceglis
89
(AV+S)
YWOMHO
68]
NIdiz
98
28
96
9
oj
(11N3)
°
MS
AV
J
OB}
NIdiz
Ez
“BS
NZbzevi
93
9
Vv
Le}
HV8IZBVL
NOLLOVL
rioeai
ywOSsa00ud
ino
orany
Bay
Agno
WVOIN
|
ata
|
YANNL
N70ZI8L/dLEELVL
LESGAW
1z9PrDS-NL

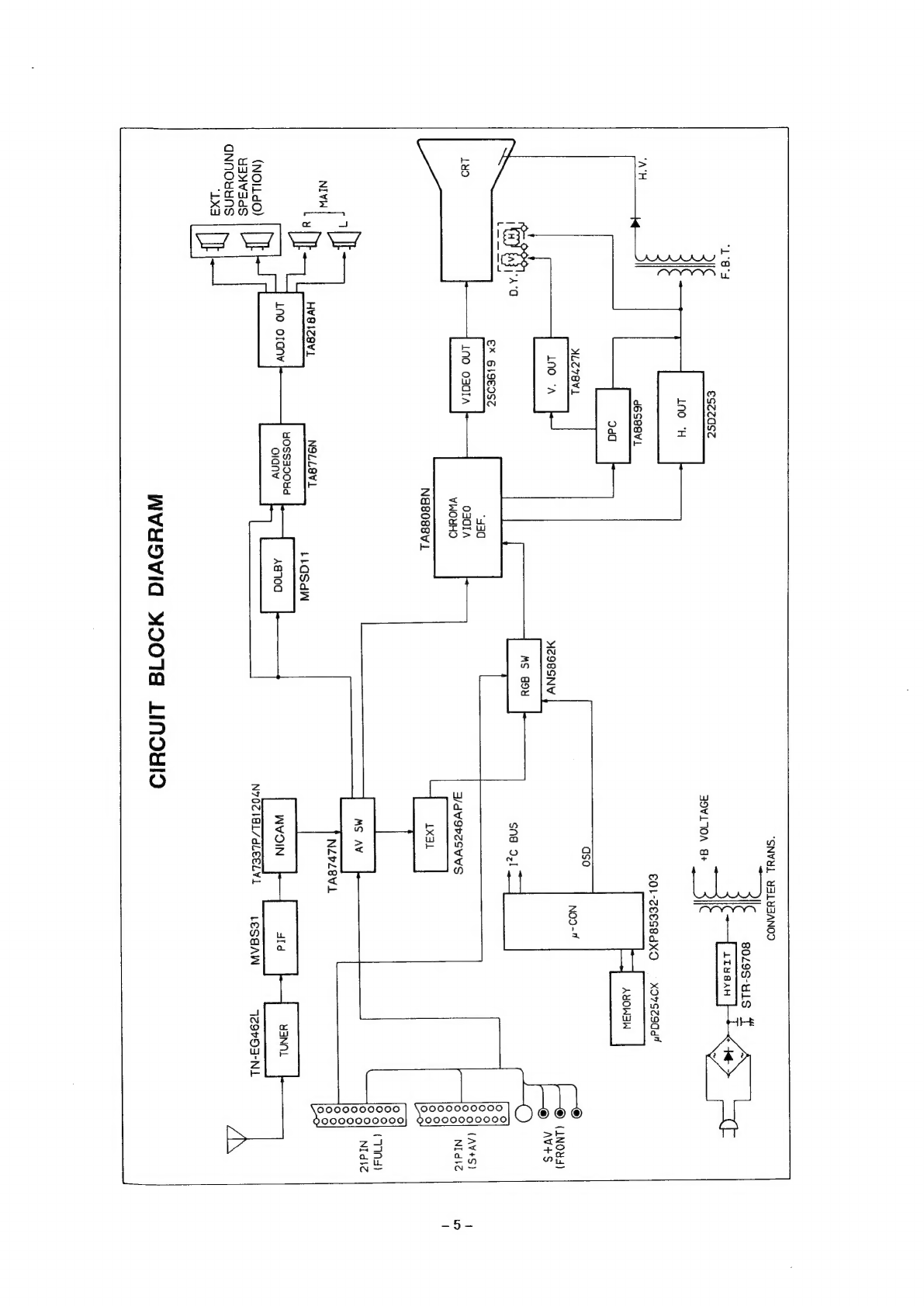

WVYDVIG
MOOT
LINDYIO

WARNING:
BEFORE
SERVICING
THIS
CHASSIS,
READ
THE
“X-RAY
RADIATION
PRECAUTION”,
“SAFETY
PRECAUTION” AND “PRODUCT SAFETY NOTICE” ON PAGE 2 OF THIS MANUAL.
INSTALLATION AND SERVICE ADJUSTMENTS
GENERAL INFORMATIONS
All adjustments are thoroughly checked and corrected
when the receiver leaves the factory. Therefore the
receiver should operate normally and produce proper
colour and B/W pictures upon installation. However,
several minor adjustments may be required
depending on the particular location in which the
receiver is operated.
This receiver is shipped completely in cardboard
carton. Carefully draw out the receiver from the carton
and remove all packing materials. Plug the power cord
into a convenient 220 volts 50 Hz AC two pin power
outlet. Turn the receiver ON. Check and adjust all the
customer controls such as BRIGHTNESS,
CONTRAST and COLOUR Controls to obtain natural
colour or B/W picture.
AUTOMATIC DEGAUSSING
A degaussing coil is mounted around the picture tube
so that external degaussing after moving the receiver
is normally unnecessary, providing the receiver is
properly degaussed upon installation. The degaussing
coil operates for about 1 second after the power to the
receiver is switched ON. If the set is moved or faced
in a different direction, the power switch must be
switched off at least one hour in order that the
automatic degaussing circuit operates properly.
Should the chassis or parts of the cabinet become
magnetized to cause poor colour purity, use an
external degaussing coil. Slowly move the degaussing
coil around the faceplate of the picture tube, the sides
and front of the receiver and slowly withdraw the coil
to a distance of about 2 m before disconnecting it
from AC source. If colour shading still persists,
perform the COLOUR PURITY ADJUSTMENT and
CONVERGENCE ADJUSTMENTS procedures.
HIGH VOLTAGE CHECK
CAUTION: There is no HIGH VOLTAGE ADJUST-
MENT on this chassis.
1. Connect an accurate high voltage meter to the
second anode of the picture tube.
2. Turn on the receiver. Set the BRIGHTNESS and
CONTRAST Controls to minimum (zero beam
current).
3. High voltage will be measured below 29.0 kV.
HEIGHT ADJUSTMENT
1. Receive the UK PHILIPS pattern, and set the
contrast, colour and brightness to centre.
2. Adjust HEIGHT Control (R351) so that white blocks
at top and bottom of the picture are just masked.
HORIZONTAL CENTRE ADJUSTMENT
1. Receive the UK PHILIPS pattern.
2. Set the contrast and colour to centre, and the
brightness to centre.
3. Adjust H. CENTER USER Control (R452) so the
pattern centre can be located at the screen centre.
FOCUS ADJUSTMENT
Adjust FOCUS Control on FLYBACK TRANS. (1461) for
well defined scanning lines in the centre area on the
screen.
PAL MATRIX ADJUSTMENT
1.
2.
3.
Tune in the colour programme of the Philips pattern.
Set the COLOUR Control to obtain the proper
colour.
If the PAL MATRIX adjustment is incorrect, the
Venetian Blind would appear in the colour bars area.
This case needs the adjustment.
. At the first, adjust DL PHASE ADu. Coil (L551) to
minimize the Venetian Blind.
Next adjust 1H-DL ADJ. VR (R551) to minimize the
Blind.
. If the Venetian Blind still remains, adjust 1H-DL
PHASE ADJ. Coil (L551) to minimize the Blind
again.
. Repeat the item 5 and 6 procedures, adjust the
R551 and L551 until the Blind does not appear.
CRT GREY SCALE ADJUSTMENT
10.
11.
Pm Nes
Tune in an active channel.
Set the SERVICE SW. (S202) in the “H. LINE”
position.
Turn the SCREEN Control (on T7461) fully counter-
clockwise.
By rotating the RED, GREEN and BLUE CUT OFF
Controls (R557, R558, R559) to the mid position.
Set the GREEN and BLUE DRIVE Controls (R252,
R253) to the center.
Rotate the SCREEN Control gradually clockwise
until the first line appears slightly on the screen.
Set the SCREEN Control to this position.
Adjust the CUT OFF Controls to obtain the slightly
lighted horizontal lines in the same levels of three
colours (RED, GREEN and BLUE).
The lines may look like white if the CUT OFF
Controls are adjusted properly.
Set the SERVICE SW. (S202) in the “RECEIVE”
position.
Set the CONTRAST and COLOUR Controls to
minimum, and BRIGHTNESS Control to the
maximum.
Adjust the BLUE and GREEN DRIVE Controls
(R252/R253) to obtain proper white-balanced picture
in high light areas.
Set the BRIGHTNESS and CONTRAST Controls to
obtain dark grey raster. Then check the white
balance in low brightness. If the white balance is not
proper, retouch the CUT OFF Controls and DRIVE
Controls to obtain a good white balance in both low
and high light areas.

SUB-BRIGHTNESS ADJUSTMENT
1.
2.
3.
Tune ina colour programme.
Set the CONTRAST Control to the minimum and the
BRIGHTNESS Control to the centre.
Set the COLOUR Control to the centre.
Set the SUB-BRIGHT. Control (R255) to the centre
and leave the receiver for five minutes in this state.
Watching the picture well, adjust the SUB-BRIGHT.
Control in the position where the picture: does not
show evidence of blooming in high bright area and
not appear too dark in low bright portion.
Check the proper picture variation by rotating the
CONTRAST and BRIGHTNESS Controls to both
extremes.
If the picture does not appear dark with the
CONTRAST and BRIGHTNESS Controls turned to
the minimum, or not appear bright with the controls
turned to the maximum, adjust the SUB-BRIGHT.
Control again for the acceptable picture.

HOW
TO
MAKE
THE
CHASSIS
STAND
FOR
REPAIR
OF
THE
2835DB
(Model )
1.
Remove
the
wire
set
for
the
loud
speaker
from
the
holder.
2.
Remove
the
horn
speaker
unit
(unscrew
the
fixing
screws).
3.
Lift
up
the
chassis
in
such
manner
that
it
stands
against
the
inner
side
surface
of
the
front
mask.
4.
Using
the
screws
which
have
been
removed
when
disconnecting
the
front
mask
and
the
back
cover,
screw
the
chassis
to
the
side
of
the
front
mask.
5. To restore, perform the above steps in opposite
order.
Upper hole of the chassis
frame for 2835/2837 and
Lower hole of the chassis
frame for 2535/2537 series.

ADJUSTMENT METHOD FOR SERVICING
1. OUTLINE
Since each IC used is of I2C bus control type,
readjustment of the TVs also needs adjustment through
12C bus control.
In the service mode, sub-bright, deflection system sub-
adjustments, picture system sub-adjustments can be
made easily with user remote control unit.
2. SERVICE MODE OPERATION
2-1. How to Enter the Service Mode
@©+ &
(simultaneous push)
J
q) key
t Service mode
@key Service mode in
1
G)key
J
key
2-2. How to Exit from the Service Mode
Exit the service mode by turning the power on/off with
the remote control.
5. SUB DATA ADDITIONAL DESCRIPTION
17 HIT
met [ se
3. ADJUSTMENT IN THE SERVICE MODE
3-1. Service Mode Level Adjustments
(1) Push () + (4@ key (simultaneous push) (item UP)
or + key (simultaneous push) (item DN) to
select item to be adjusted.
(2) Adjust with the level UP/DN (VOL UP/DN key) key.
3-2. Other Service Mode Adjustments
()+ Q) key (simultaneous push) cut off:
(NO VERTICAL DEFLECTION) ON/OFF
4. SELF CHECK
(1) Indicates sync signal and acknowledgement of
each IC.
(2) Example of display on screen
.
ISYNG2
;
NG]
RED
indication
(with
aye
=
;
‘
_
6
whe
AS
background)
for
NG
PLL
‘PIF!
GR
NIGAM!
=
AUD
TEXT
RGBAvcD
EW
MEMORY
YELLOW indication GREEN indication for OK
(without background)
for TV model with
no circuit.
(3) Operation:
@®_ TV gets into service mode with key operation;
[© + S]-Orey +()key—> (4) key +(8)key
@ TV indicates screen with () + G)key.

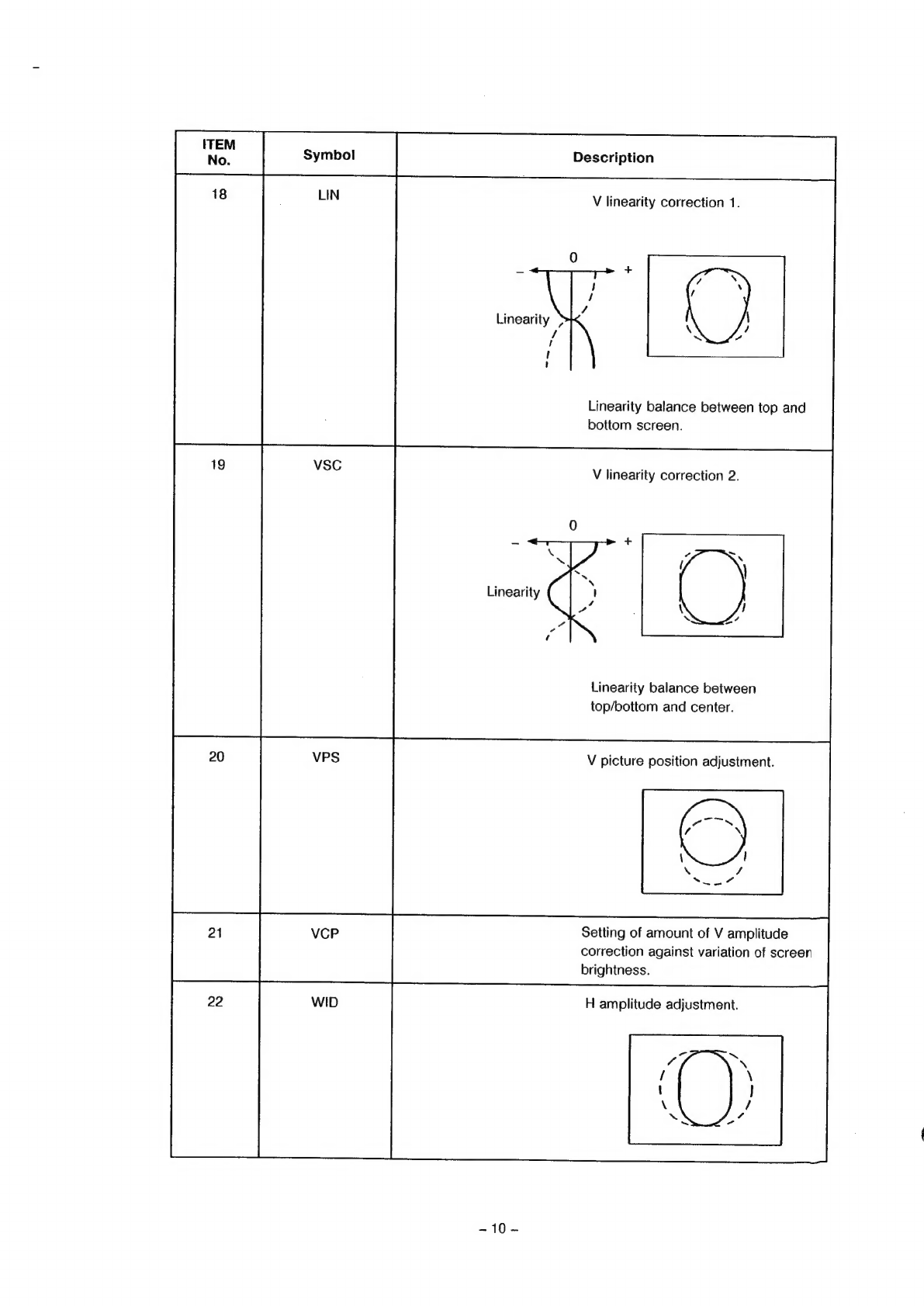

V amplitude adjustment.

Linearity balance between top and
bottom screen.
V linearity correction 2.
Linearity
Linearity balance between
top/bottom and center.
V picture position adjustment.
Setting of amount of V amplitude
correction against variation of screen
brightness.
H amplitude adjustment.
-10-

net [rs
DPC H pin-cushion distortion correction.
H pin-cushion distortion correction
at four corners.
Setting of amount of H amplitude
correction against variation of screen
brightness.
V linearity correction.
Linearity balance at 1/4, 3/4 areas
from top.
Linearity
-11-

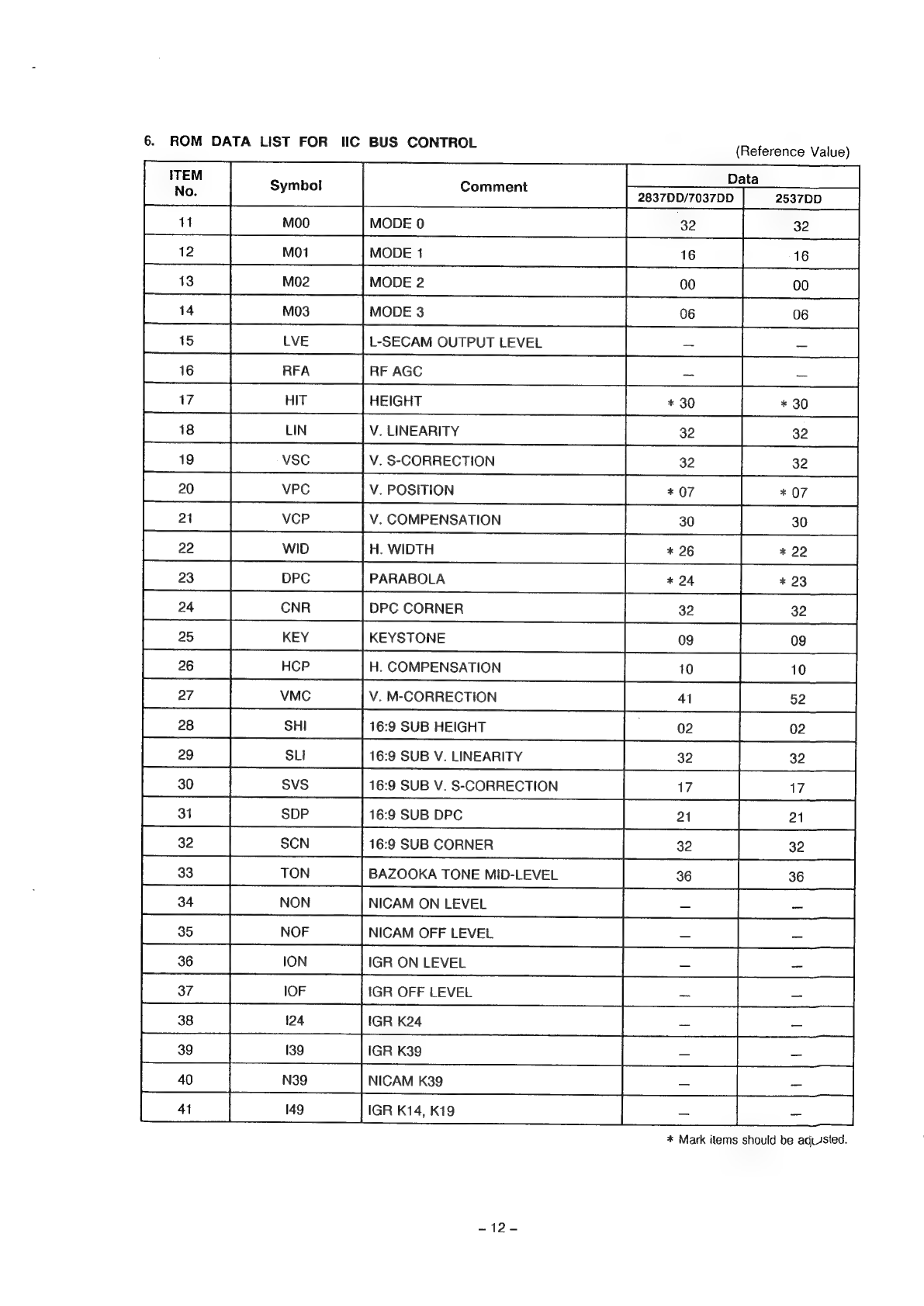

6.
ROM
DATA
LIST
FOR
IIC
BUS
CONTROL
(Reference
Value)
=
oO
Ww wo
Oo
Symboi Comment
2837DD/7037DD 2537DD
MODE 0
ie) ie)
Ww =
ie) oO
ie)
LS)
MODE 1
MODE 2
MODE 3
| os
L-SECAM OUTPUT LEVEL
RFA RF AGC
HIT HEIGHT
VSC V. S-CORRECTION
VPC V. POSITION
VCP V. COMPENSATION
D H. WIDTH
DPC PARABOLA
CNR DPC CORNER
KEY KEYSTONE
CP H. COMPENSATION
VMC V. M-CORRECTION
SHI 16:9 SUB HEIGHT
SLI 16:9 SUB V. LINEARITY
S 16:9 SUB V. S-CORRECTION
SDP 16:9 SUB DPC
SCN 16:9 SUB CORNER
ON BAZOOKA TONE MID-LEVEL
NICAM ON LEVEL
NOF NICAM OFF LEVEL
IGR ON LEVEL
* 30 * 30
ie)
i)
ww
;
Ww Nh
* 07 * 07
|
* 26 * 22
* 24 * 23
pe]
i
iN
& i] ie) )
jo) ie) oO
No
—_
Oo
=
oT
i)
j=)
;
fo) Le)
i)
[e)
.
n
<
w Oo ]m
wlwtirnm |= lo coo CO as I
= |N
ts
wo
fe
OF IGR OFF LEVEL
139 IGR K39
NICAM K39
IGR K14, Ki9
* Mark items should be aqussted.
-12-

CABINET REPLACEMENT PARTS LIST
A201
O00 pow |
Location
No.
Part No.
23410344
23410348
23410350
23416835
23448955
23416834
23448955
23443776
70368125
23425524
23425487
23425494
23569056
23569060
23569062
A401
Description
Front Cover (2837DD)
Front Cover (7037DD)
Front Cover (2537DD)
Speaker Box (Right)
Piece (Speaker Cover)
Speaker Box (Left)
Piece (Speaker Cover)
Button, POWER
(2837DD/7037DD)
Push Catch for Door
Door (2837DD/7037DD)
Back Cover (2837DD/7037DD)
Back Cover (2537DD)
Label, Model No., B/C
(2837DD)
Label, Model No., B/C
(7037DD)
Label, Model No., B/C
(2537DD)
-13-

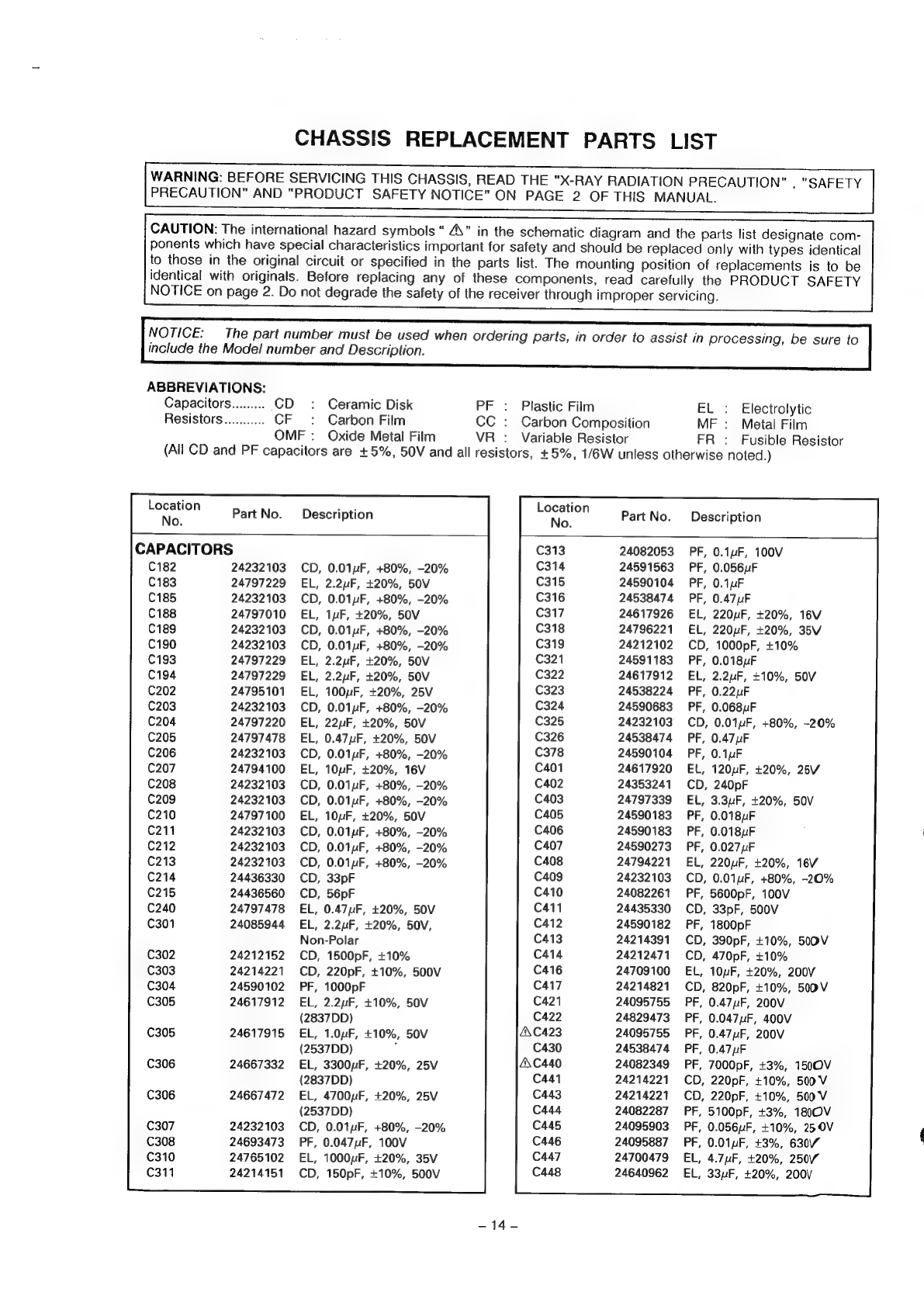

CHASSIS
REPLACEMENT
PARTS
LIST
WARNING:
BEFORE
SERVICING
THIS
CHASSIS,
READ
THE
"X-RAY
RADIATION
PRECAUTION"
,
"SAFETY
PRECAUTION"
AND
"PRODUCT
SAFETY
NOTICE"
ON
PAGE
2
OF
THIS
MANUAL.
CAUTION:
The
international
hazard
symbols
“
A\”
in
the
schematic
diagram
and
the
parts
list
designate
com-
ponents
which
have
special
characteristics
important
for
safety
and
should
be
replaced
only
with
types
identical
to
those
in
the
original
circuit
or
specified
in
the
parts
list.
The
mounting
position
of
replacements
is
to
be
identical
with
originals.
Before
replacing
any
of
these
components,
read
carefully
the
PRODUCT
SAFETY
NOTICE
on
page
2.
Do
not
degrade
the
safety
of
the
receiver
through
improper
servicing.
NOTICE:
The
part
number
must
be
used
when
ordering
parts,
in
order
to
assist
in
processing,
be
sure
to
include
the
Model
number
and
Description.
ABBREVIATIONS:
Capacitors.........
CD
:
Ceramic
Disk
PF
:
Plastic
Film
EL
:
Electrolytic
Resistors...........
CF
:
Carbon
Film
CC
:
Carbon
Composition
MF
:
Metal
Film
OMF
:
Oxide
Metal
Film
VR_:
Variable Resistor
FR
:
Fusible
Resistor
(All
CD
and
PF
capacitors
are
+5%,
50V
and
all
resistors,
+5%,
1/6W
unless
otherwise
noted.)
Location
No.
Location
No.
CAPACITORS
Part
No.
Description
PartNo.
Description
C313 24082053 PF, 0.1uF, 100V
C182
24232103
CD,
0.01p~F,
+80%,
-20%
C314
24591563
PF,
0.056uF
C183
24797229
EL,
2.2uF,
+20%,
50V
C315
24590104
PF,
0.1uF
C185
24232103
CD,
0.01yF,
+80%,
-20%
C316
24538474
PF,
0.47
uF
C188 24797010 EL, 1pF, +20%, 50V C317 24617926 EL, 220uF, +20%, 16V
C189
24232103
CD,
0.01puF,
+80%,
-20%
C318
24796221
EL,
220uF,
+20%,
35V
C190
24232103
CD,
0.01uF,
+80%,
-20%
C319
24212102
CD,
1000pF,
+10%
C193
24797229
EL,
2.2uF,
+20%,
50V
C321
24591183
PF,
0.018uF
C194
24797229
EL,
2.2uF,
+20%,
50V
C322
24617912
EL,
2.2uF,
+10%,
50V
C202
24795101
EL,
100uF,
+20%,
25V
C323
24538224
PF,
0.22uF
C203
24232103
CD,
0.01pF,
+80%,
-20%
C324
24590683
PF,
0.068uF
C204
24797220
EL,
22uF,
+20%,
50V
C325
24232103
CD,
0.01pF,
+80%,
-20%
C205
24797478
EL,
0.47uF,
+20%,
50V
C326
24538474
PF,
0.47yF
C206
24232103
CD,
0.01puF,
+80%,
-20%
C378
24590104
PF,
0.1uF
C207 24794100 EL, 10uF, +20%, 16V C401 24617920 EL, 120uF, +20%, 25V
C208
24232103
CD,
0.01puF,
+80%,
-20%
C402
24353241
CD,
240pF
C209
24232103
CD,
0.01uF,
+80%,
-20%
C403
24797339
EL,
3.3uF,
+20%,
50V
C210
24797100
EL,
10uF,
+20%,
50V
C405
24590183
PF,
0.018uF
C211
24232103
CD,
0.01uF,
+80%,
-20%
C406
24590183
PF,
0.018uF
C212
24232103
CD,
0.01uF,
+80%,
-20%
C407
24590273
PF,
0.027
pF
C213
24232103
CD,
0.01pF,
+80%,
-20%
C408
24794221
EL,
220uF,
+20%,
16V
C214 24436330 CD, 33pF C409 24232103 CD, 0.01uF, +80%, -20%
C215 24436560 CD, 56pF C410 24082261 PF, 5600pF, 100V
C240
24797478
EL,
0.47uF,
+20%,
50V
C411
24435330
CD,
33pF,
500V
C301
24085944
EL,
2.2uF,
+20%,
50V,
C412
24590182
PF,
1800pF
Non-Polar
C413
24214391
CD,
390pF,
+10%,
500V
C302
24212152
CD,
1500pF,
+10%
C414
24212471
CD,
470pF,
+10%
C303
24214221
CD,
220pF,
+10%,
500V
C416
24709100
EL,
10uF,
+20%,
200V
C304 24590102 PF, 1000pF C417 24214821 CD, 820pF, +10%, 500V
C305
24617912
EL,
2.2uF,
10%,
50V
C421
24095755
PF,
0.47uF,
200V
(2837DD)
C422
24829473
PF,
0.047uF,
400V
C305
24617915
EL,
1.0uF,
+10%,
50V
AvC423
24095755
PF,
0.47uF,
200V
(2537DD)
:
C430
24538474
PF,
0.47uF
C306 24667332 EL, 3300uF, +20%, 25V A\C440 24082349 PF, 7000pF, +3%, 1500V
(2837DD) C441 24214221 CD, 220pF, +10%, 500V
C306
24667472
EL,
4700uF,
+20%,
25V
C443
24214221
CD,
220pF,
+10%,
500'V
(2537DD)
C444
24082287
PF,
5100pF, +3%,
1800V
C307 24232103 CD, 0.01uF, +80%, -20% C445 24095903 PF, 0.056uF, +10%, 25 0V
C308 24693473 PF, 0.047uF, 100V C446 24095887 PF, 0.01uF, +3%, 630/
C310
24765102
EL,
1000uF,
+20%,
35V
C447
24700479
EL,
4.7uF,
+20%,
250V
C311
24214151
CD,
150pF,
+10%,
500V
C448
24640962
EL,
33uF,
+20%,
200V
-14_-

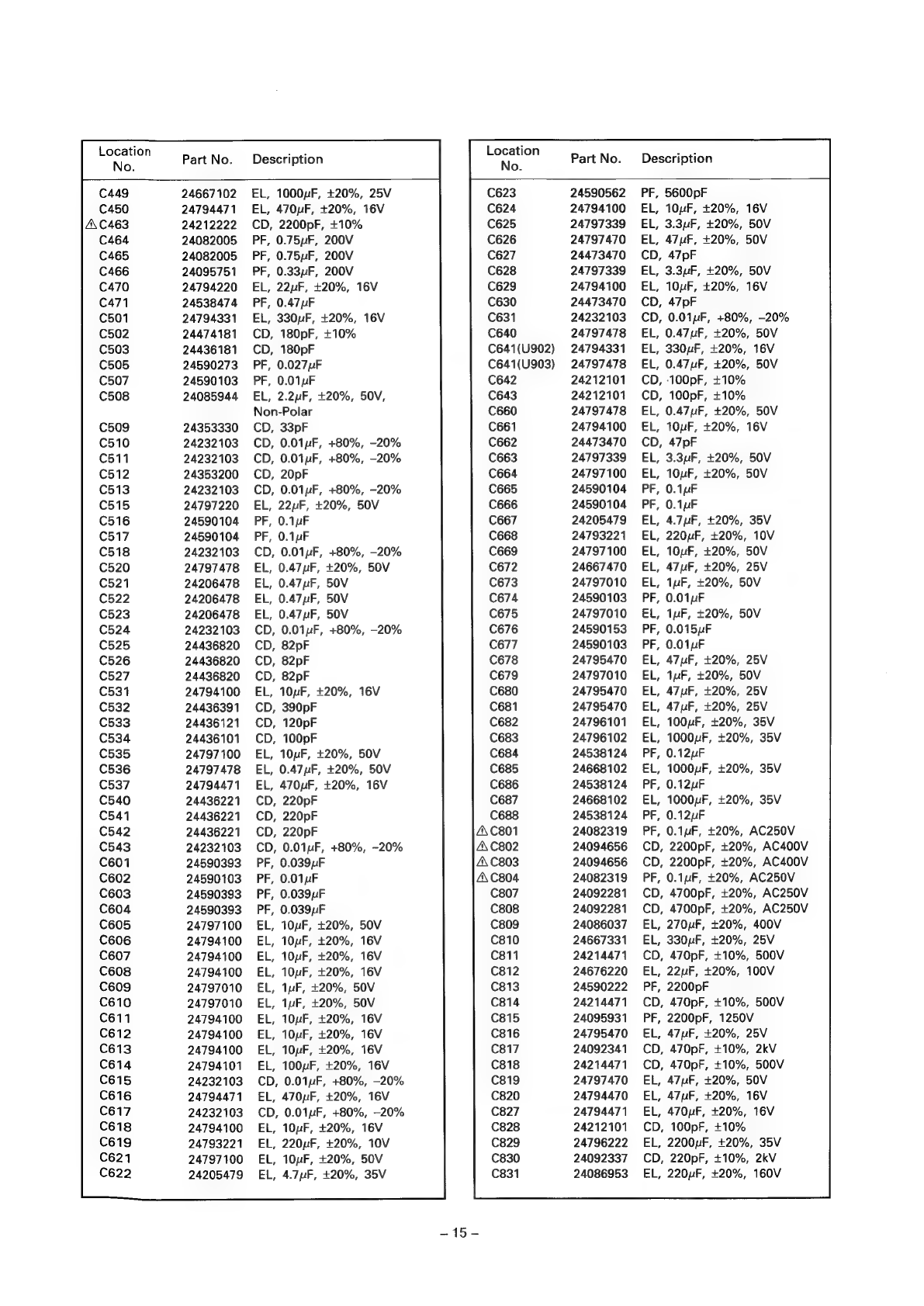

or Part No. Description a PartNo. Description
C449 24667102 EL, 1000uF, +20%, 25V C623 24590562 5600pF
C450 24794471 EL, 470yuF, +20%, 16V C624 24794100 10pF, 20%, 16V
AC463 24212222 CD, 2200pF, +10% C625 24797339 3.3uF, +20%, 50V
C464 24082005 PF, 0.75uF, 200V C626 24797470 47 uF, +20%, 50V
C465 24082005 PF, 0.75uF, 200V C627 24473470 47pF
C466 24095751 PF, 0.33uF, 200V C628 24797339 3.3uF, +20%, 50V
C470 24794220 EL, 22uF, +20%, 16V C629 24794100 10pF, 20%, 16V
C471 24538474 PF, 0.47pF C630 24473470 47pF
C501 24794331 EL, 330yuF, +20%, 16V C631 24232103 0.01pnF, +80%, -20%
C502 24474181 CD, 180pF, +10% C640 24797478 0.47uF, +20%, 50V
C503 24436181 CD, 180pF C641(U902) 24794331 330uF, +20%, 16V
C505 24590273 PF, 0.027pF C641(U903) 24797478 0.47uF, 20%, 50V
C507 24590103 PF, 0.01uF C642 24212101 ‘100pF, +10%
C508 24085944 EL, 2.2uF, 20%, 50V, C643 24212101 100pF, +10%
Non-Polar C660 24797478 0.47uF, +20%, 50V
C509 24353330 CD, 33pF C661 24794100 10yF, +20%, 16V
C510 24232103 CD, 0.01pF, +80%, -20% C662 24473470 47pF
C511 24232103 CD, 0.01puF, +80%, —20% C663 24797339 3.3uF, +20%, 50V
C512 24353200 CD, 20pF C664 24797100 10pF, 20%, 50V
C513 24232103 CD, 0.01uF, +80%, -20% C665 24590104 0.1 uF
C515 24797220 EL, 22uF, +20%, 50V C666 24590104 0.1uF
C516 24590104 PF, 0.1yF C667 24205479 4.7pF, +20%, 35V
C517 24590104 PF, 0.1pF C668 24793221 220uF, 20%, 10V
C518 24232103 CD, 0.01uF, +80%, -20% C669 24797100 10yuF, 20%, 50V
C520 24797478 EL, 0.47uF, +20%, 50V C672 24667470 47pF, +20%, 25V
C521 24206478 EL, 0.47uF, 50V C673 24797010 1uF, +20%, 50V
C522 24206478 EL, 0.47uF, 50V C674 24590103 0.01pF
C523 24206478 EL, 0.47yuF, 50V C675 24797010 TpF, +20%, 50V
C524 24232103 CD, 0.01puF, +80%, -20% C676 24590153 0.015yuF
C525 24436820 CD, 82pF C677 24590103 0.01 pF
C526 24436820 CD, 82pF C678 24795470 47yuF, 20%, 25V
C527 24436820 CD, 82pF C679 24797010 TuF, +20%, 50V
C531 24794100 EL, 10uF, +20%, 16V C680 24795470 47uF, +20%, 25V
C532 24436391 CD, 390pF C681 24795470 47pF, +20%, 25V
C533 24436121 CD, 120pF C682 24796101 100pF, +20%, 35V
C534 24436101 CD, 100pF C683 24796102 1000uF, +20%, 35V
C535 24797100 EL, 10uF, +20%, 50V C684 24538124 0.12uF
C536 24797478 EL, 0.47uF, +20%, 50V C685 24668102 1000uF, +20%, 35V
C537 24794471 EL, 470uF, +20%, 16V 24538124 0.12uF
C540 24436221 CD, 220pF 24668102 1000uF, +20%, 35V
C541 24436221 CD, 220pF 24538124 PF, 0.12uF
C542 24436221 CD, 220pF 24082319 PF, 0.1uF, 20%, AC250V
C543 24232103 CD, 0.01uF, +80%, -20% 24094656 CD, 2200pF, +20%, AC400V
C601 24590393 PF, 0.039uF 24094656 CD, 2200pF, +20%, AC400V
C602 24590103 PF, 0.01uF 24082319 PF, 0.1puF, +20%, AC250V
C603 24590393 PF, 0.039uF 24092281 CD, 4700pF, +20%, AC250V
C604 24590393 PF, 0.039uF 24092281 CD, 4700pF, +20%, AC250V
C605 24797100 EL, 10uF, +20%, 50V 24086037 EL, 270uF, +20%, 400V
C606 24794100 EL, 10uF, +20%, 16V 24667331 EL, 330uF, +20%, 25V
C607 24794100 EL, 10uF, +20%, 16V 24214471 CD, 470pF, +10%, 500V
C608 24794100 EL, 10uF, +20%, 16V 24676220 EL, 22uF, +20%, 100V
C609 24797010 EL, 1pF, +20%, 50V 24590222 PF, 2200pF
C610 24797010 EL, 1pF, 20%, 50V 24214471 CD, 470pF, +10%, 500V
C611 24794100 EL, 10uF, +20%, 16V 24095931 PF, 2200pF, 1250V
C612 24794100 EL, 10uF, +20%, 16V 24795470 =EL, 47pF, +20%, 25V
C613 24794100 EL, 10uF, +20%, 16V 24092341 CD, 470pF, +10%, 2kV
C614 24794101 EL, 100uF, +20%, 16V 24214471 CD, 470pF, +10%, 500V
C615 24232103 CD, 0.01p4F, +80%, -20% 24797470 EL, 47puF, +20%, 50V
C616 24794471 EL, 470uF, +20%, 16V 24794470 EL, 47uF, +20%, 16V
C617 24232103 CD, 0.01puF, +80%, -20% 24794471 EL, 470uF, +20%, 16V
C618 24794100 EL, 10uF, +20%, 16V 24212101 CD, 100pF, +10%
C619 24793221 EL, 220uF, +20%, 10V 24796222 EL, 2200uF, +20%, 35V
C621 24797100 EL, 10uF, +20%, 50V 24092337 CD, 220pF, +10%, 2kV
C622 24205479 EL, 4.7uF, +20%, 35V 24086953 EL, 220uF, +20%, 160V
-—-15-

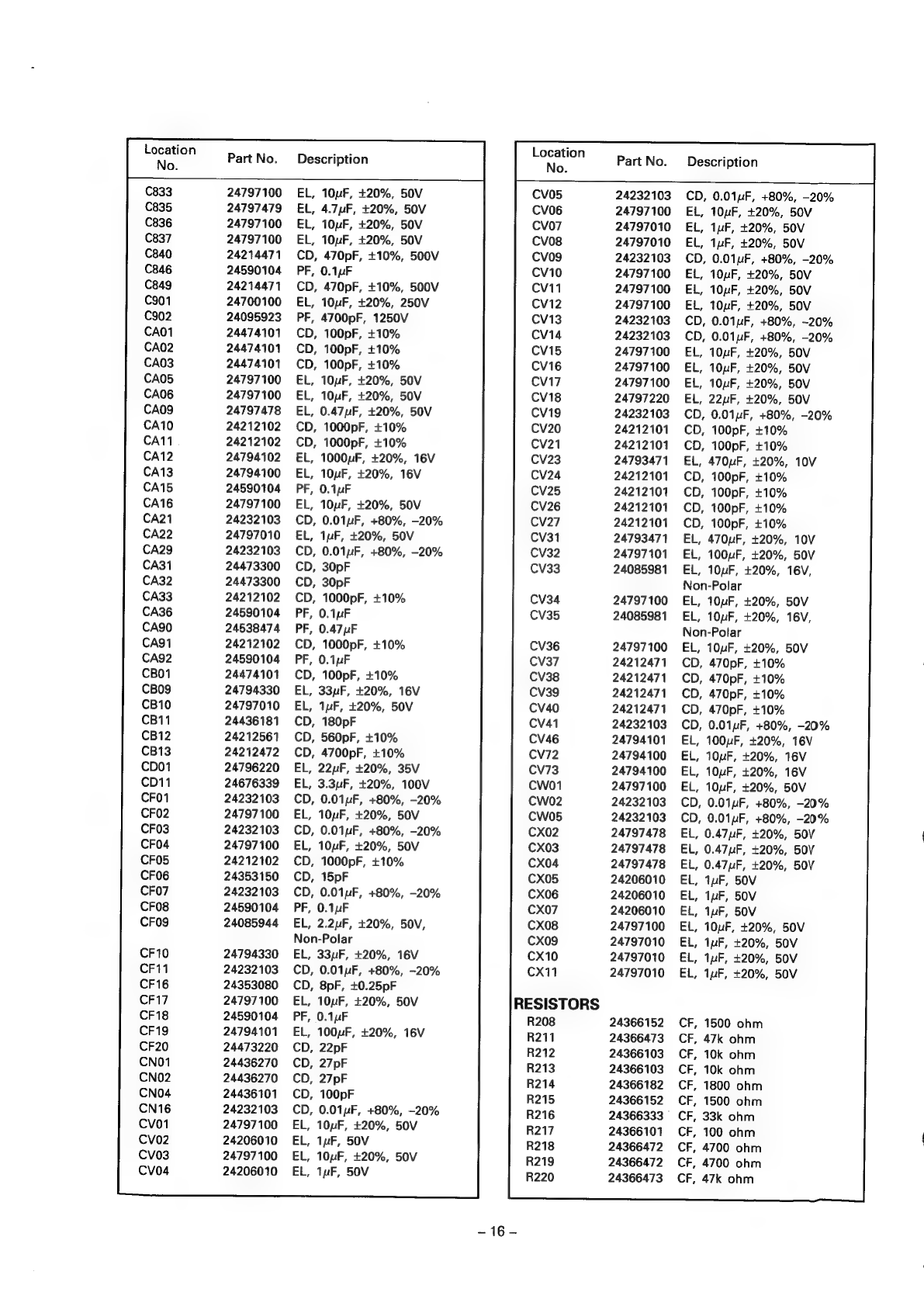

No.
C835
C836
C837
C840
C846
C849
C901
C902
CA01
CA02
CA03
CA05
CA06
CA09
CA10
CA11
CA12
CA13
CA15
CA16
CA21
CA22
CA29
CA31
CA32
CA33
CA36
CA90
CA91
CA92
CBO1
CBO9
CB10
CB11
CB12
CB13
CD01
CD11
CFO1
CFO2
CFO3
CFO4
CFO5
CFO6
CFO7
CFO8
CF09
CF10
CF11
CF16
CF17
CF18
CF19
CF20
CNO1
CNO2
CNO4
CN16
Cvo1
Cv02
Cv03
Cv04
Location
Part No.
24797100
24797479
24797100
24797100
24214471
24590104
24214471
24700100
24095923
24474101
24474101
24474101
24797100
24797100
24797478
24212102
24212102
24794102
24794100
24590104
24797100
24232103
24797010
24232103
24473300
24473300
24212102
24590104
24538474
24212102
24590104
24474101
24794330
24797010
24436181
24212561
24212472
24796220
24676339
24232103
24797100
24232103
24797100
24212102
24353150
24232103
24590104
24085944
24794330
24232103
24353080
24797100
24590104
24794101
24473220
24436270
24436270
24436101
24232103
24797100
24206010
24797100
24206010
Description
EL, 10uF, +20%, 50V
EL, 4.7uF, +20%, 50V
EL, 10uF, +20%, 50V
EL, 10uF, +20%, 50V
CD, 470pF, +10%, 500V
PF, 0.1uF
CD, 470pF, +10%, 500V
EL, 10uF, +20%, 250V
PF, 4700pF, 1250V
CD, 100pF, +10%
CD, 100pF, +10%
CD, 100pF, +10%
EL, 10uF, +20%, 50V
EL, 10uF, +20%, 50V
EL, 0.47pF, +20%, 50V
CD, 1000pF, +10%
CD, 1000pF, +10%
EL, 1000uF, +20%, 16V
EL, 10uF, +20%, 16V
PF, 0.1pF
EL, 10uF, +20%, 50V
CD, 0.01pF, +80%, -20%
EL, 1pF, +20%, 50V
CD, 0.01puF, +80%, -20%
CD, 30pF
CD, 30pF
CD, 1000pF, +10%
PF, 0.1puF
PF, 0.47uF
CD, 1000pF, +10%
PF, 0.1puF
CD, 100pF, +10%
EL, 33uF, +20%, 16V
EL, 1uF, +20%, 50V
CD, 180pF
CD, 560pF, +10%
CD, 4700pF, +10%
EL, 22uF, +20%, 35V
EL, 3.3uF, +20%, 100V
CD, 0.01pF, +80%, -20%
EL, 10uF, +20%, 50V
CD, 0.01pF, +80%, -20%
EL, 10uF, +20%, 50V
CD, 1000pF, +10%
CD, 15pF
CD, 0.01pnF, +80%, -20%
PF, 0.1pF
EL, 2.2uF, +20%, 50V,
Non-Polar
EL, 33uF, +20%, 16V
CD, 0.01pF, +80%, -20%
CD, 8pF, +0.25pF
EL, 10uF, +20%, 50V
PF, 0.14F
EL, 100uF, +20%, 16V
CD, 22pF
CD, 27pF
CD, 27pF
CD, 100pF
CD, 0.01pF, +80%, -20%
EL, 10uF, +20%, 50V
EL, 1pF, 50V
EL, 10uF, +20%, 50V
EL, 1pF, 50V
a46%
Location
No.
CV05
CV06
CV07
Ccv08s
CV09
CV10
Cv11
CV12
CV13
CV14
CV15
CV16
CV17
CV18
CV19
CVv20
CVv21
CV23
CV24
CV25
CV26
CV27
CV31
CV32
CV33
CV34
CV35
CV36
CV37
CV38
CV39
CV40
CV41
CV46
CV72
CV73
cwo1
Cwo2
CW05
CX02
CX03
CX04
CX05
CX06
CX07
CX08
CX09
CX10
CX11
RESISTORS
R208
R211
R212
R213
R214
R215
R216
R217
R218
R219
R220
Part No.
24232103
24797100
24797010
24797010
24232103
24797100
24797100
24797100
24232103
24232103
24797100
24797100
24797100
24797220
24232103
24212101
24212101
24793471
24212101
24212101
24212101
24212101
24793471
24797101
24085981
24797100
24085981
24797100
24212471
24212471
24212471
24212471
24232103
24794101
24794100
24794100
24797100
24232103
24232103
24797478
24797478
24797478
24206010
24206010
24206010
24797100
24797010
24797010
24797010
24366152
24366473
24366103
24366103
24366182
24366152
24366333
24366101
24366472
24366472
24366473
Description
CD, 0.01pF, +80%, -20%
EL, 10uF, +20%, 50V
EL, 1uF, +20%, 50V
EL, 1pF, +20%, 50V
CD, 0.01pF, +80%, -20%
EL, 10uF, +20%, 50V
EL, 10uF, +20%, 50V
EL, 10uF, +20%, 50V
CD, 0.01pF, +80%, ~20%
CD, 0.01puF, +80%, -20%
EL, 10uF, +20%, 50V
EL, 10uF, +20%, 50V
EL, 10uF, +20%, 50V
EL, 22uF, +20%, 50V
CD, 0.01pF, +80%, -20%
CD, 100pF, +10%
CD, 100pF, +10%
EL, 470uF, +20%, 10V
CD, 100pF, +10%
CD, 100pF, +10%
CD, 100pF, +10%
CD, 100pF, +10%
EL, 470uF, +20%, 10V
EL, 100uF, +20%, 50V
EL, 10uF, +20%, 16V,
Non-Polar
EL, 10uF, +20%, 50V
EL, 10uF, +20%, 16V,
Non-Potar
EL, 10uF, +20%, 50V
CD, 470pF, +10%
CD, 470pF, +10%
CD, 470pF, +10%
CD, 470pF, +10%
CD, 0.01uF, +80%, -20%
EL, 100uF, +20%, 16V
EL, 10uF, +20%, 16V
EL, 10uF, +20%, 16V
EL, 10uF, +20%, 50V
CD, 0.01uF, +80%, -20%
CD, 0.01uF, +80%, -20%
EL, 0.47uF, +20%, 50V
EL, 0.47yuF, +20%, 50V
EL, 0.47pF, +20%, 50V
EL, 1uF, 50V
EL, 1yF, 50V
EL, 1uF, 50V
EL, 10uF, +20%, 50V
EL, 1pF, +20%, 50V
EL, 1pF, +20%, 50V
EL, 1pF, +20%, 50V
CF, 1500 ohm
CF, 47k ohm
CF, 10k ohm
CF, 10k ohm
CF, 1800 ohm
CF, 1500 ohm
CF, 33k ohm
CF, 100 ohm
CF, 4700 ohm
CF, 4700 ohm
CF, 47k ohm

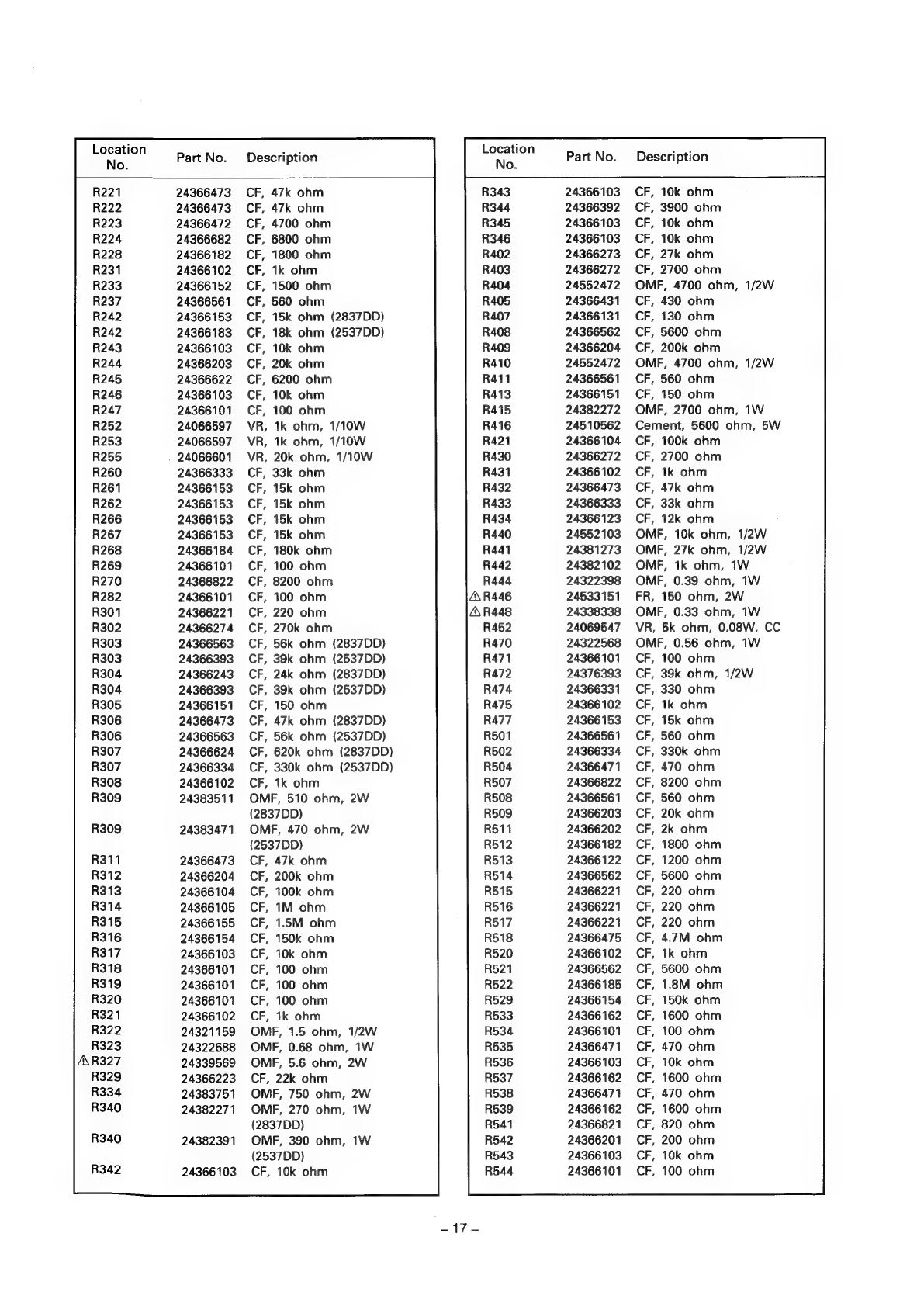

Location
No.
Part No.
24366473
24366473
24366472
24366682
24366182
24366102
24366152
24366561
24366153
24366183
24366103
24366203
24366622
24366103
24366101
24066597
24066597
24066601
24366333
24366153
24366153
24366153
24366153
24366184
24366101
24366822
24366101
24366221
24366274
24366563
24366393
24366243
24366393
24366151
24366473
24366563
24366624
24366334
24366102
24383511
24383471
24366473
24366204
24366104
24366105
24366155
24366154
24366103
24366101
24366101
24366101
24366102
24321159
24322688
24339569
24366223
24383751
24382271
24382391
24366103
Description
CF, 47k ohm
CF, 47k ohm
CF, 4700 ohm
CF, 6800 ohm
CF, 1800 ohm
CF, 1k ohm
1500 ohm
560 ohm
CF, 15k ohm (2837DD)
CF, 18k ohm (2537DD)
CF, 10k ohm
CF, 20k ohm
CF, 6200 ohm
CF, 10k ohm
CF, 100 ohm
VR, 1k ohm, 1/10W
VR, 1k ohm, 1/10W
VR, 20k ohm, 1/10W
CF, 33k ohm
CF, 15k ohm
CF, 15k ohm
CF, 15k ohm
CF, 15k ohm
CF, 180k ohm
CF, 100 ohm
CF, 8200 ohm
CF, 100 ohm
CF, 220 ohm
CF, 270k ohm
CF, 56k ohm (2837DD)
CF, 39k ohm (2537DD)
CF, 24k ohm (2837DD)
CF, 39k ohm (2537DD)
CF, 150 ohm
CF, 47k ohm (2837DD)
CF, 56k ohm (2537DD)
CF, 620k ohm (2837DD)
CF, 330k ohm (2537DD)
CF, 1k ohm
OMF, 510 ohm, 2W
(2837DD)
OMF, 470 ohm, 2W
(2537DD)
CF, 47k ohm
CF, 200k ohm
CF, 100k ohm
CF, 1M ohm
CF, 1.5M ohm
CF, 150k ohm
CF, 10k ohm
CF, 100 ohm
CF, 100 ohm
CF, 100 ohm
CF, 1k ohm
OMF, 1.5 ohm, 1/2W
OMF, 0.68 ohm, 1W
OMF, 5.6 ohm, 2W
CF, 22k ohm
OMF, 750 ohm, 2W
OMF, 270 ohm, 1W
(2837DD)
OMF, 390 ohm, 1W
(2537DD)
CF, 10k ohm
S47
Location
Part No.
24366103
24366392
24366103
24366103
24366273
24366272
24552472
24366431
24366131
24366562
24366204
24552472
24366561
24366151
24382272
24510562
24366104
24366272
24366102
24366473
24366333
24366123
24552103
24381273
24382102
24322398
24533151
24338338
24069547
24322568
24366101
24376393
24366331
24366102
24366153
24366561
24366334
24366471
24366822
24366561
24366203
24366202
24366182
24366122
24366562
24366221
24366221
24366221
24366475
24366102
24366562
24366185
24366154
24366162
24366101
24366471
24366103
24366162
24366471
24366162
24366821
24366201
24366103
24366101
Description
CF, 10k ohm
CF, 3900 ohm
CF, 10k ohm
CF, 10k ohm
CF, 27k ohm
CF, 2700 ohm
OMF, 4700 ohm, 1/2W
CF, 430 ohm
CF, 130 ohm
CF, 5600 ohm
CF, 200k ohm
OMF, 4700 ohm, 1/2W
CF, 560 ohm
CF, 150 ohm
OMF, 2700 ohm, 1W
Cement, 5600 ohm, 5W
CF, 100k ohm
CF, 2700 ohm
CF, 1k ohm
CF, 47k ohm
CF, 33k ohm
CF, 12k ohm
OMF, 10k ohm, 1/2W
OMF, 27k ohm, 1/2W
OMF, 1k ohm, 1W
OMF, 0.39 ohm, 1W
FR, 150 ohm, 2W
OMF, 0.33 ohm, 1W
VR, 5k ohm, 0.08W, CC
OMF, 0.56 ohm, 1W
CF, 100 ohm
CF, 39k ohm, 1/2W
CF, 330 ohm
CF, 1k ohm
CF, 15k ohm
CF, 560 ohm
CF, 330k ohm
CF, 470 ohm
CF, 8200 ohm
CF, 560 ohm
CF, 20k ohm
CF, 2k ohm
CF, 1800 ohm
CF, 1200 ohm
CF, 5600 ohm
CF, 220 ohm
CF, 220 ohm
CF, 220 ohm
CF, 4.7M ohm
CF, 1k ohm
CF, 5600 ohm
CF, 1.8M ohm
CF, 150k ohm
CF, 1600 ohm
CF, 100 ohm
CF, 470 ohm
CF, 10k ohm
CF, 1600 ohm
CF, 470 ohm
CF, 1600 ohm
CF, 820 ohm
CF, 200 ohm
CF, 10k ohm
CF, 100 ohm

Location
No.
Part No.
Description
R547
R548
R549
R551
R557
R558
R559
R565
R566
R567
R568
R570
R571
R572
R580
R581
R591
R592
R593
R601
R602
R603
R604
R608
R612
R613
R614
R615
R616
R617
R618
R619
R620
R622
R623
R625
R626
R627
R628
R630
R631
R632
R641
R642
R643
R660
R661
R662
R663
R664
R665
R666
R667
R668
R669
R670
R671
R672
R673
R674
R675
R676
R677
R681
24366102
24366102
24366102
24066955
24066600
24066600
24066600
24366560
24366560
24366560
24366102
24366272
24366272
24366272
24366391
24366331
24383153
24383153
24383153
24366101
24366101
24366101
24366394
24382680
24366221
24366101
24366472
24366103
24366102
24366102
24366303
24366682
24366103
24366103
24366103
24366103
24366682
24366303
24366273
24366473
24366472
24366103
24366103
24366103
24366104
24366432
24366103
24366103
24366104
24366104
24366103
24366103
24366103
24366103
24366912
24366103
24366102
24366512
24366102
24366102
24366102
24510139
24366102
24366103
CF, 1k ohm
CF, 1k ohm
CF, 1k ohm
VR, 1k ohm, 1/10W
VR, 10k ohm, 1/10W
VR, 10k ohm, 1/10W
VR, 10k ohm, 1/10W
CF, 56 ohm
CF, 56 ohm
CF, 56 ohm
CF, 1k ohm
CF, 2700 ohm
CF, 2700 ohm
CF, 2700 ohm
CF, 390 ohm
CF, 330 ohm
OMF, 15k ohm, 2W
OMF, 15k ohm, 2W
OMF, 15k ohm, 2W
CF, 100 ohm
CF, 100 ohm
CF, 100 ohm
CF, 390k ohm
OMF, 68 ohm, 1W
CF, 220 ohm
CF, 100 ohm
CF, 4700 ohm
CF, 10k ohm
CF, 1k ohm
CF, 1k ohm
CF, 30k ohm
CF, 6800 ohm
CF, 10k ohm
CF, 10k ohm
CF, 10k ohm
CF, 10k ohm
CF, 6800 ohm
CF, 30k ohm
CF, 27k ohm
CF, 47k ohm
CF, 4700 ohm
CF, 10k ohm
CF, 10k ohm
CF, 10k ohm
CF, 100k ohm
CF, 4300 ohm
CF, 10k ohm
CF, 10k ohm
CF, 100k ohm
CF, 100k ohm
CF, 10k ohm
CF, 10k ohm
CF, 10k ohm
CF, 10k ohm
CF, 9100 ohm
CF, 10k ohm
CF, 1k ohm
CF, 5100 chm
CF, 1k ohm
CF, 1k ohm
CF, 1k ohm
Cement, 1.3 ohm, 5W
CF, 1k ohm
CF, 10k ohm
-18-

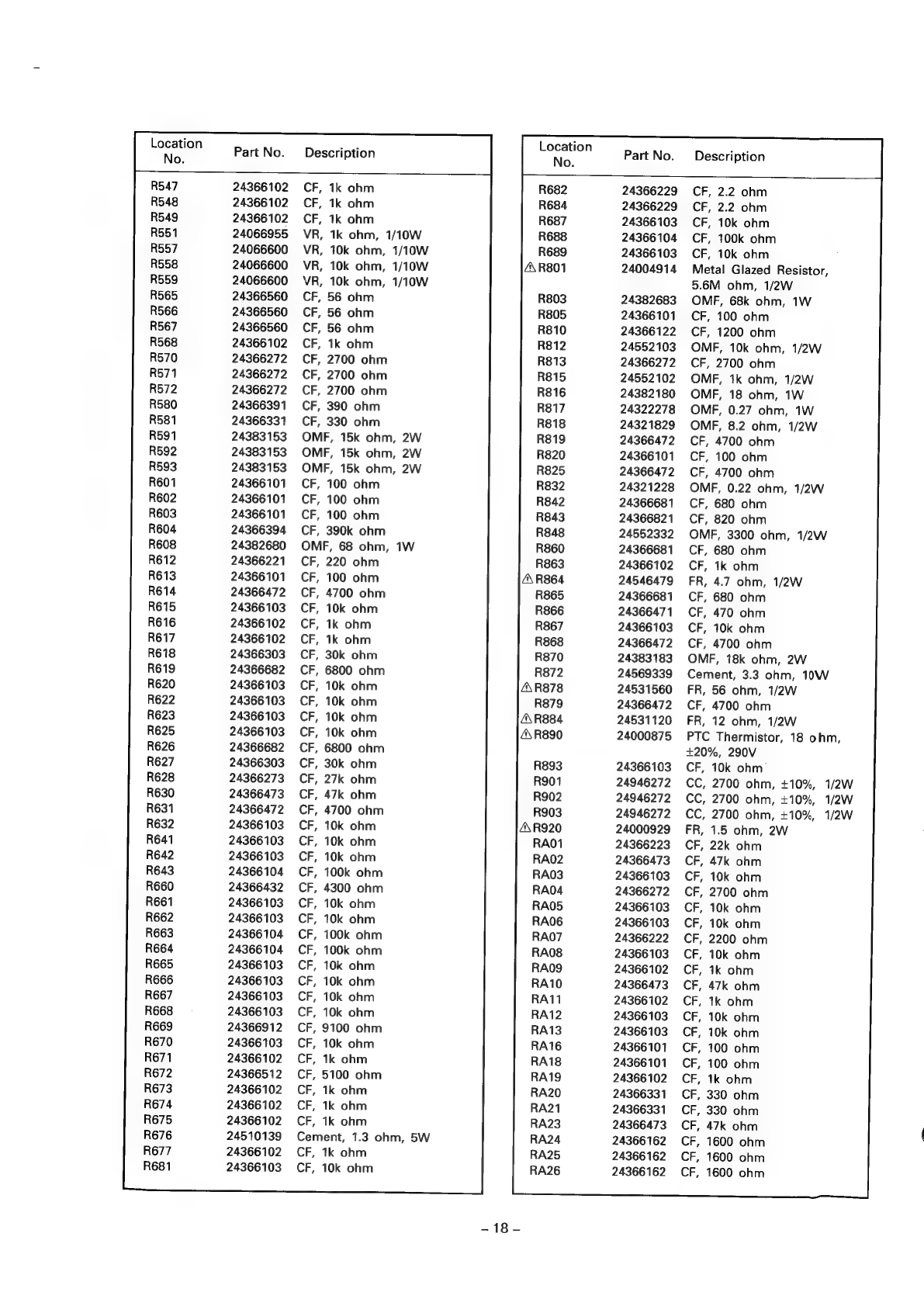

Location
No.
Part No.
Description
R682
R684
R687
R688
24366229
24366229
24366103
24366104
24366103
24004914
24382683
24366101
24366122
24552103
24366272
24552102
24382180
24322278
24321829
24366472
24366101
24366472
24321228
24366681
24366821
24552332
24366681
24366102
24546479
24366681
24366471
24366103
24366472
24383183
24569339
24531560
24366472
24531120
24000875
24366103
24946272
24946272
24946272
24000929
24366223
24366473
24366103
24366272
24366103
24366103
24366222
24366103
24366102
24366473
24366102
24366103
24366103
24366101
24366101
24366102
24366331
24366331
24366473
24366162
24366162
24366162
CF, 2.2 ohm
CF, 2.2 ohm
CF, 10k ohm
CF, 100k ohm
CF, 10k ohm
Metal Glazed Resistor,
5.6M ohm, 1/2W
OMF, 68k ohm, 1W
CF, 100 ohm
CF, 1200 ohm
OMF, 10k ohm, 1/2W
CF, 2700 ohm
OMF, 1k ohm, 1/2W
OMF, 18 ohm, 1W
OMF, 0.27 ohm, 1W
OMF, 8.2 ohm, 1/2W
CF, 4700 ohm
CF, 100 ohm
CF, 4700 ohm
OMF, 0.22 ohm, 1/2W
CF, 680 ohm
CF, 820 ohm
OMF, 3300 ohm, 1/2W
CF, 680 ohm
CF, 1k ohm
FR, 4.7 ohm, 1/2W
CF, 680 ohm
CF, 470 ohm
CF, 10k ohm
CF, 4700 ohm
OMF, 18k ohm, 2W
Cement, 3.3 ohm, 10W
FR, 56 ohm, 1/2W
CF, 4700 ohm
FR, 12 ohm, 1/2W
PTC Thermistor, 18 ohm,
+20%, 290V
CF, 10k ohm
CC, 2700 ohm, +10%, 1/2W
CC, 2700 ohm, +10%, 1/2W
CC, 2700 ohm, +10%, 1/2W
FR, 1.5 ohm, 2W
CF, 22k ohm
CF, 47k ohm
CF, 10k ohm
CF, 2700 ohm
CF, 10k ohm
CF, 10k ohm
CF, 2200 ohm
CF, 10k ohm
CF, 1k ohm
CF, 47k ohm
CF, 1k ohm
CF, 10k ohm
CF, 10k ohm
CF, 100 ohm
CF, 100 ohm
CF, 1k ohm
CF, 330 ohm
CF, 330 ohm
CF, 47k ohm
CF, 1600 ohm
CF, 1600 ohm
CF, 1600 ohm

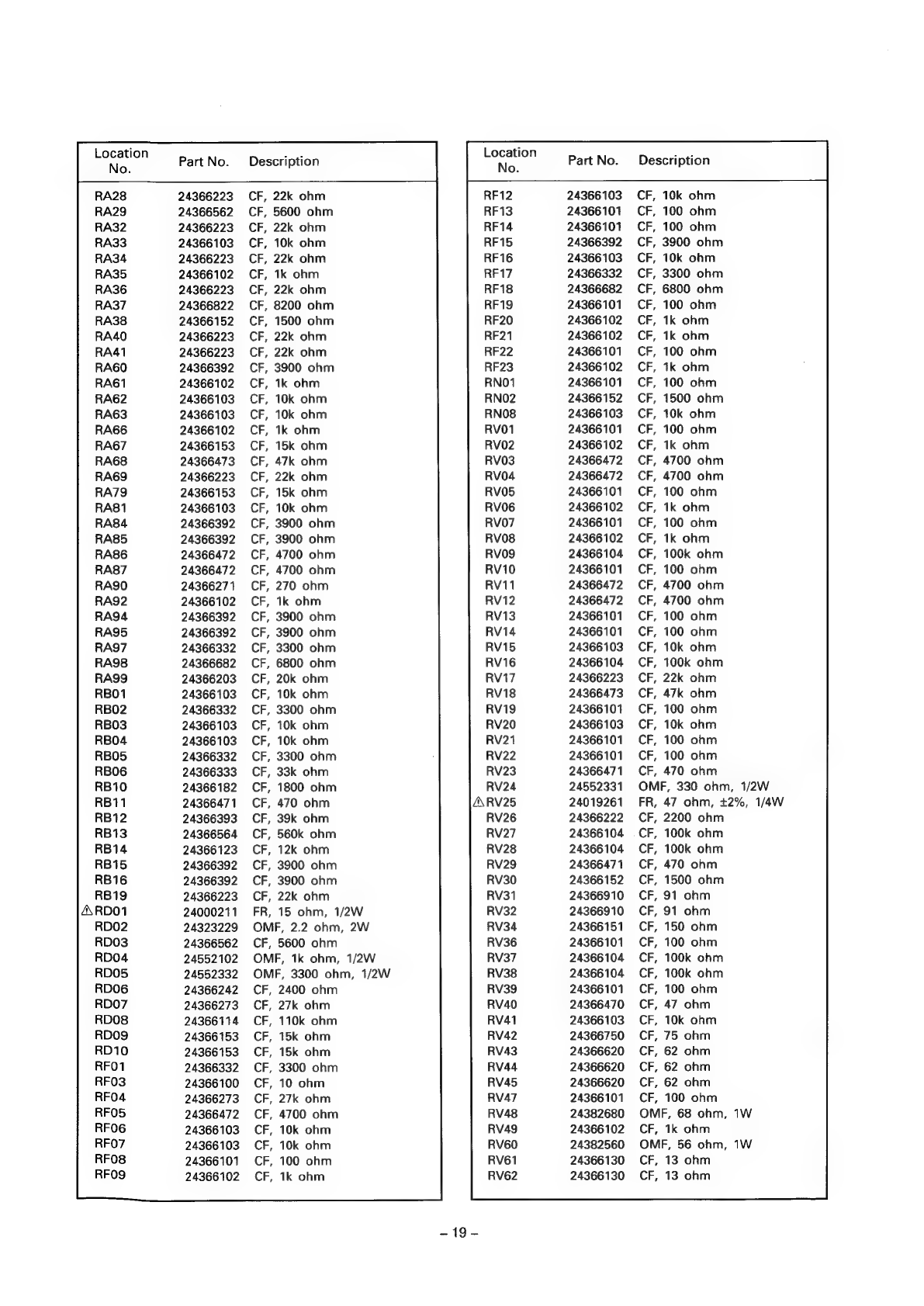

Baas Part No. Description Eoratan PartNo. Description
24366223 22k ohm 24366103 CF, 10k ohm
24366562 CF, 5600 ohm 24366101 CF, 100 ohm
24366223 CF, 22k ohm 24366101 CF, 100 ohm
24366103 CF, 10k ohm 24366392 CF, 3900 ohm
24366223 CF, 22k ohm 24366103 CF, 10k ohm
24366102 CF, 1k ohm 24366332 CF, 3300 ohm
24366223 CF, 22k ohm 24366682 CF, 6800 ohm
24366822 CF, 8200 ohm 24366101 CF, 100 ohm
24366152 CF, 1500 ohm 24366102 CF, 1k ohm
24366223 CF, 22k ohm 24366102 CF, 1k ohm
24366223 CF, 22k ohm 24366101 CF, 100 ohm
24366392 CF, 3900 ohm 24366102 CF, ik ohm
24366102 CF, 1k ohm 24366101 CF, 100 ohm
24366103 CF, 10k ohm 24366152 CF, 1500 ohm
24366103 CF, 10k ohm 24366103 CF, 10k ohm
24366102 CF, 1k ohm 24366101 CF, 100 ohm
24366153 CF, 15k ohm 24366102 CF, 1k ohm
24366473 CF, 47k ohm 24366472 CF, 4700 ohm
24366223 CF, 22k ohm 24366472 CF, 4700 ohm
24366153 CF, 15k ohm 24366101 CF, 100 ohm
24366103 CF, 10k ohm 24366102 CF, 1k ohm
24366392 CF, 3900 ohm 24366101 CF, 100 ohm
24366392 CF, 3900 ohm 24366102 CF, 1k ohm
24366472 CF, 4700 ohm 24366104 CF, 100k ohm
24366472 CF, 4700 ohm 24366101 CF, 100 ohm
24366271 CF, 270 ohm 24366472 CF, 4700 ohm
24366102 CF, 1k ohm 24366472 CF, 4700 ohm
24366392 CF, 3900 ohm 24366101 CF, 100 ohm
24366392 CF, 3900 ohm 24366101 CF, 100 ohm
24366332 CF, 3300 ohm 24366103 CF, 10k ohm
24366682 CF, 6800 ohm 24366104 CF, 100k ohm
24366203 CF, 20k ohm 24366223 CF, 22k ohm
24366103 CF, 10k ohm 24366473 CF, 47k ohm
24366332 CF, 3300 ohm 24366101 CF, 100 ohm
24366103 CF, 10k ohm 24366103 CF, 10k ohm
24366103 CF, 10k ohm 24366101 CF, 100 ohm
24366332 CF, 3300 ohm 24366101 CF, 100 ohm
24366333 CF, 33k ohm 24366471 CF, 470 ohm
24366182 CF, 1800 ohm 24552331 OMF, 330 ohm, 1/2W
24366471 CF, 470 ohm 24019261 FR, 47 ohm, +2%, 1/4W
24366393 CF, 39k ohm 24366222 CF, 2200 ohm
24366564 CF, 560k ohm 24366104 CF, 100k ohm
24366123 CF, 12k ohm 24366104 CF, 100k ohm
24366392 CF, 3900 ohm 24366471 CF, 470 ohm
24366392 CF, 3900 ohm 24366152 CF, 1500 ohm
24366223 CF, 22k ohm 24366910 CF, 91 ohm
24000211 FR, 15 ohm, 1/2W 24366910 CF, 91 ohm
24323229 OMF, 2.2 ohm, 2W 24366151 CF, 150 ohm
24366562 CF, 5600 ohm 24366101 CF, 100 ohm
24552102 OMF, 1k ohm, 1/2W 24366104 CF, 100k ohm
24552332 OMF, 3300 ohm, 1/2W 24366104 CF, 100k ohm
24366242 CF, 2400 ohm 24366101 CF, 100 ohm
24366273 CF, 27k ohm 24366470 CF, 47 ohm
24366114 CF, 110k ohm 24366103 CF, 10k ohm
24366153 CF, 15k ohm 24366750 CF, 75 ohm
24366153 CF, 15k ohm 24366620 CF, 62 ohm
24366332 CF, 3300 ohm 24366620 CF, 62 ohm
24366100 CF, 10 ohm 24366620 CF, 62 ohm
24366273 CF, 27k ohm 24366101 CF, 100 ohm
24366472 CF, 4700 ohm 24382680 OMF, 68 ohm, 1W
24366103 CF, 10k ohm 24366102 CF, 1k ohm
24366103 CF, 10k ohm 24382560 OMF, 56 ohm, 1W
24366101 CF, 100 ohm 24366130 CF, 13 ohm
24366102 CF, 1k ohm 24366130 CF, 13 ohm
~19-

Location
No.
Part No.
24366130
24366104
24366104
24366104
24366104
24366104
24366104
24366101
24366103
24366470
24366472
24366472
24366101
24366152
24366103
24366101
24366471
24366223
24366333
24366103
24366223
24366333
24366103
24552561
24366103
24366123
24366103
24366103
24366123
24366103
24366123
24366123
24366101
24366101
24366101
24366101
24366681
24366681
24366102
24366101
24366101
24366103
24366103
24366332
24366122
24366122
24366122
24366101
24366102
24366332
24366103
24366473
24366201
24366152
24366201
24366201
24366102
Description
CF,
CF,
CF,
CF,
CF,
CF,
CF,
CF,
CF,
CF,
CF,
CF,
CF,
CF,
CF,
CF,
CF,
CF,
CF,
CF,
CF,
13 ohm
100k ohm
100k ohm
100k ohm
100k ohm
100k ohm
100k ohm
100 ohm
10k ohm
47 ohm
4700 ohm
4700 ohm
100 ohm
1500 ohm
10k ohm
100 ohm
470 ohm
22k ohm
33k ohm
10k ohm
22k ohm
CF, 33k ohm
CF, 10k ohm
OMF, 560 ohm, 1/2W
CF, 10k ohm
CF, 12k ohm
CF, 10k ohm
CF, 10k ohm
CF, 12k ohm
CF, 10k ohm
CF, 12k ohm
CF, 12k ohm
CF, 100 ohm
CF, 100 ohm
CF, 100 ohm
CF, 100 ohm
CF, 680 ohm
CF, 680 ohm
CF, 1k ohm
CF, 100 ohm
CF, 100 ohm
CF, 10k ohm
CF, 10k ohm
CF, 3300 ohm
CF, 1200 ohm
CF, 1200 ohm
CF, 1200 ohm
CF, 100 ohm
CF, 1k ohm
CF, 3300 ohm
CF, 10k ohm
CF, 47k ohm
CF, 200 ohm
CF, 1500 ohm
CF, 200 ohm
CF, 200 ohm
CF, 1k ohm
& TRANSFORMERS
23289470
23103859
23289101
23238714
23221685
Coil, Peaking, TRF4470AF
Coil (Ferrite Bead), TEM2011
Coil, Peaking, TRF4101AF
Coil, Peaking, TRF4100AJ
Coil, Choke, TLN3193
—-20-—
Location
Part No.
23103859
23221684
23103859
23211897
23221894
23233948
23238714
23250972
23289100
23289100
23289100
23103859
23103859
23222694
23221747
23221746
23103859
23103859
23289229
23222694
23200203
23200202
23289109
23221803
23262001
23221896
23238712
23238712
23238720
23238562
23238714
23238714
23238714
23238714
23238506
23238506
23103859
23238506
23238714
23289120
23289220
23224336
23236454
23211891
23217214
SEMICONDUCTORS
1C301
IC302
IC408
IC501
IC601
IC602
B0378560
B0384683
23319314
B0384303
B0383935
23319808
23319808
B0377305
23904247
A6907751
Description
Coil (Ferrite Bead), TEM2011
Coil, Choke, TLN3191D
Coil (Ferrite Bead), TEM2011
Coil, Choke, AT4043/100T
Coil, Choke, TLN3063
Coil, Linearity, TLN2137G
DY, Supplied with V901
Coil, Peaking, TRF4100AJ
Coil, 1H-Delay Matching,
TRF5418D
Coil, Peaking, TRF4100AF
Coil, Peaking, TRF4100AF
Coil, Peaking, TRF4100AF
Coil (Ferrite Bead), TEM2011
Coil (Ferrite Bead), TEM2011
Coil, Width, TLN2026
Coil, Choke, TRF9253D
Coil, Choke, TLN3155D
Coil (Ferrite Bead), TEM2011
Coil (Ferrite Bead), TEM2011
Coil, Peaking, TRF42R2AF
Coil, Width, TLN2026
Coil, Degaussing, TSB-2330AR
(2837DD)
Coil, Degaussing, TSB-2329AR
(2537DD)
Coil, Peaking, TRF41ROAF
Coil, Choke, TLN3040D
Coil, IF, TRF1166D
Coil, Choke, TLN3061
Coil, Peaking, TRF4150AJ
Coil, Peaking, TRF4150AJ
Coil, Peaking, TRF4339AJ
Coil, Peaking, TRF4109AJ
Coil, Peaking, TRF4100AJ
Coil, Peaking, TRF4100AJ
Coil, Peaking, TRF41O0AJ
Coil, Peaking, TRF4\00AJ
Coil, Peaking, TRF4229AJ
Coil, Peaking, TRF4?29AJ
Coil (Ferrite Bead), TEM2011
Coil, Peaking, TRF4229AJ
Coil, Peaking, TRF41IO0AJ
Coil, Peaking, TRF4:20AF
Coil, Peaking, TRF4220AF
Transformer, Horiz. Drive,
TLN1083
Transformer, Flyback,
TFB4117AR
Line Filter, TRF3164
Transformer, Conveter,
TPW3283AR
IC, TA8427K
IC, TA8859AP
IC, uPC2412HF
IC, TA8808BN
iC, TA8776N
IC, M5218AP
IC, M5218AP
IC, TA8218AH
IC, STR-S6708
IC, $1854
