TOSHIBA TD-E432 Service Manual

2
Content Index
ABBREVIATIONS & ACRONYMS .......................................................................................................................3
ABOUT THIS MANUAL........................................................................................................................................4
INTRODUCTION ..................................................................................................................................................5
RELATED SERVICE INFORMATION..................................................................................................................6
PRODUCT SPECIFICATION..........................................................................................................................................51
SPECIFICATION CUSTOMER ACCEPTANCE ...............................................................................................51
SPECIFICATION.............................................................................................................................................53
PACKING.......................................................................................................................................................72
LEVEL 1 CIRCUIT BOARD AND STANDARD PARTS REPLACEMENT ............................................... 73
DISASSEMBLY /ASSEMBLY ............................................................................................................................73
SYSTEM BLOCK DIAGRAM ..........................................................................................................................75
APPENDIX 1 –BLOCK DIAGRAM ................................................................................................................ 75
APPENDIX 2 –INPUT SUPPORT TIMING ................................................................................................... 75
APPENDIX 3 –PACKING ................................................................................................................................. 77
APPENDIX 4 –SHIPPING ................................................................................................................................. 78
FLOWCHART OF TROUBLESHOOTING…………………………………………………………. 78

3
Abbreviations & Acronyms
A
A/D Converter
Analog to Digital Converter
B
C
CEL LABEL
China Energy Label
D
DTV
Digital Television
E
EMI
Electromagnetic Interference
F
G
H
HDMI
High Definition Multimedia Interface
I
J
K
L
M
N
NTSC
National Television System Committee
O
OSD
On Screen Display
P
PAL
Phase Alternating Line
Q
R
RS232
Interface Between Data Terminal Equipment and Data
Communications Equipment Employing Serial Binary Data
Interchange
S
T
U
V

4
About This Manual
This manual contains information about maintenance and service of TOSHIBA products. Use this
manual to perform diagnostics tests, trouble shoot problems, and align the TOSHIBA product.
Important
Only trained service personnel who are familiar with this TOSHIBA Product shall
perform service or maintenance to it. Before performing any maintenance or service,
the engineer MUST read the “Important Safety Information”.
Trademark
The following terms are trademarks of TOSHIBA Corporation:
Other companies, products, or service names may be the trademarks of their respective companies.

5
Introduction
This section contains general service information, please read through carefully. It should be
stored for easy access place.
Important Service Information
RoHS (2002/95/EC) Requirements –Applied to all countries require RoHS.
The RoHS (Restriction of Hazardous Substance in Electrical and Electronic Equipment
Directive) is a legal requirement by EU (European Union) for the global electronics industry
which sold in EU and some counties also require this requirement. Any electrical and
electronics products launched in the market after June 2006 should meet this RoHS
requirements. Products launched in the market before June 2006 are not required to
compliant with RoHS parts. If the original parts are not RoHS complaints, the
replacement parts can be non ROHS complaints, but if the original parts are RoHS
compliant, the replacement parts MUST be RoHS complaints. If the product service or
maintenance require replacing any parts, please confirming the RoHS requirement before
replace them.
Safety Notice
1. Make sure your working environment is dry and clean, and meets all government
safety requirements.
2. Ensure that other persons are safe while you are servicing the product.
3. DO NOT perform any action that may cause a hazard to the customer or make the
product unsafe.
4. Use proper safety devices to ensure your personal safety.
5. Always use approved tools and test equipment for servicing.
6. Never assume the product’s power is disconnected from the mains power supply.
Check that it is disconnected before opening the product’s cabinet.
7. Modules containing electrical components are sensitive to electrostatic discharge
(ESD). Follow ESD safety procedures while handling these parts.
8. Some products contain more than one battery. Do not disassemble any battery, or
expose it to high temperatures such as throwing into fire, or it may explode.
9. Refer to government requirements for battery recycling or disposal.
Compliance Statement
1. Caution:This Optical Storage Product contains a Laser device. Refer to the product
specifications and your local Laser Safety Compliance Requirements.

6
Related Service Information
1.1.This specification sheet is applied to all of the Public Information Display with ODM by
Darwin precisions.
1.2. Not-included specification and each product spec in this spec sheet apply
correspondingly to the following each country standard and requirement of Buyer
Model
Name
Customer
Market
place
Panel
Chassis
Remark
S430HF44 V0
TOSHIBA LIFESTYLE
PRODUCTS AND
SERVICES
COPORATION
USA
Japan
Europe
Australia
T430HVN01.2
MSD8220
Mstar
2. Features
True Commercial 16/7 Operation Digital Display ( Life time is 30,000 hour / One week using 7
day, one day using 16 hr, life time is 5 year)
LCD panel providing a wide variety of content and messages clearly
Brightness 450 nits( Typ)
Built-in Speakers
USB Media Player -Video：MPG, MPEG, AVI, MKV, MOV, MP4, TS, M2TS, H.264 (up to level
4.0)\Music：MP3, WMA, AAC\Photo：JPG, BMP, PNG (BMPs and JPGs with a resolution larger
than 1024x768 may take additional time to display)
3. General Description
3.1. General Specification
No
Item
Specification
Unit
Note
1
Active Screen Size
42.5
inch
2
Display Area
940.896(H) x 529.254(V)
mm
3
Outline Dimension
855.8(H) x 554.4 (V) x 64.2 (D)
mm
D: thickness Include Wall
mount scale
4
Driver Element
a-Si TFT active matrix
5
Display Colors
8 bit (16.7M)
Colors
6
Number of Pixels
1920 x 1080
Pixel
7
Pixel Pitch
0.49 (H) x 0.49(W)
mm
8
Pixel Arrangement
RGB vertical stripe
9
Display Operation Mode
Normally Black
10
Surface Treatment
Anti-Glare, 3H
Haze=2%

7
11
Weight
5,000
g
12
LCD Module
T420HVF05 V1
3.2. Electrical Specifications
Item
Specification
Unit
Remark
LCD panel
Resolution
1,920 x 1,080
Response time(typ.)
8
ms
Aspect Ratio
16:9
Optical
Panel Brightness(Typ)
450
cd/m2
Panel Contrast Ratio(Typ)
3,000
Panel Contrast Ratio(Min)
2,400
Graphic
Separate Sync
LVDS
Horizontal Sync
Positive/Negative
Vertical Sync
Positive/Negative
Input connector
IR/ AV / Line(PC audio) / VGA /
USB/HDMI x2/DVI /RS232 /RJ45
Output connector
IR/Audio (Line out)/DVI/RS232
Power
consumption
Power Input
AC 100V~240V 50/60Hz
At AC 110V(Factory
for Initial value)
Max
90
W
Typ
72
W
Stand By
≤ 0.5
W
Operating Environment
1) Temp : 0 ~ 40 ℃
2) Humidity : 10 ~ 90 %
Non-Operating Environment
1) Temp : -20 ~ 60℃
2) Humidity : ≦90 %
Backup Time
7 Days (10,080min )
Capacitor need to be
charged to above 3V
Accuracy of RTC
±30 ppm
1.Crystal : ±20 ppm
Note1
2.RTC IC : ±10 ppm
Note2
Note1：Component specCrystal tolerance

8
Note2：Component specRTC IC tolerance

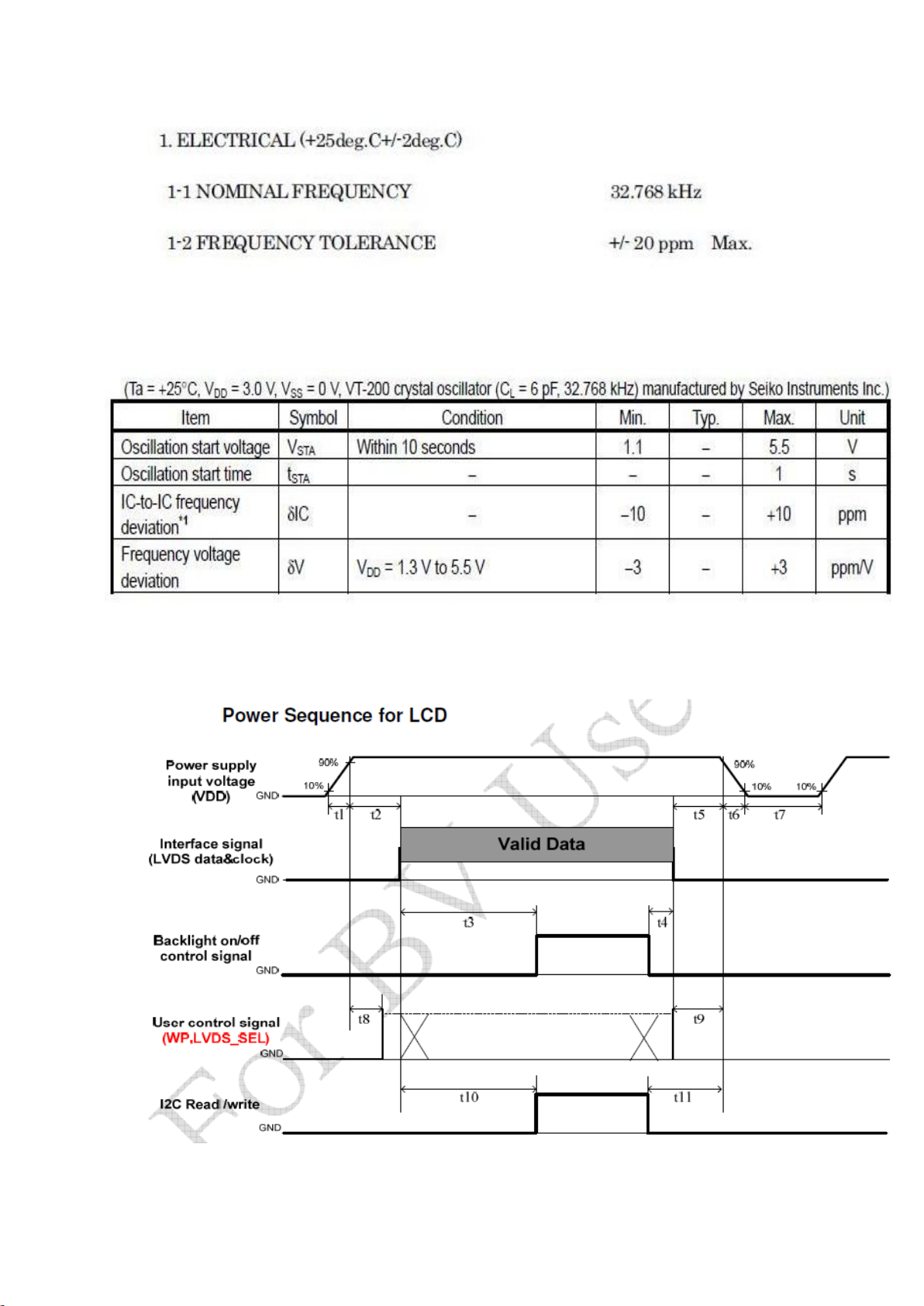

3.2.1. Power sequence for Panel
a) T430HVN01.2

9

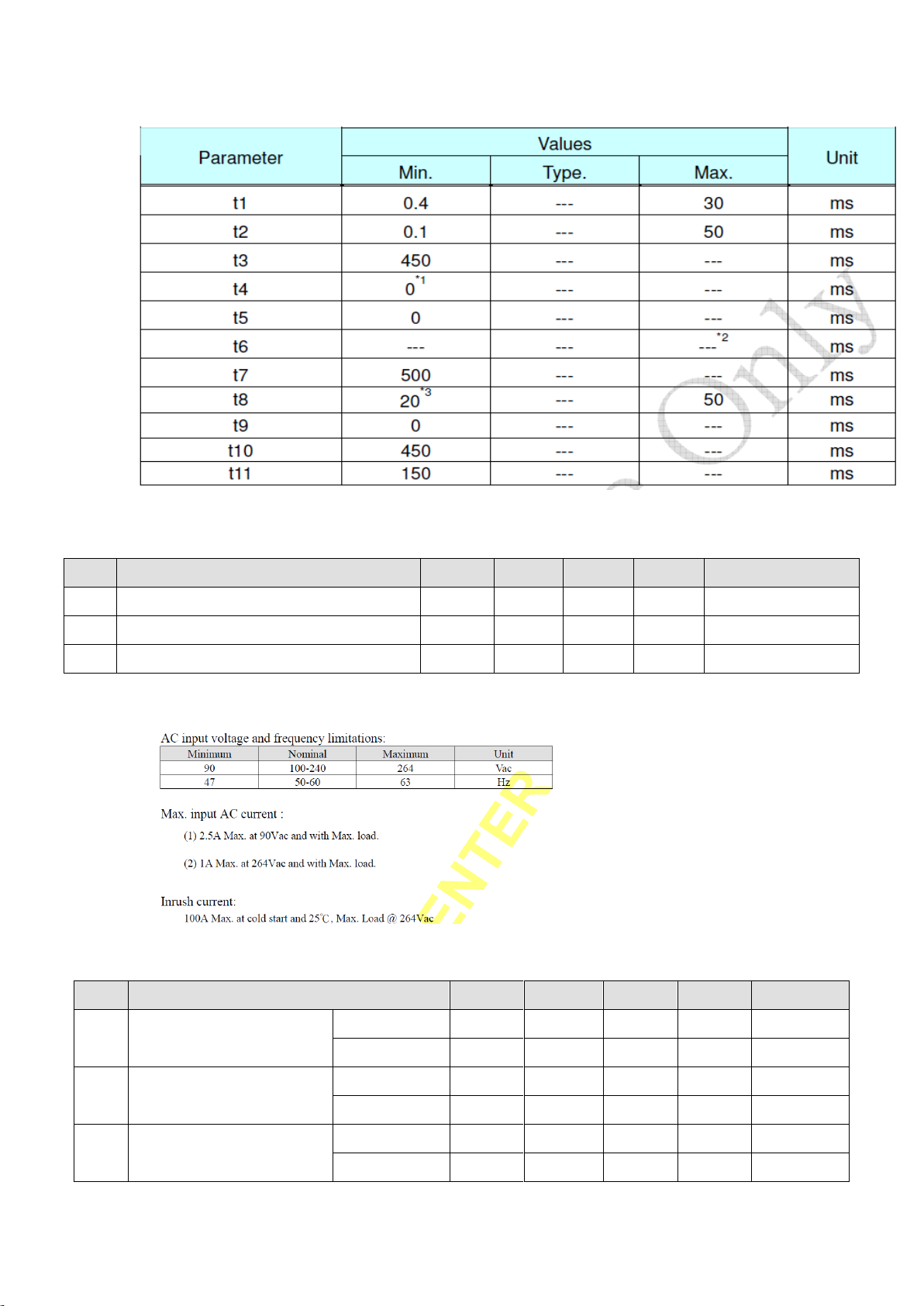

3.3. Power board specification
3.3.1 General specification
No
Item
Min
Typ
Max
Unit
Remark
1
AC Power Voltage
100
-
240
V
Note 1
2
Max. Input Current (S430HF44V0)
1
Arms
Based on AC 100V
3
Standby Power
-
-
0.5
W
Note 1 : Follow Spec Label is 100V~240V
Follow Power board Spec is 90V~264V
3.3.2 Control Signal (S430HF44V0)
No
Item
Min
Typ
Max
Unit
Remark
1
PWR on/off control V
ON/OFF
On=High
2.5
3.3
5.5
V
Off=Low
0
0.7
V
2
Back light on/off control V
ON/OFF
On=High
2
3.3
5.5
V
Off=Low
-0.3
0.8
V
3
External PWM dimming
Duty
10
100
%
Frequency
90
180
240
Hz

10
No
Item
Min
Typ
Max
Unit
Remark
High Level
2
3.3
V
Low Level
0
0.8
V
4. Optical Specification
Each part is tested as below without special appointment
4.1 Temperature：
-Operating 0℃~ 40℃
-Non-operating -20℃to +60℃
4.2 Relative Humidity：
-Operating 10 to 90%
-Non-operating ≦90%
4.3 Power Voltage: Standard input voltage (AC100V~ 240V 50/60Hz)
* StandardVoltage of each product is marked by models
4.4 Specification and performance of each parts are followed each drawing and specification
by part number in accordance with BOM.
4.5 The receiver must be operated for about 20 minutes prior to the adjustment.
4.6 General Information
Item
Specification
Unit
Note
Active Screen Size
42.5
inch
Display Area
940.896(H) x 529.254(V)
mm
Outline Dimension
855.8(H) x 554.4 (V) x 64.2 (D)
mm
D: thickness Include Wall
mount scale
Driver Element
a-Si TFT active matrix
Display Colors
8 bit (16.7M)
Colors
Number of Pixels
1,920 x 1,080
Pixel
Pixel Pitch
0.49 (H) x 0.49(W)
mm
Pixel Arrangement
RGB vertical stripe
Display Operation Mode
Normally Black
Surface Treatment
Anti-Glare,3H
Haze=2%
Weight
5,000
g
Life time
30,000
Hour
Optical characteristics are determined after the unit has been ‘ON’ and stable for approximately 45 minutes
in a dark environment at 25°C. The values specified are at an approximate distance 500 mm from the LCD
surface at a viewing angle of φand Өequal to 0°

11

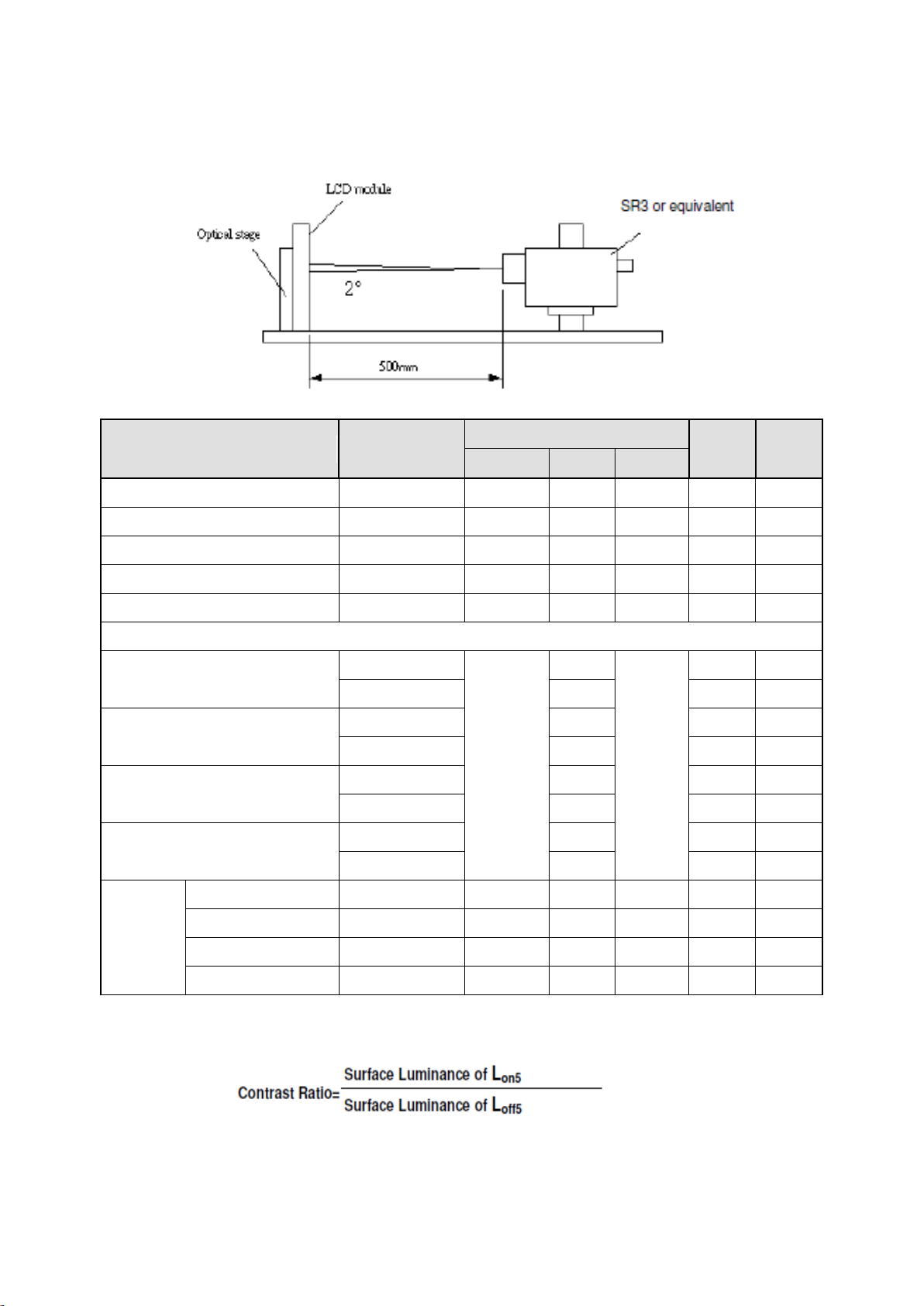

Fig.1 presents additional information concerning the measurement equipment and
method.
Parameter
Symbol
Values
Unit
Notes
Min.
Typ.
Max
Contrast Ratio
CR
2,400
3,000
--
--
1
Surface Luminance (White)
LWH
--
450
--
cd/m2
2
Luminance Variation
δWHITE(9P)
68%
--
--
--
3
Response Time (G to G)
Ty
--
8
--
ms
4
Color Gamut
NTSC
72
%
--
Color Coordinates
Red
Rx
Typ. -0.03
0.653
Typ. +0.03
Ry
0.330
Green
Gx
0.317
Gy
0.615
Blue
Bx
0.153
By
0.060
White
Wx
0.290
--
Wy
0.292
--
Viewing
Angle
x axis, right (φ=0°)
θr
--
89
--
Degree
5
x axis, left (φ=180°)
θi
--
89
--
Degree
5
y axis, up (φ=90°)
θu
--
89
--
Degree
5
y axis, down (φ=270°)
θd
--
89
--
degree
5
Note：
1. Contrast Ratio (CR) is defined mathematically as:
2. Surface luminance is luminance value at point 5 across the LCD surface 50cm from the surface with all
pixels displaying white. From more information see FIG 2. LWH=Lon5 where Lon5 is the luminance with

12
all pixels displaying white at center 5 location.
3. The variation in surface luminance, _WHITE is defined (center of Screen) as:
δHITE(9P)= Minimum(Lon1, Lon2,…,Lon9)/ Maximum(Lon1, Lon2,…Lon9)
4. Response time Tr is the average time required for display transition by switching the input signal for five
luminance ratio (0%,25%,50%,75%,100% brightness matrix) and is based on Fv=60Hz to optimize.
The response time is defined as the following figure and shall be measured by switching the input
signal for
“any level of grey(bright) “ and “any level of gray(dark)”.
Any level of gray (Bright) Any level of gray (Dark) Any level of gray
(Bright)
FIG. 2 Luminance
5. Viewing angle is the angle at which the contrast ratio is greater than 10. The angles are
determined for the horizontal or x axis and the vertical or y axis with respect to the z axis which is
normal to the LCD surface. For more information see FIG3.

13
FIG.3 Viewing Angle
5. OSD functions
Layer 1
Layer 2
Layer 3
Layer 4
Default Value
AV
Co
mp
one
nt
Hdmi1
Hdmi2
DV
I
VG
A
USB
映像
Picture Mode
画像モード
Picture Style
画像スタイ
ル
Standard/Dynamic/sRGB/
Custom/Cinema
Dynamic
Dyn
amic
Dynamic
Dynamic
Dyn
ami
c
Dyna
mic
Dynami
c
Contrast
コントラス
ト
0~100
0~100
73
73
73
73
73
73
73
Brightness
ブライトネ
ス
0~100
0~100
50
50
50
50
50
50
50
Sharpness
シャープネ
ス
0~10
0~10
6
6
6
6
6
6
6
Tint
色合い
Tint
色合い
0~50
0~50
26
26
26
26
26
26
26
Red Hue
-16~1
6
0
0
0
0
0
0
0
Magenta
Hue
-16~1
6
0
0
0
0
0
0
0
Blue Hue
-16~1
6
0
0
0
0
0
0
0
Cyan Hue
-16~1
6
0
0
0
0
0
0
0
Green
Hue
-16~1
6
0
0
0
0
0
0
0

14
Yellow
Hue
-16~1
6
0
0
0
0
0
0
0
Color
カラー
Color
カラー
0~50
0~50
47
47
47
47
47
47
47
Red
Saturatio
n
0~15
0
0
0
0
0
0
0
Magenta
Saturatio
n
0~15
0
0
0
0
0
0
0
Blue
Saturatio
n
0~15
0
0
0
0
0
0
0
Cyan
Saturatio
n
0~15
0
0
0
0
0
0
0
Green
Saturatio
n
0~15
0
0
0
0
0
0
0
Yellow
Saturatio
n
0~15
0
0
0
0
0
0
0
Backl
ight
バッ
クラ
イト
0~100
0~100
100
10
0
100
100
10
0
100
100
Color Temperature
色温度
Color Temperature
色温度
5000K~10000K,
13000K/100K step,
Custom
5000K~10000K/10
0K step,パーソナ
ル
13000K
130
00K
13000K
13000K
130
00K
1300
0K
13000
K
Red Gain
Rゲイン
0~2047
13000K default RGB = (988, 1060, 1115)
Green Gain
Gゲイン
0~2047

15
Blue Gain
Bゲイン
0~2047
Gamma
ガンマ
2.2/ 2.4 /
Native.
2.2
2.2
2.2
2.2
2.2
2.2
2.2
Noise
Reduction
ノイズリ
ダクショ
ン
Off/Wea
k/Middle
/Strong
オフ/中/
強/弱
Middle
Middle
Midd
le
Midd
le
Midd
le
Middle
Middle
Adaptive
Contrast
アダプテ
ィブコン
トラスト
On/Off
オン/オ
フ
On
On
On
On
On
On
On
Over Scan
オーバー
スキャン
On/Off/A
uto
オン/オ
フ/自動
Auto
Auto
Auto
Aut
o
Auto
Auto
Auto
Aspect
Ratio
アスペク
ト
4:3/16:9/
Zoom/Ci
nema/Do
t by Dot
4:3/16:9/
ズーム/
シネマ
Set the aspect ratio of the current.
The item is gray out when the zoom (in multi-display)
is enable.
The option as below:
a. AV source : the option is 4:3, 16:9, zoom, cinema
and dot by dot.
b. Media source: In movie, if overscan is Auto, the
option is 4:3, 16:9, zoom, dot by dot. If overscan is
OFF, option is 4:3 , 16:9 and dot by dot.
c. other source : If overscan is Auto, option is 4:3,
16:9, zoom, cinema, dot by dot. If overscan is OFF,
option is 4:3 , 16:9 and dot by dot.
If multi-display is active, aspect ration will change to
16:9 and gray
overscan item, set overscan as OFF.
(refer to the sheet of Aspect Ratio Setting)
Color
Range
色範囲
0~255/16
~235/Aut
omatic
0~255/16
Aut
o
Auto
Aut
o

16
~235/自
動
VGA setting
VGA 設定
H position
水平位置
0~100
Gray out
50
Gray out
V position
垂直位置
0~68
36
50
Clock
クロック
0~100
Phase
位相
0~100
60
Auto Adjustment
自動調整
Enable/Disable
有効にする/無
効にする
Ena
ble
Auto
自動
Non
e
Reset Picture Setting
映像設定をリセット
None
Sound
音声
Sound Mode
音声モード
Sound Style
音声スタイ
ル
Standard/Dynamic/C
ustom
スタンダード/ダ
イナミック/パー
ソナル
Dynam
ic
Dynam
ic
Dynami
c
Dyna
mic
Dyn
amic
Dynam
ic
Dynamic
Treble
高音
50~+50
10
10
10
10
10
10
10
Bass
低音
50~+50
30
30
30
30
30
30
30
Balance
バランス
50~+50
0
0
0
0
0
0
0
Surround
Sound
サラウ
ンドサ
ウンド
On/Off
オン/オフ
OFF
OFF
OFF
OFF
OF
F
OFF
OFF
Speaker
スピー
カー
Internal/External
内部/外部
Intern
al
Intern
al
Intern
al
Intern
al
Inte
rnal
Intern
al
Internal
Audio
Only
On/Off
オン/オフ
OFF
OFF
OFF
OFF
OF
F
OFF
OFF

17
音声の
み
Audio
Source
音源
Line In/HDMI 1
Line In/HDMI 1
Line
in
Line
in
HDMI
1
HDMI
2
Line
in
Line
in
USB
Reset Sound Setting
音声設定をリセット
None
Setup
設定
Scheduler
スケジューラー
1. User can set 7 secheuler to decide the power
on/off time, source, frequency.
2. User can set any time, date, source, frequency in
each schedule
3. If user select USB-photo or USB-music or
USB-movie in power on
source, it will follow playlist to play. If user didn't
create playlist, system
will depend on USB-photo or USB-music or
USB-move setting to auto
play the photo or music or move file in USB root.
4. Support power on source option : AV, Component,
HDMI1, HDMI2, DVD-D, VGA,USB-photo,
USB-music, USB-movie
5. schedule behavior
case 1: if the power on time is same in different
schedule, system will use smaller schedule setting to
power on. Smaller schedule number priority is
higher.
case 2: if the off time of current Schedule is equal to
the power on time of
next schedule, system will cancel current off time
and use next schedule
off time.
Signal Check Priority
信号チェック優先度
1. User can set signal priority 1~5. (priority 1 is
the highest)
2. If current source signal is lost, start failover
function(auto search signal according signal priority
setting). If higher priority source exist signal, start
failback function (auto switch to higher priority
source).

18
3. If user change source by input source OSD or
RS232/LAN command, source will keep at user
selected source(Don’t care Priority setting at this
time until user selected source signal is lost ). If user
selected source
signal is lost, PID will search the active input source
according to the
setting of Signal Priority Check. (even user select
source signal back,
source will not change back to user selected
source).
4. After start signal check priority function, if higher
priority signal exist,
auto switch to higher priority source. If all source no
signal, continue to
search active input source according to the setting of
signal priority check.
5. In search signal of signal prioritycheck setting, the
checking period is about 2 seconds each item. If
user change source manually, the check timeout is
10 seconds.
6. If user select USB-photo or USB-music or
USB-movie, it will follow playlist to play. If user didn't
create playlist, system will depend on USB-photo or
USB-music or USB-move setting to auto play the
photo or music or move file in USB root.
7. In media, if user press EXIT key to leave playing
mode, the auto play behavior will stop.
8. Support source option : AV/Component, HDMI1,
HDMI2, DVD-D, VGA, USB-photo, USB-music,
USB-movie
(only can set one of USB-photo, USB-music and
USB-movie)
9. if signal priority check = enable, Power on source
will search the active source according the setting of
signal priority check. if signal priority check =
disable, power on source will the last source.
10 if signal priority check =enable and power on

19
source is USB, system will auto play USB function.
11.This function(Failover/Failback) is premised on
working automatically basically.
Usually, the source used by a primary is set as P1.It
is a backup function
to when the signal of P1 is lost.
Control
Setting
制御設
定
Off/ RS232/ LAN
オフ/RS232/LAN
OFF
(Off means uart communication is changed to
VGA port.(RD debug)
RS232 means uart communication is changed
to RS232C port.
LAN means uart communication is changed to
LAN port.)
Standby
Mode
スタン
バイモ
ード
ECO/Normal
省エネ/ノーマル
ECO
(Set the standby mode of LAN IC.
ECO means LAN IC is not workable when PID
is at standby mode. User can not use LAN
command to power on PID.
Normal means LAN IC is active mode when
PID is at standby
mode. User can use LAN command to power
on PID)
Ethernet Setting
イーサネット設定
(The portions are static and DHCP.
In static mode, user can set IP, Mask,
Gateway and DNS)
Sleep
Timer
スリー
プタイ
マー
Off, 5, 15, 30, 60,
90,120, 180 min
オフ, 5, 15, 30, 60,
90,120, 180 分
Enable
(Power down timer priority : scheduler > sleep
timer = no signal timer)
Power
Save
パワー
セーブ
Off,
30sec~300sec/30sec
steps
300sec
(Set the timer to power off PID when current
source has no signal.)
Software Update(USB)
ソフトウェアの更新(USB)
None
(Update the FW by USB.
The confirm OSD has YES or NO item.
Yes : update the FW.

20
No : exit the confirm OSD.)
Restore Default
デフォルトに戻す
None
(Restore the default value.)
Initial
Setting
初期設
定
OSD
Rotation
OSD 回転
Landscape/Portrait
水平/垂直
Landscape
(Set the OSD in landscape or portrait mode.
The portrait OSD will turn landscape OSD right 90
degree)
Menu
Language
メニュー
言語
English/
French/German/Spanish/Italian/Sw
edish/Japanese/CN_Chinese
英語/フランス語/ドイツ語/ス
ペイン後/イタリア語/スウェ
ーデン語/日本語/簡体中文
English
Time
Format
時刻の形
式
12 Hour/24 Hour
12 時間制/24 時間制
12-Hour
Clock
時計
2015/2/25 04:14 PM
2015/2/25 04:14 PM
Year
2015~2046
2015
Month
1~12
1
Day
1~31
1
Hour
0~23
4
Minute
0~59
0
Logo
Display
ロゴ表示
Enable/Disable
有効にする/無効にする
Enable
Remote
Operation
リモコン
操作
Enable/Disable
有効にする/無効にする
Enable
(In IR lock mode, user can use keypad to enter "Remote
Operation" item to unlock IR.
In keypad lock mode, user can use IR to enter "keypad
operation" item to unlock keypad.
If IR and keypad both are in lock mode, please press
Menu+Left+Right+Up+Down to unlock.)
Keypad
Operation
キーパッ
ド操作
Enable/Disable
有効にする/無効にする
Enable
(In IR lock mode, user can use keypad to enter "Remote
Operation" item to unlock IR.
In keypad lock mode, user can use IR to enter "keypad
operation" item to unlock keypad.
If IR and keypad both are in lock mode, please press
