Total Control MFSPOE-8 User manual

Installation Manual
MFSPOE-8
Network Switch

MFSPOE-8 Installation Manual ©2010-2013 Universal Remote Control, Inc.
The information in this owner’s manual is copyright protected. No part of this
manual may be copied or reproduced in any form without prior written consent
from Universal Remote Control, Inc.
UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPER-
ATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN
THIS MANUAL.
The information in this owner’s manual may be subject to change without prior
notice.
URC - Control the Experience is a registered trademark of Universal Remote
Control, Inc.
Total Control is a registered trademark of Universal Remote Control, Inc.
All other brand or product names are trademarks or registered trademarks
of their respective companies or organizations.
500 Mamaroneck Avenue, Harrison, NY 10528
Phone: [phone] Fax: [phone]
www.universalremote.com

TABLE OFCONTENTS
Introduction 1
Features 2
Parts Guide 2
Front Panel Description 3
Rear Panel Description 4
MFSPOE-8 Installation Considerations 5
Installation 6
MFSPOE-8 Installed in a Small System 6
MFSPOE-8 Installation Optimized for Max Number of
PoE Ports 7
MFSPOE-8 Installed in the area with the Network
Distribution 8
Frequently Asked Questions 9
Specifications 10
Limited Warranty Statement 11
End User Agreement 13
Federal Communication Commission
Interference Statement 14
Regulatory Information to the user 15
Declaration of Conformity 16

Page 1
MFSPOE-8 NETWORK SWITCH INSTALLATION MANUAL
Introduction
The MFSPOE-8 Network switch is the ideal “Plug-n-Play” solution to
supply power to Total Control Keypads and IP Cameras, while pro-
tecting network WAP’s (Wireless Access Points) from multicast audio
streams.
Total Control products, like the DMS-1200 (Multi-zone Amplifier),
DMS-100 (Single-Zone Amplifier) and the SNP-1 (Streaming Network
Player), all multicast audio streams onto the LAN. The nature of a
“multicast” will shut down all wireless access to the network.
The MFSPOE-8 was specifically designed for use with Total Control
Systems and incorporates pre-configured MAC filtering. MAC Filtering
completely solves the issue by confining multicast streams to the
switch itself, never allowing streams to affect network traffic in the
rest of the house. Pre-configuration means you don’t have to be a
Network Engineer to configure this switch, simply plug your Total
Control products into any port and you’re ready to go. “Plug-n-Play”
integration produces reliable, predictable network performance.
Warning: NEVER plug a WAP (Wireless Access Point)into the
MFSPOE-8, since URC multicast audio streams will shut down any
brand or model of WAP.
There’s no need to worry about accidentally damaging any Non-PoE
gear with the MFSPOE-8, it will never happen. Eight “Smart” 10/100
PoE (Power over Ethernet) auto-sensing ports determine if connected
devices are PoE compliant or just standard network devices, and
then apply the correct voltages. This greatly simplifies every installa-
tion by eliminating the need to run more wires, add separate power
supplies (PoE Injectors) and additional AC power strips.

Page 2
MFSPOE-8 NETWORK SWITCH INSTALLATION MANUAL
Features
uMAC filtering prevents multicast audio streams from consum-
ing network bandwidth.
uSmart PoE ports support keypads, IP cameras, etc.; also com-
patible with non-PoE devices.
uEight (8) 10/100 Smart PoE (Power-Over-Ethernet) ports plus
one LAN port.
uActivity and Status LEDs, plus Connectivity indicator
uIncludes 48 volt power supply
Parts Guide
1 – MFSPOE-8 MAC Filtering Switch with PoE
1 – 1.5M CAT5 Ethernet Cable
1 – 48V AC Power Adapter
1 – Power Cord for AC Power Adapter
1 – Wall Mount Plate and Four Mounting Screws
1 – Quick Install Guide

Page 3

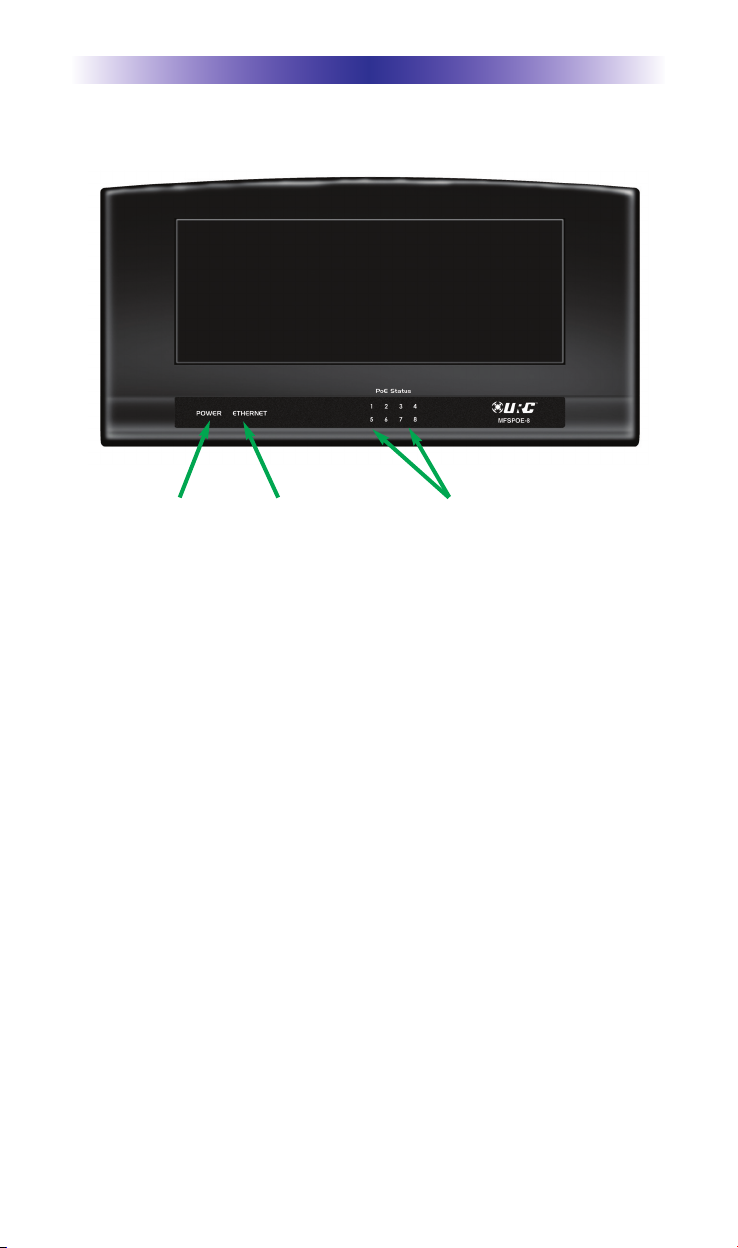

Front Panel Description
Power Indicator: Illuminates when the MFSPOE-8 Power Supply is
connected to AC outlet.
Ethernet Network Connectivity Indicator: Illuminates when the
MFSPOE-8 is connected to a LAN and has received an IP Address.
PoE Port Status Indicators: Illuminate when a PoE compliant device
is connected to a port.
MFSPOE-8 NETWORK SWITCH INSTALLATION MANUAL
Power
Indicator
LAN Connectivity
Indicator
PoE Port Status
Indicators

Page 4
Rear Panel Description
Power: Provides connection to Included 48V Power Supply.
LAN Connection: Provides connection to the LAN (Local Area
Network).
PoE 10/100 Smart Ports: 8 - PoE 10/100 Smart Ports automatically
provide power and connection to compliant PoE devices like
Keypads and IP Cameras, while simultaneously providing a safe,
non-powered connection to standard Ethernet devices.
MAC Filtering: MAC Filtering prevents multicast audio streams from
consuming network bandwidth. Streams are confined to the switch,
optimizing local area network performance.
Network Connectivity and Activity Status Indicators (port specific):
Status indicator LEDs display network connectivity and network traf-
fic feedback, for easy troubleshooting.
Wall Mount Bracket: Convenient removable wall bracket allows the
MFSPOE-8 to be mounted to the back of a cabinet or rack. Remove
the wall bracket when placing the MFSPOE-8 on a shelf or stand.
MFSPOE-8 NETWORK SWITCH INSTALLATION MANUAL
Power LAN Connection 8 - PoE 10/100 Smart Ports Mac Filtering
4 Soft Rubber
Non-Scuff Feet
Removable Wall Bracket Network Status
Indicator LEDs

Page 5
MFSPOE-8 Installation Considerations
Only one MAC Filtering switch should be used in a typical Total
Control system. All streaming products like the DMS-1200, DMS-
100 and SNP-1 must be connected to the switch. Other Total
Control devices that don’t stream (like the MRX-10 or the MRX-1)
don’t have to be connected to the MFSPOE-8.
You cannot daisy-chain MFSPOE-8 MAC Filtering switches; commu-
nication between switches will be blocked. If you have more than
eight of the above streaming components, simply connect a stan-
dard network switch to any port on the MFSPOE-8 and then con-
nect the additional components to the standard switch. This allows
the additional components to benefit from the MFSPOE-8’s MAC
Filtering, without affecting communication between devices. If you
need more PoE ports, you can plug any standard PoE network
switch into any of the available ports, to expand the network.
MFSPOE-8 NETWORK SWITCH INSTALLATION MANUAL
X
OK
Do Not Daisy-Chain MFSPOE-8s
Cable Modem
Internet
Wi-Fi Router
MFSPOE-8
MFSPOE-8
MFSPOE-8
Standard Network Switch

Page 6
MFSPOE-8 NETWORK SWITCH INSTALLATION MANUAL
Installation
1. On the back of the MFSPOE-8, connect one end of a CAT5 cable
to the port labeled LAN 10/100.
2. Connect the other end of the CAT5 cable to the LAN (Local Area
Network).
3. Connect Total Control and standard network devices to any of
the eight PoE 10/100 Smart Ports.
4. Connect the supplied 48V Power Supply to the MFSPOE-8 and
then plug it into an unswitched AC outlet.
5. Once powered up, the unit begins working in approximately 30
seconds.
MFSPOE-8 Installed in a Small System
Notes:
nThe Wireless Access Point CANNOT be connected to the
MFSPOE-8; it must be connected to the Router in the LAN.
Cable Modem
Internet
Wi-Fi Router
MFSPOE-8
MAC Filtering Switch
TKP-100
TKP-2000
TKP-2000
MC 75 CD IP
Camera 1
Wireless
Access
Point
SNP-1
Streaming Network Player
DMS-100
Single Zone Digital Amp
DMS-1200
Digital Multi-Zone Amp
DMS-1200

Page 7
MFSPOE-8 NETWORK SWITCH INSTALLATION MANUAL
MFSPOE-8 Installation Optimized for Max Number of
PoE Ports
Notes:
nThe Wireless Access Point CANNOT be connected to the
MFSPOE-8; it must be connected to the Router in the LAN.
nA standard network switch is used to connect the DMS-1200
and SNP-1 to the MFSPOE-8. This configuration provides
MAC Filtering to the Total Control streaming components,
while freeing up additional ports on the MFSPOE-8 to con-
nect PoE devices like Keypads and IP Cameras.
nAn MRX-10 doesn’t have to be connected to the MFSPOE-8,
but can be connected to a standard network switch when
convenient to do so.
Cable Modem
Internet
Wi-Fi Router
wireless
Access
Point
MFSPOE-8 MAC Filtering Switch
TKP-2000 TKP-2000
TKP-100
TKP-100
TKP-2000
MC 75 CD IP
Camera 1
MC 75 CD IP
Camera 2
Standard Network Switch
MRX-10
Whole House Controller
SNP-1
Streaming Network Player
DMS-1200
Digital Multi-Zone Amp

Page 8
MFSPOE-8 NETWORK SWITCH INSTALLATION MANUAL

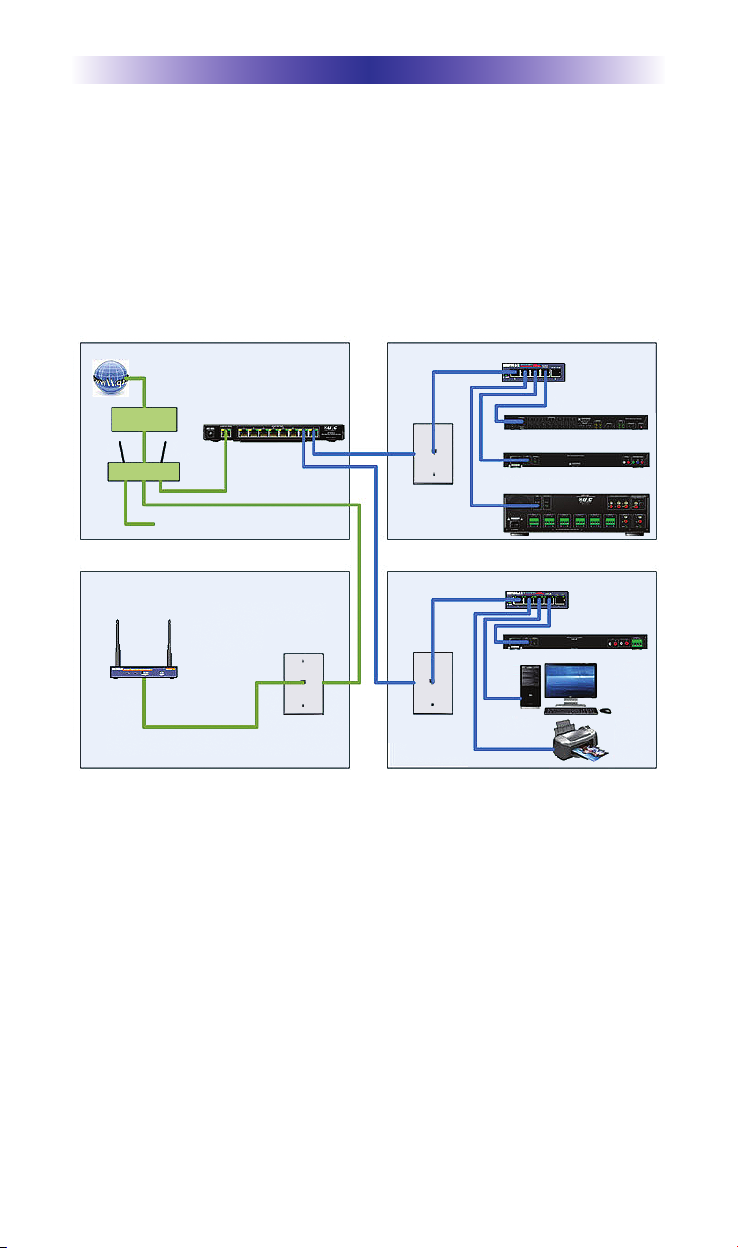

MFSPOE-8 Installed in the area with the Network
Distribution
Occasionally you get a retrofit installation where only one CAT5
wire has been run to a room, and there’s no way to run another
one. In this case, locate the MFSPOE-8 in the Utility Room, Garage,
or wherever the central distribution point for the Network is located
and install standard network switches in rooms where you plan to
locate a DMS-1200, DMS-100 or SNP-1.
Notes:
nThe Wireless Access Point CANNOT be connected to the
MFSPOE-8; it must be connected to the Router in the LAN.
nStandard network switches are used to connect the DMS-
1200, DMS-100 and SNP-1 to the MFSPOE-8. This configu-
ration provides MAC Filtering to the Total Control streaming
components, while freeing up additional ports on the
MFSPOE-8 to connect PoE devices like Keypads and IP
Cameras.
nAn MRX-10 doesn’t have to be connected to the MFSPOE-8,
but can be connected to a standard network switch when
convenient to do so.
Contral Distribution Point
for Network Wiring
Standard Network Switch
(Network for the rest of the House)
MFSPOE-8 MRX-10
Standard Network Switch
DMS-100
SNP-1
DMS-1200
Attic Office
Family Room
Cable Modem
Internet
Wi-Fi Router
wireless
Access
Point

MFSPOE-8 NETWORK SWITCH INSTALLATION MANUAL
Frequently Asked Questions
Do I need to use a MFSPOE-8 in a Total Control system?
If you are only controlling a Home Theater with a MRX-10, and
there are no Total Control streaming sources like the DMS-1200 or
DMS-100 in the system, then the answer is NO, you do not need to
use a MFSPOE-8. If you have DMS-1200(s) or DMS-100(s) in the
system, then the answer is YES, you must use a MFSPOE-8 or MFS-
8 in the system, connected to the those components.
Can I connect both PoE (Power over Ethernet)devices and Non-
PoE devices to the MFSPOE-8?
Yes, the MFSPOE-8 incorporates Smart Port technology which auto-
matically determines whether a connected device is a PoE device,
or a standard device, and only applies voltage to PoE devices. All
standard (Non-PoE) network devices can safely be connected to the
MFSPOE-8.
What if I have more than eight devices that are PoE?
You can connect a standard PoE switch anywhere on the LAN to
expand the network.
Can I use the MFSPOE-8 to power a PoE WAP (Wireless Access
Point)?
No, the WAP will not function properly when multiple streams are-
occurring in the system. Connect the WAP to a standard PoE net-
work switch, outside of the MFSPOE-8. Never connect a WAP to
the MFSPOE-8.
What if I have a large Total Control system? Should I use the
MFSPOE-8?
If you have a large Total Control system with multiple DMS-1200s,
DMS-100s, SNP-1s, Keypads and IP Cameras, the better solution is
to use a MFS-8 (the Non-PoE version of the MAC Filtering switch) to
connect all the streaming products and use conventional PoE
switches to power all the Keypads and IP Cameras. See the Large
System diagram in the MFS-8 User Guide for more details.
I have one CAT5 cable going to a room where my client has a net-
work printer and a PC and I need to install a DMS-100 Single
Zone Amplifier, via the same CAT5 cable, in the room. How do I
connect everything?
Page 9

MFSPOE-8 NETWORK SWITCH INSTALLATION MANUAL
Install the MFSPOE-8 in the room that contains the CAT5 distribu-
tion for the entire house. In the room where you plan to install the
DMS-100, connect a standard network switch to the incoming
CAT5, and then connect the DMS-100, PC and Printer to the
switch. It is not recommended to connect PCs used for internet
gaming to a MFSPOE-8, as this may affect the performance of video
gaming during heavy stream usage.
Specifications
Microprocessor: 55MHz RISC
Memory: 4 Megabits of Serial Flash, 512KB Flash, 128KB SRAM
Network: Switching - Eight 10/100 Ethernet ports + Eight PoE ports
LAN - One 10/100 Ethernet port
Power Supply: 48V External Power Supply
POWER OUT: 8 Port POE OUTPUT(6.2W*8=50W, 1PORT
MAX=15.4W)
Size: 1.5” x 9.8” x 4.9” (H X W x D)
Weight: 0.78 lbs. (0.35kg)
Page 10

Page 11
MFSPOE-8 NETWORK SWITCH INSTALLATION MANUAL
Limited Warranty Statement
1. Limited Warranty and Disclaimers
Universal Remote Control, Inc. (“URC”) warrants that the URC equipment
shall be free from defects in material and workmanship under normal usage
for one (1) year from purchase when such is purchased from URC. This
limited warranty is valid only in the United States of America. URC warrants
that the software will substantially conform in any material respect to its
functional specifications at the time of delivery. URC SHALL NOT BE LIABLE
FOR OPERATIONAL, TECHNICAL OR EDITORIAL ERRORS AND/OR
OMISSIONS MADE IN THE URC DOCUMENTATION. URC DOES NOT
WARRANT THAT THE URC SOFTWARE IS BUG-FREE OR ERROR FREE
OR THAT THERE ARE NO ERRORS/BUGS IN THE URC SOFTWARE.
URC warrants that at the time of purchase the URC equipment and the URC
software complied with all applicable regulations and policies of the Federal
Communications Commissions (“FCC”) regarding electromagnetic
interference caused by electronic/computing devices and to the extent that the
URC equipment and/or the URC software fails to so comply, URC shall, at its
own expense, take all reasonable measures to promptly cause such to
comply.
URC equipment purchases from other than an authorized URC dealer or
distributor are without warranty.
THIS LIMITED WARRANT DOES NOT COVER TECHNICAL ASSISTANCE
FOR HARDWARE OR SOFTWARE USAGE EXCEPT AS EXPRESSLY
PROVIDED FOR HEREIN, THE EQUIPMENT, SOFTWARE AND
DOCUMENTATION OF URC ARE SUPPLIED “AS IS” WITHOUT ANY
WARRANTY, EXPRESS, STATUTORY OR IMPLIED, OF ANY KIND. TO
THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, URC
EXPRESSLY DISCLAIMS ALL WARRANTIES, EXPRESS, STATUTORY OR
IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. URC
DOES NOT WARRANT, GUARANTEE, OR MAKE ANY
REPRESENTATIONS REGARDING THE USE OF, OR THE RESULTS OF THE
USE OF, THE EQUIPMENT, SOFTWARE OR DOCUMENTATION IN
TERMS OF CORRECTNESS, ACCURACY, RELIABILITY OR OTHERWISE.
EXCEPT AS EXPRESSLY PROVIDED FOR HEREIN, TECHNICAL SERVICES
ARE SUPPLIED “AS IS”, WITHOUT ANY WARRANTY, EXPRESS,
STATUTORY OR IMPLIED, OF ANY KIND. TO THE MAXIMUM EXTENT
PERMITTED BY APPLICABLE LAW, URC EXPRESSLY DISCLAIMS ALL
WARRANTIES, EXPRESS, STATUTORY OR IMPLIED, INCLUDING BUT
NOT LIMITED TO THE WARRANTIES OF QUALITY OR REASONABLE
SKILL AND CARE, OR OUTCOME OR RESULTS.

Page 12
MFSPOE-8 NETWORK SWITCH INSTALLATION MANUAL
WITHOUT IN ANY WAY LIMITING THE GENERALITY OF THE OTHER
PROVISIONS HEREIN, WARRANTY DOES NOT COVER: (I) DAMAGE
FROM MISUSE, NEGLECT OR ACTS OR NATURE, (II) MODIFICATIONS,
(III) INTEGRATION WITH THIRD PARTY CONTENT (IV) BEYOND THE
WARRANTY PERIOD AND/ OR FAILURE TO FOLLOW URC WARRANTY
CLAIM PROCEDURE.
The warranty limitations and warranty disclaimers may not apply to end user
in whole or in part, where such are restricted or excluded by applicable law
and such shall apply to the maximum extent permitted by applicable law.
In the event of any warranty claim, URC will, at its sole option, repair the URC
equipment using new or comparable rebuilt parts, or exchange the URC
equipment for new or rebuilt equipment. In the event of a defect, these are
the end user’s exclusive remedies.
All the URC equipment returned for service, exchange or repair require an
RGA number. To obtain an RGA number, you must complete a Return
Request Form which you may obtain by calling [phone] or contacting
URC at [email protected]. To obtain warranty service, end
user must deliver the URC equipment, freight prepaid, in its original packaging
or packaging affording adequate protection to URC at 420 Columbus Avenue,
Valhalla, NY 10595. It is end user’s responsibility to backup any macro
programming, artwork, software or other materials that may have been
programmed into the unit. It is likely that such data, software, or other
materials will be lost during service and URC will not be responsible for any
such damage or loss. A dated purchase receipt, bill of sale, installation contract
or other verifiable proof of purchase is required. For the URC equipment
support and other important information, please visit URC's website available
at www.universalremote.com or call the Customer Service Center at (914)
835-4484.
This limited warranty only covers the URC equipment issues caused by
defects in material or workmanship during ordinary consumer use. It does not
cover product issues caused by any other reason, including but not limited to
product issues due to commercial use, acts of God, third-party installation,
misuse, limitations of technology, or modification of or to any part of the URC
equipment. This limited warranty does not cover the URC equipment sold as
used, as is, refurbished, so called "B stock" or consumables (such as batteries).
This limited warranty is invalid if the factory applied serial number has been
altered or removed from the URC equipment. This limited warranty
specifically excludes the URC equipment sold by unauthorized resellers.
With the exception of URC’s IR-only, broad-based consumer remotes, none of
URC’s PC programmable remotes or any of our Total Control® whole-house

Page 13
MFS-8 NETWORK SWITCH INSTALLATION MANUAL
equipment are authorized for online internet sales. Buying URC’s PC
programmable remotes or any of our Total Control® whole-house equipment
online means buying equipment that does not have a URC’s limited warranty.
Such equipment is not eligible for URC tech support or software support,
either.
2. URC’S Limitations of Liability
IN NO EVENT SHALL URC BE LIABLE FOR INDIRECT, SPECIAL,
INCIDENTAL, EXEMPLARY, PUNITIVE OR CONSEQUENTIAL DAMAGES
OF ANY KIND OR LOSS OF PROFITS OR BUSINESS OPPORTUNITY,
EVEN IF URC IS ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
IN NO EVENT SHALL URC BE LIABLE FOR LOSS OF OR DAMAGE TO
DATA, COMPUTER SYSTEMS OR COMPUTER PROGRAMS.
URC’S LIABILITY, IF ANY, FOR DIRECT DAMAGES OF ANY FORM SHALL
BE LIMITED TO ACTUAL DAMAGES, NOT IN EXCESS OF AMOUNTS
PAID BY END USER FOR THE URC EQUIPMENT.
IN NO EVENT SHALL URC BE LIABLE FOR ANY EVENTS BEYOND ITS
CONTROL, INCLUDING ANY INSTANCE OF FORCE MAJEURE.
IN NO EVENT SHALL URC BE LIABLE FOR THE ACTS OR OMISSIONS OF
END USER OR ANY THIRD PARTY.
THE LIMITATIONS OF LIABILITY MAY NOT APPLY TO END USER IN
WHOLE OR IN PART, WHERE SUCH ARE RESTRICTED LIMITED OR
EXCLUDED BY APPLICABLE LAW AND SUCH SHALL APPLY TO THE
MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW.
URC SHALL NOT BE HELD RESPONSIBLE FOR THE STATEMENTS MADE
BY OTHERS.
SOME STATES OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION
OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR
ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS,
SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO
END USER. THIS LIMITED WARRANTY GIVES END USER SPECIFIC LEGAL
RIGHTS AND END USER MAY HAVE OTHER RIGHTS WHICH VARY
FROM STATE TO STATE OR JURISDICTION TO JURISDICTION.
End User Agreement
The terms and conditions of the End User Agreement available at
www.universalremote.com/eua.php shall apply.

Page 14
Federal Communication Commission
Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or tele-
vision reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one more of the
following measures:
uReorient or relocate the receiving antenna.
uIncrease the separation between the equipment and receiver.
uConnect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
uConsult the dealer or an experienced radio/TV technician for
help.
Warning!
Changes or modifications not expressly approved by the manufacturer could
void the user's authority to operate the equipment.
Note : The manufacturer is not responsible for any Radio or TV interference
caused by unauthorized modifications to this equipment. Such modifications
could void the user's authority to operate the equipment.
FCC Caution
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible
for compliance could void the authority to operate equipment.
MFSPOE-8 NETWORK SWITCH INSTALLATION MANUAL

Page 15
MFSPOE-8 NETWORK SWITCH INSTALLATION MANUAL
Regulatory Information to the user
nCE conformity Notice
Products with “CE” marking comply EMC Directive 2004/108/EC issued-
by the commission of the European Community.
1) EMC Directive
lEmission : EN 55022
lImmunity : EN 55024
lPower : EN-61000-3-2, 3
nDeclaration of Conformity
“Hereby, Universal Remote Control Inc. declares that this MFSPOE-8 is
in compliance with the Essential requirements and other relevant provi-
sions of EMC Directive 2004/108/EC.”
Certification
Type No.(Model No.) MFSPOE-8
Batch/Serial No. -
Power Rating 48.0V , 1.25A

Declaration of Conformity
Company Name : Universal Remote Control Inc.
Company Address : 500Mamaroneck Avenue, Harrison, NY 10528, U.S.A
Contact Info rmation : www.universalremote.com
Phone: [phone] Fax: [phone]
Brand Name : UNIVERSAL remote control
Product Name : Mac Filtering Switch with PoE
Model Name : MFSPOE-8
This product herewith complies with the requirements of EMC Directive (2004/108/EC)
issued by the Commission of the European Community
Compliance with these directives implies conformity to the following European Community
n EMC Directive
l EN 55022
l EN 55024
l EN 61000-3-2
l EN 61000-3-3
List of test reports and/or certificate verified compliance with the standards above
Date of issue : November 09. 2010
Name and signature of authorized person :
n EMC Directive
l Report No.
l Testing Laboratory : Gumi College EMC Center
James Novak
Senior Product Manager
Universal Remote Control Inc.
Page 16
MFSPOE-8 NETWORK SWITCH INSTALLATION MANUAL

Page 17
NOTE
