Total Gym ELEVATE PULL-UP User manual

ELEVATE®PULL-UP
TM OWNER’S GUIDE

2
ELEVATE®PULL-UPTM OWNER’S GUIDE
CONGRATULATIONS
CONGRATULATIONS
Thank you for choosing Total Gym®products and services.
As with all of our products, we trust that your ELEVATE Pull-Up™will provide you with unsurpassed service and versatility year
after year.
Your Total Gym product arrives with some assembly required. In this Owner’s Guide, you will nd information how to assemble your
ELEVATE Pull-Up, and its component parts, operation, maintenance and care. Additionally, you will nd usage and safety tips, as well
as safety precautions and warranty information. Please save this guide and refer to it in the future.
We value you as a customer and your feedback is important to us. If you have any questions or need further information about your
ELEVATE Pull-Up, please contact our customer experience department at [phone] or email suppor[email protected].
Yours in health,
Jesse Campanaro
CEO

3
ELEVATE®PULL-UPTM OWNER’S GUIDE ELEVATE®PULL-UPTM OWNER’S GUIDE
TABLE OF CONTENTS
Safety Precautions .......................................................................................4
Parts Identier .............................................................................................5
Specications and Limitations.......................................................................6
Assembly Instructions................................................................................... 7
Glideboard: Roller Removal and Assembly......................................................8
Getting Started.............................................................................................8
Exercise Instructions ....................................................................................9
Maintenance and Care.................................................................................10
Maintenance Schedule.................................................................................................10
Warranty Information.................................................................................. 11
USA Warranty ................................................................................................................ 11
Limited Warranty........................................................................................................... 11
Warranty Claims............................................................................................................ 11
TABLE OF CONTENTS

4
ELEVATE®PULL-UPTM OWNER’S GUIDE
SAFETY PRECAUTIONS
Before starting this or any exercise program, consult your physician, who
can assist in planning a program that is age and ability specic. Certain
exercise programs or types of equipment may not be appropriate for all
people. Ensure that the user is able to participate in an exercise program on
this equipment without injury.
• Do not overexert, or allow your clients to overexert using this equipment or while
performing any exercise program on this equipment. If any pain or tightness in
the chest occurs, an irregular heartbeat, shortness of breath, faintness, nausea or
dizziness is experienced stop the exercise session immediately and ensure that a
physician is consulted before resuming any exercise program. (Clinicians and trainers
should follow these recommendations if these symptoms are observed.)
• This product is designed and intended for commercial use. Clinicians and trainers
should inform users of and monitor their adherence to all safety precautions. Use
only as instructed.
• Children should only use the ELEVATE Pull-Up when closely attended and supervised
by an adult. Do not leave children or patients unattended on Total Gym equipment.
• Parents and others in charge of children should responsibly monitor children at all
times. A child’s mental and physical development and above all their temperament
should be taken into account while using Total Gym equipment. They should be
controlled and instructed in the correct use of the equipment.
• The equipment is under no circumstances suitable as a children’s toy.
• Keep ngers, loose clothing and hair away from moving parts. Wear appropriate
exercise attire and tie long hair back.
• Inspect your Total Gym ELEVATE Pull-Up before each use to ensure proper operation.
Check all parts for wear before each use. Do not use your Total Gym ELEVATE
Pull-Up if it is not completely assembled or if it has been damaged in any manner.
Contact Total Gym Customer Service for replacement parts or repairs.
• Before transporting, raise rails to top level. Always lift from the rear base when
moving the unit.
• Follow instructions in this Owner’s Guide for using the unit. Improper use could result
in severe or fatal injury. Your Total Gym ELEVATE Pull-Up must be bolted to the floor
on a flat, solid surface with nonskid material underneath. Keep the area around it
free from obstructions. The Total Gym ELEVATE Pull-Up is rated at a maximum user
weight capacity of 400 lbs [181 kg].
WARNING
READ ALL INSTRUCTIONS BEFORE USING TOTAL GYM ELEVATE PULL-UP.
1. Inspect your Total Gym ELEVATE Pull-Up unit before each use to ensure proper
operation. Do not use this equipment unless all moving parts are working properly.
Follow all maintenance and care instructions found in this Owner’s Guide and on
the equipment labels.
2. Close supervision is necessary when the Total Gym ELEVATE Pull-Up is used by or
near children, disabled or injured persons.
3. Care should be taken at all times when getting on and off your Total Gym ELEVATE
Pull-Up or any exercise equipment. Falling on or off the product could result in
injury, or possibly death. Follow the “Getting Started” instructions for using the unit
found in this Owner’s Guide.
4. Use your Total Gym ELEVATE Pull-Up only for its intended use.
5. Keep ngers, loose clothing and hair away from all moving parts.
SAFETY PRECAUTIONS

5
ELEVATE®PULL-UPTM OWNER’S GUIDE ELEVATE®PULL-UPTM OWNER’S GUIDE

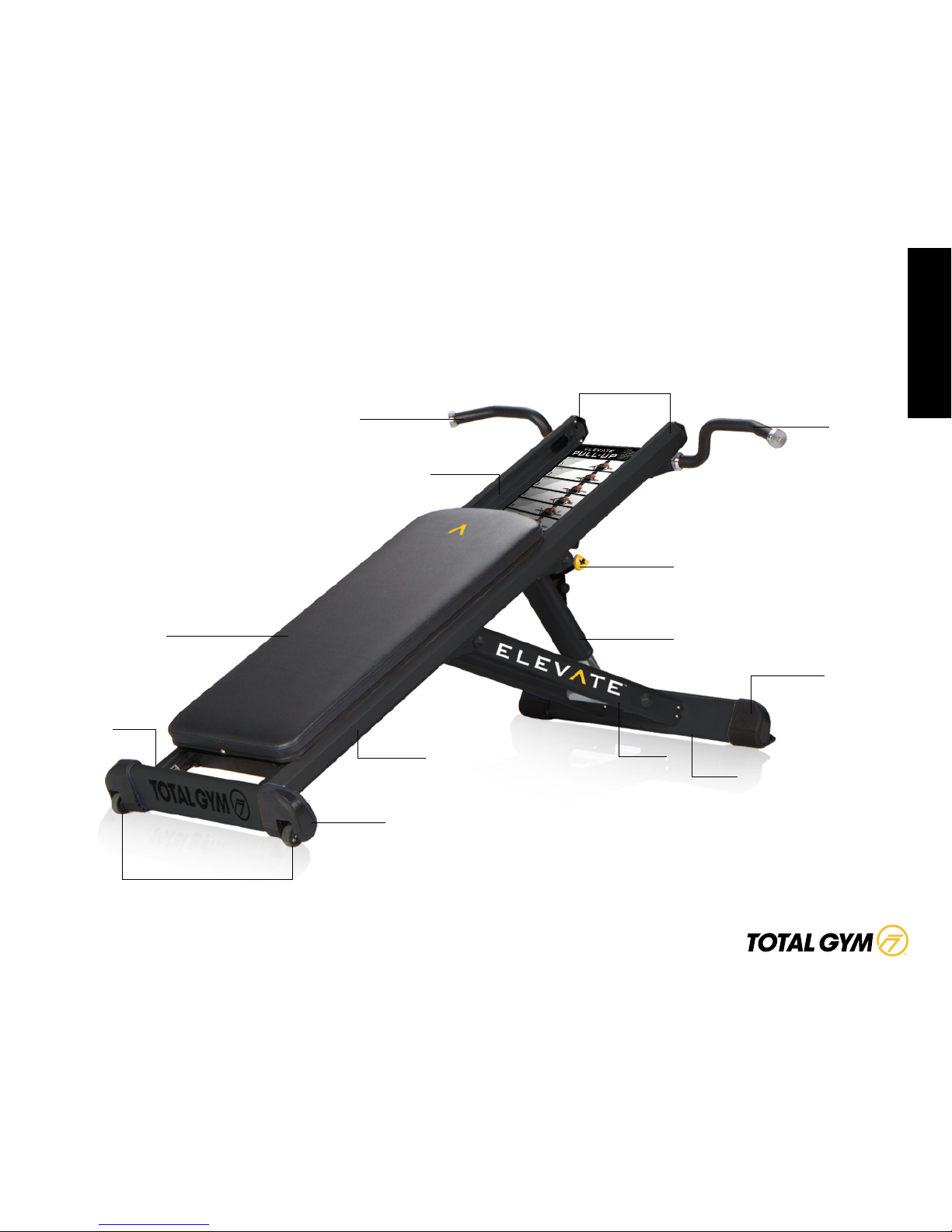

PARTS IDENTIFIER
PARTS IDENTIFIER
Handle Bar
Left Rail
Glideboard
Rail End Caps
Handle Bar
Incline Release Lever
Incline Strut
Anchor Foot
Rear Base
Rear Struts
Right Rail
Base Foot
Transport Wheel
Rail Base

6
ELEVATE®PULL-UPTM OWNER’S GUIDE

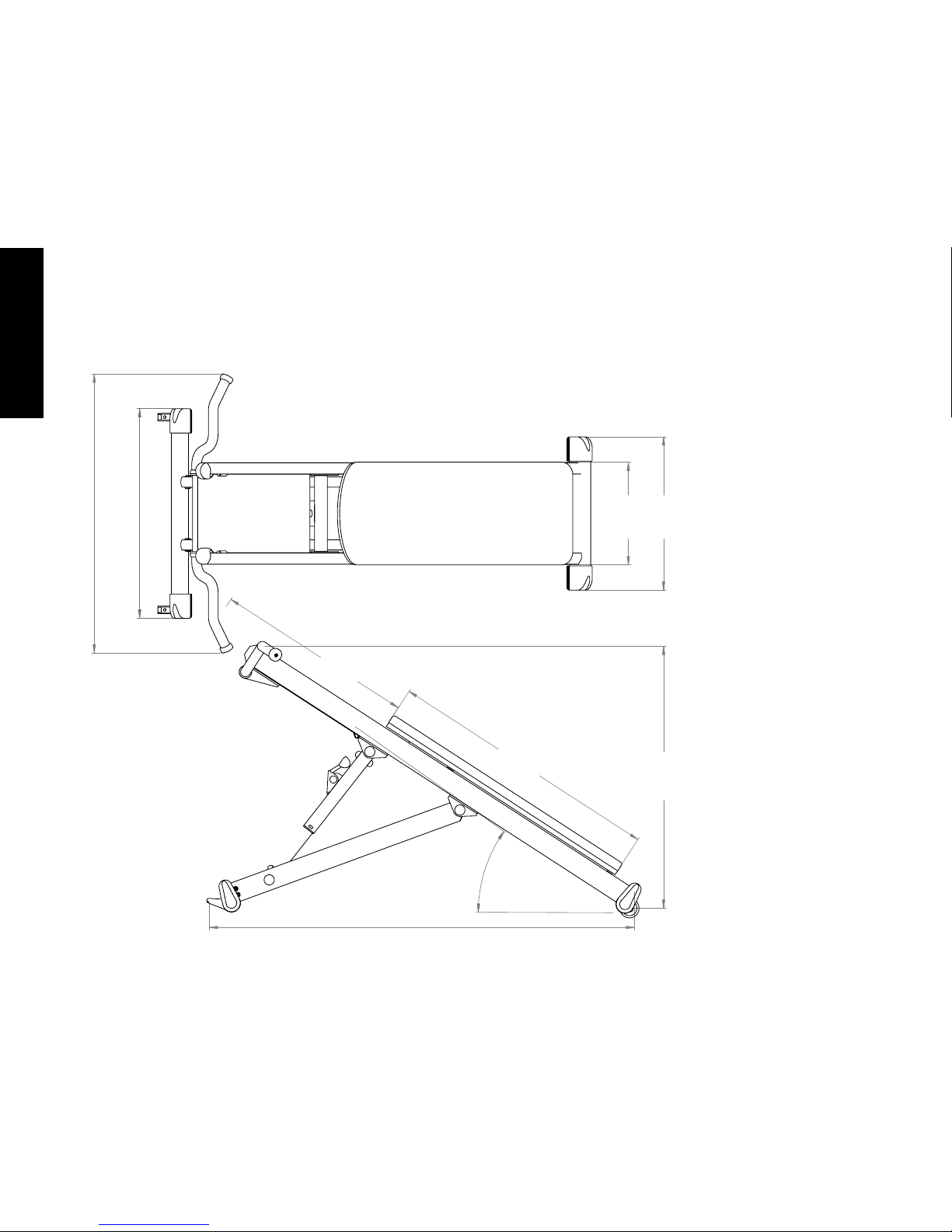

SPECIFICATIONS AND LIMITATIONS
SPECS AND LIMITATIONS
• Glideboard Range of Motion:
31 inches [78 cm]
• Weight Capacity:
Maximum user weight capacity of
400 lbs [181 kg]
• Resistance levels vs % of body weight:
Incline Level 1 2 3 4 5 6 7
% BW 30 35 40 45 50 55 60
• Floor Space:
20 Square Feet [1.8 Square Meter]
• Size: 74” x 43” x 40” (L/W/H)
[1.8 m x 1.1 m x 1.0 m]
• Weight: 125 lbs [57 kg]
• Shipping:
80” x 26” x 13.5”
[1.9 m x .5 m x. 4 m]
• GW 136 lb [63 kg]
• Construction: steel with steel reinforced
aluminum rails
[ 24 in ]
60 cm
[ 16 in ]
40 cm
[ 32 in ]
82 cm
[ 43 in ]
109 cm
35°
[ 40 in ]
103 cm
[ 42 in ]
107 cm
[ 31 in ]
78 cm
[ 66 in ]
167 cm

7
ELEVATE®PULL-UPTM OWNER’S GUIDE ELEVATE®PULL-UPTM OWNER’S GUIDE

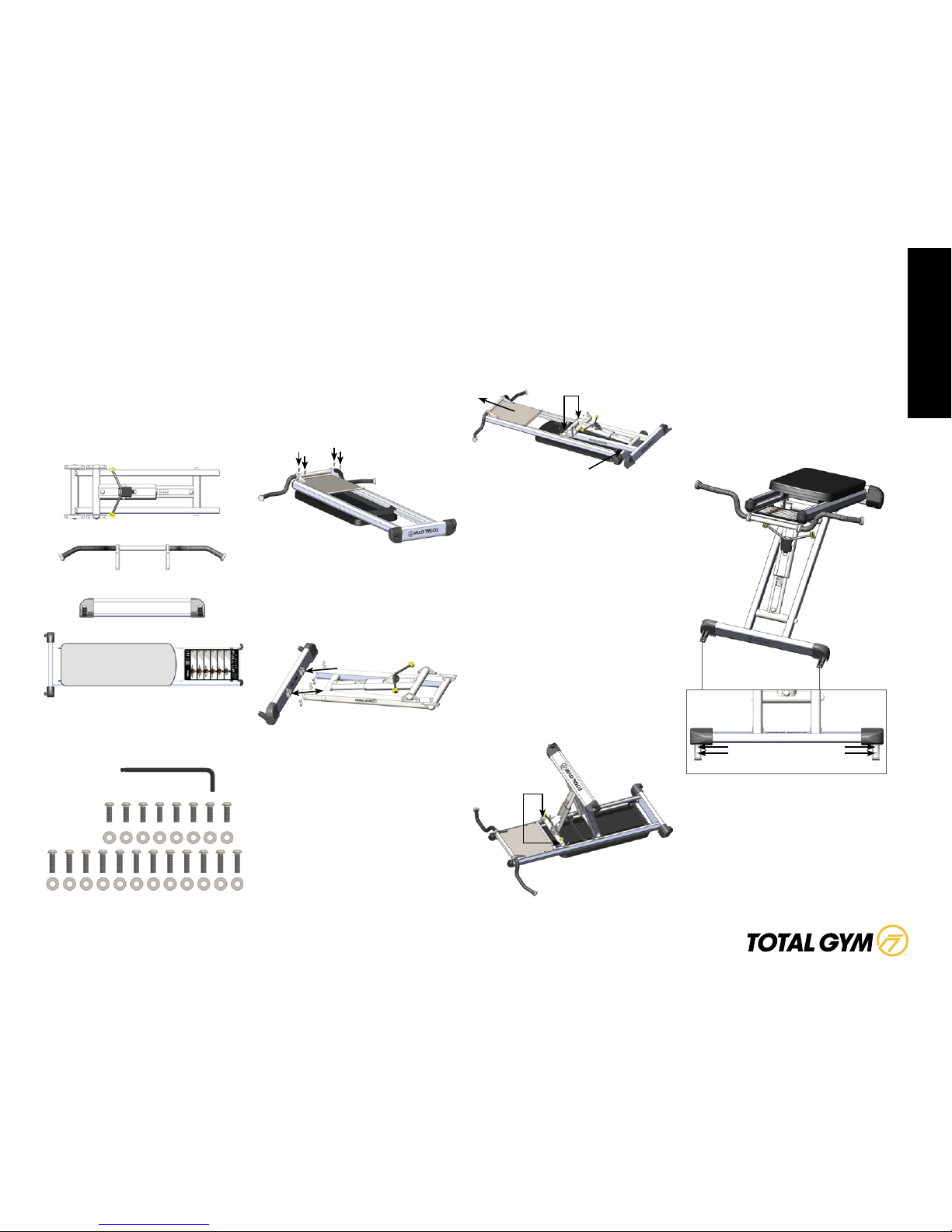

ASSEMBLY
ASSEMBLY INSTRUCTIONS
TWO PERSON ASSEMBLY REQUIRED.
STEP 1. Carefully unpack all the parts and
the Information & Hardware box at the
installation site if possible.
A
Handle Bars
B
C
STEP 2. Open the Information & Hardware
box. Inside there will be:
Long M8 Screws & Washers (12)
5 mm
Hex Wrench
Short M8
Screws &
Washers (8)
STEP 3. Turn Rail & Glideboard assembly
upside down and install the Handle Bars
using the 5 mm Hex Wrench and four
Long M8 screws & washers.
STEP 4. Attach Bto Aas shown. Using
the 5 mm Hex Wrench install all eight
Short M8 screws with washers. Do not
tighten completely until all eight screws
have been installed.
D
STEP 5. Now that you have assembled
Aand Bto create Das shown in STEP
4, you will need to take Dand lay it over
the top of C. Be sure to place a cloth or
packing material between the surfaces.
Place cloth or packing materials here
Hinges
Using the 5 mm Hex Wrench, attach the
hinges on to Cassembly with four Long
M8 screws and washers. Do not tighten
any completely until all four screws are
installed.
STEP 6. While one person holds the
Incline Strut up as shown, the other
person aligns the hinges to the set of
holes in the rails. Match the letters at each
hole to the corresponding letters on the
strut so that you know you are connecting
the two pieces correctly, and using the 5
mm Hex Wrench install the screws. Do
not tighten any completely until all four
screws are installed.
Hinges
STEP 7. Turn the unit right-side up
and position your ELEVATE Pull-Up in a
permanent location then bolt to floor from
the Anchor Feet as shown below. BOLTS
NOT INCLUDED.
Bolt to floor from Anchor Feet

8
ELEVATE®PULL-UPTM OWNER’S GUIDE
GLIDEBOARD / START
GLIDEBOARD:
ROLLER REMOVAL AND ASSEMBLY
STEP 1. Remove the six M6 screws
from the Rail End Caps on the top end of
the rails with a 4 mm Hex Wrench (not
included) and remove the end caps.
STEP 2. Roll the glideboard up and out
the top of the rails and set it upside down
on a clean smooth surface.
STEP 3. To remove the rollers use a 13
mm socket wrench and a 13 mm open-
end wrench.
Insert socket wrench over the bolt on the
outside of the roller as you engage the
open-end wrench on the nut on the inside
of the frame; turn to unscrew.
NOTE: Socket wrench and open-end
wrench not included.
Nut
Bolt
STEP 4. Replace the rollers as needed
and reinstall the bolt and nut.
Tighten just enough so that the wheel can
roll but does not slide lengthwise on the
axle. DO NOT OVER TIGHTEN.
STEP 5. Reinstall the glideboard by
carefully and slowly rolling it back into the
rails.
STEP 6. Replace the Rail End Caps on the
rails and insure all 6 screws are tight.
GETTING STARTED
As a facility offering the use of a ELEVATE Pull-Up to customers, or as a personal
user of the product, you (as owner of the product), assume the responsibility to
become familiar with the guidelines relative to safe use of the product and to convey
these guidelines to all users. Read all safety, warnings and usage instructions before
using the ELEVATE Pull-Up. Care and maintenance for this product are included to
promote safe, enjoyable and prolonged use of this equipment.
When using your ELEVATE Pull-Up, wear athletic shoes and comfortable lightweight
clothing. Before you begin, check to ensure that all parts are in place and working
properly. Remember to control the glideboard at all times, particularly when getting
on or off your ELEVATE Pull-Up.
WARNING
Always control the glideboard while using your Total Gym
ELEVATE Pull-Up. ELEVATE Pull-Up is rated at a maximum
user weight capacity of 400 lbs [181 kg].

9
ELEVATE®PULL-UPTM OWNER’S GUIDE ELEVATE®PULL-UPTM OWNER’S GUIDE
EXERCISE
EXERCISE INSTRUCTIONS

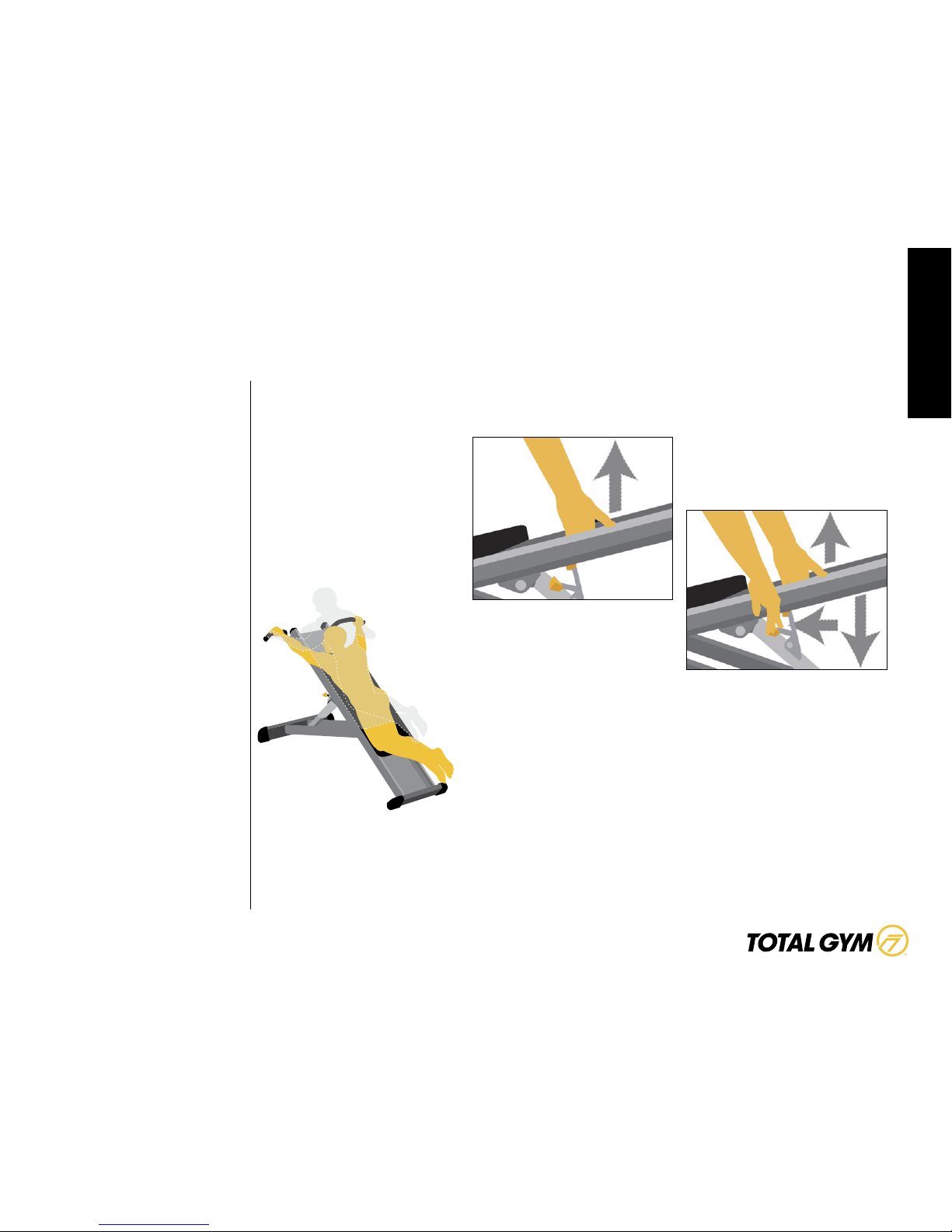

Follow the instructions on the placard
as illustrated by performing the
desired number of sets and repetitions
appropriate for the skill and level of
difculty.
INCLINE BODYWEIGHT
PULL-UP
STEP 1. Select appropriate incline level.
STEP 2. Facing machine, slide glideboard
up rails and lie down; top edge of
glideboard should be about eye-level.
STEP 3. Grasp bar using the desired hand
grip position.
STEP 4. Pull yourself and glideboard up
rails. Then lower yourself back to starting
position.
INCREASE RESISTANCE
To increase resistance, raise rails to
desired level.
DECREASE RESISTANCE
To decrease resistance, lower rails to
desired level.
1. Lift rails slightly
2. Push lever down
3. Lower to desired level
1
3
2

10
ELEVATE®PULL-UPTM OWNER’S GUIDE
MAINTENANCE
MAINTENANCE AND CARE
Your ELEVATE Pull-Up unit will offer you
years of easy operation if you follow these
simple tips for maintenance and care.
With periodic cleaning, moving parts and
rolling surfaces will maintain their smooth
function. Clean rail surfaces on a regular
basis with a noncorrosive cleaner like
soap and water or waterless cleaner or
just wipe clean with a dry towel. Some
black powder residue is normal on the
inside of the rails. All other parts can be
cleaned the same way or antibacterial
wipes may be used.
CAUTION! DO NOT USE ANY LUBRICANTS
OR SILICONE-BASED PRODUCTS on
the rails or wheels. This will cause the
wheels to slide rather than roll and will
damage the wheels. Use a non oil–based
window cleaner on the glideboard
material. DO NOT USE ARMOR ALL®OR
LIKE SUBSTANCES. These will make
the glideboard slippery. Wipe down your
ELEVATE Pull-Up with a clean cloth.
MAINTENANCE SCHEDULE
WEEKLY
1. Wipe down rails with a non-corrosive,
no alkaline, no alcohol cleanser.
2. Clean all surface areas for aesthetics.
3. Check all screws. Fasten to ensure
they are installed correctly and
tightened.
4. Check all pads for wear and replace as
needed.
MONTHLY
1. Visually inspect the rollers. Clean any
debris accumulated on the roller.
2. Inspect rubber stoppers.
3. Replace all parts that show signs
of wear. Contact Customer Service
in USA at 858-586-6080 or email
[e-mail]. For
international customers, contact the
approved distributor in your country.
DAILY
1. Wipe down all padded surfaces with
antibacterial cleanser after each use.
2. Move the glideboard up and down
rails to ensure smooth rolling. If the
glideboard does not roll smoothly,
clean rails and wheels thoroughly with
a soft lint-free cloth.

11
ELEVATE®PULL-UPTM OWNER’S GUIDE ELEVATE®PULL-UPTM OWNER’S GUIDE
US WARRANTY
Warranties outside the US may vary. Contact your local authorized distributor for
details.
Commercial Warranty:
• Frame – 5 years
• Rubber and Moving Parts – 1 year
• Upholstery - 90 days
LIMITED WARRANTY
IMPROPER USE OF ELEVATE PULL-UP: Defects or damage that result from improper
use are excluded from coverage.
UNAUTHORIZED SERVICE OR MODIFICATION: Defects or damage that result from
service, maintenance, repairs, adjustment, installation or alteration conducted by
anyone other than Total Gym or its authorized representatives are excluded from
coverage.
WARRANTY CLAIMS
Total Gym treats warranty claims as a priority. To process these quickly, a Return
Merchandise Authorization (RMA) number is required to properly link your merchandise
with your claim. Total Gym does not accept returned merchandise without an
accompanying RMA number. Contact Total Gym Customer Service Department at
858-586-6080 or email [email protected] if you are making a warranty claim. A
representative will issue you an RMA number and instructions for proper packaging of
the equipment for shipping.
WARRANTY INFORMATION
IMPORTANT: Save your invoice. Please retain packaging instructions. US Customer
Service Center: 858-586-6080. Shipping Damage: FOB origin, unless otherwise specied.
Total Gym accepts no responsibility for damage in shipping. Total Gym does,
however, make every effort to facilitate the satisfactory resolution of claims made
against delivery agents for damage during shipping. If the package appears to have
sustained damage in shipping, or if the equipment appears to have shifted in delivery
but no damage is evident, retain the shipping boxes until your product has been fully
assembled to ensure there is no functional damage that is not initially visible. In the
event of damage during shipping, retaining the shipping boxes helps to facilitate your
claim against the shipper. Take photographs of damaged boxes or contents before
opening.
PURCHASE RECORD. RETAIN THIS COPY FOR YOUR RECORDS.
Date Purchased ______________________________________________________________________
Purchased From ______________________________________________________________________
Model Name: ELEVATE Pull-Up, Part # 5800-B1
Serial Number ________________________________________________________________________
TotalGym.com
Customer Service:
858.586.6080
5225 Avenida Encinas Suite C
Carlsbad CA 92008
WARRANTY INFO

©2017 Total Gym Global Corp. All rights reserved. Total Gym and ELEVATE are registered trademarks of TGG Global Corp. Unauthorized duplication of this booklet is punishable by law.
Covered by one or more of U.S. Pat. Nos. D574,901, 7,775,950, 8,075,457, 7,938,763, 8,834,332, D493,853, 6,921,355, 7,503,880, 7,270,628, D694347, 7,892,159, 8,702,575, 5,967,955, D734,409, D741,960, 361898, D741,420: 5,967,955; 6,921,355;
7,766,801; Australia Des. Pat. No. 154471; European Des. Pat. Nos. 000068788-0001 to 0006; New Zealand Des. Pat. No. 403803; Japan Des. Pat. No. 1203066; Russia Des. Pat. No. 56172, Taiwan Des. Pat. No. D100334; and other patents pending.
TotalGym.com
Customer Service: [phone]
5225 Avenida Encinas Suite C, Carlsbad CA 92008
