ICON Health & Fitness Pro-Form PRO HIIT H14 User manual

USER’S MANUAL
Serial
Number
Decal
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
Model No. PFEL01420.0
Serial No.
Write the serial number in the space
above for reference.
proform.com
To register your product and
activate your warranty today,
go to my.proform.com.
For service at any time, go to
support.proform.com.
Or call 1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
ACTIVATE YOUR
WARRANTY
CUSTOMER CARE

2

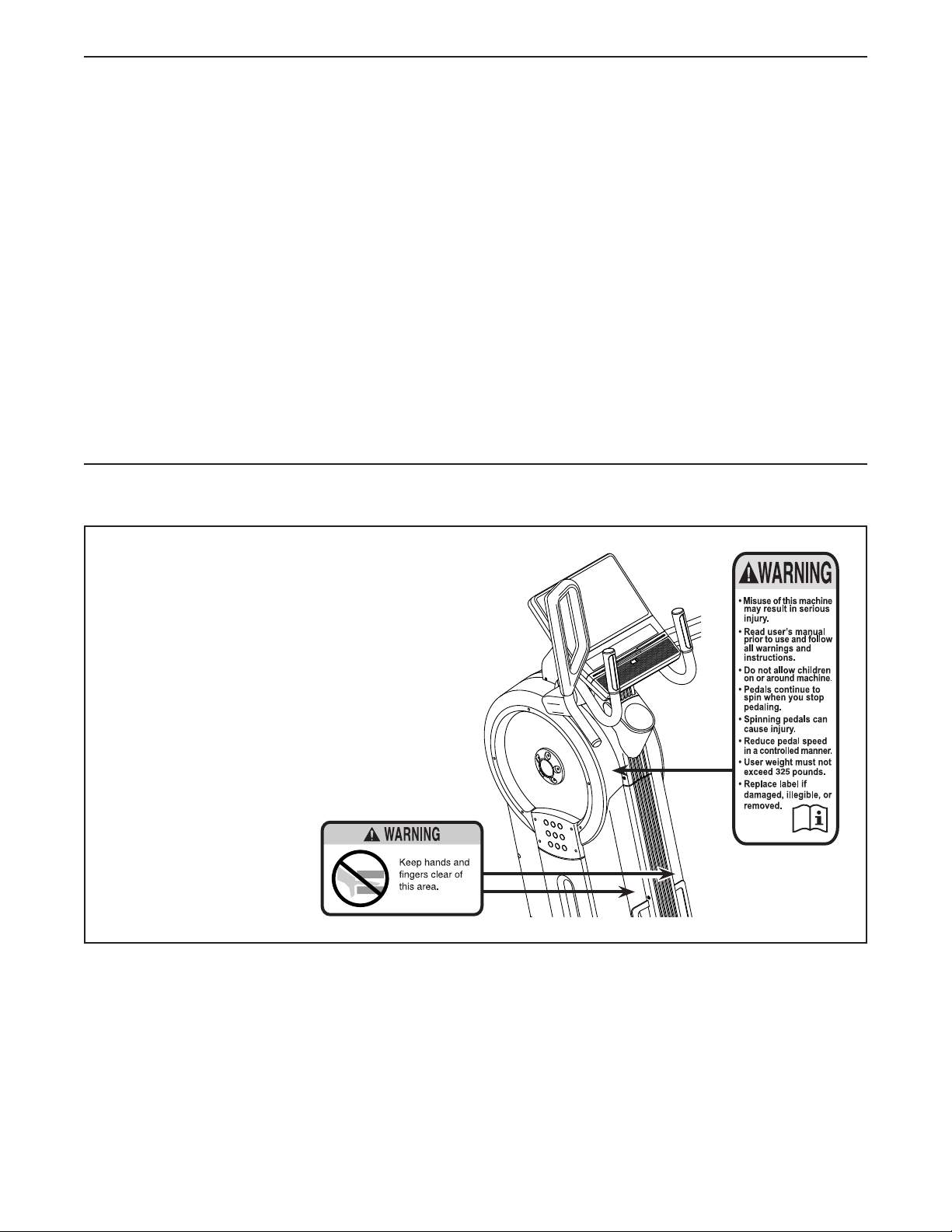

This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
258871
TABLE OF CONTENTS
WARNING DECAL PLACEMENT
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO USE THE TRAINER.................................................................13
HOW TO USE THE CONSOLE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
MAINTENANCE AND TROUBLESHOOTING ....................................................27
EXERCISE GUIDELINES ....................................................................29
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
PROFORM and IFIT are registered trademarks of ICON Health & Fitness, Inc. The Bluetooth®word mark and
logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. Google Maps is a trade-
mark of Google LLC. Wi-Fi is a registered trademark of Wi-Fi Alliance. WPA and WPA2 are trademarks of Wi-Fi
Alliance.

3
WARNING: To reduce the risk of serious injury, read all important precautions
and instructions in this manual and all warnings on the trainer before using the trainer. ICON
assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to ensure
that all users of the trainer are adequately
informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
3. The trainer is not intended for use by per-
sons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the trainer
by someone responsible for their safety.
4. Use the trainer only as described in this
manual.
5. The trainer is intended for home use only. Do
not use the trainer in a commercial, rental, or
institutional setting.
6. Keep the trainer indoors, away from moisture
and dust. Do not put the trainer in a garage
or covered patio, or near water.
7. Place the trainer on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the trainer and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from dam-
age, place a mat under the trainer.
8. Inspect and properly tighten all parts each
time the trainer is used. Replace any worn
parts immediately.
9. Keep children under age 16 and pets away
from the trainer at all times.
10. The trainer should not be used by persons
weighing more than 325 lbs. (147 kg).
11. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the trainer. Always wear athletic
shoes for foot protection while exercising.
12. Hold the handlebars when mounting, dis-
mounting, or using the trainer. Before
mounting or dismounting, bring the pedals
to a stop with the pedal on the mounting or
dismounting side in its lowest position.
13. The heart rate monitor is not a medical
device. Various factors may affect the accu-
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
14. The trainer does not have a freewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
15. Keep your back straight while using the
trainer; do not arch your back.
16. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
IMPORTANT PRECAUTIONS

4
UTS
all
STANDARD SERVICE PLANS

5
Fan
Console
Heart Rate Monitor
Wheel
Pedal
Pedal Leg
Leveling Foot
Accessory Tray
Handlebar
Length: 5 ft. 7 in. (170 cm)
Width: 2 ft. 6 in. (76 cm)
Thank you for selecting the revolutionary PROFORM®
PRO HIIT H14 trainer. The PRO HIIT H14 trainer
provides an impressive selection of features designed
to make your workouts at home more effective and
enjoyable.
For your benefit, read this manual carefully before
you use the trainer. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
BEFORE YOU BEGIN

6
M8 x 15mm
Screw (96)–2
M8 x 25mm
Screw (105)–6 M10 x 20mm
Screw (110)–8
M8 x 20mm
Screw (102)–8
M8 x 86mm Screw
(109)–2
M6 x 12mm
Screw
(108)–8
M4 x 22mm
Screw
(107)–10
M4 x 16mm Flat
Head Screw
(101)–10
PART IDENTIFICATION CHART

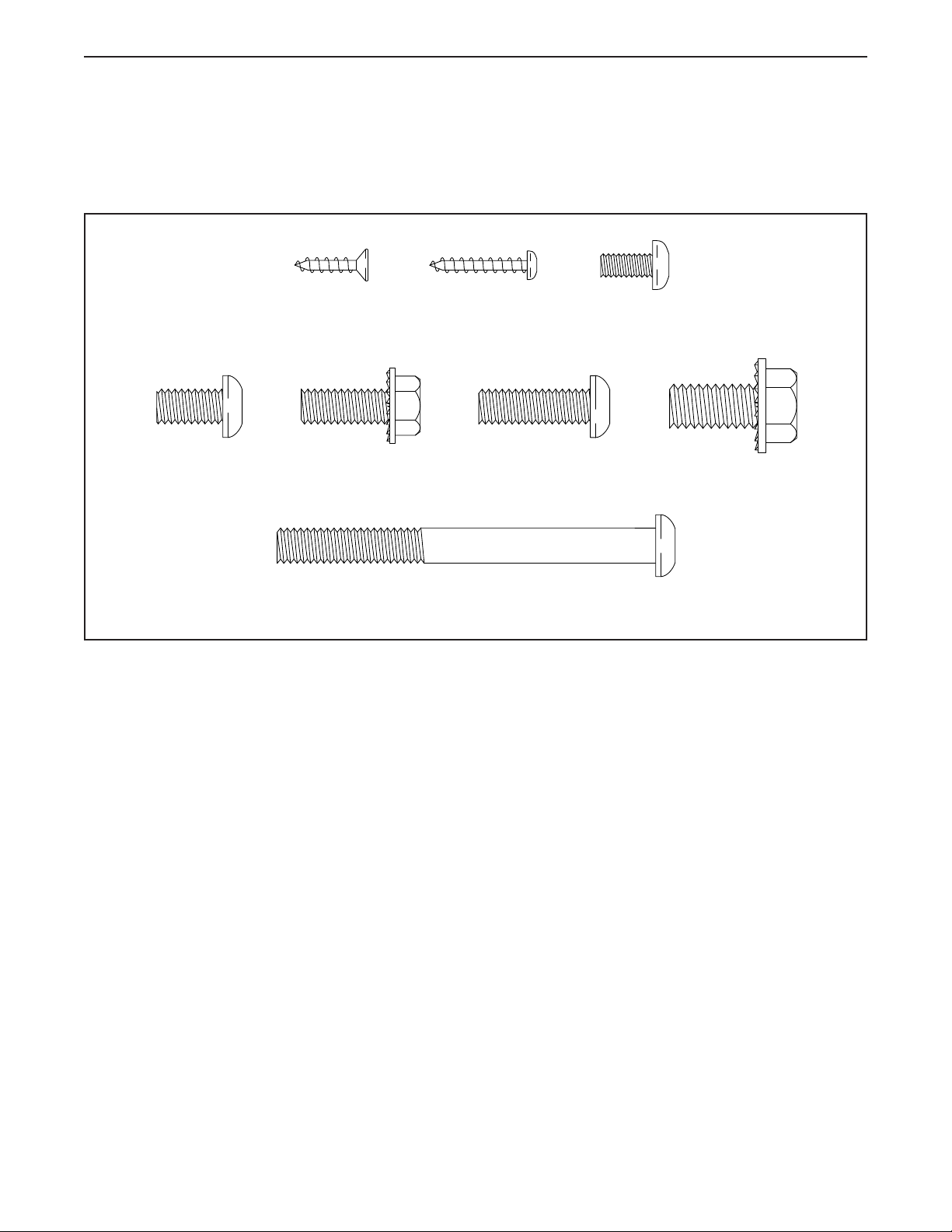

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.

7
• To hire an authorized service technician to
assemble this product, call 1-800-445-2480.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 6.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
Assembly may be easier if you have your own set
of wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1
1. Go to my.proform.com on your computer and
register your product.
• documents your ownership
• activates your warranty
• ensures priority customer support if assistance
is ever needed
Note: If you do not have internet access, call
Customer Care (see the front cover of this
manual) and register your product.

8

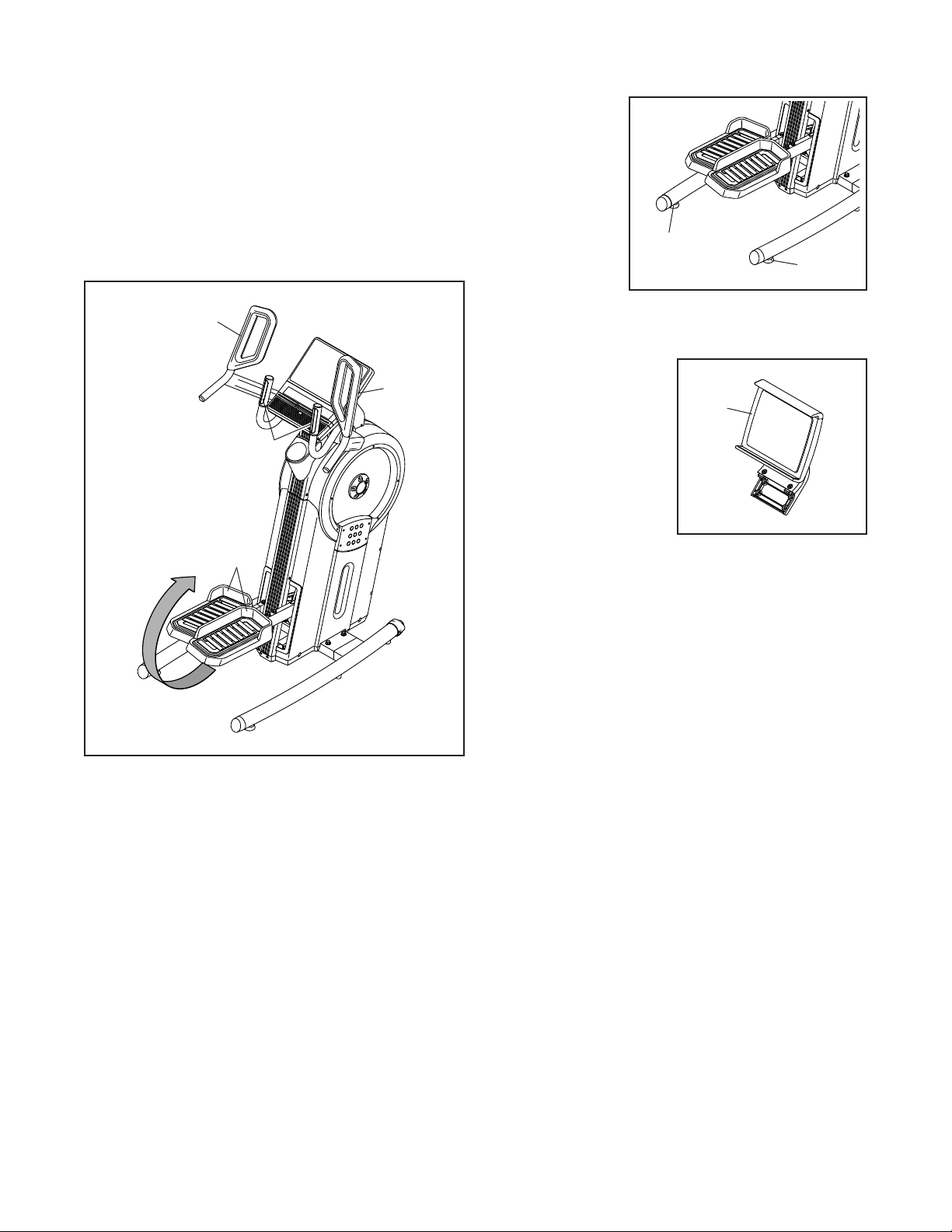

3. Identify the Right and Left Pedal Bases (2, 3)
and the Right and Left Pedals (22, 23), and
orient them as shown.
Attach the Right Pedal (22) to the Right Pedal
Base (2) with four M6 x 12mm Screws (108);
start all the Screws, and then tighten them.
Attach the Left Pedal (23) to the Left Pedal
Base (3) in the same way.
3
2
23
22
2
3
108
108
1
8
9
110
50, 51
2. Identify the Right and Left Stabilizers (8, 9) and
orient them as shown.
Have a second person hold the Frame (1) and
tip it to the left. IMPORTANT: Be careful not to
damage the Shields (50, 51).
Attach the Right Stabilizer (8) to the Frame
(1) with four M10 x 20mm Screws (110); start
all the Screws, and then tighten them.
Note: Disregard the two unthreaded holes in the
underside of the Frame.
IMPORTANT: Make sure to tighten the
M10 x 20mm Screws (110) firmly and
completely.
Have the second person lower the Frame (1)
to the floor. IMPORTANT: Be careful not to
damage the Shields (50, 51).
Attach the Left Stabilizer (9) in the same way.
110

9
5
4
2
102
24
18 53 50, 51
101
101
4. Attach the Right Pedal Base (2) to the Right
Pedal Leg (24) with four M8 x 20mm Screws
(102); start all the Screws, and then tighten
them.
Attach the Left Pedal Base (3) to the Left
Pedal Leg (25) in the same way.
5. Press the Rear Cover (53) onto the Left and
Right Shields (50, 51).
Attach the Rear Cover (53) with four M4 x 16mm
Flat Head Screws (101); start all the Flat Head
Screws, and then tighten them.
Then, insert the Accessory Tray (18) into the
Rear Cover (53).
102
3
25

10

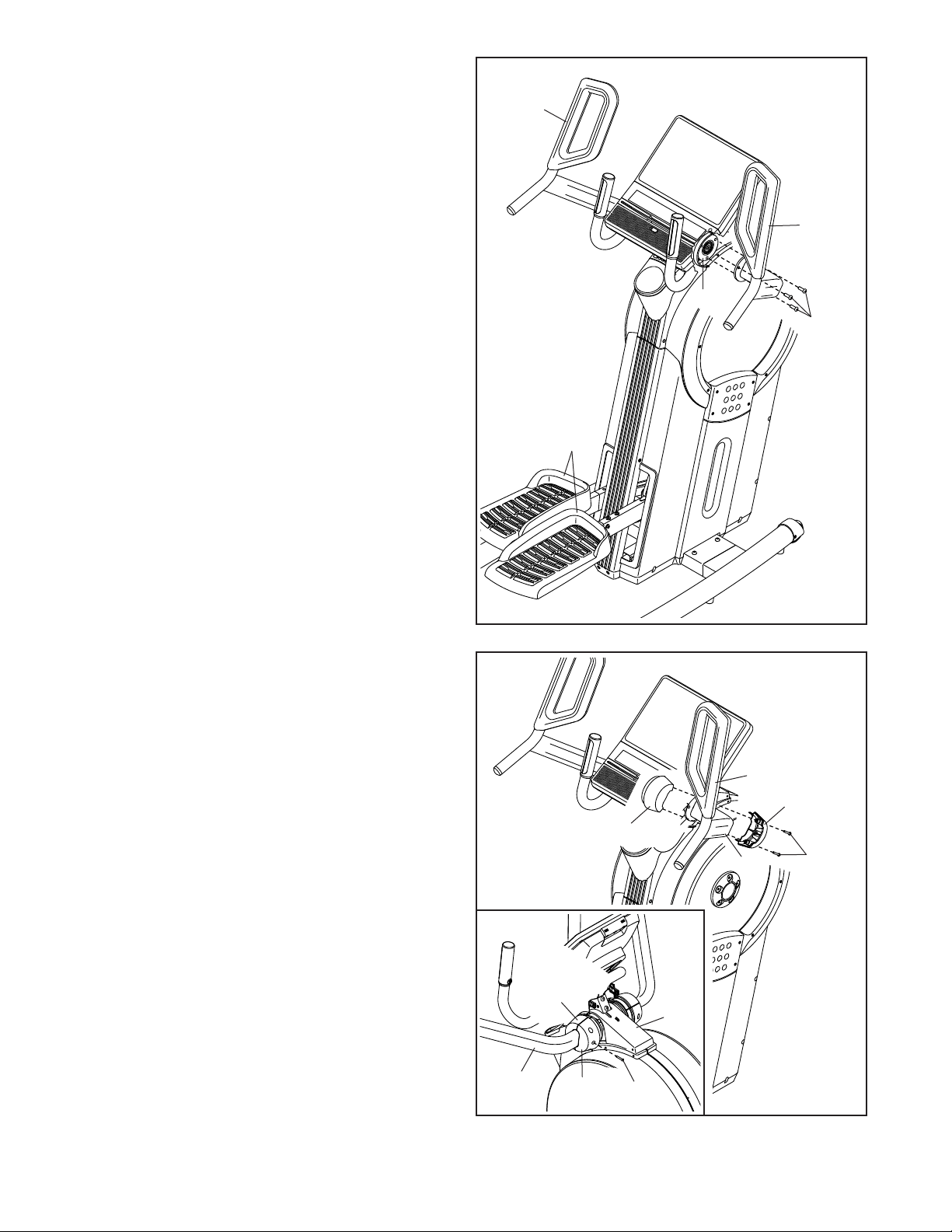

6. See the upper drawing. With the help of a
second person, orient the Console (5), the
Console Cover (7), and the Console Bracket
(4) as shown. Then, route the wires (A) on the
Console through the Console Cover and the
Console Bracket.
See the lower drawing. Tip: Avoid pinching
the wires. Attach the Console (5) and the
Console Cover (7) to the Console Bracket (4)
with four M4 x 22mm Screws (107); start all the
Screws, and then tighten them.
6
5
5
7
7
4
4
107
A
Avoid pinching
the wires
4
96 96
109
115
117
Avoid pinching
the wires
7
7. While a second person holds the Console
Bracket (4) near the Frame (1), connect the
wires on the Console (5) to the Main Wire (115)
and to the Pulse Wire (117).
Tip: Avoid pinching the wires. Attach the
Console Bracket (4) to the Frame (1) with two
M8 x 86mm Screws (109) and two M8 x 15mm
Screws (96); start all the Screws, and then
tighten them.
1
5
