Total TMS43183051 User manual

MITER SAW

Security instructions
Caution
Read all safety warnings and all instructions. Failure to follow all warnings and
instructions may result in electrical shock, fire, and/or serious injury.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool
or battery-operated (cordless) power tool.
Note: Save all warnings and instructions for future reference.
1) Work area safety
a. Keep the work area clean and well lit to prevent accidents.
b. Do not use power tools in explosive atmospheres, such as in the presence
of flammable liquids, gases, or dust that can cause fires.
c. Keep children and other unauthorized persons away while using a power
tool. Distractions can cause you to lose control of the tool.
2) electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way.
Using a suitable plug reduces the risk of electric shock.
b. Avoid bodily contact with grounded surfaces such as pipes, radiators,
ranges, and refrigerators. There is an increased risk of electric shock if
your body is grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electrical shock.
d. Never use the cord to carry, pull or unplug the power tool. Keep the cable
away from heat or oil.
e. When using a power tool outdoors, use an extension cord suitable for
outdoor use.
f. If using the tool in a damp location is unavoidable, use a Residual Current
Device (RCD) protected supply to reduce the risk of electric shock.
3) Personal security
a. Always stay alert, watch what you are doing and use common sense
when using the tool.
b. Do not use a power tool if you are tired or under the influence of
medication or other substances.
c. Wear personal protective equipment. Always wear eye protection.
Protective equipment such as a dust mask, non-slip safety shoes, hard
hat, or hearing protection used in the proper conditions will reduce
personal injury. Also don't wear loose clothing or jewelry.
d. Prevent the tool from turning on unintentionally. Make sure the switch is
in the off position before connecting to power source and moving.
e. Remove any adjusting wrenches or wrenches before turning on the power
tool. An adjustable wrench or wrench placed in a rotating part of the power
tool can cause serious injury.
f. If devices are used for dust extraction and collection, make sure they are
properly connected. Properly use these devices and you will reduce dust-
related hazards.
g. Harmful/toxic dusts such as lead-painted surfaces, wood or metal may
arise when sanding. It is important to take special care with their

Safety rules for correct use
inhalation, as it can be a danger to the user's health. In addition, always
have PPE for the use of this type of tool.
4) Use and care of power tools
a. Do not force the tool. Use the correct power tool for each use.
b. Do not use the power tool if its power switch does not work. Any power
tool that cannot be controlled with the switch is dangerous and must be
repaired.
c. Disconnect the plug from the power source before making any
adjustments, changing accessories, or storing the tool to avoid accidental
starting.
d. Use the power tool, accessories and bits etc. in accordance with these
instructions, taking into account the working conditions and the work to
be carried out. Using the power tool for operations other than those
intended could result in a hazardous situation.
e. Store power tools out of the reach of children and do not allow people
unfamiliar with the tool to use it.
f. Carry out regular maintenance on power tools. Check for misalignment or
binding of moving parts, breakage of parts, and any other condition that
may affect the operation of power tools. If it is damaged, have the power
tool repaired before using it. Many accidents are caused by poorly
maintained power tools.
g. Keep accessories clean and sharp, as with proper maintenance they are
less likely to bind and are easier to control.
5) Service
a. Have your power tool serviced by a qualified person and use replacement
parts recommended by the manufacturer. This will ensure that the safety
of the power tool is maintained.
Caution - Caution Maintenance
Note

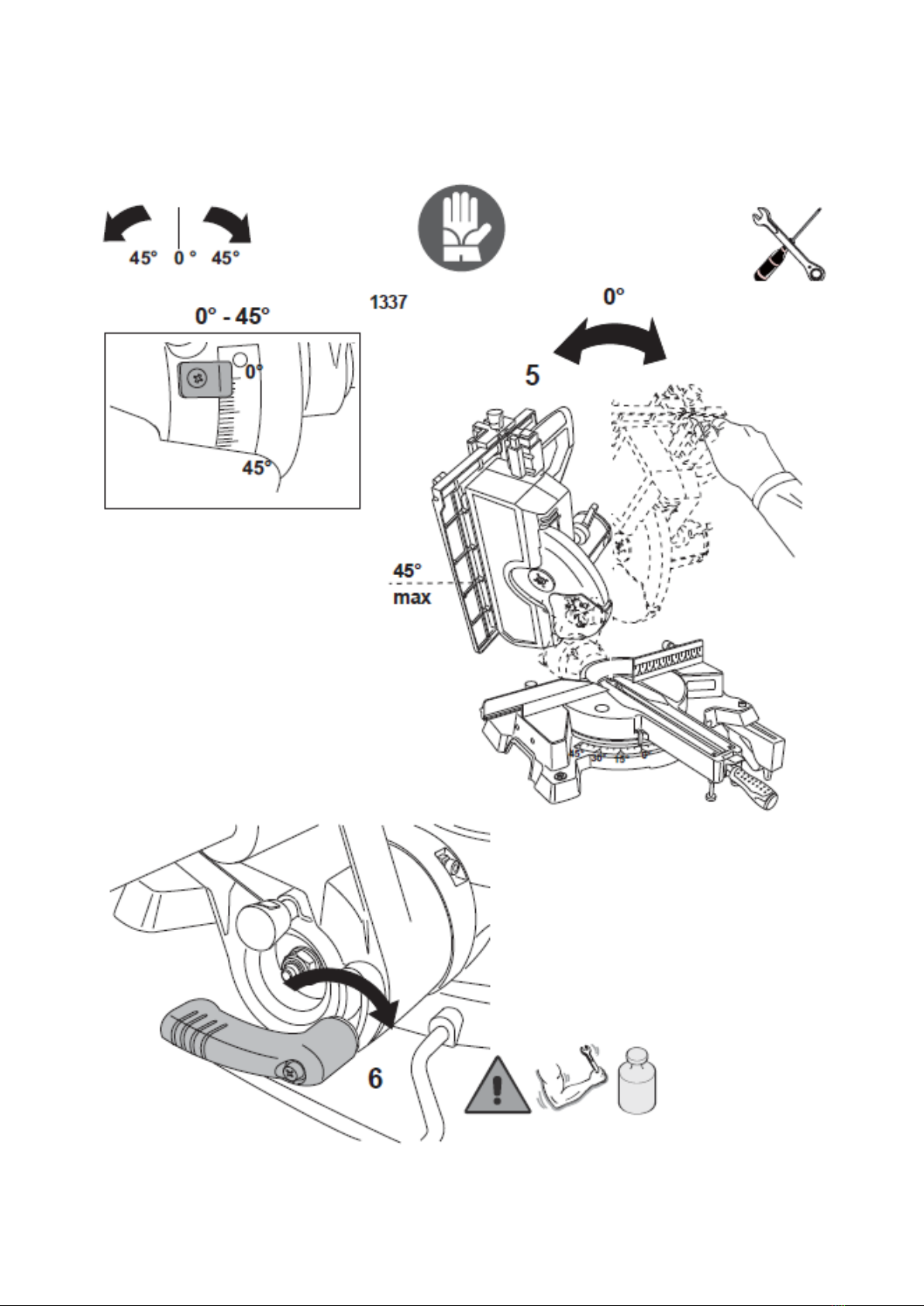

Cutting
angle/head
rotation
Prohibition Cleaning
Not wearing work gloves Verify - check
Correct
Measurements
and distances
to observe

It's not correct
Turn on the
machine
Read the user instructions. If in
doubt, contact your official
dealer before proceeding.
Turn off the
machine

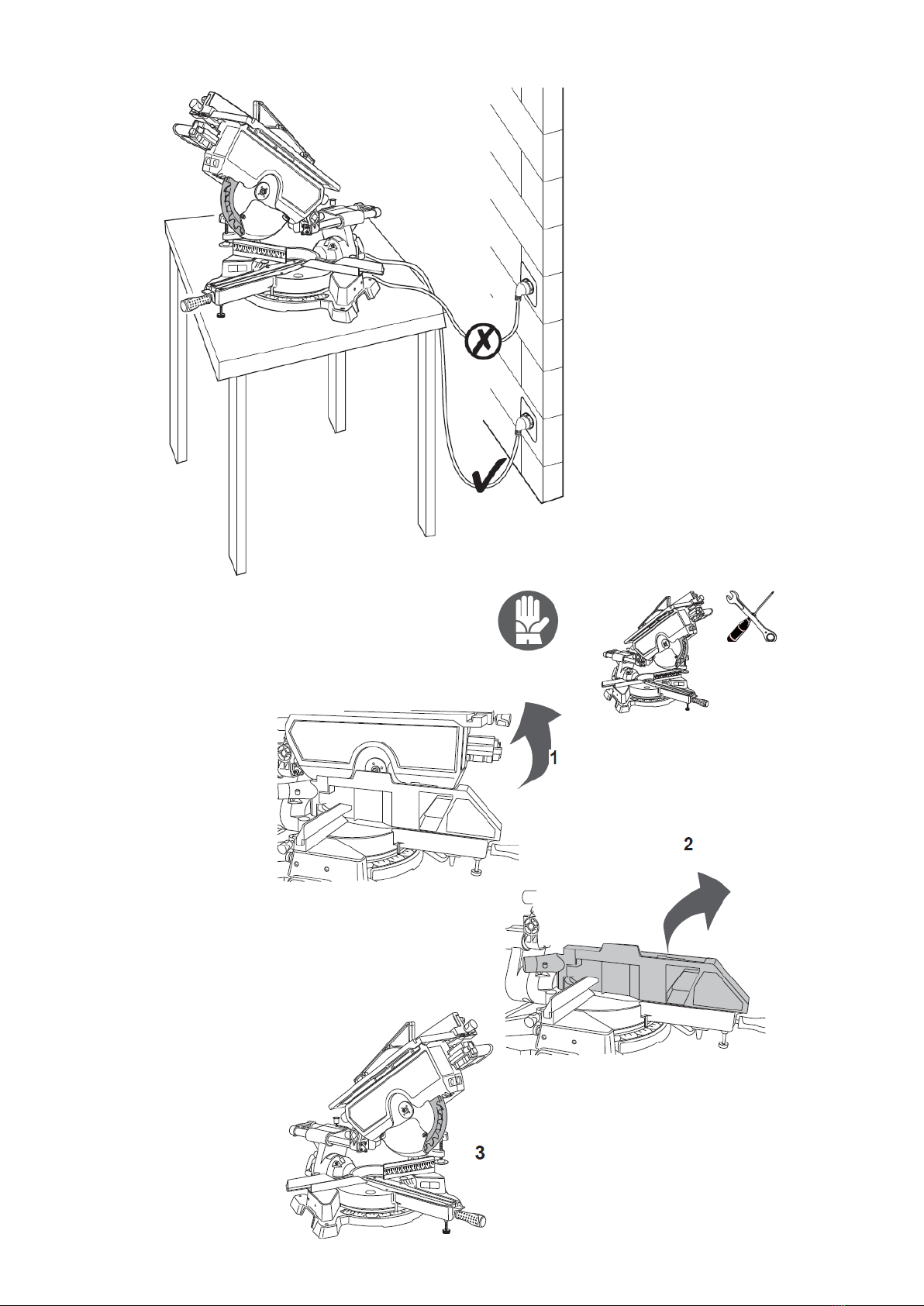

Settings
Use
Voltage /
Frequency
Operation to be carried out
with care
Weight
Operation to be performed with
force
Recycling
Power
miter saw
mode
Velocity
Noise
bench saw
mode
Technical data
Data sheet
Power
1800W
Voltage
220-240V ~50/60Hz
No load speed
3600/min
Disk size
305x30mm

Product description
1. control knob
2. Power switch
3. base
4. Body/base swivel joint
5. Rotating bracket
6. Engine
7. Disk
8. Angle release lever
9. Saw lock button
10. Disc fixed guard
11. Disc mobile guard
12. Work piece holder
13. Dust collector
14. Support bracket
15. Upper tray
16. Superior mobile protection
17. Upper cutting guide
18. Support feet
19. Lock pin
20. Pusher
21. Lower cutting guide
22. Disc lower guard
24 and 25. User manual

Use personal protective
equipment
label - laser

Miter use
This machine has been designed and manufactured for cutting operations in miter saw
or bench saw mode.
•Bench saw mode: seasoned wood
•Miter saw mode: seasoned wood, plastic materials, aluminum and its alloys
This miter saw should not be used for:
•Operate on ferrous materials.
•Operate on organic materials and/or food.
•Operate on materials that can release toxic substances during the cutting
process.
•Cutting wet wood when using the machine in bench saw mode.
•Use the machine when the safety protections are not in place.
•Use high speed steel blades.
•Use the machine to make blind cuts.
•Cut metallic material when using the machine in circular saw mode.
This machine is not suitable for use in potentially explosive environments.
Residual risks
Danger of shearing and/or cutting
Entanglement, dragging and entrapment hazardPrecautions to take:
- During the cutting phase do not wear work gloves.
- Keep your hands away from the work area.
- Never remove clippings or fragments from the machine when the blade is
rotating.
crush hazardPrecautions to take:
- Keep your hands away from the head rotation area.
- Keep your face away from the cutting area.
- Never bring your hands close to the cutting area until the head has
returned to its maximum height and the blade has come to a complete
stop.
- To avoid breaking the blade, reduce pressure as soon as the blade
contacts the workpiece.
- Reduce the cutting pressure to safeguard the machine.

Noise information
Noise values indicated are emission levels and not necessarily safe operating levels.
While there is a correlation between emission levels and exposure levels, this cannot be
reliably used to determine whether or not further safety precautions are needed.
Factors influencing a worker's actual level of exposure include the duration of exposure
which may be set differently from country to country. However, this information helps the
user of the machine to better assess hazards and risks.
It is recommended to use adequate hearing protection such as ear muffs or ear plugs.
Electromagnetic compatibility information
The electromagnetic emissions of the machine do not exceed the limits defined by the
standards relating to the intended conditions of use.
Check that the power system is equipped with a thermomagnetic circuit breaker to
protect all conductors from short circuits and overloads.
Vibrations
The weighted average frequency rms hand-arm acceleration value under normal cutting
conditions using properly sharpened blades is less than 2.5 m/sec2.
Test measurements were performed in accordance with EN ISO 5349-1 and EN ISO
5349-2.
The vibrations during the actual use of the machine may differ from those declared, since
the total vibration value depends largely on how the machine is used.
Therefore, it is necessary to identify the most appropriate security measures to safeguard
the operator based on the estimated exposure times and the actual conditions of use.
