Touch-plate 10138 User manual

10138
Modbus - SmartSwitch Gateway

© Touch-Plate®Lighting Controls Page 2
Features
Easy Integration of SmartSwitches into a Mod us network
Supports up to 8 two-wire SmartSwitch stations, or up to 50 five-wire SmartSwitch stations
Each utton has its own momentary and maintain registers
Button press uffer register allows for monitoring a single register for all utton presses
Supports intensity, color, and flash patterns for station LEDs (certain station types only)
Mod us RTU RS485 Interface
Baud rates up to 115.2K supported

© Touch-Plate®Lighting Controls Page 3

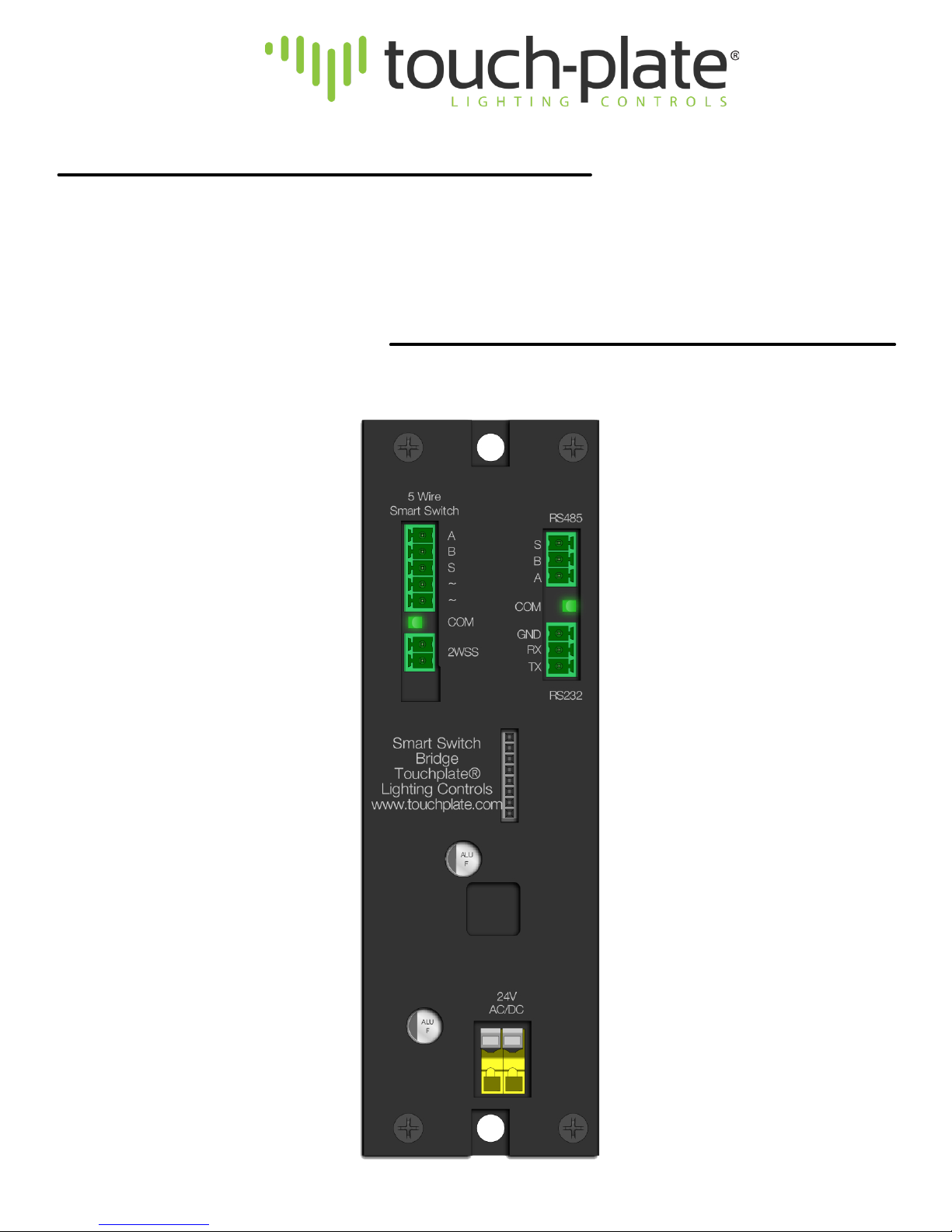

A – 24V AC or DC ower In ut
B – Modbus Address DIP
C – Modbus Baud Rate, Parity, & Sto Bits DIP
D – Modbus RS232 Port
E – Modbus RS485 Port
F – 5 Wire SmartSwitch Port
G – 2 Wire SmartSwitch Port
A
BC
G
DE
F
S ecifications
Electrical
Rate Voltage: 18 – 24 V AC or DC, Power su ly must be Class 2
Power Consum tion: 1.7VA + 0.75VA for each SmartSwitch attached
Dimensions
1.76" width x 5.6" long

© Touch-Plate®Lighting Controls Page 4
2 Wire SmartSwitches ( ackside shown)
To additional 2 wire
SmartSwitches (total 8)
Use Belden 9740 cable or Equivalent
Wire connections are not olarity sensitive
Max cable length is 500 feet

© Touch-Plate®Lighting Controls Page 5

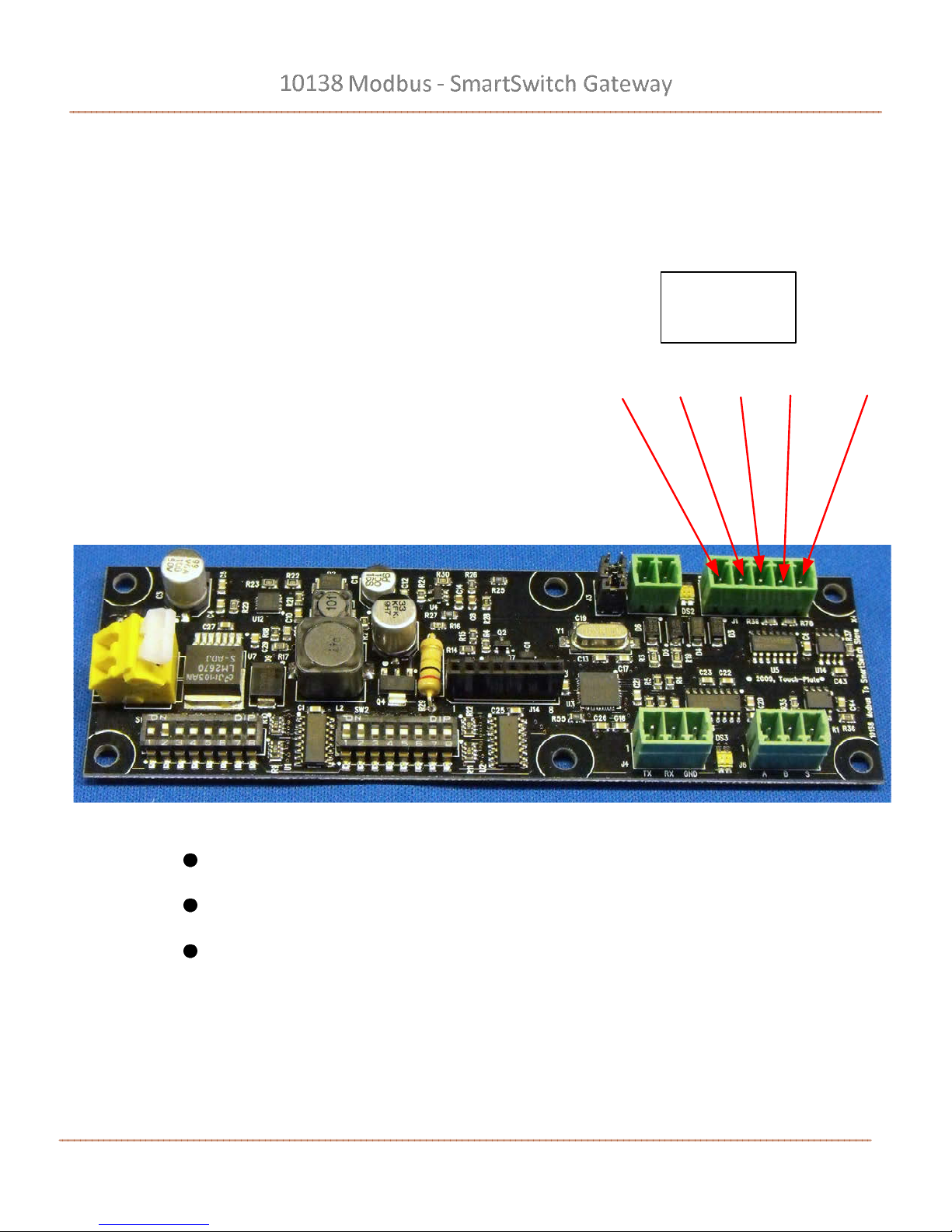

Use Belden 1502 ca le or Equivalent
Connect in a daisy chain manner
Up to 50 Five-wire SmartSwitches can e
daisy chained together.
GND
5 Wire
SmartSwitch
Port Pinout
+Data
24V
24V -Data
SmartSwitches can be connected to either the 2 wire or 5
wire ort. Both orts can be used at the same time,
allowing for a mix of 2 wire and 5 wire stations.

© Touch-Plate®Lighting Controls Page 6
TX RX GND
+Data
-Data
GND
Modbus
RS-232 Port
Pinout Modbus
RS-485 Port
Pinout

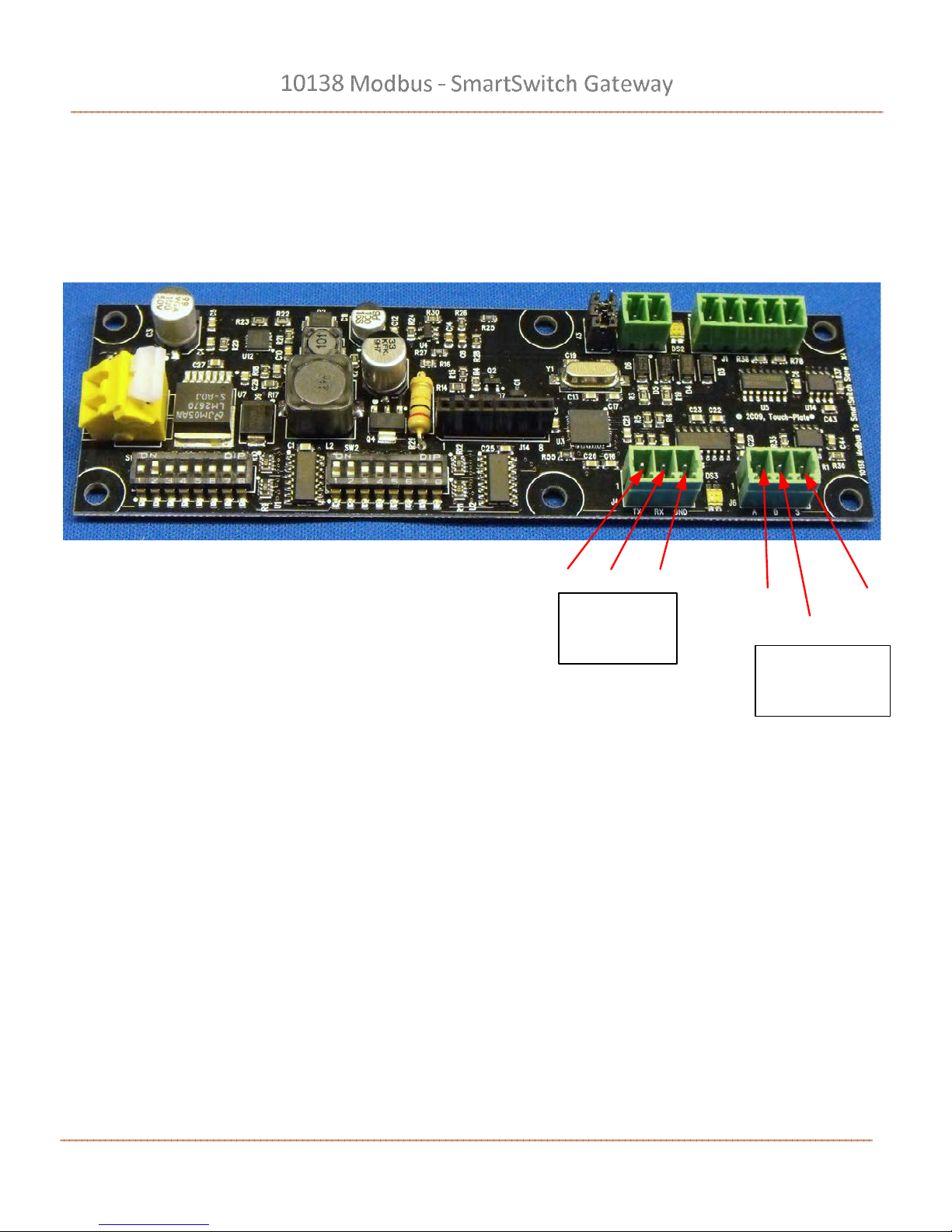

Modbus communication to the gateway can be either through the
RS-232 ort or through the RS-485 ort. Only use one ort at a
time. There is no configuration to change to switch from one ort
to the other.

© Touch-Plate®Lighting Controls Page 7
Positional Value 124 8 16 32 64 128
Switch Number 1 2 3 4 5 6 7 8
Address
0* OFF OFF OFF OFF OFF OFF OFF OFF
1ON OFF OFF OFF OFF OFF OFF OFF
2 OFF ON OFF OFF OFF OFF OFF OFF
3ON ON OFF OFF OFF OFF OFF OFF
4 OFF OFF ON OFF OFF OFF OFF OFF
5ON OFF ON OFF OFF OFF OFF OFF
6 OFF ON ON OFF OFF OFF OFF OFF
7ON ON ON OFF OFF OFF OFF OFF
8 OFF OFF OFF ON OFF OFF OFF OFF
9ON OFF OFF ON OFF OFF OFF OFF
10 OFF ON OFF ON OFF OFF OFF OFF
11 ON ON OFF ON OFF OFF OFF OFF
12 OFF OFF ON ON OFF OFF OFF OFF
13 ON OFF ON ON OFF OFF OFF OFF
14 OFF ON ON ON OFF OFF OFF OFF
15 ON ON ON ON OFF OFF OFF OFF
16 OFF OFF OFF OFF ON OFF OFF OFF
17 ON OFF OFF OFF ON OFF OFF OFF
18 OFF ON OFF OFF ON OFF OFF OFF
19 ON ON OFF OFF ON OFF OFF OFF
20 OFF OFF ON OFF ON OFF OFF OFF
21 ON OFF ON OFF ON OFF OFF OFF
22 OFF ON ON OFF ON OFF OFF OFF
23 ON ON ON OFF ON OFF OFF OFF
24 OFF OFF OFF ON ON OFF OFF OFF
25 ON OFF OFF ON ON OFF OFF OFF
26 OFF ON OFF ON ON OFF OFF OFF
27 ON ON OFF ON ON OFF OFF OFF
28 OFF OFF ON ON ON OFF OFF OFF
29 ON OFF ON ON ON OFF OFF OFF
30 OFF ON ON ON ON OFF OFF OFF
31 ON ON ON ON ON OFF OFF OFF
Positional Value
1 2 4 8 16 32 64 128
Switch Number
1 2 3 4 5 6 7 8
Address
32 OFF OFF OFF OFF OFF ON OFF OFF
33 ON OFF OFF OFF OFF ON OFF OFF
34 OFF ON OFF OFF OFF ON OFF OFF
35 ON ON OFF OFF OFF ON OFF OFF
36 OFF OFF ON OFF OFF ON OFF OFF
37 ON OFF ON OFF OFF ON OFF OFF
38 OFF ON ON OFF OFF ON OFF OFF
39 ON ON ON OFF OFF ON OFF OFF
40 OFF OFF OFF ON OFF ON OFF OFF
41 ON OFF OFF ON OFF ON OFF OFF
42 OFF ON OFF ON OFF ON OFF OFF
43 ON ON OFF ON OFF ON OFF OFF
44 OFF OFF ON ON OFF ON OFF OFF
45 ON OFF ON ON OFF ON OFF OFF
46 OFF ON ON ON OFF ON OFF OFF
47 ON ON ON ON OFF ON OFF OFF
48 OFF OFF OFF OFF ON ON OFF OFF
49 ON OFF OFF OFF ON ON OFF OFF
50 OFF ON OFF OFF ON ON OFF OFF
51 ON ON OFF OFF ON ON OFF OFF
52 OFF OFF ON OFF ON ON OFF OFF
53 ON OFF ON OFF ON ON OFF OFF
54 OFF ON ON OFF ON ON OFF OFF
55 ON ON ON OFF ON ON OFF OFF
56 OFF OFF OFF ON ON ON OFF OFF
57 ON OFF OFF ON ON ON OFF OFF
58 OFF ON OFF ON ON ON OFF OFF
59 ON ON OFF ON ON ON OFF OFF
60 OFF OFF ON ON ON ON OFF OFF
61 ON OFF ON ON ON ON OFF OFF
62 OFF ON ON ON ON ON OFF OFF
63 ON ON ON ON ON ON OFF OFF
Positional Value
1 2 4 8 16 32 64 128
Switch Number
1 2 3 4 5 6 7 8
Address
64 OFF OFF OFF OFF OFF OFF ON OFF
65 ON OFF OFF OFF OFF OFF ON OFF
66 OFF ON OFF OFF OFF OFF ON OFF
67 ON ON OFF OFF OFF OFF ON OFF
68 OFF OFF ON OFF OFF OFF ON OFF
69 ON OFF ON OFF OFF OFF ON OFF
70 OFF ON ON OFF OFF OFF ON OFF
71 ON ON ON OFF OFF OFF ON OFF
72 OFF OFF OFF ON OFF OFF ON OFF
73 ON OFF OFF ON OFF OFF ON OFF
74 OFF ON OFF ON OFF OFF ON OFF
75 ON ON OFF ON OFF OFF ON OFF
76 OFF OFF ON ON OFF OFF ON OFF
77 ON OFF ON ON OFF OFF ON OFF
78 OFF ON ON ON OFF OFF ON OFF
79 ON ON ON ON OFF OFF ON OFF
80 OFF OFF OFF OFF ON OFF ON OFF
81 ON OFF OFF OFF ON OFF ON OFF
82 OFF ON OFF OFF ON OFF ON OFF
83 ON ON OFF OFF ON OFF ON OFF
84 OFF OFF ON OFF ON OFF ON OFF
85 ON OFF ON OFF ON OFF ON OFF
86 OFF ON ON OFF ON OFF ON OFF
87 ON ON ON OFF ON OFF ON OFF
88 OFF OFF OFF ON ON OFF ON OFF
89 ON OFF OFF ON ON OFF ON OFF
90 OFF ON OFF ON ON OFF ON OFF
91 ON ON OFF ON ON OFF ON OFF
92 OFF OFF ON ON ON OFF ON OFF
93 ON OFF ON ON ON OFF ON OFF
94 OFF ON ON ON ON OFF ON OFF
95 ON ON ON ON ON OFF ON OFF
Position al Value
1 2 4 8 16 32 64 128
Switch Number
1 2 3 4 5 6 7 8
Address
96 OFF OFF OFF OFF OFF ON ON OFF
97 ON OFF OFF OFF OFF ON ON OFF
98 OFF ON OFF OFF OFF ON ON OFF
99 ON ON OFF OFF OFF ON ON OFF
100 OFF OFF ON OFF OFF ON ON OFF
101 ON OFF ON OFF OFF ON ON OFF
102 OFF ON ON OFF OFF ON ON OFF
103 ON ON ON OFF OFF ON ON OFF
104 OFF OFF OFF ON OFF ON ON OFF
105 ON OFF OFF ON OFF ON ON OFF
106 OFF ON OFF ON OFF ON ON OFF
107 ON ON OFF ON OFF ON ON OFF
108 OFF OFF ON ON OFF ON ON OFF
109 ON OFF ON ON OFF ON ON OFF
110 OFF ON ON ON OFF ON ON OFF
111 ON ON ON ON OFF ON ON OFF
112 OFF OFF OFF OFF ON ON ON OFF
113 ON OFF OFF OFF ON ON ON OFF
114 OFF ON OFF OFF ON ON ON OFF
115 ON ON OFF OFF ON ON ON OFF
116 OFF OFF ON OFF ON ON ON OFF
117 ON OFF ON OFF ON ON ON OFF
118 OFF ON ON OFF ON ON ON OFF
119 ON ON ON OFF ON ON ON OFF
120 OFF OFF OFF ON ON ON ON OFF
121 ON OFF OFF ON ON ON ON OFF
122 OFF ON OFF ON ON ON ON OFF
123 ON ON OFF ON ON ON ON OFF
124 OFF OFF ON ON ON ON ON OFF
125 ON OFF ON ON ON ON ON OFF
126 OFF ON ON ON ON ON ON OFF
127 ON ON ON ON ON ON ON OFF
Set the Modbus address using the SW1 DIP switches.

© Touch-Plate®Lighting Controls Page 8
Positional Value
1 2 4 8 16 32 64 128
Switch Number
1 2 3 4 5 6 7 8
Address
128 OFF OFF OFF OFF OFF OFF OFF ON
129 ON OFF OFF OFF OFF OFF OFF ON
130 OFF ON OFF OFF OFF OFF OFF ON
131 ON ON OFF OFF OFF OFF OFF ON
132 OFF OFF ON OFF OFF OFF OFF ON
133 ON OFF ON OFF OFF OFF OFF ON
134 OFF ON ON OFF OFF OFF OFF ON
135 ON ON ON OFF OFF OFF OFF ON
136 OFF OFF OFF ON OFF OFF OFF ON
137 ON OFF OFF ON OFF OFF OFF ON
138 OFF ON OFF ON OFF OFF OFF ON
139 ON ON OFF ON OFF OFF OFF ON
140 OFF OFF ON ON OFF OFF OFF ON
141 ON OFF ON ON OFF OFF OFF ON
142 OFF ON ON ON OFF OFF OFF ON
143 ON ON ON ON OFF OFF OFF ON
144 OFF OFF OFF OFF ON OFF OFF ON
145 ON OFF OFF OFF ON OFF OFF ON
146 OFF ON OFF OFF ON OFF OFF ON
147 ON ON OFF OFF ON OFF OFF ON
148 OFF OFF ON OFF ON OFF OFF ON
149 ON OFF ON OFF ON OFF OFF ON
150 OFF ON ON OFF ON OFF OFF ON
151 ON ON ON OFF ON OFF OFF ON
152 OFF OFF OFF ON ON OFF OFF ON
153 ON OFF OFF ON ON OFF OFF ON
154 OFF ON OFF ON ON OFF OFF ON
155 ON ON OFF ON ON OFF OFF ON
156 OFF OFF ON ON ON OFF OFF ON
157 ON OFF ON ON ON OFF OFF ON
158 OFF ON ON ON ON OFF OFF ON
159 ON ON ON ON ON OFF OFF ON
Positional Value
1 2 4 8 16 32 64 12 8
Switch Number
1 2 3 4 5 6 7 8
Address
160 OFF OFF OFF OFF OFF ON OFF ON
161 ON OFF OFF OFF OFF ON OFF ON
162 OFF ON OFF OFF OFF ON OFF ON
163 ON ON OFF OFF OFF ON OFF ON
164 OFF OFF ON OFF OFF ON OFF ON
165 ON OFF ON OFF OFF ON OFF ON
166 OFF ON ON OFF OFF ON OFF ON
167 ON ON ON OFF OFF ON OFF ON
168 OFF OFF OFF ON OFF ON OFF ON
169 ON OFF OFF ON OFF ON OFF ON
170 OFF ON OFF ON OFF ON OFF ON
171 ON ON OFF ON OFF ON OFF ON
172 OFF OFF ON ON OFF ON OFF ON
173 ON OFF ON ON OFF ON OFF ON
174 OFF ON ON ON OFF ON OFF ON
175 ON ON ON ON OFF ON OFF ON
176 OFF OFF OFF OFF ON ON OFF ON
177 ON OFF OFF OFF ON ON OFF ON
178 OFF ON OFF OFF ON ON OFF ON
179 ON ON OFF OFF ON ON OFF ON
180 OFF OFF ON OFF ON ON OFF ON
181 ON OFF ON OFF ON ON OFF ON
182 OFF ON ON OFF ON ON OFF ON
183 ON ON ON OFF ON ON OFF ON
184 OFF OFF OFF ON ON ON OFF ON
185 ON OFF OFF ON ON ON OFF ON
186 OFF ON OFF ON ON ON OFF ON
187 ON ON OFF ON ON ON OFF ON
188 OFF OFF ON ON ON ON OFF ON
189 ON OFF ON ON ON ON OFF ON
190 OFF ON ON ON ON ON OFF ON
191 ON ON ON ON ON ON OFF ON
Positional Value
1 2 4 8 16 32 64 128
Switch Number
1 2 3 4 5 6 7 8
Address
192 OFF OFF OFF OFF OFF OFF ON ON
193 ON OFF OFF OFF OFF OFF ON ON
194 OFF ON OFF OFF OFF OFF ON ON
195 ON ON OFF OFF OFF OFF ON ON
196 OFF OFF ON OFF OFF OFF ON ON
197 ON OFF ON OFF OFF OFF ON ON
198 OFF ON ON OFF OFF OFF ON ON
199 ON ON ON OFF OFF OFF ON ON
200 OFF OFF OFF ON OFF OFF ON ON
201 ON OFF OFF ON OFF OFF ON ON
202 OFF ON OFF ON OFF OFF ON ON
203 ON ON OFF ON OFF OFF ON ON
204 OFF OFF ON ON OFF OFF ON ON
205 ON OFF ON ON OFF OFF ON ON
206 OFF ON ON ON OFF OFF ON ON
207 ON ON ON ON OFF OFF ON ON
208 OFF OFF OFF OFF ON OFF ON ON
209 ON OFF OFF OFF ON OFF ON ON
210 OFF ON OFF OFF ON OFF ON ON
211 ON ON OFF OFF ON OFF ON ON
212 OFF OFF ON OFF ON OFF ON ON
213 ON OFF ON OFF ON OFF ON ON
214 OFF ON ON OFF ON OFF ON ON
215 ON ON ON OFF ON OFF ON ON
216 OFF OFF OFF ON ON OFF ON ON
217 ON OFF OFF ON ON OFF ON ON
218 OFF ON OFF ON ON OFF ON ON
219 ON ON OFF ON ON OFF ON ON
220 OFF OFF ON ON ON OFF ON ON
221 ON OFF ON ON ON OFF ON ON
222 OFF ON ON ON ON OFF ON ON
223 ON ON ON ON ON OFF ON ON
Positional Value
1 2 4 8 16 32 64 128
Switch Number
1 2 3 4 5 6 7 8
Address
224 OFF OFF OFF OFF OFF ON ON ON
225 ON OFF OFF OFF OFF ON ON ON
226 OFF ON OFF OFF OFF ON ON ON
227 ON ON OFF OFF OFF ON ON ON
228 OFF OFF ON OFF OFF ON ON ON
229 ON OFF ON OFF OFF ON ON ON
230 OFF ON ON OFF OFF ON ON ON
231 ON ON ON OFF OFF ON ON ON
232 OFF OFF OFF ON OFF ON ON ON
233 ON OFF OFF ON OFF ON ON ON
234 OFF ON OFF ON OFF ON ON ON
235 ON ON OFF ON OFF ON ON ON
236 OFF OFF ON ON OFF ON ON ON
237 ON OFF ON ON OFF ON ON ON
238 OFF ON ON ON OFF ON ON ON
239 ON ON ON ON OFF ON ON ON
240 OFF OFF OFF OFF ON ON ON ON
241 ON OFF OFF OFF ON ON ON ON
242 OFF ON OFF OFF ON ON ON ON
243 ON ON OFF OFF ON ON ON ON
244 OFF OFF ON OFF ON ON ON ON
245 ON OFF ON OFF ON ON ON ON
246 OFF ON ON OFF ON ON ON ON
247 ON ON ON OFF ON ON ON ON
248* OFF OFF OFF ON ON ON ON ON
249* ON OFF OFF ON ON ON ON ON
250* OFF ON OFF ON ON ON ON ON
251* ON ON OFF ON ON ON ON ON
252* OFF OFF ON ON ON ON ON ON
253* ON OFF ON ON ON ON ON ON
254* OFF ON ON ON ON ON ON ON
255* ON ON ON ON ON ON ON ON
* Addresses 0, 248 – 255 are not valid for Modbus

© Touch-Plate®Lighting Controls Page 9
Set the Baud rate, Parity, and Sto bits using the SW2 DIP switches, all unused
switches should be off.
1 2 3 Baud
OFF OFF OFF 9600
ON OFF OFF 19200
OFF ON OFF 28800
ON ON OFF 38400
OFF OFF ON 57600
ON OFF ON 76800
OFF ON ON 115.2K
4 Parity
OFF Even
ON NONE
5 Sto Bits
OFF 1
ON 2

© Touch-Plate®Lighting Controls Page 10

© Touch-Plate®Lighting Controls Page 11
Register Address Register Type Description
1 to 400 Discrete In uts Momentary In uts
These registers ex ose the state of the station buttons. There is a register for each of the station
buttons. Register 1 is Station 1/Button 1, Register 9 is Station 2/Button 1, etc. Each station
requires 8 registers. On SmartSwitches with less than 8 buttons some registers will be unused.
Register # = ((Station #-1)*8+ Button #) Exam le (Station 7-1)*8+Button 3)=6*8+3= Register 51
Momentary in uts toggle state each time a button is ressed. If Station 1/Button 1 is ressed
register 1 will read as a 1. If the same button is ressed again register 1 will read as a 0.
Register Address Register Type Description
1001 to 1400 Discrete In uts Maintain In uts
These registers ex ose the state of the station buttons. There is a register for each of the station
buttons. Register 1001 is Station 1/Button 1, Register 1009 is Station 2/Button 2, etc. Some
versions of the SmartSwitches have 8 buttons so each station is take 8 registers. On
SmartSwitches with less than 8 buttons some registers will be unused. Register # =
1000+((Station #-1)*8+ Button #) Exam le 1000+ (Station 7-1)*8+Button 3)=1000+6*8+3=
Register 1051
Maintain in uts will read as a 1 while the button is ressed and held, and read as 0 when the
button is released.
Register Address Register Type Description
61001 In ut Register Button Press FIFO Buffer
This read-only register allow you to retrieve the button resses and releases from a FIFO buffer,
similar to the keyboard buffer on a com uter. When a button is ressed its number (1 to 400,
indicating falling edge) is added to the to the buffer. When the button is released the button
number +1000 is added to the buffer (1001 to 1400 indicating rising edge). When read the first
value in the buffer is returned. That value is then cleared and the remaining values in the buffer
shift one osition. When the buffer is em ty a read will return 0. Values remain the in buffer until
read, there is no automatic timeout of values.
This register allows you to see all button resses and releases while only olling a single
register.

© Touch-Plate®Lighting Controls Page 12
Register Address Register Type Description
10001 to 10400 Holding Registers Button Color/Intensity/Flash attern value
These registers allow you to set the LED color, LED intensity, and LED flash attern for each
LED on every station. Register 10001 is Station 1/LED 1, register 10009 is Station 2/LED 1. Each
station uses 8 registers, one for each LED. On stations with less than 8 LEDs some registers are
unused. The table below shows what value to write to achieve a articular intensity, color, and
flash attern. Writing 0 will turn the LED off until another value is written. Register # =
10000+(Station # - 1)*8+LED #
Color Intensity Slow flash Slow flash reverse Fast flash Fast flash reverse Wink Wink reverse On
Dec. ex Dec. ex Dec. ex Dec. ex Dec. ex Dec. ex Dec. ex
Red 25% 9 09 10 0A 11 0B 12 0C 13 0D 14 0E 15 0F
Red 50% 73 49 74 4A 75 4B 76 4C 77 4D 78 4E 79 4F
Red 75% 137 89 138 8A 139 8B 140 8C 141 8D 142 8E 143 8F
Red 100% 201 C9 202 CA 203 CB 204 CC 205 CD 206 CE 207 CF
Green 25% 17 11 18 12 19 13 20 14 21 15 22 16 23 17
Green 50% 81 51 82 52 83 53 84 54 85 55 86 56 87 57
Green 75% 145 91 146 92 147 93 148 94 149 95 150 96 151 97
Green 100% 209 D1 210 D2 211 D3 212 D4 213 D5 214 D6 215 D7
Blue 25% 25 19 26 1A 27 1B 28 1C 29 1D 30 1E 31 1F
Blue 50% 89 59 90 5A 91 5B 92 5C 93 5D 94 5E 95 5F
Blue 75% 153 99 154 9A 155 9B 156 9C 157 9D 158 9E 159 9F
Blue 100% 217 D9 218 DA 219 DB 220 DC 221 DD 222 DE 223 DF
Yellow 25% 33 21 34 22 35 23 36 24 37 25 38 26 39 27
Yellow 50% 97 61 98 62 99 63 100 64 101 65 102 66 103 67
Yellow 75% 161 A1 162 A2 163 A3 164 A4 165 A5 166 A6 167 A7
Yellow 100% 225 E1 226 E2 227 E3 228 E4 229 E5 230 E6 231 E7
Pur le 25% 41 29 42 2A 43 2B 44 2C 45 2D 46 2E 47 2F
Pur le 50% 105 69 106 6A 107 6B 108 6C 109 6D 110 6E 111 6F
Pur le 75% 169 A9 170 AA 171 AB 172 AC 173 AD 174 AE 175 AF
Pur le 100% 233 E9 234 EA 235 EB 236 EC 237 ED 238 EE 239 EF
Cyan 25% 49 31 50 32 51 33 52 34 53 35 54 36 55 37
Cyan 50% 113 71 114 72 115 73 116 74 117 75 118 76 119 77
Cyan 75% 177 B1 178 B2 179 B3 180 B4 181 B5 182 B6 183 B7
Cyan 100% 241 F1 242 F2 243 F3 244 F4 245 F5 246 F6 247 F7
White 25% 57 39 58 3A 59 3B 60 3C 61 3D 62 3E 63 3F
White 50% 121 79 122 7A 123 7B 124 7C 125 7D 126 7E 127 7F
White 75% 185 B9 186 BA 187 BB 188 BC 189 BD 190 BE 191 BF
White 100% 249 F9 250 FA 251 FB 252 FC 253 FD 254 FE 255 FF
Exam le #1: Writing 219 to Holding register 10001 would turn on the first LED on station
#1 to blue at 100% intensity, with a fast flash.
Exam le #2: Writing 215 to Holding register 10009 would turn on the first LED on station
#2 to green at 100% intensity, with no flash attern (solid on).
