USER MANUAL
Model:
VS-161H
16x1 HDMI Switcher

Contents
i
Contents
1Introduction 1
2Getting Started 1
2.1 Quick Start 2
3Overview 3
3.1 Defining EDID 3
3.2 About HDMI 4
3.3 About HDCP 5
3.4 Recommendations for Best Performance 5
4Your VS-161H 16x1 Switcher 5
5Installing the VS-161H in a Rack 8
6Connecting a VS-161H 16x1 HDMI Switcher 9
7Operating the VS-161H 10
7.1 The PC and DVD Modes 11
7.2 Acquiring the EDID 12
7.3 Controlling via RS-232 (for example, using a PC) 13
7.4 Controlling via ETHERNET 13
7.4.1 Connecting the ETHERNET Port directly to a PC (Crossover Cable) 13
7.4.2 Connecting the ETHERNET Port via a Network Hub (Straight-Through Cable) 15
7.4.3 Control Configuration via the Ethernet Port 15
8Technical Specifications 15
9Kramer Protocol 2000 16
Figures
Figure 1: VS-161H 16x1 HDMI Switcher 6
Figure 2: Connecting a VS-161H 16x1 HDMI Switcher 10
Figure 3: Connecting a PC without Using a Null-modem Adapter 13
Figure 4: Local Area Connection Properties Window 14
Figure 5: Internet Protocol (TCP/IP) Properties Window 14
Tables
Table 1: VS-161H 16x1 HDMI Switcher Features 7
Table 2: DVD Mode and PC Mode Characteristics 12
Table 3: Technical Specifications of the VS-161H 15
Table 4: Protocol Definitions 16
Table 5: Instruction Codes for Protocol 2000 17

Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast
range of problems that confront the video, audio, presentation, and
broadcasting professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
1,000-plus different models now appear in 11 groups1
Thank you for purchasing your Kramer VS-161H 16x1 HDMI Switcher.
that are clearly
defined by function.
The VS-161H is ideal for conference room presentations and advertising
applications, as well as for rental and staging.
Note, that the Kramer VS-161H is identical to the VS-161HDMI; just
the name has changed replacing the suffix “HDMI” by “H” (according
to the HDMI Guideline).
Each package includes the following items:
•VS-161H 16x1 HDMI Switcher
•Power cord, rack “ears” and null-modem adapter
•Windows®-based Kramer control software2
•Kramer RC-IR2Infrared Remote Control Transmitter (including
the required batteries and a separate user manual
and Windows®-based
Ethernet Configuration Manager and Virtual Serial Port Manager
3)
•This user manual3
2 Getting Started
We recommend that you:
•Unpack the equipment carefully and save the original box and
packaging materials for possible future shipment
•Review the contents of this user manual
•Use Kramer high performance high resolution cables1
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems;
GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;
GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products
2 Downloadable from our Web site at http://www kramerelectronics com
3 Download up-to-date Kramer user manuals from our Web site at http://www kramerelectronics com

Getting Started
KRAMER: SIMPLE CREATIVE TECHNOLOGY
2

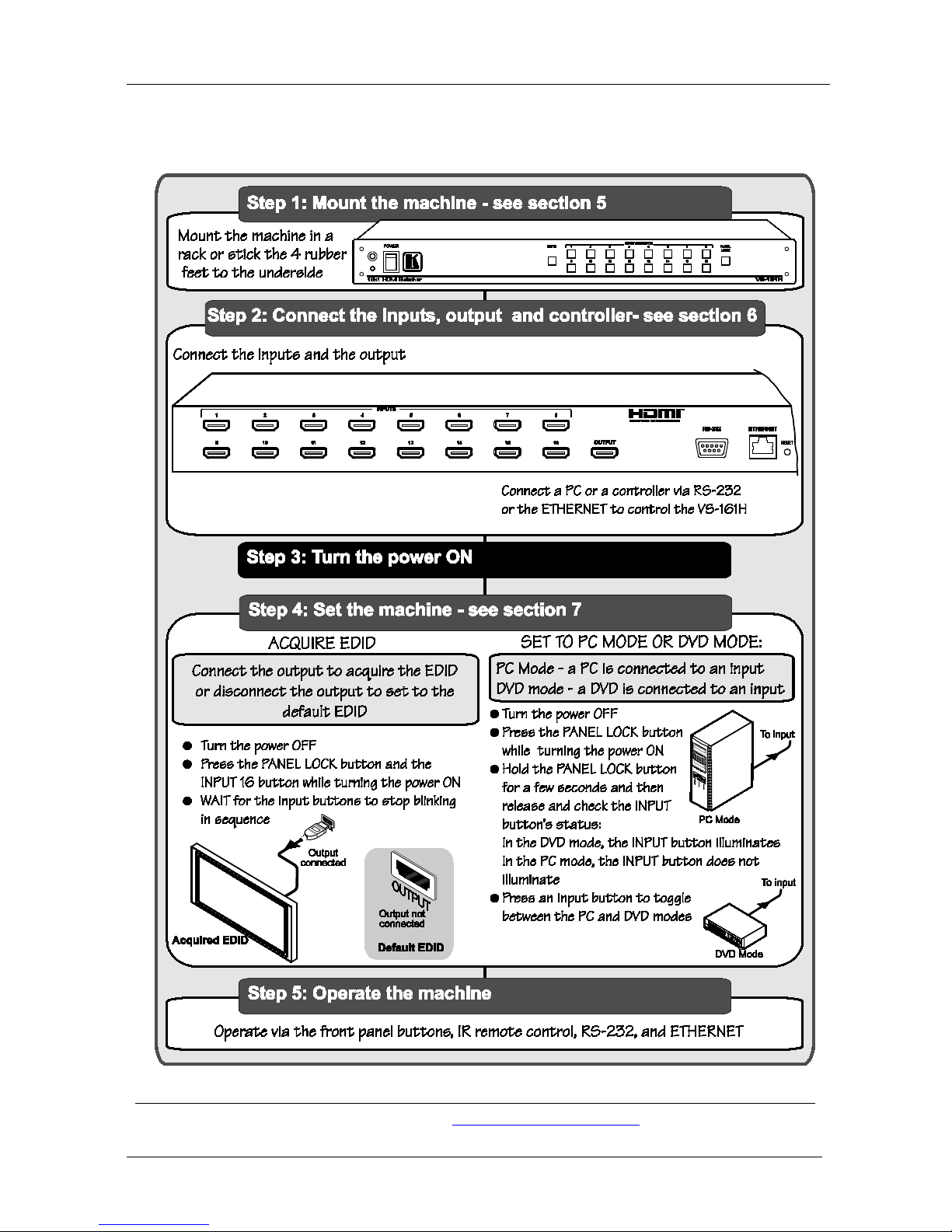

2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.
1 The complete list of Kramer cables is on our Web site at http://www kramerelectronics com

Overview
3
3 Overview
The VS-161H is a high quality 16x1 switcher for HDMI signals.
In particular, the VS-161H features:
•Support of up to 1.65Gbps bandwidth per graphic channel1
•Sixteen input selector buttons
•HDCP support (High Definition Digital Content Protection)
•HDMI Support – HDMI (V.1.3 with Lip Sync and CEC)
•EDID PassThru that passes EDID/HDCP signals from source to
display
•A MUTE button to disconnect the output and a PANEL LOCK
button to prevent unwanted tampering with the buttons on the
front panel
•Installation in one vertical space of a standard 19” professional
rack enclosure
Control the VS-161H using the front panel buttons, or remotely via:
•RS-232 serial commands transmitted by a touch screen system,
PC, or other serial controller
•The Kramer Infrared remote control transmitter
•The ETHERNET
3.1 Defining EDID
The Extended Display Identification Data (EDID2
) is a data-structure,
provided by a display, to describe its capabilities to an HDMI source. The
EDID enables the VS-161H to “know” what kind of monitor is connected to
the output. The EDID includes the manufacturer’s name, the product type,
the timing data supported by the display, the display size, luminance data
and (for digital displays only) the pixel mapping data.
1 Suitable for resolutions up to UXGA at 60Hz, and for all HD resolutions
2 Defined by a standard published by the Video Electronics Standards Association (VESA)

Overview
KRAMER: SIMPLE CREATIVE TECHNOLOGY
4
3.2 About HDMI
High-Definition Multimedia Interface (HDMI) is an uncompressed all-digital1
In particular, HDMI:
audio/video interface, widely supported in the entertainment and home cinema
industry. It delivers the highest high-definition image and sound quality. Note
that Kramer Electronics Limited is an HDMI Adopter and an HDCP Licensee.
•Provides a simple2interface between any audio/video source, such
as a set-top box, DVD player, or A/V receiver and video monitor,
such as a digital flat LCD / plasma television (DTV), over a single
lengthy3
•Supports standard, enhanced, high-definition video, and multi-
channel digital audio
cable
4
•Transmits all ATSC HDTV standards and supports 8-channel
digital audio, with bandwidth to spare to accommodate future
enhancements and requirements
on a single cable
•Benefits consumers by providing superior, uncompressed digital
video quality via a single cable5
•Is backward-compatible with DVI (Digital Visual Interface)
, and user-friendly connector
•Supports two-way communication between the video source (such
as a DVD player) and the digital television, enabling new
functionality such as automatic configuration and one-button play
HDMI has the capacity to support existing high-definition video formats
(720p, 1080i, and 1080p/60), as well as standard definition formats such as
NTSC or PAL.
1 Ensuring an all-digital rendering of video without the losses associated with analog interfaces and their unnecessary digital-
to-analog conversions
2 With video and multi-channel audio combined into a single cable, the cost, complexity, and confusion of multiple cables
currently used in A/V systems is reduced
3 HDMI technology has been designed to use standard copper cable construction at up to 15m
4 HDMI supports multiple audio formats, from standard stereo to multi-channel surround-sound HDMI has the capacity to
support Dolby 5 1 audio and high-resolution audio formats
5 HDMI provides the quality and functionality of a digital interface while also supporting uncompressed video formats in a
simple, cost-effective manner

Your VS-161H 16x1 Switcher
5
3.3 About HDCP
The High-Bandwidth Digital Content Protection (HDCP) standard1
3.4 Recommendations for Best Performance
, protects
digital video and audio signals transmitted over DVI or HDMI connections
between two HDCP-enabled devices to eliminate the reproduction of
copyrighted material. To protect copyright holders (such as movie studios)
from having their programs copied and shared, the HDCP standard provides
for the secure and encrypted transmission of digital signals.
To achieve the best performance:
•Use only good quality connection cables2
•Avoid interference from neighboring electrical appliances that
may adversely influence signal quality and position your Kramer
VS-161H away from moisture, excessive sunlight and dust
to avoid interference,
deterioration in signal quality due to poor matching, and elevated
noise levels (often associated with low quality cables).
4 Your VS-161H 16x1 Switcher
Figure 1 and Table 1 define the VS-161H.
1 Developed by Intel
2 Available from Kramer Electronics on our Web site at http://www kramerelectronics com

Your VS-161H 16x1 Switcher
KRAMER: SIMPLE CREATIVE TECHNOLOGY
6
Figure 1: VS-161H 16x1 HDMI Switcher

Your VS-161H 16x1 Switcher
7
Table 1: VS-161H 16x1 HDMI Switcher Features
#
Feature
Function
1 IR Receiver The red LED lights when receiving signals from the
Infrared remote control transmitter
2 POWER Switch Illuminated switch for turning the unit ON or OFF
3 MUTE Button Press to toggle disconnecting the output
4 INPUT SELECTOR Buttons Press the INPUT button to select input (from 1 to 16)
5 PANEL LOCK Button Press to toggle disengaging the front panel buttons, to acquire
the EDID and to set to the PC/DVD mode
6 INPUT HDMI Connectors Connect to the HDMI sources (from 1 to 16)
7 OUTPUT HDMI Connector Connect to the HDMI acceptor
8 RS-232 DB 9F Port Connects to the PC or the RS-232 Remote Controller
9 ETHERNET Connector Connects to the PC or o her Ethernet Controller
10 RESET Button Press the ETHERNET factory reset button to reset to the factory
default defini ions1
IP number −192.168.1.39
:
Mask – 255 255.255.0
Gateway – 192.168.1.1
11 Power Connector with Fuse AC connector enabling power supply to he unit
1 First, disconnect the power cord and then connect it again while pressing the RESET button The unit will power up and
load its memory with the factory default definitions

Installing the VS-161H in a Rack
KRAMER: SIMPLE CREATIVE TECHNOLOGY
8
5 Installing the VS-161H in a Rack
This section provides instructions for rack mounting the unit.

Connecting a VS-161H 16x1 HDMI Switcher
9
6 Connecting a VS-161H 16x1 HDMI Switcher
To connect the VS-161H 16x1 HDMI Switcher as illustrated in the example
in Figure 2, do the following1
1. If required:
Set the appropriate INPUTS to the DVD/PC mode (see section
:
7.1)
Acquire the EDID (see section 7.2)
2. Connect2the HDMI sources as follows3
A multimedia player to INPUT 1 :
A set top box to INPUT 2
A DVD player to INPUT 6
A DVD player to INPUT 16
3. Connect the OUTPUT HDMI connector to an HDMI acceptor (for
example, a plasma display).
4. If required, connect a PC and/or controller to the RS-232 port (see section
7.3) and/or the ETHERNET port (see section 7.4).
5. Connect the power connector to the mains electricity.
Press an INPUT SELECTOR button (from 1 to 16) to choose which HDMI
input to route to the output4
1 Switch OFF the power on each device before connecting it to your VS-161H After connecting your VS-161H, switch on its
power and then switch on the power on each device
.
2 You can connect up to 16 HDMI sources
3 Alternatively, you can connect a PC to any of the inputs and set those inputs to the PC mode (see section 0)
4 The input button illuminates

Operating the VS-161H
KRAMER: SIMPLE CREATIVE TECHNOLOGY
10
Figure 2: Connecting a VS-161H 16x1 HDMI Switcher
7 Operating the VS-161H
This section describes:
•The PC mode and the DVD mode (see section 7.1)
•How to acquire the EDID (see section 7.2)
•How to control the machine via RS-232 (see section 7.3)
•How to control the machine via the ETHERNET port (see section
7.4)

Operating the VS-161H
11
7.1 The PC and DVD Modes
The VS-161H has two operation modes that are specific per input: the PC
mode1
•The PC mode is used when connecting a computer or several
computers to one or more of the inputs via a DVI-to-HDMI
converter cable
and the DVD mode:
2
•The DVD mode is used when connecting a DVD or several DVDs
to the inputs
When in the PC mode, the input has access to the EDID (default or
acquired) to prevent the computer from resetting if an output is not
connected. In the DVD mode, the EDID of the connected output is available
only when the input to which the DVD is connected, is switched to the
output.
The PC mode and the DVD mode can be applied to a single input or to
several inputs. For example, if you want to connect a computer to INPUT 1,
another computer to INPUT 2, and DVD machines to all the other inputs
(from INPUT 3 to INPUT 16), set INPUT 1 and INPUT 2 to the PC mode
and all the other inputs to the DVD mode.
To set the inputs to either the PC or the DVD mode, do the following:
1. Turn the POWER off.
2. Press the PANEL LOCK button while turning the POWER on again.
The INPUT buttons blink simultaneously.
3. Keep pressing and holding the PANEL LOCK button for a few seconds and
then release it.
The PANEL LOCK button blinks.
If an input button illuminates, this indicates that that input is set to the DVD
mode.
If an input button is not illuminated, this indicates that that input is set to the
PC mode.
4. Toggle between the PC mode (input button not illuminated) and the DVD
mode (input button illuminated) by pressing that input.
5. Press the PANEL LOCK button to exit this mode.
6. You can connect a computer to the input(s) that is set to the PC mode and a
DVD to the input(s) that is set to the DVD mode.
1 The default
2 For example, the Kramer HDMI-DVI Gold Plated Cable in various lengths (3”, 6”, 10” and 15”)

Operating the VS-161H
KRAMER: SIMPLE CREATIVE TECHNOLOGY
12
Table 2 summarizes the differences between the PC mode and the DVD
mode:
Table 2: DVD Mode and PC Mode Characteristics
PC Mode
DVD Mode
The input is connected to a computer The input is connected to a multimedia applica ion,
such as a DVD, a set top box and so on
The EDID is available at all imes (to prevent
computer reset) The EDID is available only when that input is connected to an output
The input EDID source is the default EDID
or an acquired EDID (see sec ion 7.2) The input EDID source is acquired direc ly from the
connected output
7.2 Acquiring the EDID
The acquired EDID is used when an input is set to the PC mode.
To acquire the EDID, do the following:
1. Turn the POWER off.
2. Press the PANEL LOCK button and the INPUT 16 button while turning the
POWER on again.
The INPUT buttons blink in sequence until the unit has completed to read
the EDID.
3. Release the PANEL LOCK and INPUT 16 buttons.
If an output was connected, the output EDID is read to all the inputs. If an
output was not connected to the machine, the default EDID is read to the
inputs.

Operating the VS-161H
13
7.3 Controlling via RS-232 (for example, using a PC)
Figure 3: Connecting a PC without Using a Null-modem Adapter
7.4 Controlling via ETHERNET
You can connect the VS-161H via the Ethernet, using a crossover cable (see
Section 7.4.1) for direct connection to the PC or a straight-through cable
(see Section 7.4.2) for connection via a network hub or network router1
7.4.1 Connecting the ETHERNET Port directly to a PC (Crossover Cable)
.
You can connect the Ethernet port of the VS-161H to the Ethernet port on
your PC, via a crossover cable with RJ-45 connectors.
This type of connection is recommended for identifying the VS-161H
with the factory configured default IP address
1 After connecting the Ethernet port, you have to install and configure your Ethernet Port For detailed instructions, see the
“Ethernet Configuration (FC-11) guide pdf” file in the technical support section on our Web site:
http://www kramerelectronics com

Operating the VS-161H
KRAMER: SIMPLE CREATIVE TECHNOLOGY
14
After connecting the Ethernet port, configure your PC as follows:
1. Right-click the My Network Places icon on your desktop.
2. Select Properties.
3. Right-click Local Area Connection Properties.
4. Select Properties.
The Local Area Connection Properties window appears.
5. Select the Internet Protocol (TCP/IP) and click the Properties Button (see
Figure 4).
Figure 4: Local Area Connection Properties Window
6. Select Use the following IP Address, and fill in the details as shown in
Figure 5.
7. Click OK.
Figure 5: Internet Protocol (TCP/IP) Properties Window

Technical Specifications
15
7.4.2 Connecting the ETHERNET Port via a Network Hub (Straight-Through
Cable)
You can connect the Ethernet port of the VS-161H to the Ethernet port on a
network hub or network router, via a straight-through cable with RJ-45
connectors.
7.4.3 Control Configuration via the Ethernet Port
To control several units via the Ethernet, connect the Master unit
(Machine # 1) via the Ethernet port to the LAN port of your PC. Use your
PC initially to configure the settings.
8 Technical Specifications
Table 3 includes the technical specifications:
Table 3: Technical Specifications1
INPUTS:
of the VS-161H
16 HDMI connectors
OUTPUT: 1 HDMI connector
BANDWIDTH: Supports up to 1.65Gbps bandwidth per graphic channel
COMPLIANCE WITH
HDMI STANDARD: Supports HDMI and HDCP
RESOLUTION: Up to UXGA; 1080p
POWER SOURCE: 90−240VAC; 50/60Hz, 22VA
CONTROLS: Front panel buttons, infrared remote control transmitter, RS-232, Ethernet
DIMENSIONS: 19” x 7” x 1U (W, D, H)
WEIGHT: 2.5kg (5.5lbs) approx.
ACCESSORIES: Power cord, null-modem adapter, rack “ears”, IR remote control
OPTIONS: Kramer HDMI cables
2
1 Specifications are subject to change without notice
2 For best results, use Kramer cables such as the C-HM/HM series, the C-HM/DM series and/or our HDMI over fiber optics
C-FOHM/FOHM series

Kramer Protocol 2000
KRAMER: SIMPLE CREATIVE TECHNOLOGY
16
9 Kramer Protocol 2000
The VS-161H is compatible with Kramer’s Protocol 20001
Table 4: Protocol Definitions
(version 0.50)
(below). This RS-232/RS-485 communication protocol uses four bytes of
information as defined below. For RS-232, a null-modem connection
between the machine and controller is used. The default data rate is 9600
baud, with no parity, 8 data bits and 1 stop bit.
MSB LSB
DESTI-
NATION
INSTRUCTION
0
D
N5
N4
N3
N2
N1
N0
7
6
5
4
3
2
1
0
1st byte
INPUT
1
6
I5
I4
I3
I2
I1
I0
7
6
5
4
3
2
1
0
2nd byte
OUTPUT
1
O6
O5
O4
O3
O2
O1
O0
7
6
5
4
3
2
1
0
3rd byte
MACHINE NUMBER
1
OVR
X
M4
M3
M2
M1
M0
7
6
5
4
3
2
1
0
4th byte
1st BYTE: Bit 7 – Defined as 0
D – “DESTINATION”: 0 - for sending information to the switchers (from the PC);
1 - for sending to the PC (from the switcher)
N5 N0 – “INSTRUCTION”
The function that is to be performed by the switcher(s) is defined by the INSTRUCTION (6 bits) Similarly, if a function is
performed via the machine’s keyboard, then these bits are set with the INSTRUCTION NO , which was performed The
instruction codes are defined according to the table below (INSTRUCTION NO is the value to be set for N5 N0)
2nd BYTE: Bit 7 – Defined as 1
I6 I0 – “INPUT”
When switching (ie instruction codes 1 and 2), the INPUT (7 bits) is set as the input number which is to be switched
Similarly, if switching is done via the machine’s front-panel, then these bits are set with the INPUT NUMBER which was
switched For other operations, these bits are defined according to the table
3rd BYTE: Bit 7 – Defined as 1
O6 O0 – “OUTPUT”
When switching (ie instruction codes 1 and 2), the OUTPUT (7 bits) is set as the output number which is to be switched
Similarly, if switching is done via the machine’s front-panel, then these bits are set with the OUTPUT NUMBER which was
switched For other operations, these bits are defined according to the table
4th BYTE: Bit 7 – Defined as 1
Bit 5 – Don’t care
OVR – Machine number override
M4 M0 – MACHINE NUMBER
Used to address machines in a system via their machine numbers When several machines are controlled from a single serial
port, they are usually configured together with each machine having an individual machine number If the OVR bit is set, then
all machine numbers will accept (implement) the command and the addressed machine will reply
1 You can download our user-friendly “Software for Calculating Hex Codes for Protocol 2000” from our Web site:
http://www kramerelectronics com

Kramer Protocol 2000
17
For a single machine controlled via the serial port, always set M4 M0 = 1, and make sure that the machine itself is
configured as MACHINE NUMBER = 1
Table 5: Instruction Codes for Protocol 2000
Note: All values in the table are decimal, unless otherwise stated
INSTRUCTION
DEFINITION FOR SPECIFIC INSTRUCTION
NOTE
#
DESCRIPTION
INPUT
OUTPUT
1 SWITCH VIDEO Set equal to video input which is to
be switched
(0 = disconnect)
Set equal to video output which is
to be switched
(0 = to all the outputs)
2, 15
30 LOCK FRONT PANEL 0 - Panel unlocked
1 - Panel locked 0 2
NOTES on the above table:
NOTE 2 - These are bi-directional definitions That is, if the switcher receives the code, it will perform the instruction; and if
the instruction is performed (due to a keystroke operation on the front panel), then these codes are sent For example, if the
HEX code
01 85 88 83
was sent from the PC, then the switcher (machine 3) will switch input 5 to output 8 If the user switched input 1 to output 7
via the front panel keypad, then the switcher will send HEX codes:
41 81 87 83
to the PC
When the PC sends one of the commands in this group to the switcher, then, if the instruction is valid, the switcher replies by
sending to the PC the same four bytes that it was sent (except for the first byte, where the DESTINATION bit is set high)
NOTE 15 – When the OVR bit (4th byte) is set, then the “video” commands have universal meaning For example, instruction
1 (SWITCH VIDEO) will cause all units (including audio, data, etc ) to switch Similarly, if a machine is in “FOLLOW”
mode, it will perform any “video” instruction

KRAMER: SIMPLE CREATIVE TECHNOLOGY
18
LIMITED WARRANTY
WHOISPROTECTED?
WHATISCOVEREDANDWHATISNOTCOVERED
WHATWEWILLPAYFORANDWHATWEWILLNOTPAYFOR
HOW YOU CAN GET WARRANTY SERVICE
LIMITATIONOFIMPLIEDWARRANTIES
EXCLUSIONOFDAMAGES
CAUTION!
Kramer Electronics (hereafter ) warrants thisproduct free from defects in material and workmanship under the
followingterms.
Kramer
HOWLONGISTHE WARRANTY
Labor and parts are warranted for three years from the date of the first customer purchase.
Only the first purchase customer may enforce this warranty.
Wewillpaylaborandmaterialexpensesforcovereditems.Wewillnotpayforthefollowing:
Theliability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall
not beliable for:
Thiswarrantygivesyouspecificlegalrights,andyoumayalsohaveotherrights,whichvaryfromplacetoplace.
AllproductsreturnedtoKramerforservicemusthavepriorapproval.Thismaybeobtainedfromyourdealer.
Thisequipmenthasbeentestedtodeterminecompliancewiththerequirementsof:
EN-50081: "Electromagneticcompatibility(EMC);
genericemissionstandard.
Residential,commercialandlightindustry"
EN-50082: "Electromagneticcompatibility(EMC)genericimmunitystandard.
Part1:Residential,commercialandlightindustryenvironment".
CFR-47: FCC* Rules and Regulations:
Part 15: “Radio frequency devices
Subpart B Unintentional radiators”
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered
by thewarranty:
1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site
www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed, or on which the WARRANTY VOID
TAMPERED sticker has been torn,
3. Damage,deteriorationormalfunctionresultingfrom:
i) Accident,misuse,abuse,neglect, fire, water,lightningorotheractsofnature
ii) Productmodification,orfailuretofollowinstructionssuppliedwiththeproduct
iii) RepairorattemptedrepairbyanyonenotauthorizedbyKramer
iv) Anyshipment oftheproduct(claimsmustbepresentedtothecarrier)
v) Removalorinstallationoftheproduct
vi) Anyothercause,whichdoesnotrelatetoaproductdefect
vii)Cartons,equipmentenclosures,cablesoraccessoriesusedinconjunctionwiththeproduct
1. Removalorinstallationscharges.
2. Costs of
initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the
responsibilityoftheKramerdealerfromwhomtheproductwaspurchased.
3. Shippingcharges.
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty
coverage, and should be included in any shipment of the product. Please also include in any mailing a contact name,
company, address, and a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to
the length of this warranty.
1. Damage toother property caused by defectsinthis product,damages baseduponinconvenience, lossofuseof theproduct, loss
oftime,commercialloss;or:
2. Any other damages, whether incidental, consequential orotherwise.Some countries may not allow limitations onhow long an
implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitationsandexclusionsmaynotapplytoyou.
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or
modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the
equipment.
UsethesuppliedDCpowersupplytofeedpowertothemachine.
Pleaseuserecommendedinterconnection cablestoconnectthemachinetoothercomponents.
IF reattached, removed or otherwise interfered with.
*FCCandCEapprovedusingSTPcable(fortwistedpairproducts)
NOTE:
Part1:
