TOUGHCUT Tungsten 520 User manual

Code
Language
V20.1-202006
English
OPERATION AND MAINTENANCE
SURFACE
PLANER
Tungsten
520
IMPORTANT
KEEP THIS HANDBOOK FOR FUTURE INFORMATION BESIDES IT SHALL ALWAYS BE WITH THE
MACHINE.
Always wear safety glasses when
using woodworking equipment.
Always read the instructions provided
before using woodworking equipment.

Keep this handbook for future information besides it shall always be with the machine.
Some images in this handbook not always correspond to the real machine version on condition
that the information is always valid and the safe use of the machine is ensured.

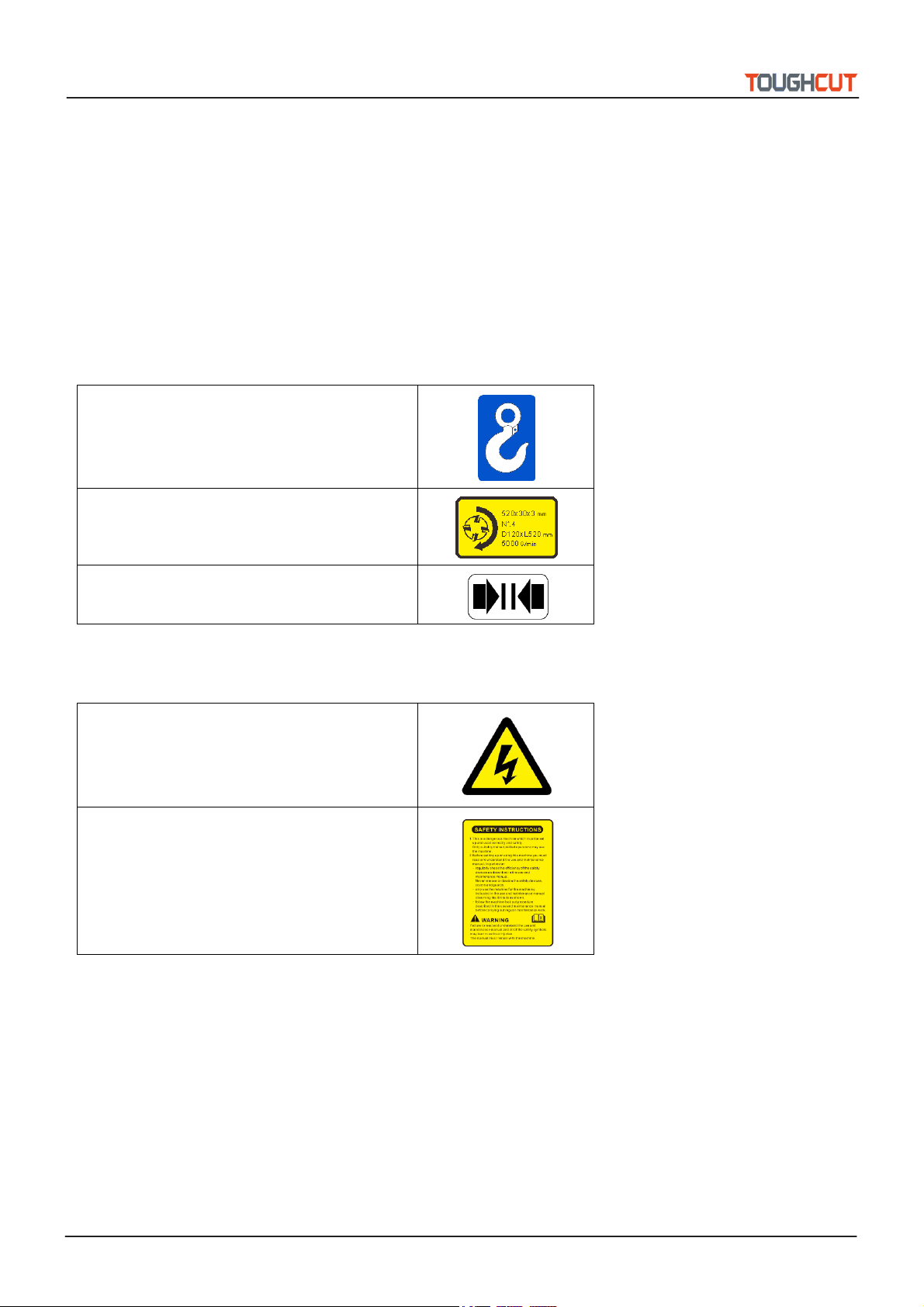

SYMBOLS ON THE MACHINE
Indicates the point where you have to insert
the hooks for lifting the machine
Indicates the tool rotation direction
Locking symbol
WARNING PLATES:
Danger due to electric current
Warning plate
ABBREVIATIONSUSEDINTHEHANDBOOK
page =page
fig. =figure
par. =paragraph
chap. =chapter
i.e. =example
ref. =reference
SURFACE PLANER
-1-
With
this
hand book we wish
to
give you
all
information
regarding
to the
use
and
maintenance of
the
machine:
in
this
way you are
sure to
protect
the
production
as well as the
equipments.

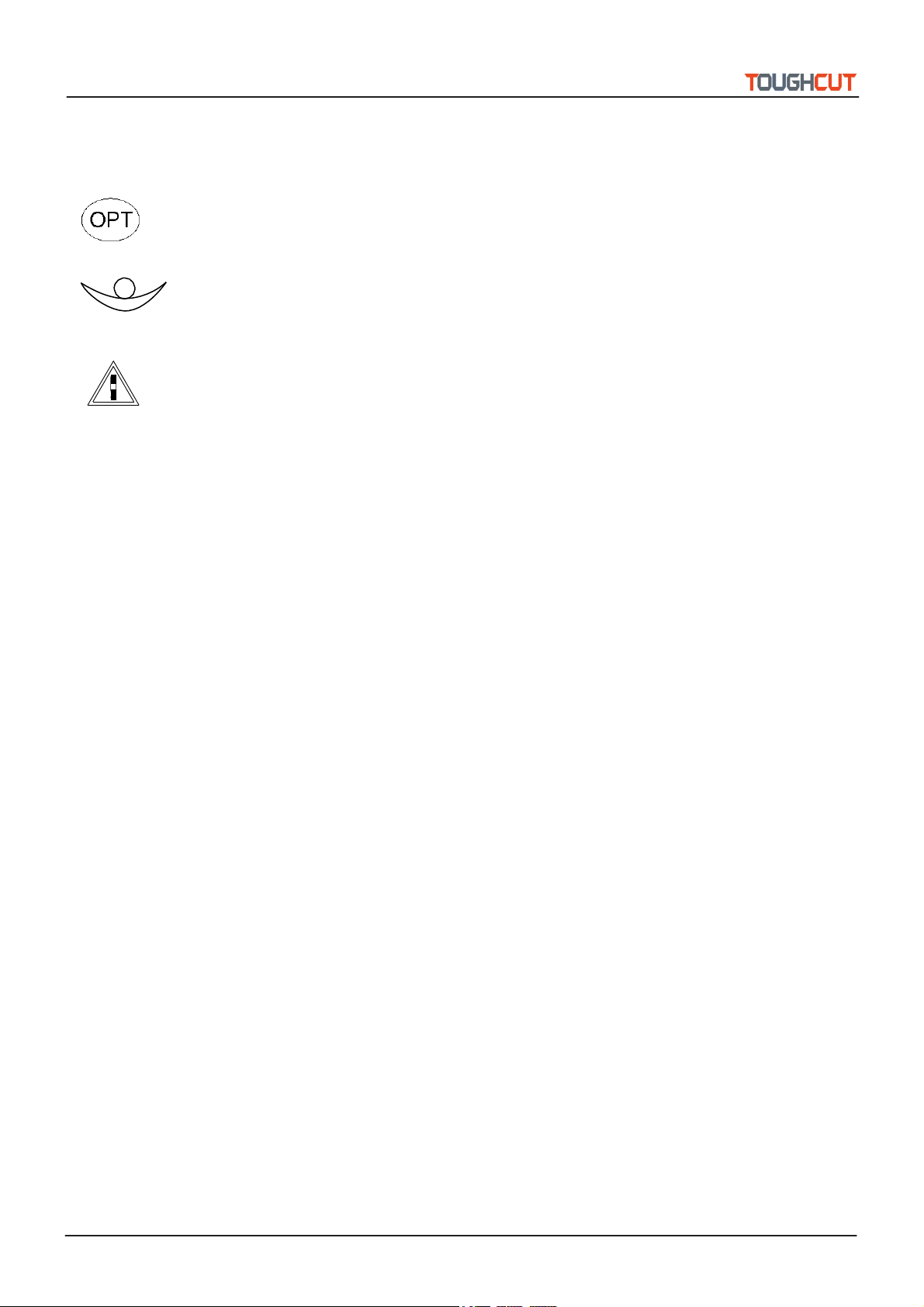

SYMBOLS USED INTHIS HANDBOOK
OPTIONAL= devicesindicatedinlistpriceavailableonlyuponrequest
Operatorposition
Symbol for safety notes: read these safety notes with peculiar attention.
If such safety instructions are not kept, there is the injury danger for you and other persons.
AIM OF THE HANDBOOK
This handbook has been written by the machine manufacturer and is an integrating part of the machine.
The information serves for qualified technicians.
The handbook defines the proper use of the machine and gives all information necessary for:
- the right use of the machine
- working economy
- the long life of the machine.
If the instructions are always kept, it is possible to guaranty safety conditions for the operator, safe
machine operation, service economy and a longer life of the machine.
To make the easier, the hand book is dived in proper sections. To quickly find the subject, see the Contents.
SURFACE PLANER
-2-

GENERAL
INFORMATION
.............................................................
SECTION
1
1-1
Mail
contact ........................................................................................................................
5
1
-
2
Notes for the user ................................................................................................................
5
1-3
Machine identification ...........................................................................................................
6
1-4
Conditions
foreseen for
the
use
and
contrary directions ..........................................................
6
1-5
Use
prohibitions
....................................................................................................................
7
1-6
Residual risks .......................................................................................................................
7
1
-
7
Operator's
training
................................................................................................................
8
1-8
Safety
notes ........................................................................................................................
9
1-9
Specifications
......................................................................................................................
12
1
-
10
Noise level ..........................................................................................................................
13
1-11
Overall
dimensions ...............................................................................................................
14
SAFETY DEVICES
........................................................................... SECTION
1A
INSTALLATION
..................................................................................
SECTION
2
2-1
Machine
lifting
and
unloading
...............................................................................................
18
2-2
Positioning
and
leveling ..........................................................................................................
18
2-3
Fitting the
parts
removed ......................................................................................................
20
2-3A
Fitting the
mortiser .................................................................................................
20
2-4
Electric connection
and
earthing .............................................................................................
21
2-5
Connection
to the
suction
system
...........................................................................................
23
CONTROLS
...........................................................................................
SECTION
3
3-1
Control
board .......................................................................................................................
25
3-2
Emergency
buttons .................................................................................................................
26
3
-
3
Electric housing ......................................................................................................................
26
3-4
Machine
start
and
stop ........................................................................................................... 27
3-5
Auto
-
brake motor ................................................................................................................ 27
SURFACER
............................................................................................
SECTION
4
4-1 Knife
adjusting
.................................................................................................................
..... 29
4-2
Surfacing
table
adjusting
......................................................................................................
31
4-3
Fence
...................................................................................................................................
31
CUTTERBLOCK GUARD
...................................................................
SECTION
5
5-1
Description
............................................................................................................................
33
5-2
Examples
of safe
operation
....................................................................................................
33
5-2.1
Surfacing
workpieces
with thickness lower
than
75
mm
....................................................
33
5-2.2
Surfacing
and
straitghtening
workpieces
with thickness over 75
mm
.................................
35
5
-
2.3
Surfacing
workpieces
of
square
section ............................................................................
36
5-2.4
Surfacing
short
workpieces
..............................................................................................
36
5-2.5
Straitghtening
short
workpieces
.......................................................................................
36
SURFACE PLANER
-3-
5
-
2.6
Chamfering along
the fence ........................................................................................... 37
5-3
Safety
notes ............................................................................................................................. 39

MAINTENANCE
...................................................................................
SECTION 6
6-1
Machine cleaning .....................................................................................................................
41
6-2
Lubrication ..............................................................................................................................
41
6-3
Check
of safety devices ..........................................................................................................
42
6-4
Machine removal
-
storing
-
demolition ....................................................................................
42
6-5
Emergency
conditions ..............................................................................................................
42
6-6
Autobrake motor .....................................................................................................................
43
6-7
Belt
repacing
...........................................................................................................................
44
6
-
8
Belt stretching ..........................................................................................................................
45
6-9
Troubles
-
causes
-
what
to
do..................................................................................................
46
SURFACE PLANER
-4-

1-1 MAIL CONTACT
Writing or telephoning to the dealer for problems concerning your machine, always specify the
following information:
1) Machine model
2) Serial number
3) Voltage and frequency
4) Purchase date
5) Name of the dealer where the machine was bought
6) Detailed information about the trouble
7) Detailed information about the working to be carried out
8) Period of use - number of working hours
Dealer or Manufacturer’s
information:
1-2 NOTES FOR THE USER
The handbook describes all operations required for the normal maintenance of the machine. Do not
carry out any operation not described in this handbook.
All operations which require to demount machine members as well as maintenance operations shall be
carried out only by authorized technicians.
For the correct use of the machine carry out the proper instructions given in this handbook.
Onlytrainedandauthorizedtechniciansmayuse themachineandcarryoutmaintenanceoperations.
Keep
this handbook for future
necessity.
Note: Use
only original
parts
with
features
equal
to the ones
of
the
parts
to be
replaced.
The manufacturer is not responsible for damages due to the use of not original parts.
SURFACE PLANER
-5-

1-3 MACHINE IDENTIFICATION
Machine dataarepunchedonthe metallicplateappliedtothesideofthemachineframe.
1.2
1-4 CONDITIONS FOREESEN FOR THE USE AND PROHIBITIONS
The machine has been designed for surfacing solid wood pieces, plywood panels and block boards ; in
some cases strips are glued to the edges of the panels.
Materials different from the ones above mentioned may not be cut. The user is responsible for damaged
caused by the cutting of materials not permitted.
DIMENSIONS OF WORKPIECE TO BE CUT:
Max.thickness
(of thework piece undertheguard)
75 mm
Max.length
It may not be defined: in case of pieces of size over 2500 mm. We
recommend the use of inlet and outlet table extensions the height of
which is adjustable (not supplied by the manufacture)
Max. width
520mm
Min. thickness
10mm
Min. length
150mm:werecommend theuseofpushers
(notsuppliedbythe manufacture)
(WARNING: never machine workpieces with smaller size)
Min.width
10 mm: we recommend the use of turn over additional fence
(WARNING: never machine workpieces with smaller size)
SURFACE PLANER
-6-

TOOLS
WHICH
MAY BE
USED
The
machine
has
been
designed
to
use only tools
in
compliance
with EN847
-
1
norm, suitable for
manual feed, and suitable for
the
material
to
be machined.
By
manual feed we mean the
piece
guidance by
means of the hand .
WORKING
ENVIRONMENT
The
machine can work under these conditions:
-
Max.
humidity
90%
-
Temperature:
min.
+
1°
C
max.
+40°
C
-
Max.
altitude
sea level :
1000
m
(in
case of
higher
altitude
apply
to the
machine
manufacturer)
Always
connect the machine to the suction
system
(see
par.
2-4).
The machine
may
not be used
in
the
open
air.
The machine was
designed
for industrial use.
The machine
may
not
operate
in
explosive
rooms.
1-5
PROHIBITIONS
•
A
different use of
the
machine
is
not
permitted.
•
The machine
may
not
operate
without the
proper
guards
foreseen for
that
working;
never remove
parts
of the
guards!
•
Never machine
pieces
of material
and
dimensions different from
the
ones mentioned above.
•
Tools not
in
accordance with not
EN
847-1 Norm or tools of dimensions not
proper
for
the
spindle
Diameter
may
not be used.
•
Modifications on
the
machine
are
not
permitted.
NOTE:
in case
of modifications
carried out on the machine
,
the machine
compliance
statement is no
more valid .
The
user
is
responsible
for
the
damages
caused by
the
wrong use of
the
machine.
1-6
RESIDUAL RISKS
When
you
use
any
machine tool some risks
rise,
do not
forget
it. The safety
depends
on
you.
This
machine
is
equipped
with
guards
which
are
the
best result
in
the
safety
field. Such
guards
are
efficient
if
used
and
kept
in
good
conditions.
Even
if
you
keep
all
safety
rules and use the machine
in
the
proper
way,
the
following
risks
may
rise:
-
Contact
with the
rotating
or standstill tool.
-
Contact
the
rotating
parts
(belts,
pulleys,
chains
etc..)
-
Ejection
of
the
workpiece
or
its
parts (splints):
never stop along
the
trajectory
corresponding
to the
splint ejection.
-
Ejection
of tool inserts: never
stop
along
the
trajectory corresponding
to the
possible
ejection.
-
Dust inhalation
in
case of
operation
without suction.
-
Fulguration
due
to
contact with hot
parts.
-
Danger
due to the
wrong fitting
of the tool.
-
Reverse rotation of the tool caused
by
the
wrong
electric connection.
-
Danger
due to the
wrong working
position
of the
operator.
SURFACE PLANER
-7-

1-7
OPERATOR'S
TRAINING
All
operators
on surfacers shall be
properly
trained for the
use,
the set
up
and the
operation
of the
machine. The
operators
must read this handbook and
pay
peculiar
attention to
Safety
rules.
In
particular
the
training
includes:
a)
The
principles
of
the
machine
operation,
the
right
use of
the
machine,
the
adjusting
of
the
fence
and
guards
as
well as the use of
special devices
for
special
working
.
b)
The
handling of
the
workpiece
during
the
working.
c)
The
position
of
the
hands
to the
cutter block before, during
and
after
the
working.
d) The
workpiece
feed to the direction
opposite
to the tool rotation direction.
e)
The
right
speed
of
the
cutter block.
The
operators
are
to
be informed of
the
dangers
due
to the
use of
the
machine
and
the
proper precautions
to
be
taken. Besides
they
shall be trained to
carry
out
periodical
tests on the shields and
safety
devices.
IMPORTANT
It
is
necessary
to lock the
main
switch for
power
supply by
means of
a
proper padlock.
The authorized
operator
shall
keep
the
key.
SURFACE PLANER
-8-

SAFETY FIRST
OF
ALL
1-8
SAFETY RULES
1-
Carefully
read
this
handbook before starting
the
machine.
2-
Carefully
read
the
warning
plates
arranged
on
the
machine.
3-
Only
trained
operators
shall use
the
machine.
4- The
training
shall include
the
information concerning
the
risks due
to the
machine use
and
the
precautions
to
be
taken.
5-
The
operator
shall be trained for the use of
guards
and
safety
devices as well as for their
periodical
check.
6
-
The
operator
shall never leave
the
machine during
its
operation.
7- The machine was
designed
to be used
only by
one
operator.
8-
This
machine
has
been built
to
ensure
the
highest
safety
degree
as
well
as
the
best
performance.
9-
The
manufacturer
is
not
responsible
for
damages
caused by modifications carried out on
the
machine.
10-
Do
not use
the
machine
if
you
are
under
the
influence of alcohol,
drugs
and
medicine.
THE
SAFETY DEPENDS
ON
YOU,
ANY MACHINE TOOL
MAY BE
POTENTIALLY
I
DANGEROUS,
DO NOT
FORGET
IT.
PERSONAL SAFETY
1-
Before starting
the
machine
the
operator
shall already have read
the
handbook.
Your
eyes
are
the
best safety device
you
have: carefully look before
moving.
2-
Experience
teaches
that
there are various
objects
on
a
person
that
can cause
injuries;
take off
rings,
watches, bracelets;
button
your
sleeves
tightly
around
your
wrists,
take
off ties
that
could be
caught
in
tight
places,
keep
hair gathered
underneath
proper
nets
(cap,
elastics,
hair
pins).
Use
prescribed
footwear
usually recommended by
all
countries.
BEFORE
STARTING
THE
WORKING YOU MUST
HAVE ON
THE
FOLLOWING
PERSONAL PROTECTIVE MEANS:
A
-
Leather
aprons
to
protect
yourself against
eventual
split
ejection.
B
-
Glasses
or
protective
shields for
your eyes.
C
-
Proper
means for ear
protection.
D
-
Proper
means
against
dust inhalation
(masks).
E
-
Gloves
for
handling
the blades.
F
-
Proper
shoes with reinforced steel
point
and rubber sole machine
safety
SURFACE PLANER
-9-

MACHINE SAFETY
1- Be extremelycarefulbeforestartinganyworking andcarryoutperiodicaltestsonshieldsandsafetydevices.
2- Neverstartthemachinewithouthavingproperlyclosedthecoverinthemotorarea.
3- Beforestartingthemachinemakesurethattheworktableisfreefrompartswhichdonotrelatetotheworking.
4- Nevermachinepiecestoosmallor toobigforthemachine.
Seerelativeparagraph"DIMENSIONSOFWORKPIECETOBECUT".
5- Donotmachinepieceswithevidentdefects(bending,splittings,knots,metallicpatrs,....).
6- Beforefittingtheknivesmakesurethattherestsurfaceoneachfaceareclean,freeofdentsandperfectlyflat.
7- The fittingandadjustingof theknives shallbecarriedoutwiththemachineoff.
8- Theadjustingoftheguardandofthefenceshalloccurwithmachineoff.
9- Makesurethattheknivesarebalanced,sharpandwellclamped.
10- Fittheknivesintherightworkingdirection.
11- UsetoolswhichareincompliancewithEN847-1normandproperformanualfeed.
12- Workonlywhenallguardsareinplaceandefficient.
Itisforbiddentousethe machineifsuchconditionsarenotkept.
13- Startworkingonlywhenthecutter blockhasreachedtherightcutting speed.
14- Incaseof longpiecesuserollertablesortableextensions.
15- Itisnecessarytoconnectallsuctionhoodstothesuctionsystem.
Themachineshalloperateonlywiththesuctionsystemon.
16- Testworkingtocheckthecutter blockadjustmentmaynotcarriedoutwithouttheguardsrequired.
17- Nevertrytoremove wasteorotherpartsofthepiecefromtheworkingareawhilethemachineisrunning.
18- For thepiecefeed useaproperpusher.
19- Afterthefirstperiodofthemachineuseoraftermanyworkinghoursthebeltsmaygetslack:thiscausesanincrease
of the timerequiredfor cutter blockstop.
Immediatelyyouhavetostretchthebelts:seepar.6-5.
20- Periodicallyremovechipsanddusttoavoidfirerisks:carryoutthisoperationalwayswithmachineoff.
21-Alwaysfastenthemachine tothefloor.
SURFACE PLANER
-10-

WORKING AREASAFETY
The workingarea shallhaveagoodlightingandasufficientroom sothattheoperatorisalwaysoutof a
dangerous area.
Thefloorshallbewellleveledtoavoidslippingdangerandalsofreefromloosematerial(e.g.waste,chips).
Onlytheauthorizedoperatormaystayintheworkingarea.
The operator shall never stay in thetrajectory where eventual splits or tool inserts are ejected.
If along this trajectory there is another work station (that is another machine) or a passage for
persons, immediately
install
proper protective
barriers.
SAFETY IN MAINTENANCE
DO NOT THINK THAT THE ELECTRIC CURRENT IS SWITCHED OFF DURING
THE MAINTENANCE....CHECKITPERSONALLY!
1- Stopthemachinetocarryoutadjustmentsortodemountanymachine,turnthemainswitchtozeroandlockit,
then indicateitbyasign.
Theoperatorwhocarriesoutthemachinesetup,maintenanceandcleaningshallkeeptheonlykey.
2- Completely stop the machine before cleaning operations and before removing any guard to carry
out the maintenance..
3- Thegeneralcleaningofthe machine(in particularofworktable)andofthesurroundingfloorisanimportant
safetyfactor.
4- Regularlycarryoutcleaningandmaintenanceoperations:removechipsanddusttoavoidfirerisk.
5- Usepropergloves forhandlingtheknives.
6- Theknives requirearegularmaintenance:whennecessaryreplacethem.
7- Incaseofanytroubleconcerningthemachine,theguardsandthetools,itisnecessarytoimmediatelytake
the proper measures.
SURFACE PLANER
-11-

1-9 SPECIFICATIONS
Thesuctionsystemwithairspeedof 20m/sandairconsumptionof1000m3/hshallensurethefollowingvalues:
-vacuuminside thesurfacersuctionhoodunderthetable................... 500 Pa
STANDARD ACCESSORIES
Cutterblock guard
Tiltingfencetorest theworkpiece
Suctionhoodof 120mm
diameter Knifesettingdevice
Setofwrenches
OPTIONALS
Automaticmotorbrake
Surfacingtableslength (520)
2750mm
Surfacing tables length (520L)
3000 mm
Inlettablelength
1500mm
Outlettablelength
1200mm
Cutter blocklength
520mm
Cutter blockdiameter
120mm
Cutter blockspeed
5000rpm
Timerequiredtostopthecutter block
lowerthan10seconds (Optional CE)
Dimensionsof the 4knives
30x3x520mm
Fencesize
1200x190mm
Fence tilting
from 90°to - 45°
Standardmotorpower
5,5 kW
Tablesheightfrom thefloor
845mm
Suction hooddiameter
120mm
Max.depthofcut
8mm
Machineweight
800kg
SURFACE PLANER
-12-

1-10 NOISE LEVEL
Type : 520
Working: surfacing
Reference norm: ISO 3744 + ISO/DIS 7960 /B
Idle working without suction
In operation
Sound power level
dB W (A) [mW (A)] LW
91
.6 [2.29]
99.2
.
[10.2]
Sound pressure level at operator station
dB
(A)
[dB
max]
8
1
93.5
Con
s
t
a
n
t
K
=
2
[
d
B
]
a
cc
o
r
d
i
n
g
t
o
E
N
85
9
T
h
e
v
a
l
ue
s
r
e
f
e
r
t
o
t
h
e
"
f
re
e
f
i
e
l
d
"
c
ond
i
t
i
o
n
s
i
n
a
cc
o
r
d
an
c
e
w
i
t
h
t
h
e
t
e
s
t
m
oda
l
i
t
i
e
s
f
o
r
e
s
e
e
n
b
y
t
h
e
r
e
f
e
r
e
n
c
e
n
o
r
m
.
ATTENTION
Thenoiselevelswhichhavebeenmeasuredareemissionlevelsandnotlevelsofsafeworking.
Therelationbetweenemissionlevelsandexposurelevelsmaynotbeusedtodeterminewhetherfurtherprecautionsare
required.
Factorswhichinfluencetherealexposurelevelfortheoperatorincludetheexposuretime,theroomfeatures,further
soundsources(asforexamplenumberoftheadjacentworkingmachines).
Alsotheexposurelevelspermittedarenotthesameforallcountries.
Thanktothisinformationtheoperatortoevaluatetherisksandthedangers.
Herearesomefactorswhichreducetheexposuretothenoise:
- right toolselection
- machineandtoolmaintenance
- properuseofearprotective means.
SURFACE PLANER
-13-

1-11 OVERRALL DIMENSIONS
SURFACE PLANER
-14-
The
measures indicated above shall be considered
as
the
free room around
the
machine.

SECTION1A
SAFETYDEVICES
SURFACE PLANER
-15-

The machine is equipped with safety devices: never remove or switch off them as required
by " Machine Directory " 98/37/CE
Emergencybuttonon the controlboard
Bridge guardforcutter block
Rearguard for cutter block
PERIODICALLY CHECK THAT THE SAFETY DEVICES ARE EFFICIENT.
SURFACE PLANER
-16-

SECTION2
INSTALLATION
Page
SURFACE PLANER
-17-
2
-
1
Machine
lifting
and
unloading
...............................................................................................
18
2
-
2
Positioning
and
leveling ..........................................................................................................
18
2
-
3
Fitting the
parts
removed ......................................................................................................
20
2
-
3A
Fitting the
mortiser .................................................................................................
20
2
-
4
Electric connection
and
earthing .............................................................................................
21
2
-
5
Connection
to the
suction
system
...........................................................................................
23

Themachinepackingindicates:theweightandthehookingareas.
2-1 MACHINE LIFTING AND UNLOADING
Beforeunloadingthemachine takeoff allparts whichfor transportandpacking reasonsarerestedon the
machine.
The machine shall be lifted by crane or other raising means by hooking the slings (see
fig. 2.1) Make sure that the crane, the slings, the fork truck are proper for lifting the
machine.
During the machine liftingavoidsudden movements.
Asan alternative the machine(whenequippedwith soclesorpallets)maybeliftedwithlift truck:inthiscase
insertthe forksunderthemachineframe:seefig.2.1A; precautionsaretobetakentoavoidthemachine
turnover.
2-2 POSITIONING AND LEVELING
Before resting the machine on the floor take off the wood socles screwed under the feet.
Thepositionwheretoinstallthemachineshallbewelllightened(atleast500LUX),andproperforthe
connectionto thepowerlineandtothesuctionsystem..
During the machine positioning, you have to consider that in case of longer
workpieces you need a sufficient room to avoid squashing points against the walls,
columns andsoon...(seefigure at part 1-11)
Checkthatthefloorisfirmsothatthemachineframemayhaveauniformrestinthecontactpoints. We
recommendafloormadeofconcrete;anasphaltfloorisnotproper.
Werecommendtoinsertsteelplatesbetweenthefeetandthefloorwith eventualdampingmaterial.
SURFACE PLANER
-18-
