SAFETY AND INSTRUCTION MANUAL
PLEASE READ CAREFULLY
YEAR
GUARANTEE
YEAR
GUARANTEE
5

2
• ALWAYS use the
appliance in accordance
with the instructions
supplied. Keep these
instructions in a safe place
for future reference.
• WARNING:
Please ensure that the
appliance is used on a
dry, stable, level, and heat
resistant surface.
• WARNING:
Ensure the isolating valve
is accessible at all times
when using the heater.
• Avoid twisting the gas
hose as this may cause
the hose to stress and
fracture.
• Turn off the appliance at
the gas cylinder valve or
the regulator after use.
• Should the regulator
need replacing, the
replacement regulator
should be certified
according to BSEN 16129:
2013, have a maximum flow
rate of 509.5g/h+ 182g/h,
and a maximum gas
pressure of 28-37mBar for
gas type G30.
• DANGER:
DO NOT leave this
appliance unattended
whilst it is operating.
• WARNING:
For your safety keep
children and pets away.
Close supervision is
necessary when any
appliance is used by or
near children or pets.
• Children should not play
with the appliance.
• This appliance can be
used by children aged
from 8 years and above
and persons with reduced
physical, sensory or
mental capabilities or
lack of experience and
knowledge if they have
Please read these notes carefully BEFORE using your
Tower appliance.
Read all of the instructions carefully and ensure that your
barbecue is properly installed, assembled, maintained and
serviced in accordance to these instructions. Failure to follow
these instructions may result in serious bodily injury and/
or property damage. If you have any questions concerning
the assembly or operation of this barbecue, please consult
customer services, your gas supplier, the manufacturer or
agent.
Important Safety Information:

3
been given supervision
or instruction concerning
use of the appliance in a
safe way and understand
the hazards involved.
• Cleaning and user
maintenance should not
be undertaken by children
without supervision.
• CAUTION:
Some parts of this product
can become very hot and
cause burns. Particular
attention must be given
where children and
vulnerable people are
present.
• DO NOT use this product
for anything other than its
intended use.
• This appliance is not
intended for and should
never be used as a heater.
TOXIC carbon monoxide
fumes can accumulate
and cause asphyxiation.
• This appliance is for
household use only.
• WARNING:
For your safety - For
outdoor use only (outside
any enclosure).
• Never use the appliance
in any enclosed covered
area. Adequate ventilation
is vital for combustion and
efficiency performance
of the barbecue. This will
ensure the safety of the
user and other people
in the vicinity of the area
where the appliance is
being used.
• The use of accessory
attachments is not
recommended by the
appliance manufacturer
apart from those supplied
with this product.
• DO NOT place the
barbecue on or near
combustible materials
such as a tablecloth, soft
furnishings or objects
that carry a flammable
warning label. Keep
combustible materials at
least 1m away from the
appliance.
• DO NOT use the
appliance near flammable
vapours, liquids or where
flammable fumes may be
present.
• CAUTION:
DO NOT us spirit, petrol
or comparable fluids for
lighting or relighting this
appliance.
• DO NOT place the
barbecue against a wall
or in a position with
overhead obstructions
such as trees, shrubs,
lean-to roofs. Leave at least
1m clearance around the
appliance.

4
• When the wind speed is
above 2 m/s, DO NOT use
the appliance facing the
wind.
• WARNING:
Never light the grill with
the lid closed. Allow the
barbecue to cool down for
approximately 60 minutes
before you handle or clean
it.
• Remove burnt remnants.
• Any baking trays or oven
dishes used on the BBQ
will become hot. Always
use oven gloves when
handling or removing
anything from the
barbecue.
• Use protective gloves
when handling
particularly hot
components.
• WARNING:
This appliance operates at
high temperatures, which
may cause burns. DO NOT
touch the hot surfaces
of the appliance (pan, air
outlet, etc.). Take care of
hot, rising steam.
• DO NOT cover the
appliance whilst operating
or hot.
• ATTENTION:
This barbecue will become
very hot, DO NOT move
it during operation. DO
NOT move the appliance
when it is alight or full of
hot food or contains hot
oil/ liquids.
• WARNING:
Changing the gas cylinder
should be carried out
away from any source of
ignition and in accordance
with the instructions
provided.
• DO NOT use or store the
gas cylinder in the grill
cabinet.
• DO NOT modify the
appliance.
• WARNING:
DO NOT attempt to
manipulate, modify,
dismantle or repair
any parts sealed by the
manufacturer or his agent.
• If any parts of this
appliance need replacing,
they must be replaced
only with genuine
parts supplied by the
manufacturer. The use of
incorrect or unlicensed
substitute parts may
be dangerous and will
automatically void any
warranties protecting the
product.
• WARNING:
For your safety: DO NOT
store or use gasoline
or other flammable
liquids or vapours in the
vicinity of this or any
other appliance. The use
of alcohol, prescription
or non-prescription

5
drugs may impair the
consumer’s ability to
properly assemble
or safely operate the
appliance.
• In the unlikely event the
appliance develops a fault,
stop using it immediately
and seek advice from the
Customer Support Team:
[phone]
WARNING
FOR YOUR SAFETY:
Please ensure that the appliance is
used on a dry, stable, level, and heat
resistant surface.
WARNING
FOR YOUR SAFETY:
For outdoor use only (outside any
enclosure).
WARNING
FOR YOUR SAFETY:
Never light the grill with the lid
closed.
WARNING
FOR YOUR SAFETY:
This appliance operates at high
temperatures, which may cause
burns. DO NOT touch the hot
surfaces of the appliance (pan, air
outlet, etc.). Take care of hot, rising
steam.
WARNING
FOR YOUR SAFETY:
Changing the gas cylinder should be
carried out away from any source of
ignition and in accordance with the
instructions provided.
WARNING
FOR YOUR SAFETY:
DO NOT attempt to manipulate,
modify, dismantle or repair any parts
sealed by the manufacturer or his
agent.
WARNING
FOR YOUR SAFETY:
For your safety: DO NOT store or use
gasoline or other flammable liquids
or vapours in the vicinity of this or
any other appliance.
WARNING
FOR YOUR SAFETY:
Ensure the isolating valve is
accessible at all times when using
the heater.
WARNING
FOR YOUR SAFETY:
keep children and pets away. Close
supervision is necessary when any
appliance is used by or near children
or pets.
FOR YOUR SAFETY:
DO NOT leave this appliance
unattended whilst it is operating.
DANGER
FOR YOUR SAFETY:
Some parts of this product can
become very hot and cause burns.
Particular attention must be given
where children and vulnerable
people are present.
CAUTION
FOR YOUR SAFETY:
DO NOT use spirit, petrol or
comparable fluids for lighting or
relighting this appliance.
CAUTION
This barbecue will become very hot,
DO NOT move it during operation.
DO NOT move the appliance when it
is alight or full of hot food or contains
hot oil/ liquids.
ATTENTION

6
IN THE EVENT OF A FAT
FIRE:
• If safe to do so, turn all
control knobs to the ‘off’
position.
• Turn off the gas supply at
the gas bottle.
• Keep everyone at a
safe distance from the
barbecue and wait until
the fire has burnt out.
• DO NOT close the hood or
lid of the barbecue.
• Never douse a barbecue
with water. If an
extinguisher is used, it
should be a powder type.
• DO NOT remove the drip
tray.
• If the fire does not seem
to be abating or appears
to be worsening, contact
your local Fire Brigade for
assistance.
DANGER: IF YOU SMELL
GAS:
1. Shut off the gas to the
appliance.
2. Extinguish any open
flame.
3. Open barbecue lid or
hood.
4. If odour continues,
discontinue use and keep
away from the appliance
and contact your local
dealer or your local Fire
Brigade.
REGULATOR AND HOSE
• Use only a regulator and
hose approved for the gas
and pressures stated in
this manual.
• The life expectancy
of the regulator is
estimated as 10 years. It
is recommended that
the regulator is changed
within 10 years of the date
of manufacture.
• The type of regulator that
is used is dependent on
the connection on the
gas bottle which is used.
This may be dependent
on gas supplier and your
geographical location.
Seek advice from your gas
supplier if you are unsure
of what type of regulator
you will need.
• DO NOT insert any tool
or foreign object into the
valve outlet or safety relief
valve.
• The use of the wrong
regulator or hose is unsafe;
always check that you
have the correct items
before operating the
barbecue.
• The hose used must
conform to the relevant

7
standard for the country
of use. The length of the
hose must be 1.5 meters
(maximum).
• A worn or damaged hose
must be replaced.
• Ensure that the hose is
not obstructed, twisted,
kinked, or in contact
with any part of the
barbecue other than at its
connection.
• The hose should comply
with the standard
EN16436.
• Flexible metal or rubber
pipe, used to connect
the appliance with the
cylinder must be changed
within the prescribed
intervals and according to
the National Rules in force.
• No part of the hose should
touch any part of the
appliance.
• When connecting the
gas hose to the barbecue
DO NOT over-tighten.
DO NOT use any sealing
tape, paste or liquid on the
connection.
GAS CYLINDER
• The appliance can be used
with any gas cylinder of
weights between 3.9Kgs
and 13kgs propane.
• DO NOT drop or roughly
handle the gas cylinder.
• If the appliance is not in
use, the cylinder must be
disconnected.
• Cylinders must be stored
outdoors in an upright
position and out of
the reach of children.
The cylinder must
never be stored where
temperatures can reach
over 50ºC.
• Do not store the cylinder
near flames, pilot lights or
other sources of ignition.
DO NOT SMOKE.
• DO NOT use a gas cylinder
with a damaged body,
valve, collar or footing.
Dented or rusted gas
cylinders should be
checked by your gas
supplier prior to use.

8

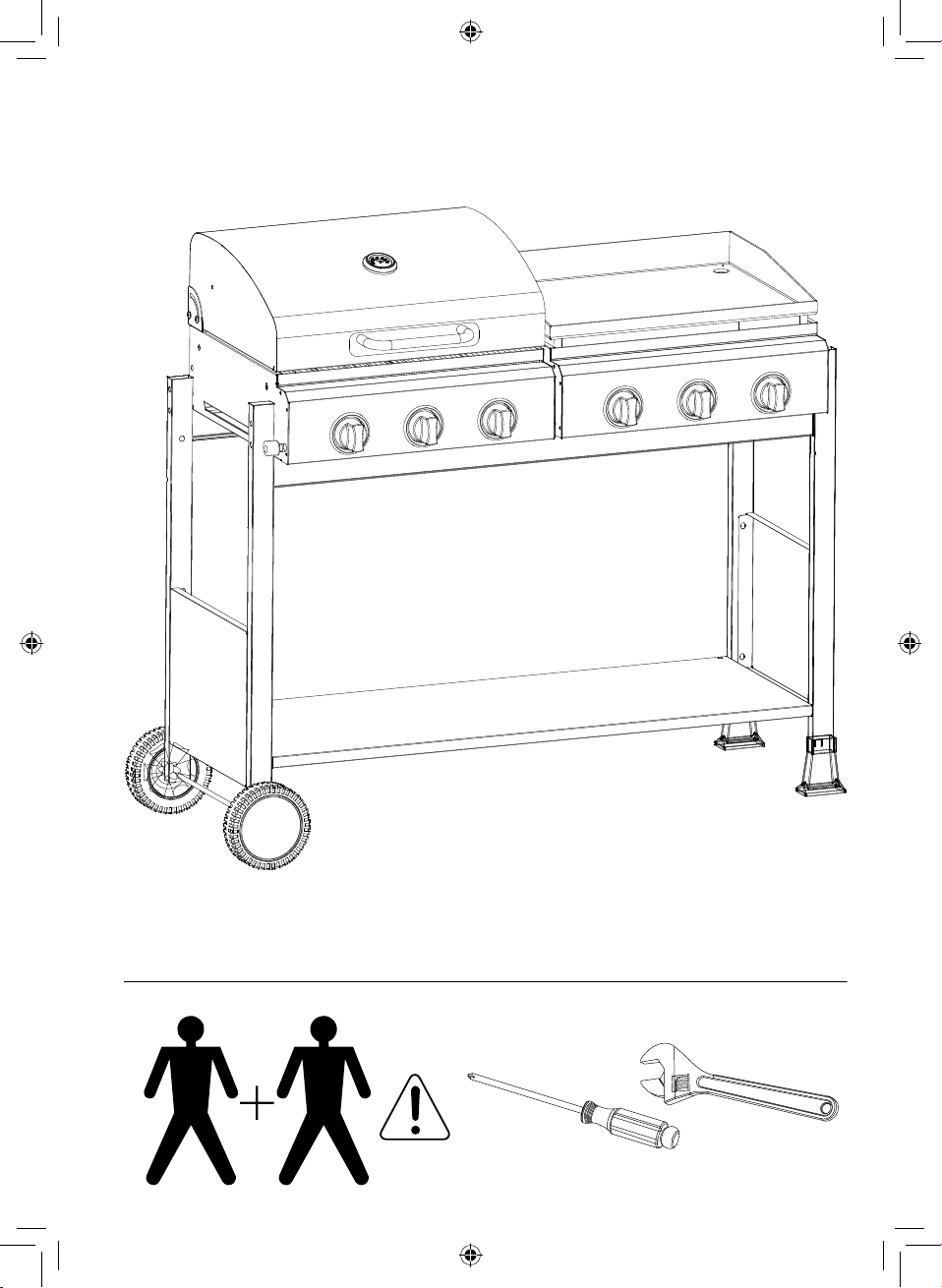

9
EXPLODED VIEW

10

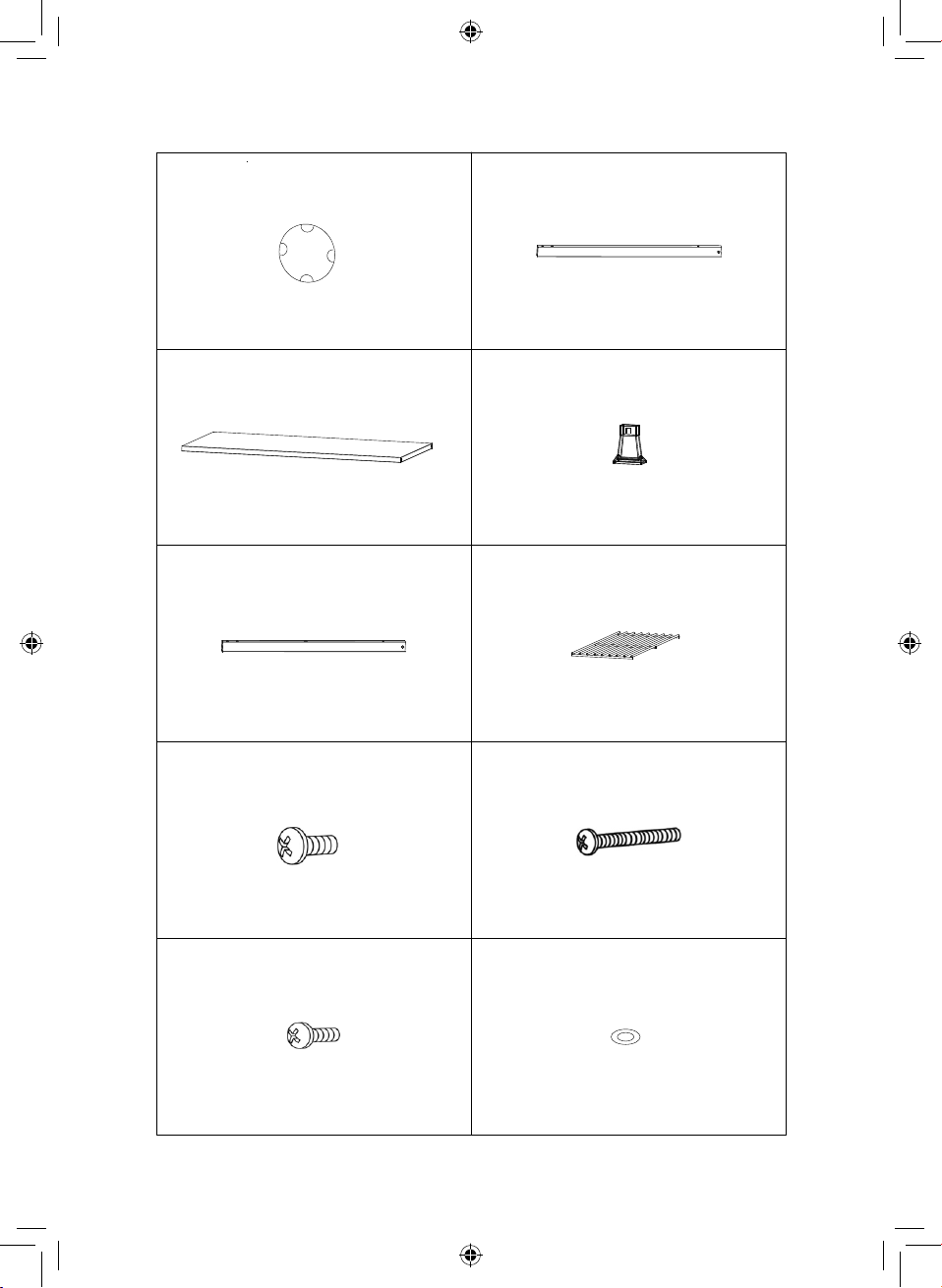

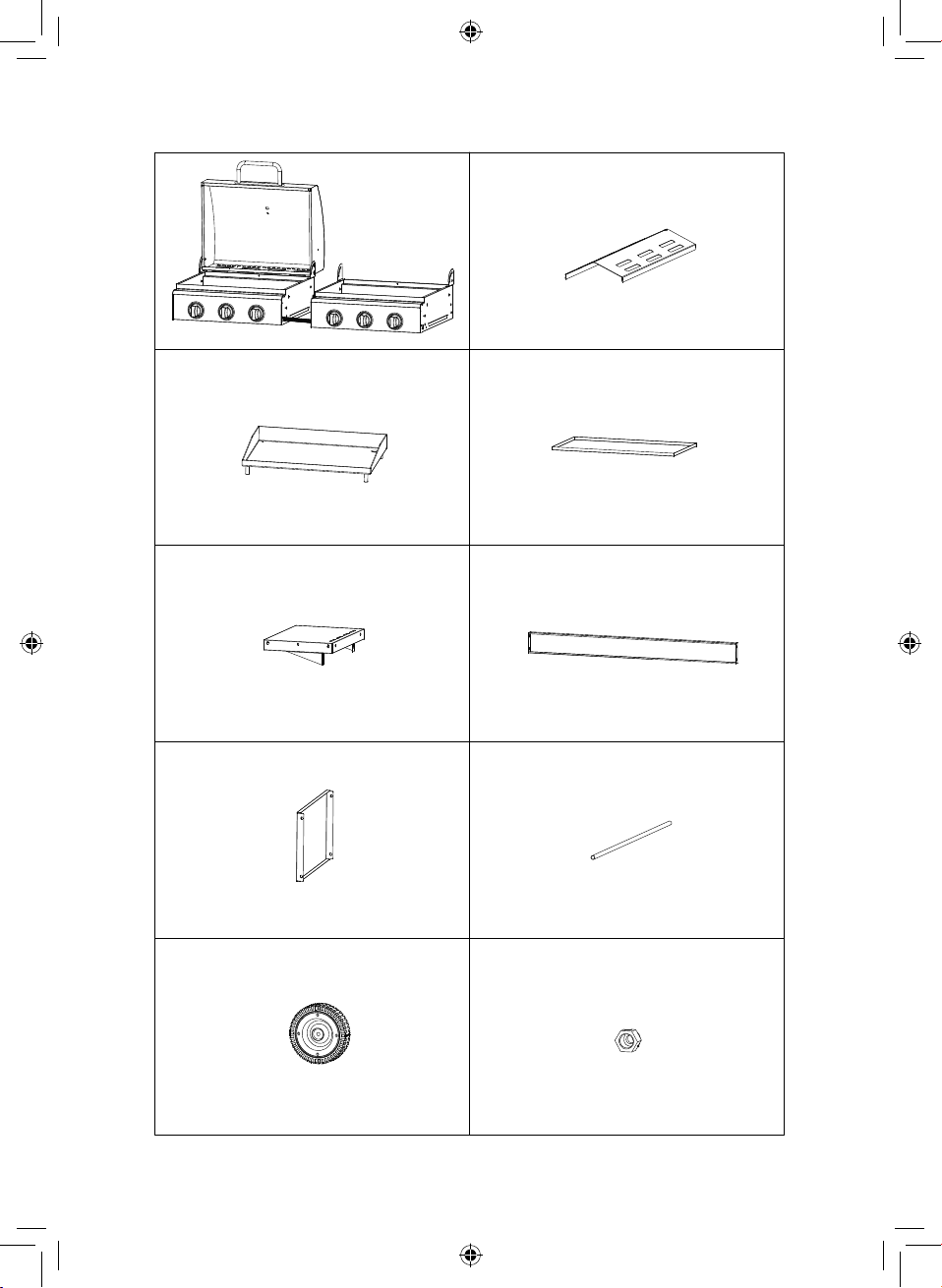

Parts List:
1PC1 3PC2
1PC3 2PC4
2PC5 2PC6
2PC7 1PC8
2PC9 2PC10 E
2PC11 2PC12
1PC13 2PC14
2PC15 3PC16
20PC
+1 spare
M6x10
M5x10
M6x50
B 12PCC
4PC
+1 spare
D 2PCF

11
1PC1 3PC2
1PC3 2PC4
2PC5 2PC6
2PC7 1PC8
2PC9 2PC10 E
2PC11 2PC12
1PC13 2PC14
2PC15 3PC16
20PC
+1 spare
M6x10
M5x10
M6x50
B 12PCC
4PC
+1 spare
D 2PCF

12
Assembly

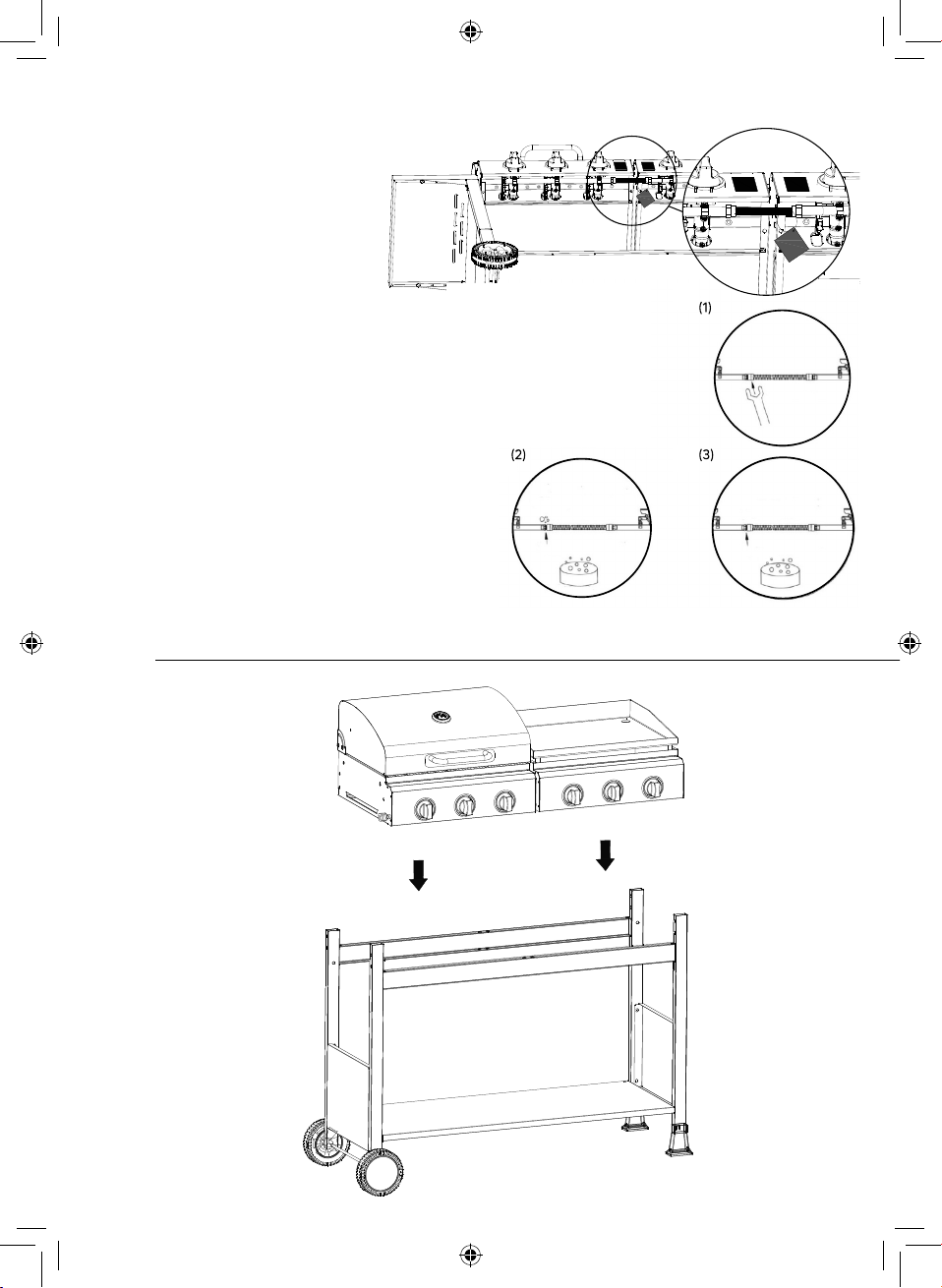

1
2
A
A
B
B
M6x50 x 4
13
M6x10 x 8
7
7

13
3
4
6
6
M6x10 x 8

14
Assembly
5
6
1. Before use, using a spanne
to tighten it onto the
connection thread. If the
hose is replaced it must be
secured to the appliance
and regulator connections with hose clips.
Disconnect the regulator from the cylinder
(according to the directions supplied with
the regulator)when the barbecue is not in
use.
2. Brush the soapy solution onto the hose
and all joints. If bubbles appear you have a
leak,which must be rectified before use.
3. Tighten the fittings / connections where the
leak is, and repeat the test.

15
7
8
M6x50
M6x50
M6x10M6x10

16
Assembly
9
10

17
WARNING
FOR YOUR SAFETY:
Read the following instructions
carefully and be sure your barbecue
is properly installed, assembled
and cared for. Failure to follow
these instructions may result in
serious bodily injury and/or property
damage.

18
Before First Use:
WARNING: Read the following instructions carefully and be sure your barbecue is properly
installed, assembled and cared for. Failure to follow these instructions may result in serious bodily
injury and/or property damage.
1. Remove the parts from the packaging and lay out on an even surface.
2. Check that all parts are present and that there is no visible sign of damage.
3. Assemble the barbecue as per the assembly instructions. Place the appliance outdoors.
4. Connect the gas hose to the barbecue.
5. Connect the regulator to the hose. Ensure that the Thermostat Regulator is set to the OFF
position.
6. Connect the regulator to the cylinder valve, following the regulator instructions supplied with
the regulator.
7. Turn all of the controls to the ‘OFF’ position before turning on the gas supply to the appliance.
8. Operate the regulator in accordance with the instructions supplied with the regulator.
9. Wash and rinse the grill plate, racks and grease collection tray and dry thoroughly before
replacing.
10. Your appliance is now ready for normal use.
11. Dispose of the packaging in a responsible manner.
Connecting The Gas Cylinder To The Appliance:
• This appliance is only suitable for use with low-pressure propane gas and fitted with the
appropriate low-pressure regulator via a flexible hose.
• The hose should be secured to the regulator and the appliance with hose clips/nuts.
• This barbecue is set to operate a 37mbar regulator with propane gas.
• Use a suitable regulator certified to BSEN 16129: 2013. Please consult your gas dealer for
information regarding a suitable regulator for the gas cylinder.
Testing Gas For Leaks:
• Make 2-3 fluid ounces of leak detecting solution by mixing one part washing up liquid with 3
parts water.
• Ensure the barbecue controls are in the OFF position.
• Ensure the control valve is “OFF”.
• Connect the regulator to the cylinder and ON/OFF valve to the burner, ensure the connections
are secure then turn ON the gas.
• Brush the soapy solution on to the hose and all joints, including gas bottle valve connections,
hose connections, and regulator connections. If there is a leak bubbles appear at the site of the
leak, which must be rectified before use.
• Turn OFF the gas supply at the gas bottle.
• Re-tighten all joints.
• Retest after fixing the fault. Turn OFF the gas at the cylinder after testing.
• If detected leakage cannot be rectified, do not attempt to cure leakage but consult your gas
dealer.
• If you suspect that the appliance is leaking, turn off the gas supply and have the unit inspected
by a qualified technician.
• Always wipe the mixed solution from all joints and connections after leak testing.
DANGER
FOR YOUR SAFETY:
Never check for leaks with a naked
flame, always use a soapy water
solution. DO NOT smoke when using
gas bottles or testing for leaks.
NOTICE
This appliance should be leakage-
tested before first use and whenever
the cylinder has been reconnected
after filling/ is removed or replaced.
DO NOT use electrical equipment
as these may produce a spark which
could ignite the vapours.

19
Using Your Appliance:
Lighting Instructions:
1. Open the hood of the barbecue before attempting to light the burners.
2. Turn all the control knobs clockwise to OFF position.
3. Connect the regulator to the gas bottle. Turn the gas supply ON at the regulator. Check with
the use of soapy water for any gas leakage between the bottle and the regulator.
4. Push down the front left control knob and keep pressing whilst turning anti-clockwise to the
HIGH position (a clicking sound is heard), this will light the left hand burner. Observe if the
burner has lit. If not repeat this process.
5. If the burner has not lit after retrying wait 5 minutes and repeat step 4.
6. Adjust the heat by turning the knob to the High/Low position.
7. If the burner does not light. Light the appliance with a match using the lighting hole in the
side of the appliance. Consult your gas dealer to rectify the ignition.
8. To light the remaining burners in sequence from left to right, and repeat 4 above. The
crosslighting channel between the burners will light the burner adjacent to it.
9. To turn the barbecue OFF turn the cylinder valve or regulator switch to the OFF position and
then turn the control knob on the appliance clockwise to the OFF position.
NOTICE
Food can be cooked with either
the lid open or closed. The lid can
be kept closed for 5 minutes before
opening for 1 minute to release heat.
WARNING
FOR YOUR SAFETY:
In the event of light back whilst the appliance is in use:
Turn all the controls, cylinder valve and regulator switch
to the ‘OFF’ position. Wait 5 minutes before attempting
to relight the appliance. If the problem persists after
relighting, consult your gas dealer, a qualified gas
engineer or customer services for assistance or repair.
Never try to rectify the problem yourself as this could
result in serious injury and/or property damage.
Tips for grilling:
• Your meat will be tender if you marinade it overnight before cooking (the marinade is always
made of oil (to moisten), vinegar (to tenderize) and a mixture of seasonings).
• To prevent foods from sticking to the cooking surface, use a long handled brush to apply a
light coat of cooking or vegetable oil before each barbecuing session.
• Always use tongs or some form of scoop to turn the grilled food (using a fork to turn the food
will dry it out and damage the coating).
• Only turn meat and fish once during grilling. You do not need to turn it more than once too
much turning will dry food out.
Cleaning & Care:
• Regularly clean your barbecue between uses and especially after extended periods of storage.
• Appliance maintenance checks should be carried out at least once a month.
FOR YOUR SAFETY:
All cleaning and maintenance should
be carried out when the barbecue is
cool and with the fuel supply turned
OFF at the gas cylinder.
CAUTION

20
Cleaning:
“Burning off” the barbecue after every use (for approximately 15 minutes) will keep excessive food
residue to a minimum. After each cooking session, turn the barbecue burners to the “high” position
and burn for 15 minutes. This procedure will burn off cooking residue, thus making cleaning easier.
Make sure the hood is open during this process.
Outside Surface:
Use a mild detergent or baking soda and hot water solution.
Non-abrasive scouring powder can be used on stubborn stains.
Rinse with water.
Clean thoroughly with strong hot soapy water solution.
Rinse with water and allow to completely dry.
NOTICE
If the inside surface of the barbecue
lid has the appearance of peeling
paint, baked on grease build up has
turned to carbon and is flaking off.
NOTICE
Never use oven cleaner.
Interior Of Barbecue Base:
• Remove residue using a brush, scraper and/or cleaning pad then wash with a soapy water
solution.
• Rinse with water and allow it to dry.
COOKING GRID
• Use a mild soapy water solution. Non-abrasive scouring power can be used on stubborn stains
then rinse with water.
Plastic Surfaces:
• Wash with a soft cloth and hot soapy water solution.
• Rinse with water.
NOTICE
DO NOT use abrasive cleaners,
degreasers or a concentrated
barbecue cleaner on plastic parts.
Cooking Grid:
• Use a mild soapy water solution. Non-abrasive scouring powder can be used on stubborn
stains, then rinse with water.
Grease Cup:
• Regularly check the grease cup after use and remove the oil when ⁄ full.
• When the grease cup is cold, move the grease cup holder and remove the grease cup. Empty
and clean the grease cup of any fat or food particles, using a plastic or wooden scraper if
necessary. If required, the cup can be washed in hot soapy water.
FOR YOUR SAFETY:
DO NOT remove the grease cup
during operation of the BBQ.
CAUTION
DANGER
FOR YOUR SAFETY:
Failure to keep it clean, excessive
build up can result in a fat fire.
