2005 COROLLA from Sep. ’04 Prod. (OM12891U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 8. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1−1

’05 Corolla_U (L/O 0409)
2
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Electric moon roof switches
6. Personal lights
7. Power door lock switches
8. Power window switches
9. Glove box
10. Portable ashtray
11. Rear console box
12. Cup holders
13. Power outlet
14. Parking brake lever
15. Automatic transmission selector lever
or manual transmission gear shift lever
16. Hood lock release lever
17. Window lock switch

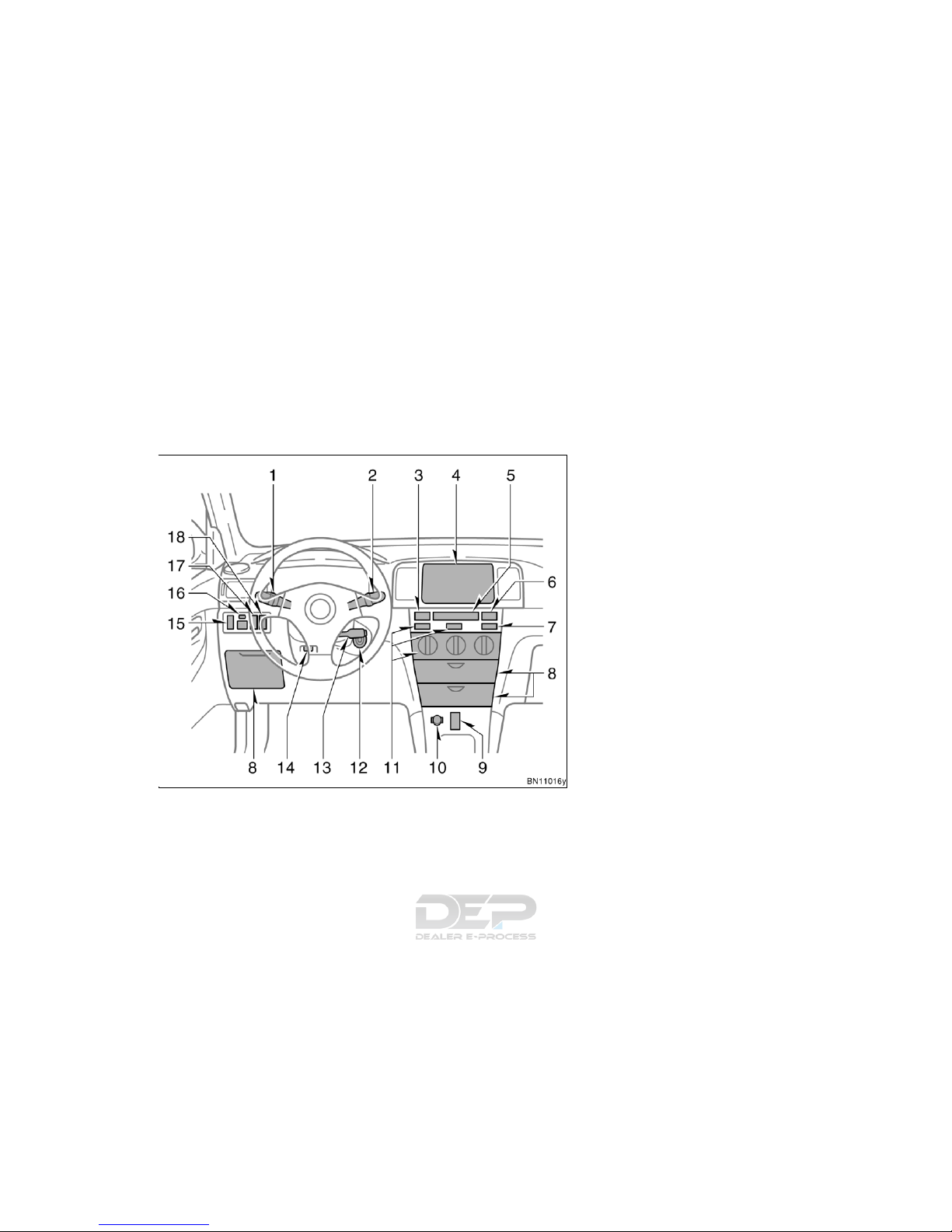

Instrument panel overview

’05 Corolla_U (L/O 0409)
3
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
1. Headlight, turn signal and front fog
light switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Car audio
5. Clock
6. Front passenger occupant classification
indicator light/front passenger’s seat
belt reminder light
7. Rear window defogger switch
8. Auxiliary boxes
9. “TRAC OFF” (traction control system
off) switch
10. Power outlet or cigarette lighter
11. Air conditioning controls
12. Ignition switch
13. Cruise control switch
14. Tilt steering lock release lever
15. Interior/instrument panel light control
dial
16. Power rear view mirror control switches

’05 Corolla_U (L/O 0409)
4
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
17. Tire pressure warning system reset
switch
18. Engine immobilizer system/Toyota
vehicle intrusion protection system
indicator light

’05 Corolla_U (L/O 0409)
5
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
1. Service reminder indicators and
indicator lights
2. Tachometer
3. Speedometer
4. Engine coolant temperature gauge
5. Fuel gauge
6. Trip meter reset knob
7. Odometer, two trip meters and outside
temperature display

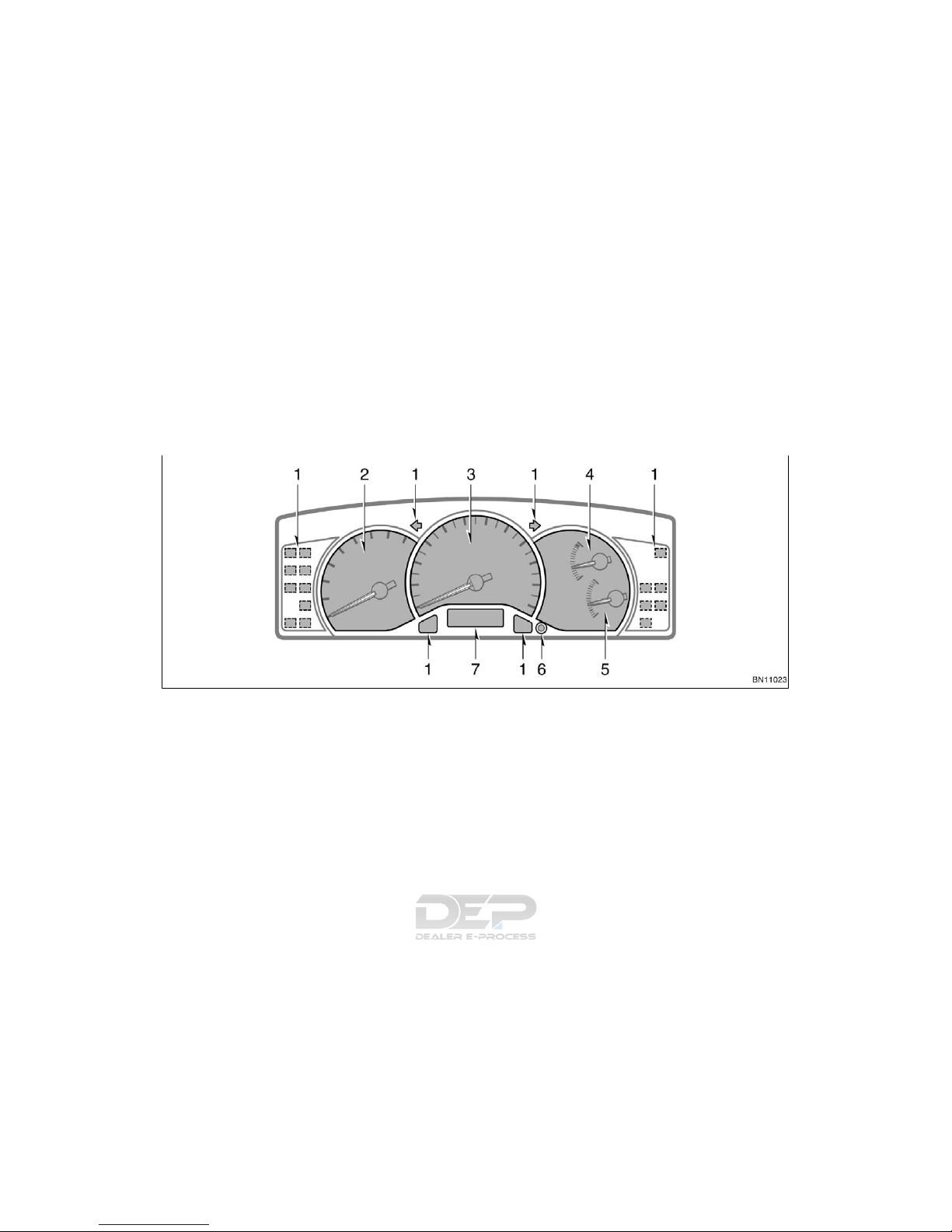

Instrument cluster overview
"Type A

’05 Corolla_U (L/O 0409)
6
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
1. Service reminder indicators and
indicator lights
2. Tachometer
3. Speedometer
4. Engine coolant temperature gauge
5. Fuel gauge
6. Trip meter reset knob
7. Odometer, two trip meters and outside
temperature display
"Type B

’05 Corolla_U (L/O 0409)
7
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
1. Service reminder indicators and
indicator lights
2. Tachometer
3. Speedometer
4. Engine coolant temperature gauge
5. Fuel gauge
6. Trip meter reset knob
7. Odometer, two trip meters and outside
temperature display
"Type C

’05 Corolla_U (L/O 0409)
8
2005 COROLLA from Sep. ’04 Prod. (OM12891U)

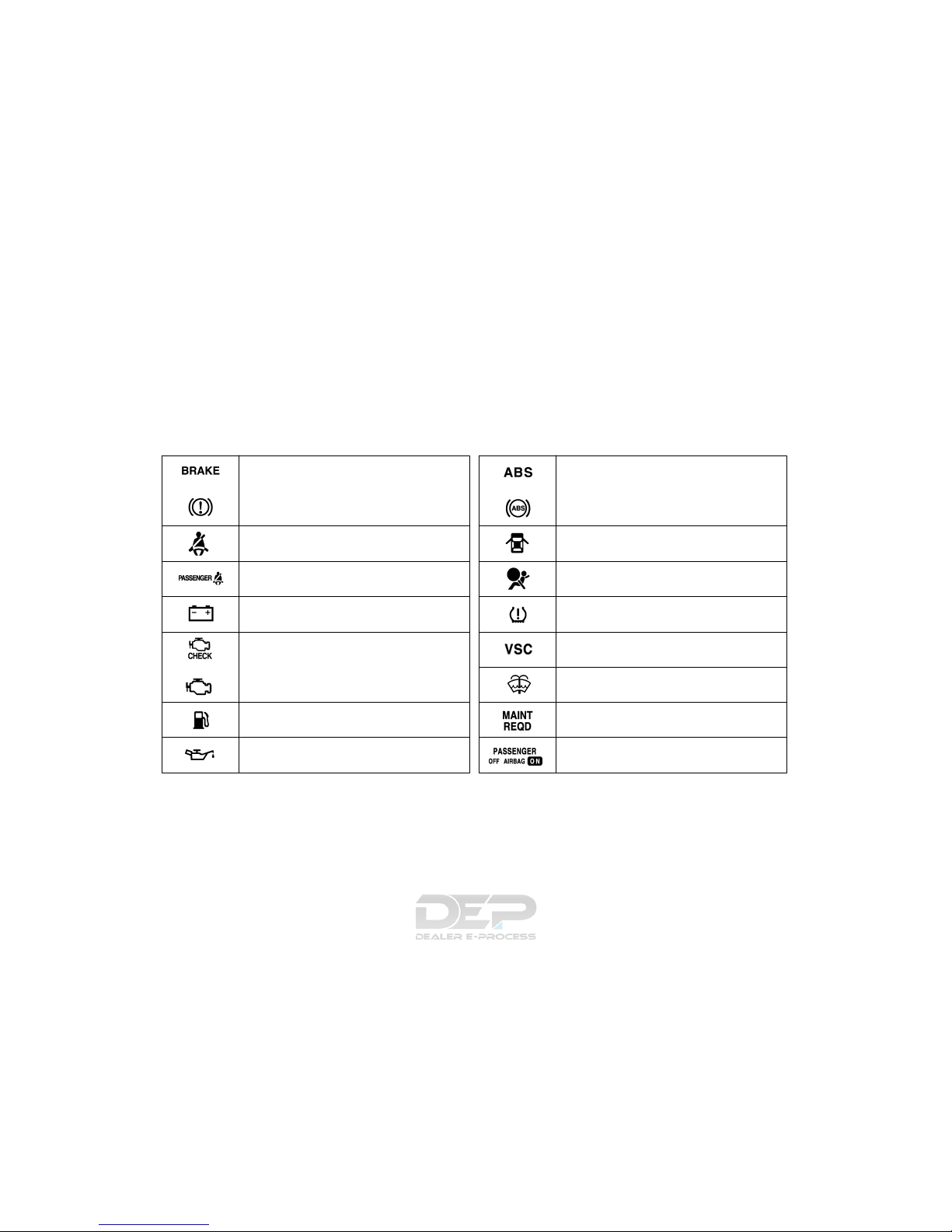

or Brake system warning light∗1
Driver’s seat belt reminder light∗1
Discharge warning light∗1
Low fuel level warning light∗1
or
Low engine oil pressure warning light∗1
Anti−lock brake system warning light∗1
Open door warning light∗1
SRS warning light∗1
Low windshield washer fluid level warning light
∗1, ∗3
Front passenger’s seat belt reminder light∗1
Malfunction indicator lamp∗1
or
Vehicle stability control system/traction control
system warning light∗1
Low tire pressure warning light∗1
Engine oil replacement reminder light∗1
Front passenger occupant classification
indicator light
Indicator symbols on the instrument panel

’05 Corolla_U (L/O 0409)
9
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
Overdrive−off indicator light
Cruise control indicator light∗2
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 106 in Section 1−6.
∗2: If this light flashes, see “Cruise control” on page 130 in
Section 1−7.
∗3: This symbol equipped only on vehicles sold in Canada.
Turn signal indicator lights
Headlight high beam indicator light
Headlight low beam indicator light
Tail light indicator light
Slip indicator light/traction control system off
indicator light

’05 Corolla_U (L/O 0409)
10
2005 COROLLA from Sep. ’04 Prod. (OM12891U)

’05 Corolla_U (L/O 0409)
85
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Steering wheel and Mirrors
Tilt steering wheel 86. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirrors 86. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Anti−glare inside rear view mirror 88. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto anti−glare inside rear view mirror 88. . . . . . . . . . . . . . . . . . . . . . . . .
Vanity mirrors 89. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1−4

’05 Corolla_U (L/O 0409)
86
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
To change the steering wheel angle,
hold the steering wheel, push down the
lock release lever, tilt the steering
wheel to the desired angle and return
the lever to its original position.
CAUTION
DDo not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
DAfter adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger’s side
because it is a convex mirror. Any object
seen in a convex mirror will look smaller
and farther away than when seen in a flat
mirror.
Tilt steering wheel Outside rear view mirrors—

’05 Corolla_U (L/O 0409)
87
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
NOTICE
The outside rear view mirrors are
fixed in place. Do not try to fold the
mirrors. It may damage the mirrors. To adjust a mirror, use the switches.

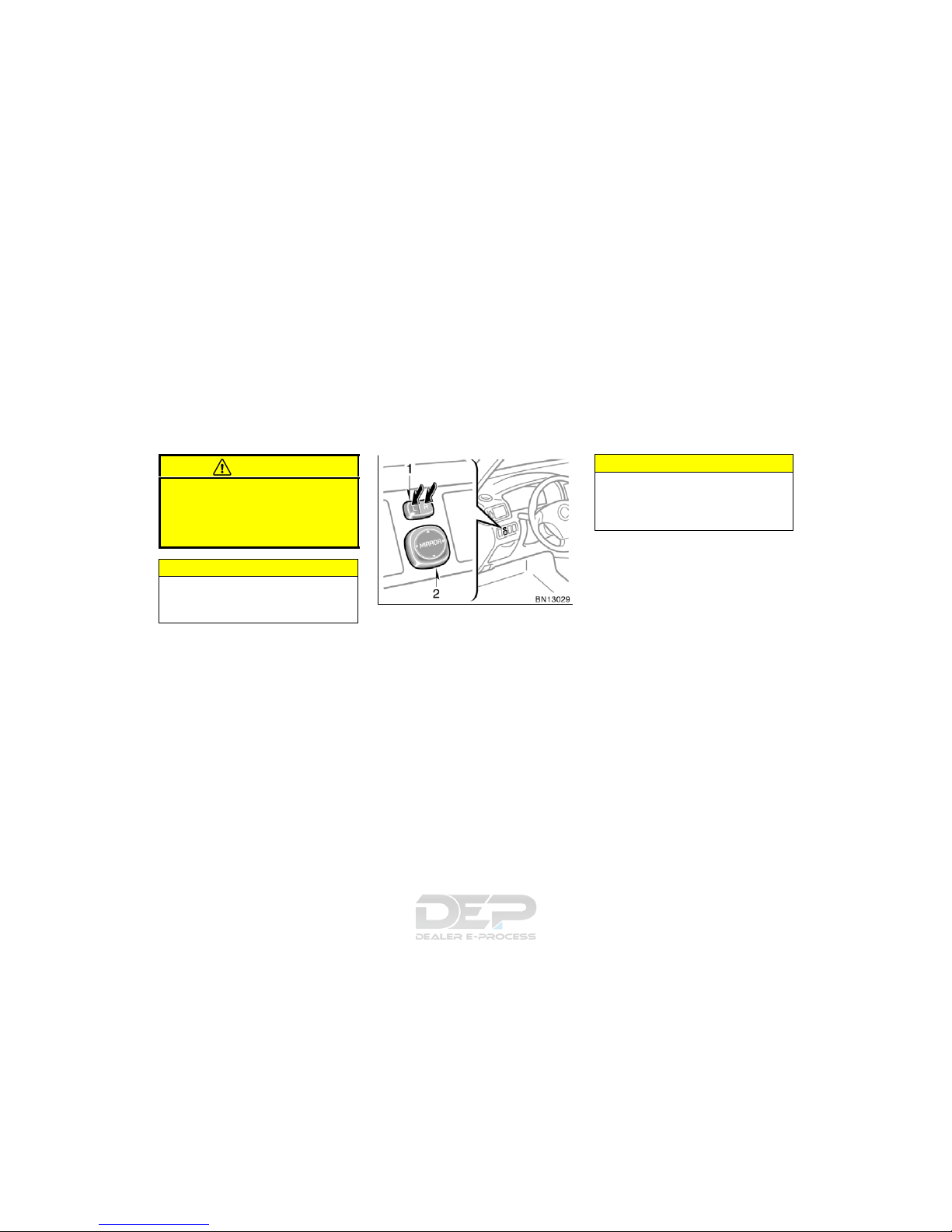

1. Master switch—To select the mirror to
be adjusted
Push the switch to “L” (left) or “R”
(right).
2. Control switch—To move the mirror
Push the switch in the desired direc-
tion.
Mirrors can be adjusted when the key is
in the “ACC” or “ON” position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray de−icer to free
the mirror.
—Power rear view mirror
control

’05 Corolla_U (L/O 0409)
88
2005 COROLLA from Sep. ’04 Prod. (OM12891U)

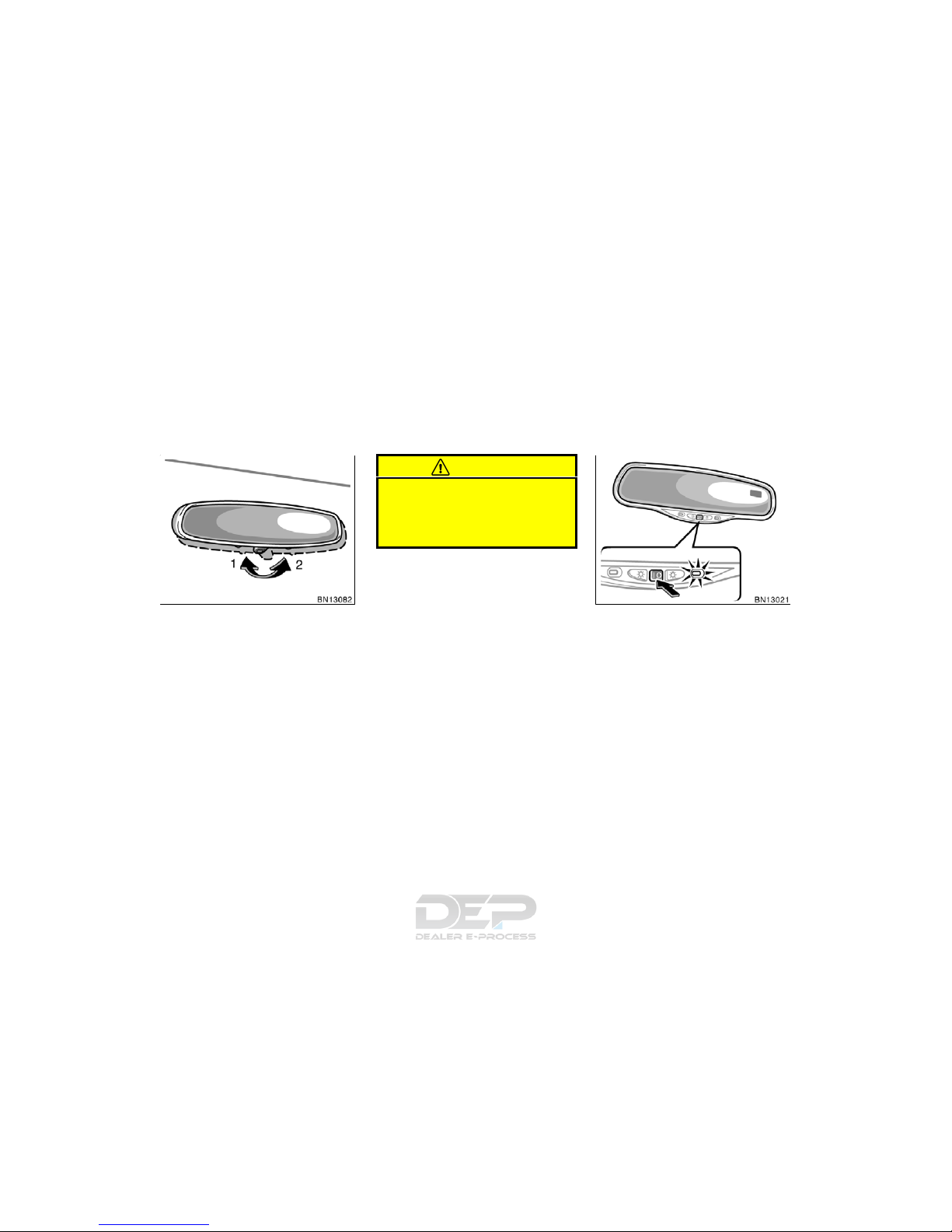

Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
This mirror is equipped with auto anti−
glare function. The function is designed
to reduce glare from the headlights of
the vehicle behind you during night
driving.
When the ignition key is inserted and
turned on, the inside rear view mirror al-
ways turns on in the automatic function
mode.
The indicator illuminates to show you that
the function is on.
Anti−glare inside rear view
mirror
Auto anti−glare inside rear
view mirror

’05 Corolla_U (L/O 0409)
89
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
In automatic function mode, if the mirror
detects light from the headlights of the
vehicle behind you, the mirror surface
darkens slightly to reduce the reflected
light.
To turn off the automatic function, push
the “ ” switch.
To turn on the automatic function again,
push the “ ” switch.
Adjust it before driving so that the rear
view is in the best condition.
When the inside air temperature is low, it
may take a little longer for the mirror to
darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
To ensure correct functioning of an
anti−glare mirror sensors located on the
back side of the mirror, do not touch
or cover the sensors with your finger
or a piece of cloth, etc.
Driver’s side
Front passenger’s side
Vanity mirrors

’05 Corolla_U (L/O 0409)
90
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
Driver’s side only—To use the vanity
mirror, open the cover.

’05 Corolla_U (L/O 0409)
91
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Lights, Wipers and Defogger
Headlights and turn signals 92. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flashers 94. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front fog lights 95. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior/instrument panel light control 95. . . . . . . . . . . . . . . . . . . . . . . . . .
Personal lights 97. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wipers and washer 98. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear window defogger 99. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1−5

’05 Corolla_U (L/O 0409)
92
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
For the U.S.A.
For Canada
HEADLIGHTS

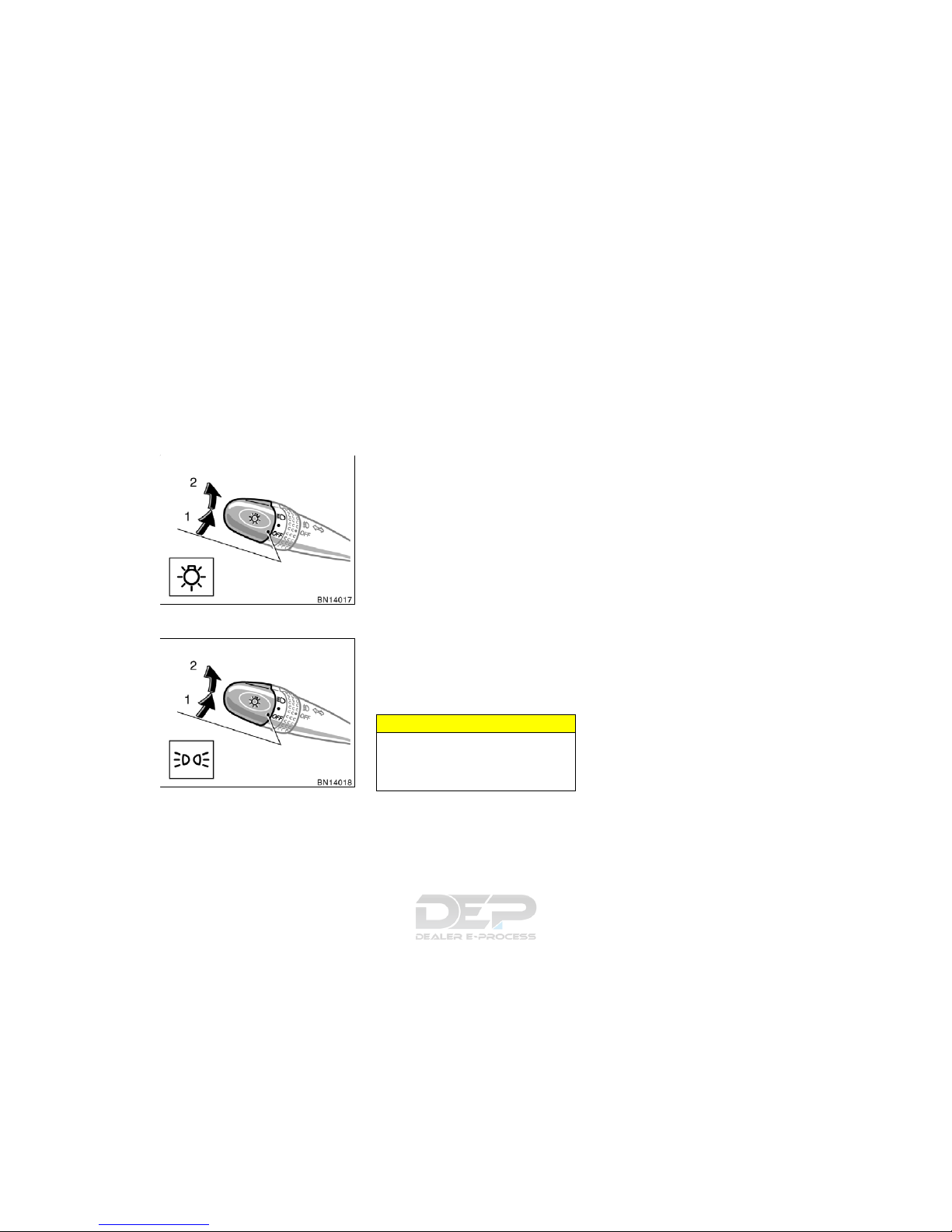

To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
On some models for Canada—The tail
light indicator (green light) on the instru-
ment panel will tell you that the tail lights
are on.
Position 2—Headlights and all of the
above
On some models for the U.S.A.—The
headlight low beam indicator light (green
light) on the instrument panel will tell you
that the low beams are on.
Light reminder buzzer
A buzzer will remind you to turn the lights
off when the driver’s door is opened if you
remove the key with the headlight switch
on.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Daytime running light system
(for the U.S.A.)
The daytime running light system can
make it easier for others to see the front
of your vehicle during the day. This sys-
tem can be helpful in many different driv-
ing conditions, but they can be especially
helpful in the short periods after dawn and
before sunset.
This system will make your headlights
come on at a reduced brightness when:
DThe engine is running.
DThe parking brake is released.
DThe headlight/turn signal lever knob is
in the “OFF” position.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Twist the knob to the position 2 to turn
the headlights to full intensity for night
driving.
The headlights automatically switch to full
or reduced intensity depending on the
darkness of the surroundings when the
daytime running light system is activated.
Also, the other exterior lights and instru-
ment panel lights automatically turn on or
off.
Headlights and turn signals

’05 Corolla_U (L/O 0409)
93
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
The daytime running light control sensor
is on the top of the driver’s side instru-
ment panel.
Do not place anything on the instrument
panel, and/or do not affix anything on the
windshield to block this sensor.
Daytime running light system
(for Canada)
The daytime running light system can
make it easier for others to see the front
of your vehicle during the day. This sys-
tem can be helpful in many different driv-
ing conditions, but they can be especially
helpful in the short periods after dawn and
before sunset.
This system will make your headlights
come on at a reduced brightness when:
DThe engine is running.
DThe parking brake is released.
DThe headlight/turn signal lever knob is
in the “OFF” position or position 1.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
position 1.
Twist the knob to position 2 to turn the
headlights to full intensity for night driving.
High−Low beams—For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.

’05 Corolla_U (L/O 0409)
94
2005 COROLLA from Sep. ’04 Prod. (OM12891U)
TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out. See “Replacing light
bulbs” on page 274 in Section 7−3.
To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
NOTICE
To prevent the battery from being dis-
charged, do not leave the switch on
longer than necessary when the en-
gine is not running.
Emergency flashers
