Toyota Land Cruiser Prado User manual

@TOYOTA
T C PRA
OM -OWM 08/04
Ref-No:01999-60B031
OM60B03E
()wner-'§
Manual
For your safety and comfort,
read carefully and keep in the vehicle.
~~~SER PRADO
Not For Reproduction

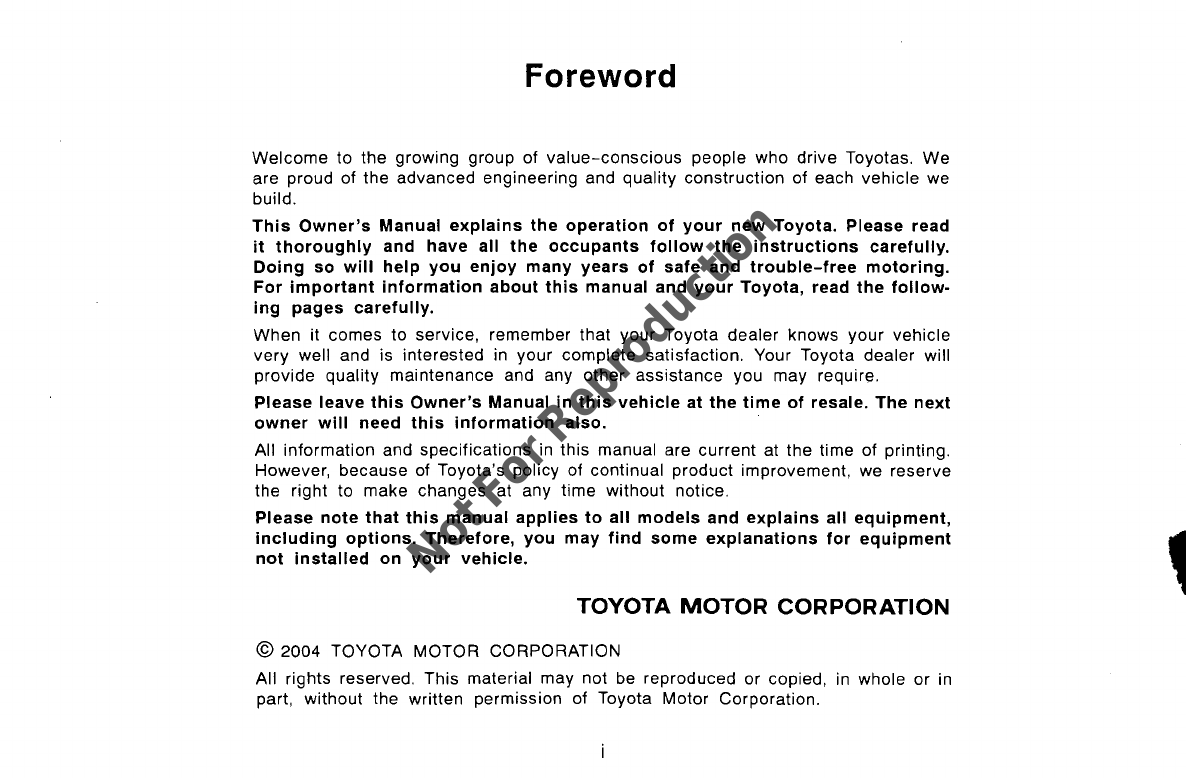

Foreword
Welcome to the growing group of value-conscious people who drive Toyotas. We
are proud of the advanced engineering and
quality construction of each vehicle we
build.
This Owner's Manual explains the operation of your new Toyota. Please read
it
thoroughly and have all the occupants follow the instructions carefully.
Doing so will help you enjoy many years of safe and
trouble-free motoring.
For important information about this manual and your Toyota, read the follow-
ing pages carefully.
When it comes to service, remember that your Toyota dealer knows your vehicle
very well and is interested in your complete satisfaction. Your Toyota dealer will
provide quality maintenance and any other
assistance you may require.
Please leave this Owner's Manual in this vehicle at the time of resale. The next
owner will need this information also.
All information and specifications in this manual are current at the time of printing.
However, because of Toyota's policy of continual product improvement, we reserve
the right to make changes at any
time without notice.
Please note that this manual applies to all models and explains all equipment,
including options. Therefore, you may find some explanations for equipment
not installed on your vehicle.
TOYOTA MOTOR CORPORATION
©2004 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied,
in whole or in
part,
without the written permission of Toyota Motor Corporation.
Not For Reproduction

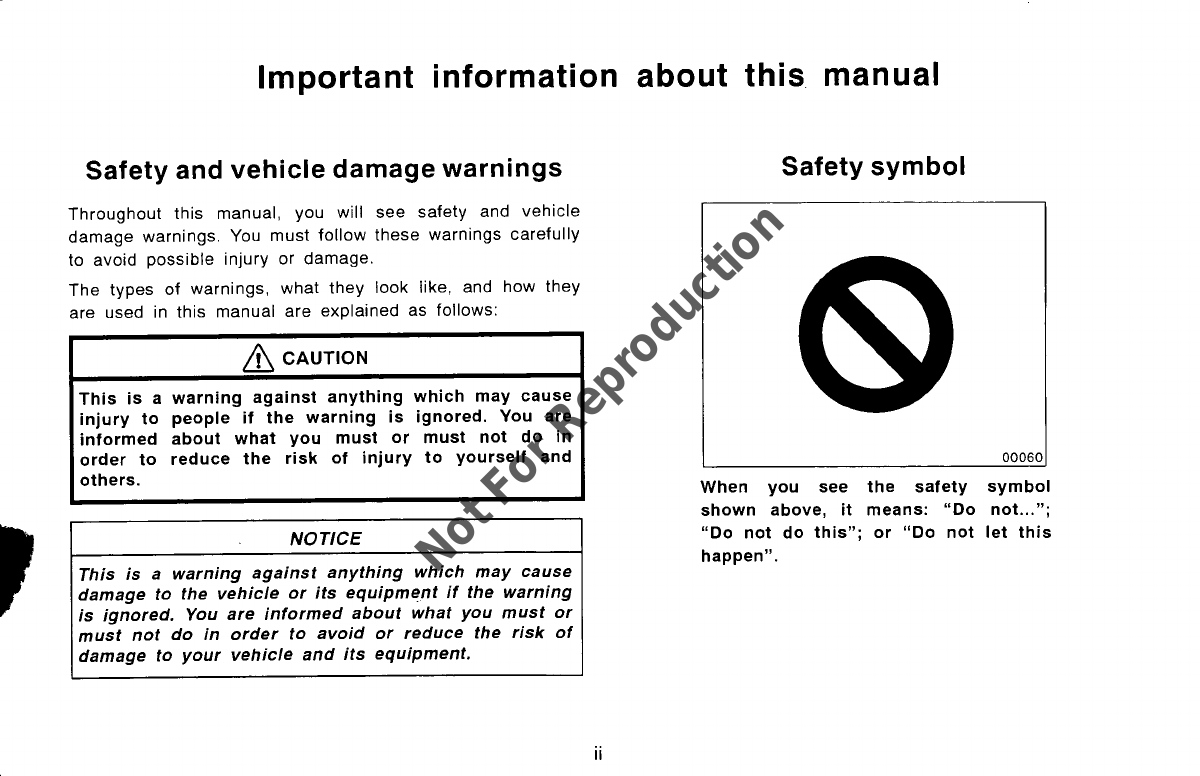

Important information about this manual
,
Safety and vehicle damage warnings
Throughout this manual, you will see safety and vehicle
damage warnings. You must follow these warnings carefully
to avoid possible injury or damage.
The types of warnings, what they look like, and how they
are used in this manual are explained as follows:
Lt CAUTION
This is a warning against anything which may cause
injury to people if the warning is ignored. You are
informed about what you must or must not do in
order to reduce the risk of injury to yourself and
others.
NOTICE
This is a warning against anything which may cause
damage to the vehicle or its equipment if the warning
Is ignored. You are informed about what you must or
must not do In order to avoid or reduce the risk of
damage to your vehicle and its equipment.
ii
Safety symbol
00060
When you see the safety symbol
shown above, it means: "Do not ... ";
"Do not do this"; or "Do not let this
happen" .
Not For Reproduction

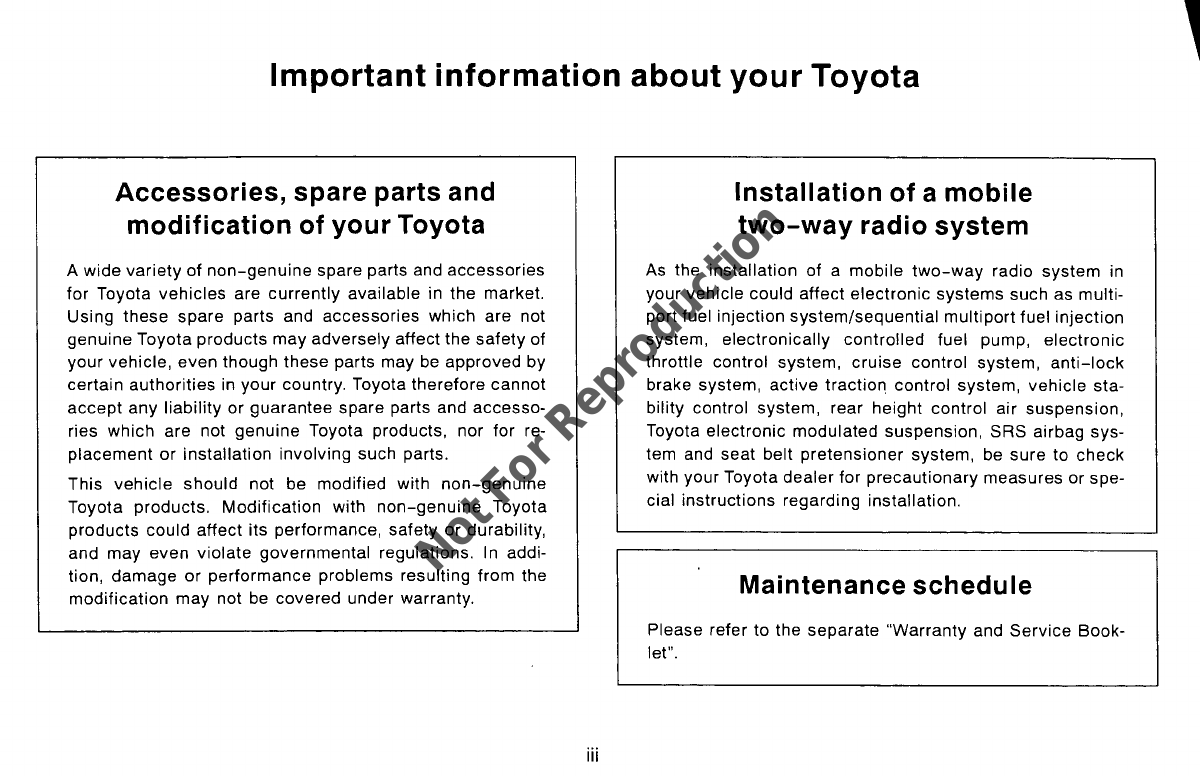

Important information about your Toyota
Accessories, spare parts and
modification of your Toyota
A wide variety of non-genuine spare parts and accessories
for Toyota vehicles are currently available in the market.
Using these spare parts and accessories which are not
genuine Toyota products may adversely affect the safety of
your vehicle, even though these parts may be approved by
certain authorities in your country. Toyota therefore cannot
accept any liability or guarantee spare parts and accesso-
ries which are not genuine Toyota products, nor for re-
placement or installation involving such parts.
This vehicle should not be modified with non-genuine
Toyota products. Modification with non-genuine Toyota
products could affect its performance, safety or durability,
and
may even violate governmental regulations. In addi-
tion,
damage or performance problems resulting from the
modification may not be covered under warranty.
iii
Installation of amobile
two-way radio system
As the installation of a mobile two-way radio system in
your
vehicle could affect electronic systems such as multi-
port fuel injection
system/sequential multiport fuel injection
system, electronically controlled fuel pump, electronic
throttle control system, cruise control system, anti-lock
brake system, active traction control system, vehicle sta-
bility control system, rear
height control air suspension,
Toyota electronic modulated suspension, SRS airbag sys-
tem and
seat belt pretensioner system, be sure to check
with your Toyota dealer for precautionary measures or spe-
cial
instructions regarding installation.
Maintenance schedule
Please refer to the separate "Warranty and Service Book-
let".
Not For Reproduction

,
Scrapping of your Toyota
The SRS airbag and front seat belt pretensioner devices in
your Toyota contain explosive chemicals. If the vehicle is
scrapped with the airbags and pretensioners left as they
are, this may cause an accident such as fire. Be sure to
have the systems of the SRS airbag and seat belt preten-
sioner removed and disposed of by a qualified service
shop or by your Toyota dealer before you dispose of your
vehicle.
iv
On-pavement and off-road
driving tips
This vehicle belongs to the utility vehicle class. Utility ve-
hicles have a
significantly higher rollover rate than other
types of vehicles. This vehicle will handle and maneuver
differently from an ordinary passenger car because it is
designed for
off-road use also. In addition, this vehicle
has ahigher ground clearance and center of gravity than
that of an ordinary passenger car. This vehicle design fea-
ture causes this type of vehicle to be more likely to rol-
lover. Failure
to operate this vehicle correctly may result in
loss of control,
accidents or vehicle rollover causing death
or serious injury. Be sure to read "Off-road vehicle precau-
tions" on page 222 in Section 2and "Off-road driving pre-
cautions" on page 245
in Section 3.
Not For Reproduction

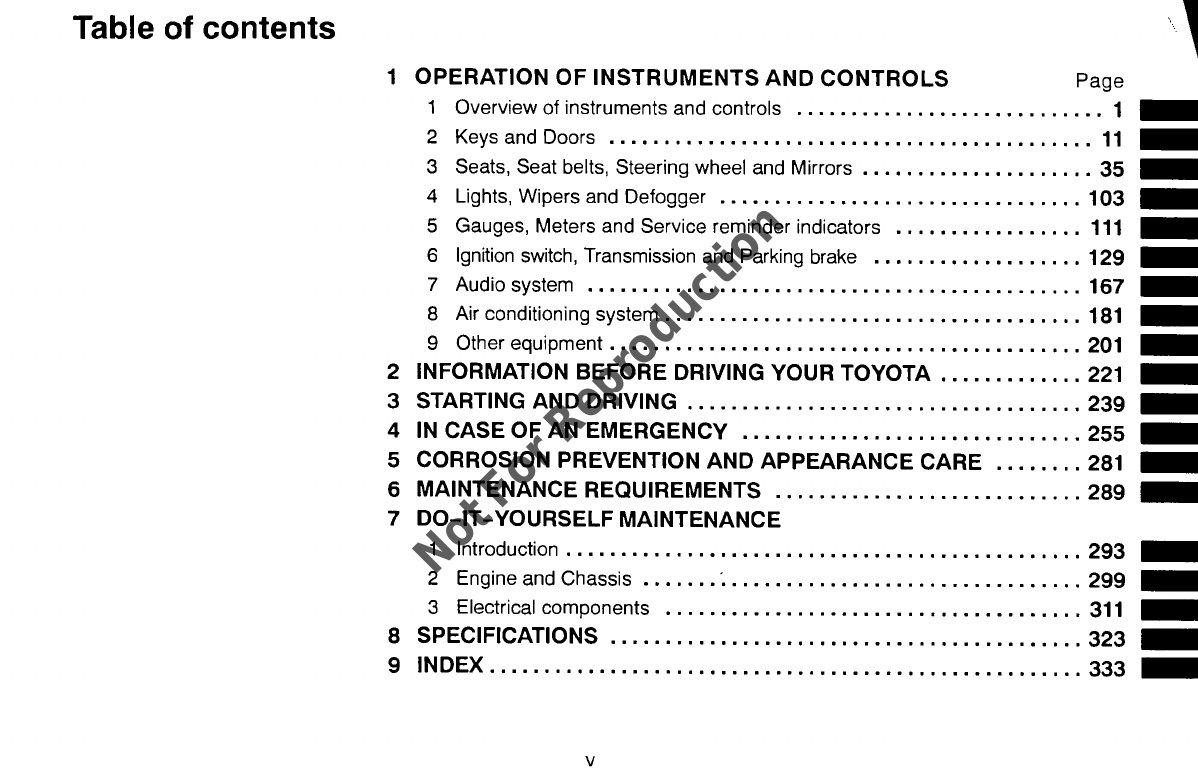

Table of contents .. ,
1OPERATION OF INSTRUMENTS AND CONTROLS Page
1Overview of instruments and controls
.•.•••....••••.•.•••••....•• 1 _
2Keys and Doors
...•.•••......•••.......•.....•.••.......•.. 11 _
3Seats, Seat belts, Steering wheel and Mirrors ...•••.•..•.•......• .35 _
4Lights, Wipers and Defogger .•••••....•••••...•.•....•..••••• 103 _
5Gauges, Meters and Service reminder indicators •.•••...•...••.•. 111 _
6 Ignition switch, Transmission and Parking brake .•••...•••••.....•• 129 _
7Audio system •••.......••••.•..............••••...•....... 167 _
8Air conditioning system •.•...•.••......••••.....••.•..•••••• . 181 _
9Other equipment .•..•••••.•.•.•••..•..•••......•••..•..••• . 201 _
2INFORMATION BEFORE DRIVING YOUR TOYOTA
221 _
3STARTING AND DRiViNG 239 _
4
IN CASE OF AN EMERGENCY 255 _
5CORROSION PREVENTION AND APPEARANCE CARE
281 _
6MAINTENANCE REQUIREMENTS 289 _
7DO-lT-YOURSELF MAINTENANCE
1 Introduction 293 _
2Engine and Chassis •••.•.• ' •..•......•••.....•.•.•..•..••.• .299 _
3Electrical components •...•••.•.•....•••.....•••.•..•..•.•.. 311 _
8SPECIFICATIONS 323 _
9INDEX 333 _
v
Not For Reproduction

vi
Not For Reproduction

SECTION 1-1 ~
OPERATION OF INSTRUMENTS AND _
CONTROLS
Overview of instruments and controls
Instrument panel overview 2
Instrument cluster
overview 6

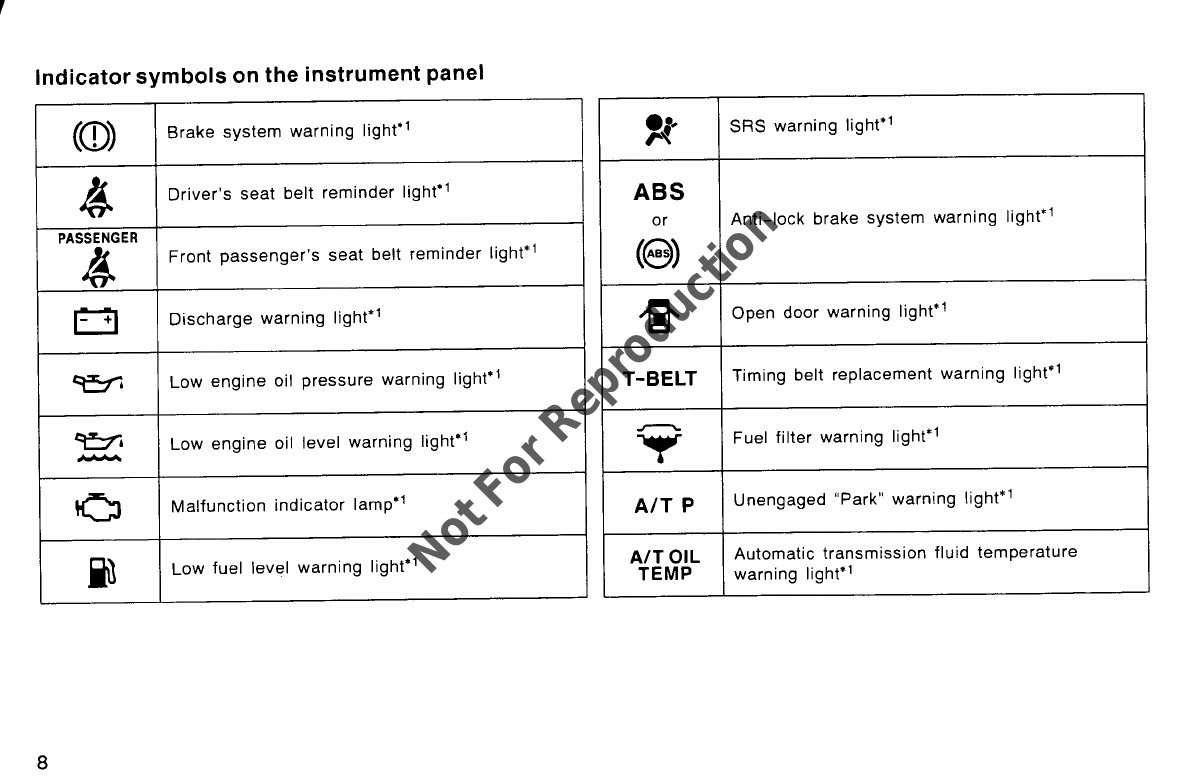

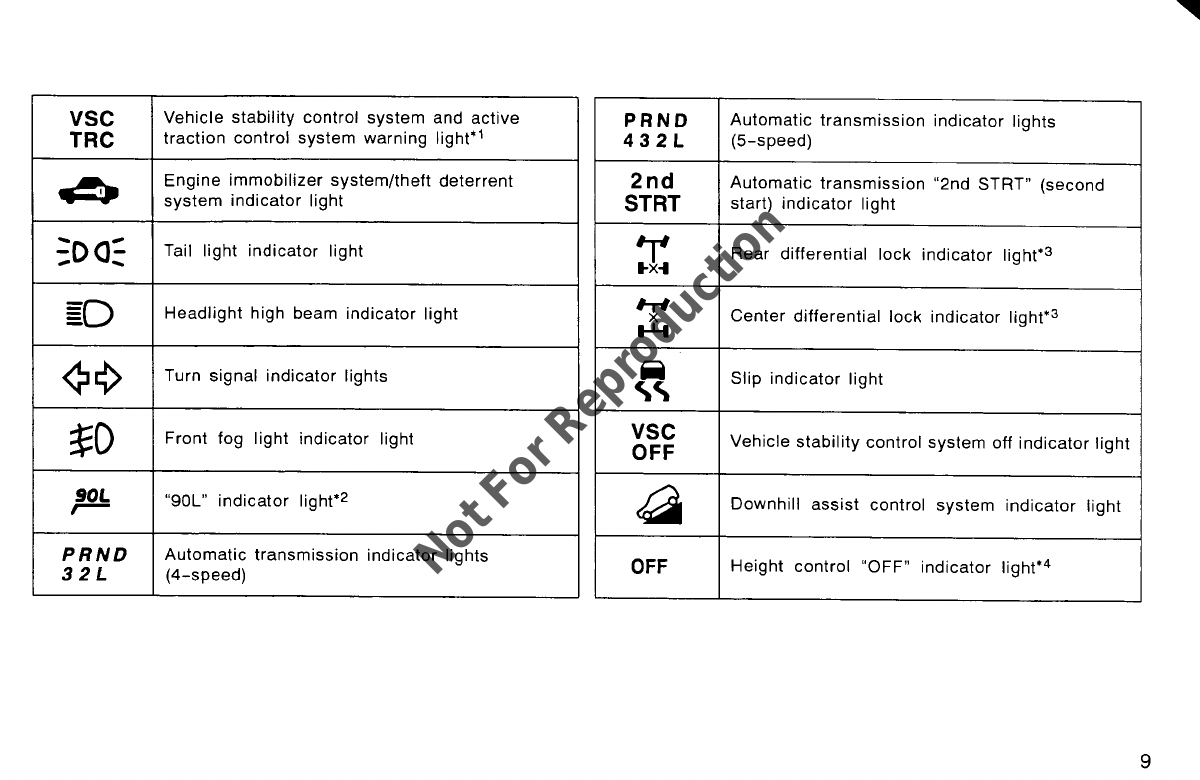

Indicator symbols on the
instrument panel 8
Not For Reproduction

Instrument panel overview
~View Awith manual transmission
12 11
2
6---..
15 13
34 5 678
EY11069y
1. Personal lights
2. Electric moon roof switch and/or
personal light switch
3. Auxiliary box
4. Center vents
5. I nstrument cluster
6. Side defroster outlets
7. Side vents
8. Power door lock switch
9. Power window switches
10. Window lock switch
11. Fuel filler door opener
12. Hood lock release lever
13. Parking brake lever
14. Cup holders
15. Rear cooler controls
16. Toyota electronic modulated suspension
mode select switch and rear height
control air suspension switch
17. Four-wheel drive control lever
18. Manual transmission gear shift lever
19. Glove box
Not For Reproduction

~View Awith automatic transmission
1. Personal lights
2. Electric moon roof switch and/or
personal light switch
3. Auxiliary box
4. Center vents
5. Instrument cluster
6. Side defroster outlets
7. Side vents
8. Power door lock switch
9. Power window switches
10. Window lock switch .
11. Fuel filler door opener
12. Hood lock release lever
13. Toyota electronic modulated suspension
mode select switch and rear height
control air suspension switch
14. Downhill assist control (DAC) switch
15. Parking brake lever
16. Cup holders
17. Rear cooler controls
18. Automatic transmission selector lever
19. Four-wheel drive control lever
20. Glove box
EY11016y
8
9
7
10
6
1312 11
16 15 14
17
6
7
9
20 --=-~'-:r-7"T'--i-"":;'-
19 ----"",.....,:..f-,~~-r:+i--+
18 -----"-------::r"----::;;>;.-~~
3
Not For Reproduction

,
~View Bwith manual air conditioning controls
20 -ii----
19
18~
17-n:----
16-+ir--
4
1
15 1413
2 3 4
12 11 10
5
9 8
EYl1133y
1. Clock/outside temperature display or
multi-information display
2. Emergency flasher switch
3. Tilt steering lock release lever
4. Wiper and washer switches
5. Headlight, turn signal and front fog
light
switches
6. Ignition switch
7. Power rear view mirror control switches
8. Instrument panel light control dial
9. Cruise control switch
10. Telescopic steering lock release lever
11. Rear differential lock switch
12. "2nd STRT" (second start) mode
selector button
13.
Power outlet
14. Center differential lock switch
15. Ashtray
16. Cigarette lighter
17. Air conditioning controls
18. Rear window defogger switch
19. Front passenger's seat belt reminder
light
20. Audio
system
Not For Reproduction

~View Bwith automatic air conditioning controls
12 3 4
12 11
10
5
9 8
EY11112y
1. Clock/outside temperature display or
multi-information display
2. Emergency flasher switch
3. Tilt steering lock release lever
4. Wiper and washer switches
5. Headlight, turn signal and front fog
light switches
6. Ignition switch
7. Power rear view mirror control switches
8. Instrument panel light control dial
9. Cruise control switch
10. Telescopic steering lock release lever
11. Rear differential lock switch
12. "2nd STRT" (second start) mode
selector button
13. Power outlet
14.
Center differential lock switch
15. Ashtray
16. Cigarette lighter
17. Air conditioning controls
18.
Rear window defogger switch
19. Front passenger's seat belt reminder
light
20. Audio system
5
Not For Reproduction

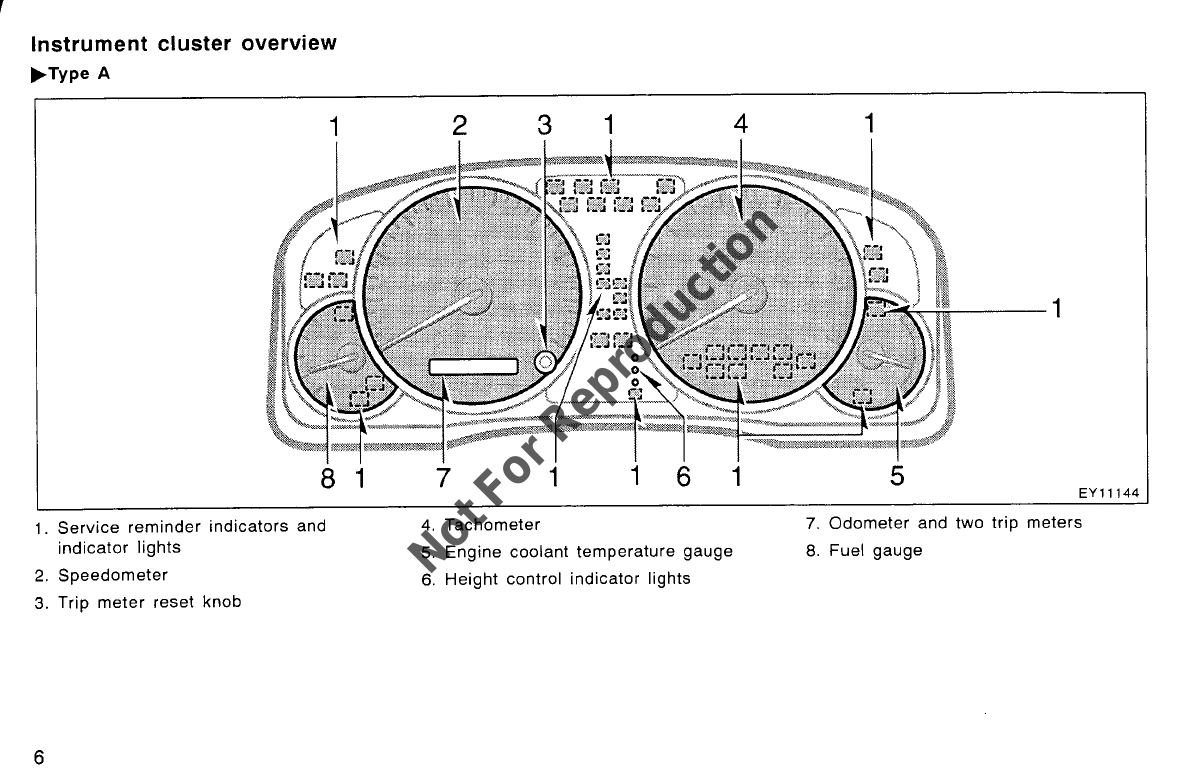

Instrument cluster overview
~Type A
1
8 1 7
23
1
1
16
4
1
1
----m;----1
5
EY11144
1. Service reminder indicators and
indicator lights
2. Speedometer
3. Trip meter reset knob
6
4. Tachometer
5. Engine coolant temperature gauge
6. Height control indicator lights
7. Odometer and two trip meters
8. Fuel gauge
Not For Reproduction

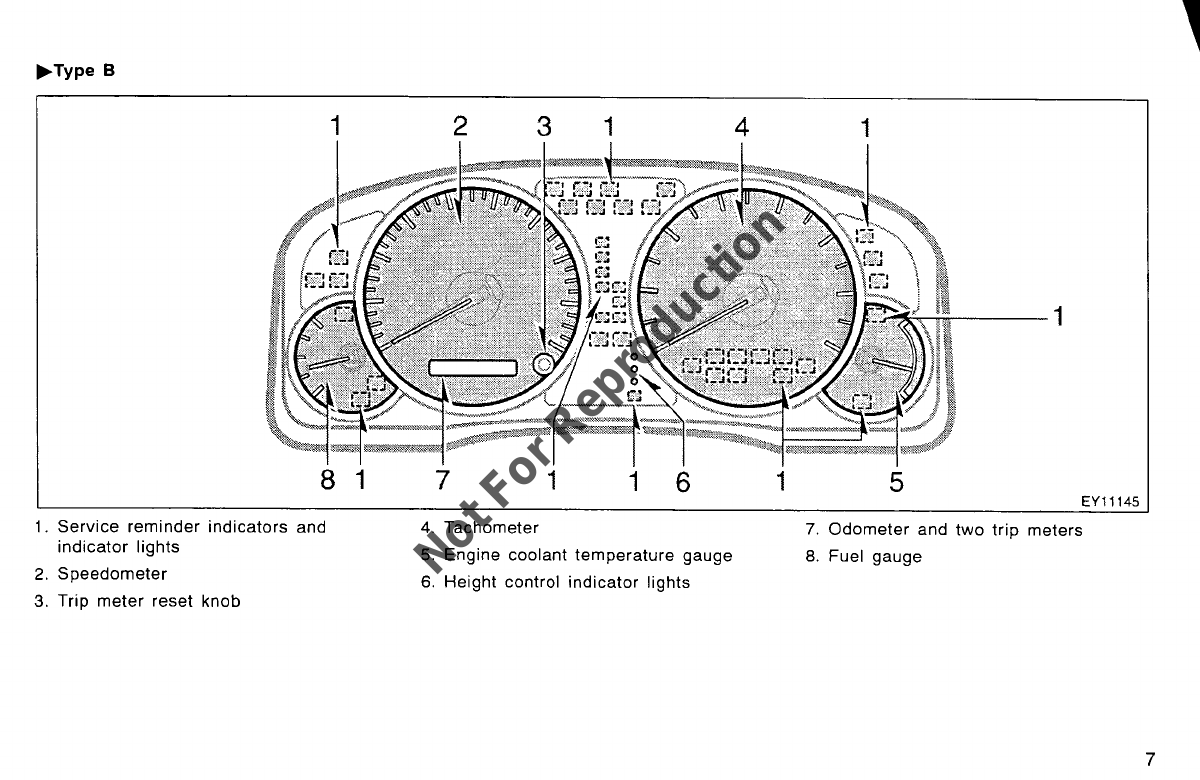

~Type B
1 2 3141
7
8 1
CS]fs1J\
o
o
o
rJ
F::;;;;';;;~~~,@,mlmmt'_tm",,, 1-- __ -'
1 1 6 1 5
---iii----1
EY11145
1. Service reminder indicators and
indicator lights
2. Speedometer
3. Trip meter reset knob
4. Tachometer
5. Engine coolant temperature gauge
6. Height control indicator lights
7. Odometer and two trip meters
8. Fuel gauge
7
Not For Reproduction

Indicator symbols on the instrument panel
(CD)
Brake system warning light*1
~
Driver's seat belt reminder light*1
PASSENGER
~
Front passenger's seat belt reminder light*1
E3
Discharge warning light*1
~
Low engine oil pressure warning light*1
~ Low engine oil level warning light*1
~
to
Malfunction indicator lamp*1
il1
Low fuel level warning light*1
8
....
SRS warning Iight*1
~
ASS
or
Anti-lock brake system warning light*1
(8)
~
Open door warning light*1
T-BELT Timing belt
replacement warning light*1
.r-->..
Fuel filter warning light*1
y
AfT PUnengaged "Park"
warning light*1
AfT OIL
Automatic transmission fluid temperature
TEMP warning light*1
Not For Reproduction

VSC
Vehicle stability control system and active
TRC
traction control system warning light*1
~
Engine immobilizer system/theft deterrent
system indicator light
:DO~
Tail light indicator light
.... ....
=0
Headlight high beam indicator light
~~
Turn signal indicator lights
$D
Front fog light indicator light
90l
"90l" indicator
light*2
~
PRND
Automatic transmission indicator lights
32L
(4-speed)
PRND
Automatic transmission indicator lights
432L
(5-speed)
2nd
Automatic transmission "2nd STRT" (second
STRT
start) indicator light
:!:
Rear differential lock indicator light*3
:±:
Center differential lock indicator light*3
~
Slip indicator light
~~
VSC
Vehicle stability control system off indicator light
OFF
~
Downhill assist control system indicator light
OFF
Height control "OFF" indicator light*4
9
Not For Reproduction

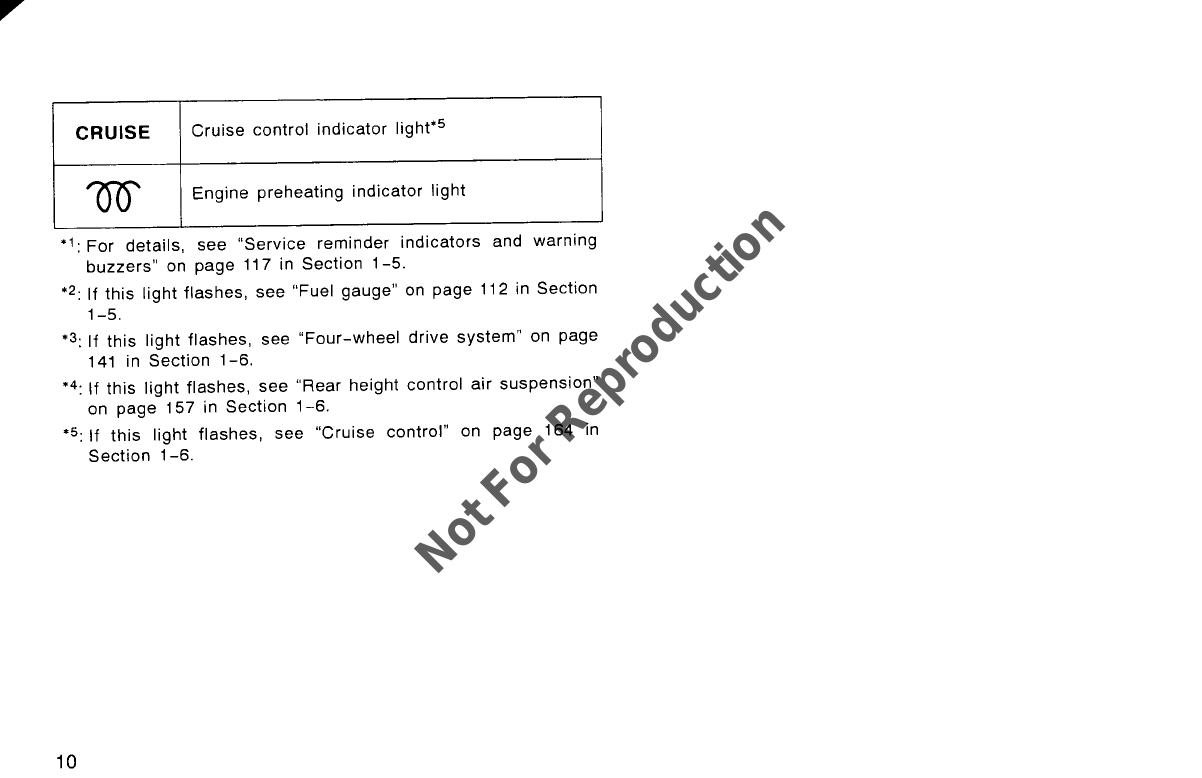

CRUISE
Cruise control indicator light*s
Engine preheating indicator light
*1: For details, see "Service reminder indicators and warning
buzzers" on page 117 in Section 1-5.
*2: If this light flashes, see "Fuel gauge" on page 112 in Section
1-5.
*3: If this light flashes, see "Four-wheel drive system" on page
141 in Section 1-6.
*4: If this light flashes, see "Rear height control air suspension"
on page 157 in Section 1-6.
*5: If this light flashes, see "Cruise control" on page 164 in
Section 1 -6.
10
Not For Reproduction

SECTION 1-2
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 12
Engine
immobilizer system 14
Wireless remote control 15
Side doors
19
Power windows 22
Quarter
windows 24
Back
door 24
Hood ,28
Theft
deterrent system 28
Fuel
tank cap 30
Electric moon roof 32
-
11
Not For Reproduction

Keys
Without wireless remote control system
1
!
1
EY12049
EY12048
Your vehicle is supplied with two kinds
of keys.
1. Master keys-
These keys work in every lock. Your
Toyota
dealer will need one of them to
make anew key with a built-in trans-
ponder chip.
Since the side doors and back door
can be locked
without akey, you
should
always carry a spare master
key in
case you accidentally lock your
keys
inside the vehicle.
With wireless remote control system-
These keys are fitted with the wireless
remote control transmitter. For informa-
tion on
use of the wireless remote con-
trol transmitter, see
"-Wireless remote
control" on page 15 in
this Section.
2. Sub key-
This key will not work in the glove box.
To protect items locked in the glove
box when using
valet parking, leave
the sub key with the attendant.
A
transponder chip for engine immobilizer
system has been placed in the head of
the
master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able
to cancel the system
or start the engine.
With wireless remote control system
12
Not For Reproduction

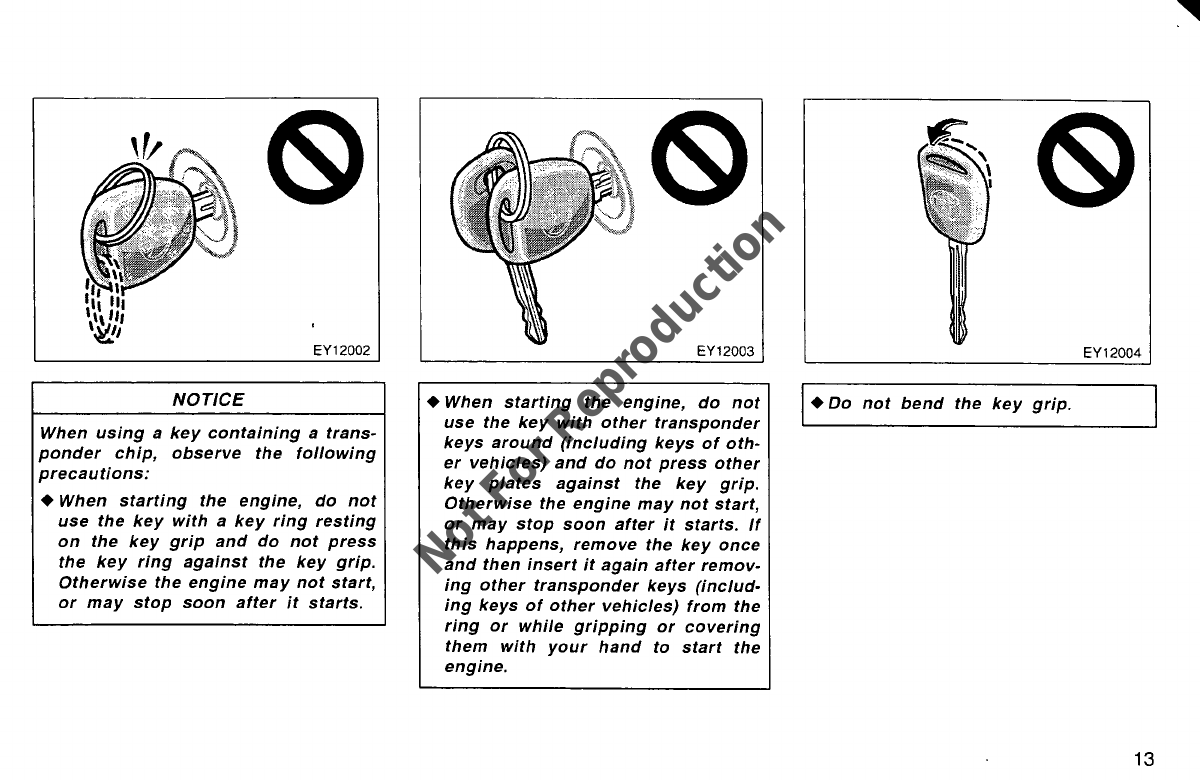

EY12002
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
• When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
EY12003
• When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip .
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ.
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.
EY12004
I. Do not bend the key grip.
13
Not For Reproduction
