Toyota 2009 Tundra User manual

MN 00505-QRG09-TUN
Printed in the USA 7/08
2009
Quick Reference Guide

29
Spare tire & tools
Tool location
Removing the spare tire
(1) Assemble the jack handle.
(2) Insert the jack handle end into the lowering screw.
(3) T
urn the jack handle counterclockwise.
Refer to the Owner’s Manual for tire changing and jack positioning
procedures.
Regular cab models
-behind the right seatback
Double cab models
-under the right rear seats
with storage box
Tool bag
Jack
Tool bag
Jack
Tool bag
Jack
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Rear door
Double cab models
-under the right rear seats
without storage box
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Doors-Child safety locks
(CrewMax and double cab models)
CrewMax models
-behind the right rear seatback
Tool bag
Jack
(1) (2)
(3)
2009
Tundra
!Aword about safe vehicle operations
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new Tundra.
This Quick Reference Guide is not a full description of Tundra
operations. Every Tundra owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual.Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.

1
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
INDEX
Engine maintenance 8
Fuel tank door release and cap 7
Hood release 7
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry16
Light control-Instrument panel 6

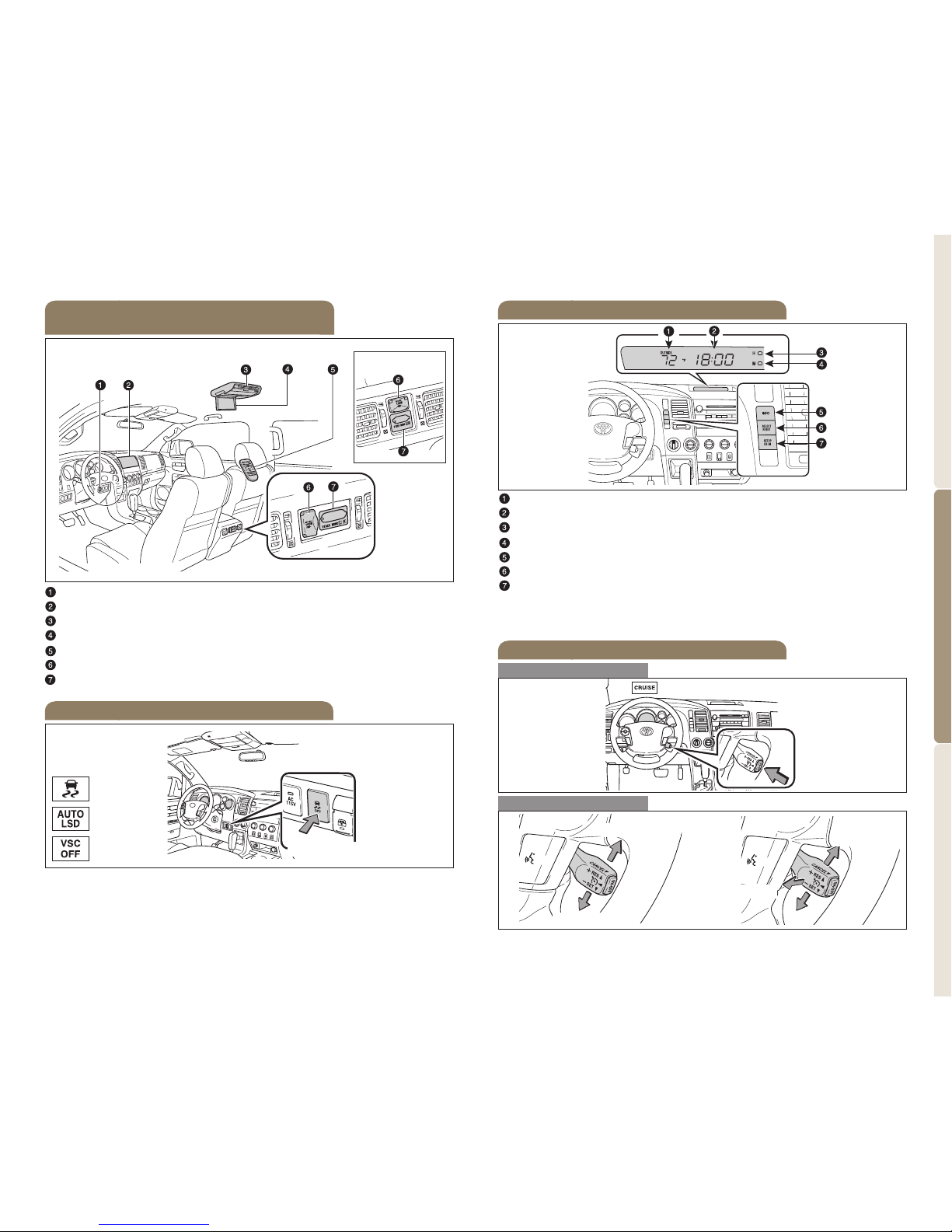

Accessory meter 25
Air Conditioning/Heating 20-21

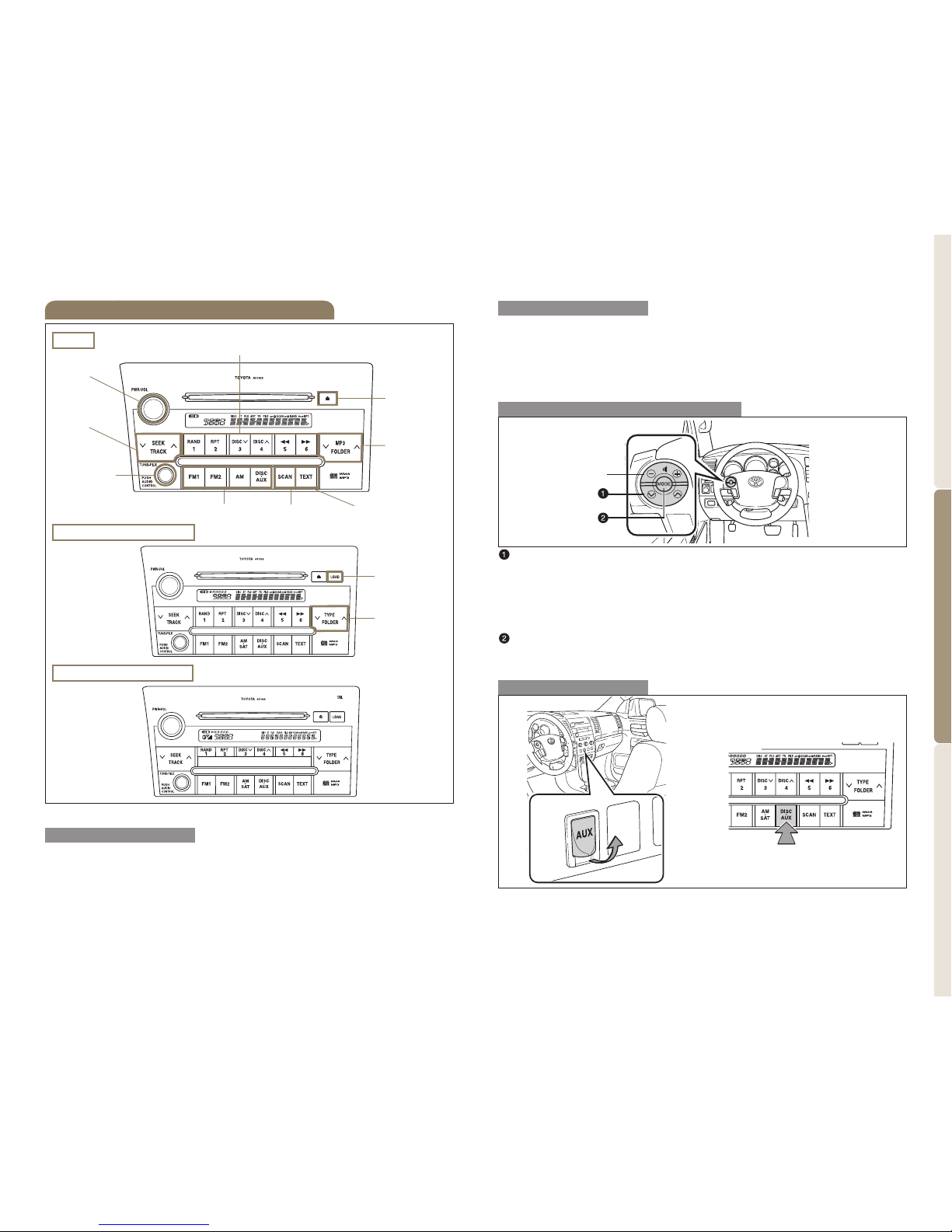

Audio 22-23
Automatic Transmission 9

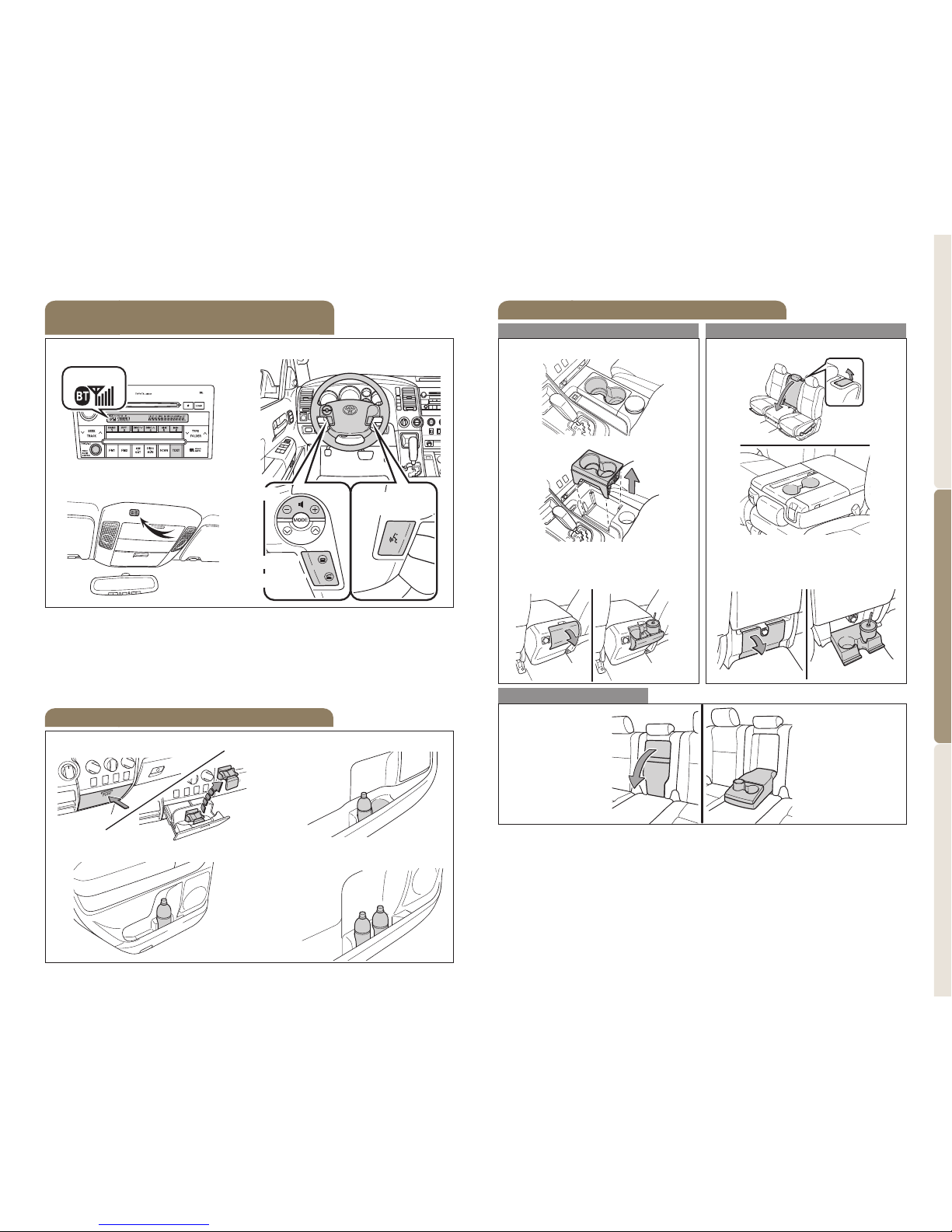

Bottle holders 26
Cruise control 25
Cup holders 27
Door locks 10
Four-wheel drive 10
Garage door opener (HomeLink®)321

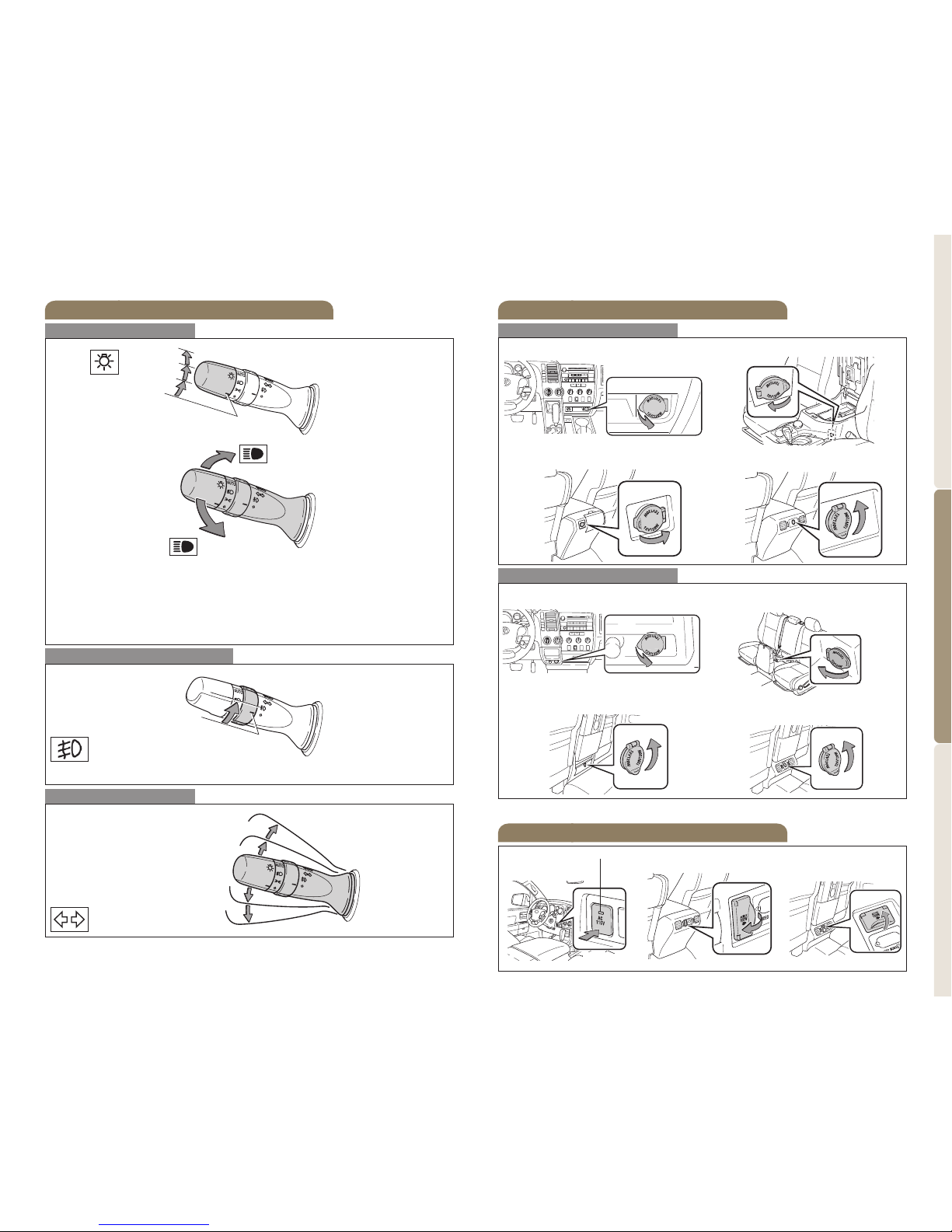

Lights1&turn signals 16
Mirrors-Power side view 10
Moonroof 12
Multi-information display218

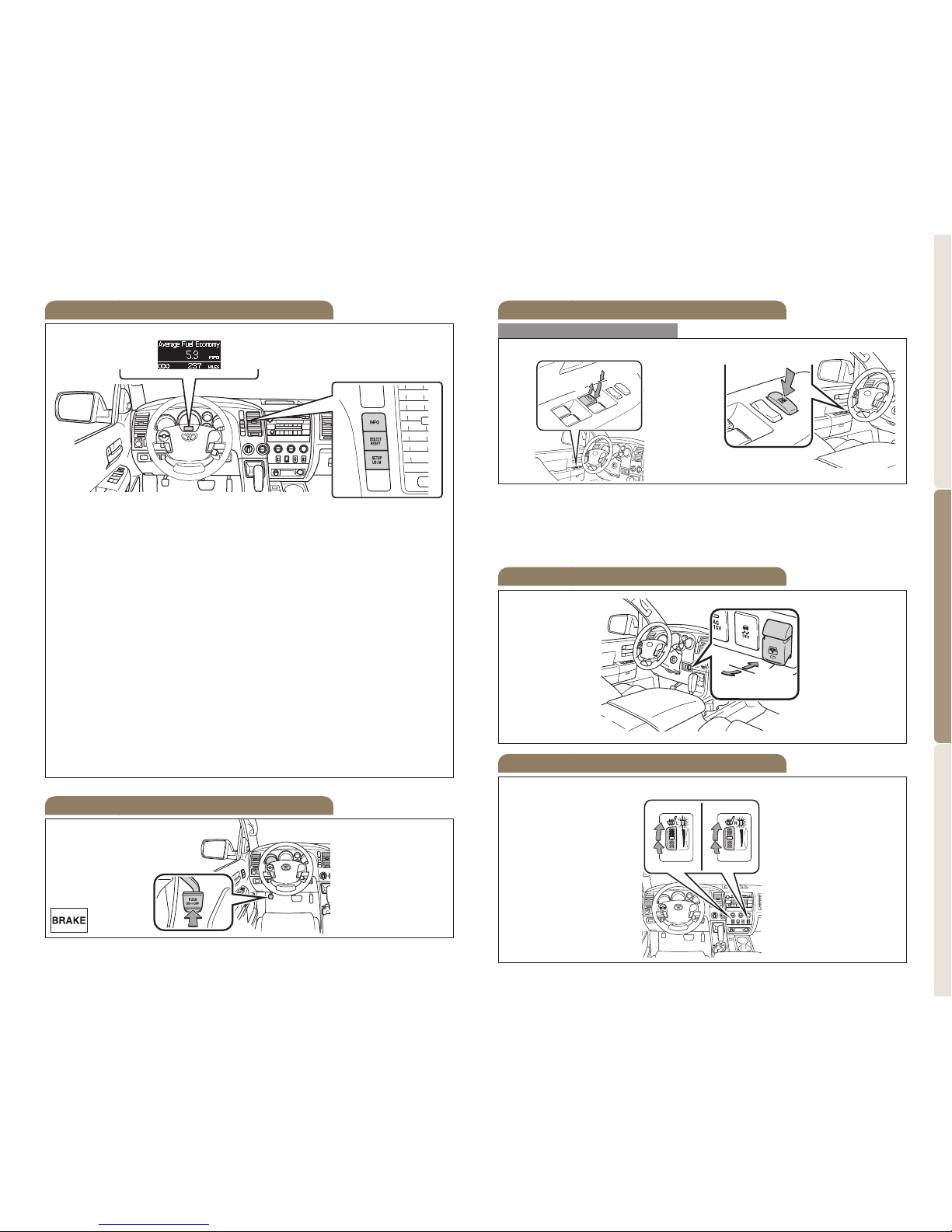

Parking brake 18
Power outlets-12V DC 17
Power outlets-115V AC 17
Rear seat entertainment system 24
Seat adjustments-Front 12-13
Seat adjustments-Rear 13
Seat heaters 19
Seats-Folding 14-15
Seats-Head restraints 14
Telephone controls (Bluetooth®)26
Tilt and telescopic steering wheel 11
“TOW/HAUL” switch 11
VSC OFF button 24
Window-Rear 19
Windows-Power 19
Windshield wipers & washers 15
Doors-Child safety locks 29

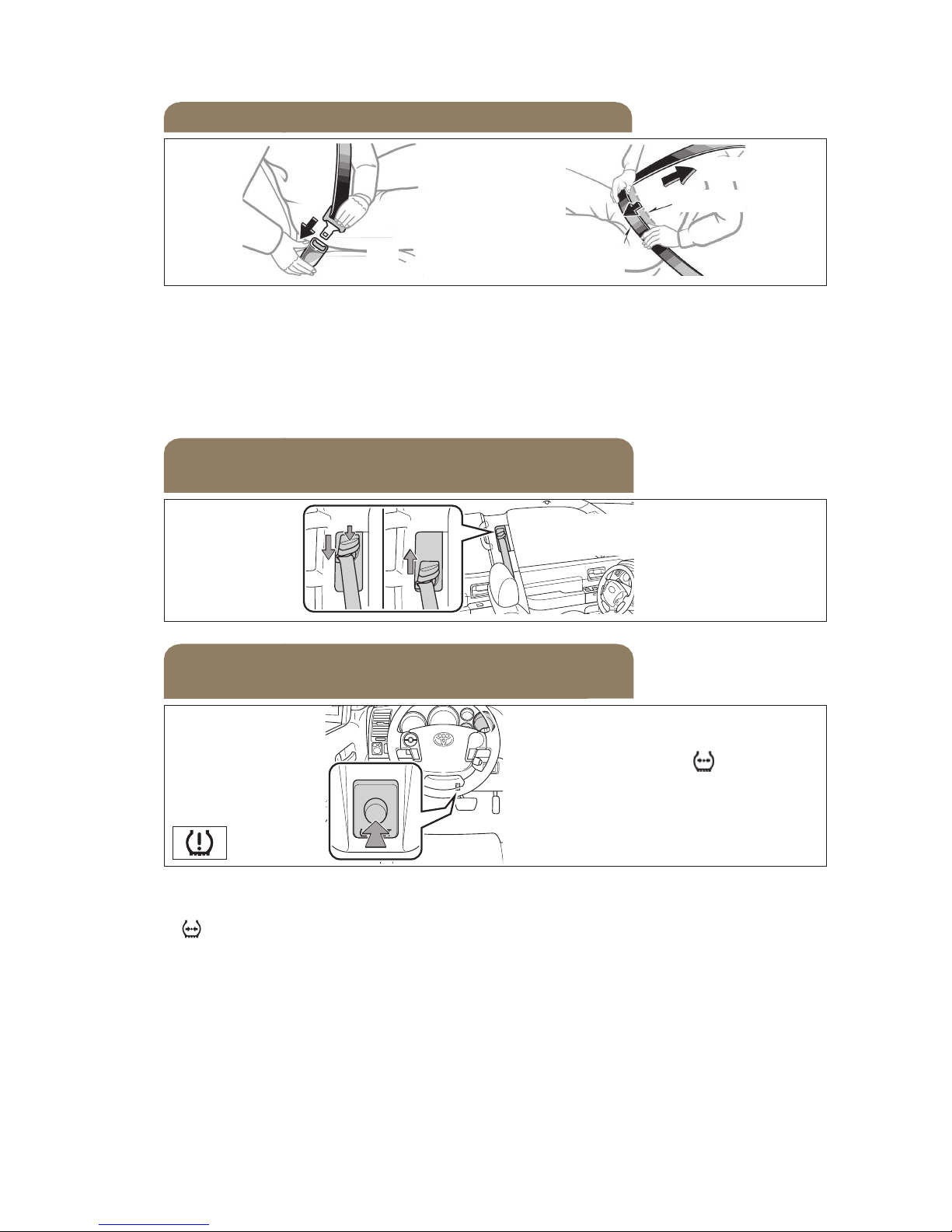

Seat belts 28
Seat belts-Shoulder belt anchor 28
Spare tire & tools 29
Tire Pressure Monitoring (warning) System 28
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.
2Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.

2 3
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
OVERVIEW
Instrument panel
Steering wheel audio controls1
Telephone controls1
Voice command button1,2
Headlight and turn signal controls
Engine switch
115V AC Power outlet ON/OFF switch1
VSC OFF button
Power back window switch1
Emergency flasher button
Multi-information display/Accessory meter control buttons1
Intuitive parking assist button1
Wiper and washer controls
Accessory meter1
Theft deterrent system/Engine immobilizer indicator1
Intuitive parking assist indicator1
Audio system or navigation system-integrated audio system2
Outside rearview mirror/Back window defogger button1
Front passenger seat belt reminder
Front passenger occupant classification indicator or front passenger
airbag ON/OFF indicator1
Bench seat with manual
Air Conditioning System
Steering wheel
controls (if equipped)
Seat heater controls1
Front passenger airbag manual ON/OFF
switch1(in glove box)
Air Conditioning controls
12V DC Power outlet
AUX audio jack
Cigarette lighter
“TOW/HAUL” button1
Two-wheel/Four-wheel drive selector1
Cruise control1
Tire Pressure Warning System reset
Interior light/Personal light main switch
Instrument panel light control
“RSCA OFF” switch
Cargo lamp switch
Power rearview mirror control1
Separate seat with manual
Air Conditioning system
1If equipped
2For vehicles with a navigation system, refer to the “Navigation System
Owner’s Manual.”

4 5
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
OVERVIEW
Indicator symbols
Instrument cluster
Tachometer
Service indicator and reminder
Speedometer
Fuel gauge
Voltmeter
Oil pressure gauge
Engine coolant temperature
Trip meter reset knob
Odometer and two trip meters
Multi-information display
Automatic Transmission shift position indicator
Automatic Transmission shift range display
Automatic Transmission fluid temperature gauge
Without multi-information display
With multi-information display
Driver/Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Charging system warning1
Low engine oil pressure warning1
Brake system warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
Front passenger occupant classification or front passenger airbag
ON/OFF indicator1
Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
High/Low speed four-wheel drive indicator
Slip indicator1
Vehicle Stability Control OFF indicator/warning1
TOW/HAUL mode indicator
AUTO Limited Slip Differential indicator1
Cruise control indicator
Automatic Transmission fluid temperature warning1
Low Tire Pressure Warning1
Theft deterrent/Engine immobilizer system indicator
Low fuel level warning
Open door warning
Roll Sensing Curtain Airbags OFF indicator1
Airbag SRS warning1
Master warning
Low windshield washer fluid level warning
For details, refer to indicators and warning lights,” Section 2-2, 2009
Owner’s Manual.
1If indicator does not turn off within a few seconds of starting engine, there may
be a malfunction. Have vehicle inspected by your Toyota dealer.

6 7
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
OVERVIEW
Keyless entry Fuel tank door release and cap
Hood release
Pull up latch and
raise hood
Pull
Panic button
NOTE: If a door is not opened within 30 seconds of unlocking, all doors will
relock for safety.
Push
Push and hold
Push ONCE: Driver door
TWICE: All doors
Locking operation
Unlocking operation
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
Pull
Store
Light control-Instrument panel
Brightness
control
-
+
Turn

8 9
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
OVERVIEW FEATURES/OPERATIONS
Automatic Transmission
*The engine switch must be set at “ON” and the brake pedal depressed to
shift from Park.
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
“S” (Sequential) mode
Shift the shift lever to “S” position from “D” position.
Windshield washer fluid tank
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
Power steering fluid reservoir
Note: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance
6cylinder (1GR-FE) engine
4.7L 8 cylinder (2UZ-FE) engine
5.7L 8 cylinder (3UR-FE/3UR-FBE) engine
Floor shift type
Column shift type
Park*
Reverse
Neutral
Drive
“S” mode
“S” “D”
Park*
Reverse
Neutral
Drive
“S” mode
+(“S” mode)
-(“S” mode)
Floor shift type:
+: Upshift (push and release)
-: Downshift (pull and release)
Column shift type:
+: Upshift (turn up and release)
-: Downshift (turn down and release)

10 11
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS
Four-wheel drive (if equipped)
High speed (2WD)
High speed (4WD)
Turn to “4H” with speed below 62 mph.
Low speed (4WD)
Shift to “N” position when stopped, then push and turn to “4L.”
WD
For best fuel economy and performance under normal driving conditions,
keep in “2WD” position.
Push
and turn
Turn
Turn
Mirrors-Power side view (if equipped)
Fold mirrors in
Return mirrors to original
position
Adjust
Select left or right
Key must be in the “ACC” or “ON” position.
Door locks (if equipped)
Lock
Unlock
Hold wheel, push lever down, set angle and length, and return lever.
Manual
Tilt steering wheel Tilt and telescopic steering wheel
Tilt and telescopic (if equipped)
steering wheel
Length
Lock release lever
Lock release lever
Angle
Push the control switch, set angle and length.
Note: Do not attempt to adjust while the vehicle is in motion.
Power
Angle
Control switch
“TOW/HAUL” switch (if equipped)
“TOW/HAUL” mode can be used when carrying heavy loads. As fuel
economy is reduced while in “TOW/HAUL” mode, deactivating when
driving without a load is recommended.
Refer to the Owner‘s Manual for more details on this system before
attempting to use it.
Floor shift type
System ON/OFF
Column shift type
System
ON/OFF
Length
Up
Toward the
driver
Away from
the driver
Down
Angle

12 13
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS
Seat adjustments-Front
Manual seat
Separate seat
-Regular cab model
Separate seat
-Double cab and CrewMax models
Position
Seatback angle and fold
Moonroof (if equipped)
Sliding operation Tilting operation
Open Tilt
Close Close
Position
Seatback angle
Seat cushion angle
Seat height
Lumbar support (if equipped)
Seatback angle (side)
Seatback angle (center)
Leg support
Position, cushion angle and height
Power seat
Seat adjustments-Rear
(CrewMax models)
Bench seat
*
*
Push once to open/close completely. To stop partway, press the
switch lightly.
* Double cab and CrewMax models only

14 15
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS
Seats-Folding
Front (regular cab model)
Rear (double cab model)
(1) Pull (2) Pull
(2)
(3) Lift up
Pull
(2)
(1) Stow
(3) Pull and
fold down
Rear (CrewMax model)
Windshield wipers & washers
With intermittent wiper
Interval wipe
Single wipe
Slow
Fast
Pull to wash
and wipe
Seats-Head restraints
Front-Separate seat (type B)
Front-Separate seat (type A)
Lock release button Lock release button
(1)
(2)
Rear (double cab model)
Front-Bench seat
Lock release button
Lock release button
Rear (CrewMax model)
Lock release button
(1) Stow
Without intermittent wiper
Single wipe
Slow
Fast
Pull to wash
and wipe
Adjust interval*
*Intermittent windshield wiper interval adjustment
Rotate to increase/decrease wipe frequency.

16 17
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS
Power outlets-12V DC (if equipped)
Separate seats
Bench seat
Instrument panel Under the seat cushion
of the front center seat
Back of the center console box
(CrewMax model)
Instrument panel Inside of the center console box
Back of the front center seat
(CrewMax model)
Key must be in the “ACC” or “ON” position to be used.
Power outlets-115V AC (if equipped)
ON/OFF switch
Back of the center
console box
Back of the front
center seat
Push
Lights & turn signals
Turn signals
Headlights
High beam flasher
Low beam
Front fog lights (if equipped)
Headlights
-Daytime Running Light system (DRL) Automatically turns on the turn
signal lights at a reduced intensity.
-Automatic light cut off system Automatically turns lights off after a
delay of 30 seconds, or the lock switch on remote may be pushed
after locking.
Front fog lights come on only when the headlights are on low beam.
Parking lights
Right turn
Turn
Lane change
Lane change
Left turn
High beam
Auto
Back of the center console box
Back of the front center seat

18 19
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS
Windows-Power (if equipped)
Regular cab model
Window lock switch
Automatic down operation (driver side only)
Push the switch completely down and release to fully open. To stop
window midway, lightly pull up on the switch.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Multi-information display (if equipped)
Push “INFO” to change information in the following:
(1) Zoom display of odometer and trip meter
(2) Average gas mileage
(3) Current gas mileage
(4) Miles left on remaining fuel
(5) Running time from engine start
(6) Average vehicle speed
Push “SETUP US/M” to customize to the following settings:
(1) UNIT (US/M)
(2) KEYLESS ENTRY FEEDBACK
(3) KEYLESS ENTRY RELOCK TIMER
(4) KEYLESS ENTRY ALL DOORS UNLOCK
(5) DOOR AUTO LOCKING
(6) DOOR AUTO UNLOCKING
(7) HEADLAMPS AUTO OFF TIMER
(8) COURTESY LAMPS OFF TIMER
(9) DEFAULT SETTING
Window-Rear
Close
Open
CrewMax model
Up Down
Driver side
Seat heaters (if equipped)
Driver seat Front passenger seat
Parking brake
Set: Depress
Release: Depress again

20 21
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS
Air Conditioning/Heating
Fan speed
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air
intake and fan to adjust automatically.
Air Conditioning ON/OFF
Temperature selector (driver side)
Windshield defogger (fresh air only)
Airflow vent
In “ ” mode, use fresh air (“ ” indicator “OFF”) to reduce
window fogging.
Temperature selector (front passenger side)
“DUAL” button
Indicator ON: Separate temperature settings for driver and
passenger.
Indicator OFF: Synchronize temperature settings for driver and
passenger.
Outside rearview mirror/Back window defogger
Fresh or recirculated cabin air
Climate control OFF
Automatic Air Conditioning
Manual Air Conditioning
Fan speed
Air Conditioning ON/OFF
Fresh or recirculated cabin air
Outside rearview mirror/Back window defogger (if equipped)
Temperature selector (front passenger side)
Synchronize with driver side temperature setting
Airflow vent selector
Temperature selector (driver side)
Select for maximum cooling. Air intake will automatically be set to
recirculate. It is not possible to change intake to fresh, or to turn A/C
OFF in this mode.
In “ ” or “ ” mode, use fresh air (“ ” indicator “OFF”) to
reduce window fogging.
Garage door opener (HomeLink®)*
(if equipped)
Garage door openers manufactured under license from HomeLink®* can
be programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener
,” Section 3-7 in the Owner’s Manual for
more details.
For programming assistance, contact the T
oyota Customer Experience
Center at 1-800-331-4331, or visit http://www.homelink.com.
* HomeLink®is a registered trademark of Johnson Controls, Inc.

22 23
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS
Type 2 additional functions
Type 3 (with JBL speakers)
Audio
Eject CD
Push to turn
ON/OFF
View CD
information
Push to adjust
tone, balance
&ASL*
Seek station/
CD track select
Station/CD
track scan
Mode
View MP3
folder and/or
Satellite Radio
category type
Preset buttons - functions in other
modes indicated above number
Load CD(s)
Type 1
Push to skip
up/down
MP3 folder
“ ”
-In radio mode
Push to select a preset station; push and hold to seek the next strong
station.
-In CD mode
Push to skip up or down to the next/previous track.
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
audio system OFF.
>
>
Steering wheel switches (if equipped)
RADIO
To preset stations Tune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6) to
select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.
CD PLAYER
To scan tracks on a disc Push and hold “SCAN.” Push again to hold
selection.
CD changer (Types 2 and 3 only)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) T
urn “TUNE.FILE.”
To select a folder (MP3/WMA only) Push either side of “FOLDER.”
By inserting a mini plug into the AUX audio jack, you can listen to music
from a portable audio device through the vehicle’s speaker system while
in AUX mode.
AUX audio jack
*Automatic Sound Leveling
Volume control
Push

25
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
24
FEATURES/OPERATIONS
Rear seat entertainment system
(if equipped)
115V AC Power outlet ON/OFF switch
Front audio system
DVD player
DVD screen
Remote control
115V AC Power outlet
A/V input adapter
Cruise control (if equipped)
1The set speed may also be cancelled by depressing the brake pedal.
2The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Accessory meter (if equipped)
Outside temperature/Cruise information display
Clock
Hour set
Minute set
Change information (if equipped)
“SELECT RESET” button (if equipped)
“SETUP US/M” button (if equipped) to customize unit
Refer to your Owner’s Manual for complete details on this system before
attempting to use it.
Separate seats
Bench seat
Increase speed
Decrease speed
Cancel1
Resume2
The VSC OFF button is used to switch between modes related to the TRAC,
VSC and Auto LSD functions.
Refer to Section 2-4 of the Owner’s Manual for more information.
VSC OFF button
VSC OFF button
Set

27
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
26
Cup holders
Separate seat Bench seat
Front center seat
Center console
Back of the center console box
(double cab model)
Back of the front center seatback
(double cab model)
Rear seat
CrewMax model
Bottle holders
FEATURES/OPERATIONS
Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the telephone
and the system.
Refer to “Hands-free telephone system,” Section 1-8 in the Owner’s
Manual for more details.
Telephone controls (Bluetooth®)
(if equipped)
Microphone
Audio unit Steering wheel telephone switches
Volume
Start call
End call
Voice command
button
Rear door
(CrewMax model)
Rear door
Instrument panel Front door

28
SAFETY AND
EMERGENCY FEATURES
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner's Manual.
baT
el
kc
uB
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Push up, or squeeze
lock release to lower
Seat belts-Shoulder belt anchor
(CrewMax and double cab models)
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks
three times.
2. Wait several minutes to allow
initialization to complete.
Tire Pressure Monitoring (warning)
System
After adjusting tire pressures, or after tires have been rotated or
replaced, turn the ignition switch to “ON” and press and hold the
“ SET” button until indicator blinks three times. Let the vehicle sit for a
few minutes to allow initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manual for tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then
remains on, take the vehicle to your local Toyota dealer.
Note: The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not
been initialized recently, setting the tire pressures to factory
specifications should turn off the light.

29
Spare tire & tools
Tool location
Removing the spare tire
(1) Assemble the jack handle.
(2) Insert the jack handle end into the lowering screw.
(3) T
urn the jack handle counterclockwise.
Refer to the Owner’s Manual for tire changing and jack positioning
procedures.
Regular cab models
-behind the right seatback
Double cab models
-under the right rear seats
with storage box
Tool bag
Jack
Tool bag
Jack
Tool bag
Jack
Moving the lever to “LOCK” will allow the door to be opened only from
the outside.
Rear door
Double cab models
-under the right rear seats
without storage box
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Doors-Child safety locks
(CrewMax and double cab models)
CrewMax models
-behind the right rear seatback
Tool bag
Jack
(1) (2)
(3)
2009
Tundra
!Aword about safe vehicle operations
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new Tundra.
This Quick Reference Guide is not a full description of Tundra
operations. Every Tundra owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual.Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.

MN 00505-QRG09-TUN
Printed in the USA 7/08
2009
Quick Reference Guide
