This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in your vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of your vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Venza.
Aword about safe vehicle operations
Aword about safe vehicle operations
This Quick Reference Guide is not a full description of Venza
operations. Every Venza owner should review the Owner’s Manual
that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual.Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2013
Venza
INDEX
1Visit your Toyota dealer for information on customizing this feature.
2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY
FEATURES
2013Venza.indd 6243 5/10/12 8:31 PM

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
1
2013
Venza
INDEX
1Visit your Toyota dealer for information on customizing this feature.
2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY
FEATURES
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry1,2 6
Light control-Instrument panel 8
Smart Key system1,2 7

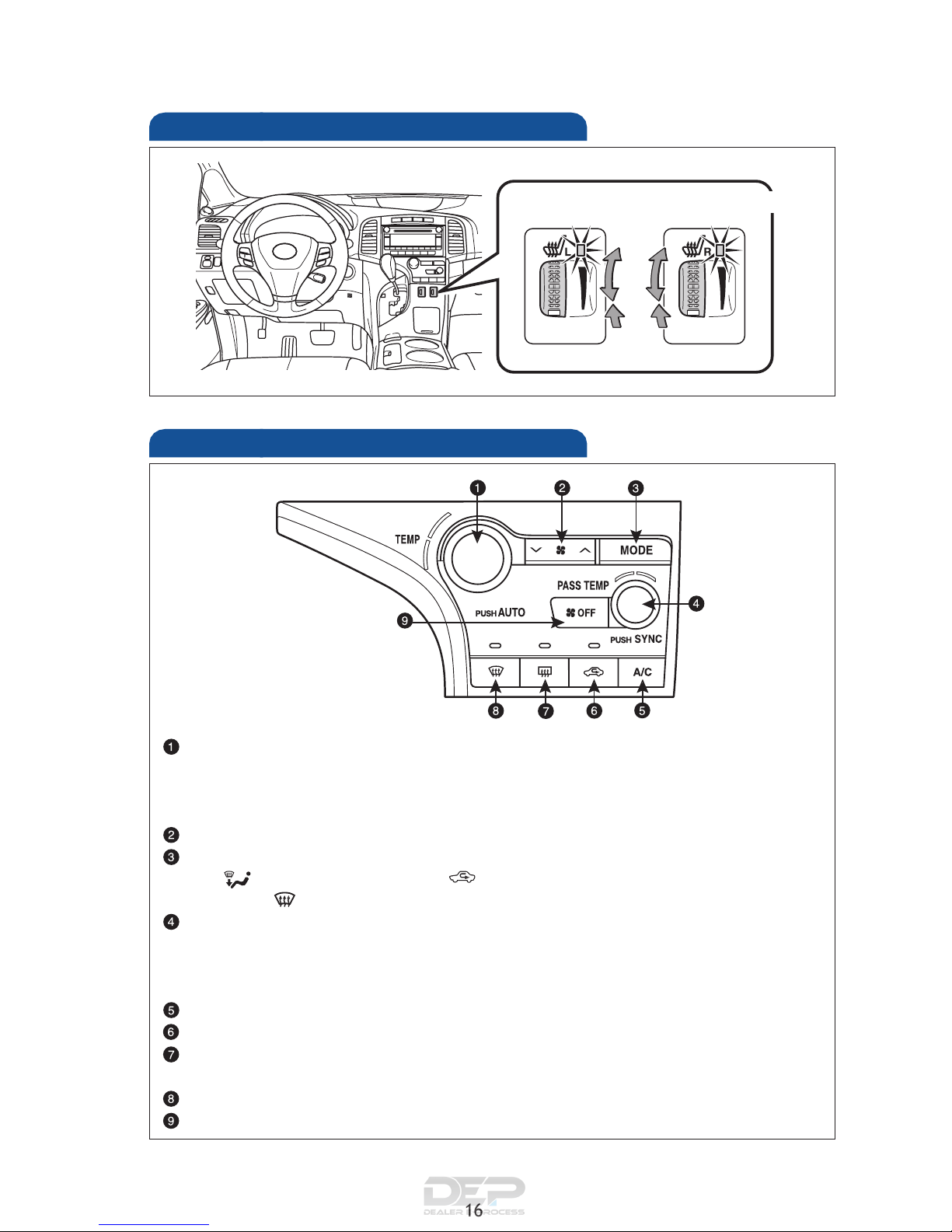

Air Conditioning/Heating 16
Audio 18-19
Auto lock/unlock111
Automatic Transmission 10
Cruise control 20
Customizable features 23
Enhanced VSC OFF button 17
Garage door opener (HomeLink®)321
Hill-start Assist Control (HAC) 20
Lights1,2 & turn signals 14-15

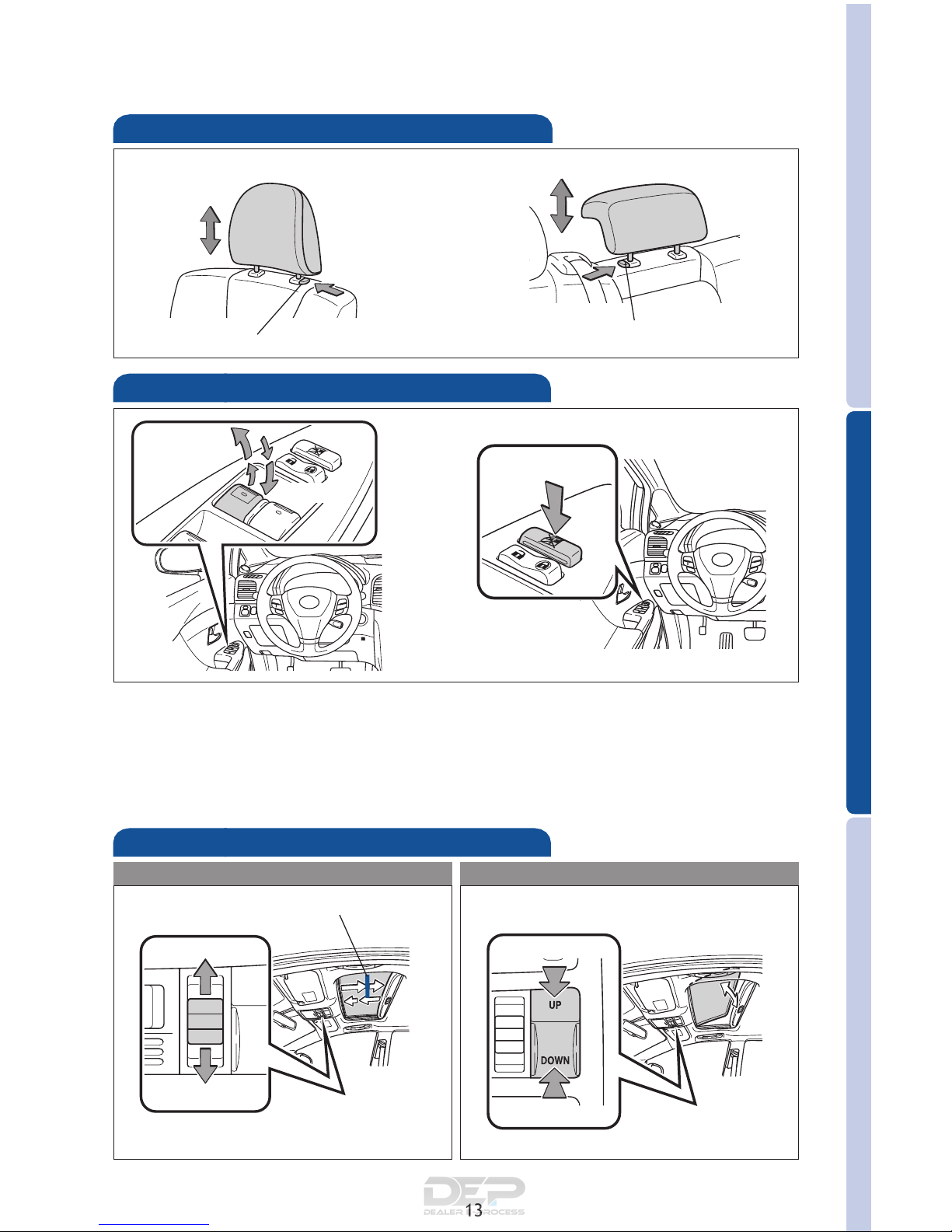

Moonroof 13
Multi-Information Display (clock)222
Parking brake 10
Power outlets-12V DC 17
Seat adjustments-Front 11
Seat adjustments-Rear 12
Seat heaters 16
Seats-Head restraints 13

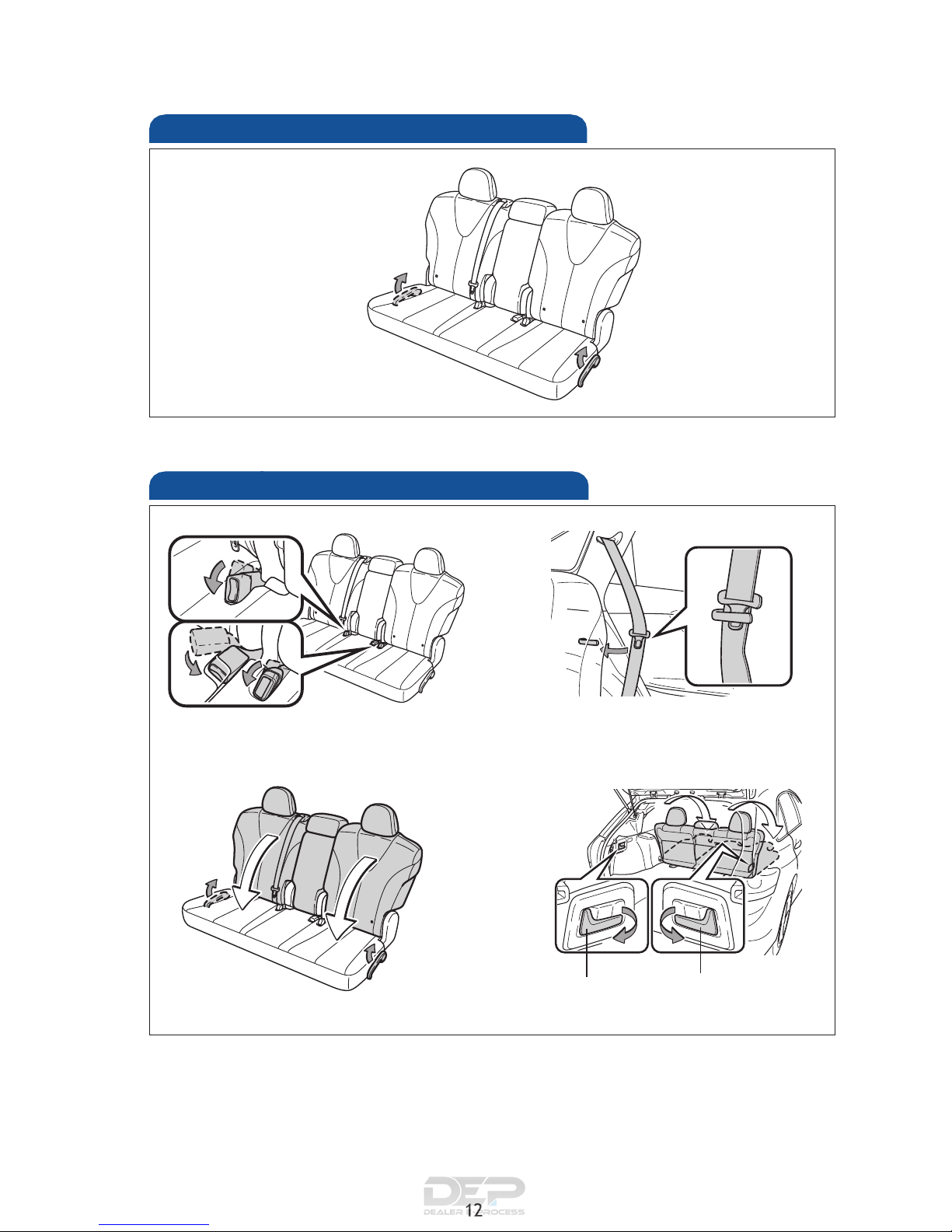

Seats-Folding rear row seats 12
Tilt and telescopic steering wheel 23
Windows-Power 13
Windshield wipers & washers 15
Door locks1,2 24
Doors-Child safety locks 25
Floor mat installation 27
Seat belts 24
Seat belts-Shoulder belt anchor 24
Spare tire & tools 25
Star Safety SystemTM 26-27
Tire Pressure Monitoring (warning) System 24
2013Venza.indd 1 5/10/12 8:32 PM

2
OVERVIEW
Instrument panel

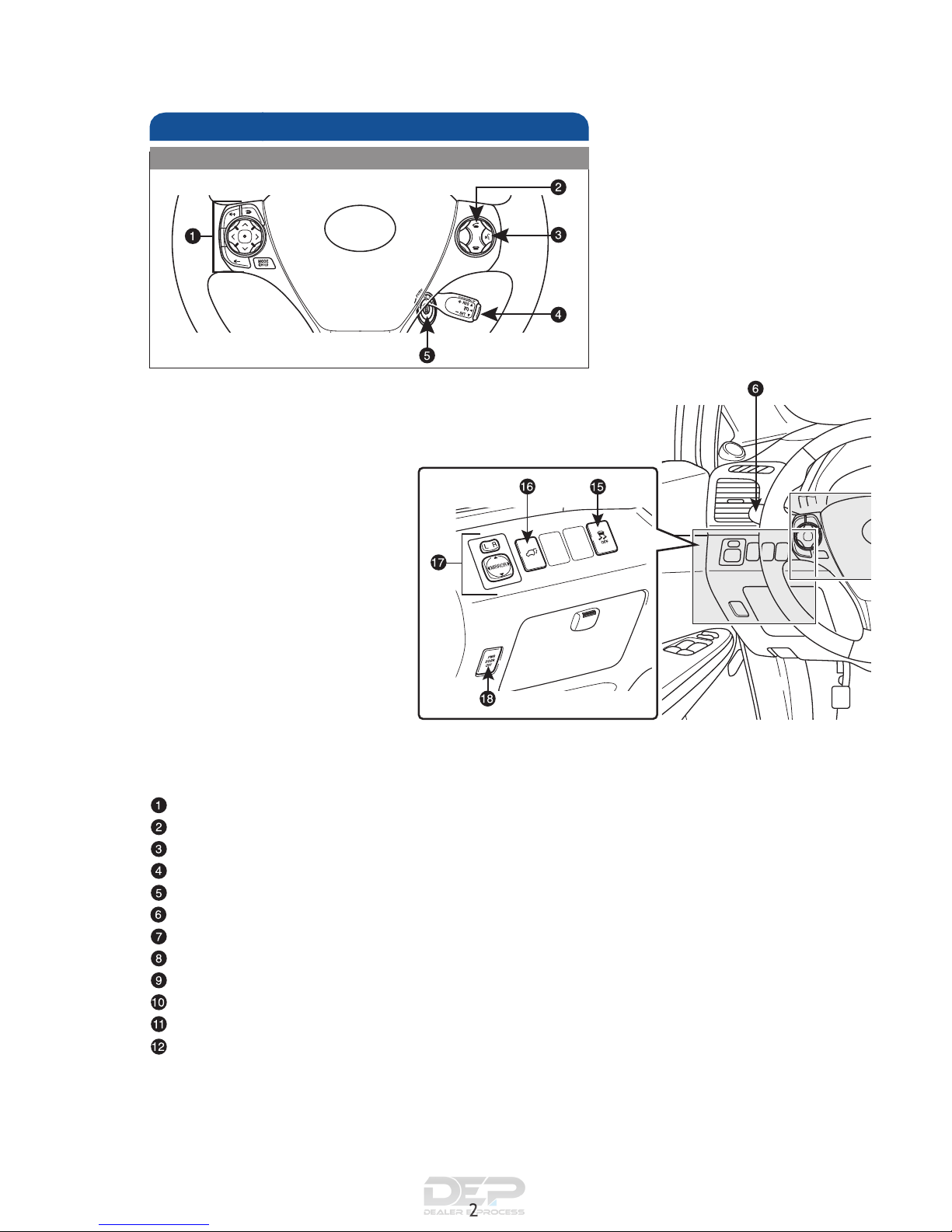

Steering wheel audio controls1,2,3
Telephone controls1,2,3
Voice command button1,2,3
Cruise control
Ignition switch (standard key)1
Headlight, turn signal and front fog light controls
Wiper and washer controls
“ENGINE START STOP” button (Smart Key)1
Multi-Information Display
Emergency flasher button
Multi-Information Display switches
Navigation system1,2/Display Audio system1,3
Air Conditioning controls
Outside rearview mirror defoggers/Rear window defogger button/
Windshield wiper de-icer
Enhanced VSC/TRAC OFF switch
Power back door switch1
Power outside rearview mirror controls
Power back door main switch1
1If equipped
2For details, refer to the “Navigation System Owner’s Manual.”
3For details, refer to the “Display Audio System Owner’s Manual.”
Steering wheel controls
2013Venza.indd 2 5/10/12 8:33 PM

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
3
Steering wheel audio controls1,2,3
Telephone controls1,2,3
Voice command button1,2,3
Cruise control
Ignition switch (standard key)1
Headlight, turn signal and front fog light controls
Wiper and washer controls
“ENGINE START STOP” button (Smart Key)1
Multi-Information Display
Emergency flasher button
Multi-Information Display switches
Navigation system1,2/Display Audio system1,3
Air Conditioning controls
Outside rearview mirror defoggers/Rear window defogger button/
Windshield wiper de-icer
Enhanced VSC/TRAC OFF switch
Power back door switch1
Power outside rearview mirror controls
Power back door main switch1
1If equipped
2For details, refer to the “Navigation System Owner’s Manual.”
3For details, refer to the “Display Audio System Owner’s Manual.”
2013Venza.indd 3 5/10/12 8:33 PM

4
OVERVIEW
Indicator symbols
Instrument cluster
Tachometer
Service indicators and reminders
Speedometer
Fuel gauge
Engine coolant temperature
Odometer/Trip meter and trip meter reset button/Instrument panel light
control
Odometer and two trip meters
Automatic Transmission shift position indicator
Automatic Transmission shift range display
Charging system warning1
Brake system warning1
AIR BAG ON and AIR BAG OFF indicator
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Malfunction/Check Engine indicator1
Active torque control All-Wheel Drive system warning1
Electric power steering system warning1
For details, refer to “Indicators and warning lights,” Section 2-2, 2013 Owner’s
Manual.
3For details, refer to “Headlight switch,” Section 2-3, 2013 Owner’s Manual.
1If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2If this light flashes, refer to “Cruise control,” Section 2-4, 2013 Owner’s Manual.
2013Venza.indd 4 5/10/12 8:33 PM

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
5
Tachometer
Service indicators and reminders
Speedometer
Fuel gauge
Engine coolant temperature
Odometer/Trip meter and trip meter reset button/Instrument panel light
control
Odometer and two trip meters
Automatic Transmission shift position indicator
Automatic Transmission shift range display
Anti-lock Brake System warning1

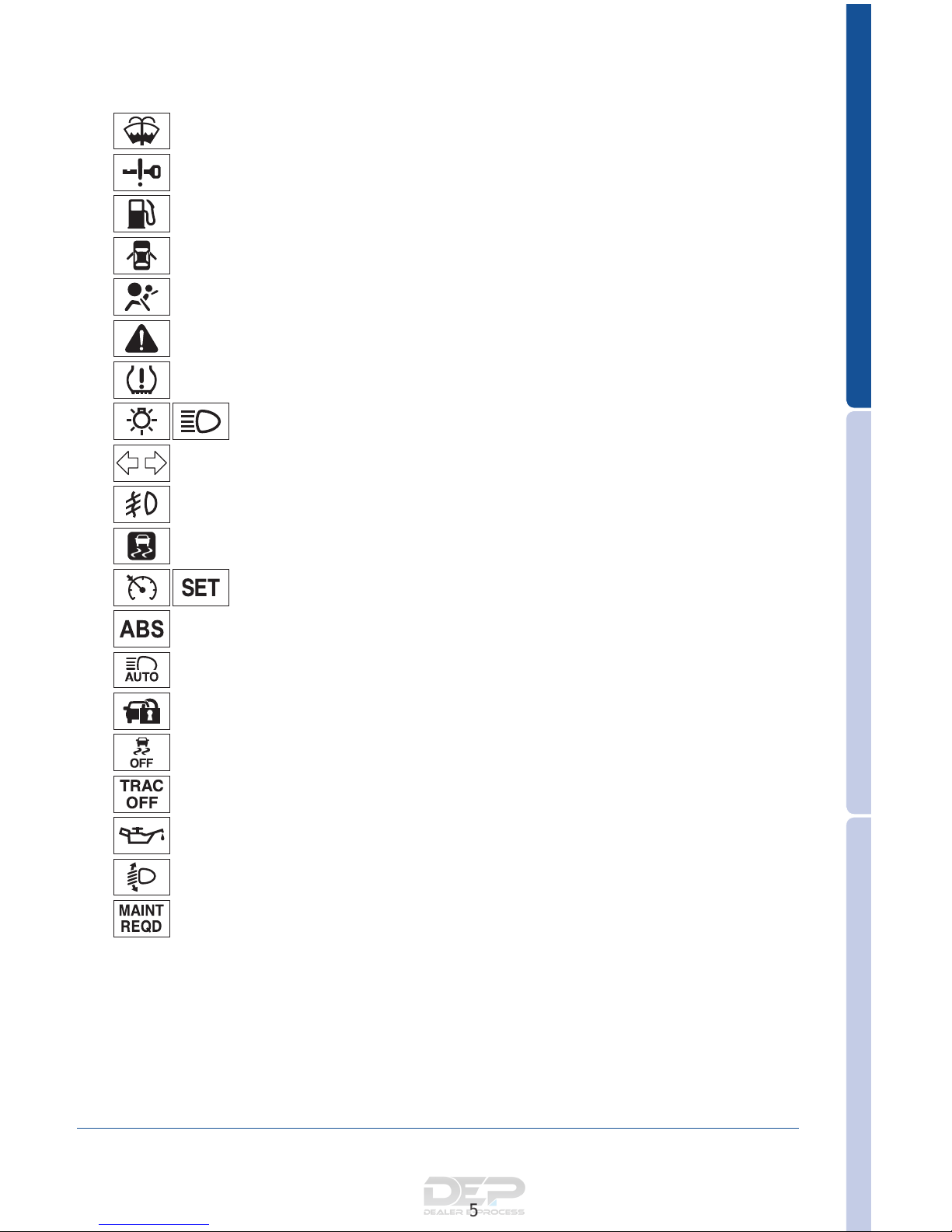

Headlight low/high beam indicator
Turn signal indicator
Slip indicator/Hill-start Assist Control indicator1
Cruise control/Cruise control SET indicator2
Low Tire Pressure Warning1
Smart Key system warning
Open door warning
Airbag SRS warning1
Master warning
Low windshield washer fluid level warning1
Low fuel level warning
Fog light indicator
For details, refer to “Indicators and warning lights,” Section 2-2, 2013 Owner’s
Manual.
3For details, refer to “Headlight switch,” Section 2-3, 2013 Owner’s Manual.
1If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2If this light flashes, refer to “Cruise control,” Section 2-4, 2013 Owner’s Manual.
Vehicle Stability Control OFF indicator1
Low Engine oil pressure warning1
Automatic headlight leveling system warning1
Engine oil replacement reminder1
Security indicator
Traction Control OFF indicator
Automatic high beam indicator3
2013Venza.indd 5 5/10/12 8:33 PM

6
OVERVIEW
Smart Key system (if equipped)
Start function
ACCESSORY
ON
OFF
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Without depressing the brake pedal, pressing the “ENGINE START STOP” button
will change the operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting engine)
Locking operation
Carry remote to lock
Carry remote to lock/unlock
Panic button
Push and hold
Back door lock/unlock
Keyless entry
Locking operation
Unlocking operation
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
Push ONCE: Driver door
TWICE: All doors
Push
Without Smart Key system With Smart Key system
Without Smart Key system With Smart Key system
2013Venza.indd 6 5/10/12 8:33 PM

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
7
Smart Key system (if equipped)
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACCESSORY
ON
OFF
NOTE: Gear shift lever must be in Park and brake pedal depressed.
PushDepress
brake pedal
Carrying
Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP” button
will change the operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door only, or
all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting engine)
Push
Unlock
Push
Lock
Locking operation Unlocking operation
Carry remote to lock Carry remote to unlock
Touch
Front door lock Front door unlock*
Grasp
Carry remote to lock/unlock
Back door lock/unlock
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
Push ONCE: Driver door
TWICE: All doors
2013Venza.indd 7 5/10/12 8:33 PM

8
Hood release
Fuel tank door release and cap
NOTE: Tighten until one click is heard.
If the cap is not tightened enough,
Check Engine “ ” indicator may
illuminate.
Pull
Turn to open
Store
Engine coolant reservoir
Engine oil filler cap
Engine oil level dipstick
Windshield washer fluid tank
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty Maintenance Guide.”
Engine maintenance
Light control-Instrument panel
Brightness
control
-
Pull
OVERVIEW
Pull up latch and raise hood
Engage support rod
+
2.7 L 4-cylinder (1AR-FE) engine
3.5 L V6 (2GR-FE) engine
2013Venza.indd 8 5/10/12 8:34 PM

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
9
NOTE: Tighten until one click is heard.
If the cap is not tightened enough,
Check Engine “ ” indicator may
illuminate.
Engine coolant reservoir
Engine oil filler cap
Engine oil level dipstick
Windshield washer fluid tank
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty Maintenance Guide.”
Engine maintenance
2.7 L 4-cylinder (1AR-FE) engine
3.5 L V6 (2GR-FE) engine
2013Venza.indd 9 5/10/12 8:34 PM

10
FEATURES/OPERATIONS
Automatic Transmission
* The “ENGINE START STOP”/ignition switch must be “ON” and the brake pedal
depressed to shift from Park.
Shift the shift lever to “S” position from “D” position.
+ : Upshift (push and release)
- : Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
“S” (Sequential) mode
Park*
Reverse
Neutral
Drive
“S” mode
“S”
“D”
Parking brake
Set: Depress
Release: Depress again
Seat adjustments-Front
Manual seat
Seat position (forward/backward)
Seat back angle
Seat position; cushion angle and height (driver side only)
Lumbar support
Driving position memory
To set driver seat and outside rearview mirror positions:
(1) The “ENGINE START STOP”/ignition switch must be “ON” and the shift lever in
the “P” position.
(2) Adjust driver seat and outside reariew mirrors to desired positions.
(3) While pressing “SET” button, press button “1” or “2” until a beep sounds.
Press button “1” or “2” to recall set position.
Auto lock/unlock
Automatic door locks can be programmed to operate in four different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after turning the
“ENGINE START STOP” or ignition switch OFF.
Refer to the Owner’s Manual for more details.
2013Venza.indd 10 5/10/12 8:34 PM

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
11
* The “ENGINE START STOP”/ignition switch must be “ON” and the brake pedal
depressed to shift from Park.
Shift the shift lever to “S” position from “D” position.
+ : Upshift (push and release)
- : Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
Set: Depress
Release: Depress again
Seat adjustments-Front
Manual seat
Seat position (forward/backward)
Seat back angle
Seat position; cushion angle and height (driver side only)
Lumbar support
Power seat (if equipped)
Driving position memory
To set driver seat and outside rearview mirror positions:
(1) The “ENGINE START STOP”/ignition switch must be “ON” and the shift lever in
the “P” position.
(2) Adjust driver seat and outside reariew mirrors to desired positions.
(3) While pressing “SET” button, press button “1” or “2” until a beep sounds.
Press button “1” or “2” to recall set position.
Auto lock/unlock
Automatic door locks can be programmed to operate in four different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after turning the
“ENGINE START STOP” or ignition switch OFF.
Refer to the Owner’s Manual for more details.
2013Venza.indd 11 5/10/12 8:34 PM

12
FEATURES/OPERATIONS
Seats-Head restraints
Front and rear (excluding center) seats
Height
(1) Stow the seat belt buckles.
(2) Hook the seat belt to the seat belt hangers.
(3) Fold down the seat backs.
(1)
(3)
(2)
Seats-Folding rear row seats
Pull
Pull
From inside From outside
Right side/center
rear remote seat
release
Left side remote
seat release
Moonroof (if equipped)
Sliding operation
Windows-Power
Automatic operation Push the switch completely down or pull it completely up
and release to fully open or close. To stop window midway, lightly push the switch
in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Push once to open partway;
again to open completely.
Seat adjustments-Rear
Refer to the Owner’s Manual for more details.
Seat back angle
Seat back angle
2013Venza.indd 12 5/10/12 8:34 PM

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
13
Seats-Head restraints
Front and rear (excluding center) seats Rear center
Lock release button
Lock release button
Height
(1) Stow the seat belt buckles.
(2) Hook the seat belt to the seat belt hangers.
(3) Fold down the seat backs.
Right side/center
rear remote seat
release
Moonroof (if equipped)
Sliding operation Tilting operation
Open
Close
Recommended open position
to minimize wind noise.
Windows-Power
Up
Down
Window lock
switch
Automatic operation Push the switch completely down or pull it completely up
and release to fully open or close. To stop window midway, lightly push the switch
in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Push once to open partway;
again to open completely.
Tilt
Close
Refer to the Owner’s Manual for more details.
2013Venza.indd 13 5/10/12 8:34 PM

14
FEATURES/OPERATIONS
Lights & turn signals
Turn signals
Front fog lights (if equipped)
Front fog lights come on only when the headlights are on low beam.
Headlights
Headlights
-Daytime Running Light system (DRL) Automatically turns on the headlights at
a reduced intensity.
-Automatic light cut off system Automatically turns lights off after a delay of
30 seconds.
Parking lights
Auto
DRL OFF
Without automatic high beam
Low beam
High beam
High beam flasher
Automatic high beam (if equipped)
Manual high beam ONActivate*
Deactivate
Windshield wipers & washers
Front
Rear
* Intermittent windshield
wiper frequency adjustment
Rotate to increase/decrease
wipe frequency.
* Refer to the Owner’s Manual
for details on activating the
automatic high beams.
2013Venza.indd 14 5/10/12 8:34 PM

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
15
Turn signals
Front fog lights (if equipped)
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change
Left turn
Turn
-Daytime Running Light system (DRL) Automatically turns on the headlights at
a reduced intensity.
-Automatic light cut off system Automatically turns lights off after a delay of
30 seconds.
Windshield wipers & washers
Interval wipe
Single wipe
Slow
Fast
Front
Rear
Wash and wipe
Wipe
Interval wipe
Wash and wipe
* Intermittent windshield
wiper frequency adjustment
Rotate to increase/decrease
wipe frequency.
Adjust frequency*
Pull to wash and wipe
2013Venza.indd 15 5/10/12 8:34 PM

16
FEATURES/OPERATIONS
Air Conditioning/Heating
Push: Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air
intake and fan to adjust automatically.
Turn: Temperature selector (driver side)
Fan speed
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce window
fogging. “ ” mode uses fresh air only.
Push: Dual operation ON/OFF
Separate temperature setting or synchronize temperature setting for
driver and passenger.
Turn: Temperature selector (front passenger side)
Air Conditioning ON/OFF
Recirculate cabin air (fresh air when OFF)
Outside rearview mirror/Rear window defogger/Windshield wiper
de-icer
Windshield defogger
Climate control OFF
Seat heaters (if equipped)
Driver’s seat Front passenger’s seat
Turn
On
The Enhanced VSC OFF button is used to switch between modes related to the
TRAC and Enhanced VSC functions.
Refer to Section 2-4 of the Owner’s Manual for more information.
Enhanced VSC OFF button
Power outlets-12V DC
Instrument panel
NOTE: Designed for car accessories. The “ENGINE START STOP”/ignition switch must
be in the ACCESSORY or ON position to be used.
2013Venza.indd 16 5/10/12 8:35 PM

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
17
Push: Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air
intake and fan to adjust automatically.
Turn: Temperature selector (driver side)
Fan speed
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce window
fogging. “ ” mode uses fresh air only.
Push: Dual operation ON/OFF
Separate temperature setting or synchronize temperature setting for
driver and passenger.
Turn: Temperature selector (front passenger side)
Air Conditioning ON/OFF
Recirculate cabin air (fresh air when OFF)
Outside rearview mirror/Rear window defogger/Windshield wiper
de-icer
Windshield defogger
Climate control OFF
Front passenger’s seat
The Enhanced VSC OFF button is used to switch between modes related to the
TRAC and Enhanced VSC functions.
Refer to Section 2-4 of the Owner’s Manual for more information.
Enhanced VSC
OFF button
Enhanced VSC OFF button
Power outlets-12V DC
Instrument panel Inside center console
NOTE: Designed for car accessories. The “ENGINE START STOP”/ignition switch must
be in the ACCESSORY or ON position to be used.
Luggage compartment
2013Venza.indd 17 5/10/12 8:35 PM

18
FEATURES/OPERATIONS
Audio
“ ”
Use to search within the selected audio medium (radio, CD, iPod®,etc.).
“MODE”
Push to turn audio ON and to select an audio mode. Push and hold to mute/
unmute or pause/resume current operation.
USB/AUX port
Steering wheel switches
By inserting a mini plug into the USB/AUX port, you can listen to music from a
portable audio device through the vehicle’s speaker system while in USB/AUX mode.
Audio
Type 2 - additional function
Turn to
tune radio
stations
manually
or select
tracks or
files
Eject CD
Touch screen display
Push to
display
audio
screen
Seek station/
CD track
select
Push to turn
ON/OFF
Type 1
Premium
Display
Audio
system*
Push to pause
or resume
playing
*Refer to the “Display Audio System Owner’s Manual”for instructions and more
information.
2013Venza.indd 18 5/10/12 8:37 PM
