Toyota Avalon 2002 User manual

’02 AVALON U (L/O 0107)
i2002 MY AVALON_U (OM22493U)
Foreword
Welcome to the growing group of value−conscious people who drive Toyotas. We are proud of the advanced engineering and
quality construction of each vehicle we build.
This Owner’s Manual explains the operation of your new Toyota. Please read it thoroughly and have all the occupants
follow the instructions carefully. Doing so will help you enjoy many years of safe and trouble−free motoring. For
important information about this manual and your Toyota, read the following pages carefully.
When it comes to service, remember that your Toyota dealer knows your vehicle best and is interested in your complete
satisfaction. He will provide quality maintenance and any other assistance you may require.
If there is not a Toyota dealer near you, or you need emergency assistance for any reason, please call the following number:
DU.S. OWNERS: Toyota Customer Assistance Center Tol l−free:1−800−331−4331
DCANADIAN OWNERS: Toyota Canada Customer Interaction Centre Tol l−free:1−888−TOYOTA−8 (1−888−869−6828)
Please leave this Owner’s Manual in this vehicle at the time of resale. The next owner will need this information also.
All information and specifications in this manual are current at the time of printing. However, because of Toyota’s policy of
continual product improvement, we reserve the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may
find some explanations for equipment not installed on your vehicle.
©2001 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of Toyota
Motor Corporation.

’02 AVALON U (L/O 0107)
ii 2002 MY AVALON_U (OM22493U)
Important information about this manual
Safety and vehicle damage warnings
Throughout this manual, you will see safety and vehicle dam-
age warnings. You must follow these warnings carefully to
avoid possible injury or damage.
The types of warnings, what they look like, and how they are
used in this manual are explained as follows:
CAUTION
This is a warning against something which may cause
injury to people if the warning is ignored. You are
informed about what you must or must not do in
order to avoid or reduce the risk to yourself and other
people.
NOTICE
This is a warning against something which may cause
damage to the vehicle or its equipment if the warning
is ignored. You are informed about what you must or
must not do in order to avoid or reduce the risk of
damage to your vehicle and its equipment.
Safety symbol
When you see the safety symbol
shown above, it means: “Do not...”;
“Do not do this”; or “Do not let this
happen”.

’02 AVALON U (L/O 0107)
iii 2002 MY AVALON_U (OM22493U)
Important information about your Toyota
New vehicle warranty
Your new vehicle is covered by the following Toyota
limited warranties:
DNew vehicle warranty
DEmission control systems warranty
DOthers
For further information, please refer to the “Owner’s
Warranty Information Booklet” or “Owner’s Manual
Supplement”.
Your responsibility for
maintenance
It is the owner’s responsibility to make sure that the
specified maintenance is performed. Section 6 gives de-
tails of these maintenance requirements. Also included in
Section 6 is general maintenance. For scheduled mainte-
nance information, please refer to the “Scheduled Main-
tenance Guide” or “Owner’s Manual Supplement”.
Accessories, spare parts and
modification of your Toyota
A wide variety of non−genuine spare parts and accesso-
ries for Toyota vehicles are currently available in the
market. You should know that Toyota does not warrant
these products and is not responsible for their perfor-
mance, repair, or replacement, or for any damage they
may cause to, or adverse effect they may have on, your
Toyota vehicle.
This vehicle should not be modified with non−genuine
Toyota products. Modification with non−genuine Toyota
products could affect its performance, safety or durabili-
ty, and may even violate governmental regulations. In
addition, damage or performance problems resulting from
the modification may not be covered under warranty.

’02 AVALON U (L/O 0107)
iv 2002 MY AVALON_U (OM22493U)
Spark ignition system of
your Toyota
The spark ignition system in your Toyota meets all re-
quirements of the Canadian Interference−Causing Equip-
ment Standard.
Installation of a mobile
two−way radio system
As the installation of a mobile two−way radio system in
your vehicle could affect electronic systems such as
multiport fuel injection system/sequential multiport fuel
injection system, cruise control system, anti−lock brake
system, traction control system, vehicle skid control sys-
tem, SRS airbag system and front seat belt pretensioner
system, be sure to check with your Toyota dealer for
precautionary measures or special instructions regarding
installation.
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in
your Toyota contain explosive chemicals. If the vehicle
is scrapped with the airbags and pretensioners left as
they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat
belt pretensioner removed and disposed of by the quali-
fied service shop or by your Toyota dealer before you
dispose of your vehicle.

’02 AVALON U (L/O 0107)
1
2002 MY AVALON_U (OM22493U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 8. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1−1

’02 AVALON U (L/O 0107)
22002 MY AVALON_U (OM22493U)
1. Side vents
2. Side defroster outlets
3. Garage door opener
4. Center vents
5. Electric moon roof switch and/or front
interior light, and front personal lights,
auxiliary box
6. Power door lock switches
7. Power window switches
8. Auxiliary boxes
9. Glove box
10. Trunk opener cancel switch
11. Rear console vents
12. Power outlet (115 VAC)
13. Power outlet (12 VDC)
14. Cup holder
15. Automatic transmission selector lever
16. Hood lock release lever
17. Parking brake pedal
18. Window lock switch
Instrument panel overview
"With bucket front seat

’02 AVALON U (L/O 0107)
3
2002 MY AVALON_U (OM22493U)
1. Power rear view mirror control switches
2. Headlight and turn signal switch and
front fog light switch
3. Wiper and washer switches
4. Emergency flasher switch
5. Car audio
6. Air conditioning controls
7. Rear window and outside rear view
mirror defoggers switch
8. Cigarette lighter and ashtray
9. Seat heater switches
10. Ignition switch
11. Power outlet main switch
12. Vehicle skid control system off switch
13. Cruise control switch
14. Tilt steering lock release lever
15. Trunk lid lock release switch
16. Instrument panel light control knob

’02 AVALON U (L/O 0107)
42002 MY AVALON_U (OM22493U)
1. Side vents
2. Side defroster outlets
3. Automatic transmission selector lever
4. Garage door opener
5. Center vents
6. Electric moon roof switch and/or front
interior light, and front personal lights,
auxiliary box
7. Power door lock switches
8. Power window switches
9. Auxiliary boxes
10. Glove box
11. Cup holder
12. Trunk opener cancel switch
13. Hood lock release lever
14. Parking brake pedal
15. Window lock switch
"With bench type front seat

’02 AVALON U (L/O 0107)
5
2002 MY AVALON_U (OM22493U)
1. Power rear view mirror control switches
2. Headlight and turn signal switch and
front fog light switch
3. Wiper and washer switches
4. Emergency flasher switch
5. Car audio
6. Air conditioning controls
7. Rear window and outside rear view
mirror defoggers switch
8. Seat heater switches
9. Cigarette lighter and ashtray
10. Power outlet (115 VAC)
11. Power outlet (12 VDC)
12. Ignition switch
13. Power outlet main switch
14. Vehicle skid control system off switch
15. Cruise control switch
16. Tilt steering lock release lever
17. Trunk lid lock release switch
18. Instrument panel light control knob

’02 AVALON U (L/O 0107)
62002 MY AVALON_U (OM22493U)

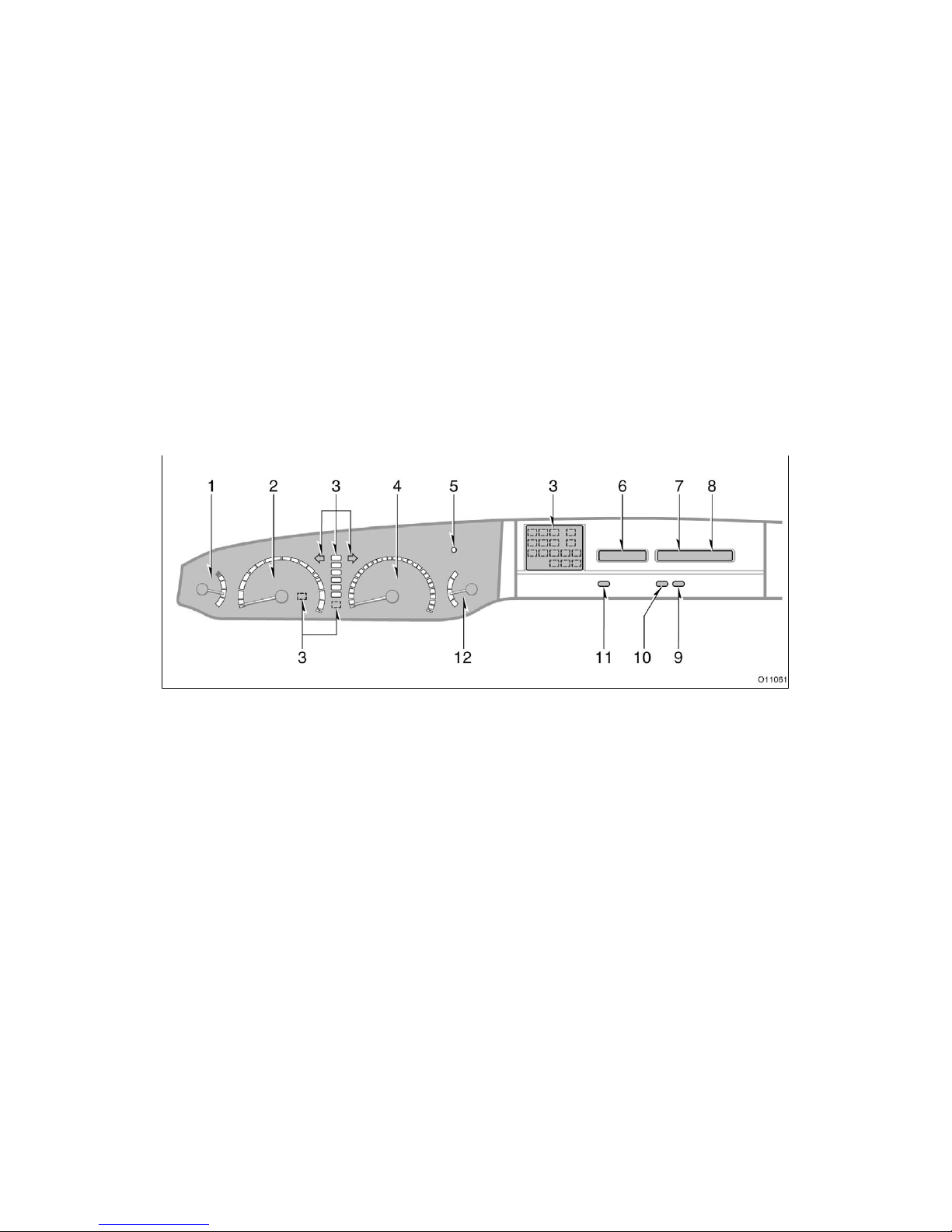

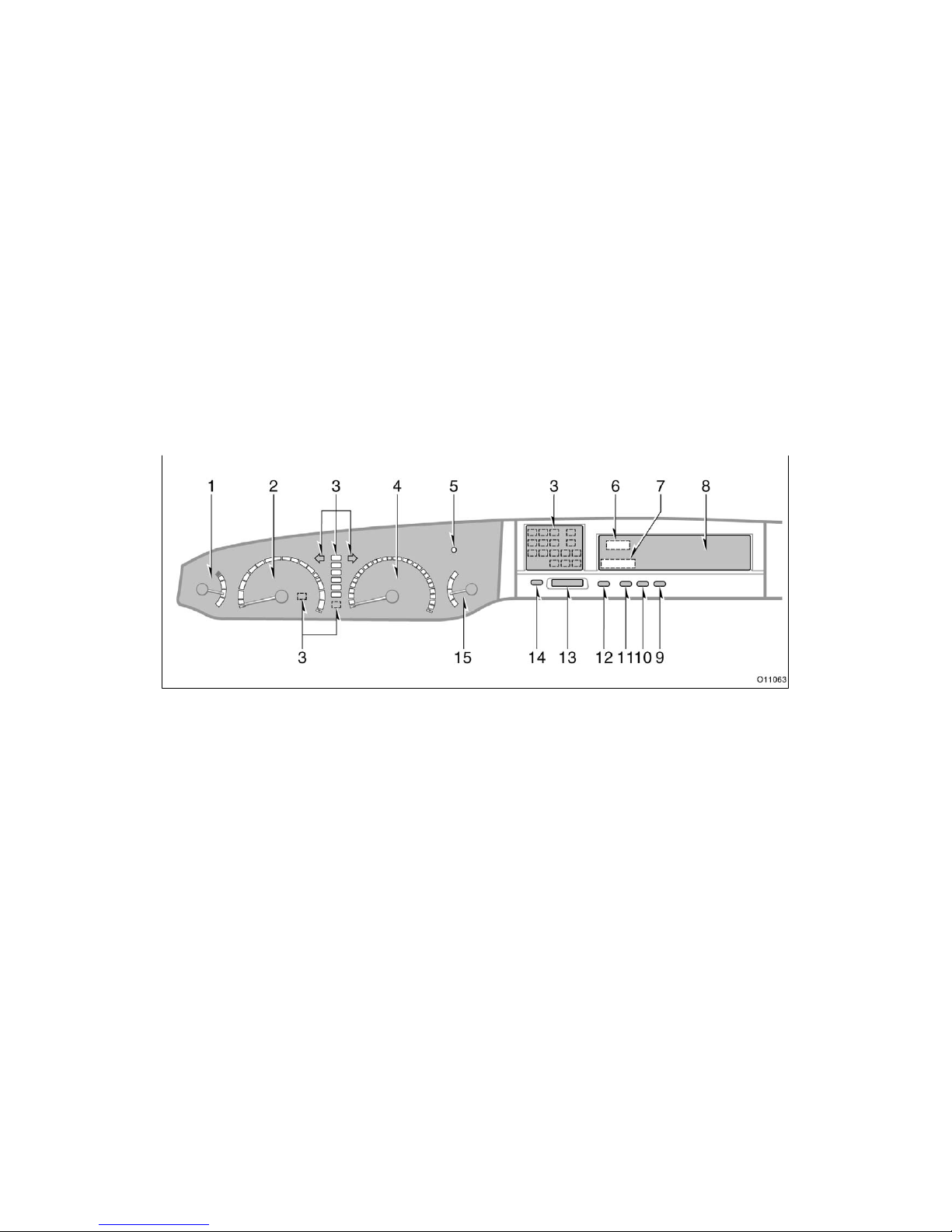

1. Engine coolant temperature gauge
2. Tachometer
3. Service reminder indicators and
indicator lights
4. Speedometer
5. Theft deterrent system/Engine
immobiliser system indicator light
6. Odometer and two trip meters
7. Clock
8. Outside temperature gauge
9. “ADJ” button∗
10. “MODE” button∗
11. “ODO/TRIP” button
12. Fuel gauge
∗: This button is used to adjust the clock. For details, see “Clock” in Section 1−9.
Instrument cluster overview
"Typ e A

’02 AVALON U (L/O 0107)
7
2002 MY AVALON_U (OM22493U)
1. Engine coolant temperature gauge
2. Tachometer
3. Service reminder indicators and
indicator lights
4. Speedometer
5. Theft deterrent system/Engine
immobiliser system indicator light
6. Clock
7. Outside temperature gauge
8. Multi−information display
9. “LIGHT” button∗
10. “MODE” button∗
11. “RESET/ADJ” button∗
12. “DISPLAY” button∗
13. Odometer and two trip meters
14. “ODO/TRIP” button
15. Fuel gauge
∗: This button is used to operate the multi−information display. For details, see “Multi−information display” in Section 1−5.
"Typ e B

’02 AVALON U (L/O 0107)
82002 MY AVALON_U (OM22493U)
Indicator symbols on the instrument panel
Brake system warning light∗1
Driver’s seat belt reminder light∗1
Discharge warning light∗1
Malfunction indicator lamp∗1
Low engine oil pressure warning light∗1
or
Low fuel level warning light∗1
Anti−lock brake system warning light∗1 or
Open door warning light∗1
Rear light failure warning light∗1
SRS warning light∗1
Low windshield washer fluid level warning light∗1
Front passenger’s seat belt reminder light∗1
Vehicle skid control system warning light∗1
Vehicle skid control system off indicator light

’02 AVALON U (L/O 0107)
9
2002 MY AVALON_U (OM22493U)
Cruise control indicator light∗2
Automatic transmission indicator lights
Slip indicator light
∗1: For details, see “Service reminder indicators and warning
buzzers” in Section 1−5.
∗2: If this light flashes, see “Cruise control” in Section 1−6.
Overdrive−off indicator light
Headlight high beam indicator light
Turn signal indicator lights

’02 AVALON U (L/O 0107)
10 2002 MY AVALON_U (OM22493U)

’02 AVALON U (L/O 0107)
11
2002 MY AVALON_U (OM22493U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobiliser system 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk lid 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft deterrent system 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric moon roof 35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1−2

’02 AVALON U (L/O 0107)
12 2002 MY AVALON_U (OM22493U)

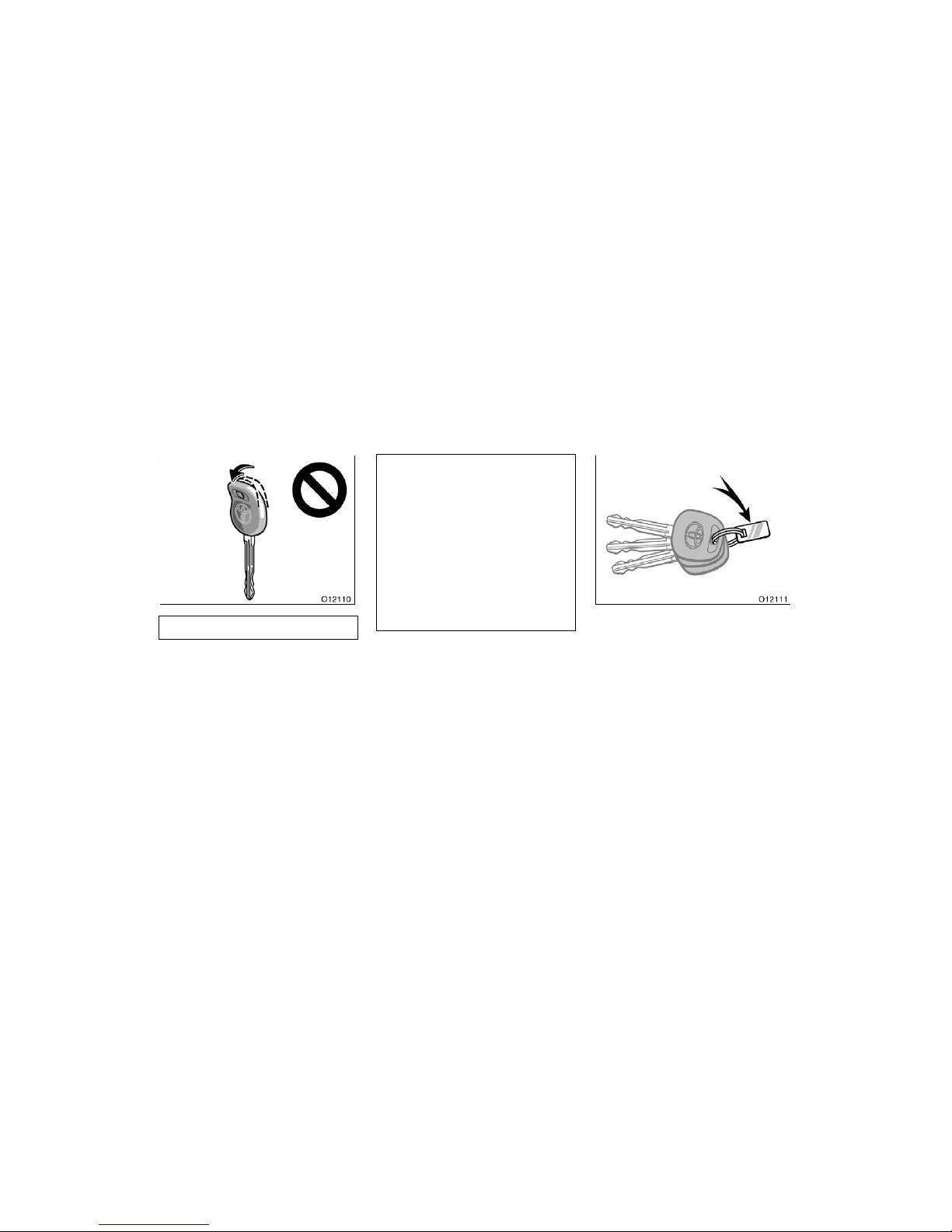

Your vehicle is supplied with two kinds
of keys.
1. Master key—This key works in every
lock.
2. Sub key—This key will not work in the
glove box, trunk and armrest door in
the rear seat.
To protect things locked in the glove box
or trunk when you have your vehicle
parked, leave the sub key with the atten-
dant.
Since the doors and trunk lid can be
locked without a key, you should always
carry a spare master key in case you
accidentally lock your keys inside the ve-
hicle.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.
Your vehicle is supplied with two kinds
of keys.
1. Master key (black)—This key works in
every lock. Your Toyota dealer will
need it to make you a new key with
built−in transponder chip.
2. Sub key (gray)—This key will not work
in the glove box, trunk and armrest
door in the rear seat.
A transponder chip for engine immobiliser
system has been filled in the head of the
master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
Keys (without engine
immobiliser system)
Keys (with engine immobiliser
system)

’02 AVALON U (L/O 0107)
13
2002 MY AVALON_U (OM22493U)
To protect things locked in the glove box
or trunk when you have your vehicle
parked, leave the sub key with the atten-
dant.
Since the doors and trunk lid can be
locked without a key, you should always
carry a spare master key in case you
accidentally lock your keys inside the ve-
hicle.
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
zWhen starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
zWhen starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after taking
off other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.

’02 AVALON U (L/O 0107)
14 2002 MY AVALON_U (OM22493U)
zDo not bend the key grip.
zDo not cover the key grip with any
material that cuts off electromagnet-
ic waves.
zDo not knock the key hard against
other objects.
zDo not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under the direct sunlight.
zDo not put the key in water or
wash it in an ultrasonic washer.
zDo not use the key with electromag-
netic materials. KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.

’02 AVALON U (L/O 0107)
15
2002 MY AVALON_U (OM22493U)
The engine immobiliser system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start, only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.
The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
If either of the following indicator condi-
tions occurs, contact your Toyota dealer.
DThe indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system”.)
DThe indicator light does not start flash-
ing when the key is removed from the
ignition switch.
DThe indicator light flashes unsteady.
Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with built−in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobiliser sys-
tem. If any unauthorized changes or
modifications are made, the proper
operation of the system cannot be
guaranteed.
Engine immobiliser system

’02 AVALON U (L/O 0107)
16 2002 MY AVALON_U (OM22493U)
For vehicles sold in U.S.A.
FCC ID: MOZ RI−4ETY
MADE IN JAPAN
FCC ID: NT8−15607YU3FXCVR
MADE IN CANADA
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS−210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
All the doors lock and unlock simulta-
neously with either front door. In the driv-
er’s door lock, turning the key once will
unlock the driver’s door and twice in suc-
cession will unlock all the doors simulta-
neously.
Side doors—
