This Quick Reference Guide is a summary of basic vehicle operations.
It contains brief descriptions of fundamental operations so you can
locate and use the vehicle’s main equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in the vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of the vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Sienna.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Sienna
operations. Every Sienna owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2014
Sienna

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
1
INDEX
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry1 6
Light control-Instrument panel 9
Smart Key system1,2 7
Air Conditioning/Heating 24-26
Audio 22-23
Auto lock/unlock210
Automatic Transmission 10
Bottle holders 31
BSM (Blind Spot Monitor) 20
Clock 31
Cruise control 20
Cup holders 32
Door-Power back 18
Doors-Power sliding 17
Dynamic radar cruise control 21
Enhanced VSC OFF button 28
Garage door opener (HomeLink®)2,3 29
Hill-start Assist Control (HAC) 29
Lights1& turn signals 11-12
Moonroof 19
Parking brake 10
Power outlets-12V DC 30
Power outlets-120V AC 30
Rear seat entertainment system 28
Seat adjustments-Front 14
Seat adjustments-Rear 14
Seat heaters 26
Seats-Head restraints 13
Seats-Removing second row center seat 15
Seats-Removing second row outside seats 15
Seats-Stowing third row seats 16
Sunshade-Side 19
Telephone controls (Bluetooth®) 27
Tilt and telescopic steering wheel 11
Windows 18
Windows-Power quarter 18
Windshield wipers & washers 13
Door locks 33
Doors-Child safety locks 33
Floor mat installation 37
Seat belts 34
Seat belts-Shoulder belt anchor 33
Spare tire & tools 35
Star Safety SystemTM 36-37
Tire Pressure Monitoring (warning) System 34
1Visit your Toyota dealer for information on customizing this feature.
2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.

2
OVERVIEW
Instrument panel
Steering wheel controls
Steering wheel audio controls1
Telephone controls1,2
Voice command button1,2
Distance switch1
Ignition switch (standard key)1
Cruise control1
Headlight, turn signal and front fog light1 controls
Gauges and meters
Wiper and washer controls
Emergency flasher button
Multi-Information Display1
Clock1
Audio system/Navigation system1,2
“ENGINE START STOP” switch (Smart Key)1
Air Conditioning controls
Outside rearview mirrors1/Rear window defogger button/Windshield wiper
de-icer1
Auxiliary box1
Automatic Air Conditioning system

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
3
Multi-Information Display switches1
Cup holder
Power outlets (12V)
AUX port
Seat heater switches1
DVD player1
USB port1
Power rearview mirror controls
Power quarter window switch1
Enhanced VSC/TRAC OFF switch
Intuitive parking assist switch1
BSM (Blind Spot Monitor) main switch1
Headlight beam level control dial1
Power sliding door1/power back door main switch1
1If equipped
2For vehicles with a navigation system, refer to the “Navigation System
Owner’s Manual.”
Manual Air Conditioning system
Automatic Air Conditioning system

4
OVERVIEW
Low engine oil pressure warning1
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Brake system warning1
Charging system warning1
Malfunction/Check Engine indicator1
Indicator symbols
Instrument cluster
Tachometer
Service indicators and reminders
Speedometer
Fuel gauge
Engine coolant temperature
Odometer and two trip meters display
Odometer/Trip meter display change button
Open door warning
SRS AIR BAG ON-OFF indicator
Airbag SRS warning1
Vehicle Stability Control OFF indicator1,5
1If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2If this light flashes, refer to “Cruise control,” Section 2-4, 2014 Owner’s Manual.
3 If this light flashes, refer to “Dynamic radar cruise control,” Section 2-4, 2014 Owner’s Manual.
For details, refer to “Indicators and warning lights,” Section 2-2, 2014 Owner’s
Manual.

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
5
Anti-lock Brake System warning1
Low Tire Pressure Warning1
Engine oil replacement reminder1
Third seat fold incomplete warning
Security indicator
Headlight low/high beam indicator
Turn signal indicator
Cruise control indicator2,4
Radar cruise READY indicator
Pre-Collision System indicator1,6
Shift position indicators
Slip indicator/Hill-start Assist Control indicator1,5
Traction Control OFF indicator1
Low windshield washer fluid level warning1
4The indicator flashes to indicate a malfunction.
5The indicator flashes to indicate that the system is operating.
6The indicator flashes faster than usual to indicate that the system is operating.
Active Torque Control 4WD system warning light1
Master warning light1
Low fuel level warning light
Electric power steering system warning light1
Automatic high beam indicator4
Fog light indicator
Radar cruise control indicator3,4
Cruise control SET indicator
ECO Driving Indicator Light1
Blind Spot Monitor warning/Blind Spot Monitor outside
rearview mirror indicators

6
OVERVIEW
Keyless entry
Locking operation
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock
for safety.
Push
Push ONCE: Driver door
TWICE: ALL doors
Unlocking operation
Panic button (if equipped)
Push and hold
Power back door operation
(if equipped)
Push and hold
Type A Type B Type C
Type A Type B Type C
Type A Type B
Power sliding door operation (if equipped)
Left side power sliding door Right side power sliding door
Type A Type B Type A Type B
Push and holdPush and hold

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
7
Smart Key system (if equipped)
Start function
Accessories such as the radio will operate.
Power ON; the engine is not running.
All systems OFF.
ACCESSORY
ON
OFF
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Push
Depress
brake pedal
Carrying
Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP” switch
will change the operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver side doors
only, or all doors. Grasping any passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting engine)
Push
Unlock
Push
Lock
Locking operation Unlocking operation
Sliding door unlock
Carry remote
to lock Carry remote
to unlock
Carry remote
to unlock
Touch
Front door lock Front door unlock*
Grasp
Pull
Carry remote
to lock/unlock
Back door lock/unlock

8
Fuel tank door release and cap
Pull up
Store
Turn to open
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
Hood release
Pull up latch
and raise hood
Pull
OVERVIEW
Insert rod to
hold hood open

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
9

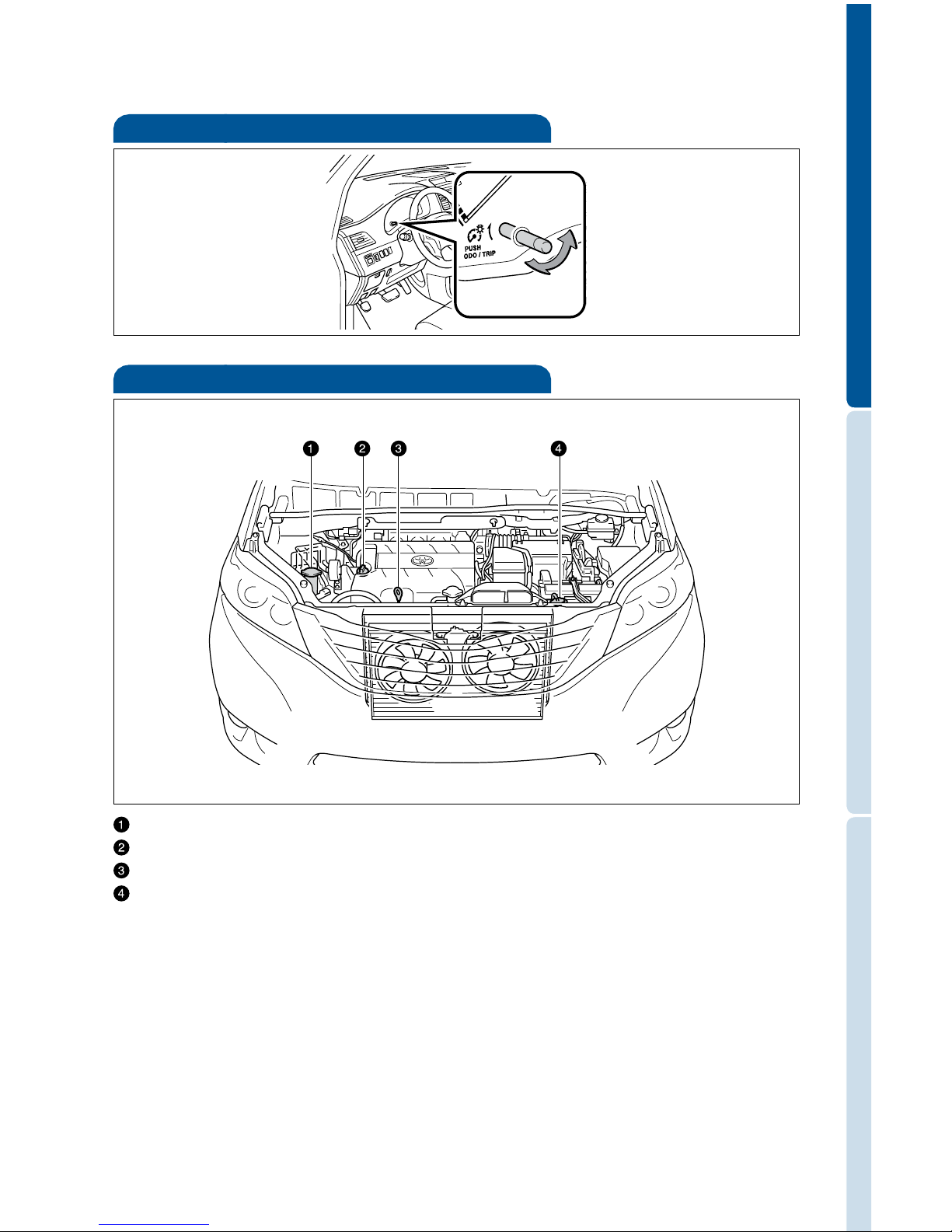

Windshield and rear window washer fluid tank
Engine oil filler cap
Engine oil level dipstick
Engine coolant reservoir
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty & Maintenance Guide.”
Engine maintenance
Light control-Instrument panel
Bright
Dark

10
FEATURES/OPERATIONS
Auto lock/unlock
Automatic door locks can be programmed to operate in four different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.-Doors
unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after turning the
“ENGINE START STOP” switch OFF. (Vehicles with a Smart Key system)
-Doors unlock when the driver’s door is opened within 10 seconds after turning the
ignition switch to the “ACC” or “LOCK” position. (Vehicles without a Smart Key
system)
Refer to the Owner’s Manual for more details.
Automatic Transmission
* The “ENGINE START STOP” switch/ignition switch must be “ON” and the brake
pedal depressed to shift from Park.
Shift the shift lever to “S” position from “D” position.
+ : Upshift (push and release)
- : Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
“S” (Sequential) mode
Park*
P
Reverse
R
Neutral
N
Drive
D
S“S” mode
“S”
“D”
Parking brake
Set: Depress
Release: Depress again
+(“S” mode)
(“S” mode)

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
11
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Length
Lock release lever Angle
Lights & turn signals
Headlights
High beam flasher
Low beam
Headlights
-Daytime Running Light system (DRL) Automatically turns on the headlights at a
reduced intensity.
-Automatic light cut off system Automatically turns lights off after a delay of 30
seconds, or the lock switch on remote may be pushed after locking.
Parking lights
High beam
Auto or OFF
DRL OFF
Without automatic high beam

12
FEATURES/OPERATIONS
Headlight beam level control (if equipped)
Rotating the dial downward will lower the angle of the beam.
Up
Down Down
Up
Turn signals

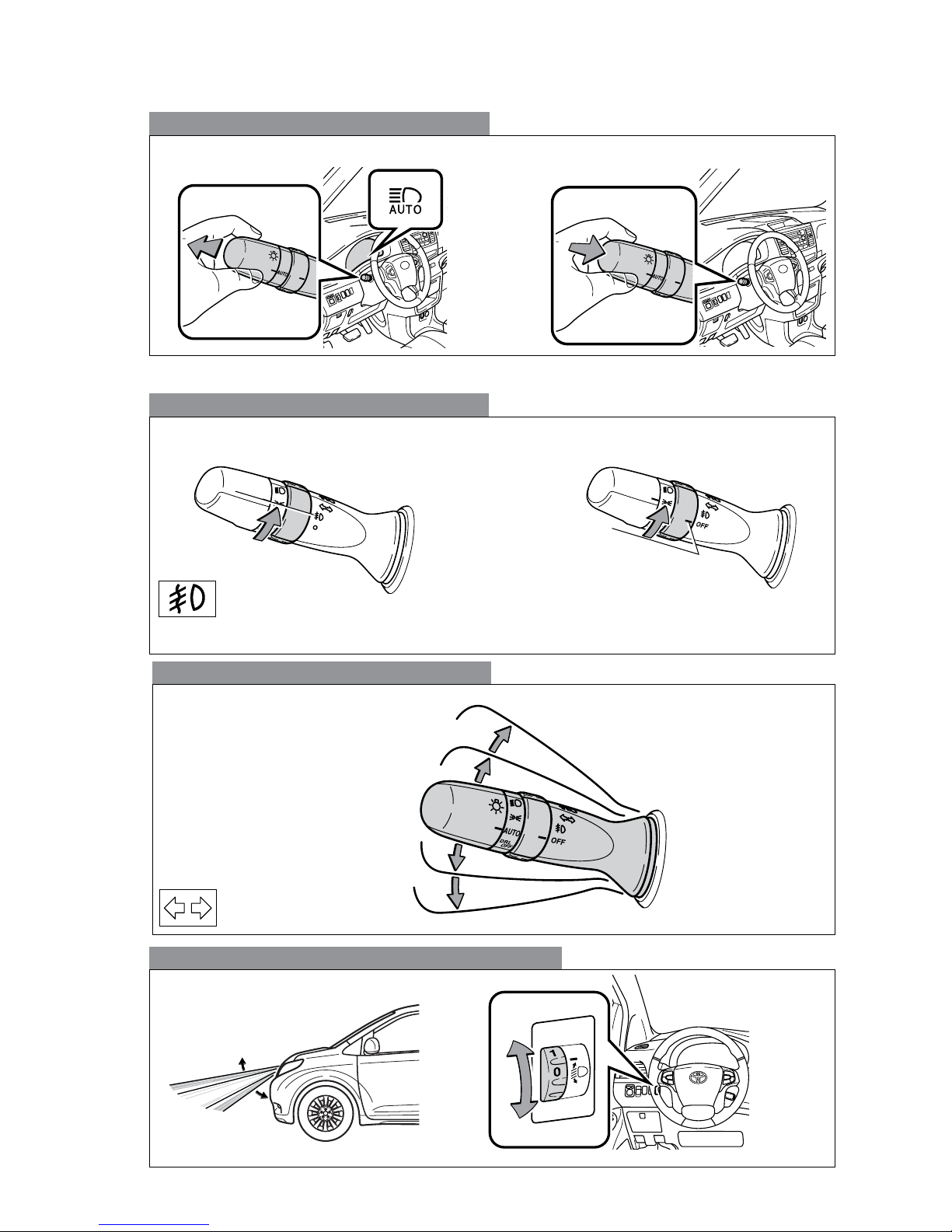

Front fog lights (if equipped)
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change
Left turn
Turn
Automatic high beam (if equipped)
Deactivate
* Refer to the Owner’s Manual for details on activating the automatic high beams.
Activate*
Type B
Type A
Turn

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
13

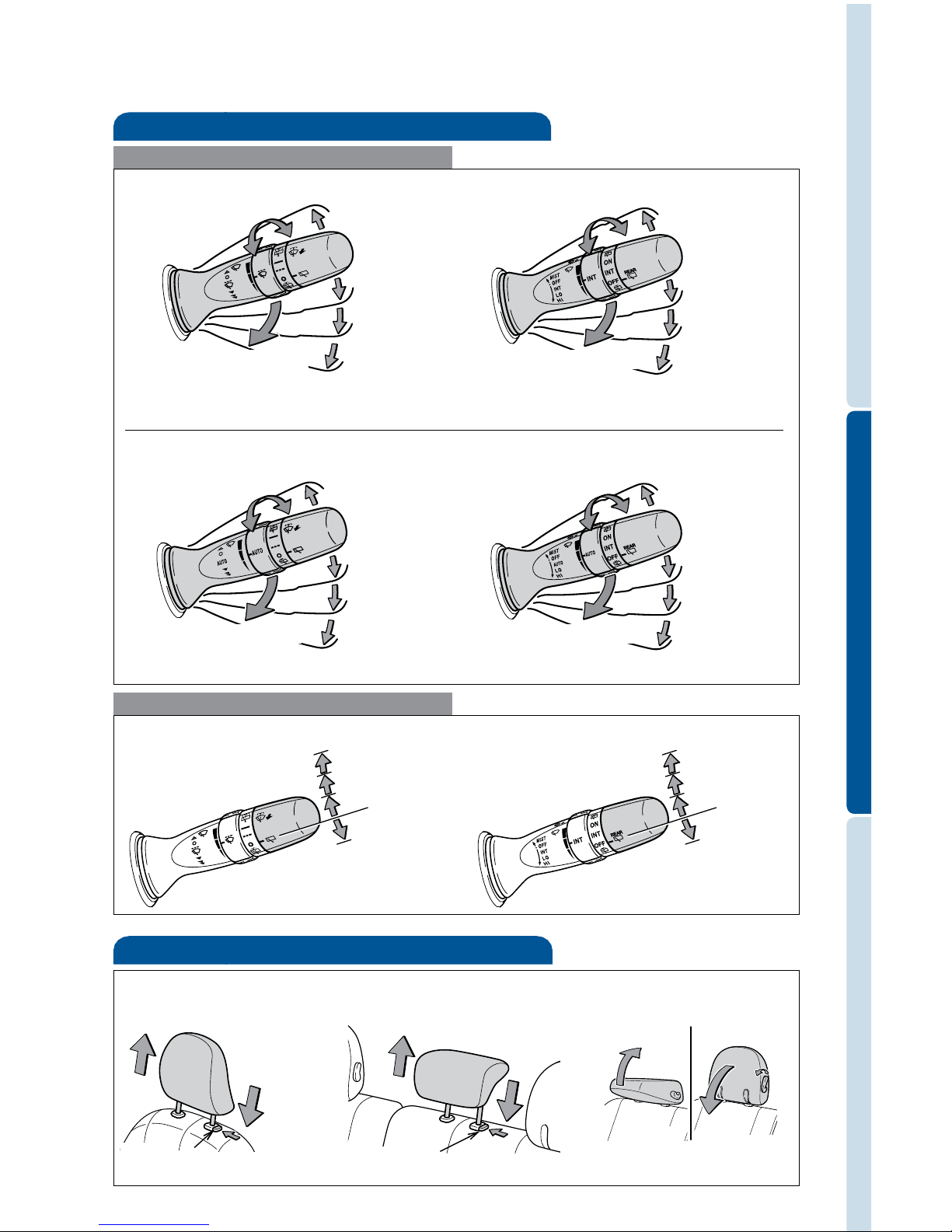

Windshield wipers & washers
Front
Rear
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
* Rain-sensing windshield wiper Rotate to increase/decrease sensor sensitivity.
Rain-sensing
Slow
Fast
Pull to wash and wipe
Single wipe
Adjust sensor sensitivity*
Seats-Head restraints
Lock release button
Front and second row
outside seats
Third row outside seats
Lock release button
Type B
Type A
Type B
Type A
Off
Rain-sensing
Slow
Fast
Pull to wash and wipe
Single wipe
Adjust sensor sensitivity*
Off
Adjust frequency* Single wipe
Interval wipe
Slow
Fast
Pull to wash and wipe
Off
Adjust frequency* Single wipe
Interval wipe
Slow
Fast
Pull to wash and wipe
Off
Type A
Wash and wipe
Wipe
Interval wipe
Wash and
wipe
Off
Wash and wipe
Wipe
Interval wipe
Wash and
wipe
Off
Type B
Second row center
(8-passenger models)
and third row center seats

14
FEATURES/OPERATIONS

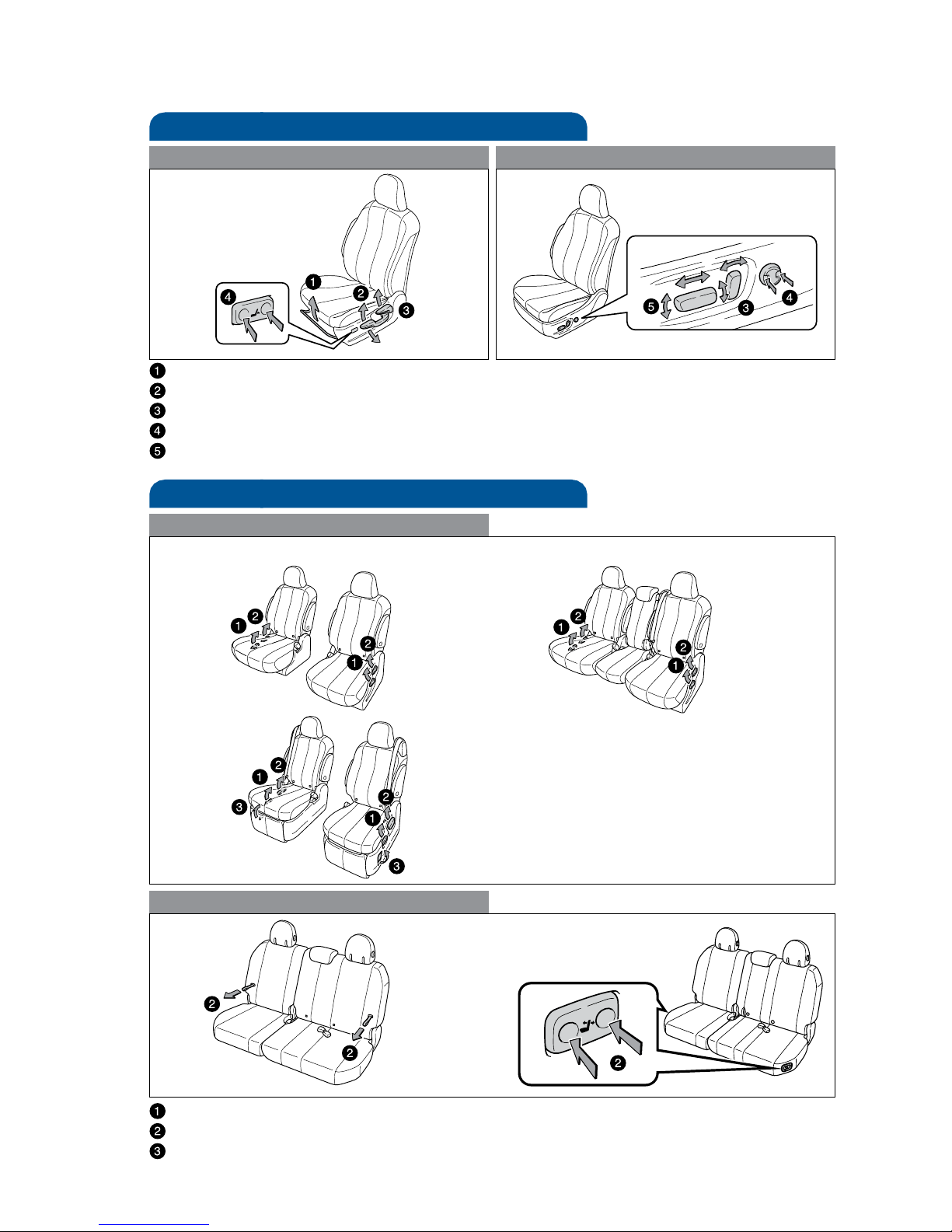

Seat adjustments-Rear
Second row seat
Third row seat
Seat position (forward/backward)
Seatback angle
Ottoman angle
Refer to the Owner’s Manual for more details.
Manual Power
Seat adjustments-Front
Manual seat Power seat
Seat position (forward/backward)
Height crank (driver side only)
Seatback angle
Lumbar support (if equipped)
Seat position, cushion angle and height
Pull
strap
Tip-up seat (7-passenger models)
Ottoman seat
Tip-up seat (8-passenger models)

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
15
(2)
(2)
(1)
(1)

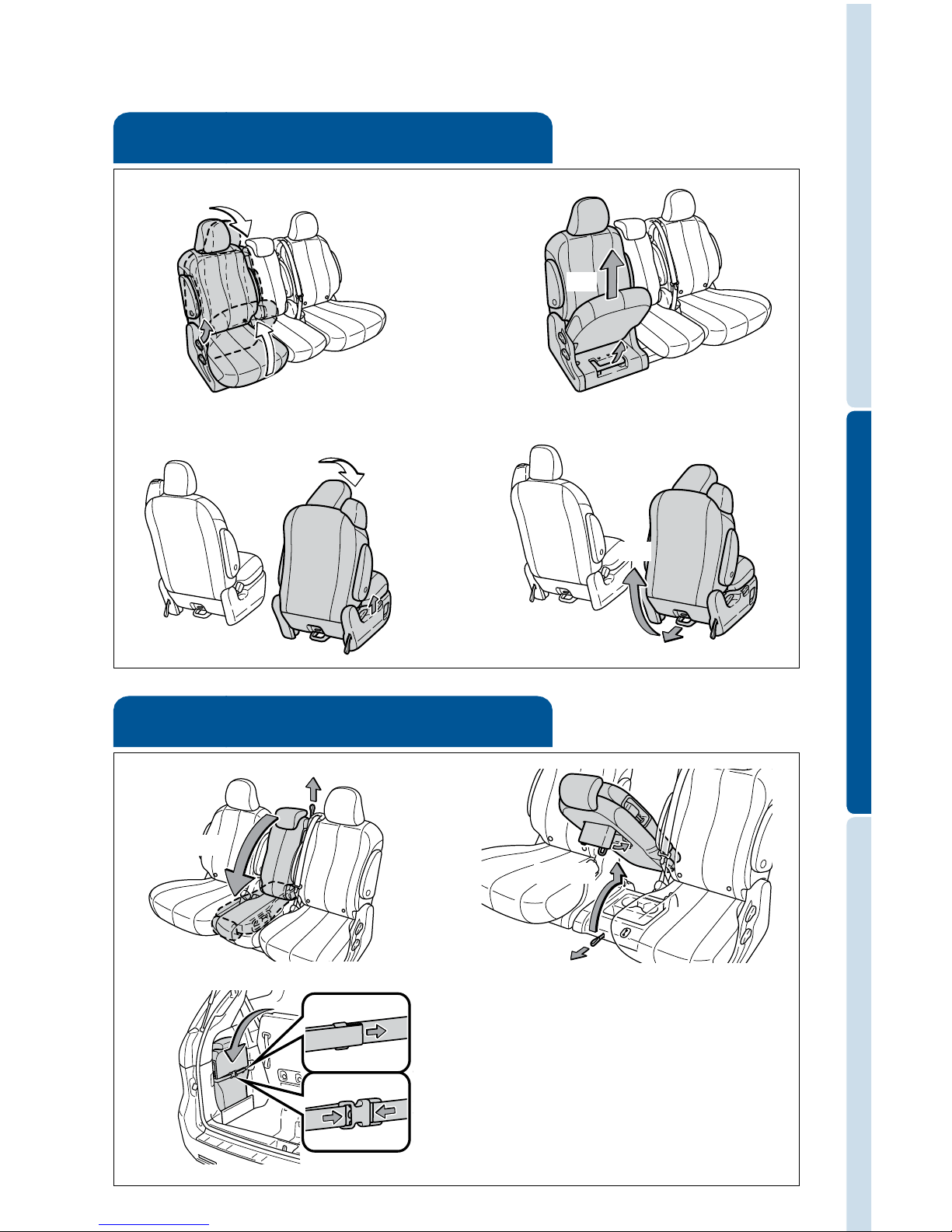

Tip-up seats
Fold
Pull
Lift
Pull
Pull
Tip-up
Pull
Fold
Lift
Ottoman seats
Seats-Removing second row center
seat (if equipped)
Pull
Fold
Pull
Remove
(2)
(1)
(3)
Seats-Removing second row outside
seats

16
FEATURES/OPERATIONS
Seats-Stowing third row seats
Lower
An alarm will sound for 10 seconds and the indicator will light up on the
instrument panel if the seat is not fully open or stowed when vehicle is shifted
out of Park.
Refer to the Owner’s Manual for more details.
Third seat fold
incomplete warning light
Stow the seat belt buckles
(2)(1)
(3)
Lower
Push down
Stow the seat belt buckles
Pull
(2)(1)
(3)
Push and hold
Power
Manual

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
17
Opening/Closing
ON/OFF switch
Power
• Sliding doors will not fully open if the sliding door window is open.
• Power sliding doors will open only when gear selector is in the “P” (Park)
position, and doors are unlocked. Refer to the Owner’s Manual for more details.
• An alarm will sound if a sliding door is open and the vehicle is shifted out of Park.
• Left sliding door will not open if gas door is open.
• If battery is disconnected, the power sliding doors need to be reinitialized.
Refer to the Owner’s Manual for more details.
Manual
• Sliding doors will not lock into the open position if the sliding door window is
open.
Doors-Power sliding (if equipped)
Front overhead console
Instrument panel
Push
Center pillar
On
Off
Open: Push
Close: Push again
Open: Push
Close: Push again

18
FEATURES/OPERATIONS

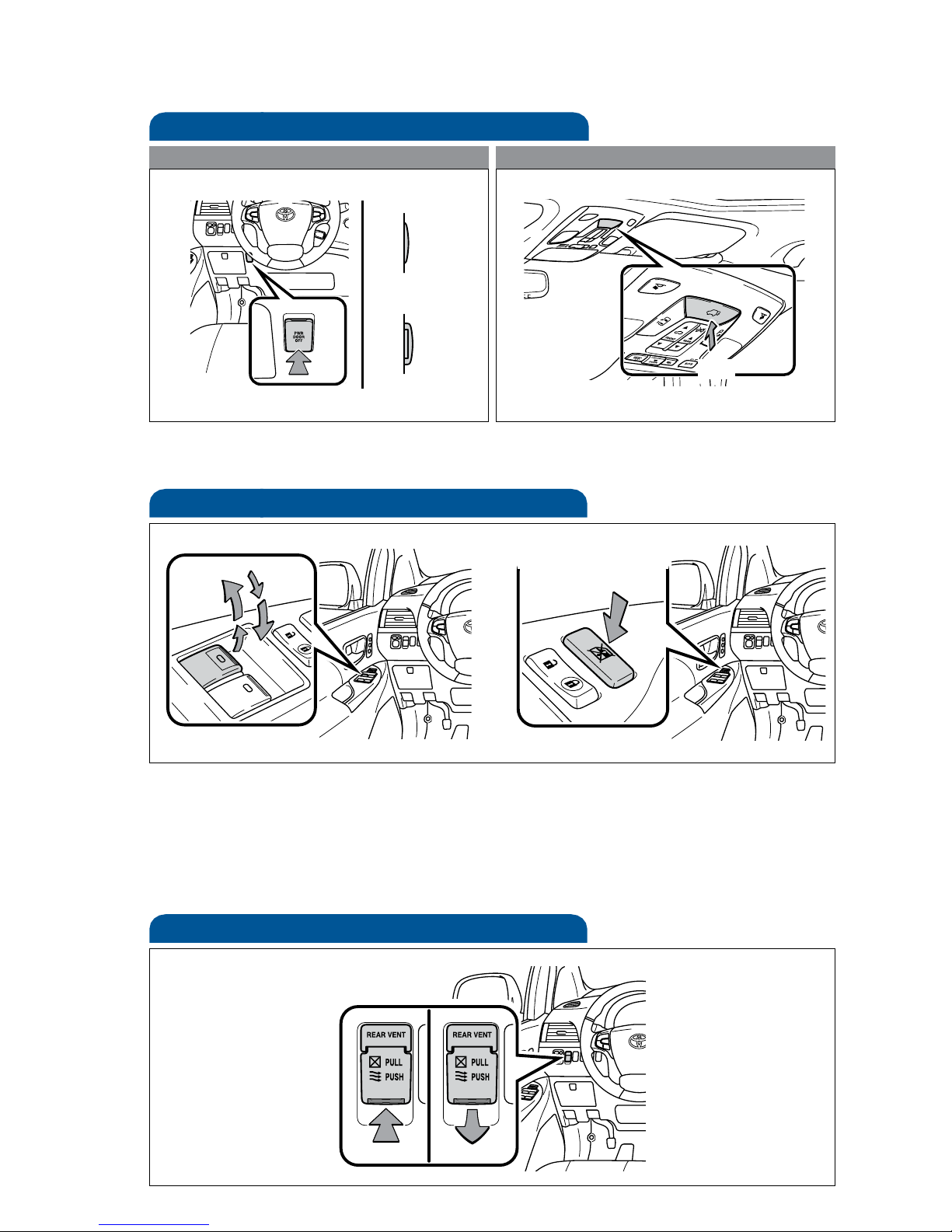

Windows
Automatic operation Push the switch completely down or pull it completely
up and release to fully open or close. To stop window partway, lightly push the
switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
Window lock switch
Up
Down
Windows-Power quarter (if equipped)
Open Close
Door-Power back (if equipped)
On
Off
Push
Push
Instrument panel Front overhead console
Open: Push
Close: Push again
NOTE: If battery is disconnected, the power back door needs to be reinitialized.
Refer to the Owner’s Manual for more details.
Opening/ClosingON/OFF switch
