’03 Rav4_U (L/O 0208)
1
2003 RAV4 from Aug. ’02 Prod. (OM42517U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 5. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 – 1

WWW.MANUALS.WS
WWW.MANUALS.WS
’03 Rav4_U (L/O 0208)
22003 RAV4 from Aug. ’02 Prod. (OM42517U)
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Garage door opener box or auxiliary
box
6. Electric moon roof switch and personal
light
7. Glove box
8. Power door lock switches
(with power windows)
9. Power window switches
10. Automatic transmission selector lever
or manual transmission gear shift lever
11. Parking brake lever
12. Cup holders
13. Ashtray
14. Power outlet
15. Auxiliary box
16. Hood lock release lever
17. Window lock switch
Instrument panel overview

WWW.MANUALS.WS
WWW.MANUALS.WS
’03 Rav4_U (L/O 0208)
3
2003 RAV4 from Aug. ’02 Prod. (OM42517U)
1. Power rear view mirror control switches
2. Instrument panel light control knob
3. Engine immobiliser system indicator
light
4. Headlight, turn signal and front fog
light switches
5. Wiper and washer switches
6. Front passenger’s seat belt reminder
light
7. Car audio
8. Clock display
9. Emergency flasher switch
10. Rear window and outside rear view
mirror defogger switch
11. Air conditioning controls
12. Cigarette lighter
13. Ashtray
14. Ignition switch
15. Cruise control switch
16. Tilt steering lock release lever
17. Power door lock switch
(without power windows)

WWW.MANUALS.WS
WWW.MANUALS.WS
’03 Rav4_U (L/O 0208)
42003 RAV4 from Aug. ’02 Prod. (OM42517U)

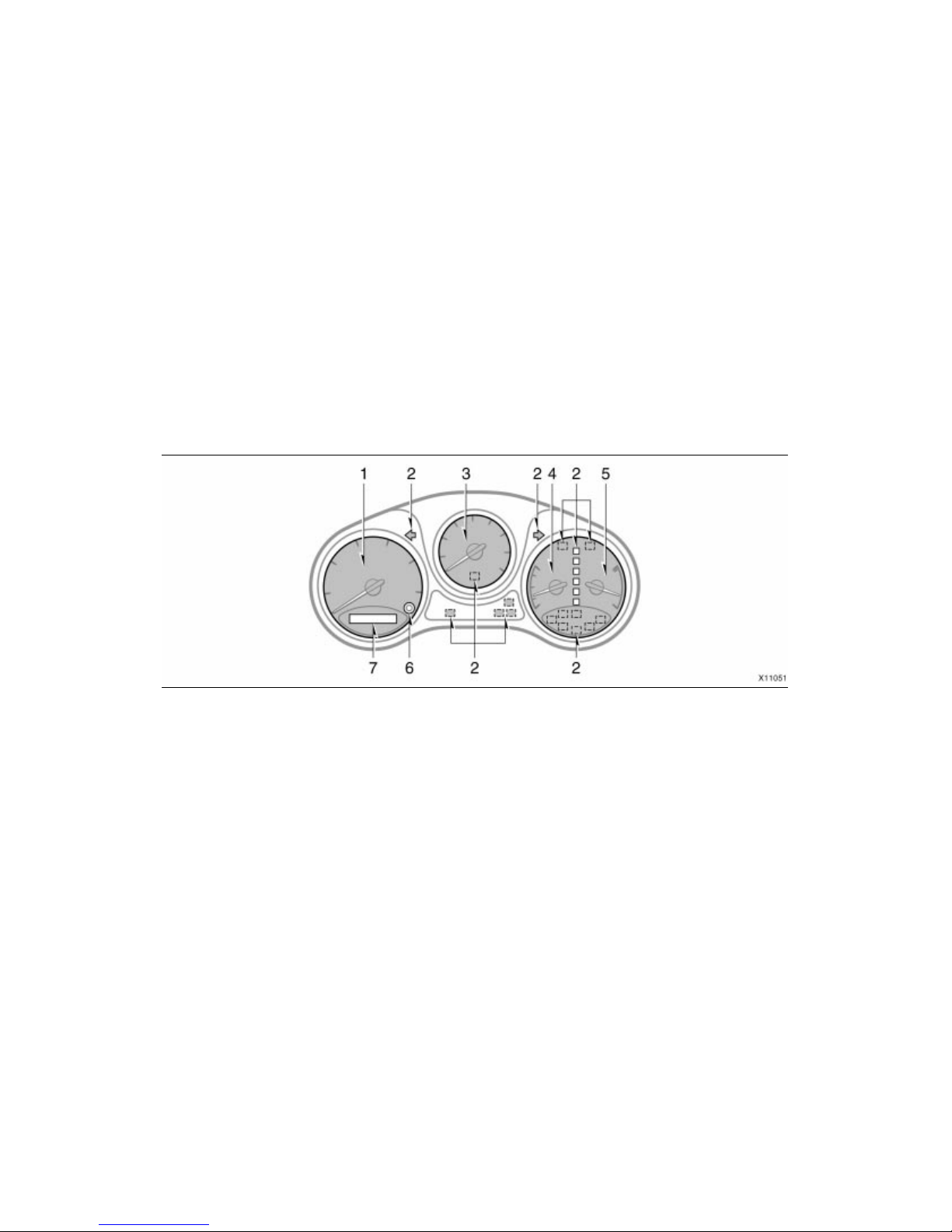

1. Speedometer
2. Service reminder indicators and
indicator lights
3. Tachometer
4. Fuel gauge
5. Engine coolant temperature gauge
6. Trip meter reset knob
7. Odometer and two trip meters
Instrument cluster overview

WWW.MANUALS.WS
WWW.MANUALS.WS
’03 Rav4_U (L/O 0208)
5
2003 RAV4 from Aug. ’02 Prod. (OM42517U)

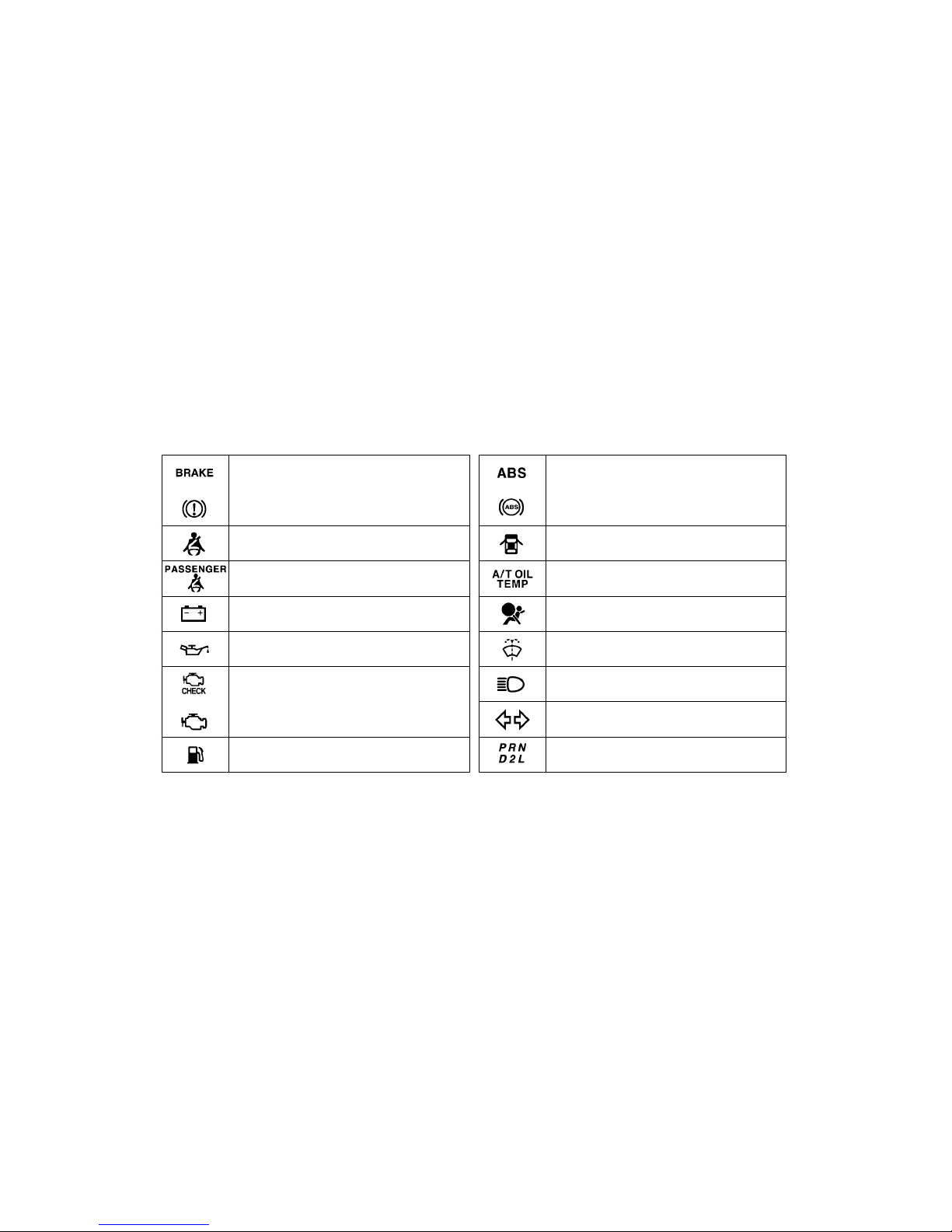

Brake system warning light∗1
Discharge warning light∗1
Low engine oil pressure warning light∗1
Malfunction indicator lamp∗1
Headlight high beam indicator light
Automatic transmission fluid temperature warning
light∗1
Turn signal indicator lights
Driver’s seat belt reminder light∗1Open door warning light∗1
Low fuel level warning light∗1
SRS warning light∗1
Anti–lock brake system warning light∗1 or
Low windshield washer fluid level warning light∗1
or
Front passenger’s seat belt reminder light∗1
or
Automatic transmission indicator lights
Indicator symbols on theinstrument panel

WWW.MANUALS.WS
WWW.MANUALS.WS
’03 Rav4_U (L/O 0208)
62003 RAV4 from Aug. ’02 Prod. (OM42517U)
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 93 in Section 1–5.
∗2: If this light flashes, see “Cruise control” on page 106 in
Section 1–6.
Cruise control indicator light∗2
Overdrive–off indicator light

WWW.MANUALS.WS
WWW.MANUALS.WS
’03 Rav4_U (L/O 0208)
7
2003 RAV4 from Aug. ’02 Prod. (OM42517U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobiliser system 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Back door 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric moon roof 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 – 2

WWW.MANUALS.WS
WWW.MANUALS.WS
’03 Rav4_U (L/O 0208)
82003 RAV4 from Aug. ’02 Prod. (OM42517U)

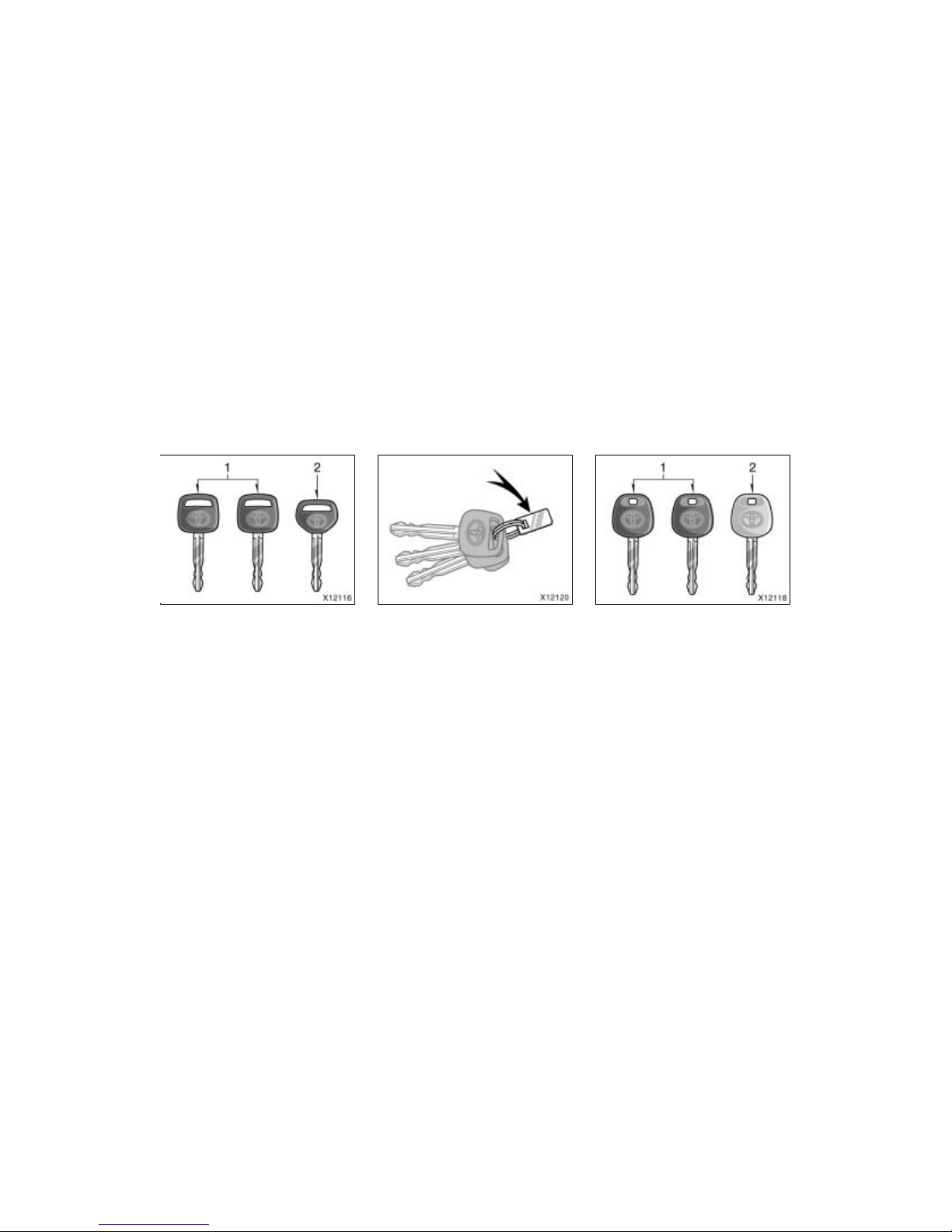

Your vehicle is supplied with two kinds
of keys.
1. Master keys—These keys work in ev-
ery lock.
2. Sub key—This key will not work in the
glove box.
To protect items locked in the glove box
when using valet parking, leave the sub
key with the attendant.
Since the side doors can be locked with-
out a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
Your vehicle is supplied with two kinds
of keys.
1. Master keys (black)—These keys work
in every lock. Your Toyota dealer will
need it to make you a new key with
built–in transponder chip.
2. Sub key (gray)—This key will not work
in the glove box.
Keys (without engine
immobiliser system) Keys (with engine immobiliser system)

WWW.MANUALS.WS
WWW.MANUALS.WS
’03 Rav4_U (L/O 0208)
9
2003 RAV4 from Aug. ’02 Prod. (OM42517U)
A transponder chip for engine immobiliser
system has been filled in the head of the
master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
To protect items locked in the glove box
when using valet parking, leave the sub
key with the attendant.
Since the side doors can be locked with-
out a key, you should always carry a
spare key in case you accidentally lock
your keys inside the vehicle.
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
 When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
 When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after taking
off other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.

WWW.MANUALS.WS
WWW.MANUALS.WS
’03 Rav4_U (L/O 0208)
10 2003 RAV4 from Aug. ’02 Prod. (OM42517U)
 Do not bend the key grip.
 Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
 Do not knock the key hard against
other objects.
 Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under the direct sunlight.
 Do not put the key in water or
wash it in an ultrasonic washer.
 Do not use the key with electromag-
netic materials.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.

WWW.MANUALS.WS
WWW.MANUALS.WS
’03 Rav4_U (L/O 0208)
11
2003 RAV4 from Aug. ’02 Prod. (OM42517U)
The engine immobiliser system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start, only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.
The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
In the following cases, contact your Toyota
dealer.
The indicator light stays on.
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes unsteady.
Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with built–in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobiliser sys-
tem. If any unauthorized changes or
modifications are made, the proper
operation of the system cannot be
guaranteed.
Engine immobiliser system

WWW.MANUALS.WS
WWW.MANUALS.WS
’03 Rav4_U (L/O 0208)
12 2003 RAV4 from Aug. ’02 Prod. (OM42517U)
For vehicles sold in U.S.A.
FCC ID: NI4TMIM–4
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS–210 of
industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.

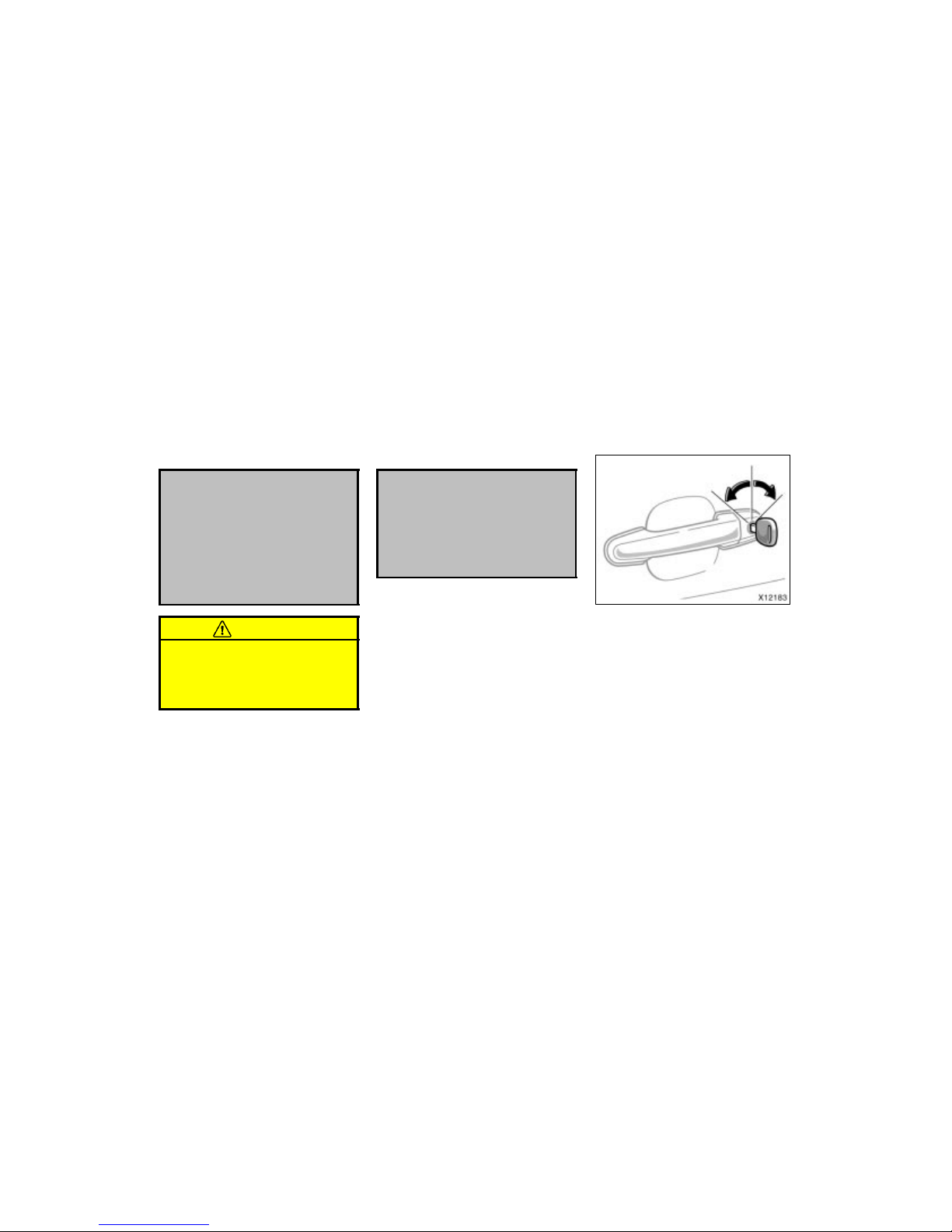

LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Vehicles with power door lock system—
All the side doors and back door lock and
unlock simultaneously with either front
door. In the driver’s door lock, turning the
key once will unlock the driver’s door and
twice in succession will unlock all the side
doors and back door simultaneously.
Side doors—

WWW.MANUALS.WS
WWW.MANUALS.WS
’03 Rav4_U (L/O 0208)
13
2003 RAV4 from Aug. ’02 Prod. (OM42517U)
When all the side doors and back door
are unlocked simultaneously using a key,
the interior lights will come on and remain
on for about 15 seconds before fading
out. (For further information, see “Interior
lights” on page 84 in Section 1–4.)
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
With power windows (driver’s side)
With power windows (passenger’s side)

WWW.MANUALS.WS
WWW.MANUALS.WS
’03 Rav4_U (L/O 0208)
14 2003 RAV4 from Aug. ’02 Prod. (OM42517U)
Without power windows
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
With power windows—
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
Without power windows—
To lock: Push the switch on the “LOCK”
side.
To unlock: Push the switch on the
“UNLOCK” side.
Operating the switch simultaneously locks
or unlocks all the side doors and back
door.
REAR DOOR CHILD–PROTECTORS
Move the lock lever to the “LOCK”
position as shown on the label.
This feature allows you to lock a rear
door so it can be opened from the outside
only, not from inside. We recommend us-
ing this feature whenever small children
are in the vehicle.

WWW.MANUALS.WS
WWW.MANUALS.WS
’03 Rav4_U (L/O 0208)
15
2003 RAV4 from Aug. ’02 Prod. (OM42517U)
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.

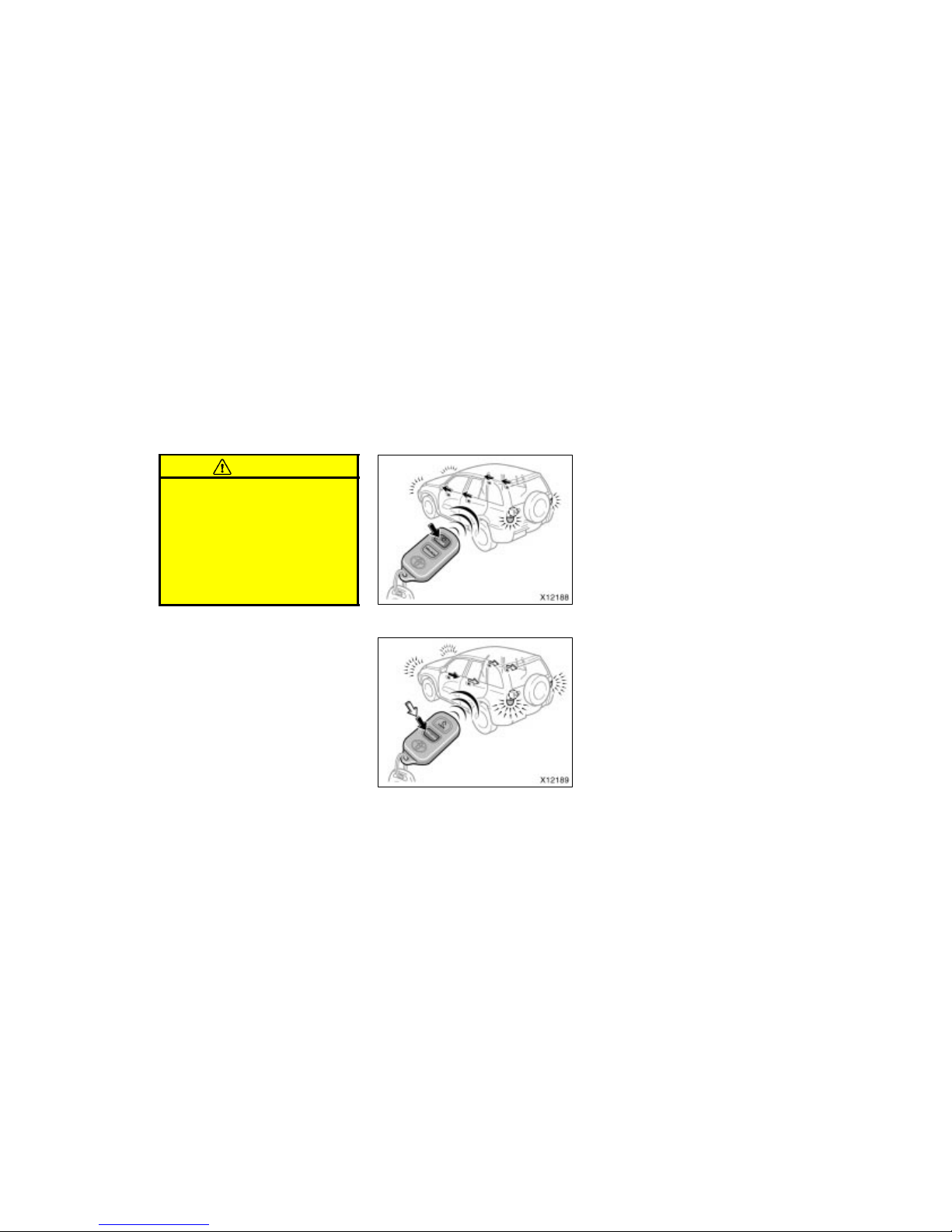

Locking operation
Unlocking operation
The wireless remote control system is
designed to lock or unlock all the side
doors and back door, or activate the
“PANIC” mode from a distance within
approximately 1 m (3 ft.) of the vehicle.
LOCKING AND UNLOCKING THE SIDE
DOORS AND BACK DOOR
To lock and unlock all the side doors
and back door, push the switches of
the transmitter slowly and securely.
To lock: Push the “LOCK” switch. All the
side doors and back door are locked si-
multaneously. At this time, parking lights
and tail lights flash.
Check to see that all the side doors and
back door are securely locked.
If any of side doors or back door is not
securely closed, or if the key is in the
ignition switch, locking cannot be per-
formed by the “LOCK” switch.
To unlock: Push the “UNLOCK” switch
once to unlock the driver’s door alone.
Pushing the switch twice within 3 seconds
unlocks all the side doors and back door
simultaneously. At this time, parking lights
and tail lights flash twice.
—Wireless remote control

WWW.MANUALS.WS
WWW.MANUALS.WS
’03 Rav4_U (L/O 0208)
16 2003 RAV4 from Aug. ’02 Prod. (OM42517U)
When all the side doors and back door
are unlocked simultaneously using a wire-
less remote control transmitter, the interior
lights will come on and remain on for
about 15 seconds before fading out. (For
further information, see “Interior light” on
page 84 in Section 1–4.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
side doors and back door will be automati-
cally locked again.
If the “LOCK” or “UNLOCK” switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the button
and then push again.
“PANIC” SWITCH
Pushing the “PANIC” switch blows the
horn intermittently and flashes the
headlights and tail lights.
The “PANIC” switch is used to deter ve-
hicle theft when you witness anyone at-
tempting to break into or damage your
vehicle.
The alarm will last for one minute. To stop
alarm midway, do the following:
Push the “PANIC” switch once again.
Unlock any of side door or back door
with the key or wireless remote control
transmitter.
Turn the ignition key from the “LOCK”
to “ON” position.
The “PANIC” mode does not work when
the ignition key is in the “ON” position.
WIRELESS REMOTE CONTROL
TRANSMITTER
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage to the transmitter.
Do not leave the transmitter on places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information.
If the wireless remote control transmitter
does not actuate the side doors and back
door or alarm, or operate from a normal
distance:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.

WWW.MANUALS.WS
WWW.MANUALS.WS
’03 Rav4_U (L/O 0208)
17
2003 RAV4 from Aug. ’02 Prod. (OM42517U)
The battery may have been consumed.
Check the battery in the transmitter. To
replace the battery, see “REPLACING
TRANSMITTER BATTERY”.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an acci-
dent. (See “If you lose your wireless re-
mote control transmitter” on page 204 in
Section 4.)
For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there
is no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:
Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
Operation is subject to the following two
conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.

WWW.MANUALS.WS
WWW.MANUALS.WS
’03 Rav4_U (L/O 0208)
18 2003 RAV4 from Aug. ’02 Prod. (OM42517U)
REPLACING TRANSMITTER BATTERY
For replacement, use a CR2016 lithium
battery or equivalent.
CAUTION
Special care should be taken that
small children do not swallow the re-
moved transmitter battery or compo-
nents.
NOTICE
 During replacing the transmitter
battery, do not push the “LOCK”
and “UNLOCK” switches many
times.
 When replacing the transmitter bat-
tery, be careful not to lose the com-
ponents.
 Replace only with the same or
equivalent type recommended by a
Toyota dealer.
 Dispose of used batteries according
to the local laws.

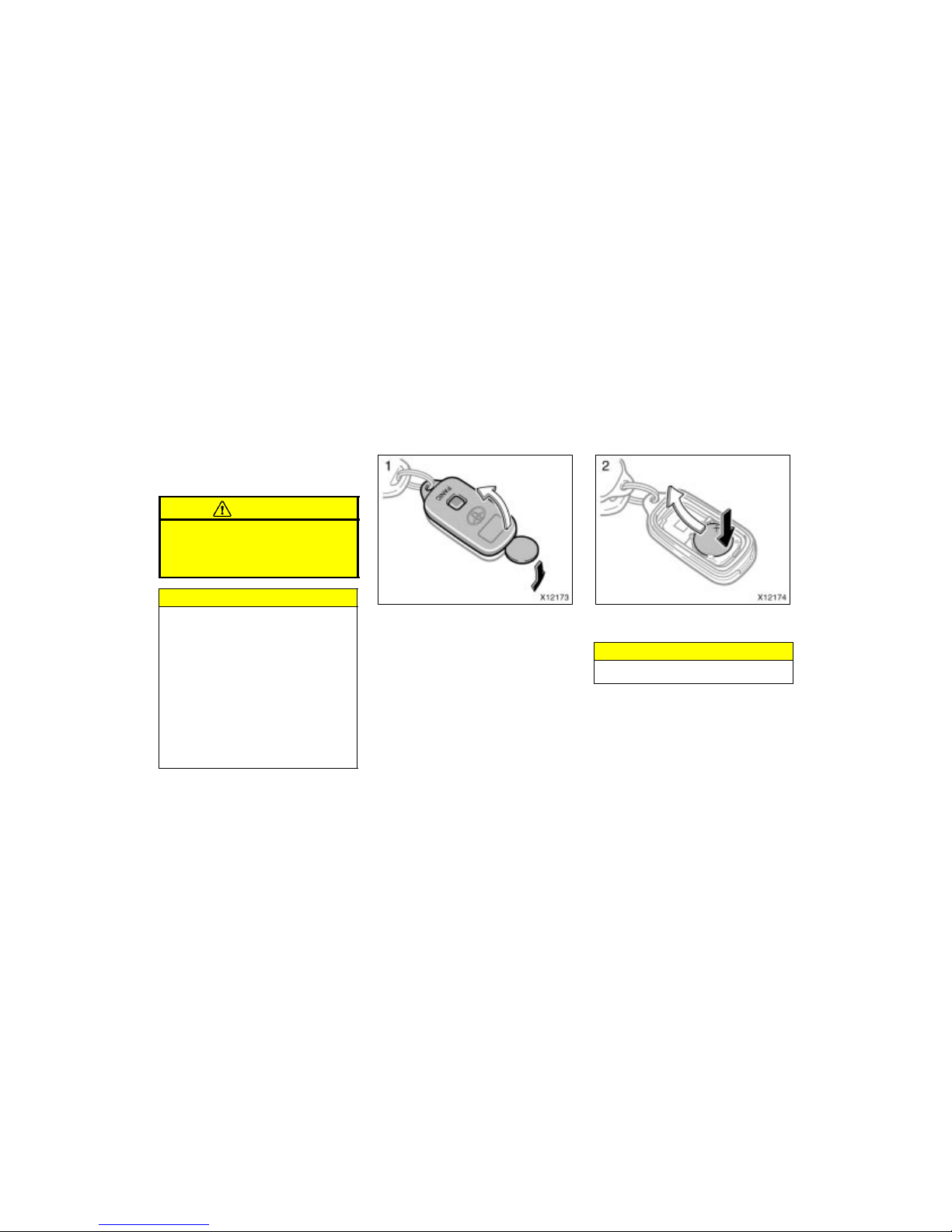

Replace the transmitter battery by the fol-
lowing procedures:
1. Using a coin or equivalent, open the
transmitter case. 2. Remove the discharged transmitter bat- tery.
NOTICE
Do not bend the terminals.

WWW.MANUALS.WS
WWW.MANUALS.WS
’03 Rav4_U (L/O 0208)
19
2003 RAV4 from Aug. ’02 Prod. (OM42517U)
3. Put a new transmitter battery with posi-
tive (+) side up.
Close the transmitter case securely.
NOTICE
 Make sure the positive side and
negative side of the transmitter bat-
tery should be faced correctly.
 Do not replace the battery with wet
hands. Water may cause unexpected
rust.
 Do not touch or move any compo-
nents inside of the transmitter, or
it may interfere with proper opera-
tion.
 Be careful not to bend the electrode
of the transmitter battery insertion
and that dust or oils do not adhere
to the transmitter case.
 Close the transmitter case securely.
After replacing battery, check that the
transmitter operates properly. If the trans-
mitter still does not operate properly, con-
tact your Toyota dealer.
The windows can be operated with the
switch on each side door.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation: If the either front door
is closed, they work for 43 seconds even
after the ignition switch is turned off. They
stop working when the either front door is
opened.

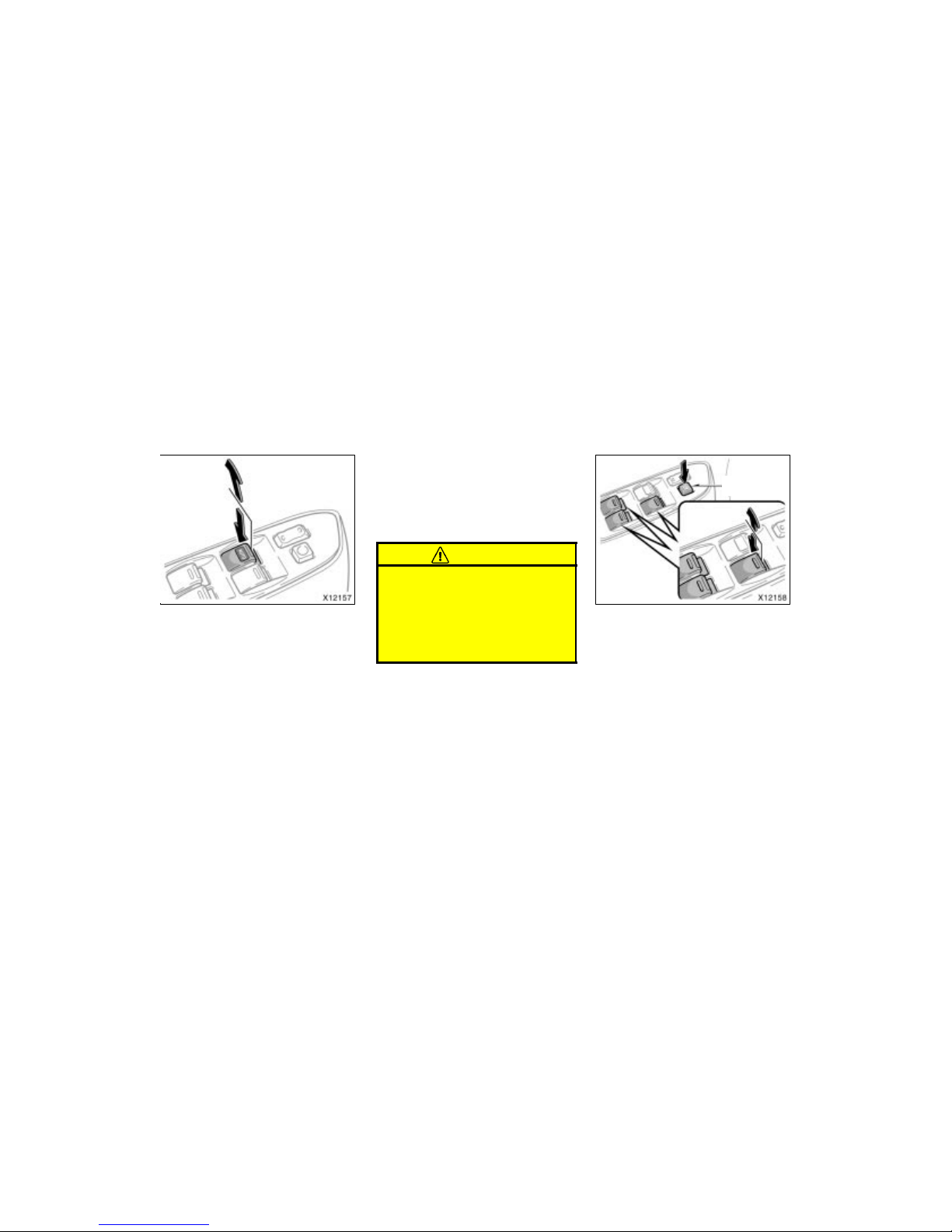

OPERATING THE DRIVER’S WINDOW
Use the switch on the driver’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.
Power windows

WWW.MANUALS.WS
WWW.MANUALS.WS
’03 Rav4_U (L/O 0208)
20 2003 RAV4 from Aug. ’02 Prod. (OM42517U)
Automatic operation: Push the switch
completely down or pull it completely up,
and then release it. The window will fully
open or close. To stop the window part-
way, lightly move the switch in the oppo-
site direction and then release it.
Jam protection function: During automat-
ic closing operation, the window stops and
opens half way if something gets caught
between the window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.
CAUTION
Never try jamming any part of your
body to make the jam protection
function work intentionally.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.
Window lock
switch
OPERATING THE PASSENGERS’
WINDOWS
Use the switch on each passenger’s
door or the switches on the driver’s
door that control each passenger’s win-
dow.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver’s door, the passengers’ windows
cannot be operated.
