OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 11. . . . . . . . . . . . . . . . . . . . . .
SECTION 1 - 1

’04 AVALON U (L/O 0307)
2
2004 AVALON from JUL. ’03 Prod. (OM41404U)
1. Side vents
2. Side defroster outlets
3. Instrument cluster and/or
multi-information display
4. Garage door opener
5. Center vents
6. Auxiliary boxes
7. Front personal light, interior light and/or
electric moon roof switch
8. Power door lock switches
9. Power window switches
10. Glove box
11. Trunk opener main switch
12. Rear vents
13. Power outlet (115 VAC)
14. Power outlet (12 VDC)
15. Cup holder
16. Automatic transmission selector lever
17. Hood lock release lever
18. Parking brake pedal
19. Window lock switch
Instrument panel overview
With bucket front seat (view A)

’04 AVALON U (L/O 0307)
3
2004 AVALON from JUL. ’03 Prod. (OM41404U)
1. Power rear view mirror control switches
2. Headlight, turn signal and front fog
light switches
3. Wiper and washer switches
4. Emergency flasher switch
5. Car audio
6. Air conditioning controls
7. Rear window and outside rear view
mirror defogger switch
8. Cigarette lighter and ashtray
9. Ignition switch
10. Power outlet main switch
11. Traction control system off switch
12. Cruise control switch
13. Tilt steering lock release lever
14. Trunk lid lock release switch
15. Instrument panel light control knob
With bucket front seat (view B with manual air conditioning controls)

’04 AVALON U (L/O 0307)
4
2004 AVALON from JUL. ’03 Prod. (OM41404U)
1. Power rear view mirror control switches
2. Headlight, turn signal and front fog
light switches
3. Wiper and washer switches
4. Emergency flasher switch
5. Car audio
6. Air conditioning controls
7. Rear window and outside rear view
mirror defogger switch
8. Cigarette lighter and ashtray
9. Seat heater switches
10. Ignition switch
11. Power outlet main switch
12. Traction control system off switch
13. Cruise control switch
14. Tilt steering lock release lever
15. Trunk lid lock release switch
16. Instrument panel light control knob
With bucket front seat (view B with automatic air conditioning controls)

’04 AVALON U (L/O 0307)
5
2004 AVALON from JUL. ’03 Prod. (OM41404U)
1. Side vents
2. Side defroster outlets
3. Instrument cluster and/or
multi-information display
4. Automatic transmission selector lever
5. Garage door opener
6. Center vents
7. Auxiliary boxes
8. Front personal light, interior light and/or
electric moon roof switch
9. Power door lock switches
10. Power window switches
11. Glove box
12. Cup holder
13. Trunk opener main switch
14. Hood lock release lever
15. Parking brake pedal
16. Window lock switch
With bench type front seat (view A)

’04 AVALON U (L/O 0307)
6
2004 AVALON from JUL. ’03 Prod. (OM41404U)
1. Power rear view mirror control switches
2. Headlight and turn signal switch and
front fog light switch
3. Wiper and washer switches
4. Emergency flasher switch
5. Car audio
6. Air conditioning controls
7. Rear window and outside rear view
mirror defogger switch
8. Cigarette lighter and ashtray
9. Power outlet (115 VAC)
10. Power outlet (12 VDC)
11. Ignition switch
12. Power outlet main switch
13. Traction control system off switch
14. Cruise control switch
15. Tilt steering lock release lever
16. Trunk lid lock release switch
17. Instrument panel light control knob
With bench type front seat (view B with manual air conditioning controls)

’04 AVALON U (L/O 0307)
7
2004 AVALON from JUL. ’03 Prod. (OM41404U)
1. Power rear view mirror control switches
2. Headlight and turn signal switch and
front fog light switch
3. Wiper and washer switches
4. Emergency flasher switch
5. Car audio
6. Air conditioning controls
7. Rear window and outside rear view
mirror defogger switch
8. Seat heater switches
9. Cigarette lighter and ashtray
10. Power outlet (115 VAC)
11. Power outlet (12 VDC)
12. Ignition switch
13. Power outlet main switch
14. Traction control system off switch
15. Cruise control switch
16. Tilt steering lock release lever
17. Trunk lid lock release switch
18. Instrument panel light control knob
With bench type front seat (view B with automatic air conditioning controls)

’04 AVALON U (L/O 0307)
8
2004 AVALON from JUL. ’03 Prod. (OM41404U)
1. Engine coolant temperature gauge
2. Tachometer
3. Service reminder indicators and
indicator lights
4. Speedometer
5. Engine immobiliser system indicator
light
6. Odometer and two trip meters
7. Clock
8. Outside temperature display
9. “ADJ” button∗
10. “MODE” button∗
11. “ODO/TRIP” button
12. Fuel gauge
∗: This button is used to adjust the clock. For details, see “Clock” in Section 1-10.
Instrument cluster overview
Type A

’04 AVALON U (L/O 0307)
9
2004 AVALON from JUL. ’03 Prod. (OM41404U)
1. Engine coolant temperature gauge
2. Tachometer
3. Service reminder indicators and
indicator lights
4. Speedometer
5. Theft deterrent system/engine
immobiliser system indicator light
6. Clock∗
7. Outside temperature display∗
8. Multi-information display
9. “LIGHT” button∗
10. “MODE” button∗
11. “RESET/ADJ” button∗
12. “DISPLAY” button∗
13. Odometer and two trip meters
14. “ODO/TRIP” button
15. Fuel gauge
∗: This button is used to operate the multi-information display. For details, see “Multi- information display” in Section 1- 10.
Type B

’04 AVALON U (L/O 0307)
10
2004 AVALON from JUL. ’03 Prod. (OM41404U)
1. Engine coolant temperature gauge
2. Tachometer
3. Service reminder indicators and
indicator lights
4. Speedometer
5. Theft deterrent system/engine
immobiliser system indicator light
6. Clock∗
7. Outside temperature display∗
8. Odometer and two trip meters
9. “ODO/TRIP” button
10. Fuel gauge
∗: For details, please refer to the separate “Navigation system Owner’s manual”.
Type C

’04 AVALON U (L/O 0307)
11
2004 AVALON from JUL. ’03 Prod. (OM41404U)
Brake system warning light∗1
Driver’s seat belt reminder light∗1
Discharge warning light∗1
Malfunction indicator lamp∗1
Low engine oil pressure warning light∗1
or
Low fuel level warning light∗1
Anti- lock brake system warning light∗1 or
Open door warning light∗1
Rear light failure warning light∗1
SRS warning light∗1
Low windshield washer fluid level warning
light∗1
Front outside passenger’s seat belt reminder
light∗1
Vehicle stability control system and traction
control system warning light∗1
Headlight high beam indicator light
Indicator symbols on the instrument panel

’04 AVALON U (L/O 0307)
12
2004 AVALON from JUL. ’03 Prod. (OM41404U)
∗1: For details, see “Service reminder indicators and warning
buzzers” in Section 1-6.
∗2: If this light flashes, see “Cruise control” in Section 1- 7.
Turn signal indicator lights
Slip indicator light
Cruise control indicator light∗2
Overdrive- off indicator light
Automatic transmission indicator lights
Traction control system off indicator light

’04 AVALON U (L/O 0307)
13
2004 AVALON from JUL. ’03 Prod. (OM41404U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobiliser system 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk lid 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft deterrent system 35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap 37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric moon roof 38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 - 2

’04 AVALON U (L/O 0307)
14
2004 AVALON from JUL. ’03 Prod. (OM41404U)

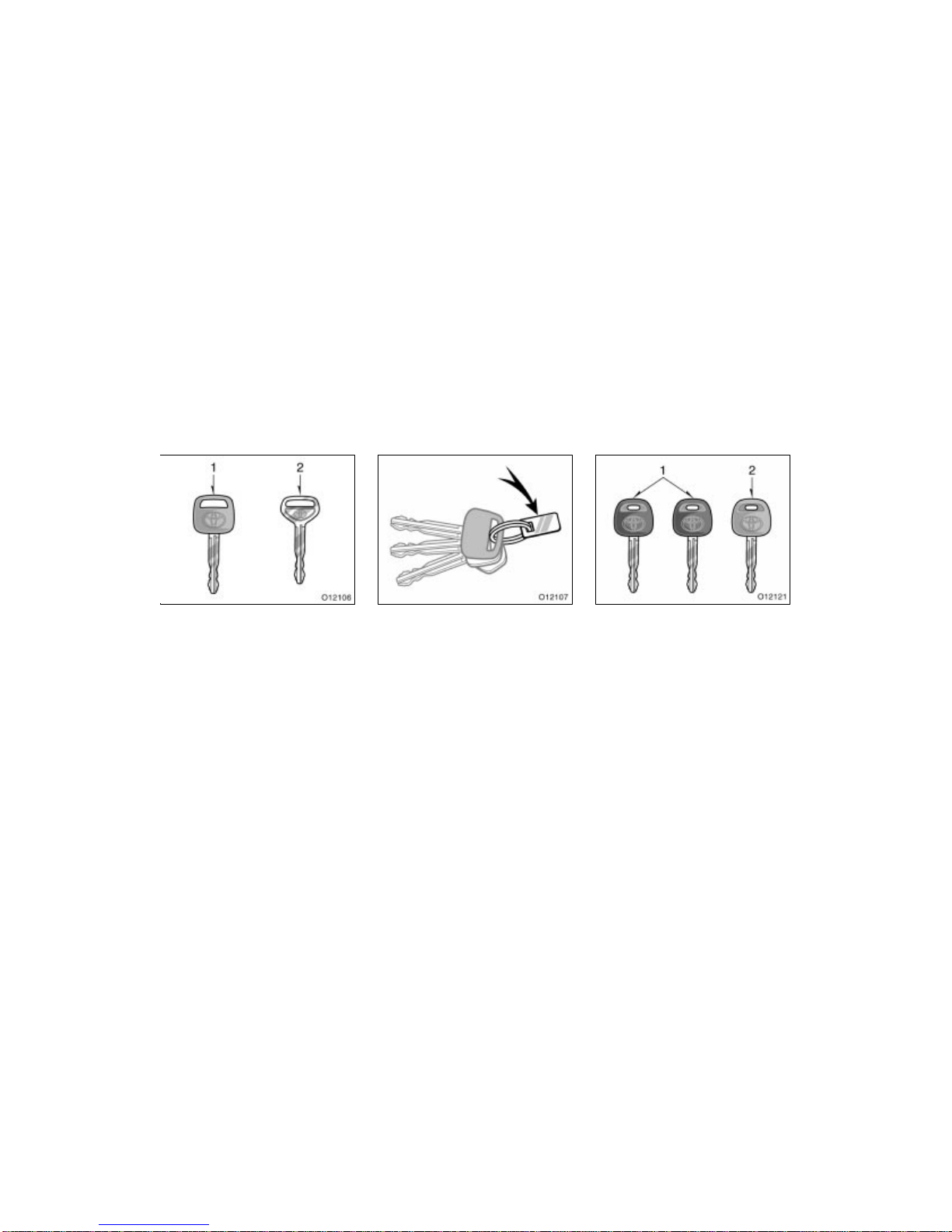

Your vehicle is supplied with two kinds
of keys.
1. Master key—This key works in every
lock.
2. Sub key—This key will not work in the
glove box, trunk and armrest door in
the rear seat.
To protect items locked in the trunk or
glove box when using valet parking, leave
the sub key with the attendant.
Since the doors and trunk lid can be
locked without a key, you should always
carry a spare master key in case you
accidentally lock your keys inside the ve-
hicle.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.
Your vehicle is supplied with two kinds
of keys.
1. Master keys (black)—These keys work
in every lock. Your Toyota dealer will
need one of them to make a new key
with a built- in transponder chip.
2. Sub key (gray)—This key will not work
in the glove box, trunk and armrest
door in the rear seat.
A transponder chip for engine immobiliser
system has been placed in the head of
the master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
Keys (without engine
immobiliser system) Keys (with engine immobiliser system)

’04 AVALON U (L/O 0307)
15
2004 AVALON from JUL. ’03 Prod. (OM41404U)
To protect items locked in the trunk or
glove box when using valet parking, leave
the sub key with the attendant.
Since the doors and trunk lid can be
locked without a key, you should always
carry a spare master key in case you
accidentally lock your keys inside the ve-
hicle.
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
 When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
 When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after remov-
ing other transponder keys (includ-
ing keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.

’04 AVALON U (L/O 0307)
16
2004 AVALON from JUL. ’03 Prod. (OM41404U)
 Do not bend the key grip.
 Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
 Do not knock the key hard against
other objects.
 Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under the direct sunlight.
 Do not put the key in water or
wash it in an ultrasonic washer.
 Do not use the key with electromag-
netic materials.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.

’04 AVALON U (L/O 0307)
17
2004 AVALON from JUL. ’03 Prod. (OM41404U)
The engine immobiliser system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The engine will start only when
the electronic code in the chip corre-
sponds to the registered ID code for
the vehicle.
The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
If any of the following indicator conditions
occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system” in this Section.)
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes unsteady.
Inserting the registered key in the ignition
switch automatically cancels the system,
which enables the engine to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with built- in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the sys-
tem or start the engine.
NOTICE
Do not modify, remove or disas-
semble the engine immobiliser sys-
tem. If any unauthorized changes or
modifications are made, the proper
operation of the system cannot be
guaranteed.
Engine immobiliser system

’04 AVALON U (L/O 0307)
18
2004 AVALON from JUL. ’03 Prod. (OM41404U)
For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
All the doors lock and unlock simulta-
neously with either front door. In the driv-
er’s door lock, turning the key once will
unlock the driver’s door and twice in suc-
cession will unlock all the doors simulta-
neously.
When all the doors are unlocked simulta-
neously with a key or wireless remote
control transmitter, the interior lights and
ignition switch light come on for about 15
seconds and then fade out, even if the
door is not opened. (For further informa-
tion, see “Interior light”, “Front personal
and interior lights” and “Ignition switch
light” in Section 1-5.)
Side doors—

’04 AVALON U (L/O 0307)
19
2004 AVALON from JUL. ’03 Prod. (OM41404U)
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
The front doors can be opened by pulling
the inside handle even if the lock knobs
are in the locked position.
CAUTION
Do not pull the inside handle of the
front doors while driving. The doors
will open and an accident may occur.
Toyota strongly recommends that all
children be placed in the rear seat of
the vehicle.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
Doors cannot be locked when either front
door is open and the key is in the igni-
tion.
If the vehicle is subjected to a severe
frontal, rear or side impact with the igni-
tion switch turned to the “ON” position, all
doors will unlock automatically after a few
seconds.
Driver’s side
Passenger’s side

’04 AVALON U (L/O 0307)
20
2004 AVALON from JUL. ’03 Prod. (OM41404U)
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
front side. To unlock: Push the switch
down on the rear side.
All the doors lock or unlock simultaneous-
ly.
REAR DOOR CHILD- PROTECTORS
Move the lock knob to the “LOCK”
position as shown on the label.
This feature allows you to lock a rear
door so it can be opened from the outside
only, not from inside. We recommend us-
ing this feature whenever small children
are in the vehicle.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle during an accident. It also helps
prevent the doors from being opened
unintentionally.
