Toyota AVALON HYBRID 2013 User manual

QUICK REFERENCE GUIDE
2013
AVALON HYBRID

This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in your vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of your vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Avalon
Hybrid.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of
Avalon Hybrid operations. Every Avalon Hybrid owner should
review the Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2013
Avalon Hybrid

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
1
INDEX
Engine maintenance 8
Fuel tank door release and cap 6
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry1,2 6
Light control-Instrument panel 8
Smart Key system1,2 7
Air Conditioning/Heating 18-19
Audio 20
Auto lock/unlock210
BSM (Blind Spot Monitor) 21
Clock 20

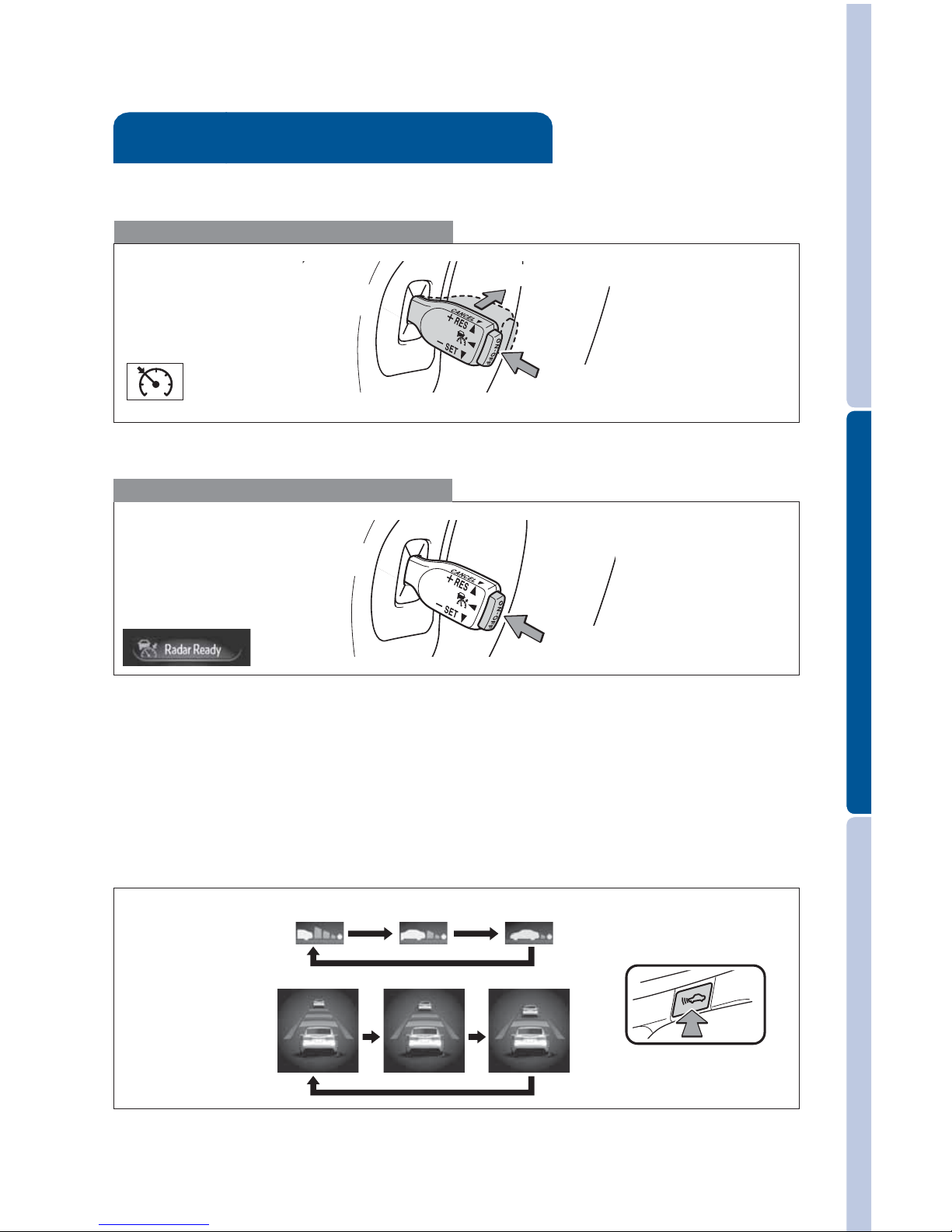

Cruise control 16
Cup holders 22
Driving mode select 11
Dynamic radar cruise control 17
Garage door opener (HomeLink®)3 16
Hill-start Assist Control (HAC) 22
Hybrid Synergy Drive System 9
iPod®/USB/AUX port 21

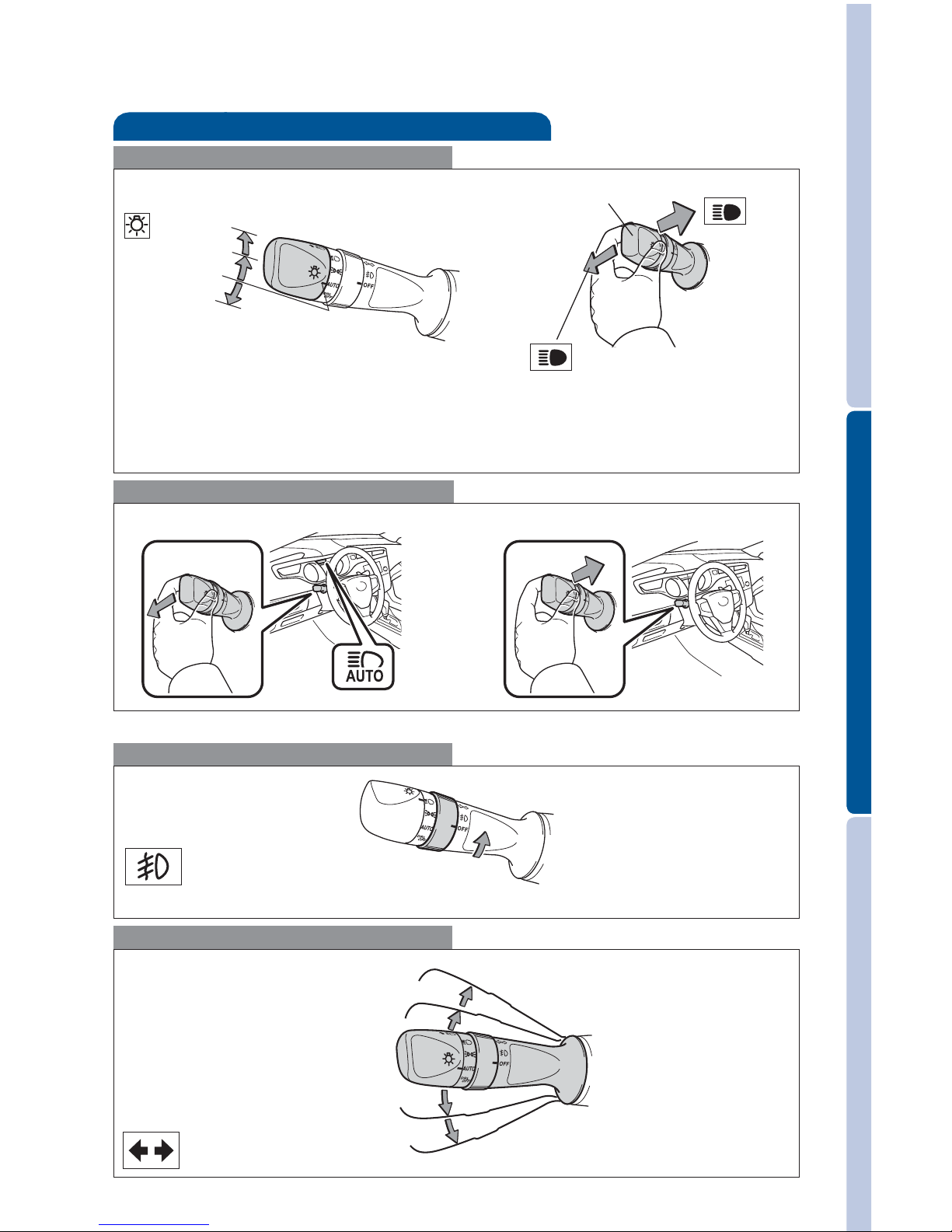

Lights1& turn signals 15
Moonroof 12
Multi-Information Display 13
Parking brake 10
Power outlets-12V DC 14
Seat adjustments-Front 13
Seat ventilators/Heaters 19
Seats-Head restraints 12
Steering lock release 11
Steering wheel switches 20
Tilt and telescopic steering wheel 11
Transmission 10
Windows-Power 12
Windshield wipers & washers 14
Wireless charger 22
Door locks 23
Doors-Child safety locks 23
Floor mat installation 27
Seat belts 23
Seat belts-Shoulder belt anchor 24
Spare tire & tools 25
Star Safety SystemTM 26-27
Tire Pressure Monitoring (warning) System 24
Trunk-Internal release 25
1Visit your Toyota dealer for information on customizing this feature.
2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY
FEATURES

2
OVERVIEW

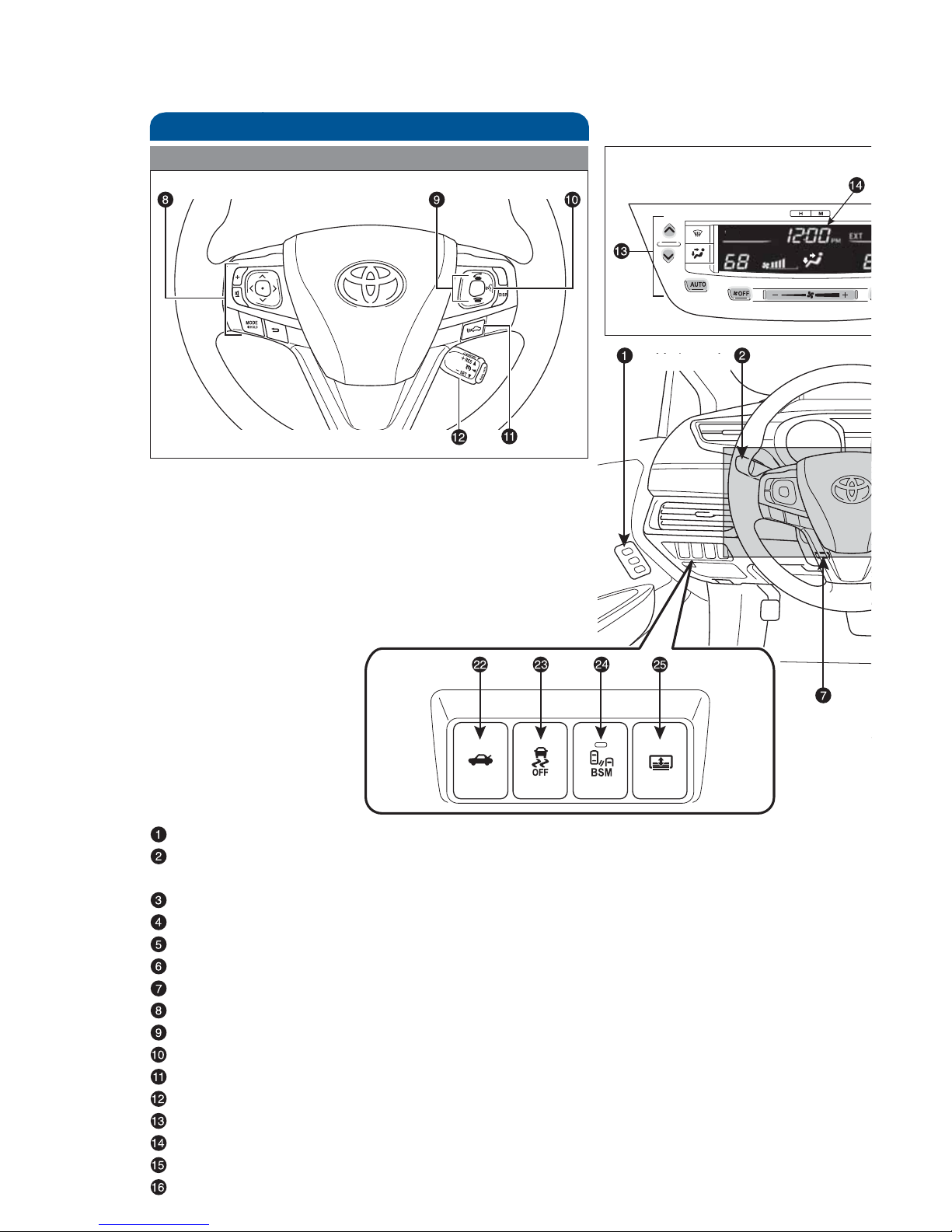

Instrument panel
Driving position memory switches1
Headlight and turn signal controls/Headlight, turn signal and front fog
light1 controls
Wiper and washer controls
Emergency flasher button
Navigation system1,2/Display audio system1,3
“POWER” switch
Tilt and telescopic steering lock release
Steering wheel audio controls2,3
Telephone controls2,3
Voice command button2,3
Vehicle-to-vehicle distance button1
Cruise control1/Dynamic radar cruise control1
Air Conditioning controls
Clock
Outside rearview mirror/Rear window defogger button
“PCS” off switch1
Steering wheel controls Automatic Air Conditioning
(Type A)

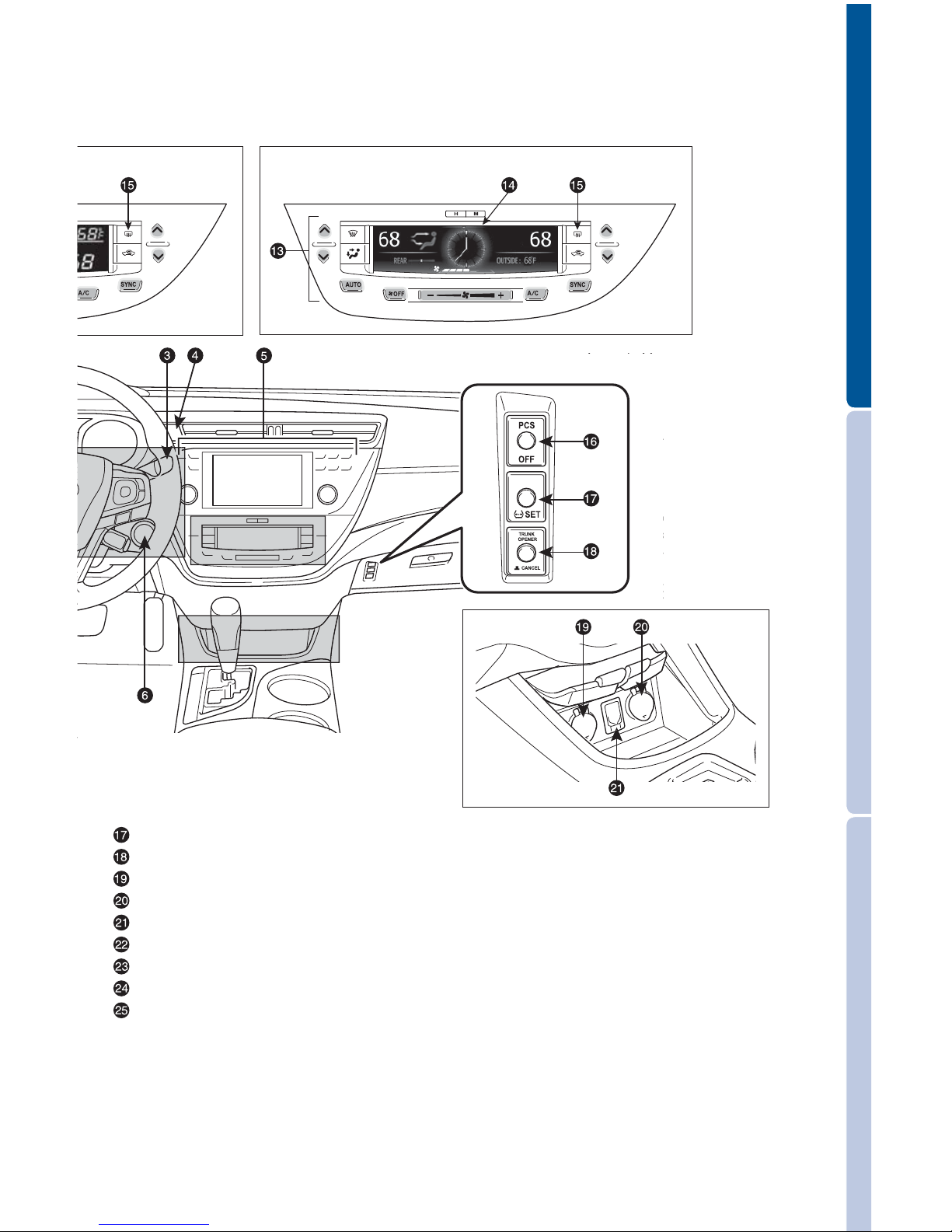

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
3
Tire Pressure Monitoring (warning) System reset
Trunk opener main switch
12V DC power outlet
12V DC power outlet1/Wireless charger switch1
USB/AUX port
Trunk opener
TRAC/VSC OFF switch
BSM (Blind Spot Monitor) main switch1
Rear sunshade switch1
1If equipped
2For details, refer to the “Navigation System Owner’s Manual.”
3For details, refer to the “Display Audio System Owner’s Manual.”
NOTE: For vehicles equipped with EntuneTM, please consult the “Navigation
System With Entune Quick Reference Guide” or www.toyota.com/entune.
Automatic Air Conditioning
(Type B)

4
OVERVIEW

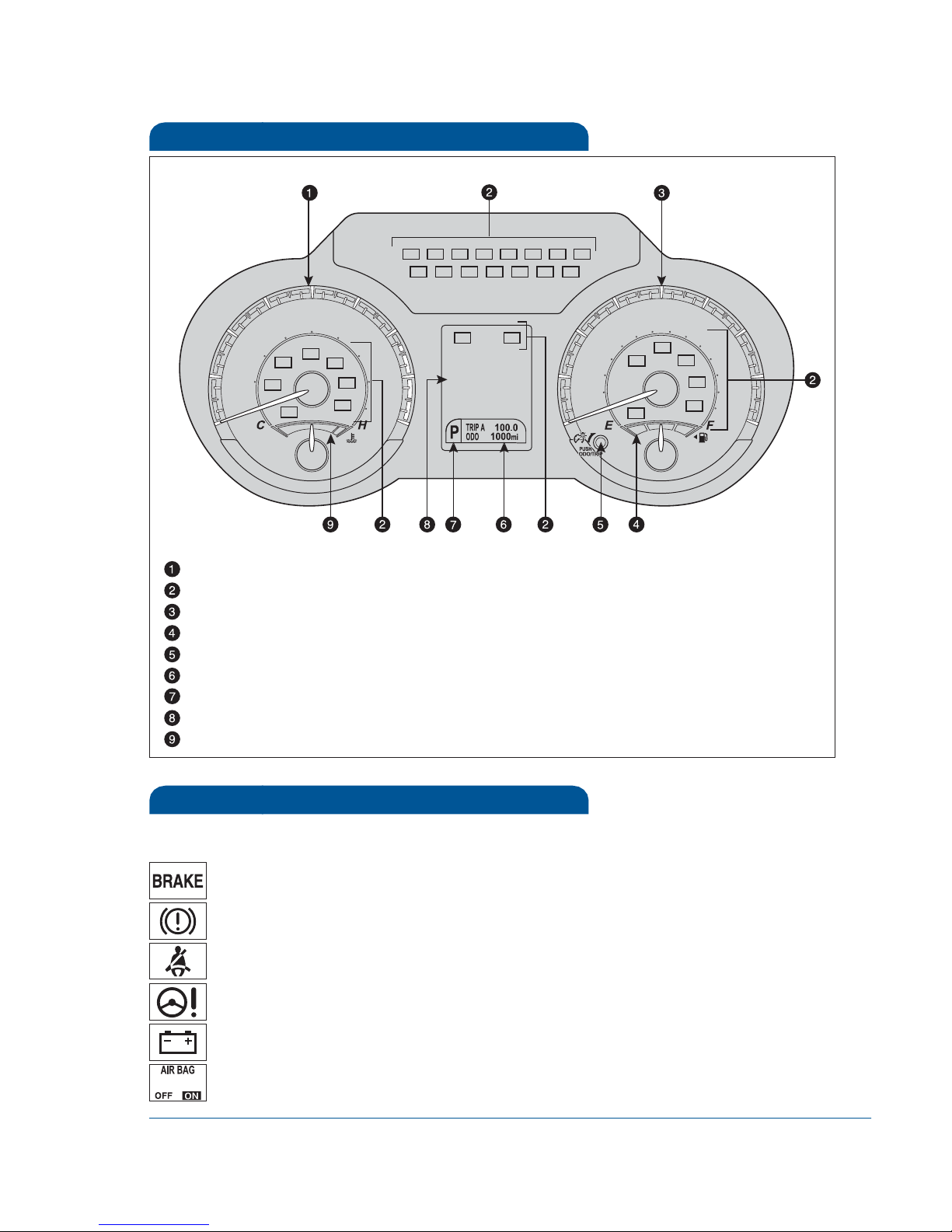

Instrument cluster
Hybrid System indicator
Service indicators and reminders
Speedometer
Fuel gauge
Trip meter reset knob/Instrument panel light control knob
Odometer/trip meter display
Shift position/shift range display
Multi-Information Display
Engine coolant temperature gauge
Driver/Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Indicator symbols
Brake system warning1
Brake system warning light1
For details, refer to “Indicators and warning lights,” Section 2, 2013 Owner’s
Manual.
1If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2If this light flashes, refer to “Cruise control,” Section 4-5, 2013 Owner’s Manual.
Charging system warning1
SRS AIR BAG ON/OFF indicator
Electric power steering system warning1

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
5
3If this light flashes, refer to “Dynamic radar cruise control,” Section 4-5, 2013 Owner’s Manual.
4The indicator flashes to indicate a malfunction.
5The indicator flashes faster than usual to indicate that the system is operating.
Headlight low/high beam indicator
Turn signal indicator
Slip indicator1
Cruise control indicator2/Cruise control SET indicator2
Low Tire Pressure Warning1
Theft deterrent/Engine immobilizer system indicator
Open door warning
Airbag SRS warning1
Low engine oil pressure warning1
Malfunction/Check Engine indicator1
Low fuel level warning
Front fog light indicator
ECO drive mode indicator
Anti-lock Brake System warning1
Traction Control OFF indicator1
Vehicle Stability Control OFF indicator1
SPORT mode indicator
EV indicator
“READY” indicator
EV drive mode indicator
Pre-Collision System indicator1,5
Automatic high beam indicator4
Radar cruise control indicator3,4
Master warning light1

6
OVERVIEW
Keyless entry
Push ONCE: Driver door
TWICE: All doors
Locking operation Unlocking operation
Panic button
Push and hold
NOTE: If a door is not opened within 60
seconds of unlocking, all doors will relock
for safety.
Trunk lid
Push
Push and hold
Fuel tank door release and cap
NOTE: Tighten until one click is heard. If the cap is not tightened enough,
Check Engine “ ” indicator may illuminate.
Press
Turn to open
Store
The fuel tank door locks/unlocks with the vehicle’s doors.

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
7
Smart Key system
Start function
Accessories such as the radio will operate.
Power ON; the Hybrid System not running.
All systems OFF.
ACCESSORY
ON
OFF
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Push
Depress
brake pedal
Carrying
Without depressing the brake pedal, pressing the “POWER” switch will change the
operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door
only, or all doors. In some models, grasping front passenger door handle will
unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting Hybrid System)
Trunk unlock
Push
Locking operation Unlocking operation
Carry remote to lock Carry remote to unlock
Front door lock
Carry remote to unlock
Front door unlock*
Touch Grasp

8
Hood release
Engine oil filler cap
Engine oil level dipstick
Engine coolant reservoir
Windshield washer fluid tank
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty & Maintenance Guide.”
Light control-Instrument panel
Engine maintenance
OVERVIEW
Brightness control
+-
Pull up latch and
raise hood
Pull

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
9
FEATURES/OPERATIONS
(1) Put the selector lever in “P.”
(2) Depress the brake pedal, and press the “POWER” switch briefly and firmly
(3) The “READY” light will blink. After a few seconds, when the light remains
steady and a beep sounds, you may begin driving.
Starting your vehicle
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline engine
and electric motor to provide the most efficient combination of power for the
vehicle. To conserve energy, when the brakes are applied the braking force
generates electricity which is then sent to the traction battery. In addition,
the engine shuts off when the vehicle is stopped. The benefits are better fuel
economy, reduced vehicle emissions and improved performance.
NOTE: Fuel consumption and energy information of the Hybrid System are
shown on the multi-information display and/or display audio system/
navigation system screen (if equipped).
Tips for improved fuel economy
1. Ensure tire pressures are maintained at levels specified in the Owner’s Manual.
2. Link trips to reduce engine cold starts whenever possible.
3. Avoid driving at speeds that are higher than necessary, especially on the highway.
4. When possible, avoid sudden stops to maximize regenerative braking energy.
5. Minimize use of the Air Conditioning.
Hybrid Synergy Drive System

10
Transmission
* The “POWER” switch must be in ON mode and the brake pedal depressed to shift
from Park.
Shift the shift lever to “S” position from “D” position.
+: Upshifting
-: Downshifting
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
“S” (Sequential) mode
Auto lock/unlock
Automatic door locks can be programmed to operate in four different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed goes above approximately 12 mph.
-Doors unlock when shifting into Park.
-Doors unlock when the “POWER” switch is set to OFF and driver’s door is opened.
Refer to the Owner’s Manual for more details.
N
Park*
Reverse
Neutral
Drive
“S” mode
+(“S” mode)
-(“S” mode)
Parking brake
Set: Depress
Release: Depress again
FEATURES/OPERATIONS

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
11

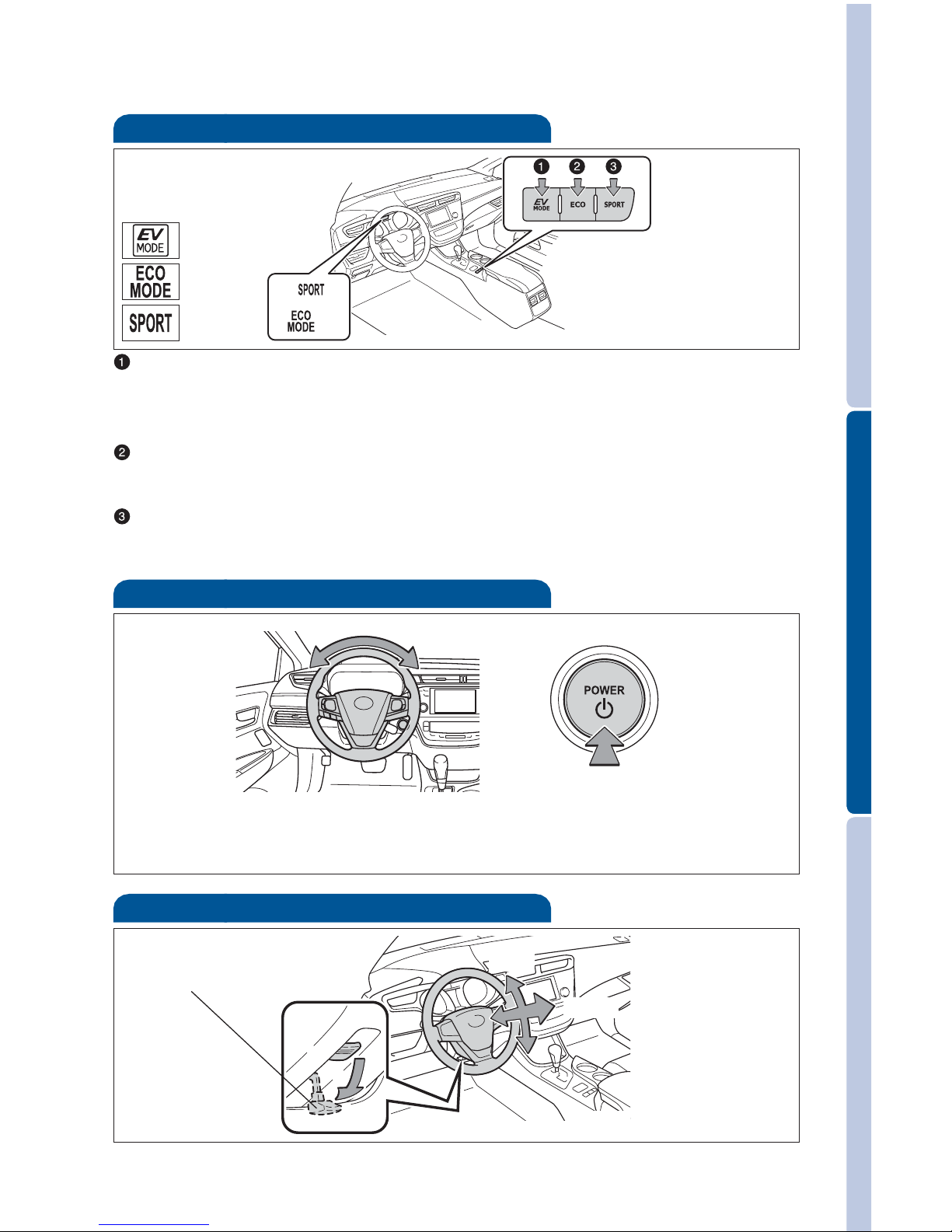

Steering lock release
Push
Hold wheel, push lever down, set angle and length, and return lever.
Lock release lever
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Gently turn steering wheel while pressing the “POWER” switch. If the lock does
not release, a message informing the driver that the steering wheel is locked will
be displayed on the Multi-Information Display.
Angle
Length
Driving mode select
EV drive mode
EV drive mode allows the electric motor (traction motor), powered by the
hybrid battery (traction battery), to be used to drive the vehicle under certain
driving conditions.
ECO drive mode
Use ECO drive mode to help achieve low fuel consumption during trips that
involve frequent accelerating.
SPORT mode
Use SPORT mode when increased acceleration response and precise handling is
desired; for example, when driving on mountain roads.
Turn

12
FEATURES/OPERATIONS
Moonroof (if equipped)
Sliding operation Tilting operation
Open Tilt
Close Close
Recommended open position
to minimize wind noise.
Seats-Head restraints
Lock release button
Windows-Power
Automatic operation Push the switch completely down or pull it completely up
and release to fully open or close. To stop the window partway, operate the
switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver remains able to
operate all windows.
Push once to open; moonroof will automatically stop at the recommended
position. Push again to open completely.
Push once to open partway;
again to open completely.
Up
Down
Driver side
Window lock switch

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
13
Seat adjustments-Front
Driver’s seat
Passenger’s seat
Seat position (forward/backward)
Seatback angle
Seat cushion angle (if equipped)
Seat height (if equipped)
Lumbar support (if equipped)
Seat cushion length (if equipped)
Multi-Information Display
Push “DISP” to scroll through the following information screens:
(1) Distance to empty
(2) Average fuel economy
(3) Current fuel economy
(4) Energy flow
(5) Digital speedometer
(6) Settings

14
Power outlets-12V DC
Front console
The “POWER” switch must be in the ACCESSORY or ON mode for use.
Center console
Windshield wipers & washers
Adjust sensor sensitivity2
Pull to wash and wipe
Single wipe
Auto wipe
Slow
Fast
FEATURES/OPERATIONS
1Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
2 Rain-sensing windshield wiper Rotate to increase/decrease sensor sensitivity.
With intermittent wiper (if equipped)
Right side: if equipped
With AUTO rain-sensing wiper (if equipped)
Pull to wash and wipe
Single wipe
Interval wipe
Slow
Fast
Adjust frequency1

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
15
Lights & turn signals
Turn signals
Headlights
High beam
Front fog lights (if equipped)
Headlights
-Daytime Running Light system (DRL) Automatically turns on the headlights to
make vehicle more visible to other drivers. Not for use at night.
-Automatic light cut off system In Auto mode, automatically turns lights off
after 30-second delay, or lock switch on remote may be pushed after locking.
Parking lights
Right turn
Lane change
Lane change
Left turn
High beam
flasher
Auto
DRL OFF
Turn
Front fog lights come on only when the headlights are on low beam.
Low beam
Automatic high beam (if equipped)
* Refer to the Owner’s Manual for details on activating the automatic high beams.
Deactivate
Activate*

16
FEATURES/OPERATIONS
Cruise control
1
The set speed may also be cancelled by depressing the brake pedal.
2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2
Garage door opener (HomeLink®)*
(if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 5-5 in the Owner’s Manual for more
details.
For programming assistance, contact HomeLink®at 1-800-355-3515, or visit
http://www.homelink.com.
* HomeLink®is a registered trademark of Johnson Controls, Inc.
Set

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
17
To set, cancel and resume a speed Refer to “Functions” in the Cruise Control
section, and to the Owner’s Manual for more details.
Fixed speed mode
(1) Push
System ON/OFF
(2) Push and hold
Refer to the Owner’s Manual for more details and complete safety precautions
before attempting to use “Dynamic radar cruise control.”
Dynamic radar cruise control
(if equipped)
Distance control mode
To set, cancel and resume a speed Refer to “Functions” in the Cruise Control
section, and your Owner’s Manual for more details.
NOTE: Once vehicle speed is set, pushing lever up toward “+ RES” will increase
speed by 1 mph, or in 5 mph increments if held. Pushing lever down toward
“- SET” will reduce speed in the same way.
The distance control mode will cruise at a set speed, decelerate to maintain a
selected distance from a slower vehicle traveling in front of you, and accelerate
back up to the selected speed if the vehicle in front changes lanes or speeds up.
Push
Push
System ON/OFF
LONG MIDDLE SHORT
To change the vehicle-to-vehicle distance
Push the distance button to cycle through the settings, which will change
progressively from LONG to MIDDLE to SHORT.

18
Front control panel
Temperature selector (driver side)
Windshield airflow/defogger
Outside rearview mirror/Rear defogger
Temperature selector (passenger side)
Recirculate cabin air (fresh air when OFF)
“SYNC” button
Indicator ON: Synchronized temperature settings for driver, passengers and
rear seat (if equipped).
Indicator OFF: Separate temperature settings for driver and passengers.
Air Conditioning ON/OFF
Fan speed
Climate control OFF
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air intake and
fan to adjust automatically.
Airflow vent
In “ /” mode, use fresh air (“ ” indicator ON) to reduce
window fogging.
FEATURES/OPERATIONS
Air Conditioning/Heating
Type A
Type B
