Quick Reference Guide 2020
toyota.com
QUICK
REFERENCE
GUIDE
2020

C-HR
2020
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor North
America, Inc. wish you many years of satised driving in your
new C-HR.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of C-HR operations. Every
C-HR owner should review the Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in color throughout
the Owner’s Manual. Each box contains safe operating instructions to help you
avoid injury or equipment malfunction.
All information in this Quick Reference Guide is current at the time of printing.
Toyota reserves the right to make changes at any time without notice.

1
OVERVIEWFEATURES & OPERATIONSTOYOTA SAFETY SENSESAFETY & EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.
2Programmable by customer. Refer to the Owner’s Manual for instructions and more information.
INDEX
Engine maintenance 9
Fuel tank door release & cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument panel light control 9
Keyless entry1,2 6
Smart Key system1,2 7
OVERVIEW
FEATURES & OPERATIONS
Air conditioning/heating 18
Audio 20
Auxiliary storage 17
Blind Spot Monitor (BSM) and
Rear Cross Trafc Alert (RCTA) 22
Clock 19
Continuously variable transmission 10
Cup holders 17
Door locks 16
Driving mode select 10
Electric parking brake 11
Lights1& turn signals 12
Multi-Information Display (MID)115
Power outlet-12V DC 20
Rear view monitor system 23
Seat adjustments-Front 14
Seat heaters 19
Seats-Folding rear 14
Seats-Head restraints 14
Steering lock release 16
Steering wheel switches &
telephone controls (Bluetooth®) 21
Tilt & telescopic steering wheel 16
Vehicle Stability Control (VSC)/
TRAC OFF switch 23
USB media port 21
Windows-Power 17
Windshield wipers & washers 13
SAFETY & EMERGENCY FEATURES
TOYOTA SAFETY SENSE™ P (TSS-P)
Automatic High Beams (AHB) 34
Full-Speed Range Dynamic Radar
Cruise Control (DRCC) 31-33
Lane Departure Alert with
Steering Assist (LDA w/SA) 27-30
Pre-Collision System with Pedestrian
Detection (PCS w/PD) 25-27
Quick overview-
Toyota Safety Sense™P (TSS-P) 24
Sensors 24
BLUETOOTH®DEVICE
PAIRING SECTION 42-44
Floor mat installation 40
Rear door chile safety locks 35
Safety Connect 37
Seat belts 35
Seat belts-Shoulder belt anchor 35
Spare tire & tools 38
Star Safety SystemTM 39-40
Tire Pressure Monitoring
(warning) System (TPMS) 36

2
OVERVIEW

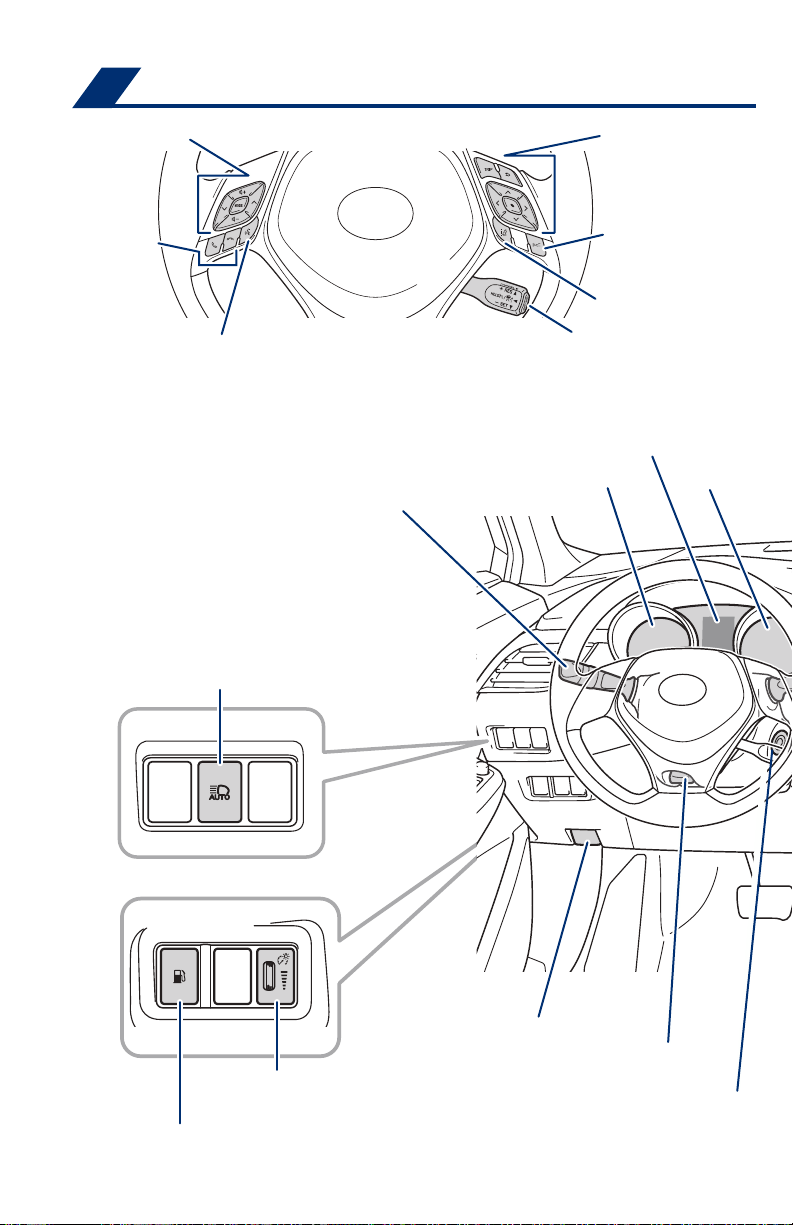

Instrument panel
Steering wheel controls
Audio control
switches
Meter control switches
Voice command switch Full-Speed Range Dynamic
Radar Cruise Control (DRCC)
switch
Ignition switch1
Hood lock release lever
Multi-Information Display (MID)
Meters Meters
Fuel tank door release switch
Instrument panel light control
Automatic High Beam (AHB) switch
Tilt and telescopic steering lock release lever
(below the steering wheel)
Full-Speed Range
Dynamic Radar Cruise
Control (DRCC)
Vehicle-to-vehicle
distance switch
Telephone
switches
Lane Departure Alert
with Steering Assist
(LDA w/SA) switch
Headlights/turn signals/
front fog light1control

3
OVERVIEWFEATURES & OPERATIONSTOYOTA SAFETY SENSESAFETY & EMERGENCY FEATURES
Air conditioning/heating controls/
seat heaters1
USB media port
Windshield wiper and washer control
Emergency flasher switch
Audio system1,2/Navigation system1,2
Electric parking
brake switch
VSC OFF switchBrake hold switch
“ENGINE START STOP” switch1
1If equipped.
2For details, refer to the “Navigation and Multimedia System Owner’s Manual” or visit
www.toyota.com/audio-multimedia for additional resources.

4
OVERVIEW
Instrument cluster

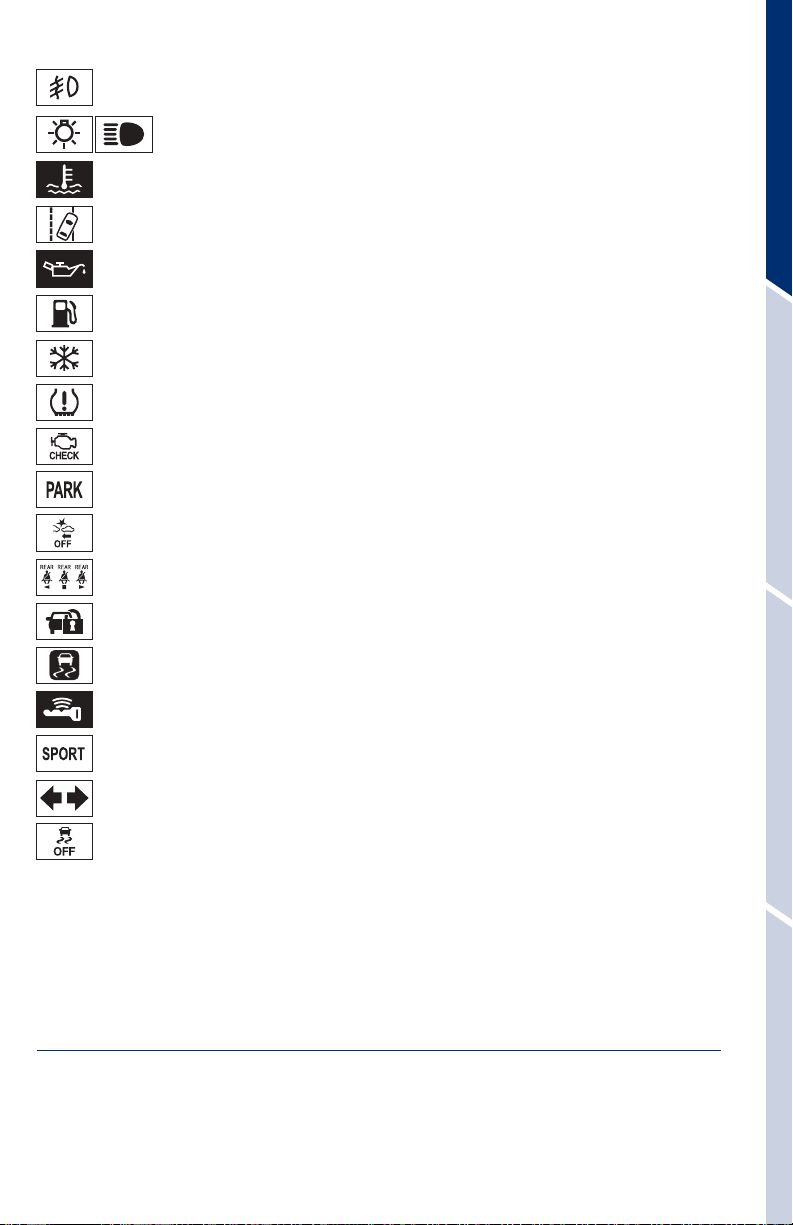

Indicator symbols
For details, refer to “Indicators and warning lights,” Section 2, 2020 Owner’s
Manual.
Automatic High Beam (AHB)
indicator
Electric power steering system
warning (red/yellow)1
BSM outside rear view mirror
indicators1,4
Charging system warning
Brake Override System/
Drive-Start Control
ECO MODE indicator
Eco Driving Indicator
Arrow direction indicates fuel tank
door position
Anti-lock Brake System (ABS)
warning1
Blind Spot Monitor (BSM) OFF
indicator1,4
Brake system warning1
Brake system warning (yellow)1
Brake hold operated indicator1,2
Brake hold standby indicator1
“AIRBAG ON/OFF” indicator1
AIRBAG SRS warning1
Service indicators and reminders
“RCTA OFF” indicator2,4
Driver’s and front passenger’s seat belt
reminder (alarm will sound when the
engine switch is IGNITION ON mode)
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Full-Speed Dynamic Radar
Cruise Control (DRCC)
indicator/DRCC SET indicator
Tachometer
Outside temperature
Fuel gauge
Shift position and
shift range
Engine coolant
temperature gauge Odometer/
trip meter
Multi-Information Display
Speedometer

5
OVERVIEWFEATURES & OPERATIONSTOYOTA SAFETY SENSESAFETY & EMERGENCY FEATURES
Low fuel level warning
Front fog light indicator4
Turn signal indicator
Low Tire Pressure Warning1
Vehicle Stability Control
(VSC) OFF indicator1
Malfunction/Check Engine
indicator1
Low engine oil pressure
warning
High engine coolant
temperature warning
Smart Key system4
ECO MODE indicator
SPORT mode indicator
Parking brake indicator2
Headlight low/high beam
indicators
Pre-Collision System (PCS)
warning light1,2
Rear passengers’ seat belt
reminder indicator
Lane Departure Alert (LDA) with
steering assist indicator
Slip indicator1,3
Security indicator
Low outside temperature indicator
1If the indicator does not turn off within a few seconds of starting the engine, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2If the indicator flashes, there may be a malfunction. Refer to the Owner’s Manual.
3If the indicator flashes, it indicates that the system is operating.
4If equipped.

6
OVERVIEW
Keyless entry
Push
All-door lock
Touch
Carry Smart
Key remote
Carry Smart
Key remote
Carry Smart
Key remote
Grasp
Front door unlock*
Push
Push and hold
ONCE: Driver door
TWICE: All doors
Lock
Unlock
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
LOCKING OPERATION
PANIC BUTTON
BACK DOOR LOCKING/UNLOCKING
UNLOCKING OPERATION
*Driver door unlocking function can be programmed to unlock driver door only,
or all doors. In some models, grasping front passenger door handle will unlock all
doors. Please refer to the Owner’s Manual for more details on how to program the
doors.
NOTE: Doors may also be locked/unlocked using remote.

7
OVERVIEWFEATURES & OPERATIONSTOYOTA SAFETY SENSESAFETY & EMERGENCY FEATURES
Smart Key system (if equipped)

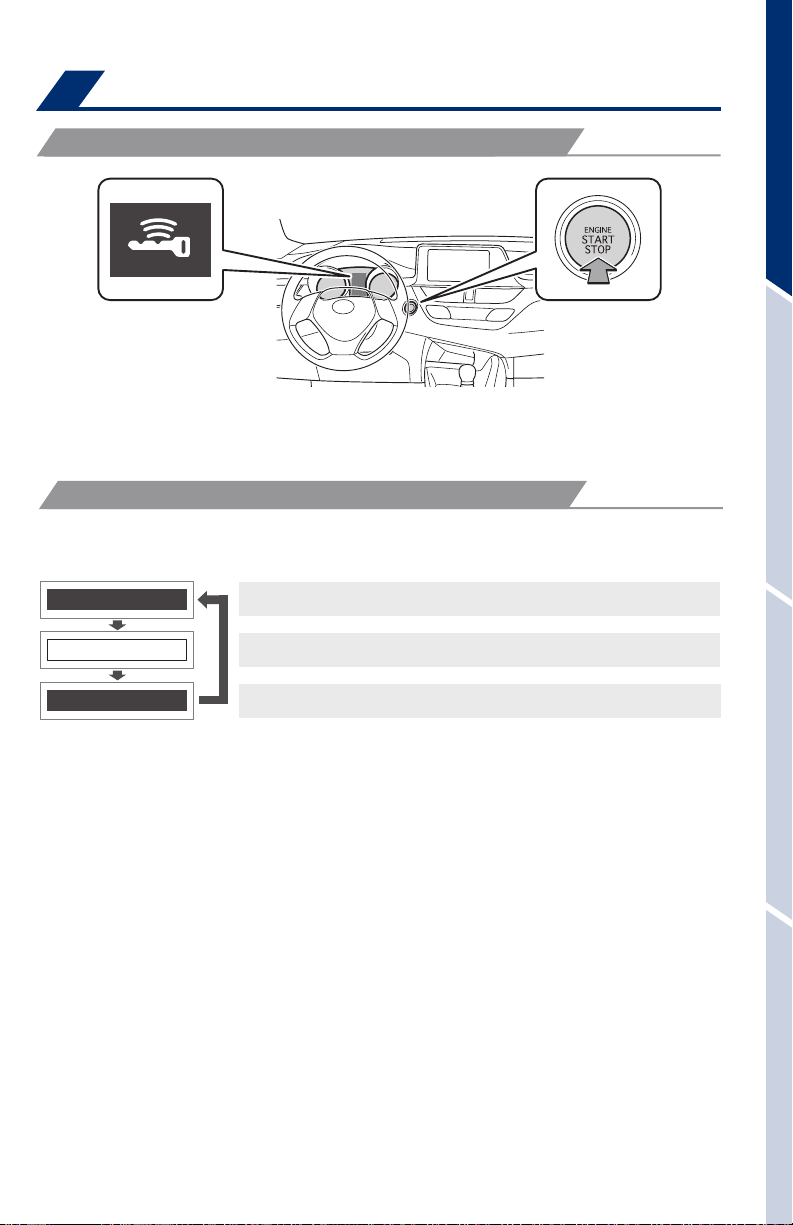

START FUNCTION
POWER (WITHOUT STARTING ENGINE)
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.
NOTE: The Smart Key must be carried to enable the start function. With the
gear shift lever in Park and the brake pedal depressed, push the “ENGINE
START STOP” button.
Without depressing the brake pedal, pressing the engine switch will change the
operation mode in succession from:
IGNITION ON
ACCESSORY

8
OVERVIEW
Slide latch lever
and raise hood
Pull
NOTE: Tighten until one click is heard. If the cap is not locked or tightened,
Check Engine “ ”indicator may illuminate.
Push
Turn to open
Turn to close
Store
Insert rod to hold
hood open
Fuel tank door release & cap
Hood release

9
OVERVIEWFEATURES & OPERATIONSTOYOTA SAFETY SENSESAFETY & EMERGENCY FEATURES
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.”
Engine maintenance
Windshield washer fluid tank
Engine coolant reservoir
Engine oil filler cap
Engine oil level dipstick
Instrument panel light control
Brightness
control
Brighter
Darker

10
Continuously variable transmission
*The engine switch must be in the “ON” position (without Smart Key) / “IGNITION
ON” mode (with Smart Key) and the brake pedal depressed to shift from Park.
Shift the shift lever to “M” position from “D” position.
+: Upshifting (push and release)
-: Downshifting (pull and release)
Downshifting increases power going uphill, or provides engine braking downhill. For
best fuel economy during normal driving conditions, always drive with the shift lever
in the “D” position.
Refer to the Owner’s Manual for more details.
FEATURES & OPERATIONS
7-SPEED SPORT SEQUENTIAL SHIFTMATIC MODE (M POSITION)
M
P
R
N
D
Park*
Reverse
Neutral
Drive
“M” position
+(M position)
-(M position)
Use the the steering wheel meter control switches to operate the MID. See
above.
Driving mode select
“NORMAL”- Suitable for city driving.
“SPORT”- Suitable for roads with many curves needing improved driving response.
“ECO”- Suitable for improved fuel economy and energy saving controlled air/
heating.
(1) Press steering wheel switches “ ”to find and select in the MID.
(2) Press steering wheel switches “ ”switches and select “Drive Mode” in the MID.
(3) Select a driving mode:
The “SPORT” and “ECO” indicators display in the Multi-Information Display (MID).
Note: Operation of the LDA system and setting adjustments continues in the same
condition regardless of Ignition cycle until changed by the driver or the system is reset.

11
OVERVIEWFEATURES & OPERATIONSTOYOTA SAFETY SENSESAFETY & EMERGENCY FEATURES

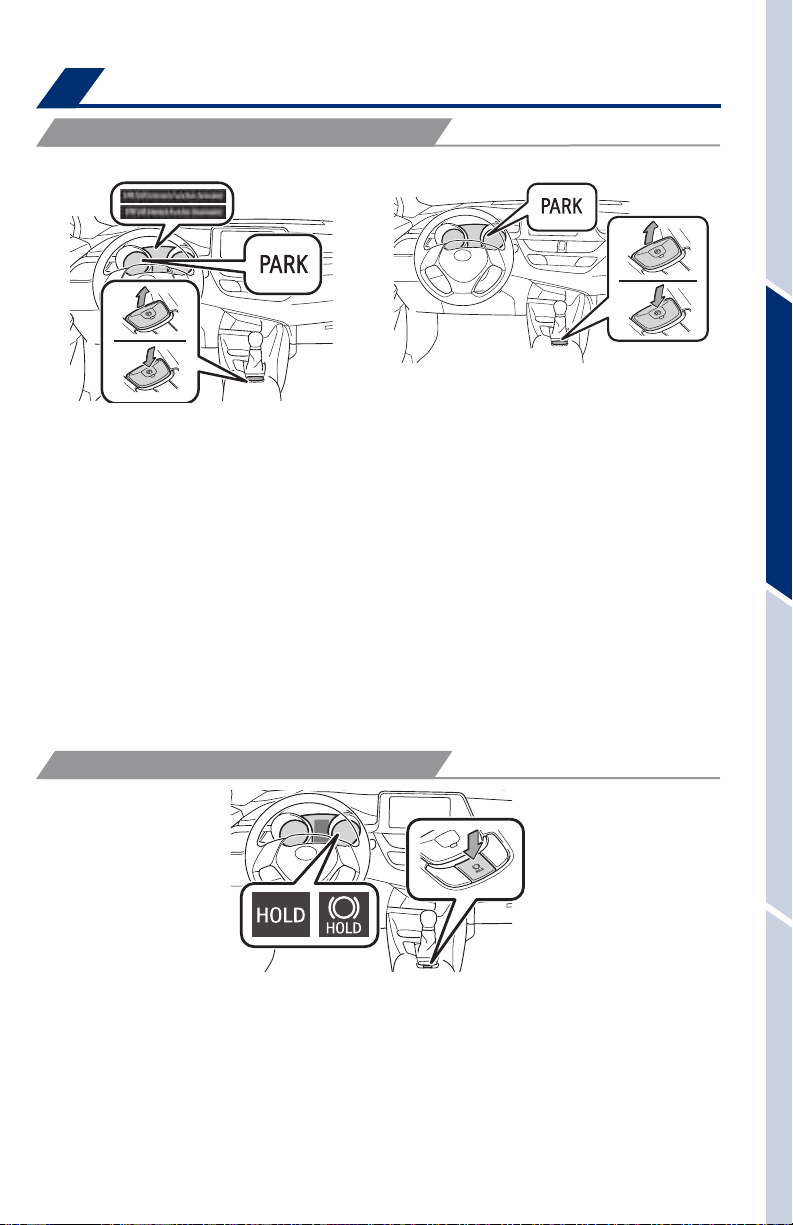

PARKING BRAKE
Electric parking brake
Automatic mode Manual mode
Automatic
Manual
To turn automatic mode ON, while vehicle is stopped, pull and hold switch until
“EPB Shift Interlock Function Activated” displays in Multi-Information Display (MID).
While depressing brake, shifting into P position will automatically set the brake
and turn the parking brake indicator and parking brake light on. To release brake,
depress brake and shift out of P. The indicator light and the light on the switch turn
off.
To turn automatic mode OFF, push and hold parking brake switch until “EPB Shift
Interlock Function Deactivated” displays on the MID.
While vehicle is stopped and brake pedal is depressed, pull to set parking brake
and turn the parking brake indicator and parking brake light on. To release, press
the brake pedal and push switch. The indicator light turns off.
The brake hold system keeps the brake applied when the shift lever is in any
position other than P or R with the system on and the brake pedal has been
depressed to stop the vehicle (yellow indicator light.) The system releases the
brake when the accelerator pedal is depressed with the shift lever in any position
other than P or N to allow smooth start off (green indicator light.)
Refer to the Owner’s Manual for limitations and more details.
BRAKE HOLD

12
FEATURES & OPERATIONS
Daytime Running Light system (DRL)
Automatically turns on under certain conditions to make vehicle more visible to
other drivers. Not for use at night.
Automatic light cut off system
Automatically turns lights off after 30 second delay, or lock switch on remote is
pushed after locking.
Automatic High Beam (AHB) system Automatically switches between high
and low beams as appropriate to enhance vision at night.
Refer to Toyota Safety Sense™ P (TSS-P) in this guide or the Owner’s Manual for
more details on the Automatic High Beam feature.
*Operating conditions must be met. Refer to the Owner’s Manual for details.
High beam
or
Automatic High Beam*
Front fog lights come on only when the headlights are on low beam.
Turn
FRONT FOG LIGHTS (IF EQUIPPED)

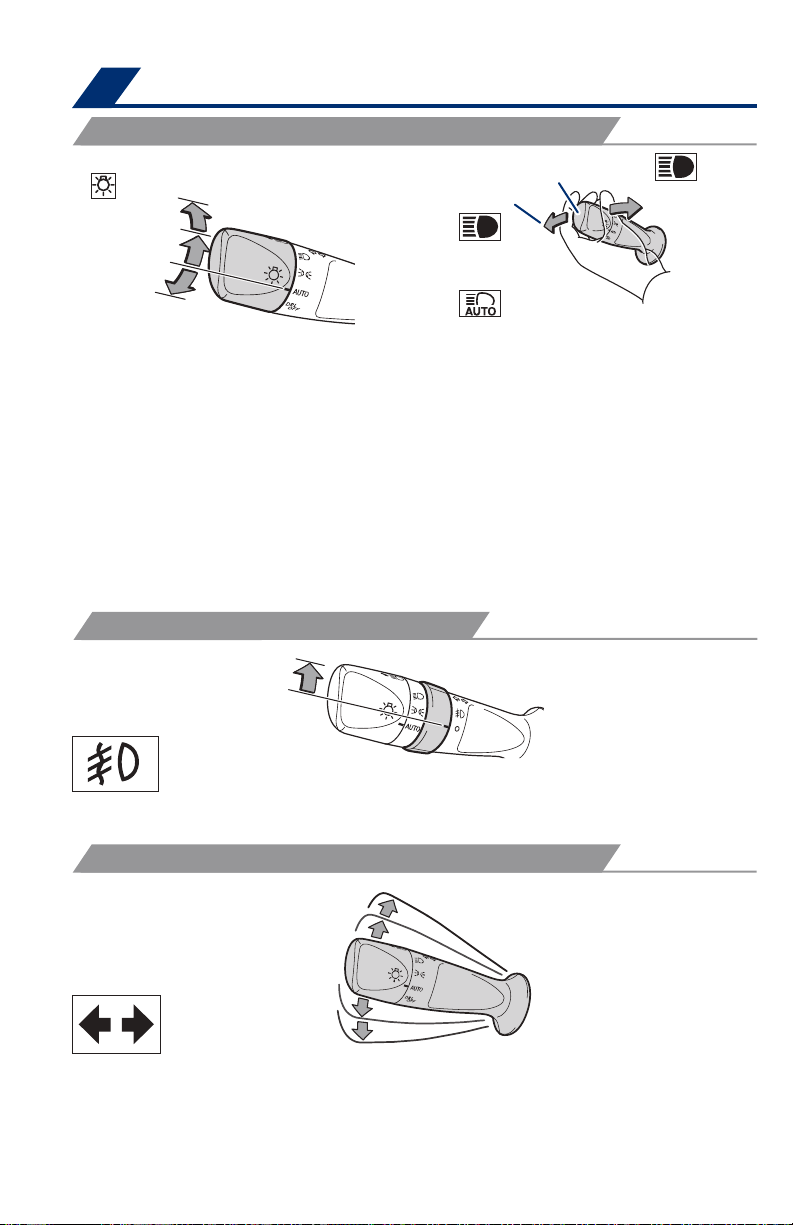

Lights & turn signals
HEADLIGHTS
TURN SIGNALS
Right turn
Lane change*
Lane change*
Left turn
*Move lever partway and release; signal will flash three times.
High beam
flasher
Headlights
Parking lights
DRL OFF
AUTO
Low beam

13
OVERVIEWFEATURES & OPERATIONSTOYOTA SAFETY SENSESAFETY & EMERGENCY FEATURES
Push to wash and wipe
1Intermittent windshield wiper
frequency adjustment
Rotate to increase/decrease wipe
frequency.
Refer to the Owner’s Manual for more information.
Pull to wash and wipe
Single wipe
Interval wipe
Slow
Fast
Adjust frequency1
REAR
WITH INTERMITTENT WIPER (IF EQUIPPED)
OFF
Wipe
Interval wipe
Windshield wipers & washers

14
FEATURES & OPERATIONS

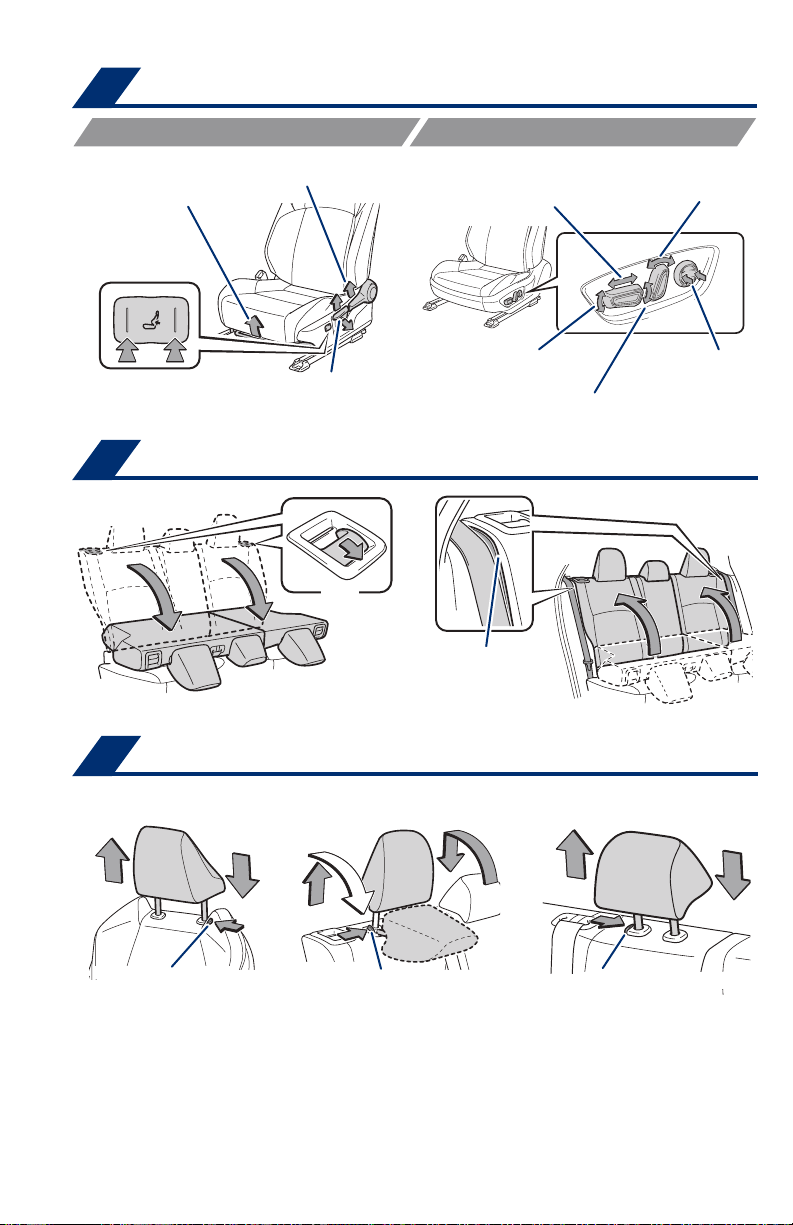

Seat adjustments-Front
Front Rear centerRear outboard
Lock release button Lock release button Lock release button
Fold down
Seat belt
guide
Pull
MANUAL SEAT POWER SEAT (DRIVER SIDE ONLY)
Seat position
(forward/backward)
Vertical height
adjustment
Seatback angle
Lumbar support
(if equipped) Height crank
Seatback angle
Seat position
(forward/backward)
Lumbar support
Seat cushion (front) angle
Seats-Folding rear
Seats-Head restraints

15
OVERVIEWFEATURES & OPERATIONSTOYOTA SAFETY SENSESAFETY & EMERGENCY FEATURES
Multi-Information Display (MID)
Steering wheel switches
Multi-Information Display (MID)
Previous screen
Enter/set
Select
Refer to the Owner’s Manual for more settings and customizable features.
Push MID control switches to view or change information in the following:
Drive information
Driving assist system information
Audio system-linked display
Warning message display
Settings display

16
FEATURES & OPERATIONS
Tilt & telescopic steering wheel
NOTE: Do not attempt to adjust while the vehicle is in motion.
Lock release lever
Angle
Length
Hold wheel, push lever down, set angle and length, and return lever.
When starting the engine, the engine
switch may seem stuck in the “LOCK”
position. To free it, turn the key while
turning the steering wheel slightly left
and right.
“Push ENGINE START STOP button
while turning the steering wheel in
either direction.” will be displayed on
the multi-information display. Check
that the shift lever is set in P. Press the
engine switch while turning the steering
wheel left and right.
With Smart Key systemWithout Smart Key system
Push
Turn
Turn Turn
Steering lock release
Door locks
Lock
Unlock

17
OVERVIEWFEATURES & OPERATIONSTOYOTA SAFETY SENSESAFETY & EMERGENCY FEATURES
Adjust size
Cup holders
Auxiliary storage
Console box Luggage compartment auxiliary boxes
Pull up
Side
storage
Change depth
Windows-Power
Up
Down
Driver side Window lock switch
All window auto up/down
Push the switch completely down or pull it completely up and release to fully open
or close. To stop the window partway, operate the switch in the opposite direction.
Window lock switch
Deactivates all passenger windows. Driver’s window remains operable.
Indicator

18
FEATURES & OPERATIONS
Air conditioning/heating
“SYNC” button
ON: Synchronized
temperature settings for
driver and passengers.
OFF: Separate
temperature settings for
driver and passengers.
ECO mode switch**
Air conditioning
ON/OFF
Temperature display
Recirculate
cabin air
Climate
control OFF
Outside rearview mirror*/
Rear defogger
Windshield wiper
de-icer (if equipped)
Fan speed
Windshield
airflow/defogger
Automatic climate control ON
Adjusting the temperature setting will
cause the airflow vents, air intake
and fan to adjust automatically to set
temperature.
Airflow vent
In “ ”or “ ”mode, use outside
air (“ ”indicator OFF) to reduce
window fogging.
Adjusters
UP: Increase temperature/fan
speed/change mode.
DOWN: Decrease temperature/
fan speed/change mode.
*Defoggers automatically turn off after a period of time.
** Air conditioning feature that helps lower fuel consumption by controlling and prioritizing functions like
reducing fan speed, etc.
