Toyota TACOMA BROCHURE 2011 User manual

2011

Take a backbone forged from massive one-piece frame rails, eight equally strong cross members and a
fully boxed front sub-frame. Bolt on a body and a Sheet-Molded Composite (SMC) bed built for abuse and
supported by a leaf spring suspension with staggered outboard-mounted gas shocks. Offer additional
tough stuff like the available TRD Off-Road Package1with Bilstein®shocks, 16-inch alloy wheels with
P265/70R16 BFGoodrich®tires, Hill Start Assist Control (HAC),
2, 3 Downhill Assist Control (DAC)2, 3 and
electronically locking rear differential. Now put it all to work with a choice of 4-cylinder or V6 engines
that use Variable Valve Timing with intelligence (VVT-i) to pump maximum power from minimal fuel.
You don’t equip a truck with all this if the worst it’s going to see are speed bumps and shopping carts.
You assume it’s going to be put to the test in the kinds of go-for-broke gathering spots where the roads
look like the surface of Mars, and everything in your path is an obstacle of sand, mud or snow that you’ll
need to outhustle, outmuscle and outsmart. The 2011 Toyota Tacoma. Moving Forward.
4x4 Access Cab V6 shown in Magnetic Gray Metallic with available TRD Off-Road Package, accessory front skid plate and tube steps.
1V6 only. 2See footnote 10 in Disclaimers section. 34x4 and AT only.

4x4 Double Cab shown in Barcelona Red Metallic with available TRD Off-Road Package, accessory front skid plate and tube steps.
MORE MUSCLE. LESS MASS.
Pop the hood of a Tacoma and you’ll see a powertrain that’s mean yet lean. Whether you choose the
2.7-liter DOHC 16-valve 4-cylinder with VVT-i, or the available 4.0-liter DOHC 24-valve V6 with VVT-i,
you’ll get a highly efficient engine that has the key characteristic of a strong motor: the torque needed
to push you back into your seat.The 159-hp 4-cylinder churns out its peak torque of 180 lb.-ft. at
3800 rpm, while the 236-hp V6 hits a plateau of 266 lb.-ft. at 4000 rpm. And whether you go manual
or automatic,Tacoma gives you a transmission with the guts to make the most of every gear.

1BUILT TO BEAT THE HEAT
Available Bilstein®shocks know how to keep their cool for consistent
performance under pressure. Same goes for the ventilated front
disc brakes.
2POWERFUL AND STRONG
The design of Tacoma’s available V6 engine puts the spark plugs in the
center of the combustion chamber. This pentroof combustion creates a
cleaner, more efficient burn and increases both performance and efficiency.
3IT’S GOT BACKBONE
A truck’s frame is its source of strength. Tacoma is built on a rugged frame
strengthened with 8-in. cross members, beefed-up center side rails, and
rear inner-channel reinforcements.
2AVAILABLE V6 ENGINE WITH PENTROOF COMBUSTION
<AVAILABLE TRD COLD AIR INTAKE SYSTEM
Hot air robs engines of their power. The accessory TRD Cold Air Intake
feeds cooler, denser air into the engine, increasing both horsepower
and torque. It uses a conical air filter that can be cleaned of dust and
dirt and reused for the life of the truck.
1AVAILABLE BILSTEIN®SHOCKS AND VENTILATED DISCS
3RIGID FRAME CONSTRUCTION
4x4 Double Cab shown in Barcelona Red Metallic with available TRD Off-Road Package, accessory front skid plate and tube steps.

TO THOSE EATING YOUR DUST:
SAVE ROOM FOR DESSERT.
Choose your 2011 Toyota Tacoma with available 4-wheel drive and you know what’s going to happen:
The dirt is going to fly. With its 2-speed electronically controlled transfer case sending power to each
wheel automatically on an as-needed basis, the 4WD system delivers serious grip to the available
P265/70R16 BFGoodrich®tires. And the available electronically controlled locking rear differential1
lets you take on the trickiest low-traction scenarios with confidence. It’s an off-road experience you’ll
savor. Unlike those behind you.
MASTER OF CONTROL
Say you’re knee-deep in sand. Wouldn’t some extra traction come in
real handy? Tacoma’s available electronically controlled locking rear
differential1sends the flow of power distribution evenly to both rear
wheels. The result? In super-slippery, low-traction conditions, you'll get
more grip and less slip.
HOW IT WORKS
A steel sleeve actuator locks the slide gear to the ring gear, locking the rear
axles. Once locked, the rear axle can apply all its traction to getting the
truck moving in the right direction.
STOPPING POWER, INTELLIGENTLY APPLIED
Tacoma comes standard with an Anti-lock Brake System (ABS) with
Electronic Brake-force Distribution (EBD) and Brake Assist (BA).
2It’s
technology that helps ensure braking effectiveness by determining
how much brake force should be distributed between the front and rear
axles, depending on surface conditions and whether or not a “panic”
braking situation exists. It’s part of the Star Safety System™ that comes
standard on every 2011 Tacoma.
4x4 Access Cab V6 shown in Magnetic Gray Metallic with available TRD Off-Road Package, accessory bed extender and tube steps.
1V6 only. 2See footnote 15 in Disclaimers section.
AVAILABLE ELECTRONICALLY CONTROLLED LOCKING REAR DIFFERENTIAL1
ANTI-LOCK BRAKE SYSTEM WITH ELECTRONIC BRAKE-FORCE DISTRIBUTION

RUGGED OUTSIDE. REFINED INSIDE.
Underneath, Tacoma’s built to take abuse. Inside, it’s all about taking it easy. Slide into the driver’s
seat and adjust the tilt/telescopic steering wheel. Adjust the available driver’s-seat lumbar support.
Hooking up a trailer? Tacoma can turn that task from a burden to a breeze, thanks to an available
backup camera1that displays in the rearview mirror what the tailgate-mounted camera sees.
And Tacoma knows how much you enjoy your music. So it comes standard with an auxiliary audio
jack for your MP3 player, and there’s available XM®Radio2and an available JBL®audio system3
with a rear subwoofer for deep, rich bass.
Double Cab interior shown in Sand Beige with available SR5 Package and JBL®audio.
1See footnote 8 in Disclaimers section. 2See footnote 7 in Disclaimers section. 3Double Cab only.

1GET READY TO PLUG IN
Every one of Tacoma’s available audio systems allows you to plug in your
iPod®1 or other compatible digital music player and enjoy MP3/WMA
playback capability.
2NOW HEAR THIS
Access Cab features an available subwoofer mounted between the rear
seats, adding extra oomph to the audio.
3EXTRA STRENGTH
The fiber-reinforced Sheet-Molded Composite (SMC) material in the
bed of the Tacoma isn’t a bedliner, it’s the bed itself. And it’s not just there
to look pretty. This rugged material actually provides better impact
strength than steel.
4 DOUBLE CAB FOLD-DOWN REAR SEATBACK
1AUXILIARY AUDIO JACK
AVAILABLE IN-MIRROR INTEGRATED BACKUP CAMERA2
1iPod®accessory is not included. iPod®is a registered trademark of Apple, Inc.
All rights reserved. 2See footnote 8 in Disclaimers section.
2AVAILABLE ACCESS CAB SUBWOOFER 3SHEET-MOLDED COMPOSITE (SMC) BED
4EASY ACCESS TO STORAGE
Double Cab features rear seats that fold up or fold down to reveal
storage areas ideal for stashing stuff out of sight, but within easy reach.
5EXTRA STORAGE
Use Tacoma’s available Deck Rail System in conjunction with its
available accessory cargo divider to help keep bulky items you haul
around in the back of your truck securely in place. And adjustable
cleats add even more versatility.
5 ACCESSORY CARGO DIVIDER
Cargo and load capacity limited by weight and distribution.

ADVENTUROUS. BUT NOT FOOLHARDY.
All Tacoma models feature the Toyota Star Safety System,
™a suite of safety technologies that
includes Vehicle Stability Control (VSC),
1Traction Control (TRAC) to help reduce wheelspin and
prevent traction loss while cornering, Anti-lock Brake System (ABS) with Electronic Brake-force
Distribution (EBD) and Brake Assist (BA).
2Also standard on every 2011 Tacoma: driver and front
passenger airbags,
3front and rear side curtain airbags, 3a Tire Pressure Monitor System (TPMS), 4
and side-impact door beams in all doors.
Photo not intended to replicate actual inflated airbags.
1See footnote 9 in Disclaimers section. 2See footnote 15 in Disclaimers section. 3See footnote 16 in Disclaimers section. 4See footnote 20 in Disclaimers section.
Regular Cab interior shown in Graphite with available bucket seats.

Cargo and load capacity limited by weight and distribution. 1See footnotes 4 and 5 in Disclaimers section.

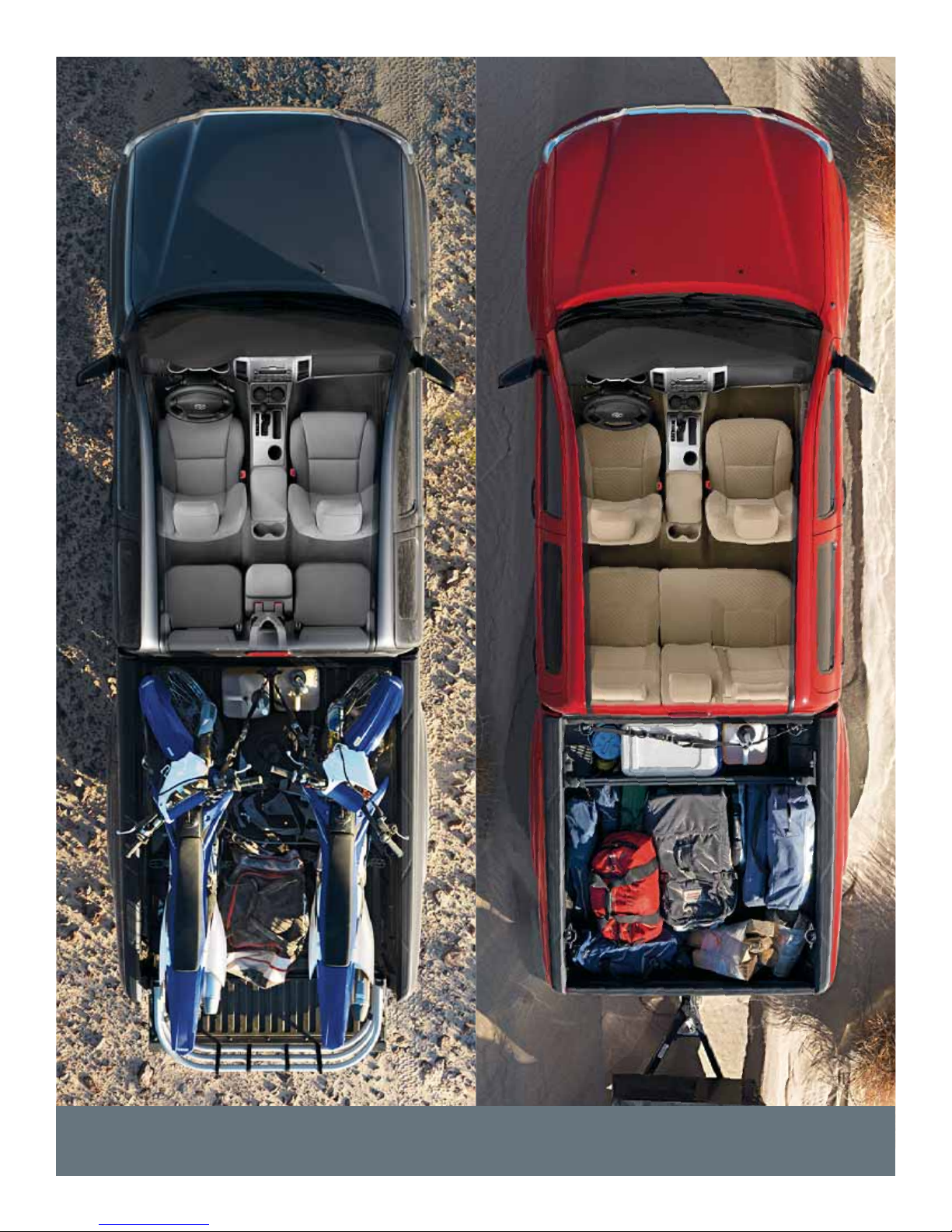

4x2 Double Cab shown in Barcelona Red Metallic with available SR5 Package,
accessory cargo divider and V6 Tow Package.
1
4x2 Access Cab shown in Magnetic Gray Metallic with available TRD Off-Road
Package, AM/FM CD audio system with subwoofer and accessory bed extender.

GET EXACTLY THE TRUCK YOU WANT.
When you’ve been making rugged and capable trucks as long as Toyota has, you know the
kinds of things truck buyers want. Many of Tacoma’s innovative features, like our integrated
Deck Rail System, come standard. You can choose others from the long list of available
Genuine Toyota Accessories.
1STANDARD DECK RAIL SYSTEM
1STRAP IT
Tacoma’s Sheet-Molded Composite (SMC) bed features a standard
Deck Rail System with four adjustable tie-down cleats to help ensure
your gear stays put.
2PROTECT IT
The front underside of your Tacoma is home to some pretty important
components. Help to protect them with this available accessory front
skid plate.
3STEP ON IT
Dress your Tacoma with a pair of our Genuine Toyota Accessory tube steps
and you’re dressed for success.
2 & 3 ACCESSORY FRONT SKID PLATE AND TUBE STEPS
1See footnote 8 in Disclaimers section.
4AVAILABLE BACKUP CAMERA1
It’s always nice to have an extra set of eyes on things when you’re hooking up your trailer. That’s
why there’s an available backup camera. Mounted in the tailgate handle, it uses its rear-facing
vantage point to capture an image of what the camera sees behind the truck, and displays it
within a window integrated into the truck’s rearview mirror.
4AVAILABLE BACKUP CAMERA1
