QUICK REFERENCE
GUIDE
FJ CRUISER
2011
414844M1.indd 1414844M1.indd 1 11/3/10 6:16 AM11/3/10 6:16 AM

2011
FJ Cruiser
!A word about safe vehicle operations
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental
operations so you can locate and use the vehicle’s main
equipment quickly and easily.
The Quick Reference Guide is not intended as a substitute for
the Owner’s Manual located in your vehicle’s glove box. We
strongly encourage you to review the Owner’s Manual and
supplementary manuals so you will have a better understanding
of your vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales,
U.S.A., Inc. wish you many years of satisfied driving in your
new FJ Cruiser.
This Quick Reference Guide is not a full description of FJ
Cruiser operations. Every FJ Cruiser owner should review the
Owner’s Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at
the time of printing. Toyota reserves the right to make
changes at any time without notice.
Text_414844M2.qxd 11/2/10 4:13 PM Page COV2

1
INDEX
Engine maintenance 7
Fuel tank door release and cap 6
Hood release 7
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry16
Accessory meter 13
Air Conditioning/Heating 16
Audio 14-15
Automatic Transmission 8
Bottle holders-Rear seat 19
Clock 15
Cruise control 17
Cup holders 19
Door-Back 13
Four-wheel drive 9
Intuitive parking assist 16
Light control-Instrument panel 19
Lights1& turn signals 12
Parking brake 10
Power outlet-12V DC 18
Power outlet-115V AC 18
Seat adjustments-Front 10
Seats-Folding rear seats 11
Seats-Head restraints 10
Seats-Removing rear seats 11
Telephone controls (Bluetooth®)17
Tilt steering wheel 8
VSC OFF button 18
Windows 13
Windshield wipers & washers 12
Door locks 20
Seat belts 20
Seat belts-Shoulder belt anchor 20
Spare tire & tools 21
Tire Pressure Monitoring (warning) System 20
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on this and other customizable
options.
Text_414844M2.qxd 11/2/10 4:11 PM Page 1

OVERVIEW

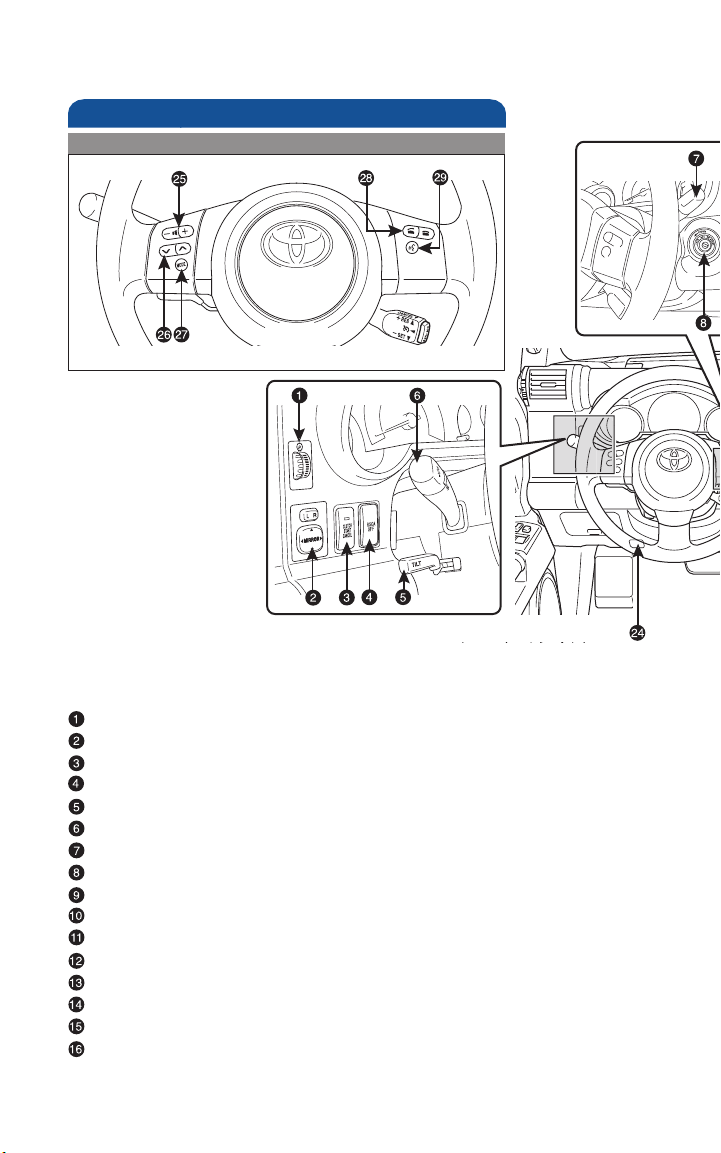

Instrument panel
2
Instrument panel light control
Power outside rearview mirror controls1
Clutch start cancel switch1
Roll Sensing of Curtain shield Airbag OFF switch
Tilt steering lock release
Headlight and turn signal control
Wiper and washer controls
Ignition switch
Emergency flasher button

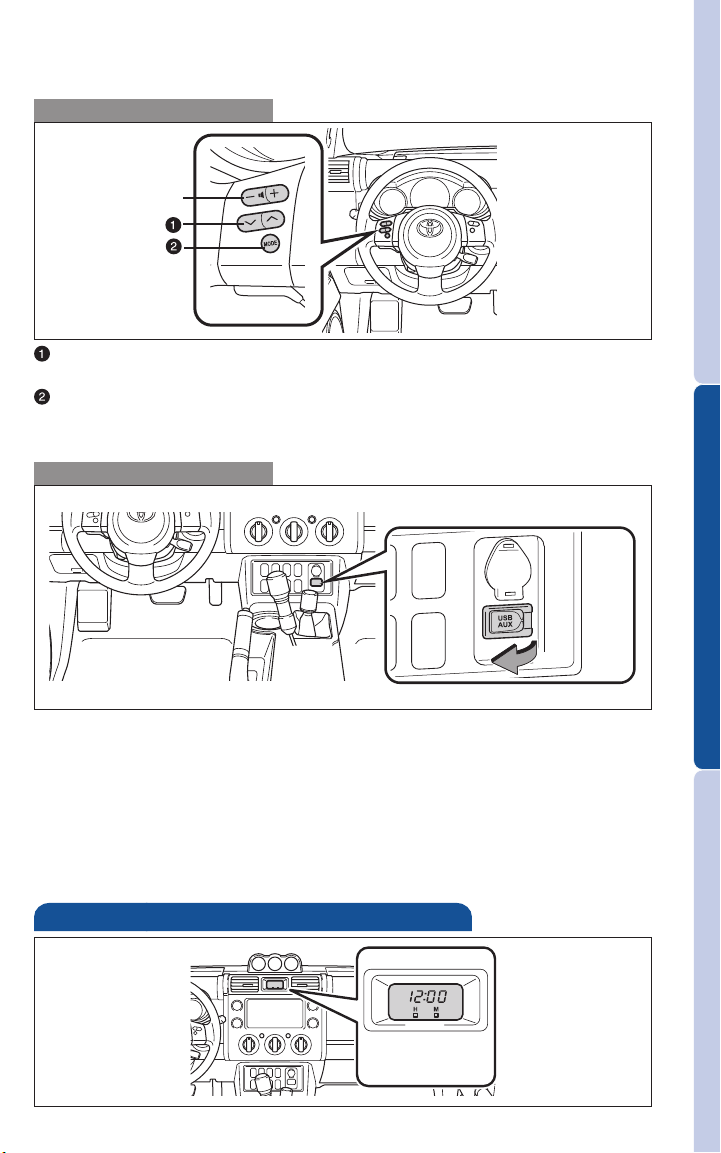

Clock
Front passenger seat belt reminder light
Audio system
Engine immobilizer indicator
Air Conditioning controls
Rear window defogger button
VSC OFF switch1
Steering wheel controls
Text_414844M2.qxd 11/2/10 4:11 PM Page 2

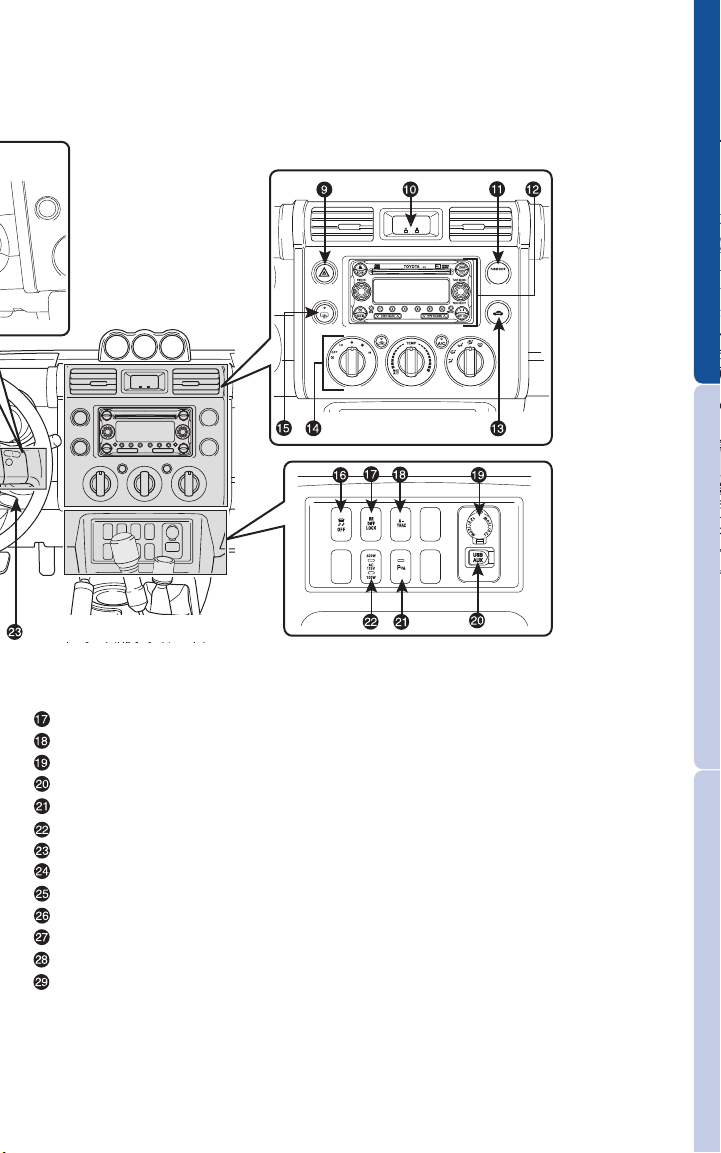

3
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Rear differential lock button1
Active traction control switch1
Power outlet
AUX or USB/AUX port
Intuitive parking assist switch1
Power outlet main switch1

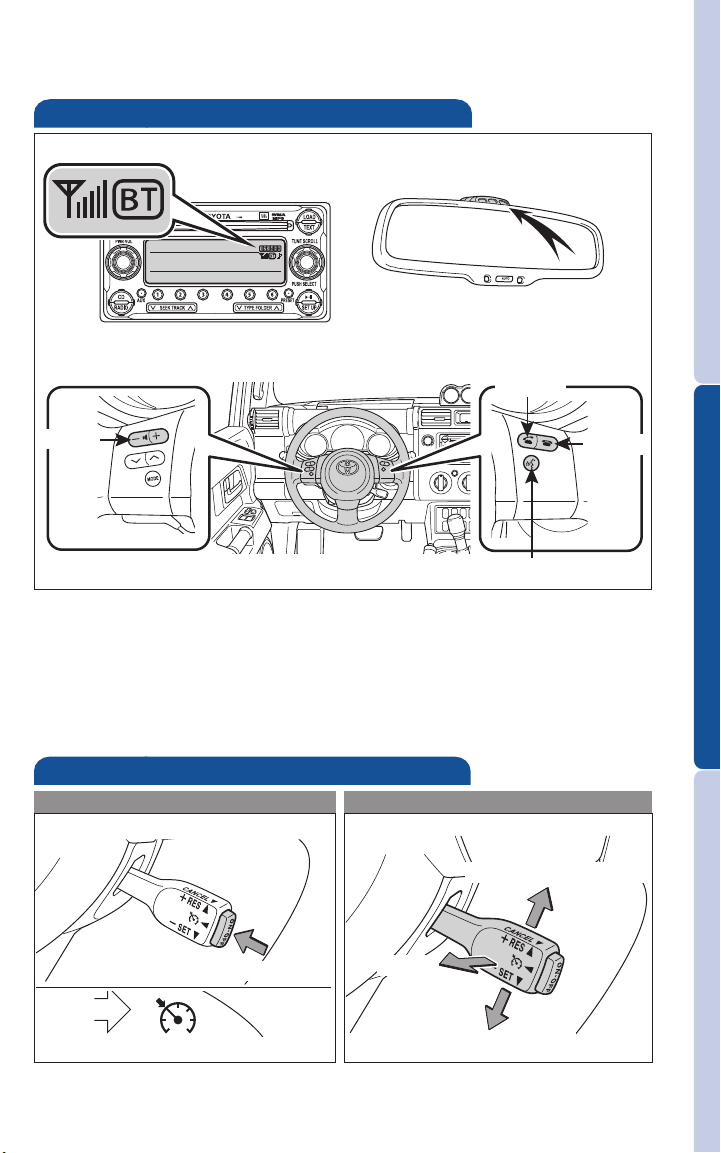

Cruise control1
Hood release
Volume control switch (for audio)
“ ” button (for audio)
“MODE” button (for audio)
Telephone controls
Voice command button
1 If equipped
2For details, refer to the “Navigation System Owner’s Manual.”
>
>
Text_414844M2.qxd 11/2/10 4:11 PM Page 3

OVERVIEW
Indicator symbols
Instrument cluster
4
Tachometer
Service indicators
Speedometer
Voltmeter
Automatic Transmission indicator
Engine coolant temperature
Fuel gauge
Trip meter reset knob
Odometer and two trip meters
Battery warning1
Low engine oil pressure warning1
Brake system warning1
Malfunction/Check Engine indicator1
Maintenance/Service required indicator1
Driver/Front passenger seat belt reminder1
(alarm will sound if speed is over 12 mph)
Open door warning1
1For details, refer to “If a warning light turns on or a warning buzzer sounds” Section
5-2, 2011 Owner’s Manual.
2 For details, see “Rear differential lock system,” Section 2-4, 2011 Owner’s Manual.
Low fuel level warning1
Text_414844M2.qxd 11/2/10 4:11 PM Page 4

5
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

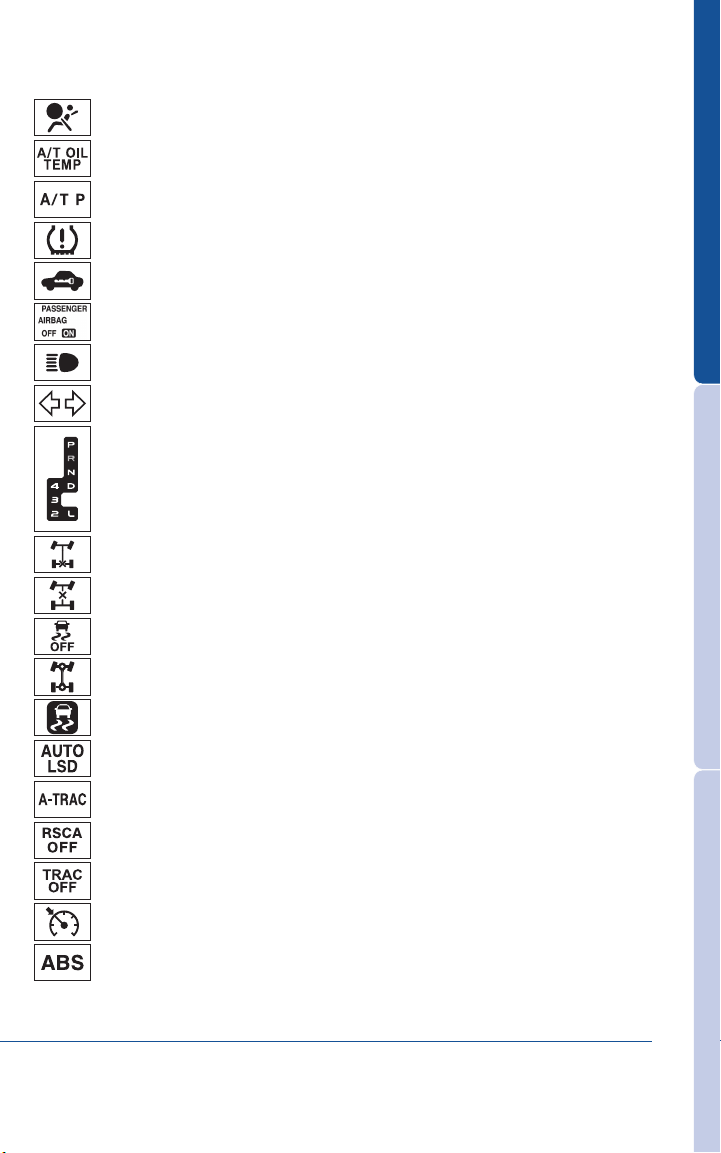

Automatic Transmission indicator
Front passenger occupant classification indicator
Turn signal indicator
Four-wheel drive indicator3
Rear differential lock indicator2
Center differential lock indicator3
Slip indicator1
Vehicle Stability Control OFF indicator
Active traction control system indicator
AUTO Limited Slip Differential indicator
Cruise control indicator4
Automatic Transmission fluid temperature warning1
Unengaged Park warning1
Airbag SRS warning1
Headlight high beam indicator
Anti-lock Brake System warning1
3If this light flashes, refer to “Four-wheel drive system,” Section 2-4, 2011 Owner’s
Manual.
4If this light flashes, refer to “Cruise control,” Section 2-4, 2011 Owner’s Manual.
Low Tire Pressure Warning1
Engine immobilizer system indicator
Roll Sensing of Curtain shield Airbag OFF indicator
Traction Control/OFF indicator
Text_414844M2.qxd 11/2/10 4:11 PM Page 5

OVERVIEW
Fuel tank door release and cap
6
Pull
Turn to open NOTE: Tighten
until one click is
heard. If the cap is
not tightened
enough, Check
Engine “ ”
indicator may
illuminate.
Keyless entry (if equipped)
Beep sound can be switched ON or OFF. Refer to the Owner’s Manual for
more details.
NOTE: If a door is not opened
within 60 seconds of unlocking, all
doors will relock for safety.
Panic button
N
U
KCO
L
K
C
O
L
C
I
N
A
P
Locking operation Unlocking operation
Push
Push and hold
Push ONCE: Driver door
TWICE: All doors
Text_414844M2.qxd 11/2/10 4:11 PM Page 6

Hood release
7
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Pull up latch and raise hood
Windshield washer fluid tank
Power steering fluid reservoir
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
NOTE: Regularly scheduled maintenance, including oil changes, will
help extend the life of your vehicle and maintain performance.
Please refer to the “Warranty Maintenance Guide.”
Engine maintenance
Pull
Text_414844M2.qxd 11/2/10 4:11 PM Page 7

FEATURES/OPERATIONS
8
Automatic Transmission (if equipped)
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Park*
Reverse
Neutral
Drive
Third gear
Second gear
First gear
P
R
N
D
4
3
2
L
Fourth gear
Tilt steering wheel
Hold the steering wheel, pull the lock release lever, tilt to the desired
angle and release the lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
* The key must be in the “ON” position and the brake pedal depressed
to shift from Park.
Text_414844M2.qxd 11/2/10 4:11 PM Page 8

Four-wheel drive (if equipped)
9
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
H2
H4
L4
Full-time four-wheel drive models (Manual Transmission)
Part-time four-wheel drive models (Automatic Transmission)
High speed (2WD)
High speed (4WD)
Shift to “H4” with speed below 50 mph.
Low speed (4WD)
Stop vehicle, shift to “N” position, then move the lever to “L4.”
Rear differential lock button
NOTE: For best fuel economy and performance under normal driving
conditions, shift vehicle into “H2” position.
Rear differential lock/unlock
Low speed
Center differential locked. Depress the clutch pedal to shift from “HL”
when vehicle is stopped or when speed is below 5 mph.
HL
LL
H
Before using the rear differential lock button:
•Shift the lever into “L4” (Automatic Transmission)
•Shift the lever into “LL” (Manual Transmission)
The following warning lights will illuminate when
rear differential lock is engaged:
NOTE: For best fuel economy and performance under normal driving
conditions, shift vehicle into “H” position.
High speed
High speed
Center differential locked. Depress the clutch pedal to shift from “LL.”
Text_414844M2.qxd 11/2/10 4:11 PM Page 9

FEATURES/OPERATIONS

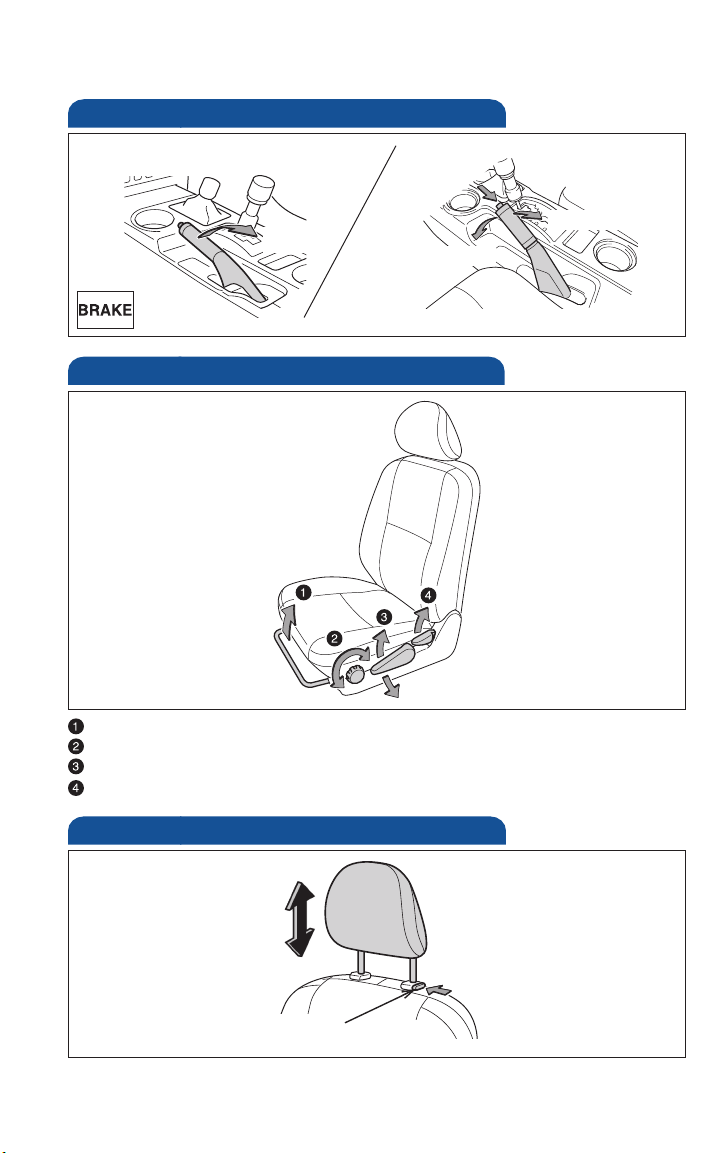

Seats-Head restraints
10
Lock release button
Seat adjustments-Front
Seat position (forward/backward)
Cushion angle (driver side only)
Height crank (driver side only)
Seatback angle
Release
Set
Pull
(1) Pull slightly
(2) Push
(3) Lower
Parking brake
Text_414844M2.qxd 11/2/10 4:11 PM Page 10

Seats-Folding rear seats
11
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Seats-Removing rear seats
(1) Push
(2) Remove
(3) Stow (6) Fold-down
(5) Push down
(1) Pull up
(2) Loosen
(3) Separate
(4) Fold
(4) Pull up
Text_414844M2.qxd 11/2/10 4:11 PM Page 11

12
FEATURES/OPERATIONS

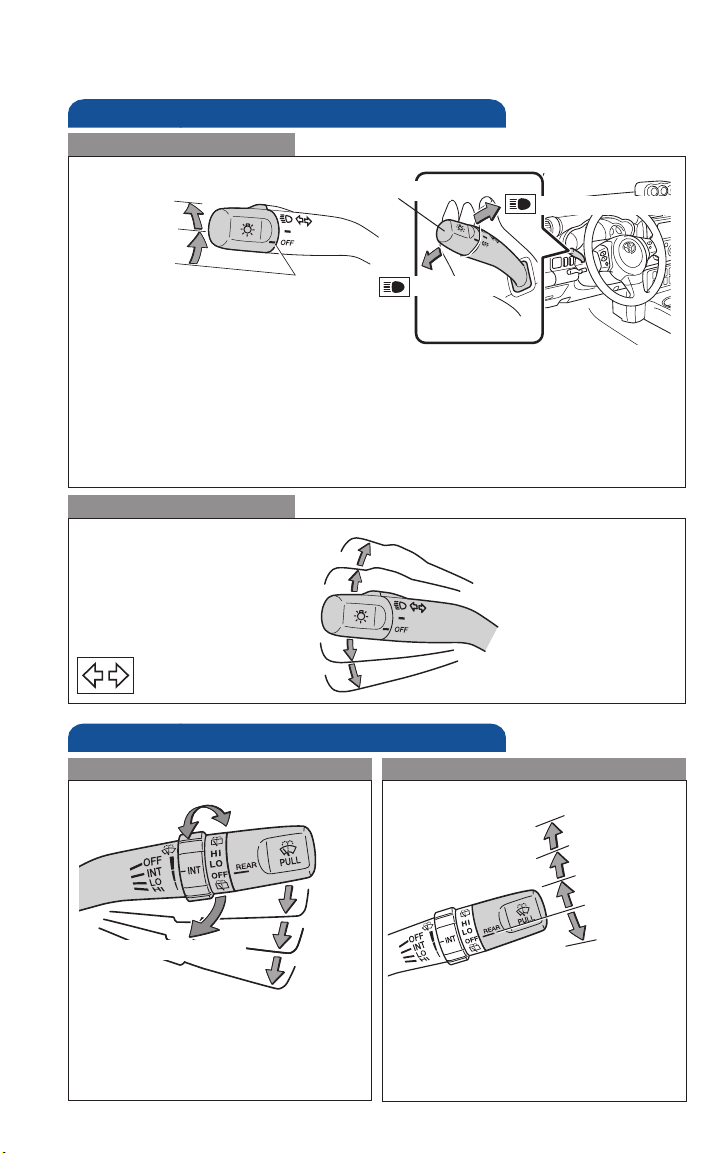

Windshield wipers & washers
Rear (if equipped)
Front
Interval
wipe
Slow
Fast
Pull to wash and wipe
Adjust frequency*
NOTE: Rear wiper and washer
operate only when back window is
fully closed.
Lights & turn signals
Headlights
High beam flasher
Low beam
Headlights
-Automatic light cutoff system Automatically turns lights off after 30
seconds when all doors are closed with the key in “ACC” or “LOCK.”
Lights may also be turned off by pushing lock button on remote after
locking.
-Daytime Running Light system (DRL) (if equipped) Automatically turns
on the headlights at a reduced intensity.
Parking lights
High beam
Turn signals
Right turn
Lane change
Lane change
Left turn
* Intermittent windshield wiper
frequency adjustment
Rotate to increase/decrease wipe
frequency.
Wash and wipe
Wipe
Interval wipe
Wash and
wipe
Faster Slower
Text_414844M2.qxd 11/2/10 4:11 PM Page 12

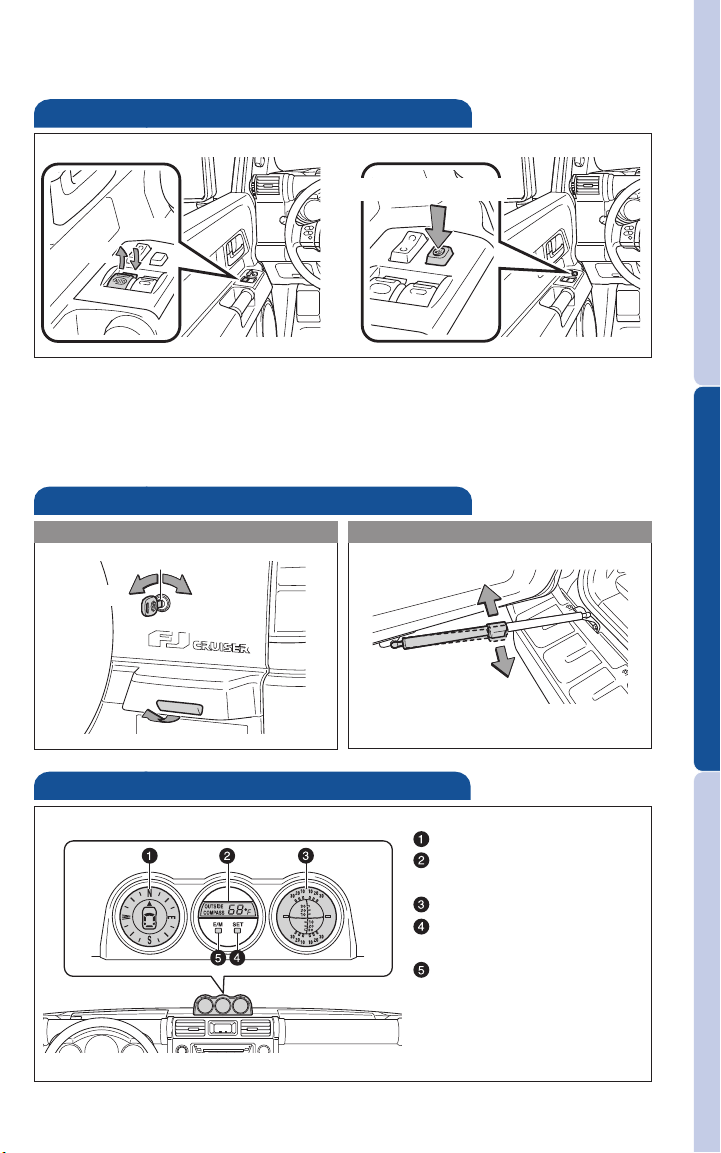

13
Door-Back
Open/Close Lock in place
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Unlock Lock
Pull
Unlock
Lock
Back door can be locked into place
when it is fully open.
Windows
Driver side
Automatic down operation (driver side only) Push the switch completely
down and release to fully open. To stop window at any point, lightly pull
the switch up.
Window lock switch Deactivates all passenger windows. Driver’s window
remains operable.
Up
Down
Window lock switch
Accessory meter (if equipped)
Compass
Outside temperature
display
Clinometer-vehicle slant
Calibrating the compass
setting
Switch between
Fahrenheit and Celsius
Text_414844M2.qxd 11/2/10 4:11 PM Page 13

Radio
Preset buttons Tune in the desired station and press a preset button (1-6)
until you hear a beep. Push desired preset button (1-6) to select.
“SCAN” Push and hold “SCAN” to scan preset stations. Push again to hold
selection.
14
FEATURES/OPERATIONS

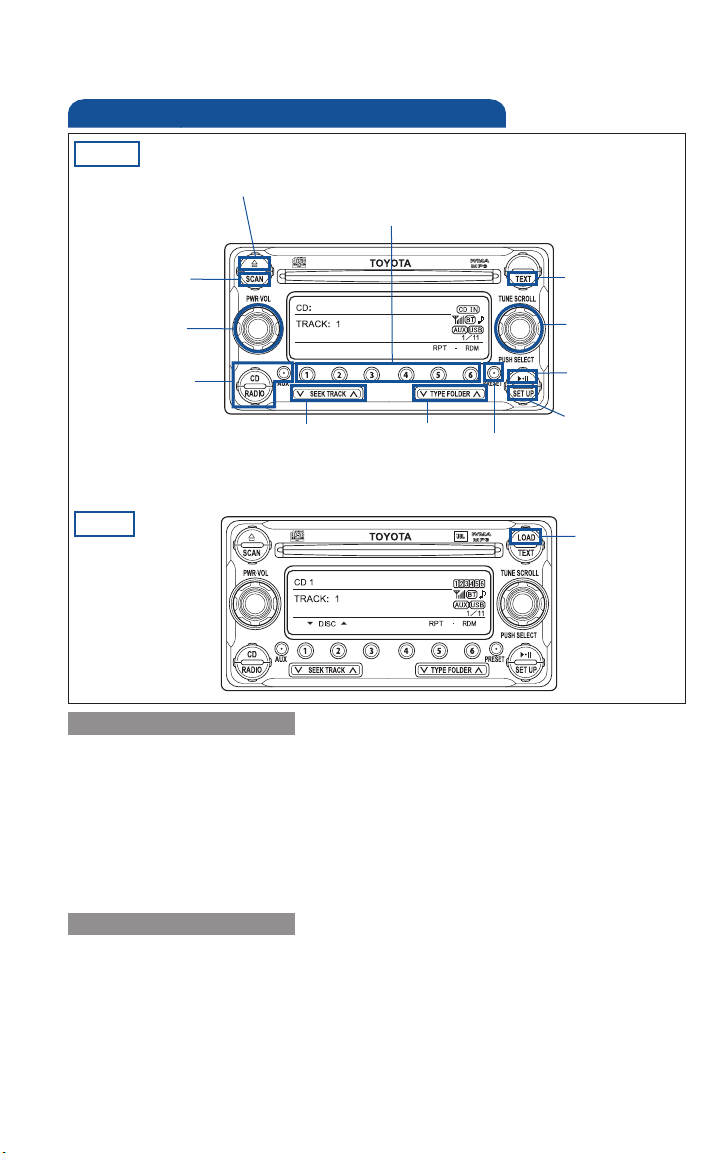

Audio
Type 2
View radio and
CD in ormation
Eject CD
Push to turn
ON/OFF
Push to adjust
tone & balance
Push to skip
up/down
older
Seek station/
CD track select
Station/CD
track scan
Mode
Load CD(s)
Preset buttons- unctions in other
modes indicated above number
Type 1
CD player
To scan trac s on a disc Push “SCAN.” Push again to hold selection.
CD changer (Type 2)
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open or next disc.
-To select a file (MP3/WMA only) Turn “TUNE/SCROLL.”
-To select a folder (MP3/WMA only) Push either side o “TYPE/FOLDER.”
Menu
Mute/playback
/pause
Setting preset
button
Text_414844M2_r1.qxd:414844_FJ Text 11/5/10 11:58 AM Page 14

15
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
“ ”
Use to search within the selected audio medium (radio, CD, iPod®, etc.).
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn
audio OFF.
>
>
Steering wheel switches
AUX port
By inserting a mini plug into the AUX port, you can listen to music from a
portable audio device through the vehicle’s speaker system while in AUX
mode.
USB port
By connecting a USB-compatible portable audio device or USB memory to
the USB port, you can listen to music from the portable audio device or
USB memory through the vehicle’s speaker system while in USB mode.
AUX port/USB port
Volume control
Clock
H- Hour set
M- Minute set
Text_414844M2.qxd 11/2/10 4:11 PM Page 15

When vehicle is in reverse, a buzzer will sound to inform driver when
nearing an obstacle. The system can only be used when the transmission is
in the “R” position.
ON/OFF switch
Intuitive parking assist (if equipped)
16
FEATURES/OPERATIONS
Air Conditioning/Heating
Recirculated cabin air (fresh air when OFF)
Air Conditioning ON/OFF
Airflow vent
In “ ” mode, use fresh air (“ ” indicator OFF) to reduce
window fogging. “ ” mode uses fresh air only.
Temperature selector
Select for maximum cooling. Air intake will automatically be set to
recirculate.
Fan speed
Rear window defogger
Text_414844M2.qxd 11/2/10 4:11 PM Page 16

17
OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the compatible
telephone and the system.
Refer to “Using the hands-free phone system (for cellular phones),”
Section 3-4 in the Owner’s Manual, or go to Toyota.LetsTalk.com for more
information about phone connections and compatibility.
Microphone
Audio unit
Steering wheel telephone switches
Volume End call
Start call
Voice command button
Cruise control (if equipped)
1 The set speed may also be cancelled by depressing the brake pedal.
2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF Functions
System ON/OFF
Resume2/Increase speed
Set/Decrease speed
Cancel1
Telephone controls (Bluetooth®)
Text_414844M2.qxd 11/2/10 4:11 PM Page 17

18
Power outlet-12V DC
ON/OFF switch Luggage compartment
Push
Instrument panel
The illumination changes according to the maximum available capacity.
•Green and Yellow 115V AC/400W
•Yellow 115V AC/100W
Engine must be running in order to use the 115V AC power outlet.
Green light
Power outlet-115V AC (if equipped)
Key must be in the “ACC” or “ON” position to be used.
FEATURES/OPERATIONS
Yellow light
The VSC OFF button is used to switch between modes related to the TRAC,
VSC and Auto LSD functions.
Refer to Section 2-4 of the Owner’s Manual for more information.
VSC OFF button
VSC OFF button
Text_414844M2.qxd 11/2/10 4:11 PM Page 18
