Toyota HILUX Configuration guide

Applicable to Rugged, Rugged X,
and Rogue Models
Publication No. TSO1801
Part No. PZQ51-89000
Issue: 1911-02
Owner’s Manual Supplement
For your safety and comfort, read carefully and keep in the vehicle.

18/11/2019 - Hilux Rugged 18/11/2019 - Hilux Rugged
Hilux_Rugged_Cover.indd, Spread 2 of 2
TOYOTA MOTOR CORPORATION AUSTRALIA LIMITED
A.B.N. 64 009 686 097
© 2019 TOYOTA MOTOR CORPORATION AUSTRALIA LIMITED
All rights reserved. This material may not be reproduced or copied, in whole or part,
without the written permission of Toyota Motor Corporation Australia Limited,
155 Bertie Street, Port Melbourne, Victoria.

Pictorial index Search by illustration
1Driving Operations and advice which are necessary for driving
2Maintenance Caring for your vehicle and maintenance procedures
3Vehicle
specications Vehicle specications, etc.
4Index Search alphabetically

2

3TABLE OF CONTENTS
For your information ..................... 4
Reading this manual ..................... 5
Pictorial index ............................... 6
1Driving
1-1. LED Driving lights...............8
1-2. Snorkel...............................9
1-3. Recovery points ................ 10
1-4. Rear bumper step ............. 13
1-5. Tow bar............................. 14
1-6. Sports bar......................... 15
1-7. Heavy duty rock rails ........ 16
1-8. Hard tonneau cover .......... 17
1-9. Tub tray and tailgate
protection ........................ 19
1-10. Textile liner.......................20
2Maintenance and care
2-1. Maintenance and care....... 21
3Vehicle specications
3-1. Vehicle specications .......22
3-2. Maintenance data.............23
4Index

4
For your information
Owner’s Manual Supplement
This supplement manual is designed to be read in conjunction with the
main Owner’s Manual. To the extent that information in the main Owner’s
Manual and this Supplement Manual are inconsistent, the information in this
Supplement Manual should be preferred.
Please note that this manual applies to a range of Hilux models and may
include optional equipment, therefore you may nd some sections of this
manual will not apply to your vehicle.
All specications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice. Depending on
your vehicle’s specications and optional equipment, the vehicle shown in the
illustrations may dier from your vehicle.

5
Reading this manual
WARNING:
Explains something that, if not obeyed, could cause death or serious
injury to people.
NOTICE:
Explains something that, if not obeyed, could cause damage to or a
malfunction in the vehicle or its equipment.
Indicates operating or working procedures. Follow the steps in
numerical order.
Indicates the action (pushing,
turning, etc.) used to operate
switches and other devices.
Indicates the outcome of an
operation (e.g. a lid opens).
Indicates the component or
position being explained.
Means “Do not”, “Do not
do this”, or “Do not let this
happen”.

Pictorial index Pictorial index
6Pictorial index
Pictorial indexPictorial index
Exterior
LED Driving lights ......................................................................... 8
Snorkel ......................................................................................... 9
Recovery points............................................................................10
Rear bumper step.........................................................................13
Tow bar ........................................................................................14
Sports bar ....................................................................................15
Heavy duty rock rails....................................................................16
Hard tonneau cover......................................................................17
Tub tray and tailgate protection...................................................19
Textile liner ................................................................................. 20

Pictorial index Pictorial index
7Pictorial index
Pictorial indexPictorial index
Interior
LED Driving lights switch............................................................... 8

81-1. LED Driving lights
LED Driving lights (if equipped)
Turning on the LED driving lights
With the high beam lights on, press
the LED driving light switch.
Turning o the LED driving lights
Turn o the LED driving lights by
either:
Press the driving light switch to
turn o the lights.
Switch o high beam*.
*NOTE: Driving lights will turn back
on automatically when high beam is
activated.
LED light bar levelling
Vertical aiming of the central light
bar can be adjusted to suit loading
conditions of the vehicle.
Raises the level of the light bar.
Lowers the level of the light bar.

91-2. Snorkel
Snorkel (if equipped)
Your vehicle may be tted with a
snorkel.
The snorkel, with its higher air-
entry height, is designed to provide
cleaner air to the engine in dusty
conditions.
The snorkel head should be forward-
facing for normal driving to ensure
optimum engine performance.
Rotating the snorkel head
The snorkel head should be rotated to face rearwards during prolonged
or heavy rainstorm, snowstorm, insect swarms or extremely dusty driving
conditions to minimise foreign material intake to the engine air inlet system.
To rotate the snorkel head, loosen the 2 screws at the base of the head to
disengage them from the main snorkel body (do not fully remove the screws
from the head itself as they are designed to be retained to avoid loss).
Lift the snorkel head o and rotate it 180° to face rearwards, ret and re-tighten
the screws.
NOTICE
zAvoid directing water into the ram head opening
during vehicle washing.
zPeriodically check to ensure the drainage holes
underneath the snorkel are open/clear.
zThe snorkel does not increase the vehicle's water
wading depth capability.
Care instructions
Do not wash the snorkel surfaces using abrasive sponges.
Avoid application of any cutting or polishing compound to the snorkel
surface to prevent surface discolouration/marking.
Avoid directing water into the ram head opening during vehicle washing.
Periodically check to ensure the drainage holes underneath the snorkel
are open/clear.

10 1-3. Recovery points
Recovery points (if equipped)
WARNING
Death, serious injury and vehicle damage could occur if the recovery points
are used incorrectly.
Do not use recovery points if any parts are bent or bolts are loose. Any such
parts must be replaced at your Toyota Dealer.
Always follow manufacturer’s instructions in relation to the tment of recovery
devices to the recovery points.
Incorrect tment or usage may result in potential whip of recovery device and
unintended or uncontrolled movement of the vehicle(s).
Vehicle recovery has risks which need to be assessed and managed before
every recovery operation to ensure the safety of all persons in and near the
vehicle(s).
Your vehicle may be tted with recovery points.
Always follow these instructions along with the manufacturer’s instructions
when using aftermarket products with the recovery points.
It is recommended to use the recovery points with a snatch strap or a winch:
zOnly use a snatch strap with a rating of 8000kg
zOnly use a winch with maximum capacity up to 6800kg (15000lb)
Fitting bow shackle
We recommend using a bridle
connected by two 3.2t or two 4.75t
rated bow shackles.
When tting the shackle, pass the
eye of the shackle through the
recovery point slot. The pin should
pass through the recovery strap or
bridle, and not the recovery point
slot (see diagram).
CORRECT INCORRECT

111-3. Recovery points
Front recovery points
Front recovery points are located on
either side of the bullbar. They are
designed to distribute the large
recovery loads through the chassis
frame.
The recovery points are designed to
be used in unison, using a bridle to
spread the load between both
points.
The angle of the recovery strap
should not exceed the turning
angle of the front wheels.
30°
MAX
30°
MAX
30°
MAX
MAX.
LOCK

12 1-3. Recovery points

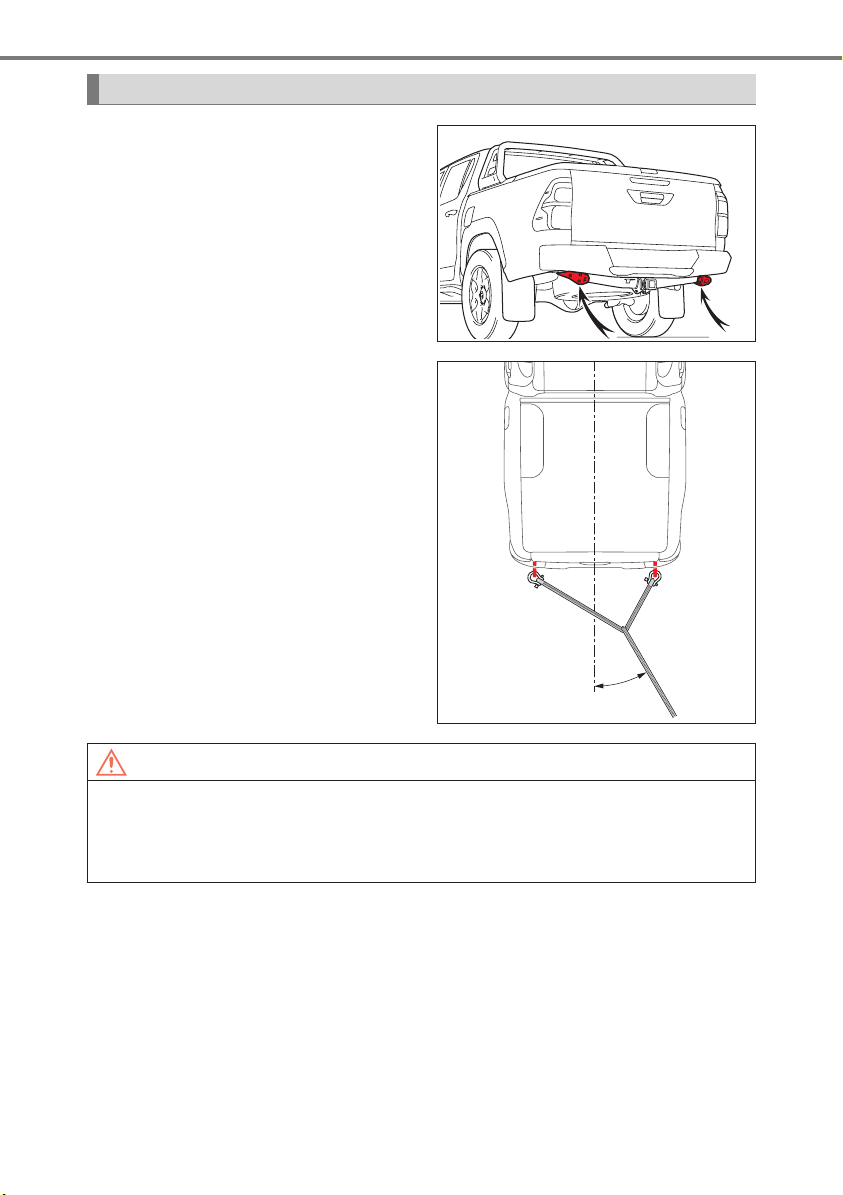

Rear recovery points
The rear recovery points are
integrated with the vehicle’s tow bar
and can be found on either side of
the tow bar. They are designed to
distribute the large recovery loads
through the chassis frame.
The recovery points are designed
to be used in unison, using a
bridle to spread the load between
both points and the chassis of the
vehicle.
The angle of the recovery strap
should not exceed thirty degrees
from the centre line of the vehicle
for the rear recovery points.
NOTICE
The tow bar is designed to handle towing loads and not recovery loads.
Do not attach recovery loads directly to your tow bar, other than via the
recovery points.
30°
MAX

131-4. Rear bumper step
Rear bumper step (if equipped)
Take care when using the rear step
on the bumper, only step on the
centre section of the bumper.

14 1-5. Tow bar
Tow bar
Your vehicle is tted with a tow bar
and is supplied with a compatible
tongue and ball.
It is also tted with a trailer wiring
harness mounted to the tow bar.
Use the appropriate mating plug
when connecting a trailer and use a
Toyota Genuine converter if the
trailer uses a dierent type of
connection.
zThe tow bar capacity is subject to regulatory requirements and will depend
upon your vehicle design and towing equipment limitations. Please refer
to the Trailer Towing section in the main Owner’s Manual to determine the
towing capacity of your vehicle. Before towing you should ensure that the
total combined trailer weight, gross vehicle weight, gross axle weights
and trailer tongue load of your individual vehicle does not exceed towing
capacity.
zYou should refer to the tongue label information before tting the tow bar
tongue. This will show you the correct orientation for tting the tongue to
your vehicle. The tongue should be secured with the pull pin and R-clip
provided.

151-6. Sports bar
Sports bar
Your vehicle is tted with a tub
oor mounted sports bar.
It is designed to:
zCarry a maximum load of 75 kg.
zHold a maximum tied down load
of 200 kg.
75 kg
max
200 kg
max

16 1-7. Heavy duty rock rails
Heavy duty rock rails (if equipped)
Heavy duty rock rails mounted
directly to the chassis rail are tted
to protect the rocker panels from
ground impacts when the vehicle is
used o-road.

171-8. Hard tonneau cover
Hard tonneau cover (if equipped)
The hard tonneau cover is designed
to protect luggage or equipment in
the tub.
Locking and unlocking
The hard tonneau cover can be locked/unlocked and opened by the following
procedures:
Locking and unlocking using the vehicle central locking system
The hard tonneau cover lock is linked to the vehicle side doors locking system.
(Refer to the Main Owner’s Manual for details).
Locking and unlocking using the hard tonneau cover key
Lock with the hard tonneau
cover key.
Unlock with the hard tonneau
cover key.
NOTICE
The vehicle’s tailgate can only be opened when the hard tonneau cover is
raised.

18 1-8. Hard tonneau cover
Opening and closing
Lift the handle and raise the hard
tonneau cover slowly.
Emergency opening procedures
If trapped inside the tub with the hard tonneau cover locked use the following
procedures to open the hard tonneau cover.
Pull emergency release tab.
Push against hard tonneau
cover to open.
Luggage compartment light
The hard tonneau cover includes a light to illuminate the tub area. To operate
the light use the following procedures.
ON.
ON when hard tonneau cover is
opened.
OFF.
