Toyota PRIUS V 2016 User manual

QUICK REFERENCE GUIDE
2016
PRIUS v

This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in your vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of your vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Prius v.
A word about safe vehicle operationsA word about safe vehicle operations
This Quick Reference Guide is not a full description of Prius
voperations. Every Prius vowner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2016
Prius v

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
1
2016
Prius v
INDEX
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
Engine maintenance 9
Fuel tank door release and cap 8
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry1,2 6
Light control-Instrument panel 9
Smart Key system1,2 7
Air Conditioning/Heating 17
Audio 18
Auto lock/unlock1,2 10
Bluetooth®Device Pairing Section 28-37
Clock 23
Cruise control 20
Dynamic radar cruise control 21
EV drive mode 12
Garage door opener (HomeLink®)323
Hill-start Assist Control (HAC) 23
Hybrid Synergy Drive System 10
Lane Departure Alert (LDA) 16
Lights1& turn signals 15
Panoramic roof shades119
Parking brake 12
Power outlets 20
Seat adjustments-Front 13
Seat heaters 16
Seat-Folding down rear seat 14
Seats-Flattening front seatbacks 13
Seats-Head restraints 13
Steering wheel switches 19
Telephone controls (Bluetooth®) 22
Tilt and telescopic steering wheel 12
Transmission 11
Trip information display 22
Windows-Power 16
Windshield wipers & washers 14
Doors-Child safety locks 25
Door locks 25
Floor mat installation 27
Seat belts 24
Seat belts-Shoulder belt anchor 24
Spare tire & tools 25
Star Safety SystemTM 28-37
Tire Pressure Monitoring (warning) System 24
1Visit your Toyota dealer for information on customizing this feature.
2Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Gentex Corporation.
2016_Prius_v.indd 1 7/22/15 4:00 PM

Type A Type B
2
OVERVIEW
Instrument panel
Steering wheel audio controls1
Meter control switches
Steering wheel climate controls
Trip information display button
“TRIP” button
Cruise control
Vehicle-to-vehicle distance button2
Telephone controls1
Voice command button1
Headlight and turn signal controls/Headlight, turn signal and front fog
light controls2
Wiper and washer controls
Multi-Information display2

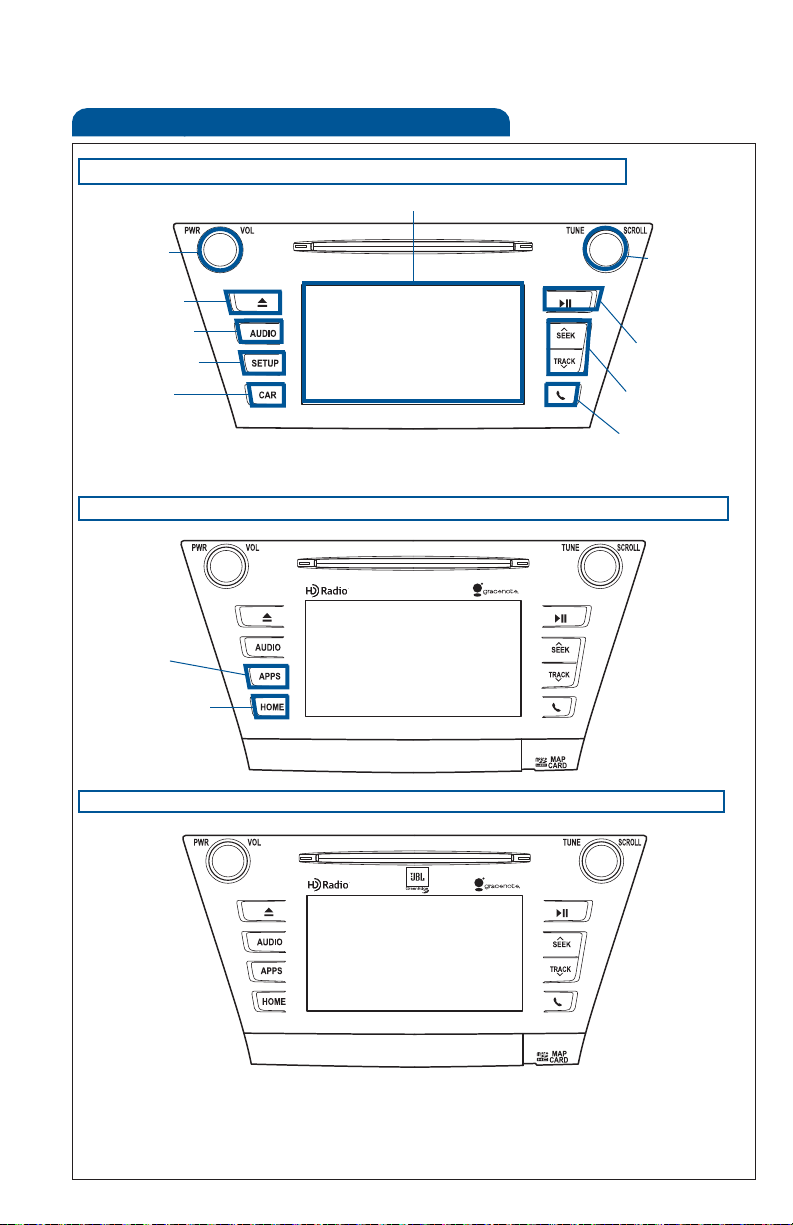

Audio system1/Navigation system1,2
Mph or km/h button
Emergency flasher button
Power button
“P” position switch
Type A
Type B

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
3
Shift lever

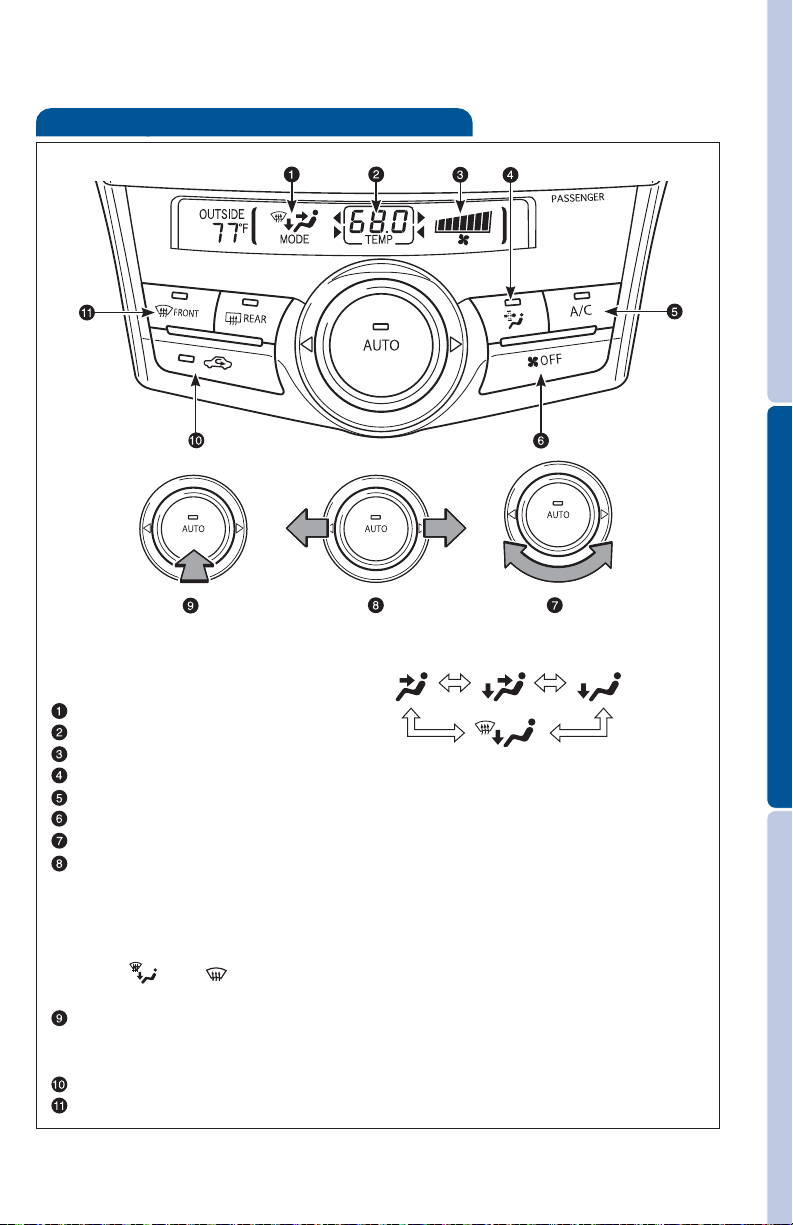

Air conditioning controls
Outside rearview mirror/Rear window defogger button
AUX port/USB port
Power outlet
Seat heater switches2
Tire Pressure Monitoring (warning) System reset switch
Tilt and telescopic steering lock release lever
Hood lock release lever
Fuel tank door release lever
Pre-Collision System (PCS) switch2
Automatic high beam switch2
Lane Departure Alert (LDA) switch2
Instrument panel light control
VSC off switch
1For details, refer to the “NAVIGATION SYSTEM OWNER’S MANUAL.”
2If equipped

4
OVERVIEW
Indicator symbols
Instrument cluster
Service indicators and reminders
Hybrid System Indicator
Speedometer
Transmission shift position indicator
Fuel gauge
Hybrid battery (traction battery) status
Trip information display
Odometer and trip meter display
Clock
Multi-Information display
Charging system warning1
Brake system warning1
Driver seat belt reminder and/or front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Brake system warning (yellow indicator)1
1If indicator does not turn off within a few seconds of starting Hybrid System, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
For details, refer to “Indicators and warning lights,” Section 2-2, 2016 Owner’s
Manual.
Vehicles without Multi-Information display
Vehicles with Multi-Information display

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
5
Front passenger occupant
classification or front passenger
airbag ON/OFF indicator
2If this light flashes, refer to “Cruise control,” or “Dynamic radar cruise control,” Section 4-5,
2016 Owner’s Manual.
3If equipped
Anti-lock Brake System warning1
Headlight low/high beam
indicators
Turn signal indicator
Slip indicator/Hill-start Assist
Control indicator1
Low Tire Pressure Warning1
Open door warning
Airbag SRS warning1
Malfunction/Check Engine
indicator1
Low fuel level warning
Electric power steering system
warning1
READY indicator
Front fog light indicator
ECO MODE indicator
EV drive mode indicator
Automatic headlight leveling
system warning1,3
Cruise control
indicators2,3
Pre-Collision System (PCS)
warning light1,3
High coolant temperature warning 1
Power Mode indicator
EV indicator3
ECO Driving Indicator 1,3
Low engine oil pressure warning1,3
Hybrid System warning1,3
Parking lock system warning1,3
Immobilizer system indicator
Maintenance required reminder1,3
Smart Key system warning3
Hybrid System overheat warning1
P position request indicator1
Low hybrid battery (traction
battery) warning
Parking lock system
warning message3
Fuel tank door position
Traction Control OFF indicator1,3
Master warning1,3
LED headlight warning1,3
Go to service warning1,3
VSC OFF indicator
Lane Departure Alert (LDA)
indicator3
Automatic High Beam
indicator3

6
OVERVIEW
Keyless entry
Push
Push ONCE: Driver door
TWICE: All doors
Locking operation
Unlocking operation
Panic button
Push and hold
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
7
Smart Key system
Start function
Accessories such as the radio will operate.
Power ON; Hybrid System is not engaged.
All systems OFF.
ACCESSORY
ON
OFF
Push
Depress
brake pedal
Carrying
Green indicator ON
Without depressing the brake pedal, pressing the “POWER” button will change the
operation mode in succession from:
Power (without starting Hybrid System)
* Driver door unlocking function can be programmed to unlock driver door only,
or all doors. Grasping passenger door handle or pushing unlock button on rear
hatch will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Locking operation Unlocking operation
Carry remote to lock Carry remote to unlock
All-door lock Driver door unlock*
Back door lock/unlock (if equipped)
Carry remote to
lock/unlock
Touch Grasp
Lock
Unlock

8
OVERVIEW
Hood release
Pull up latch and
raise hood
Fuel tank door release and cap
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
Pull
Turn to open
Store
Engage support rod
Pull
Upper slot: to open
Lower slot: to open wide

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
9
Engine coolant reservoir
Engine oil level dipstick
Engine oil filler cap
Windshield washer fluid tank
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty & Maintenance Guide.” Maintenance reset light
instructions can be found in “Maintenance Requirements Chapter” in
Owner’s Manual.
Engine maintenance
Light control-Instrument panel
Brightness
control -
+

10
FEATURES/OPERATIONS
Starting your vehicle
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline engine
and electric motor to provide the most efficient combination of power for the
vehicle. To conserve energy, when the brakes are applied the braking force
generates electricity which is then sent to the traction battery. In addition,
the engine shuts off when the vehicle is stopped. The benefits are better fuel
economy, reduced vehicle emissions and improved performance.
NOTE: Fuel consumption and energy information of the Hybrid S ystem are
shown on the Entune™ Audio system screen or the navigation system
screen.
Tips for improved fuel economy
-Ensure tire pressures are maintained at levels specified in the Owner’s Manual.
-When possible, link trips to reduce engine cold starts.
-Avoid driving at speeds that are higher than necessary, especially on the highway.
-When possible, avoid sudden stops to maximize regenerative braking energy.
-Minimize use of the air conditioning.
Hybrid Synergy Drive System
Auto lock/unlock
Automatic door locks can be programmed to operate in two different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after turning the
“POWER” switch OFF.
Refer to the Owner’s Manual for more details.
(1) Depress the brake pedal, and
press the “POWER” switch
briefly and firmly.
(2) The “READY” light will blink.
After a few seconds, when the
light remains steady and a beep
sounds, you may begin driving.

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
11
Transmission
* The engine brake is the equivalent of downshifting. Shift to “B” when engine
braking is desired (i.e. downhill driving, coasting to a stop, etc.).
Eco Mode
Push
Eco Mode helps achieve low fuel consumption during trips that involve frequent
accelerating and braking.
Refer to the Owner’s Manual for more details.
Park button
Reverse
Neutral
Drive
Engine brake*
Power Mode
Use when a higher level of response is desired, such as when driving in
mountainous regions.
Refer to the Owner’s Manual for more details.
Push

12
FEATURES/OPERATIONS
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
EV drive mode
EV drive mode allows the electric motor (traction motor), powered by the hybrid
battery (traction battery), to be used to drive the vehicle under certain driving
conditions.
Refer to the Owner’s Manual for more details.
Push
Angle
Length
Lock release lever
Parking brake
Set: Depress
Release: Depress again

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
13
Seat adjustments-Front
Seat position (forward/backward)
Seat cushion angle*
Height crank (driver side only)
Seatback angle
Lumbar support (driver side only) *If equipped
Seats-Head restraints
Lock release button
Seats-Flattening front seatbacks
(1) Move front seats forward
(2) Remove head restraints
(3) Pull up (manual) or turn (power)
(4) Flatten seatbacks
Manual seat Power seat (driver’s side)

14
FEATURES/OPERATIONS
Windshield wipers & washers
Front
Rear
Interval wipe
Single wipe
Slow
Fast
Pull to wash and wipe
Pull up
Seat-Folding down rear seat
Adjustment frequency*
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
Wash and wipe
Wipe
Interval wipe
Wash and wipe

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
15
Lights & turn signals
Headlights
Front fog lights (if equipped)
Front fog lights come on only when the headlights are on low beam.
Turn
High beam flasher
Low beam
Automatic light cutoff system Automatically turns lights off after a delay of 30
seconds or when lock switch on remote is pushed after all doors are locked.
High beam
Auto
Parking lights
Headlights
OFF
Parking lights
Headlights
OFF
DRL
Type A Type B
Turn signals
Right turn
Lane change
Lane change
Left turn

16
FEATURES/OPERATIONS
Seat heaters (if equipped)
Push
Push
Driver seat Front passenger seat
Windows-Power
Up Down
Window lock switch
Automatic operation Push the switch completely down or pull it completely up
and release to fully open or close. To stop the window partway, operate the
switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
The Lane Departure Alert recognizes the visible lane
markers using a camera as a sensor and alerts the driver
with beeping and flashing indicators when the vehicle
deviates from its lane. Press the LDA switch to activate
the system.
Refer to the Owner‘s Manual for more details on this system before attempting
to use it.
Lane Departure Alert (LDA) (if equipped)

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
17
Air Conditioning/Heating
Air outlet display
Temperature setting display
Fan speed display
Micro dust and pollen filter mode (turns off automatically after 3 minutes)
Air conditioning ON/OFF
Climate control OFF
Adjust/select
Function select
Slide the dial left and right to select:
-Fan speed control
-Temperature selector
-Airflow vent
Use “ ” or “ ” mode to reduce window fogging (system automatically
switches to outside air mode).
Automatic climate control ON
Adjusting the temperature setting will cause the airflow vents, air intake
and fan to adjust automatically.
Recirculate cabin air (outside air when OFF)
Windshield defogger

18
FEATURES/OPERATIONS
Entune™ Premium Audio with Integrated Navigation and App Suite2
Audio (if equipped)
Entune™ Audio1,2
Eject CD
Push to turn
ON/OFF
Seek station/
CD track select
Push to display
audio screen
Turn to tune
radio stations
manually or
select tracks
or files
Touch screen display
Push to pause
or resume
playing
Access to
navigation
system2
Entune™ Premium JBL® Audio with Integrated Navigation and App Suite
2
1Refer to the “OWNER’S MANUAL.”
2Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL” and “2016 Entune™ Audio Quick
Reference Guide.”
Push to display
Setup screen
Push to
display vehicle
information Push to access hands
free Bluetooth®
system
Push to display
home screen
