Foreword
Welcome to the growing group of value–conscious people who drive Toyotas. We are proud of the advanced engineering and
quality construction of each vehicle we build.
This Owner’s Manual explains the operation of your new Toyota. Please read it thoroughly and have all the occupants
follow the instructions carefully. Doing so will help you enjoy many years of safe and trouble–free motoring. For
important information about this manual and your Toyota, read the following pages carefully.
When it comes to service, remember that your Toyota dealer knows your vehicle best and is interested in your complete
satisfaction. He will provide quality maintenance and any other assistance you may require.
If there is not a Toyota dealer near you, or you need emergency assistance for any reason, please call the following number:
U.S. OWNERS: Toyota Customer Assistance Center Toll–free:1–800–331–4331
CANADIAN OWNERS: Toyota Canada Customer Interaction Centre Toll–free:1–888–TOYOTA–8 (1–888–869–6828)
Please leave this Owner’s Manual in this vehicle at the time of resale. The next owner will need this information also.
All information and specifications in this manual are current at the time of printing. However, because of Toyota’s policy of
continual product improvement, we reserve the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may
find some explanations for equipment not installed on your vehicle.
2001 TOYOTA MOTOR CORPORATION
All rights reserved. This material may not be reproduced or copied, in whole or in part, without the written permission of Toyota
Motor Corporation.

AP_Camry_U (L/O 0201)
ii 2002 MY CAMRY_U (OM33567U)
Important information about this manual
Safety and vehicle damage warnings
Throughout this manual, you will see safety and vehicle dam-
age warnings. You must follow these warnings carefully to
avoid possible injury or damage.
The types of warnings, what they look like, and how they are
used in this manual are explained as follows:
CAUTION
This is a warning against something which may cause
injury to people if the warning is ignored. You are
informed about what you must or must not do in
order to avoid or reduce the risk to yourself and other
people.
NOTICE
This is a warning against something which may cause
damage to the vehicle or its equipment if the warning
is ignored. You are informed about what you must or
must not do in order to avoid or reduce the risk of
damage to your vehicle and its equipment.
Safety symbol
When you see the safety symbol
shown above, it means: “Do not...”;
“Do not do this”; or “Do not let this
happen”.

AP_Camry_U (L/O 0201)
iii 2002 MY CAMRY_U (OM33567U)
Important information about your Toyota
New vehicle warranty
Your new vehicle is covered by the following Toyota limited
warranties:
New vehicle warranty
Emission control systems warranty
Others
For further information, please refer to the “Owner’s War-
ranty Information Booklet”, or “Owner’s Manual Supple-
ment”.
Your responsibility for
maintenance
It is the owner’s responsibility to make sure that the speci-
fied maintenance is performed. Section 6 gives details of
these maintenance requirements. Also included in Section
6 is general maintenance. For scheduled maintenance in-
formation, please refer to the “Scheduled Maintenance
Guide” or “Owner’s Manual Supplement”.
Accessories, spare parts and
modification of your Toyota
A wide variety of non–genuine spare parts and accessories
for Toyota vehicles are currently available in the market.
You should know that Toyota does not warrant these prod-
ucts and is not responsible for their performance, repair, or
replacement, or for any damage they may cause to, or
adverse effect they may have on, your Toyota vehicle.
This vehicle should not be modified with non–genuine
Toyota products. Modification with non–genuine Toyota
products could affect its performance, safety or durability,
and may even violate governmental regulations. In addi-
tion, damage or performance problems resulting from the
modification may not be covered under warranty.

AP_Camry_U (L/O 0201)
iv 2002 MY CAMRY_U (OM33567U)
Spark ignition system of your
Toyota
The spark ignition system in your Toyota meets all require-
ments of the Canadian Interference–Causing Equipment
Standard.
Installation of a mobile
two–way radio system
As the installation of a mobile two–way radio system in
your vehicle could affect electronic systems such as
multiport fuel injection system/sequential multiport fuel
injection system, electronic throttle control system, cruise
control system, anti–lock brake system, traction control
system, vehicle skid control system, SRS airbag system
and seat belt pretensioner system, be sure to check with
your Toyota dealer for precautionary measures or special
instructions regarding installation.
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in your
Toyota contain explosive chemicals. If the vehicle is
scrapped with the airbags and pretensioners left as they
are, this may cause an accident such as fire. Be sure to
have the systems of the SRS airbag and seat belt preten-
sioner removed and disposed of by the qualified service
shop or by your Toyota dealer before you dispose of your
vehicle.

AP_Camry_U (L/O 0201)
2002 MY CAMRY_U (OM33567U)
Publication No. OM33567U
Part No. 01999-33567
Printed in Japan 01–0112–00
( U)
Quick index
If a service reminder indicator or warning buzzer comes on 99. . . . . . . . .
If your vehicle will not start 211. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your engine stalls while driving 214. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle overheats 215. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If you have a flat tire 216. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle needs to be towed 224. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tips for driving during break–in period 181. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How to start the engine 197. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General maintenance 238. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Complete index NO TAG. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gas station information
Fuel type:
2AZ–FE engine: UNLEADED gasoline, Octane Rating 87
(Research Octane Number 91) or higher
1MZ–FE engine: UNLEADED gasoline, Octane Rating 87
(Research Octane Number 91) or higher.
For improved vehicle performance, the use of premium unleaded
gasoline with an Octane Rating of 91 (Research Octane Number 96)
or higher is recommended.
See page 181 for detailed information.
Fuel tank capacity:
70 L (18.5 gal., 15.4 lmp. gal.)
Engine oil:
API grade SJ “Energy–Conserving”, SL “Energy–Conserving” or ILSAC
multigrade engine oil is recommended.
See page 251 for detailed information.
Automatic transmission fluid:
Automatic transmission fluid Type T–IV
Tire information: See pages 255 through 260.
Tire pressure: See page 278.
bU 8
I

AP_Camry_U (L/O 0201)
2002 MY CAMRY_U (OM33567U)
You should know as much about the quality and
importance of proper maintenance of your new
vehicle as the people who built it.
The Toyota authorized Repair Manual
tells you how to maintain your vehicle and
enables you to correctly perform your own
maintenance.
The best way to keep yournew vehicle in top
running order is to maintain it properly from
the moment you drive it off the showroom
floor.
The Toyota authorized Repair Manual is
packed with literally everything you need to
know to perform your own maintenance in
virtually every area of your new vehicle.

AP_Camry_U (L/O 0201)
2002 MY CAMRY_U (OM33567U)
Where to obtain the
Repair Manual
The repair manual for CAMRY, written in Eng
lish, may be purchased as applicable from any
Toyota dealer.
Pub. Name: 2002 CAMRY Repair Manual
Pub. No.: RM881U1 (Maintenance, Preparation,
Service specifications and Diagnos
tics)
RM881U2 (Engine, Chassis and Body)
Maintenance procedures for the engine,
chassis, body, electrical system, and more,
are clearly explained and illustrated.
Periodic maintenance and tune−up
Periodic maintenance and tune−up helps to pre
vent smallproblems fromgrowingintolarger ones lat
er on. The repair manual outlines exactly what main
tenance is required and clearly explains how to do the
work yourself step−by−step.
Areas covered include such things as spark plugre
placement, valveclearance adjustmentandengine oil
and filter replacement.

AP_Camry_U (L/O 0201)
2002 MY CAMRY_U (OM33567U)
WE REALLY CARE ABOUT YOU  PLEASE BUCKLE UP
Toyota has made a special effort to encourage use of seat belts.
Toyota belts are:
Comfortable
Easy to use
Convenient
We encourage you to use your belts every time you drive.
U

AP_Camry_U (L/O 0201)
1
2002 MY CAMRY_U (OM33567U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster overview 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 7. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 – 1

AP_Camry_U (L/O 0201)
22002 MY CAMRY_U (OM33567U)
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Personal lights
6. Electric moon roof switch
7. Garage door opener
8. Auxiliary boxes
9. Power door lock switches
10. Power window switches
11. Glove box
12. Cup holder
13. Parking brake lever
14. Automatic transmission selector lever
or manual transmission gear shift lever
15. Instrument panel light control dial
16. Window lock switch
17. Power rear view mirror control switches
Instrument panel overview
With lever type parking brake

AP_Camry_U (L/O 0201)
3
2002 MY CAMRY_U (OM33567U)

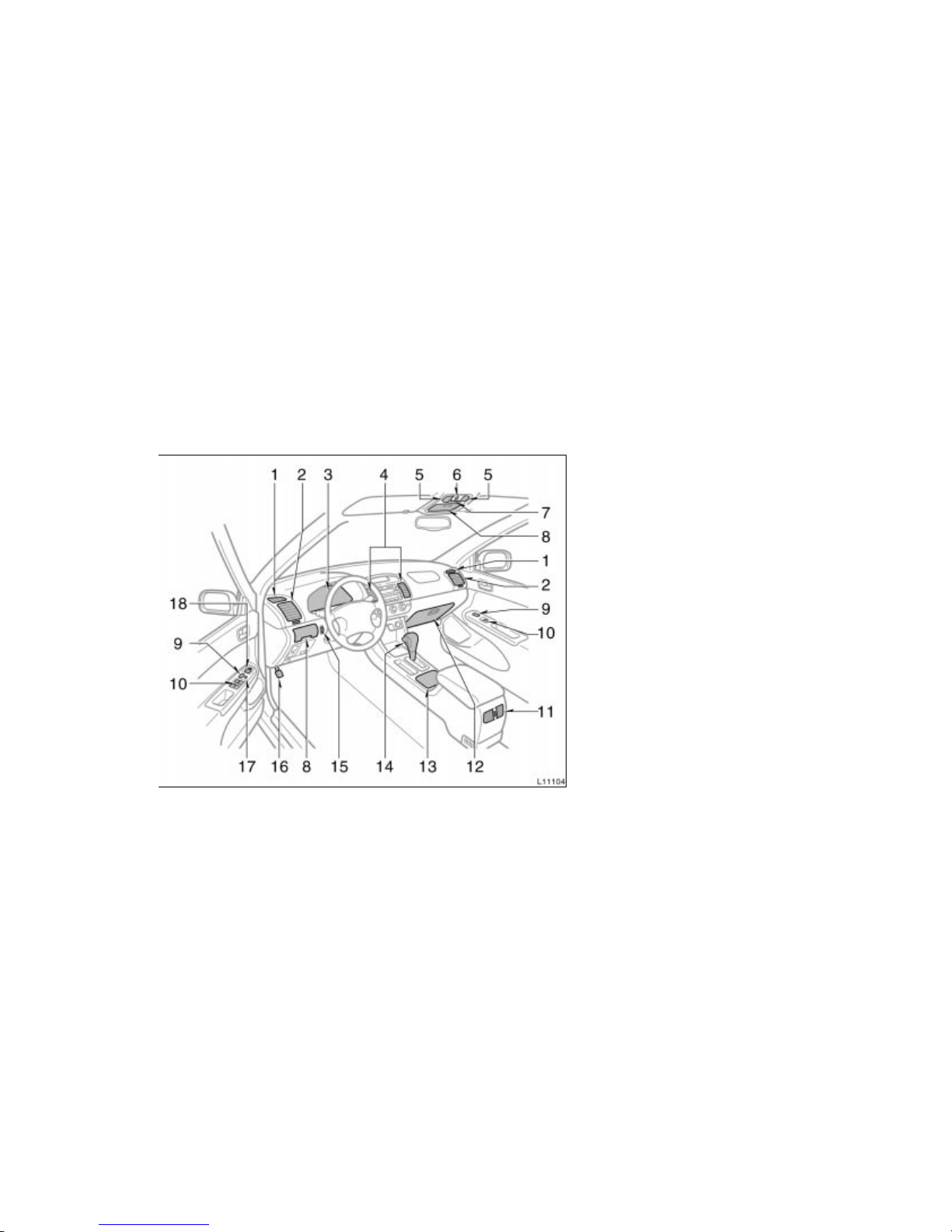

1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Personal lights
6. Electric moon roof switch
7. Garage door opener
8. Auxiliary boxes
9. Power door lock switches
10. Power window switches
11. Rear vents
12. Glove box
13. Cup holder
14. Automatic transmission selector lever
15. Instrument panel light control dial
16. Parking brake pedal
17. Window lock switch
18. Power rear view mirror control switches
With pedal type parking brake

AP_Camry_U (L/O 0201)
42002 MY CAMRY_U (OM33567U)

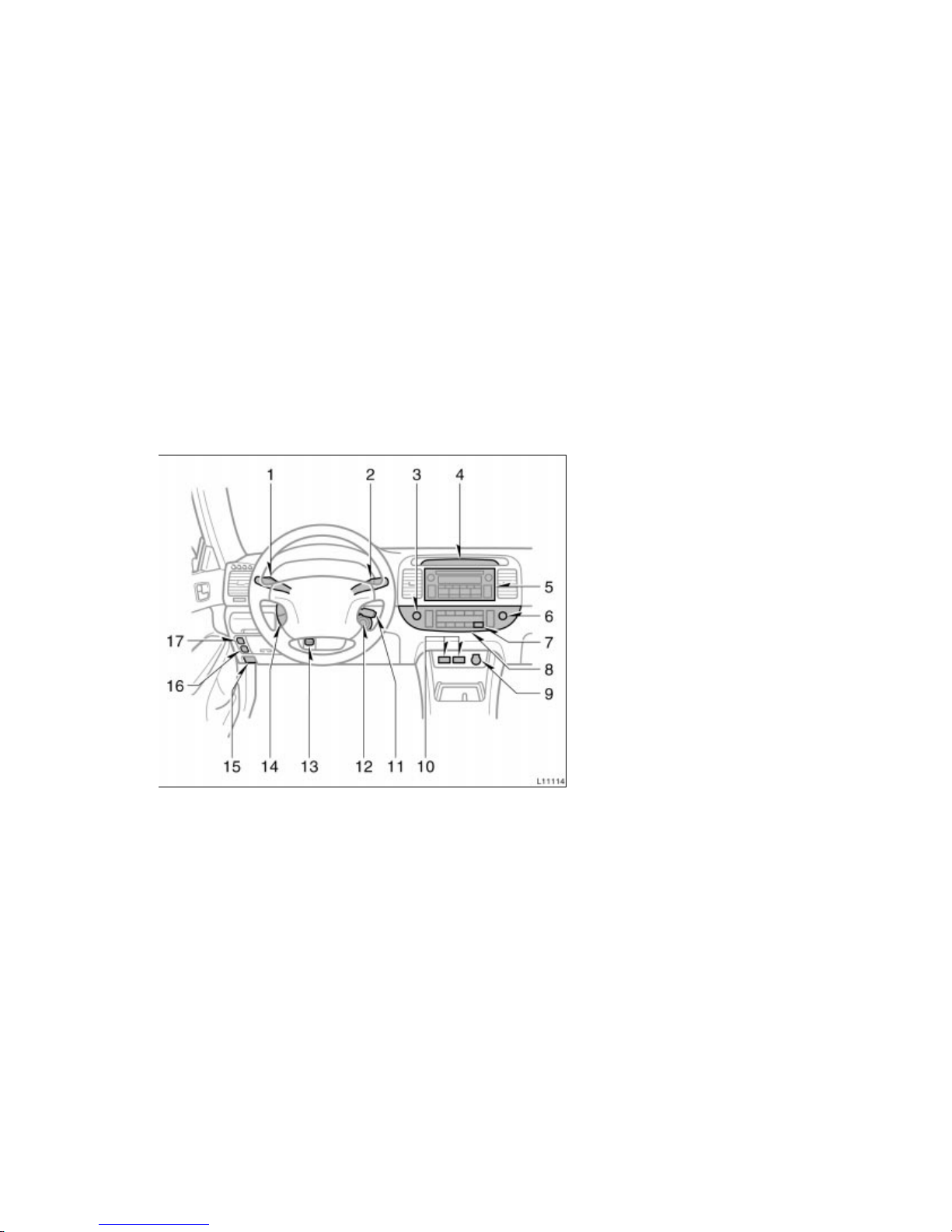

1. Headlight and turn signal switch and
front fog light switch
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock/outside temperature gauge and
multi–information display
5. Car audio
6. Theft deterrent system/engine
immobiliser system indicator light
7. Rear window and outside rear view
mirror defogger switch
8. Air conditioning controls
9. Power outlet
10. Seat heater switches
11. Cruise control switch
12. Ignition switch
13. Tilt steering lock release lever
14. Multi–information display control
switches
15. Hood lock release lever
16. Traction control system off switch
17. Power adjustable pedals switch
With manual air conditioning controls

AP_Camry_U (L/O 0201)
5
2002 MY CAMRY_U (OM33567U)
1. Headlight and turn signal switch and
front fog light switch
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock/outside temperature gauge and
multi–information display
5. Car audio
6. Theft deterrent system/engine
immobiliser system indicator light
7. Rear window and outside rear view
mirror defogger switch
8. Air conditioning controls
9. Power outlet
10. Seat heater switches
11. Cruise control switch
12. Ignition switch
13. Tilt steering lock release lever
14. Multi–information display control
switches
15. Hood lock release lever
16. Traction control system off switch
17. Power adjustable pedals switch
With automatic air conditioning controls

AP_Camry_U (L/O 0201)
62002 MY CAMRY_U (OM33567U)
1. Tachometer
2. Engine coolant temperature gauge
3. Service reminder indicators and
indicator lights
4. Speedometer
5. Fuel gauge 6. Odometer and two trip meters 7. Trip meter reset knob
Instrument cluster overview

AP_Camry_U (L/O 0201)
7
2002 MY CAMRY_U (OM33567U)
Brake system warning light∗1
Driver’s seat belt reminder light∗1
Discharge warning light∗1
Malfunction indicator lamp∗1
Low engine oil pressure warning light∗1
Anti–lock brake system warning light∗1
Open door warning light∗1
SRS warning light∗1
Low windshield washer fluid level warning light∗1
oror
Front passenger’s seat belt reminder light∗1
Low fuel level warning light∗1
Vehicle skid control system and traction control
system warning light∗1
Turn signal indicator lights
Headlight high beam indicator light
Indicator symbols on the instrument panel

AP_Camry_U (L/O 0201)
82002 MY CAMRY_U (OM33567U)
Slip indicator light
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 99 in Section 1–5.
∗2: If this light flashes, see “Cruise control” on page 118 in Sec-
tion 1–6.
Cruise control indicator light∗2
Overdrive–off indicator light
Automatic transmission indicator lights
Traction control system off indicator light

AP_Camry_U (L/O 0201)
9
2002 MY CAMRY_U (OM33567U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Keys and Doors
Keys 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobiliser system 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Side doors 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power windows 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk lid 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Theft deterrent system 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap 30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric moon roof 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 – 2

AP_Camry_U (L/O 0201)
10 2002 MY CAMRY_U (OM33567U)

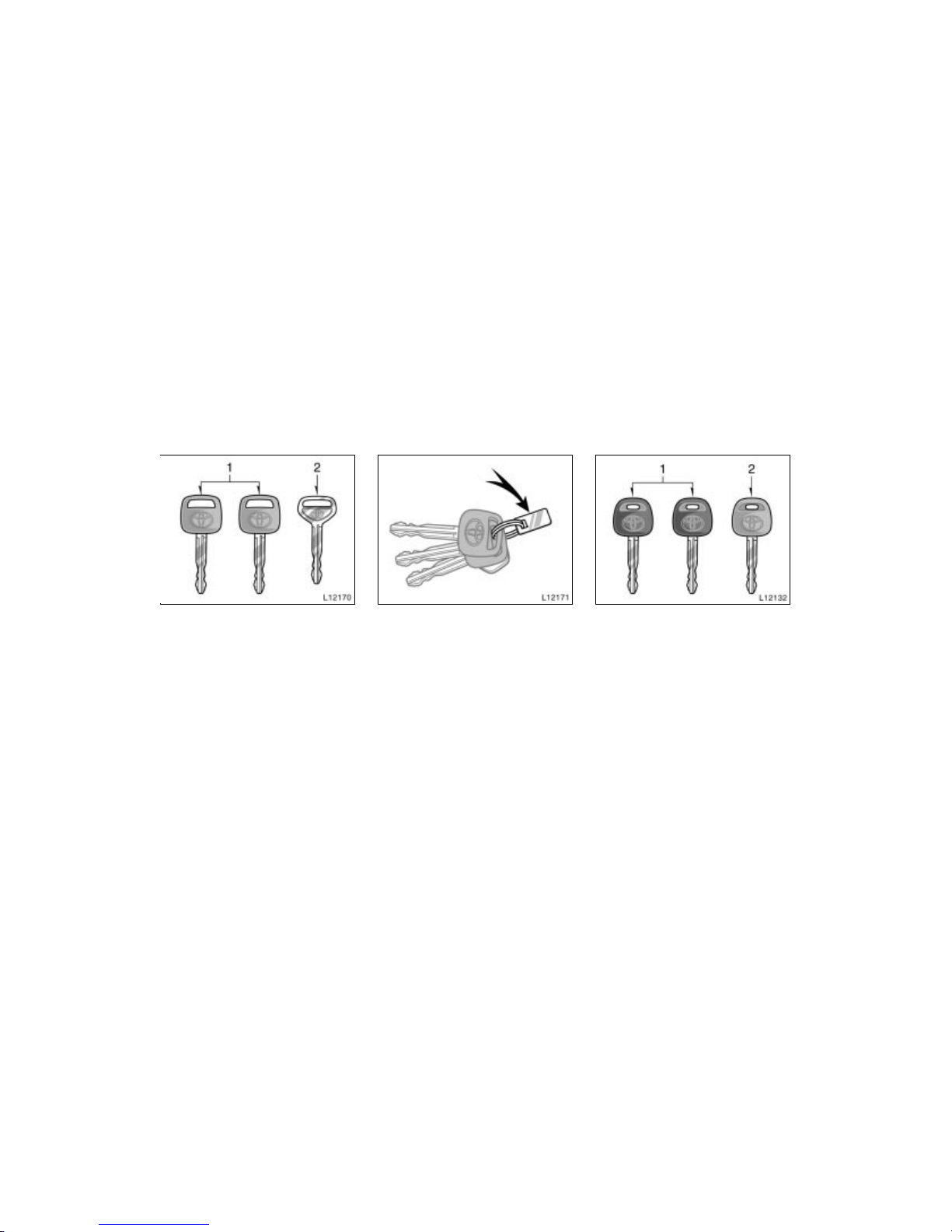

Your vehicle is supplied with two kinds
of keys.
1. Master key—
This key works in every lock.
Since the doors and trunk lid can be
locked without a key, you should al-
ways carry a spare master key in case
you accidentally lock your keys inside
the vehicle.
2. Sub key—
This key will not work in the glove box
and trunk.
To protect things locked in the glove
box or trunk when you have your vehi-
cle at valet parking, leave the sub key
with the attendant.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.
Your vehicle is supplied with two kinds
of keys.
1. Master key (black)—
This key works in every lock. Your
Toyota dealer will need it to make you
a new key with built–in transponder
chip.
Since the doors and trunk lid can be
locked without a key, you should al-
ways carry a spare master key in case
you accidentally lock your keys inside
the vehicle.
Keys (without engine
immobiliser system) Keys (with engine immobiliser system)

AP_Camry_U (L/O 0201)
11
2002 MY CAMRY_U (OM33567U)
2. Sub key (gray)—
This key will not work in the glove box
and trunk.
To protect things locked in the glove
box or trunk when you have your vehi-
cle at valet parking, leave the sub key
with the attendant.
A transponder chip for engine immobiliser
system has been fitted in the head of the
master and sub keys. These chips are
needed to enable the system to function
correctly, so be careful not to lose these
keys. If you make your own duplicate key,
you will not be able to cancel the system
or start the engine.
NOTICE
When using a key containing a trans-
ponder chip, observe the following
precautions:
 When starting the engine, do not
use the key with a key ring resting
on the key grip and do not press
the key ring against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts.
 When starting the engine, do not
use the key with other transponder
keys around (including keys of oth-
er vehicles) and do not press other
key plates against the key grip.
Otherwise the engine may not start,
or may stop soon after it starts. If
this happens, remove the key once
and then insert it again after taking
off other transporter keys (including
keys of other vehicles) from the
ring or while gripping or covering
them with your hand to start the
engine.

AP_Camry_U (L/O 0201)
12 2002 MY CAMRY_U (OM33567U)

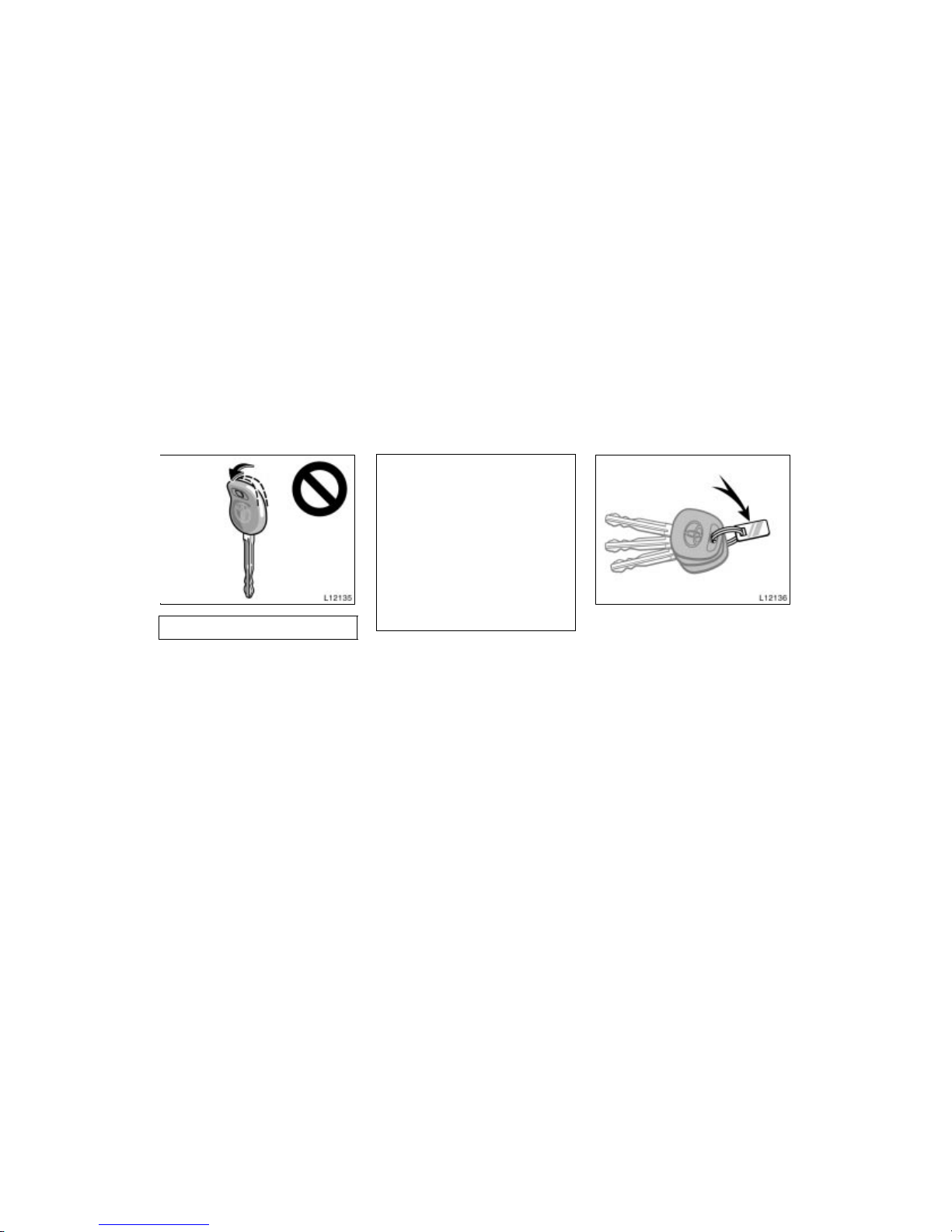

 Do not bend the key grip.
 Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
 Do not knock the key hard against
other objects.
 Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under the direct sunlight.
 Do not put the key in water or
wash it in an ultrasonic washer.
 Do not use the key with electromag-
netic materials.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend you to write down the key
number and keep it in safe place.
