Toyota tundra 2016 User manual

QUICK REFERENCE GUIDE
00505QRG16TUN
Printed in U.S.A. 7/15
15 - T C S - 0 8 5 8 7
2016
CUSTOMER EXPERIENCE CENTER
1-800-331- 4331
TUNDRA

45
This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in your vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of your vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Tundra.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of Tundra
operations. Every Tundra owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2016
Tundra
NOTES

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
Engine maintenance 8
Fuel tank door release and cap 7
Hood release 7
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Keyless entry16
Light control-Instrument panel 6
Air Conditioning/Heating 20-21
Audio 22-23
Automatic Transmission 9
Bottle holders 26
Blind Spot Monitor (BSM) with Rear Cross Traffic Alert 25
Bluetooth®Device Pairing Section 33-42
Cruise control 25
Cup holders 27
Door locks 11
Four-wheel drive 10
Garage door opener (HomeLink®)321
Lights1& turn signals 16
Mirrors-Power outside rearview 10
Moonroof 14
Multi-Information Display224

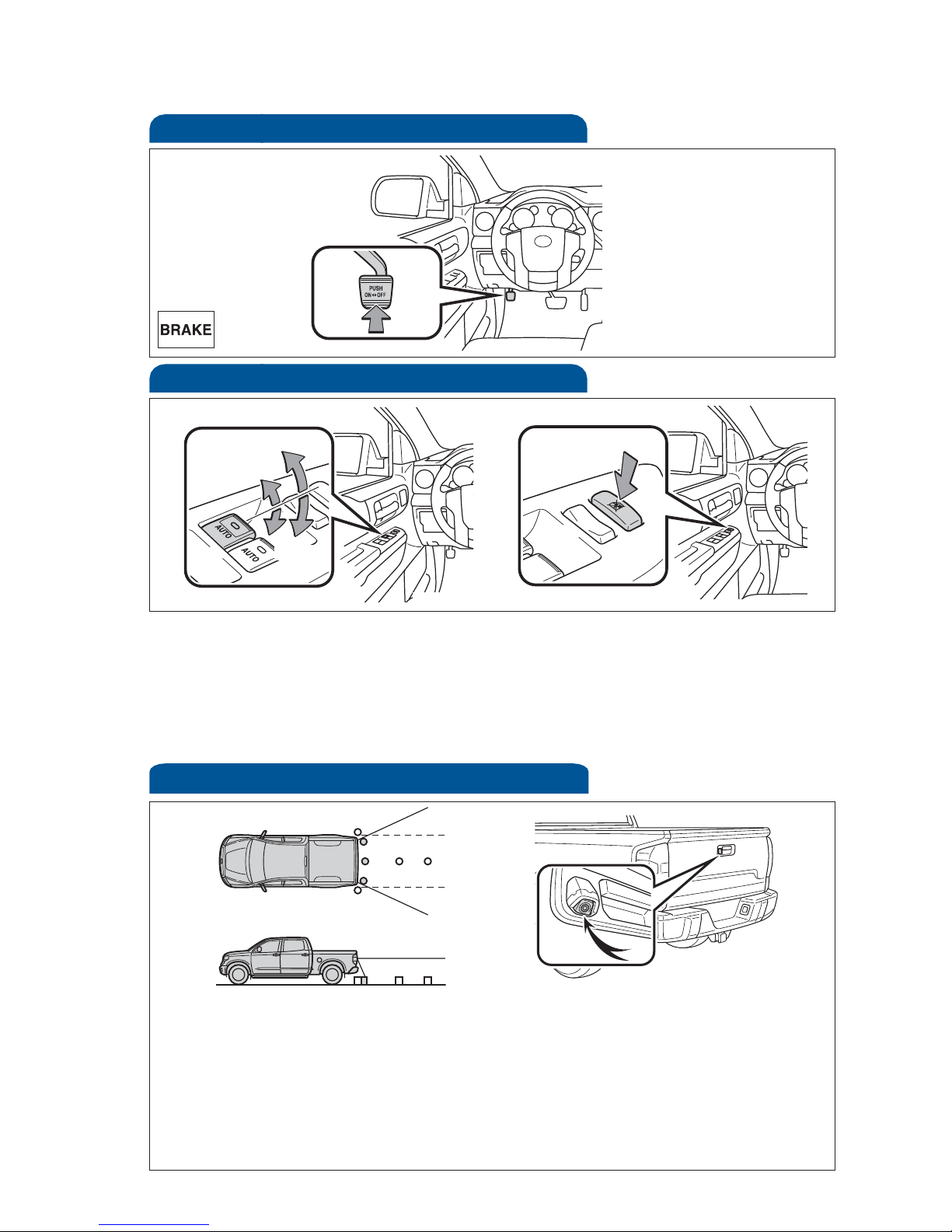

Parking brake 18

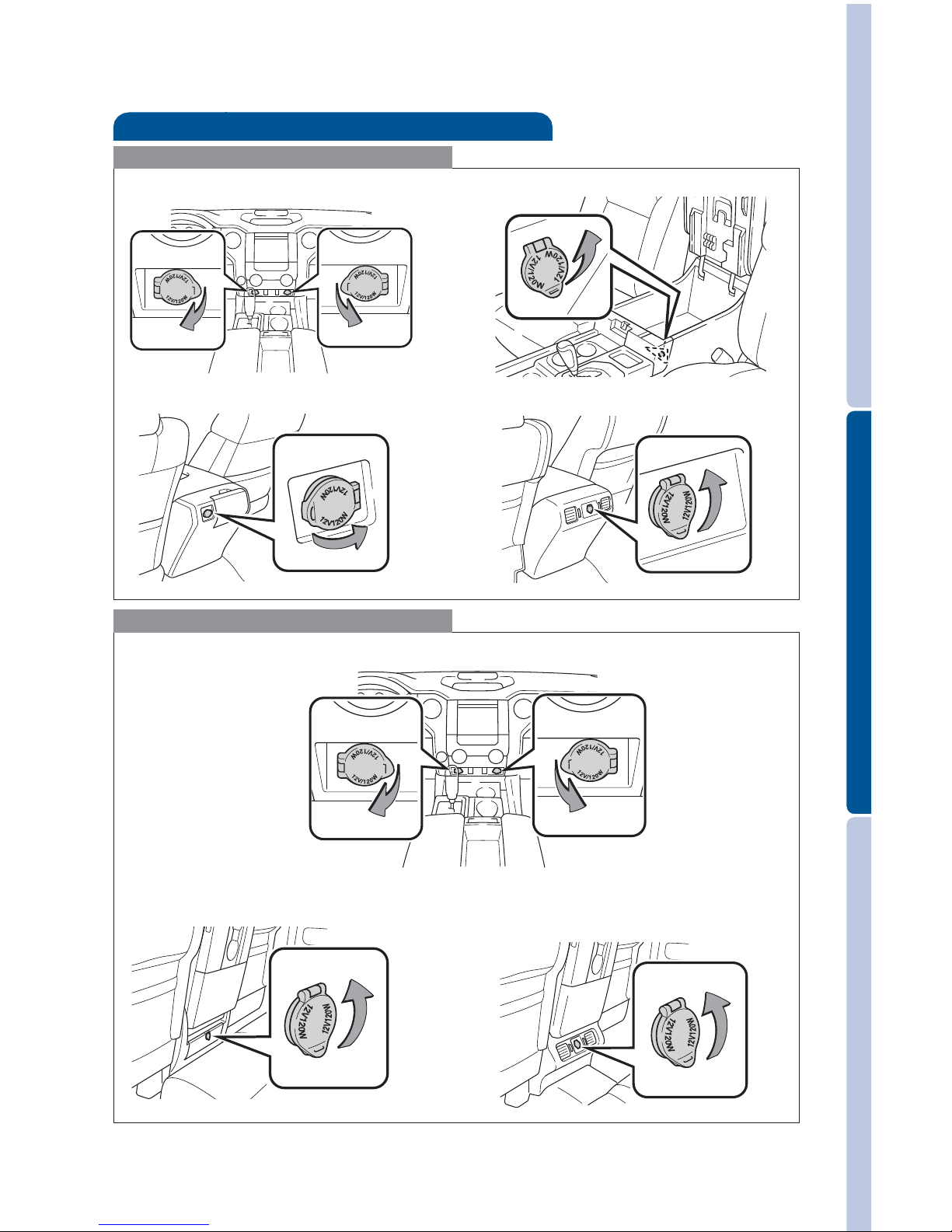

Power outlets-12V DC 17
Rear seats-Folding 14
Rear view monitor system 18
Seat adjustments-Front 13
Seat heaters and ventilators 19
Seats-Head restraints 14
Telephone controls (Bluetooth®) 26
Tilt and telescopic steering wheel 11
TOW/HAUL switch 12
Trailer brake controller 15
VSC OFF switch 24
Window-Rear 19
Windows-Power 18
Windshield wipers & washers 15
Doors-Child safety locks 29
Floor mat installation 31
Seat belts 28
Seat belts-Shoulder belt anchor 28
Spare tire & tools 29
Star Safety System 30-31
Trailer Sway Control 31
Tire Pressure Monitoring (warning) System 28
1Visit your Toyota dealer for information on customizing this feature.
2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.
3HomeLink®is a registered trademark of Gentex Corporation.
INDEX

2
OVERVIEW
Instrument panel
Steering wheel audio controls2
Telephone controls2
Cruise control1
Multi-Information Display switch1
Voice command button1,2
Headlight, turn signal and front fog light1controls
Wiper and washer controls
Automatic Transmission shift lever1
Display Audio system2
Air Conditioning controls
12V DC power outlets
AUX port/USB port1
Emergency flasher switch
Two-wheel/Four-wheel drive selector1
Intuitive parking assist button1
VSC OFF switch
Steering wheel controls

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
3
TOW/HAUL switch1
Trailer brake controller
Tire Pressure Monitoring (warning) System
Ignition switch
Tilt and telescopic steering wheel control
Tilt and telescopic steering wheel control (power adjustable)
Power rearview mirror controls1
Personal/Interior lights main switch
Headlight leveling dial1
Power back window switch1
BSM ( Blind Spot Monitor with Rear Cross Traffic Alert) main switch1
Cargo lamp main switch
1 If equipped
2 For vehicles with a navigation system, refer to the “Navigation System
Owner’s Manual.”

4
OVERVIEW

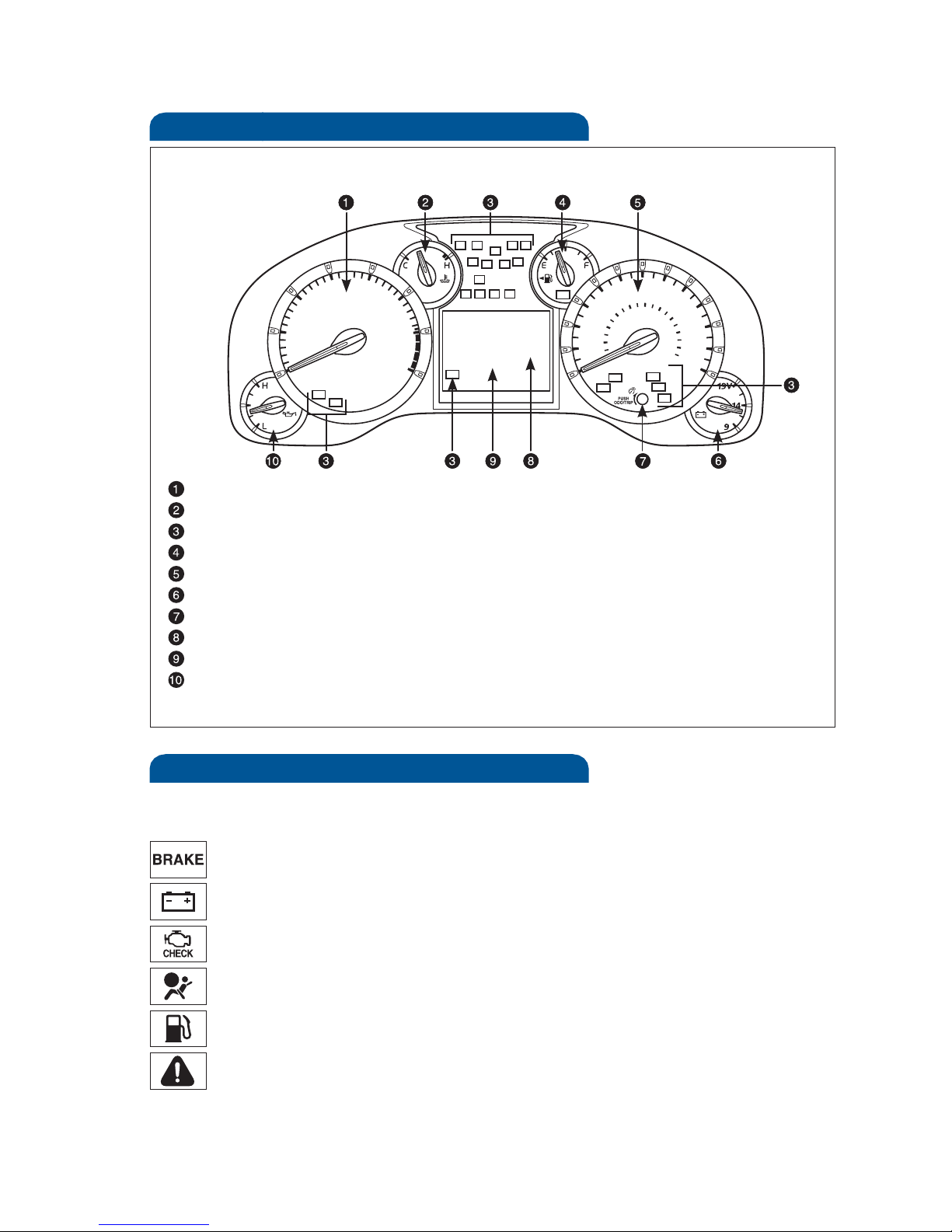

Indicator symbols
Instrument cluster
With Multi-Information Display
Charging system warning1
Brake system warning1
Malfunction/Check Engine indicator1
Low fuel level warning
Airbag SRS warning1
Master warning1
Tachometer
Engine coolant temperature
Indicators and warning lights
Fuel gauge
Speedometer
Voltmeter
“ODO/TRIP” and instrument panel light control button
Multi-Information Display
Trip information display
Oil pressure gauge
For details, refer to “Indicators and warning lights,” Section 2-2, 2016 Owner’s
Manual.
1If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2If this light flashes, refer to “Cruise control,” Section 4-5, 2016 Owner’s Manual.
3If equipped.
2016_Tundra_QRG.r1.indd 4 7/10/15 3:51 PM

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
5
Driver/Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger occupant classification or front passenger airbag ON/OFF
indicator
Anti-lock Brake System warning1
Trailer connection indicator3
Headlight low/high beam indicator
Turn signal indicator
High/Low speed four-wheel drive indicator3
Slip indicator1
Vehicle Stability Control OFF indicator1
TOW/HAUL mode indicator
AUTO Limited Slip Differential indicator1
Cruise control indicator2/Cruise control SET indicator
Low Tire Pressure Warning1
Theft deterrent/Engine immobilizer system indicator
Open door warning
1If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2If this light flashes, refer to “Cruise control,” Section 4-5, 2016 Owner’s Manual.
3If equipped.
Blind Spot Monitor outside rearview mirror indicators3
Arrow direction indicates fuel tank door position

6
OVERVIEW

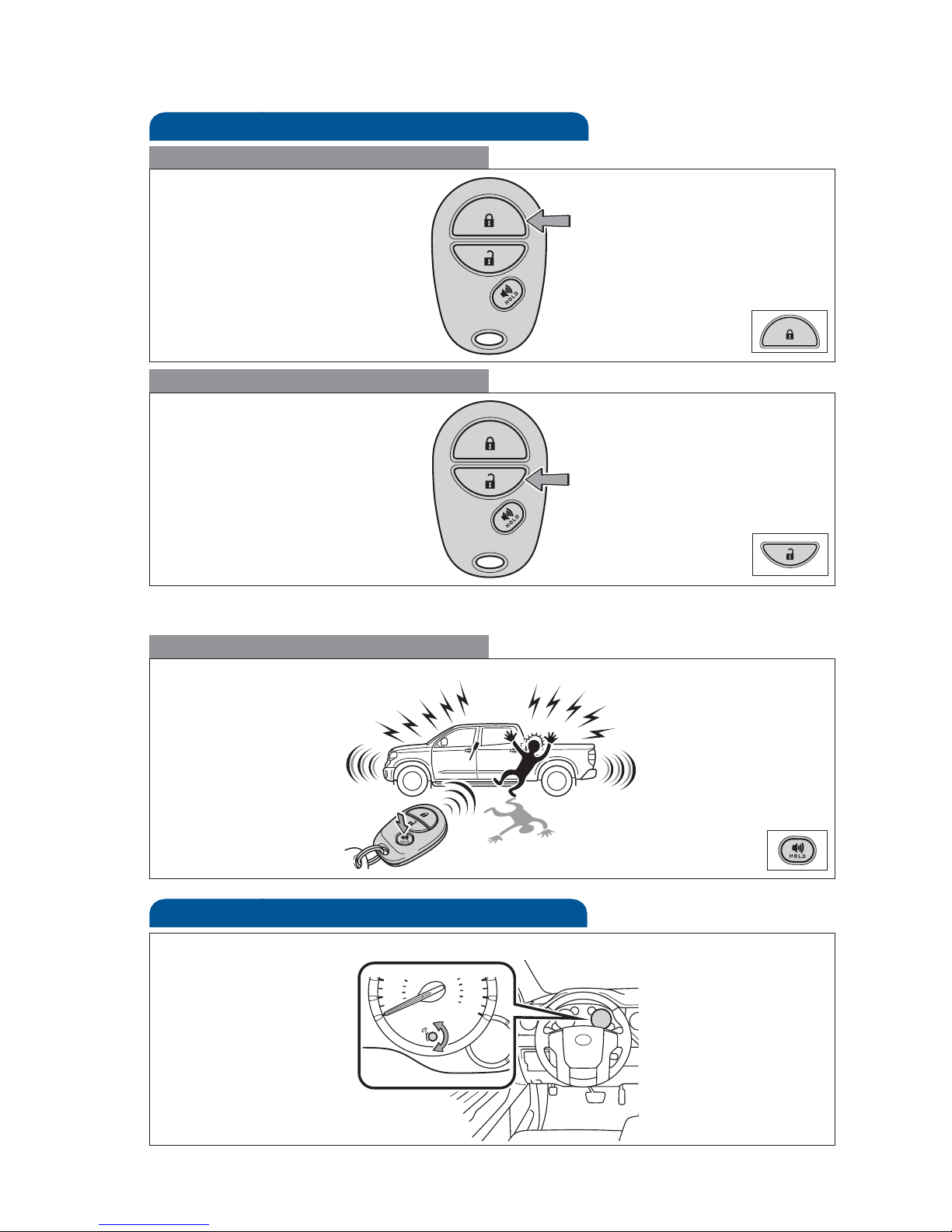

Keyless entry (if equipped)
Panic button
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
Push
Push and hold
Push ONCE: Driver door
TWICE: All doors
Locking operation
Unlocking operation
Light control-Instrument panel
Brightness
control
-
+

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
7

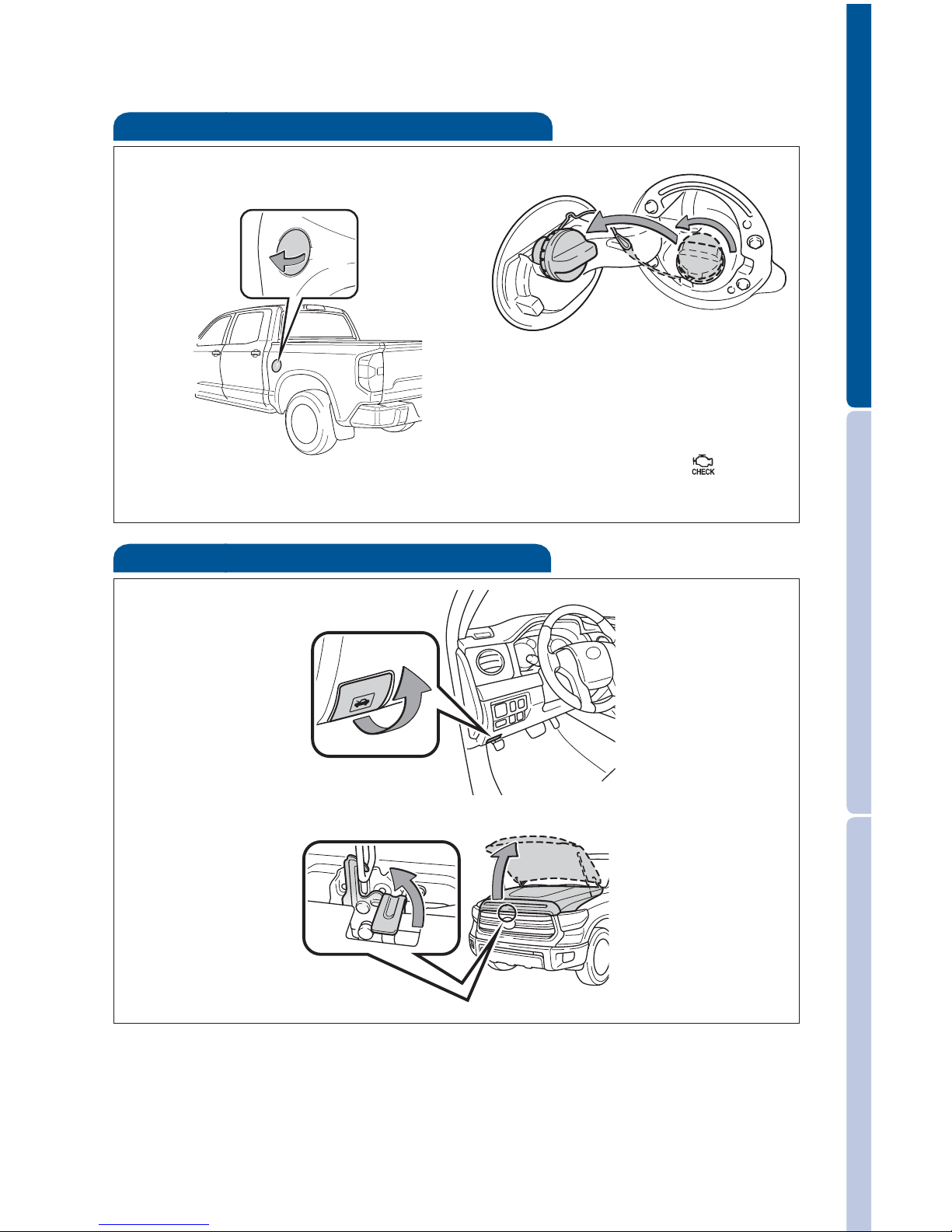

Fuel tank door release and cap
Hood release
Pull up latch and
raise hood
Pull
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
Pull
Turn to open
Store

8
OVERVIEW
Windshield washer fluid tank
Power steering fluid reservoir
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer
to the “Warranty & Maintenance Guide.”
Engine maintenance
4.6L 8 cylinder (1UR-FE) and
5.7L 8 cylinder (3UR-FE/3UR-FBE) engines

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
9
FEATURES/OPERATIONS

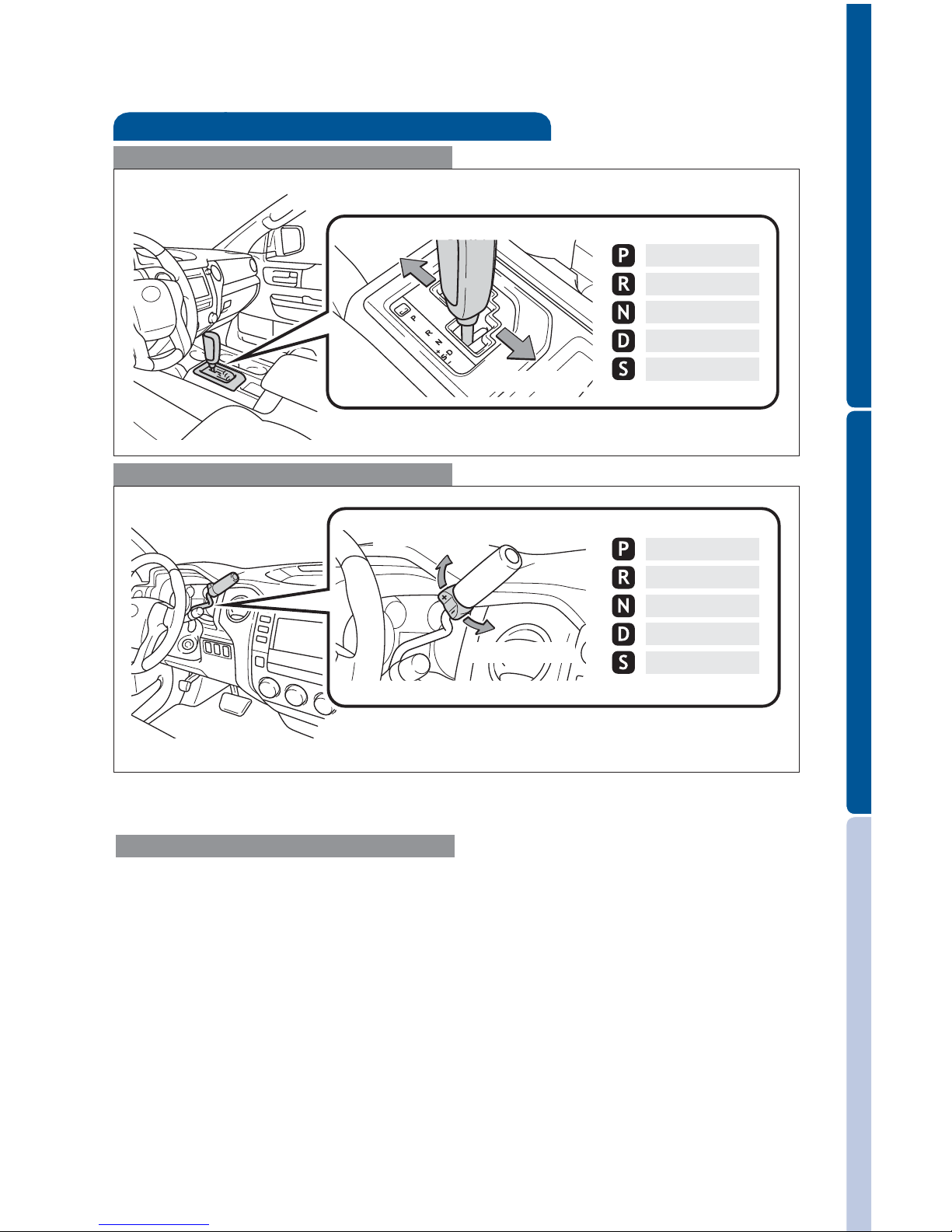

Automatic Transmission
* The ignition switch must be set at “ON” and the brake pedal depressed to shift
from Park.
Shift the shift lever to “S” position from “D” position.
Floor shift type:
+: Upshift (push and release)
-: Downshift (pull and release)
Column shift type:
+: Upshift (push and release)
-: Downshift (push and release)
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the shift
lever in the “D” position.
“S” (Sequential) mode
Floor shift type
Column shift type
Park*
Reverse
Neutral
Drive
“S” mode
Park*
Reverse
Neutral
Drive
“S” mode
+ (“S” mode)
- (“S” mode)
+ (“S” mode)
-(“S” mode)

10
FEATURES/OPERATIONS
Four-wheel drive (if equipped)
For best fuel economy and performance under normal driving conditions, keep in
“2WD” position.
Push and turnTurn
Mirrors can be manually slid outward to improve visibility while towing.
Type B
Extend
Fold mirrors in
Return mirrors to
original position
Adjust
Select left or right
Key must be in the “ACC” or “ON” position.
Type A, B
Mirrors-Power outside rearview
(if equipped)
Adjust
2WD
4H
4L
High speed (2WD)
Turn to “2WD” from “4H”.
High speed (4WD)
Turn to “4H” from “2WD”.
Shift to “N” position when stopped, then turn to “4H” from “4L.”
Low speed (4WD)
Shift to “N” position when stopped, then turn to “4L” from “4H.”
Turn

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
11

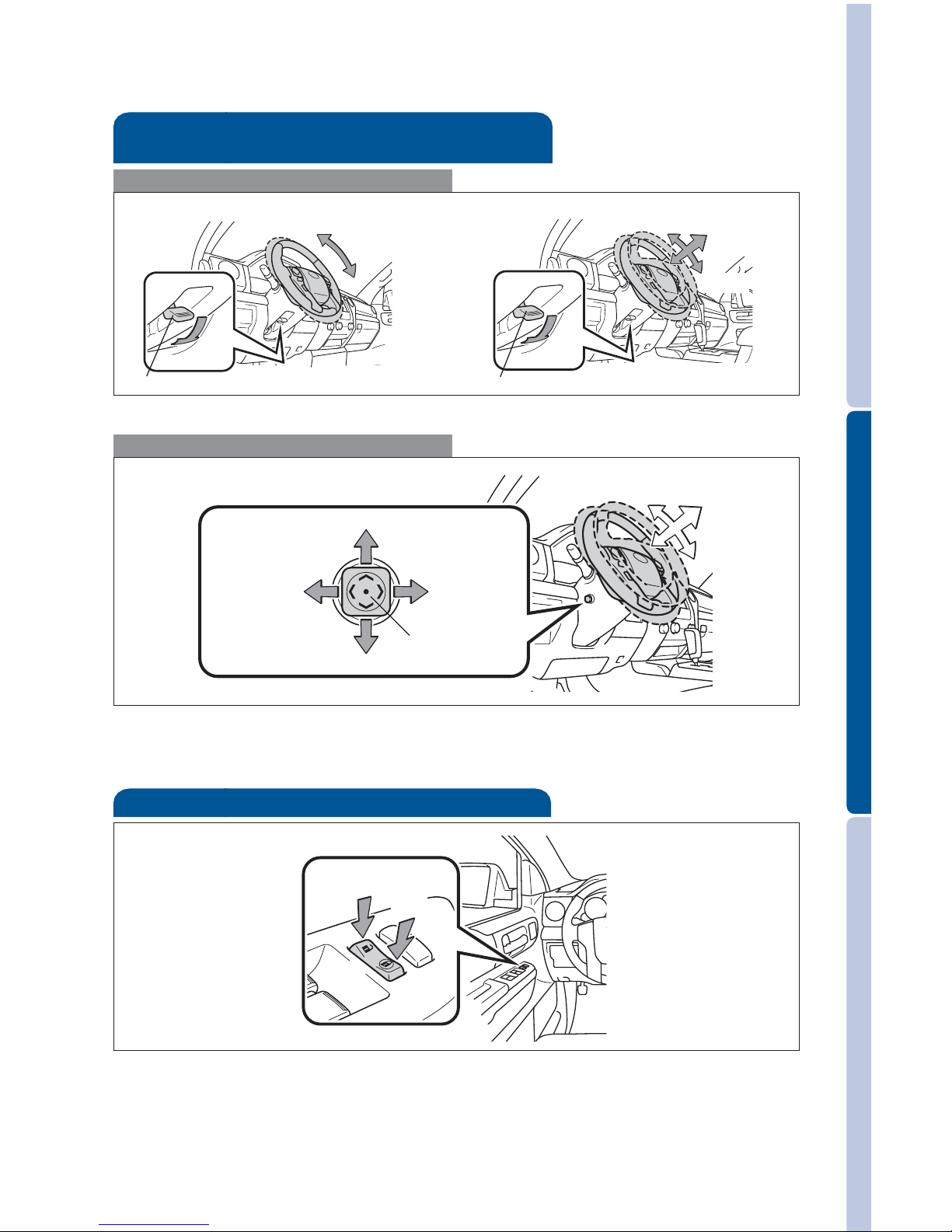

Door locks (if equipped)
Lock
Unlock
Hold wheel, push lever down, set angle and length, and return lever.
Manual
Tilt steering wheel Tilt and telescopic steering wheel
Tilt and telescopic steering wheel
(if equipped)
Length
Lock release lever
Lock release lever
Angle
Push the control switch, set angle and length.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Power
Angle
Control switch
Length
Up
Toward the
driver
Away from
the driver
Down
Angle

“Tow/Haul” mode is ideal for use when carrying heavy loads. When the TOW/
HAUL switch is pressed, throttle response and transmission control are optimized
for the high performance operation. As fuel economy is reduced while in “Tow/
Haul” mode, deactivating when driving without a load is recommended.
Upshifts occur at higher engine speeds to expand the use of lower gear
ranges, enhancing power performance during towing and preventing
repeated gear changes.
Downshifts occur at a greater accelerator pedal angle to allow the
vehicle to stay in a higher gear, reducing repeated gear changes.
Downshifts occur at a lower accelerator pedal angle to allow the
vehicle to stay in a lower gear, enhancing towing ability.
When the accelerator pedal is wide open, upshift timing is optimized to
effectively use the maximum engine power range available.
When Tow/Haul is engaged, the opening angle of the electronically
controlled throttle is wider for any given accelerator pedal position than
normal, enhancing acceleration feeling and response.
During uphill driving, the gear position is held to prevent repeated upshifting.
During downhill driving, downshifting to lower gears will occur to effectively use
engine braking.
Refer to the Owner‘s Manual for more details on this system before attempting
to use it.
12
FEATURES/OPERATIONS
Enhanced Shift Control
Engine Control
TOW/HAUL switch (if equipped)
Floor shift type
System ON/OFF
Column shift type
System ON/OFF
Uphill/Downhill Shift Features

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
13
Seat adjustments-Front
Manual seat
Seat position (forward/backward)
Seatback angle
Seat cushion length (driver seat only)
Seat cushion (front) angle (driver seat only)
Seat height (driver seat only)
Lumbar support
Seatback angle (center)
Power seat
Bench seat
Separate seat

14
FEATURES/OPERATIONS

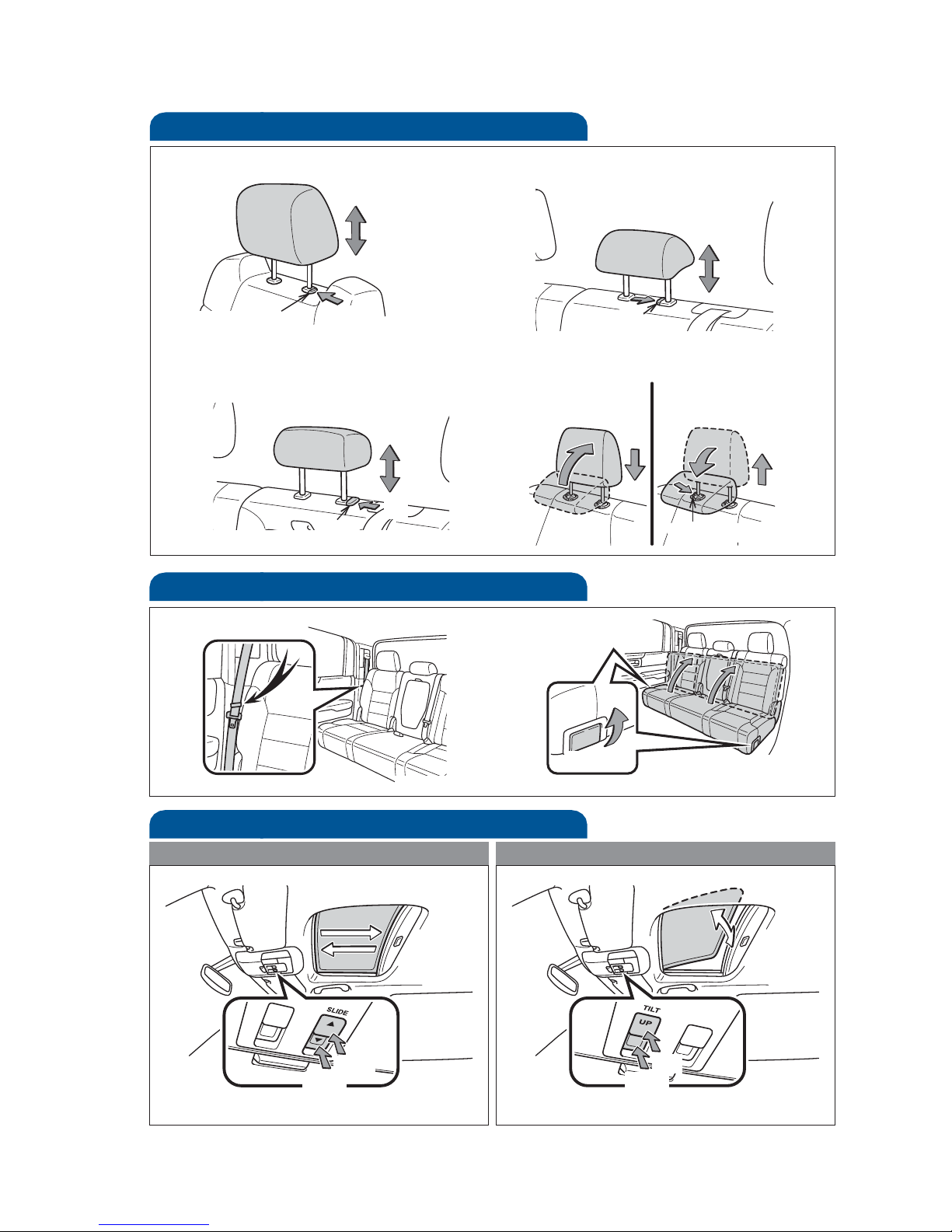

Rear seats-Folding (if equipped)
(2) Pull (3) Lift up
Seats-Head restraints
Front
Lock release button
(1)
(2)
Lock release button
To use To fold
Lock release button
Rear-Center seat
(CrewMax models)
Lock release button
(1)
Rear-Center seat
(double cab models)
(1)
(1)
(2)
(2)
Rear-Outer seat
Moonroof (if equipped)
Sliding operation Tilting operation
Open Tilt
Close Close
Push once to open/close completely. To stop partway, press the switch lightly.

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
15
Windshield wipers & washers
With intermittent wiper
Interval wipe
Mist
Slow
Fast
Pull to wash
and wipe
Without intermittent wiper
Mist
Slow
Fast
Pull to wash
and wipe
Adjust frequency*
* Intermittent windshield wiper frequency adjustment
Rotate to increase/decrease wipe frequency.
Trailer brake controller (if equipped)1
TYPE
GAIN
The trailer brakes can be controlled by the Trailer brake controller via
the 7-pin connector. By selecting the type of brakes that are being
used on the trailer (electric or electric-over-hydraulic) and setting the
gain for the controller, the manual TRAILER BRAKE OUTPUT slider
is used to slow just the trailer. The vehicle brake pedal will also slow down as well
as stop the trailer when applied. Gain values, manual brake outputs, trailer brake
types and the trailer connection status are displayed in the multi-information
display.*
* For more information on Trailer brake controller, please refer to the OWNER’S MANUAL.
Trailer connector
indicator
GAIN (+/-)
selection button
Trailer brake
TYPE selection
button
Manual TRAILER
BRAKE OUTPUT
slider

16
FEATURES/OPERATIONS
Lights & turn signals
Turn signals
Headlights
Front fog lights (if equipped)
-Daytime Running Light system (DRL) Automatically turns on the headlights to
make vehicle more visible to other drivers. Not for use at night.
-Automatic light cut off system (AUTO) Automatically turns lights off after
30-second delay, or lock switch on remote may be pushed after locking.
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change
Left turn
High beam flasher
High beam
* If equipped
Parking lights
Auto*
Headlights
Turn
Low beam

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES
17
Power outlets-12V DC (if equipped)
Separate seats
Bench seat
Instrument panel
Back of the console box (type B)
Instrument panel Inside of the console box
Back of the front center seat (type B)
Key must be in the “ACC” or “ON” position to use.
Back of the console box (type A)
Back of the front center seat (type A)

18
FEATURES/OPERATIONS
Windows-Power (if equipped)
Window lock switch
Automatic operation (passenger side for some models and driver side) Push
the switch completely down or pull it completely up and release to fully open or
close.* To stop window partway, lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains
operable.
* Not all models are equipped with one-touch close function.
Up
Down
Driver side
Parking brake
Set: Depress
Release: Depress again
Rear view monitor system
The rear view monitor system displays an image of the view from the bumper
of the rear area of the vehicle. The camera for the rear view monitor system is
located above the license plate.
To adjust the image on the rear view monitor screen, press the “SETUP” button
and select “Display” on the “Setup” screen. Select “Camera” to adjust the
screen contrast and brightness.
Refer to the Owner‘s Manual for more details on this system.
