Toyotomi FB-38N Troubleshooting guide

1
Kerosene-Fired Water Heater
Operation and Maintenance Instructions
MODEL FB-38N(FS)/FB-52N(FS)
[CONTENTS]
SECTION A: Inspection before Operation................ 11
Safety Tips..................................2 Operation............................................ 12
Safety Features...........................4 Turning Unit Off…............................... 12
Adjusting Water Temperature.............. 12
SECTION B: Differential Switch and Dip Switch....... 13
Specifications..............................5 Preventing Freeze Up.......................... 13
Dimensional Outline....................6 Long Term Inactivity............................ 13
Remote Control...........................7
Construction................................8 SECTION E:
Routine Maintenance
SECTION C: Inspection and Maintenance................ 14
Fuel Guide.................................. 10 Inspection and Maintenance Items...... 14
SECTION D: SECTION F:
Operation Troubleshooting
Fueling........................................ 11 Error Code in Display.......................... 17
Removing Air Trap...................... 11 Wiring Diagram................................... 18
IMPORTANT
READ AND UNDERSTAND INSTRUCTIONS BEFORE INSTALLING OR USING THIS WATER
HEATER. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE. CHECK LOCAL CODES
AND ORDINANCES FOR PERMITTED USE.
CAUTION
THIS WATER HEATER SHALL NOT BE USED FOR COMMERCIAL USE OR ANY
PURPOSES OTHER THAN HOT WATER SUPPLY USES. OTHER USAGE MAY CAUSE A
MALFUNCTION OR SHORTEN ITS SERVICE LIFE. DO NOT REMOVE THE RATING
PLATE AND LABELS FROM THE WATER HEATER UNIT.

2
SECTION A:
SAFETY TIPS
BE SURE TO FOLLOW THE FOLLOWING INSTRUCTIONS.
The instructions which are contained in this manual are classified into the following two types,
which are “WARNING” and “CAUTION”. These instructions are intended to provide the
important information for safe operation.
“WARNING” indicates the possibility of causing the user a fatal accident or serious injury if the
water heater is incorrectly operated.
“CAUTION” indicates the possibility of causing the user injuries or material damages if the
water heater is incorrectly operated.
WARNING
1. Never use any fuel other than water-clear kerosene. NEVER USE GASOLINE! Use of
such fuels can result in an explosion and/or fire and cause injury.
2. Never store flammable liquids or materials such as gasoline near the unit.
3. This unit should be installed by a licensed, authorized person(s) due to the necessity of
making electrical, water and fuel connections.
4. RISK OF BACKFIRE AND INDOOR AIR POLLUTION. Before operation make sure exhaust
pipe is free of snow, icing, leaves, bird’s nest or strong drafts.
5. RISK OF INDOOR AIR POLLUTION AND FIRE. Be sure the exhaust pipe is properly
installed and connected. Aluminum tape may be used for sealing exhaust pipe connections.
6. RISK OF INJURY FROM MOVING PARTS AND ELECTRICAL SHOCK. Disconnect power
cord before servicing unit.
7. This water heater is designed to be used no more than 1,300 m above sea level. The water
heater may have a failure of combustion at a high altitude.
Ask your local dealer for using at altitudes higher 800 m ~ 1,300 m above sea level.
CAUTION
1. Do not use the water heater without circulating water in the heat exchanger. Routinely
make sure if the circulation water has decreased.
2. Do not touch hot areas, the exhaust pipe or the exhaust pipe top.
3. Never place any combustibles on or around your water heater.
4. Never place or use any flammable dangerous substances, such as gasoline and thinner, on
or around your water heater. Also never use your water heater in a location where
flammable gas is generated.
5. Do not use the water heater in the event of failure or breakage. A faulty repair or
modification can be dangerous.
6. Do not damage, bundle, strain, or place heavy objects on the power cord. Never yank the
cord to unplug it.

3
7. Insert the plug securely into the outlet as far as it will go. Do not use a damaged plug or
loosened outlet. Do not remove or insert the plug with wet hands.
8. When you may not use it for a long period of time, turn off the operation switch, securely
close the fuel feed valve of the fuel tank, and then remove the power cord plug from the
outlet. When restarting the water heater, first check to be sure that circulating water is
provided. Then, insert the power cord plug into the outlet, open the fuel feed valve of the
fuel tank and turn on the power switch.
9. Remove the plug from the outlet and remove dust (and metal) from the plug. Accumula-
tion of dust may cause defective insulation due to moisture, which could pose a fire hazard.
OTHER PRECAUTIONS
1. If the water heater is installed outside, the exhaust pipe top (optional parts) must be used.
2. If the unit appears to be operating abnormally or in an emergency, turn off the unit and call
an authorized service person.
3. The circulating water should contain proper quantity of antifreeze solution. Avoid the use of
hard water. In regions where hard water is the only source, take advantage of a water
softener.
4. Do not use a damaged unit. If repairs are needed, contact your dealer.
5. Keep the area around the unit, the fuel tank and the exhaust pipe clean and free of
flammable materials.
6. If you plan to be away from your home for a long period of time, shut-off the fuel valve on
the fuel tank. Press operation switch to “OFF” position and disconnect the power supply
cord.
7. If the unit is not used for a long period of time, the fuel tank may contain water cause by
condensation. Be sure to check all filters and fuel strainers for this condiners for this
condition, clean or replace filter elements before using the unit..
8. Make sure that there are no leakage in fuel pipe and water circulation pipe.
9. Use the power source AC230, 50Hz only.
10. The unit must be installed at a place where there is enough air for combustion.
11. Plug on the power supply cord is disconnective device. The socket-outlet shall be installed
near the water heater and shall be easily accessible.

4
SAFETY FEATURES
NOTE: When a safety device is activated, the water heater is automatically extinguished. At
this time, the error code is indicated on the digital display. When your water heater
does not operate properly after you take remedies for the error correction, contact your
dealer.
1. Ignition Safety Device (Flame Sensor)
The unit will automatically stop all operations if ignition fails or if the flame fails during
combustion. “E” and “6” or “E” and “7” will flash in the display alternately.
2. Over Heat Protector
In order to prevent burns, the over heat protector automatically stops all operations if the
water in the heat exchanger reaches abnormally high temperatures due to temperature
controller malfunction. “E” and “4” will flash alternately
3. Power Failure Recovery System
If power fails during water heater operation the unit will turn off. When power resumes the
unit will automatically reignite.
4. Tip-over Switch
When the unit senses an earthquake or shock, this device activates to stop the operation.
“E” and “5” will flash alternately.
5. Fuel Strainer
Special strainer catches any dirt or impurities present in the fuel before it is sent to the
burner.
6. Heat Exchanger Bi-Metal Switch
If the heat exchanger temperature is raised abnormally
because of a malfunctioning thermostat, the burner is
automatically extinguished and “E” and “9” will flash
alternately. Press the POWER SWITCH again after
pressing the Reset button of the Heat exchange bi-metal
switch.
CAUTION: Disconnect the power cord before servicing
unit.
RISK OF BURN INJURY. Do not touch the
heat exchanger while in hot.
7. Thermal Fuse
If the inside temperature of the water heater is raised abnormally, the unit is automatically
extinguished and “E” and “9” will flash alternately. If this safety device is activated,
disconnect the power cord and contact your dealer.

5
SECTION B:
SPECIFICATIONS
SPECIFICATIONS
Model: FB-38N(FS) / FB-52N(FS)
Type: - Combustion Type Pressure Vapor
- Exhaust system Forced Exhaust type
- Purpose Floor Heating
Ignition: High Voltage Discharge Spark
Fuel: Kerosene (Paraffin)
Fuel Consumption: 4.2 L/h / 5.85 L/h
Efficiency: 87.0%
Heating Output: 128,300 BTU/h / 179,000 BTU/h
(37.6 kW) / (52.4 kW)
Capacity of Heat Exchanger: 19.5 lit. / 25 lit.
Max. Pressure: 100 kPa
Thermal Conduction area of 0.9 m2 / 1.0 m2
Heat Exchanger:
Dimensions (W x D x H): 320 x 570 x 816 mm / 320 x 570 x 983 mm
Weight: 35 kg / 37 kg
Electrical Rating: AC230 V, 50 Hz
Ignition: 106 W / 138 W
Burning: 86 W / 129 W
Operating Ambient Temperature: -20°C ~ 40°C
Humidity: 90 % (At the condition without dew condensation)
Exhaust Air Temperature: less than 260°C
Diameter of Required Exhaust Pipe: φ106 mm
Sound Pressure Level: 48 dB (A) / 5 dB (A)
Nozzle - Quantity of Vapor: 1.10 GPH / 1.35 GPH
- Spraying Pattern: Danfoss KH
- Spraying Angle: 60°
Electric Current Fuse: 250V AC, 5A
CE Marking - Low Voltage Directive: 2006/95/EC
- EMC Directive: 2004/108/EC
Safety Device: Ignition Safety Device, Over-heat Protector,
Power Failure Recovery System, Fuel Strainer,
Heat Exchanger Bi-metal Switch, Tip-over Switch
Thermal Fuse
Accessories: Exhaust Pipe Top (1), Rubber Fuel Pipe (1),
Hose band (2), Remote control (1), Remote
Controller Cord (3m), Adhesive Tape (2),
Wooden Screw (2), Screw (2)

6

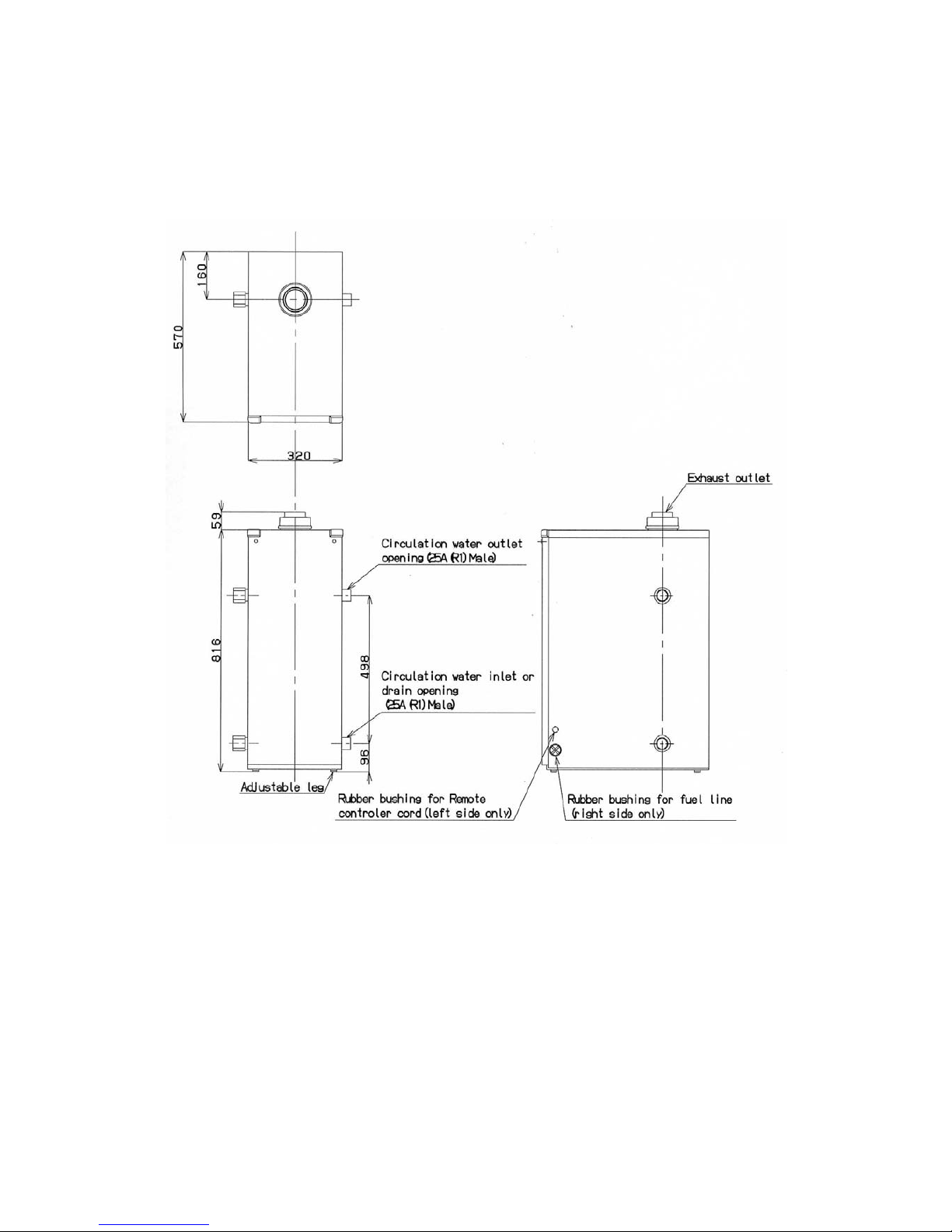

DIMENSIONAL OUTLINE
FB-38N(FS)

7
FB-52N(FS)

8
REMOTE CONTROL
POWER LAMP - constant: In operation
- extinction: Shutdown
BURNER LAMP - constant: In operation
- extinction: Extinguished
POWER SWITCH: Turns the unit on or off.
TEMP SELECT BUTTON: Digit will change from “1” to “9” by pressing
button (UP).
Digit will change from “9” to “1” by pressing
button (Down).
Adjusts the temperature of the circulating water;
1: Approx. 20°C 6: Approx. 55°C
2: Approx. 30°C 7: Approx. 60C
3: Approx. 40°C 8: Approx. 70°C
4: Approx. 45°C 9: Approx. 80°C
5: Approx. 50°C
EXTERNAL INPUT LAMP: You can connect the optional external input terminal
lead wire. When connecting the unit to the external
input terminal, input status will be displayed.
Power Switch
Tem
p
Select Button
(
UP
)
Tem
p
Select Button
(
Down
)
Power Lam
p
Burner Lam
p
External In
p
ut Lam
p
Dis
p
la
y

9
CONSTRUCTION
FB-38N(FS)
FB-52N(FS)

10
SECTION C:
FUEL GUIDE
The Water Heater is designed for use with water clean and high quality kerosene only. Use of
low-quality kerosene will cause burner performance to drop, leading to abnormal combustion
and reduced the unit life.
Always store your fuel in a separate area from where you store gasoline for your power
equipment to avoid accidental use of gasoline in your water heater.
What to Buy...
ALWAYS: Clean and high-quality KEROSENE.
ALWAYS: Fuel free of contaminants, water or cloudiness.
NEVER: Gasoline, alcohol, white gas, camp stove fuel or additives.
NEVER: Yellow or sour-smelling fuel.
How to Store It...
ALWAYS: Store in a clean container, clearly marked “KEROSENE.”
ALWAYS: Store away from direct sunlight, heat sources or extreme
temperature changes.
NEVER: In a glass container, or one that has been used for other
fuels.
NEVER: For longer than six months.
NEVER: In the living space.
Why It is Important...
Pure, clean kerosene is essential for safe and efficient water heater
operation. Poor quality or contaminated kerosene can cause:
- Excess tar deposits on burner and flue pipe
- Incomplete combustion
- Reduced unit life
Use of a highly volatile flammable fuel such as gasoline can produce uncontrollable flames,
creating a severe fire hazard.

11
SECTION D:
OPERATION
FUELING
WARNING: Use KEROSENE only. Never use gasoline, thinner, benzene, light oil or waste oil.
CAUTION: Make sure that the fuel is clean and free from dirt and water. Water and dirt may
cause combustion failure and shorten the life of components such as the Fuel
Pump. Be sure to refuel before the Tank runs out. Avoid having the Fuel Tank and
Fuel Pipe run empty.

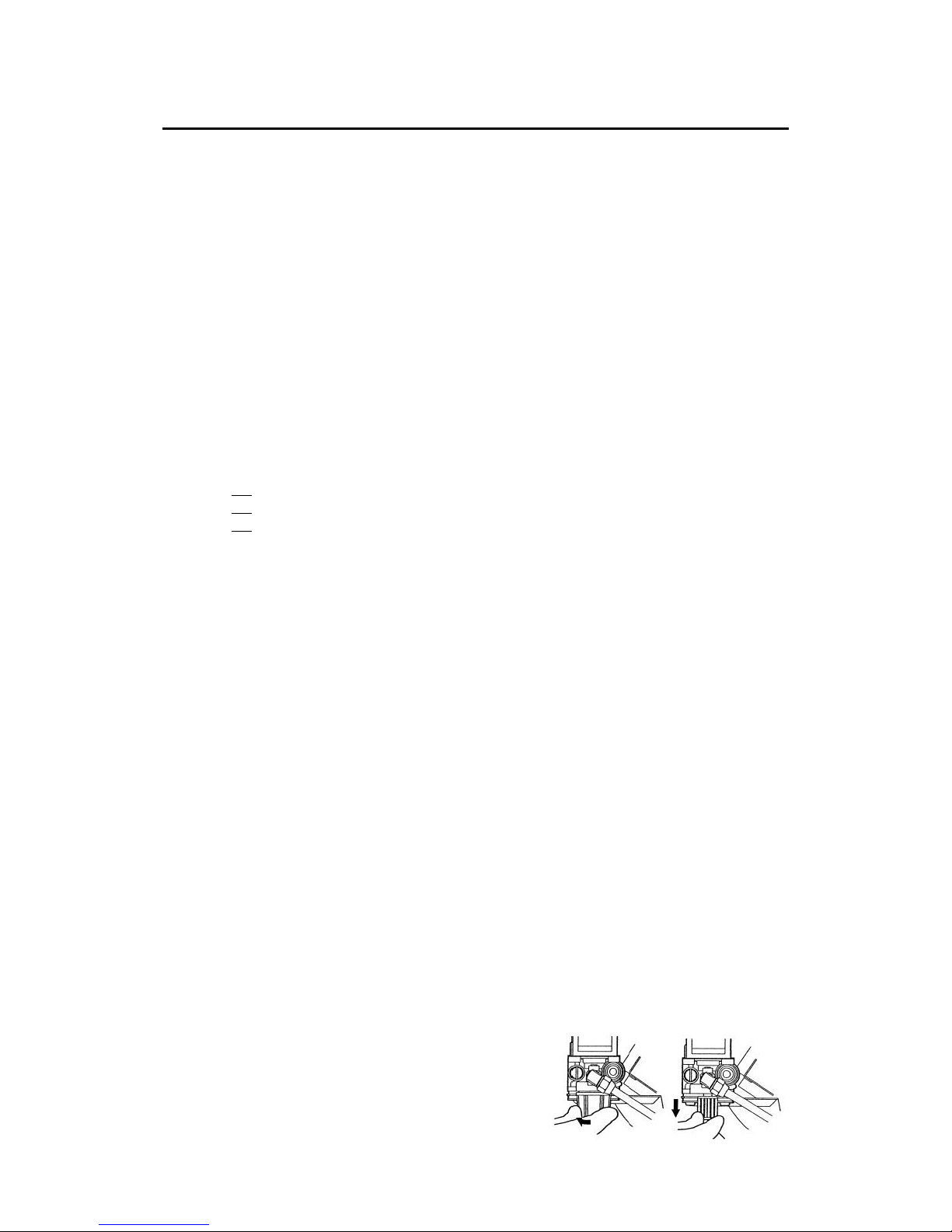

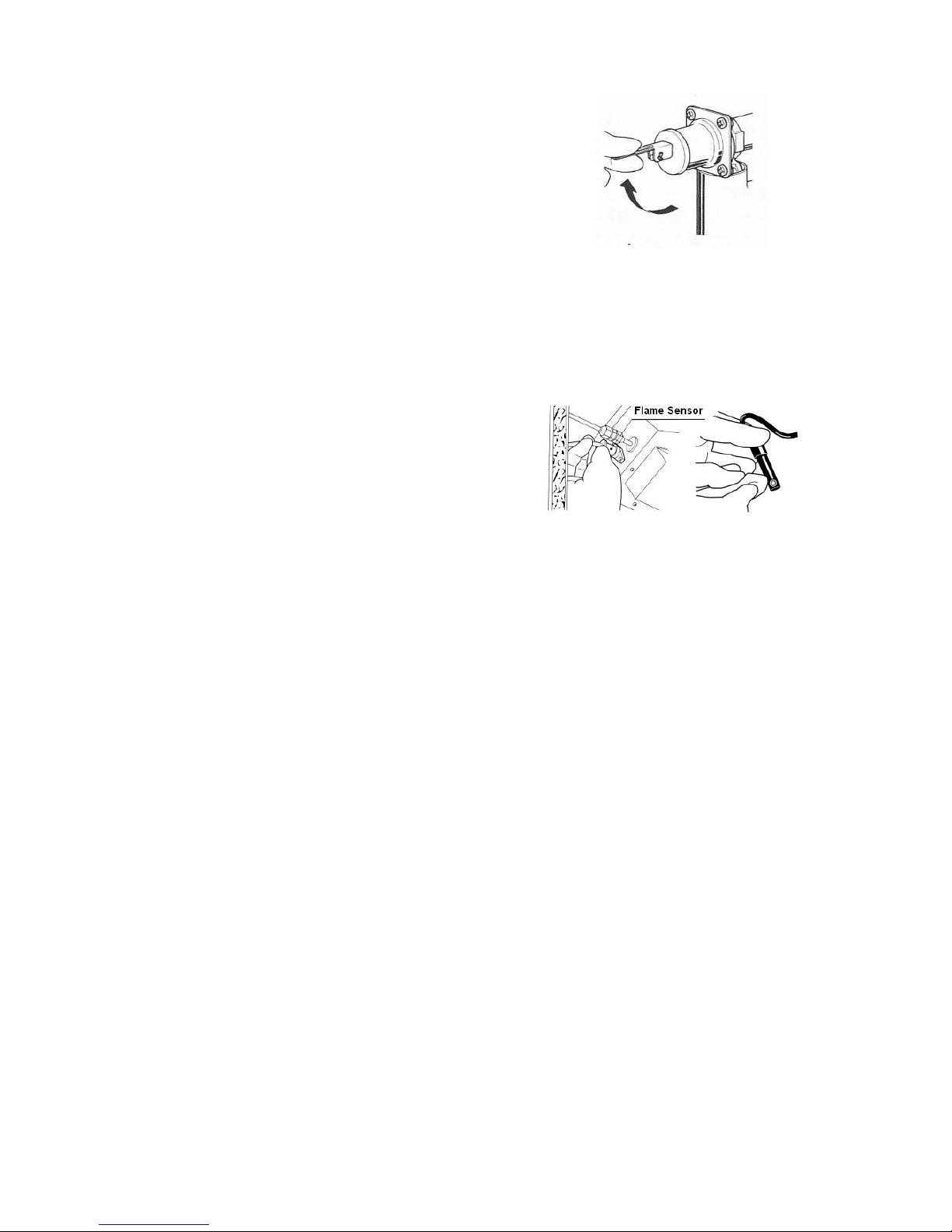

REMOVING AIR TRAP
When operating for the first time or when refueling an empty Tank, air may be trapped in the
Fuel Pipe, making ignition difficult. In this situation, follow the procedures below:
1. Turn the unit off by pressing “POWER SWITCH”. Disconnect the
Power Supply Cord.
2. Release the two (2) screws from the Front Panel and remove the
Front Panel.
3. To catch the fuel which will drain out, put a small container under
the strainer.
4. Loosen the Screw on top of the Fuel Strainer. Immediately wipe
off any spilled fuel.
5. Remove the trapped air thoroughly. Failure to remove all the air
will cause improper ignition and may extinguish the unit.
6. Tighten the Screw after removing trapped air.
7. Plug into the receptacle. Tunn the unit on by pressing “POWER
SWITCH”.
NOTE: In the event of an ignition failure, Turn the unit off by
pressing “POWER SWITCH” and after 5 seconds press
“POWER SWITCH” once again.
INSPECTION BEFORE OPERATION
1. Check for water leaks in the Circulation Pipes.
2. Be sure there is a sufficient amount of fuel in the Fuel Tank and that there are no leaks in the
Fuel Pipe.
3. Be sure the Power Supply is properly connected and grounded to the unit.
4. Be sure the area around the Water Heater is clear of flammable materials such as gasoline,
thinner or flammable vapors.
5. Be sure the Exhaust Pipes are securely connected and that there are no leaks.

12
OPERATION
CAUTION: The excessive high temperature setting increases the risk of scald injury. (Thermal
burn at low temperature)
1. Open the Fuel Tank Valve.
2. Press “POWER SWITCH” of Remote Controller. Opration
lamp will come on and display indicates “7”. Automatic
operation is based upon the temperature of water inside
the heat exchanger. ‘‘BURNER’’ lamp is lit when the
burner is in its operation mode.
NOTE: When you first use your water heater after installing,
the display indicates “7”. In other case the display
indicates the previous setting number.
IF IGNITION FAILURE OCCURES
1. When first using the Water Heater after it is installed or refueled, it may not be ignited due to
air left in the Fuel Pipe. If so, remove air from the Fuel Pipe as described in the previous
section.
2. Make sure that the Fuel Tank is free of water. If not, remove water through the Drain Valve.
If there is water inside of Drain Cup, remove water completely.
TURNING UNIT OFF
1. Press “POWER SWITCH” of
Remote Control.
2. Close the Fuel Tank Valve.
ADJUSTING WATER TEMPERATURE
The temperature of the circulation water is raised or lowerd
by pressing the temperature select buttons. To adjust the
water temperature, use the “Λ” button to set the temperature
to a higher setting and the “V” button to lower the
temperature. The setting temperature (setting display)
remains even though the power failure occurs.
The display indicates “1” to “9”. “9” is the maximum high
temperature setting.
Setting Display and Circulation Water Temperature
Setting Display 1 2 3 4 5 6 7 8 9
Circulation
Water Temp. 20°C 30°C 40°C 45°C 50°C 55°C 60°C 70°C 80°C

13
DIFFERENTIAL SWITCH AND DIP SWITCH
CAUTION: Please consult your dealer on the operation of DIP Switch.
By the Differential Switch on the Main Circuit Board, the temperature of circulation water is
controlled in the range of 2°C differential, 6°C differential, 9°C differential or 12°C differential.
NOTE: If the wide differential is selected, the cycle frequency of ignition and extinguishments of
the Burner will be reduced.
The position of DIP Switch is set to “6°C differential” from factory.
PREVENTING FREEZE UP
In order to prevent any kind of damage or leaks caused by freezing, make sure if the antifreeze
fluid of adequate concentration contains in the circulation water regardless of being used in a
cold region or in a warm or hot region.
- Change the circulation water every 2 years.
LONG TERM INACTIVITY
When leaving the unit unused over a long period of time, disconnect the Power Supply Cord
after turn the unit off by pressing the “POWER SWITCH”.

14
SECTION E:
ROUTINE MAINTENANCE
INSPECTION AND MAINTENANCE
WARNING: RISK OF INJURY FROM MOVING PARTS AND ELECTRICAL SHOCK.
Disconnect the Power Supply Cord before inspecting and servicing unit. All
repairs should be left to professionals. RISK OF BACKFIRE AND INDOOR
POLLUTION. Before operation make sure the Exhaust Pipe is free of snow, icing,
leaves, bird’s nest or strong drafts.
CAUTION: RISK OF BURN INJURY. Do not touch the Exhaust Pipe Top and the Exhaust Pipe.
When inspecting, ALWAYS do the following.
a. Press the Power Switch to turn off.
b. Disconnect the Power Plug from the Receptacle.
c. Close the Fuel Tank Valve.
When inspecting, NEVER do the following.
a. Do not remove the Thermistor.
b. Do not remove the Tip-over Switch.
c. Do not adjust the pressure of the Fuel Pump.
INSPECTION AND MAINTENANCE ITEMS
1. FLAMMABLE IN THE ENVIRONMENT (REGULARLY)
Remove all flammable material from the area.
2. FUEL LEAKS (REGULARLY)
Always check for fuel leaks. Clean off spilled fuel thoroughly when lubricating fuel. If a leak
is found, shut down the unit until the problem is corrected.
3. FUEL PIPE INSPECTION (REGULARLY)
Check for fuel leaks from the Fuel Pipe. Replace it if any cracks or leaks are found.
4. WATER LEAKS (REGULARLY)
Check the heat exchanger for water leaks. Always correct if found.
5. ODOR OR SOOT (REGULARLY)
Check the Exhaust Pipe top for abnormal odor and accumulated soot. Consult your dealer if
it Is found.
6. DUST (ONCE A MONTH)
Check for dust inside of the unit and the bottom (base).
7. WATER INSIDE THE FUEL TANK (ONCE A MONTH)
Remove any water or waste particles that accumulate inside the Fuel Tank.
8. FUEL STRAINER (ONCE A MONTH)
Vibration, noise, ignition and combustion failure
could be caused by water or waste particles in the
Fuel Strainer. Clean the Fuel Strainer by kerosene
once a month.

15
9. PRESSURE RELIEF VALVE (ONCE A MONTH)
The Pressure Relief Valve may become immovable
at times due to corrosion of pipes or mineral
deposits In the pipes. Pull up the lever of the
Pressure Relief Valve every month and make sure
the Valve is movable.
10.PLUG AND RECEPTACLE (ONCE A MONTH)
Make sure the Plug is free of dust. Be sure Plug fits Receptacle securely.
11.BURNER INSPECTION (ONCE SIX MONTHS)
Check the burner and combustion area for soot. Clean if found.
12.GASKETS AND SEALING (ONCE SIX MONTHS)
Check for water leaks caused by improper sealing of the Circulation Water Pipe. Consult
your dealer if there are leaks.
13.FLAME SENSOR (PHOTOELECTRIC CELL)
(ONCE SIX MONTHS)
a. Take out the Flame Sensor which is located to
the left of the Burner inside the Cabinet.
b. If the receiving surface of the photoelectric cell
of the Flame Sensor becomes dirty or
contaminated, the unit will not operate properly.
The receiving surface of photoelectric cell
should be wiped with a soft cloth every 6 months.
14.BLOWER MOTOR (ONCE SIX MONTHS)
Make sure there is no dust on the blower motor fan.
15.EXHAUST PIPE (ONCE A YEAR)
A clogged Exhaust Pipe will cause improper combustion. Inspect for any clogging or soot
accumulation should be done at least once every year. Make sure not to place combustibles
in the Exhaust Pipe area.

16
SECTION F:
TROUBLESHOOTING
WARNING: RISK OF INJURY FROM MOVING PARTS AND ELECTRIC SHOCK.
Disconnect the Power Supply Cord before servicing unit. All repairs should be left
to professionals.
Do not re-use the unit until the cause of the problems have been determined.
CAUTION: RISK OF BURN INJURY. Do not touch the unit and the Heat Exchanger while in hot.
If there Is any abnormality, determine for the causes from the list below and perform the specified
measure. Consult your dealer if problems cannot be corrected from this chart.
PROBLEM ERROR
CODE CAUSE SOLUTION
POWER LAMP FAILS
TO TURN ON
- Disconnected power supply cord Connect power supply cord.
ALARM LAMP
LIGHTS AFTER
TURNING ON.
E3
E9
E9
Thermistor malfunction
Bi-metal switch activated
Thermal fuse activated
Replace it.
Reset after eliminating cause.
Replace it.
At the start of operation
BLOWER MOTOR
OPERATES BUT
IGNITION FAILS.
E2
E7
E7
E7
E7
E7
E7
E7
Flame sensor malfunction or
light is received on the receiving
surface of photoelectric cell
Abnormal location and
adjustment of electrode
Igniter malfunction.
Abnormal lowering of electrical
voltage
Out of fuel
Trapped air in fuel pipe.
Clogged fuel strainer
Circuit board malfunction
Repair or replace it.
Consult your dealer.
Consult your dealer.
Contact electricians.
Check fuel gauge on fuel
tank; refuel.
Remove the trapped air.
Clean strainer.
Consult your dealer
EXTINGUISHED
AFTER IGNITION
E6
E6
E6
E6
Stained photoelectric cell
Trapped air in fuel pipe
Excessive air for combustion
Flame sensor malfunction
Clean it.
Remove the trapped air.
Consult your dealer.
Replace it.
NOISE FROM FUEL
PUMP
- Air lock in fuel line
Clogged intake line and pump
Remove air.
Consult your dealer.
NOISY
COMBUSTION
- Fuel flow too much
Fuel flow too little
Improper installation of Exhaust
Pipe
Consult your dealer.
Consult your dealer.
Consult your dealer.
HOT WATER TEMP
TOO LOW
- Thermistor malfunction Consult your dealer.
While in operation
SOOT
ACCUMULATION
- Dusty blower motor fan
Improper installation of flue pipe
Fuel flow too much
Consult your dealer.
Re-install properly.
Consult your dealer.
DOES NOT HEAT - Power switch of remote
controller is not pressed
Leakage from circulation part
Insufficient removing air
Press Power switch.
Consult your dealer.
Consult your dealer.
FUEL LEAKAGE
FROM FUEL PIPE
- Loose connection of fuel pipes Consult your dealer.
After stop
WATER LEAKAGE - Water leakage from heat
exchanger (Heat exchanger
malfunction)
Consult your dealer.

17
ERROR CODE IN DISPLAY
When the water heater is malfunctioned, the unit stops the operation automatically and Display
indicates Error Code (“E” & “Number”) alternately by flashing.
Display CAUSE RESULT
E + 0 Disconnected model setting jumper terminal
E + 2 Flame sensor detected flame before ignition
E + 3 Disconnected thermistor
E + 4 High limit switch activated
E + 5 Tip-over switch activated
E + 6 Extinguished after ignition
E + 7 No ignition
Out of fuel
Refuel
E + 8 Blower motor malfunction
E + 9 Heat exchanger bi-metal switch
or Thermal fuse activated
E + ┣
E + Ξ
E + –
Malfunction of remote controller or remote controller
cord
Operation stops
and operation
lamp and display
are flashing.
NOTE: To restart the unit, tunr the unit off by pressing “POWER SWITCH” and after 5 seconds
press “POWER SWITCH” to turn it on once again.
NOTE: Press the Reset Button of Heat Exchanger Bi-metal Switch to reset the unit when Heat
Exchanger Bi-metal Switch is activated. Make sure to disconnect the Power supply
cord before pressing the Reset Switch of Heat Exchanger Bi-metal Switch.

18

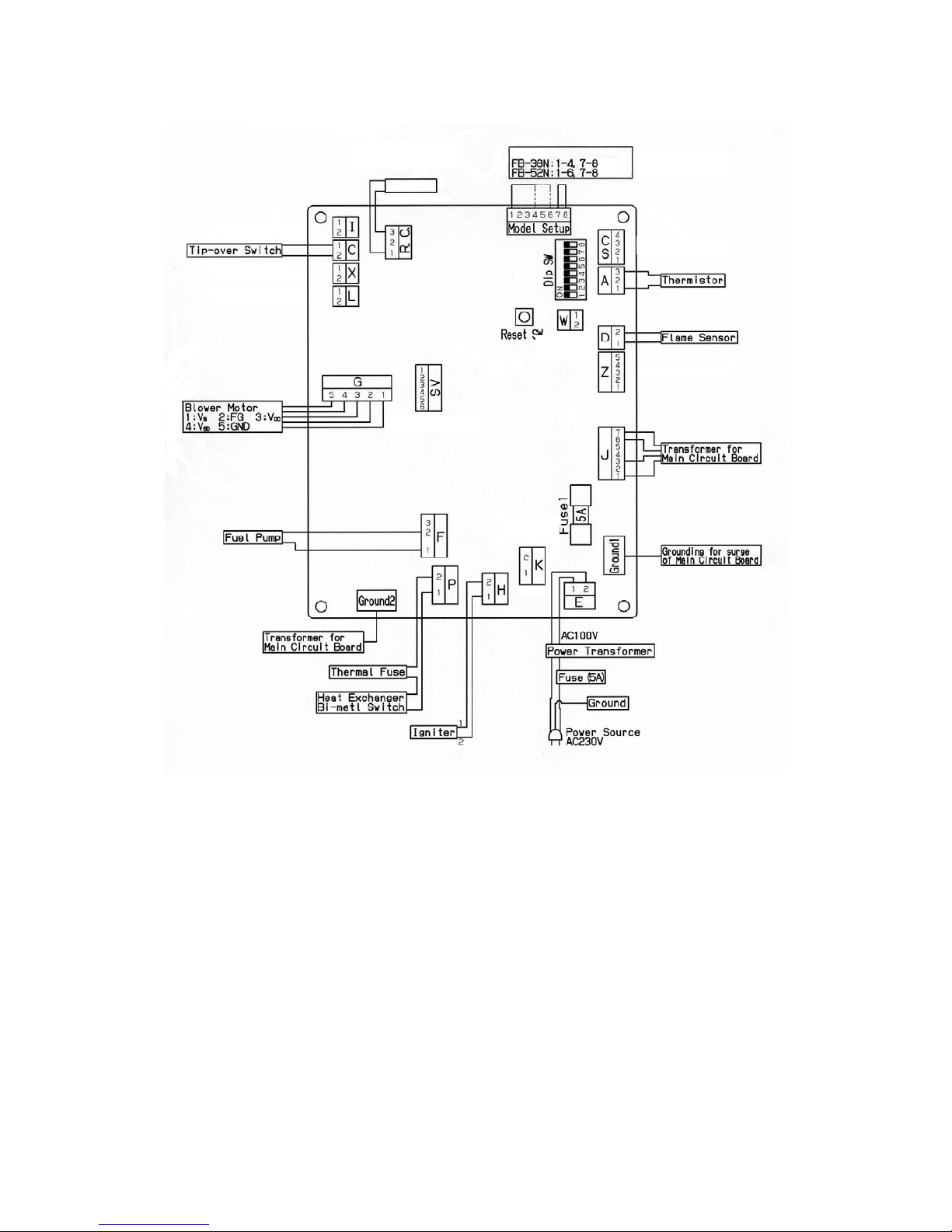

WIRING DIAGRAM
B: Blue
O: Orange
Y: Yellow
W: White
R: Red
K: Black
Open Terminal
Open Terminal
Open Terminal
Open Terminal
Open Terminal
Open
Terminal
Open Terminal
Open
Terminal
Terminal Block for
Remote Contorl Model Selecting
Jumper

19
TOYOTOMI CO., LTD.
5-17, MOMOZONO-CHO, MIZUHO-KU, NAGOYA, 467-0855 JAPAN
New 9/08
Printed in Japan

1
Kerosene-Fired Water Heater
MODEL FB-38N(FS) / FB-52N(FS)
[CONTENTS]
SECTION A: Wiring for Water Heater.................. 13
Safety Tips for Installation.................. 2 Wiring Terminal Block for
Remote Control........................ 13
SECTION B: Temperature Control (Differential
Unpacking....................................... 3 Switch and Dip Switch)............. 14
Standard Installation Parts............... 3
SECTION D:
SECTION C: How To Install The Exhaust Pipe and
Installation Exhaust Pipe Top
Selecting a Location........…........ 3 Installation of Exhaust Pipe and
Level Adjustment........................ 4 Exhaust Pipe Top…………….... 14
Fuel Tank Installation...........…....5 Check for Exhaust Pipe and
Fuel Pipe Installation............…… 5 Exhaust Pipe Top…………...…. 17
Removing Air Trap..........……….. 6
Plumbing.......………...………….. 6 SECTION E:
Electrical Wiring........………….... 11 Test Run
Installing Remote Control............ 11 Preparation..................................... 20
Wiring for Remote Control Cord.. 11 Operation........................................ 20
____________________________________________________________________________
_
IMPORTANT
THIS APPLIANCE SHOULD BE INSTALLED BY A LICENSED, AUTHORIZED PERSON(S)
DUE TO THE NECESSITY OF MAKING ELECTRICAL, WATER AND FUEL CONNECTIONS.
RETAIN THIS MANUAL FOR FUTURE REFERENCE. CHECK LOCAL CODES AND
ORDINANCES FOR PERMITTED USE.
CAUTION
THIS WATER HEATER SHALL NOT BE USED FOR COMMERCIAL USE OR FOR ANY
PURPOSES OTHER THAN HOT WATER SUPPLY USES. OTHER USAGE MAY CAUSE A
MALFUNCTION OR SHORTEN ITS SERVICE LIFE. DO NOT REMOVE THE RATING
PLATE AND LABELS FROM THE WATER HEATER UNIT.
Installation Manual
