TP-Link Omada POE2412G User manual

7106510700 REV1.20.0
Installation Guide
Passive PoE Adapter
Connection
Use the passive PoE adapter to simultaneously supply power and transmit data to a passive PoE device.
AC Power Cord
Passive PoE Adapter
POE2412G/POE4818G/POE4824G
Installation
Package Contents: passive PoE adapter, power cord, wall mount kits
Ethernet Device
(switch, router, etc.)
For technical support and other information, please visit
https://www.tp-link.com/support, or simply scan the QR code
2. Attach the passive PoE adapter to the mounting bracket by sliding the
adapter in the direction of the arrows until it locks into place.
IP Camera AP CPE
Passive PoE Devices
Note: To ensure the passive PoE adapter is attached most securely, it is recommended to install the adapter with the Ethernet port facing upward.
1. Drill two holes on the wall and insert the plastic wall anchors into the
the holes. Secure the mounting bracket to the wall. Make sure the
shoulders at the corners of the mounting bracket are on the outside
and pointing upward.
Note: Before connecting a passive PoE device, please check the required voltage in its product manual.
Note: POE2412G is used as an example throughout this guide. Other models may dier in appearance.

FAQ
A: Yes. Both the LAN and the PoE ports of the PoE adapter
comply with IEEE 802.3i and IEEE 802.3u standards and support
10/100Mbps Auto-Negotiation.
Q1. Can the PoE adapter supply power to a passive PoE device
which doesn’t have a gigabit Ethernet port?
Q2. Can the Passive PoE adapter supply power to all my PoE
devices?
A: If your devices support passive PoE and the voltage
standards of the devices match that of the passive PoE adapter,
the passive PoE adapter can supply power to them.

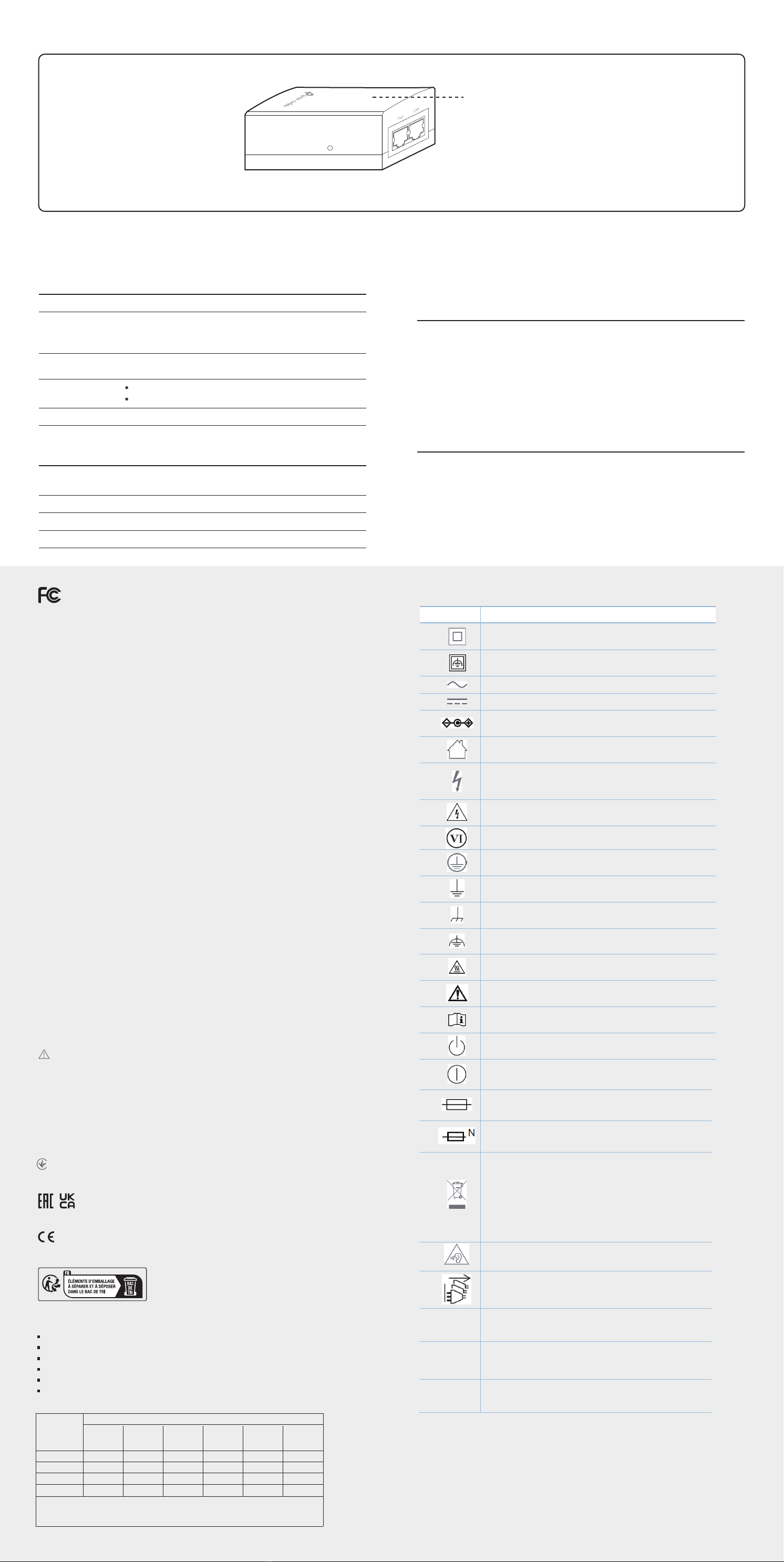

Specications
IEEE802.3i, IEEE 802.3u, IEEE 802.3abStandards
General Specications
Ports 10/100/1000Mbps Auto-Negotiation RJ45 LAN port
10/100/1000Mbps Auto-Negotiation RJ45 POE port
UTP/STP of Cat. 5e or above (based on the
standards that the connected devices comply with)
Cable Type
Output Power
PWRLED
POE2412G: 24V/0.5A
POE4818G: 48V/0.375A
POE4824G: 48V/0.5A
Keep the device away from water, re, humidity or hot environments.
Avoid using this product during an electrical storm. There may be a remote risk of electric
shock from lightning.
Plug the product into the wall outlets with earthing connection through the power supply cord.
Do not attempt to disassemble, repair, or modify the device. If you need service, please
contact us.
The socket-outlet shall be installed near the equipment and shall be easily accessible.
The PoE ports shall not be used to charge lithium batteries or devices supplied by lithium
batteries.
SAFETY NOTICES
Cautions
Operating Temperature POE4818G/POE4824G: 0˚C to 40˚C (32˚F to 104˚F)
POE2412G: 0˚C to 45˚C (32˚F to 113˚F)
Storage Temperature -40˚C to 70˚C (-40˚F to 158˚F)
Storage Humidity 5% to 90%RH non-condensing
Operating Humidity 10% to 90%RH non-condensing
Environmental and Physical Specications
LED & Button
Power
On: Power on
O: Power o
Explana�on of the symbols on the product label
Symbols may vary from products. The label is at the bottom of the product.
Symbol
Explanation
Cla ss II equipment
Cla ss II equipment with functional earthing
Alternating current
Direct current
Pol arity of d.c. power connector
For indoor use only
Dangerous voltage
Cauti on, risk ofelectric shock
Ene rgy e ciency Ma rking
Protective earth
Earth
Frame or chassis
Functional earthing
Cauti on, hot surface
Cauti on
Operator's manual
Stand-by
"ON"/"OFF" (push-push)
Fuse
Fuse is used in neutral N
Cauti on, avoid listening at high vol ume levels for long periods
Dis connection, all power plugs
m Switch of mini-gap construction
µ
Switch of micro- gap construction (for US version)
Switch of micro-gap /micro - disconnection construction
(for other versions except US)
ε Switch without contact gap (Semiconductor switching device)
RECYCLING
This product bears the selective sorting symbol for Waste
electrical and electronic equipment (WEEE). This means that
this product must be handled pursuant to European directive
2012/19/EU in order to be recycled or dismantled to minimize its
impact on the environment.
User has the choice to give his product to a competent recycling
organization or to the retailer when he buys a new electrical or
electronic equipment.
This is a class B product. In a domestic environment, this product may cause radio interference, in which case the
user may be required to take adequate measures.
CE Mark Warning
