TP-Link TG-3269 User manual

TG-3269
Gigabit PCI Network Adapter
Rev: 1.1.0
1910010907

COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a registered trademark
of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or
registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from TP-LINK
TECHNOLOGIES CO., LTD. Copyright © 2013 TP-LINK TECHNOLOGIES CO., LTD. All rights
reserved.
http://www.tp-link.com

FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may
cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
Продукт сертифіковано згідно справилами системи УкрСЕПРО на відповідність вимогам
нормативних документів та вимогам, що передбачені чинними законодавчими актами
України.

Safety Information
zWhen product has power button, the power button is one of the way to shut off the product;
when there is no power button, the only way to completely shut off power is to disconnect the
product or the power adapter from the power source.
zDon’t disassemble the product, or make repairs yourself. You run the risk of electric shock
and voiding the limited warranty. If you need service, please contact us.
zAvoid water and wet locations.
zThis product can be used in the following countries:
AT BG BY CA CZ DE DK EE
ES FI FR GB GR HU IE IT
LT LV MT NL NO PL PT RO
RU SE SK TR UA

TP-LINK TECHNOLOGIES CO., LTD
TP-LINK TECHNOLOGIES CO., LTD.
Building 24 (floors 1, 3, 4, 5), and 28 (floors 1-4) Central Science and Technology Park,
Shennan Rd, Nanshan, Shenzhen, China
DECLARATION OF CONFORMITY
For the following equipment:
Product Description: Gigabit PCI Network Adapter
Model No.: TG-3269
Trademark: TP-LINK
We declare under our own responsibility that the above products satisfy all the technical
regulations applicable to the product within the scope of Council Directives:
Directives 2004 / 108 / EC, Directives 2006 / 95 / EC, Directives 2011/65/EU
The above product is in conformity with the following standards or other normative documents
EN 55022:2010
EN 55024:2010
EN 61000-3-2:2006+A1:2009+A2:2009
EN 61000-3-3:2008
EN 60950-1:2006+A11：2009+A1:2010+A12:2011
The product carries the CE Mark
Person is responsible for marking this declaration:
Yang Hongliang
Product Manager of International Business
Date of Issue: 2013

CONTENTS
Package Contents .................................................................................................... 1
Chapter 1. Introduction ........................................................................................ 2
1.1 Overview of the product...................................................................................................... 2
1.2 Features ............................................................................................................................. 2
1.3 LED Status ......................................................................................................................... 3
Chapter 2. Installation Guide ............................................................................... 4
2.1 Hardware Installation.......................................................................................................... 4
2.2 Software Installation ........................................................................................................... 5
2.2.1 For WindowsXP.......................................................................................................... 5
2.2.2 For Windows 7 .......................................................................................................... 11
2.2.3 For Windows8 .......................................................................................................... 17
Appendix A: Specifications................................................................................... 24
Appendix B: Troubleshooting............................................................................... 25

TG-3269 Gigabit PCI Network Adapter
1
Package Contents
The following contents should be found in your box:
¾One TG-3269 Gigabit PCI Network Adapter
¾Quick Installation Guide
¾One Resource CD for TG-3269, including:
•Drivers
•User Guide
•Other Helpful Information
)Note:
Make sure that the package contains the above items. If any of the listed items is damaged or
missing, please contact your distributor.
Conventions
The “Adapter” mentioned in this user guide stands for TG-3269 Gigabit PCI Network Adapter
without any explanations.

TG-3269 Gigabit PCI Network Adapter
2
Chapter 1. Introduction
1.1 Overview of the product
TG-3269 is a highly integrated and cost-effective single-chip Gigabit Ethernet Adapter that
provides 32-bit performance, PCI bus master capability, and full compliance with IEEE 802.3
10Base-T, IEEE802.3u 100Base-TX and IEEE 802.3ab 1000Base-T specifications. It also
supports ACPI, PCI power management for modern operating systems that are capable of
Operating System Directed Power Management (OSPM) to achieve the most efficient power
management.
Through the aid of a VLAN membership, TG-3269 adheres to the 802.1Q for multiple VLAN
support, and 802.1P for packet prioritization. With 802.1Q support, server resources can be
shared with multiple VLANs when used in conjunction with any 802.1Q-enabled Switch. With the
802.1p support, TG-3269 allows a range of Ethernet packets to be prioritized from a critical to a
non-critical designation through a priority tag.
TG-3269 supports Full Duplex operations at 10/100/1000 Mbps data speeds used in conjunction
with 802.3x flow control support. With 802.3x flow control TG-3269 uses both asymmetric and
symmetric functions via the MAC control pause function. Any participating 802.3x flow control
node can be controlled by initiating a pause control to stop incoming network traffic, to further
reduce network congestion.
By default TG-3269 supports the standard 1518 Byte frame size. In addition, TG-3269 can also be
configured to use a maximum Jumbo Frame size of up to 7680 Bytes.
It includes an interface for a boot ROM and can be used in diskless workstations, providing
maximum network security and ease of management.
Also, being PCI 2.2 and 2.3 compliant, TG-3269 works with 32-bit 33/66MHz PCI busses. This
compatibility provides users with an easy migration path to increase performance between
servers and workstations for large file transfer, video editing and server clustering for data
intensive applications.
1.2 Features
¾Integrated Ethernet MAC, Physical chip and transceiver in one chip
¾Complies with the IEEE802.1P, IEEE802.1Q, IEEE802.3 10Base-T, IEEE802.3u
100Base-TX and IEEE802.3ab 1000Base-T standard
¾Compliant to PCI Revision 2.1/2.2/2.3
¾Supports Full Duplex Flow Control (IEEE 802.3x)

TG-3269 Gigabit PCI Network Adapter
3
¾PCI local bus single-chip Ethernet controller
¾Supports ACPI, PCI power management
¾Supports Auto-Negotiation function, Auto-detects network speed
¾Contains two large independent receive and transmit FIFOs
¾One STP/UTP connector
¾Provides LEDs to indicate network Link/Activity/Speed/ Duplex
¾Supports smart remote boot ROM
¾Supports Drivers for Linux-2.4.x, Linux-2.6.x, Windows 8 (32bit/ 64bit), Windows 7 (32bit/
64bit), Windows XP, Windows 2000, and Windows Vista (32bit/ 64bit)
1.3 LED Status
¾10 LED, 100 LED, 1000 LED
They all indicate Link/Active/Speed status. When the 1000 LED is lit, it indicates adapter has been
linked to network with the right speed of 1000Mbps. The flash 1000 LED indicates data
transmission at the responding port. The 10 LED and 100 LED are similar to the 1000 LED.
¾FDX LED
It indicates the status that whether or not the adapter works at full duplex mode. When the LED is
lit the adapter works at full duplex mode. Otherwise the adapter works at half duplex mode.

TG-3269 Gigabit PCI Network Adapter
4
Chapter 2. Installation Guide
2.1 Hardware Installation
To install the adapter, please follow these steps listed below:
1. Turn off your computer and unplug the power cord and all cables.
2. Remove your computer’s case cover.
3. Locate an available PCI slot.
4. Remove the screw that secures the back plate (the small piece of metal that covers the
opening for PCI card on the back panel of your computer), then remove the back plate.
5. Carefully insert the adapter into the PCI slot. Do not touch the metal connector on the
adapter.
6. Secure the adapter to the case using the screw you removed from the back plate.
7. Reinstall your computer’s case cover.
8. Plug in the power cord and other cables, and then turn on your computer.
)Note:
When the hardware has been successfully installed on your computer, you will be prompted
'Found New Hardware Wizard' (as shown in Figure 2-1); please click Cancel, and then follow
the Software Installation steps to install driver for your adapter.
Figure 2-1 Found New Hardware Wizard in Windows XP

TG-3269 Gigabit PCI Network Adapter
5
2.2 Software Installation
The section will guide you through the installation procedures for Windows XP, Windows 7, and
Windows 8. Please carefully follow the steps.
2.2.1 For Windows XP
1. Insert the TP-LINK Resource CD into the CD-ROM drive.
2. Right-click the icon My Computer on the desktop, and then click Manage.
Figure 2-2
3. The Computer Management screen will appear as shown in Figure 2-3. Click Device
Manager, and then you will see the various options on the right. Click Network adapters,
and then from the drop-down list please find the new network adapter Realtek RTL
8169/8110 Family PCI Gigabit Ethernet NIC (NDIS 6.20) you have installed. Right-click it,
and then select Update Driver….

TG-3269 Gigabit PCI Network Adapter
6
Figure 2-3
4. The Hardware Update Wizard window will show up as shown in Figure 2-4. Select Install
from a list or specific location [Advanced]，and then click Next.
Figure 2-4

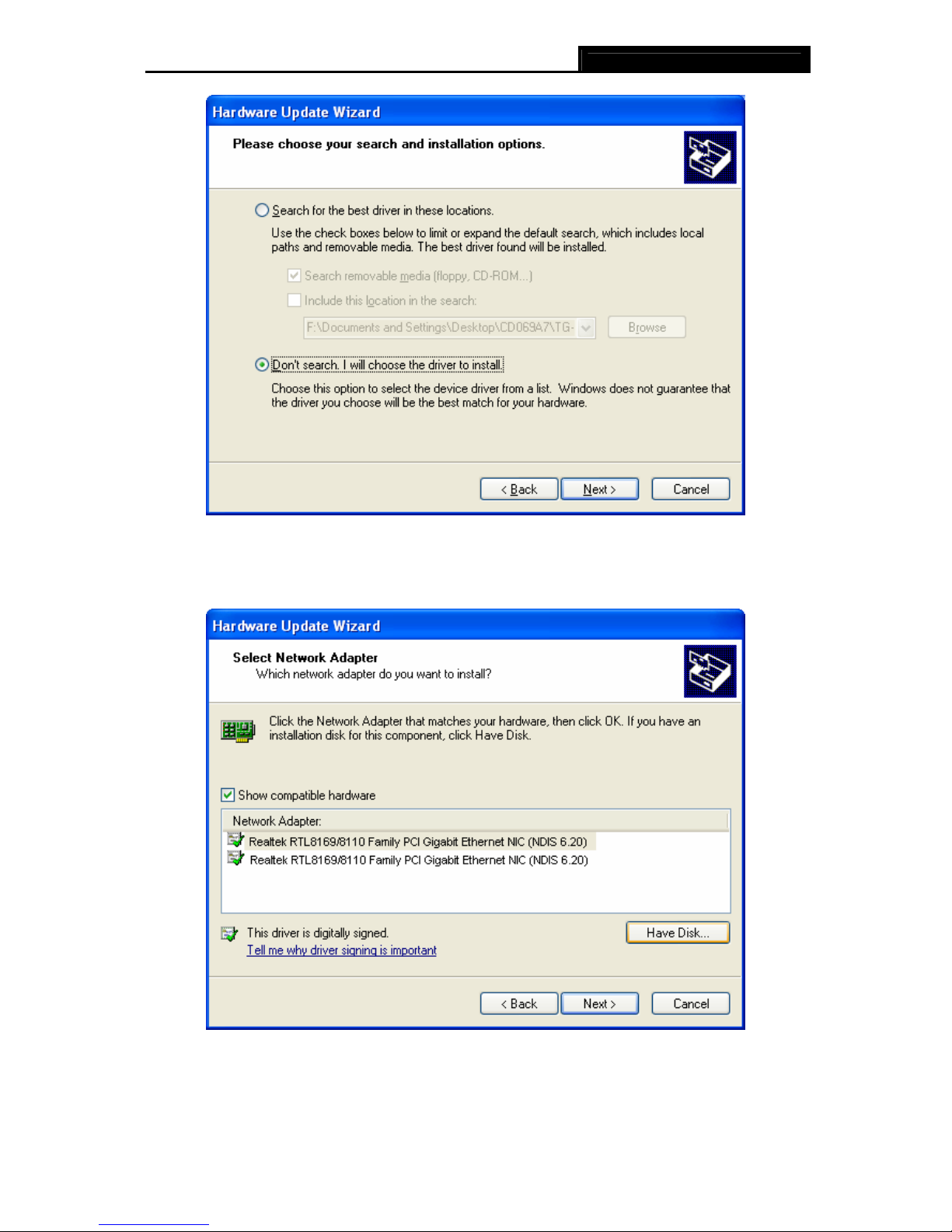

5. Select Don’t search. I will choose the driver to install, and then click Next.

TG-3269 Gigabit PCI Network Adapter
7
Figure 2-5
6. Click Have Disk….
Figure 2-6

TG-3269 Gigabit PCI Network Adapter
8
7. Click Browse….
Figure 2-7
8. Find the right product model （TG-3269）and operation system (Windows XP) in the
resource CD directory and choose the .inf file, and then click Open.
Figure 2-8

TG-3269 Gigabit PCI Network Adapter
9
9. Back to the Install From Disk screen, click OK.
Figure 2-9
10. Click Next.
Figure 2-10

TG-3269 Gigabit PCI Network Adapter
10

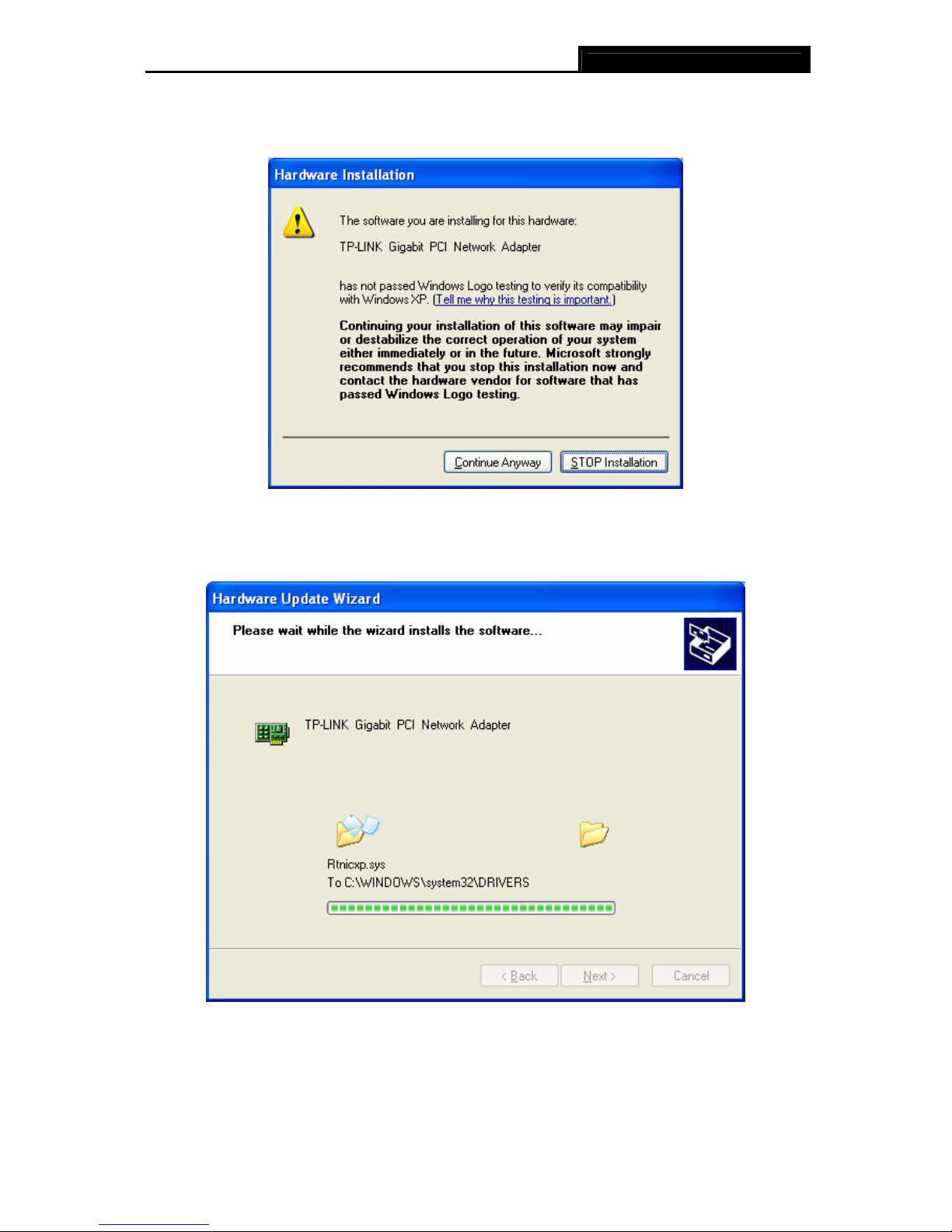

11. The Hardware Installation screen will pop up as shown in Figure 2-11; select Continue
Anyway.
Figure 2-11
12. Wait a few seconds for the installation.
Figure 2-12

TG-3269 Gigabit PCI Network Adapter
11

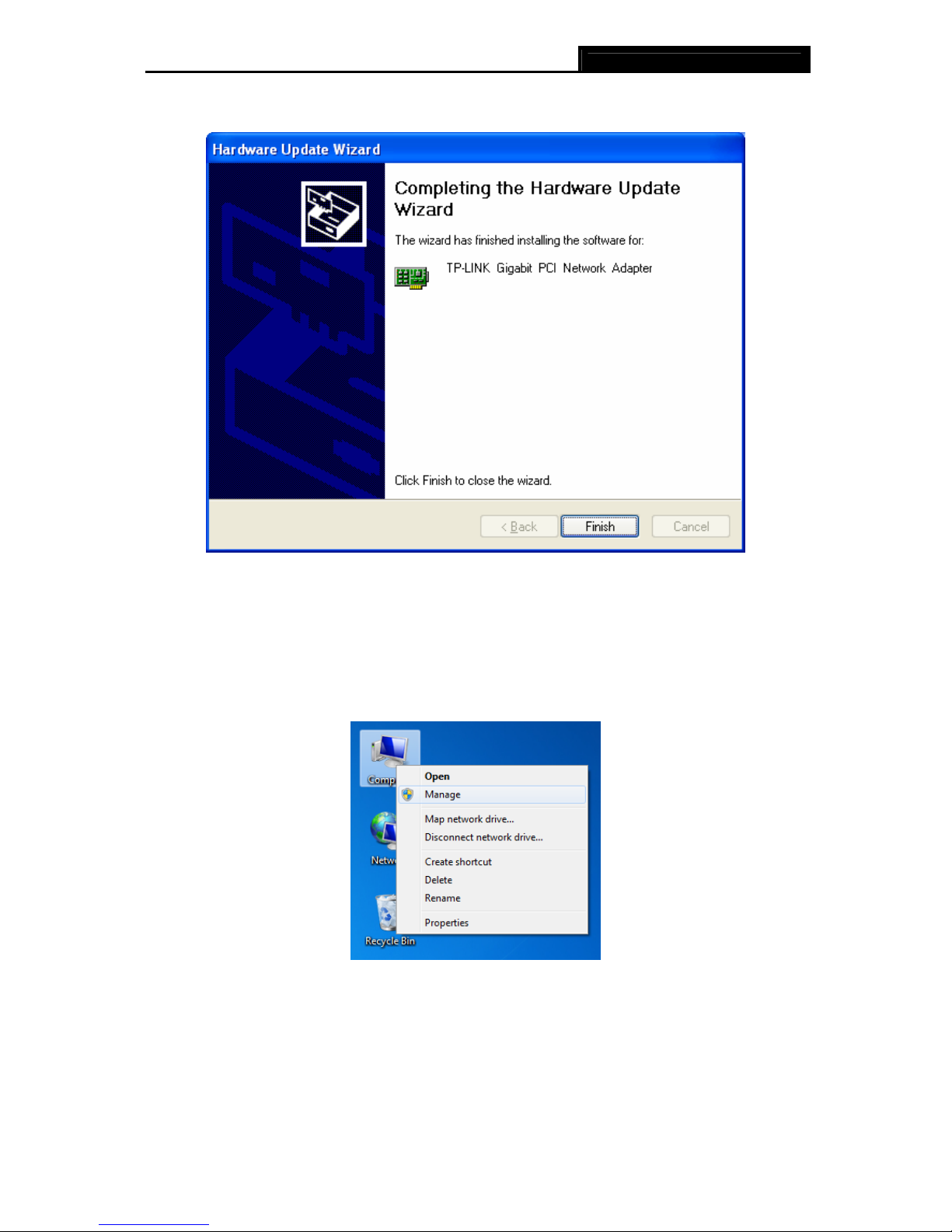

13. Click Finish to complete the installation.
Figure 2-13
2.2.2 For Windows 7
1. Insert the TP-LINK Resource CD into the CD-ROM drive.
2. Right-click the icon Computer on the desktop, and then click Manage.
Figure 2-14

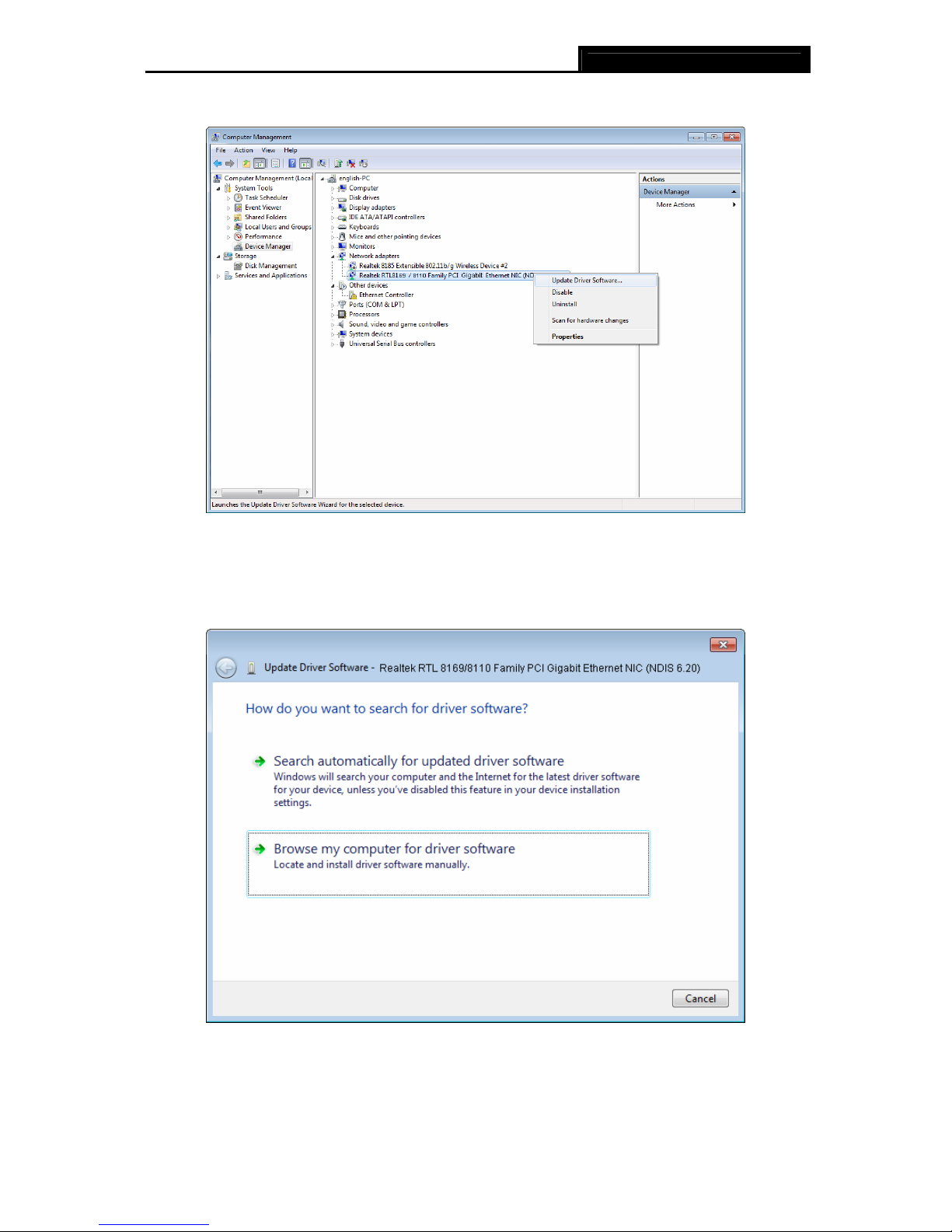

3. The Computer Management screen will appear as shown in Figure 2-15. Click Device
Manager, and then you will see the various options on the right. Click Network adapters,
and then from the drop-down list please find the new network adapter Realtek RTL
8169/8110 Family PCI Gigabit Ethernet NIC (NDIS 6.20) you have installed. Right-click it,

TG-3269 Gigabit PCI Network Adapter
12
and then select Update Driver Software….
Figure 2-15
4. The next screen will appear as shown in Figure 2-16. Select Browse my computer for
driver software.
Figure 2-16

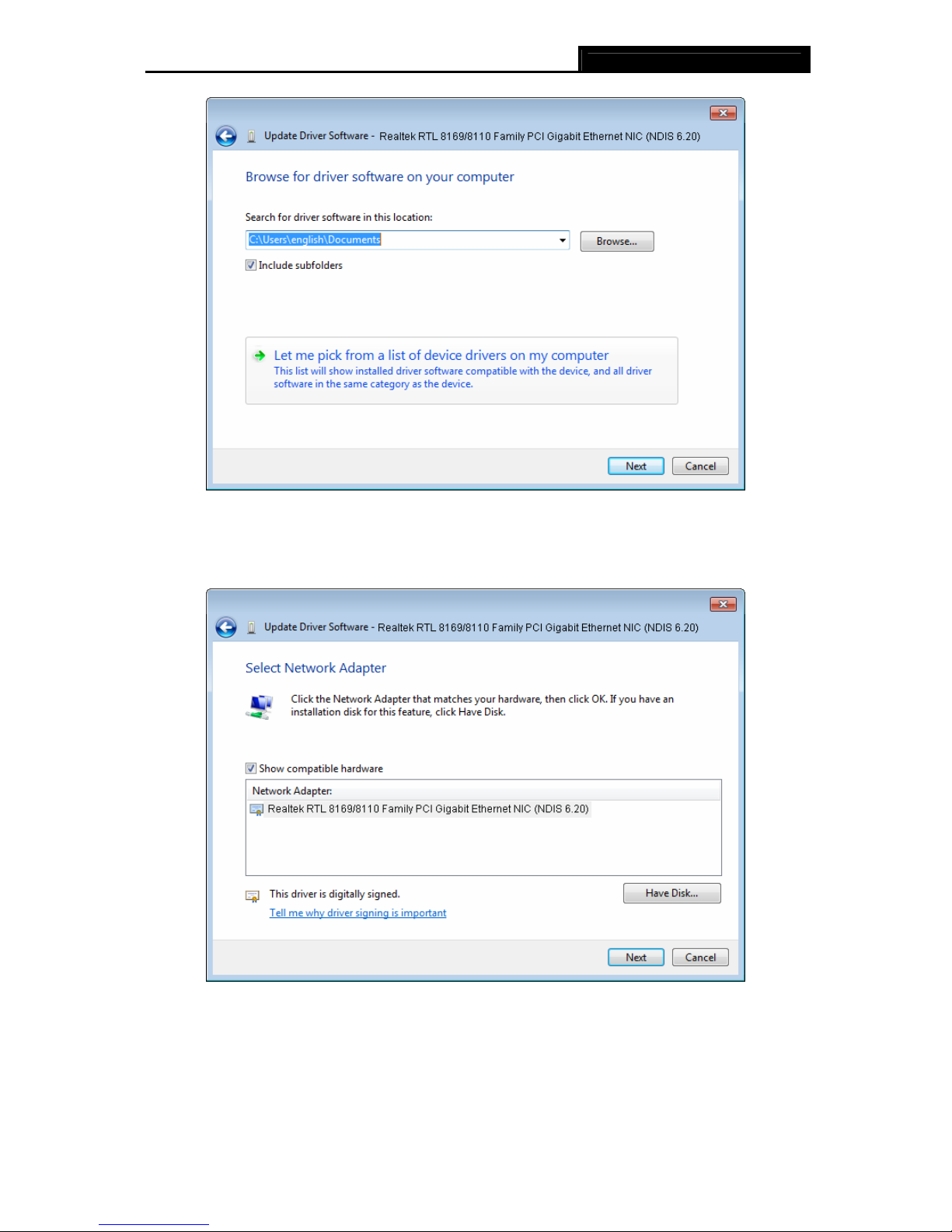

5. Select Let me pick from a list of device drivers on my computer, and then click Next.

TG-3269 Gigabit PCI Network Adapter
13
Figure 2-17
6. Click Have Disk… in the screen as shown in Figure 2-18.
Figure 2-18
7. Click Browse… in the Install From Disk window as shown in Figure 2-19.

TG-3269 Gigabit PCI Network Adapter
14
Figure 2-19
8. Find the right product model (TG-3269) and operation system (Windows 7) in the resource
CD directory and choose the .inf file, and then click Open.
Figure 2-20
