TL-WN322G Wireless G USB Adapter
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may
cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or tv interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s authority
to operate the equipment.
FCC RF Radiation Exposure Statement:
This device has been tested for compliance with FCC RF Exposure (SAR) limits in the typical
laptop computer configuration and this device can be used in desktop or laptop computers. This
device cannot be used with handheld PDAs (personal digital assistants). This device and its
antenna must not be co-located or operated in conjunction with any other antenna or transmitter.
SAR measurements are based on a 5mm spacing from the body and that compliance is
achieved at that distance.
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference,
in which case the user may be required to take adequate measures.

TL-WN322G Wireless G USB Adapter
National Restrictions
2400.0-2483.5 MHz
Country Restriction Reason/remark
Bulgaria General authorization required for outdoor
use and public service
France
Outdoor use limited to 10
mW e.i.r.p. within the
band 2454-2483.5 MHz
Military Radiolocation use. Refarming of the 2.4
GHz band has been ongoing in recent years to
allow current relaxed regulation. Full
implementation planned 2012
Italy If used outside of own premises, general
authorization is required
Luxembourg None General authorization required for network and
service supply(not for spectrum)
Norway Implemented
This subsection does not apply for the
geographical area within a radius of 20 km from
the centre of Ny-Ålesund
Russian
Federation
Only for indoor applications
Note: Please don’t use the product outdoors in France.

TP-LINK TECHNOLOGIES CO., LTD
TP-LINK TECHNOLOGIES CO., LTD.
South Building, No.5 Keyuan Road, Central Zone, Science & Technology Park, Nanshan,
Shenzhen, P. R. China
DECLARATION OF CONFORMITY
For the following equipment:
Product Description: Wireless G USB Adapter
Model No.: TL-WN322G
Trademark: TP-LINK
We declare under our own responsibility that the above products satisfy all the technical
regulations applicable to the product within the scope of Council Directives:
Directives 1999/5/EC
The above product is in conformity with the following standards or other normative documents:
ETSI EN 300 328 V1.7.1: 2006
ETSI EN 301 489-1 V1.8.1:2008 & ETSI EN 301 489-17 V1.3.2:2008
EN60950-1:2006
EN62311:2008
Recommendation 1999/519/EC
Person is responsible for marking this declaration:
Yang Hongliang
Product Manager of International Business

TL-WN322G Wireless G USB Adapter
CONTENTS
Package Contents....................................................................................................1
Conventions: ............................................................................................................1
Chapter 1. Introduction ........................................................................................2
1.1 Overview of the product...................................................................................................... 2
1.2 Features............................................................................................................................. 2
1.3 LED Status......................................................................................................................... 3
Chapter 2. Installation Guide ...............................................................................4
2.1 Hardware Installation.......................................................................................................... 4
2.2 Software Installation........................................................................................................... 4
2.2.1 For WindowsXP&2000 ............................................................................................... 4
2.2.2 For Windows Vista ...................................................................................................... 8
2.2.3 For Windows7 .......................................................................................................... 12
Chapter 3. Configuration....................................................................................15
3.1 For WindowsXP............................................................................................................... 15
3.1.1 Current Status........................................................................................................... 15
3.1.2 Profile Management.................................................................................................. 17
3.1.3 Diagnostics................................................................................................................ 25
3.1.4 Check Driver Information........................................................................................... 25
3.1.5 Check Receive and Transmit Statistical Information................................................. 26
3.2 For Windows Vista............................................................................................................ 26
3.3 For Windows7 ................................................................................................................. 29
Appendix A: Specifications...................................................................................31
Appendix B: Glossary............................................................................................32

TL-WN322G Wireless G USB Adapter
1
Package Contents
The following contents should be found in your package:
¾One TL-WN322G Wireless G USB Adapter
¾Quick Installation Guide
¾One USB cable
¾One Resource CD for TL-WN322G, including:
zTP-LINK Wireless Client Utility (TWCU) and Drivers
zThis Guide
zOther Helpful Information
)Note:
Make sure that the package contains the above items. If any of the listed items are damaged or
missing, please contact with your distributor.
Conventions:
The ‘Adapter’ mentioned in this user guide stands for TL-WN322G Wireless G USB Adapter
without any explanations.

TL-WN322G Wireless G USB Adapter
2
Chapter 1.Introduction
Thank you for choosing TL-WN322G Wireless G USB Adapter.
1.1 Overview of the product
The adapter is a USB 2.0 pen-size wireless adapter supporting IEEE 802.11b/g 2.4GHz radio
operation. It provides high-speed wireless connection with data rate up to 54Mbps, and wireless
roaming allows the user to move among different AP without losing the current connection. The
adapter provides excellent security features, including TKIP, AES, WPA, and up to 152 bit WEP
encryption security, which makes the network almost impenetrable.
Featuring high performance of fast transmission rates, simple installation and adaptability, as well
as strong security, the TL-WN322G Wireless G USB Adapter is the perfect solution for personal
and small business use.
The Quick Setup Wizard guides you step by step through the installation process; the TP-LINK
Wireless Client Utility helps you create a wireless connection immediately.
With unmatched wireless performance, reception, and security protection, the TL-WN322G is the
best choice for easily adding or upgrading wireless connectivity.
1.2 Features
¾Complies with IEEE802.11g, IEEE802.11b standards
¾Supports WPA/WPA2 data security, IEEE802.1x authentication, TKIP/AES encryption,
WEP encryption
¾Supports high rate of up to 54Mbps for maximum throughput, supports automatically adjust
to lower speeds due to distance or other operating limitations
¾Provides USB interface
¾Supports Ad-Hoc and Infrastructure modes
¾Good capability on anti-jamming
¾Supports roaming between access points when configured in Infrastructure mode
¾Easy to configure and provides monitoring information
¾Supports Windows 2000, Windows XP, Windows Vista, Windows 7.
¾Built-in two internal antennas which are listed in a format of 2x2 for two receivers and two
transmitters.

TL-WN322G Wireless G USB Adapter
3
1.3 LED Status
The TL-WN322G Wireless G USB Adapter has a LED indicator.
Status Working Status
On The driver has not been installed.
Flashing Slowly The driver has been installed but there is no data being
transmitted or received.
Flashing Quickly There is data being transmitted or received.
)Note:
When the adapter failed to connect to a wireless network, the LED may be off. Please choose
your network and try to connect again.

TL-WN322G Wireless G USB Adapter
4
Chapter 2.Installation Guide
2.1 Hardware Installation
There are two ways to install the Adapter:
1. Plug the Adapter directly to the USB port on your computer.
2. Connect the Adapter and your computer through the USB cable attached in package.
The promoted Found New Hardware Wizard screen will pop up when the adapter is installed
correctly.
2.2 Software Installation
When the hardware is installed correctly, the system will prompt “Found New Hardware Wizard”,
click Cancel and take the following instructions to install the driver.
2.2.1 For Windows XP&2000
The Setup steps for Windows 2000 and XP are similar with each other. This user guide takes
Windows XP for example.

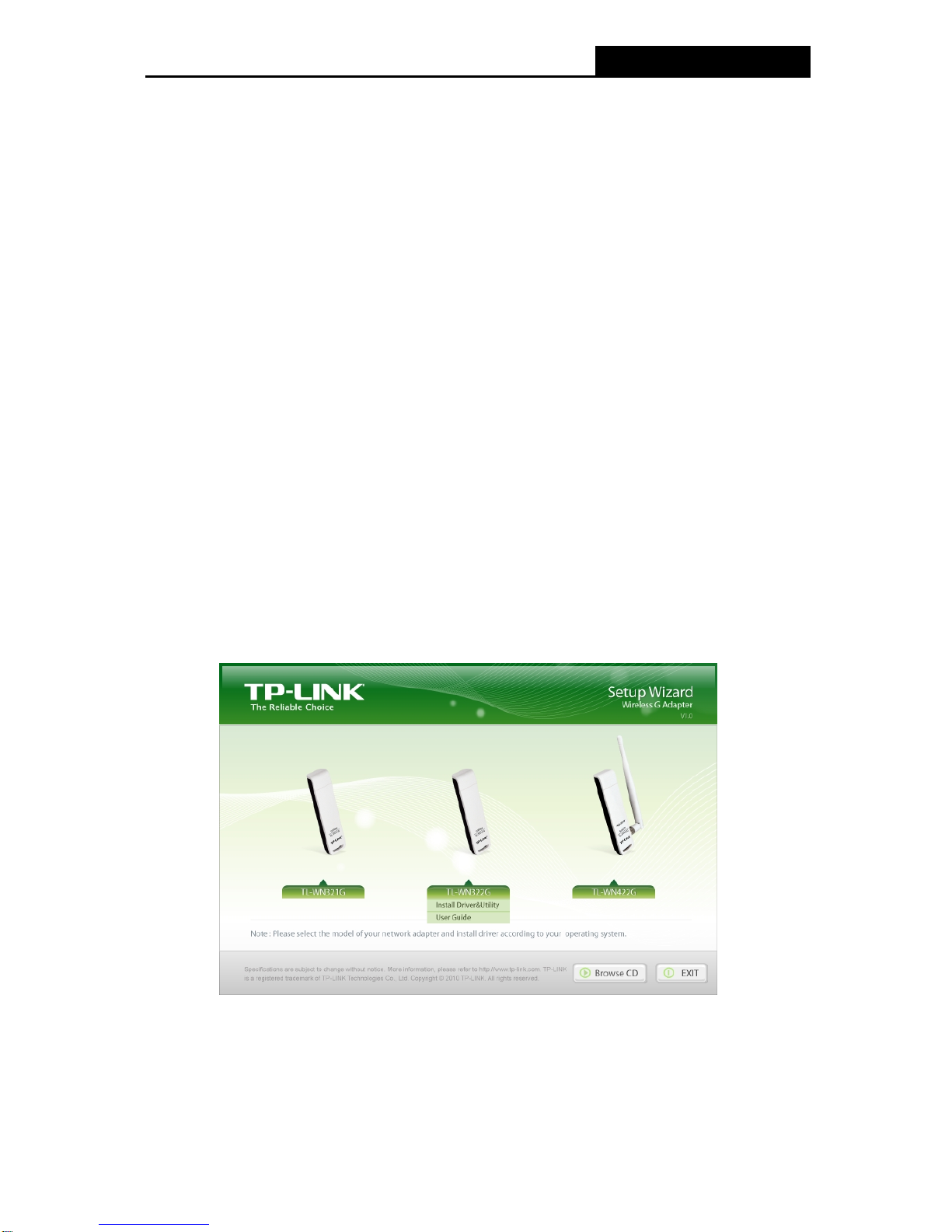

1. Insert the Resource CD into your CD-ROM drive, and the screen as shown below will
display. To continue, select TL-WN322G. There will be a menu including Install Driver &
Utility and User Guide.
Figure 2-1
2. Click Install Driver & Utility to load the following screen.

TL-WN322G Wireless G USB Adapter
5
Figure 2-2
3. Soon,
4Figure 2-3 will display after a moment. Click Next to continue.
Figure 2-3

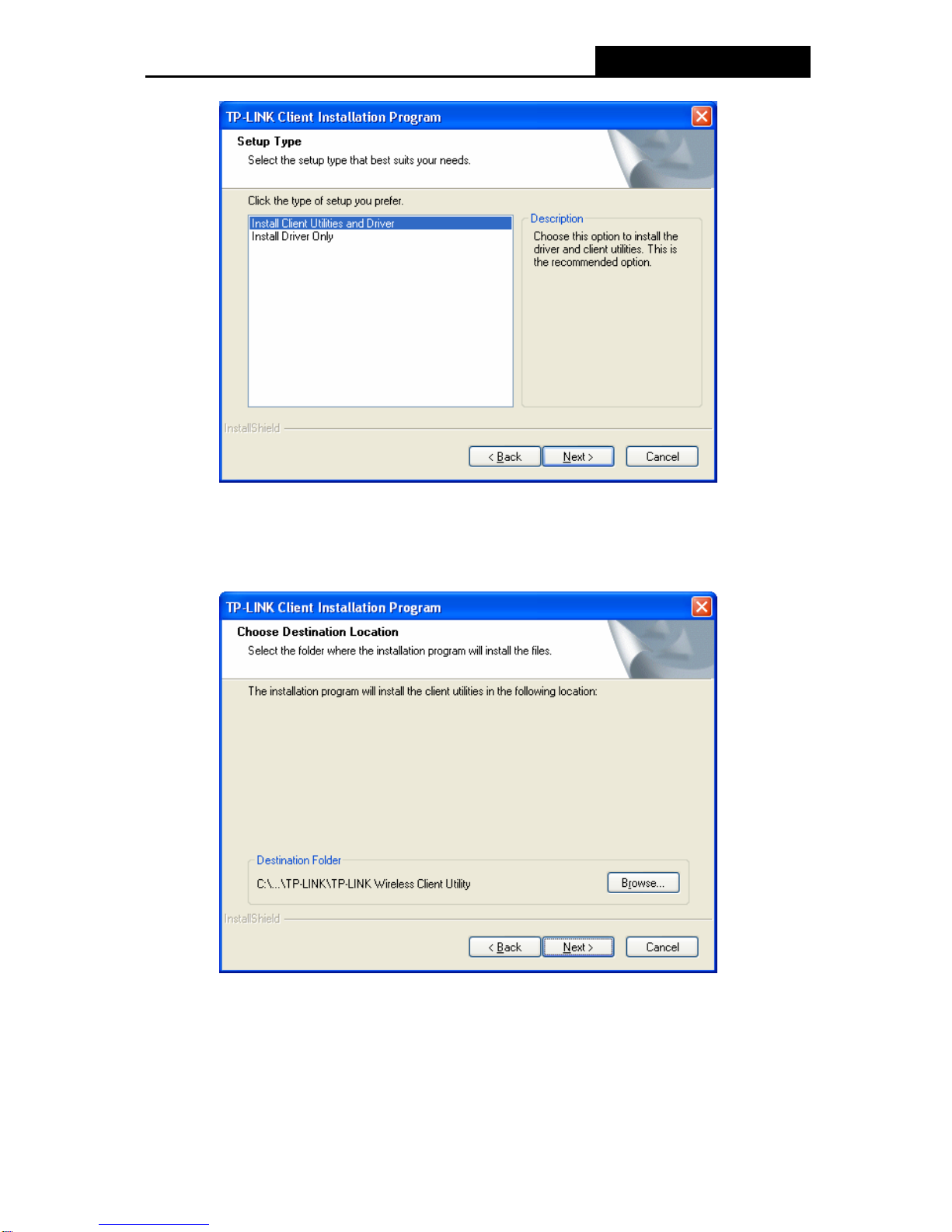

4. After that, you should choose a Setup type. It is recommended that you select Install
Client Utilities and Driver. Select Install Driver Only to install driver only. Click Next to
continue.

TL-WN322G Wireless G USB Adapter
6
Figure 2-4
5. Click Browse to change the destination location for the software, then click Next in the
screen below (shown in 4Figure 2-5).
Figure 2-5
6. After that, select the program folder, you should create a new folder name or select one
from the Existing Folders list. It is recommended that you keep the default setting. Click
Next to continue the installation.

TL-WN322G Wireless G USB Adapter
7
Figure 2-6
7. Choose configuration tool, if you are not sure, please leave it default. Then click Next to
continue.
Figure 2-7

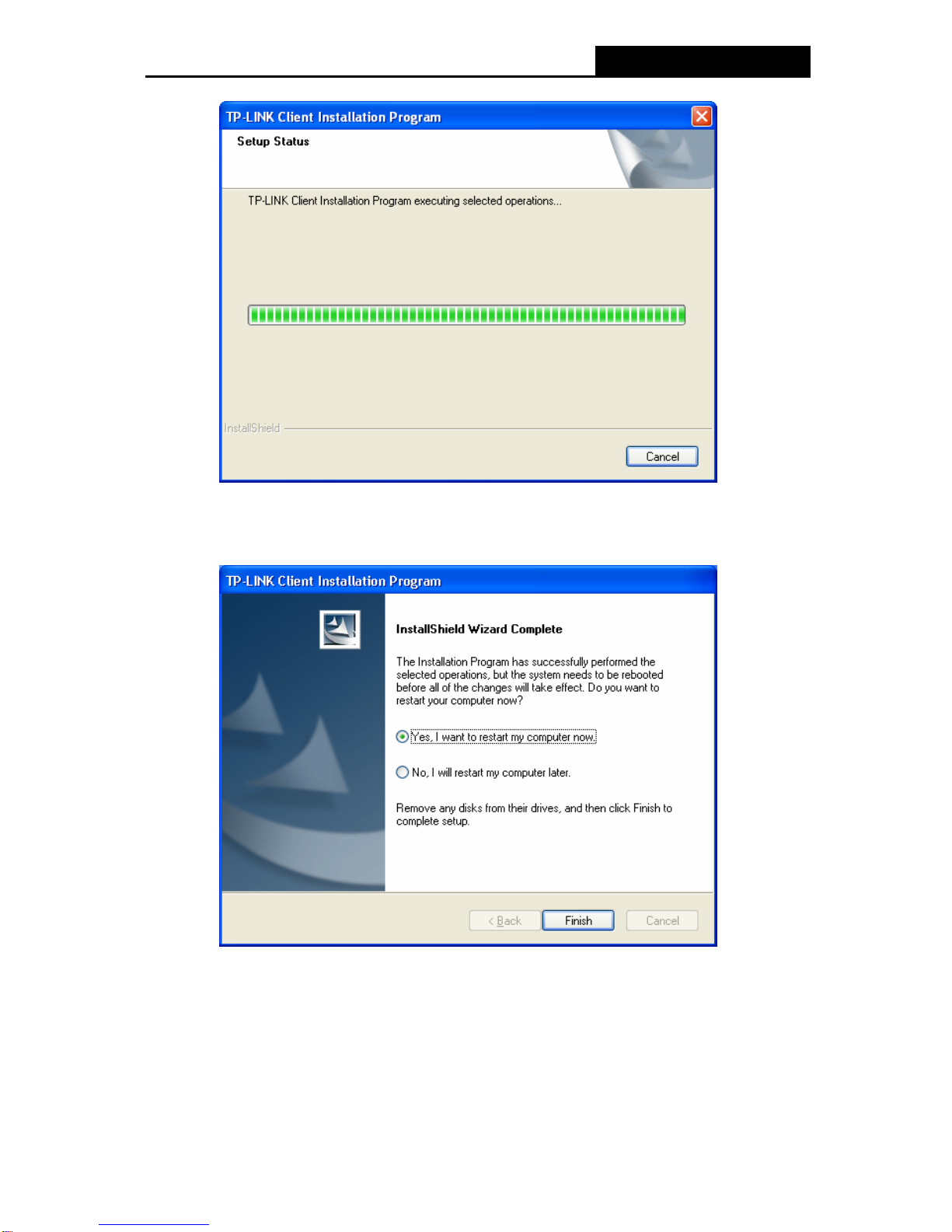

8. Wait a while for the setup as shown in 5Figure 2-8.

TL-WN322G Wireless G USB Adapter
8
Figure 2-8
9. After all the steps above, you will see the screen below, click Finish to reboot the system.
Figure 2-9
2.2.2 For Windows Vista
1. Insert the Resource CD into your CD-ROM drive, and the screen as shown below will
display. To continue, select TL-WN322G. There will be a menu including Install Driver &
Utility and User Guide.

TL-WN322G Wireless G USB Adapter
9
Figure 2-10
2. Click Install Driver & Utility to load the following screen.
Figure 2-11

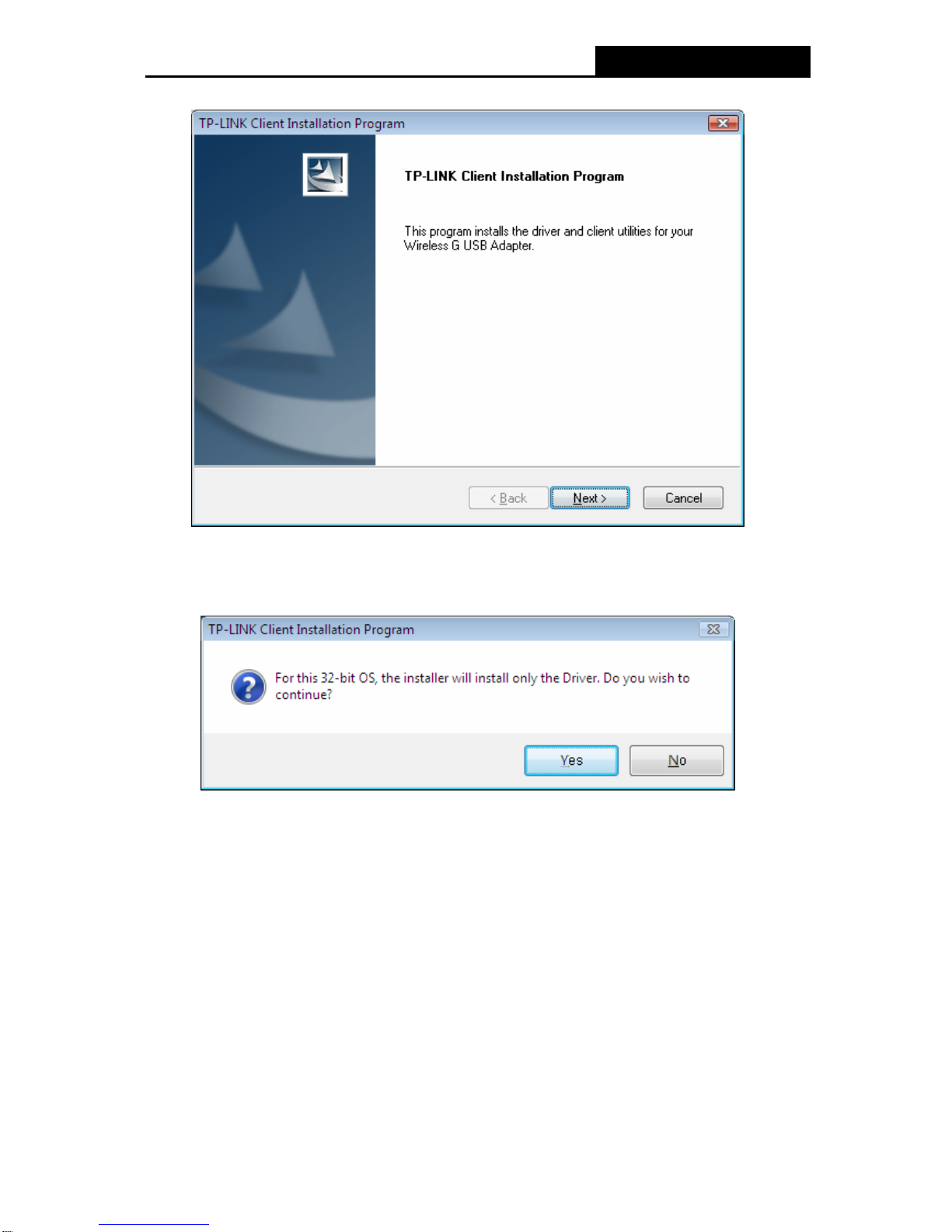

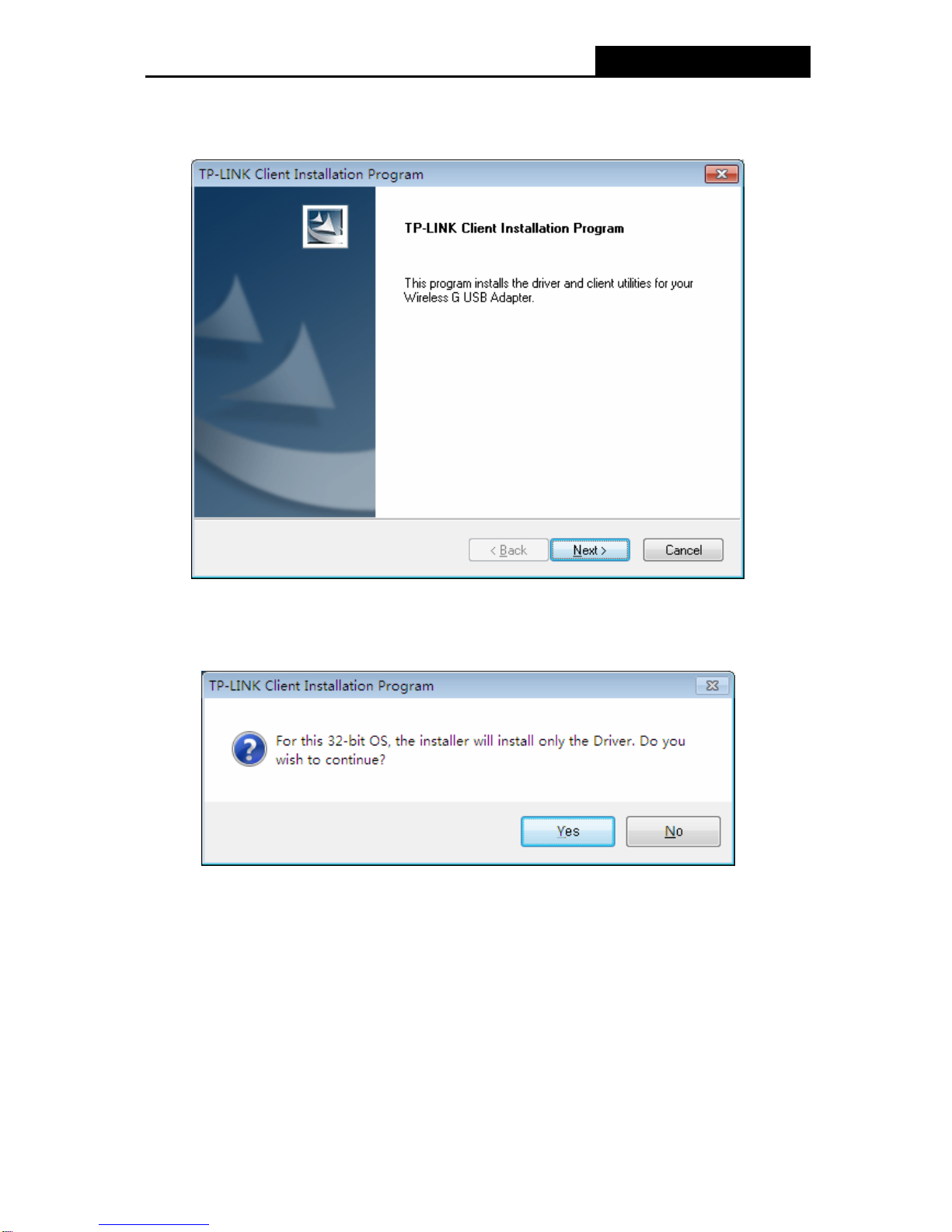

3. Click Next in the screen below (shown in Figure 2-15) to continue, you can click Cancel to
end the installation.

TL-WN322G Wireless G USB Adapter
10
Figure 2-12
4. Click Yes to continue the Installation in Figure 2-13
Figure 2-13
5. After that, the files will be copied as the next screen shown (shown in Figure 2-17).

TL-WN322G Wireless G USB Adapter
11
Figure 2-14
6. Click the Finish button to complete.
Figure 2-15

TL-WN322G Wireless G USB Adapter
12
2.2.3 For Windows 7
1. Insert the Resource CD into your CD-ROM drive, and the screen as shown below will
display. To continue, select TL-WN322G. There will be a menu including Install Driver &
Utility and User Guide.
Figure 2-16
2. Click Install Driver & Utility to load the following screen.
Figure 2-17

TL-WN322G Wireless G USB Adapter
13
3. Click Next in the screen below (shown in Figure 2-18) to continue, you can click Cancel to
end the installation.
Figure 2-18
4. Click Yes in the following figure to continue.
Figure 2-19
5. After that, the files will be copied as the next screen shown.

TL-WN322G Wireless G USB Adapter
14
Figure 2-20
6. Click the Finish button to complete.
Figure 2-21
