TP-Link VIGI C320I User manual

Quick Start Guide
*Images may dier from actual products.
VIGI C330I is used for demonstration in this guide.
Appearance
*Some models do not have the power supply interface. You can check the
detailed specications on the product page at https://www.tp-link.com/.
Power Supply Interface (12V DC)*
4
RJ45 Ethernet Port (supports PoE)
3
IR LED
2
Lens
1
2
3
Package Contents
Network Camera Waterproof Cable
Attachments
Quick Start Guide
Anchors and Screws
Quick
Start
Guide
• Make sure your power supply matches your camera.
The camera’s standard power supply is 12V DC* or
PoE (802.3af/at). The power source should meet LPS,
PS2, and other requirements according to IEC
62368-1.
• Make sure that the wall is strong enough to
withstand 4 times the weight of the camera and
mounting bracket.
• If you are uncertain or uncomfortable performing the
installation, consult a qualied electrician.
Safety First:
Installing Waterproof Cable Attachments
Install the waterproof cable attachments for the network
interface when the camera is installed outdoors.
Note: Make sure each part is securely attached and the waterproof
rings are ush to keep out water.
Done! The network interface is now waterproof.
1Mount Camera
Fix Nut Waterproof
Ring
O-ring Network
Interface
Waterproof
Jacket
1. Route the network cable through the following
components in order: x nut, waterproof ring, and then
the waterproof jacket.
2. Fix the O-ring to the network interface of the camera and
connect the network cables.
3. Attach the network interface with the waterproof jacket,
then twist to lock.
4. Insert the waterproof ring into the waterproof jacket.
Rotate the x nut to secure it to the waterproof jacket.
2
Mounting Template
1
Option 1: Wall/Ceiling Mounting
1. Stick the mounting template to the desired mounting place.
Drill 4 screw holes according to the template.
2. Insert the anchors into the holes, use the provided screws to
x the camera’s bracket to the wall or ceiling.
Option 2: Pole Mounting
1. Thread each of the two cable ties through the slits on the
back of the camera’s bracket indicated below.
2. Slip the two cable ties through the pole. Tighten them to
rmly attach the pole.
OR
4

More Management Methods
1. Download the VIGI Security Manager on your
computer at
https://www.tp-link.com/support/download/vigi-s
ecurity-manager/.
2. Install the VIGI Security Manager and open it.
3. Cameras on the same network as your computer
can be automatically discovered. Go to Settings >
Discovered Devices, click + Add to activate your
discovered cameras by setting passwords, and
follow the instructions to add your cameras.
Method 1: Via the VIGI Security Manager
(Windows only)
You can also access and manage your cameras via any of the methods below.
View live video and modify camera settings on
your computer.
Method 3: Via a Web Browser
View live video and modify camera settings via a
web browser.
1. Find the camera's IP address on your router’s client
page.
2. On your local computer, open a web browser and enter
https://camera's IP address (https://192.168.0.60 by
default).
3. Select your Country/Region and Time Zone.
4. Set a password to activate the camera.
Done. You can view the live video on the Preview page, and
go to the Settings page to change camera settings.
Method 2: Via the TP-Link VIGI App
Remotely view live video, manage cameras, and
get instant alerts.
2

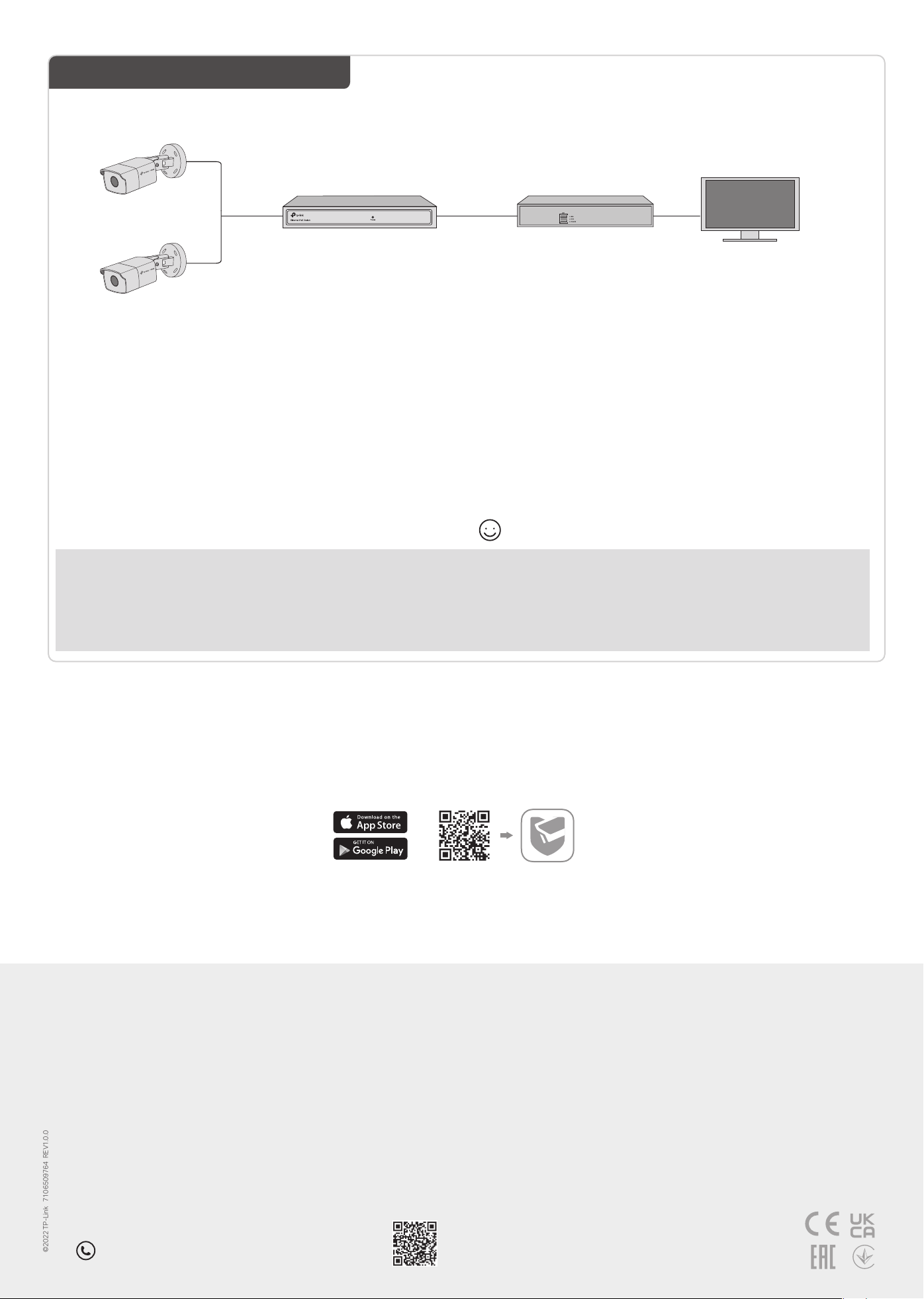

Use Your Camera with an NVR
VIGI NVR
Monitor
Network Device
(e.g., Switch or Router)
The camera works with an NVR for easier batch access and management.
*Here we use a VIGI NVR as an example.
Frequently Asked Questions (FAQ)
Q1: What can I do if no cameras are discovered?
• Refresh to discover your camera again.
• Make sure the camera is powered on.
• Make sure your camera and NVR/computer are in the same subnet. If not,
use the VIGI Security Manager to set camera’s network parameters.
• Try to add your cameras manually.
• For other NVR brands, make sure you have activated the camera by setting
a password via the VIGI Security Manager or TP-Link VIGI app.
Q2: How do I know the camera is powered on?
• The IR LED will turn on for about 10 seconds once the camera is powered on. If
it’s o, you can cover the lens for several seconds and check if the IR LED turns
on.
• Check the LED status of the network device your camera is connected to.
For more questions, please refer to
https://www.tp-link.com/support/faq/2850/
