TPI SUN-MITE FES Series User manual

Issue Date: 4-19-02 Rev. Date: 11-10-04 Rev. Level: 10 OIPM P/N 3420458 Page 1 of 24
FOSTORIA INDUSTRIES, INC.
1200 North Main Street
Fostoria, OH 44830-1911
Phone: [phone]
Fax: [phone]
www.fostoriaindustries.com
A DIVISION OF
FES - Series
Portable Electric Heaters
IMPORTANT SAFETY
INFORMATION INSIDE
• Serious injury or death possible.
• Read, understand, and follow all
safety information and
instructions in this manual
before using or servicing this
product.
• Retain these instructions for
future reference.
CONTENTS
Specifications Page 2
YES Installation Page 3
FES Assembly Page 4
Wiring Page 4,5,6,7,8
Operating Page 9
Replacement Parts Page 10,11
Maintenance Page 12
Limited Warranty Page 12
YES - Series
Suspended Electric Heaters
(FES-1524-3E shown)
All manuals and user guides at all-guides.com
all-guides.com

Issue Date: 4-19-02 Rev. Date: 11-10-04 Rev. Level: 10 OIPM P/N 3420458 Page 2 of 24
Description – Fostoria portable and suspended electric heaters provide clean, quiet, odor-free, fan-forced heat. They are
designed to circulate room air continuously; gradually heating a confined space. The best results will be obtained when using these
heaters in smaller, insulated spaces. Features include a safety-yellow enclosure with front and rear safety screens; reliable stainless
steel finned heating elements; a high-limit temperature switch with automatic reset; an automatic thermostat control with fan-only
option; and a long-life motor and fan assembly with sealed bearings. The portable (FES) models come mounted on a two-wheele
d
cart with wheels designed to be easily pushed or pulled over uneven surfaces.

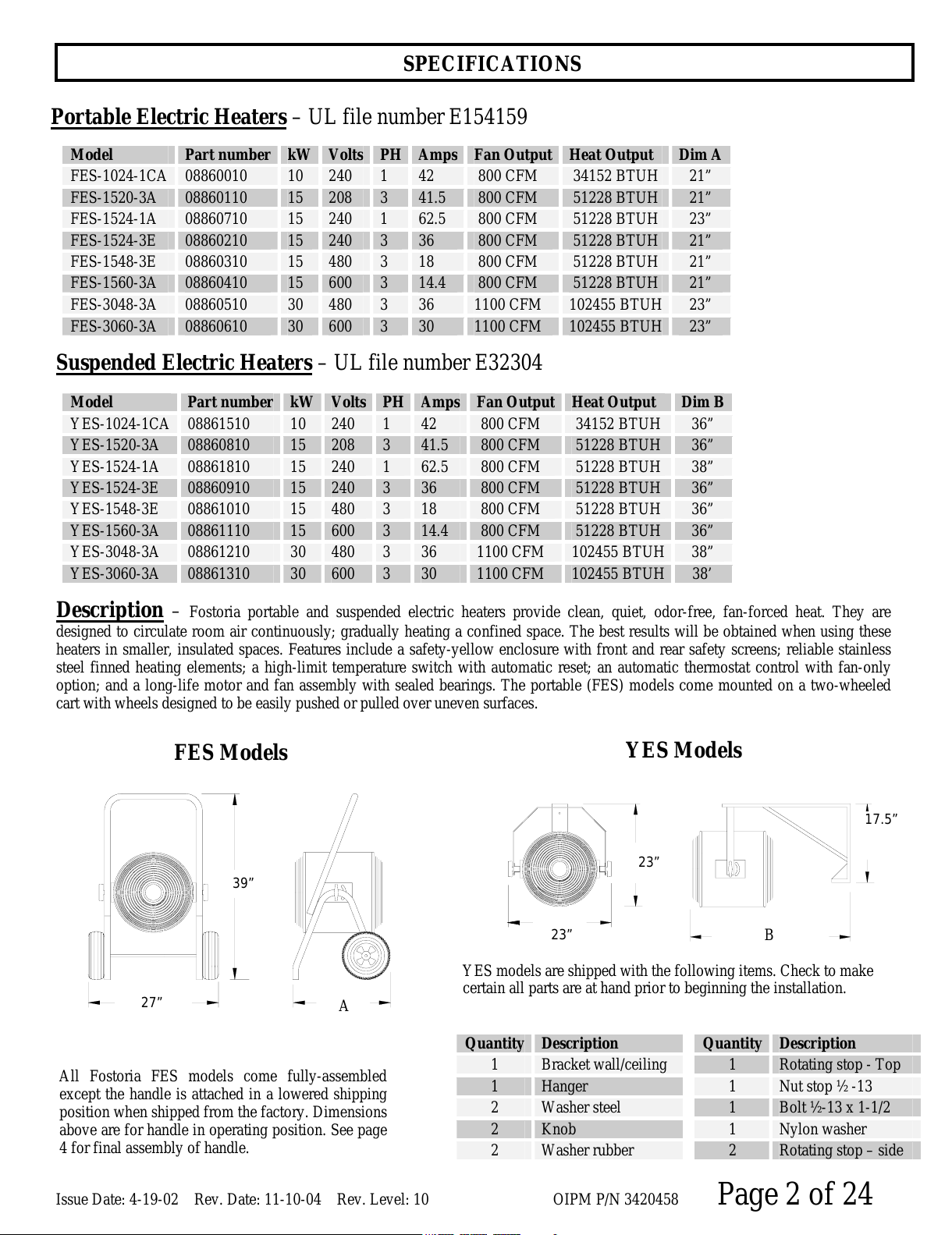

SPECIFICATIONS
Model Part number kW Volts PH Amps Fan Output Heat Output Dim B
YES-1024-1CA 08861510 10 240 1 42 800 CFM 34152 BTUH 36”
YES-1520-3A 08860810 15 208 3 41.5 800 CFM 51228 BTUH 36”
YES-1524-1A 08861810 15 240 1 62.5 800 CFM 51228 BTUH 38”
YES-1524-3E 08860910 15 240 3 36 800 CFM 51228 BTUH 36”
YES-1548-3E 08861010 15 480 3 18 800 CFM 51228 BTUH 36”
YES-1560-3A 08861110 15 600 3 14.4 800 CFM 51228 BTUH 36”
YES-3048-3A 08861210 30 480 3 36 1100 CFM 102455 BTUH 38”
YES-3060-3A 08861310 30 600 3 30 1100 CFM 102455 BTUH 38’
Model Part number kW Volts PH Amps Fan Output Heat Output Dim A
FES-1024-1CA 08860010 10 240 1 42 800 CFM 34152 BTUH 21”
FES-1520-3A 08860110 15 208 3 41.5 800 CFM 51228 BTUH 21”
FES-1524-1A 08860710 15 240 1 62.5 800 CFM 51228 BTUH 23”
FES-1524-3E 08860210 15 240 3 36 800 CFM 51228 BTUH 21”
FES-1548-3E 08860310 15 480 3 18 800 CFM 51228 BTUH 21”
FES-1560-3A 08860410 15 600 3 14.4 800 CFM 51228 BTUH 21”
FES-3048-3A 08860510 30 480 3 36 1100 CFM 102455 BTUH 23”
FES-3060-3A 08860610 30 600 3 30 1100 CFM 102455 BTUH 23”
Portable Electric Heaters – UL file number E154159
Suspended Electric Heaters – UL file number E32304
27”
39”
FES Models
23”
23”
17.5”
YES Models
A
B
Quantity Description
1 Bracket wall/ceiling
1 Hanger
2 Washer steel
2 Knob
2 Washer rubber
Quantity Description
1 Rotating stop - Top
1 Nut stop ½ -13
1 Bolt ½-13 x 1-1/2
1 Nylon washer
2 Rotating stop – side
All Fostoria FES models come fully-assembled
except the handle is attached in a lowered shipping
position when shipped from the factory. Dimensions
above are for handle in operating position. See page
4 for final assembly of handle.
YES models are shipped with the following items. Check to make
certain all parts are at hand prior to beginning the installation.
All manuals and user guides at all-guides.com

Issue Date: 4-19-02 Rev. Date: 11-10-04 Rev. Level: 10 OIPM P/N 3420458 Page 3 of 24
Tools required: (2) ¾” socket or box wrenches.
Parts required: the two screws required to secure
wall/ceiling bracket to a suitable surface are no
t
supplied with heater. You must use 5/16” bolts an
d
flat washers to mount this bracket.
Hanger Assembly Detail
YES - SERIES INSTALLATION
HANGER
Step 1: Install (1) side rotating stop ove
r
b
olt and into curved slot (as shown a
t
right) on each side of heater.
Step 3: Secure wall/ceiling mounting bracket to appropriate
surface that will support a min. weight of 100lbs continuously.
N
OTE: all mounting hardware to mount hanger to wall/ceiling
bracket is supplied with heater.
KNOB
ALL Fostoria YES models require some assembly. Four steps are required to complete the assembly and installation.
TOP of
Heater
Step 2: Assemble hanger to heater per hanger
assembly detail. No tools are required.
Ceiling Mount Option
Step 4: Assemble unit to mounting bracket following
instructions of chosen mounting option below.
Wall Mount Option #1
TOP ROTATING
STOP
TOP
of
Heater
FALLING OBJECTS HAZARD
FIRE HAZARD
• Serious injury or death
may occur.
• Read and follow all safety
information and
instructions in box below.
• Mounting bracket supplied with YES models
MUST be used to support heater.
• Installer MUST be certain surface that
bracket is mounted to will support 100 lbs of
weight continuously.
• Rotating stops MUST be installed as shown
above.
• Do not mount heater upside down (See
nameplate label for “TOP” of heater.)
• The bottom of these units must be mounted at
least 6 ft. off the floor and the top 2 ft. from
the ceiling.
• Do not suspend ANY other equipment from
this bracket. One heater per bracket
maximum.
Wall Mount Option #2
TOP
of
Heater
All manuals and user guides at all-guides.com

Issue Date: 4-19-02 Rev. Date: 11-10-04 Rev. Level: 10 OIPM P/N 3420458 Page 4 of 24
Tools Required: (2) 7/16” socket or box wrenches.
To position the handle at operating height:
Step 1: Remove and keep the hardware securing the
handle to the legs.
Step 2: Raise handle until holes align with the uppe
r
holes in the legs.
Step 3: Re-insert hardware as shown, and fasten
securely.
FES – SERIES ASSEMBLY
Bolts
Washers
Washers Nuts
To order cable kits
Phone: [phone]
Model
Table 2 Unit Rating Cable Size
–
Over
50ft. long Max. Cable Length (ft)
FES & YES 1520-3A 15kW, 208 Volt, 3-Ph 4/4 120
FES & YES 1524-1A 15kW, 240 Volt, 1-Ph 2/3 215
FES & YES 1524-3E 15kW, 240 Volt, 3-Ph 6/4 150
FES & YES 1548-3E 15kW, 480 Volt, 3-Ph 12/4 140
FES & YES 1560-3A 15kW, 600 Volt, 3-Ph 12/4 190
FES & YES 3048-3A 30kW, 480 Volt, 3-Ph 6/4 300
FES & YES 3060-3A 30kW, 600 Volt, 3-Ph 6/4 350
THE PROPER SIZE SO- type feeder cable MUST BE USED for the electrical hook-up of this heater. The proper cable size is shown
in the tables below (A.W.G./ # of conductors.) Table 1 is for cable 50ft. in length or less. Table 2 is for cable longer than 50ft.
ELECTRICAL SHOCK
HAZARD
FIRE HAZARD
• Serious injury or death may
occur.
• Disconnect from electrical
supply before installing feeder
cable to these heaters.
• Read and follow all safety
information in box to the left.
• Feeder cable or cable kit assembly MUST BE made b
y
licensed electricians ONLY.
• Service panel or receptacle used to supply power to
these heaters MUST have a
g
round bus or
g
round pole
that is securely bonded to earth ground.
• Connect green ground conductor on feeder cable or
cable kit to grounding lug on heaters.
• Comply with ALL local electrical codes and the
National Electric Code (NFPA70) when providing
electrical power to these heaters.
Model
Table 1 Unit Rating Cable Size - Unde
r
50ft. long Cable Kit Number
FES & YES 1520-3A 15kW, 208 Volt, 3-Ph 6/4 03164001
FES & YES 1524-1A 15kW, 240 Volt, 1-Ph 4/3 08805300
FES & YES 1524-3E 15kW, 240 Volt, 3-Ph 6/4 03164001
FES & YES 1548-3E 15kW, 480 Volt, 3-Ph 12/4 03164201
FES & YES 1560-3A 15kW, 600 Volt, 3-Ph 12/4 03164201
FES & YES 3048-3A 30kW, 480 Volt, 3-Ph 6/4 03164001
FES & YES 3060-3A 30kW, 600 Volt, 3-Ph 6/4 03164001
WIRING
A
25ft. cable kit can be purchased from the
factory. Refer to the kit part numbers in table a
t
right.
CABLE KITS INCLUDE:
• 25 feet of Type SO cable, with either 3-
conductors or 4-conductors, depending on
the heater requirements.
All manuals and user guides at all-guides.com

Issue Date: 4-19-02 Rev. Date: 11-10-04 Rev. Level: 10 OIPM P/N 3420458 Page 5 of 24
WIRING
(
continued
)
FES-1024-1CA YES-1024-1CA
Models FES-1024-1CA and YES-1024-1CA are
shipped with a cordset factory-installed. This cordse
t
contains a plug for use with a 50A household range
receptacle. The blade configuration on the plug
included on these heaters is represented in fig. 1
below (4-wire circuit).
fi
g
. 2
fig. 1
The range receptacle you choose to use may have
a
blade configuration compatible with the plug shown
in fig. 2 (3-wire circuit). This is an older branch
circuit design that does not include a separate
equipment grounding conductor (green wire). The
configuration in fig. 1 has been implemented o
n
newer branch circuit installations for increase
d
safety, and is now the required circuit configuratio
n
by the National Electric Code. Changing a 3-wire
branch circuit and receptacle to 4-wire design may
involve changes to your range and must only be done
by
a licensed electrician.
ELECTRICAL SHOCK
HAZARD
• Serious injury or death
may occur.
• Plug heater into a 4-wire
circuit receptacle rated
50A.
• Any and all changes to
branch circuits and
receptacles MUST be
done by a licensed
electrician ONLY.
All manuals and user guides at all-guides.com

Issue Date: 4-19-02 Rev. Date: 11-10-04 Rev. Level: 10 OIPM P/N 3420458 Page 6 of 24
WIRING
(
continued
)
TERMINAL
BLOCK
FES-1524-1A YES-1524-1A FES-1524-1A YES-1524-1A
Attach circuit conductors a
t
these lugs. Refer to label
shown for phase
identification
Ground lug is located
directly below fuse as
shown in upper left
corner. Securely attach
green wire to this lug.
Attach feeder cable or cable kit to heater as shown i
n
photograph at right for the single-
p
hase models
indicated.
3-Phase Models
Attach feeder cable or cable kit to heater as shown in
the photograph at left for the following 3-phase
models.
FES-1520-3A YES-1520-3A
FES-1524-3E YES-1524-3E
FES-1548-3E YES-1548-3E
FES-1560-3A YES-1560-3A
FES-3048-3A YES-3048-3A
FES-3060-3A YES-3060-3A
Ground Lug
Securely attach green
wire to this lug.
Attach circuit conductors to the lugs
on the contactor. Refer to label
shown for phase identification.
All manuals and user guides at all-guides.com
all-guides.com

Issue Date: 4-19-02 Rev. Date: 11-10-04 Rev. Level: 10 OIPM P/N 3420458 Page 7 of 24
FES-1520-3A YES-1520-3A
FES-1524-3E YES-1524-3E
CABLE NOT INCLUDED
CABLE NOT INCLUDED
WIRING
(
continued
)
FES & YES 3- PHASE WIRING DIAGRAMS
FES-1548-3E YES-1548-3E FES-1560-3A YES-1560-3A
CABLE NOT INCLUDED CABLE NOT INCLUDED
MAXIMUM OVERCURRENT PROTECTION 45 AMPS.
USE COPPER WIRE ONLY
MAXIMUM OVERCURRENT PROTECTION 55 AMPS.
USE COPPER WIRE ONL
Y
MAXIMUM OVERCURRENT PROTECTION 25 AMPS.
USE COPPER WIRE ONLY MAXIMUM OVERCURRENT PROTECTION 20 AMPS.
USE COPPER WIRE ONLY
All manuals and user guides at all-guides.com

Issue Date: 4-19-02 Rev. Date: 11-10-04 Rev. Level: 10 OIPM P/N 3420458 Page 8 of 24
FES-3048-3A YES-3048-3A FES-3060-3A YES-3060-3A
MAXIMUM OVERCURRENT PROTECTION 40AMPS.
USE COPPER WIRE ONLY
WIRING
(
continued
)
FES & YES 3-PHASE WIRING DIAGRAMS
CABLE NOT INCLUDED
CABLE NOT INCLUDED
MAXIMUM OVERCURRENT PROTECTION 45 AMPS.
USE COPPER WIRE ONLY.
480 VOLTS 60 HZ
3-PHASE
30 KW
All manuals and user guides at all-guides.com

Issue Date: 4-19-02 Rev. Date: 11-10-04 Rev. Level: 10 OIPM P/N 3420458 Page 9 of 24
FIRE HAZARD
EXPLOSION HAZARD
BURN HAZARD
• Serious injury or death
may occur.
• Read and follow all safety
information in box below.
OPERATING INSTRUCTIONS
• Do not use outdoors or where
flammable gases or liquids are stored.
• Do not use as a residential comfort
heater.
• Keep portable heater 3ft. minimum
from all combustible materials at all
times.
• Do not modify heater in any way.
• Do not provide power to heater when
unit is near standing water.
• Only use handle to move heater.
• Do not touch heater housing while in
use.
• Do not allow feeder cable to contact
combustible materials.
• Always purge heat from unit after
use. Operate at “fan only” setting for
3 minutes.
Fostoria FES and YES series heaters are designe
d
to circulate room air across its heating elements to
gradually increase room temperature. The bes
t
p
erformance results will be obtained when using
these heaters in smaller, confined spaces with low
ceilings.
Operation of these heaters is accomplished via the
use of a multi-function thermostat (refer to
diagram below).
You have the option to use the fan only, or the fan
and heating elements together. Position the knob
p
ointer in the “fan-only” area to circulate room
air with no heating. Move the pointer into the
“heat” area to energize the heating elements an
d
set the thermostat. Maximum heating is obtaine
d
with knob turned fully clockwise. Both fan an
d
elements are off when the knob is turned fully
counterclockwise.
Always allow the fan to operate for a minimum
of 3 minutes when
y
ou are done usin
g
the
heater to purge heat from unit.
HEATER
OFF
L
N
A
F
O
N
Y
LOW
HEAT
HIGH
HEAT
N
ote: ALL FES/YES models are equipped with
an internal over temperature limit designed to
p
rotect your heater if a restricted airflow
condition occurs. This limit device will
completely shutdown the heating elements if the
temperature limit is reached. The limit will
automatically reset when the unit cools.
All manuals and user guides at all-guides.com

Issue Date: 4-19-02 Rev. Date: 11-10-04 Rev. Level: 10 OIPM P/N 3420458 Page 10 of 24
Ref
No. Description 1024-1CA 1520-3A 1524-3E 1548-3E 1560-3A 3048-3A 3060-3A
1 Motor 8482001 (1) 8482001 (1) 8482001 (1) 8482002 (1) 8482003 (1) 8482004 (1) 8482005 (1)
2 Bolt carriage ½-13 x 2-3/4 2470132 (2) 2470132 (2) 2470132 (2) 2470132 (2) 2470132 (2) 2470132 (2) 2470132 (2)
3 Rotating stop 8481223 (2) 8481223 (2) 8481223 (2) 8481223 (2) 8481223 (2) 8481223 (2) 8481223 (2)
4 Thermostat 2470300 (1) 2470300 (1) 2470300 (1) 2470300 (1) 2470300 (1) 2470300 (1) 2470300 (1)
5 Washer Reducing (not
shown) N/A N/A N/A 2485400 (2) 2485400 (2) N/A N/A
6 Knob thermostat 2470500 (1) 2470500 (1) 2470500 (1) 2470500 (1) 2470500 (1) 2470500 (1) 2470500 (1)
7 Strap 2470800 (1) 2470800 (1) 2470800 (1) 2470800 (1) 2470800 (1) 2470800 (1) 2470800 (1)
8 Shroud 8480910 (1) 8480910 (1) 8480910 (1) 8480910 (1) 8480910 (1) 8481110 (1) 8481110 (1)
9 Motor mount bracket 8480801 (1) 8480801 (1) 8480801 (1) 8480801 (1) 8480801 (1) 8480800 (1) 8480800 (1)
10 Screw 10-32x 5/16 SEMS 2470932 (8) 2470932 (12) 2470932 (12) 2470932 (12) 2470932 (12) 2470932 (24) 2470932 (24)
11 Mount motor end 8480700 (2) 8480700 (2) 8480700 (2) 8480700 (2) 8480700 (2) 8480700 (2) 8480700 (2)
12 Washer 9/16 3419500 (8) 3419500 (12) 3419500 (12) 3419500 (12) 3419500 (12) 3419500 (24) 3419500 (24)
13 Nut hex ¼-20 3426000 (4) 3426000 (4) 3426000 (4) 3426000 (4) 3426000 (4) 3426000 (4) 3426000 (4)
14 Washer ¼ 3427900 (8) 3427900 (8) 3427900 (8) 3427900 (8) 3427900 (8) 3427900 (8) 3427900 (8)
15 Grill 8480621 (2) 8480621 (2) 8480621 (2) 8480621 (2) 8480621 (2) 8480621 (2) 8480621 (2)
16 Washer 2472032 (4) 2472032 (4) 2472032 (4) 2472032 (4) 2472032 (4) 2472032 (4) 2472032 (4)
17 Screw 8-18 x ½ 3444456 3444456 3444456 3444456 3444456 3444456 3444456
18 Contactor 8480402 (1) 8480402 (1) 8480400 (1) 8480401 (1) 8480403 (1) 8480401 (1) 8480403 (1)
19 Cordset – not shown 3171701 (1) ------ ------ ------ ------ ------ ------
20 Nut ½-13 3460200 (2) 3460200 (2) 3460200 (2) 3460200 (2) 3460200 (2) 3460200 (2) 3460200 (2)
21 Screw ¼-20 x ¾ 3494156 (4) 3494156 (4) 3494156 (4) 3494156 (4) 3494156 (4) 3494156 (4) 3494156 (4)
22 Over temperature switch 3183900 (1) 3183900 (1) 3183900 (1) 3183900 (1) 3183900 (1) 41041001 (1) 41041001 (1)
23 Ground Lug 41254001 (1) 41254001 (1) 41254001 (1) 41254001 (1) 41254001 (1) 41254001 (1) 41254001 (1)
24 Connector 7714122 (1) 7714122 (1) 7714122 (1) 2485300 (1) 2485300 (1) 7714122 (1) 7714122 (1)
25 Baffle – not shown 8483800 (1) 8483800 (1) 8483800 (1) 8483800 (1) 8483800 (1) 8483800 (1) 8483800 (1)
26 Bussbar – not shown 8421600 (4) 8421600 (8) 8421600 (8) 8421600 (5) 8421600 (5) 8421600 (10) 8421600 (10)
27 Element inner 8481401 (2) 8481403 (3) 8481401 (3) 8481401 (3) 8481405 (3) 8481401 (6) 8481405 (6)
28 Element outer 8481402 (2) 8481404 (3) 8481402 (3) 8481402 (3) 8481406 (3) 8481402 (6) 8481406 (6)
29
30 Blade fan – not shown Cover 8422300 (1) 8481010 (1) 8422300 (1) 8481010 (1) 8422300 (1) 8481010 (1) 8422300 (1) 8481010 (1) 8422300 (1) 8481010 (1) 8422300 (1) 8481010 (1) 8422300 (1) 8481010 (1)
5
43
44
23
22
34
45
38
Ref
No. Description 1524-1A
1 Motor 8482001 (1)
2 Bolt carriage ½-13 x 2-3/4 2470132 (2)
3 Rotating stop 8481223 (2)
4 Thermostat 2470300 (1)
5 Washer reducing (not
shown) N/A
6 Knob thermostat 2470500 (1)
7 Strap 2470800 (1)
8 Shroud 8481110 (1)
9 Motor mount bracket 8480800 (1)
10 Screw 10-32x 5/16 SEMS 2470932 (12)
11 Mount motor end 8480700 (2)
12 Washer 9/16 3419500 (12)
13 Nut hex ¼-20 3426000 (4)
14 Washer ¼ 3427900 (10)
15 Grill 8480621 (2)
16 Washer 2472032 (4)
17 Screw 8-18 x ½ 3444456
18 Contactor 8480406 (1)
19
20 Nut ½-13 3460200 (2)
21 Screw ¼-20 x ¾ 3494156 (4)
22 Over temperature switch 3183900 (1)
23 Ground Lug 41254001 (1)
24 Connector 7714122 (1)
25 Baffle-not shown 8483800 (1)
26 Bussbar – not shown 8421600 (8)
27 Element inner 8481401 (3)
28 Element outer 8481402 (3)
29 Blade fan – not shown 8422300 (1)
30 Cover 8481010 (1)
31 Bracket fuse block 8481700 (1)
32 Fuse block 8481600 (2)
33
34 Fuse type FLNR-40 250V Terminal block 71031471 (4) 51243002 (1)
FES REPLACEMENT PARTS LIST& EXPLODED VIEWS
17
All manuals and user guides at all-guides.com

Issue Date: 4-19-02 Rev. Date: 11-10-04 Rev. Level: 10 OIPM P/N 3420458 Page 11 of 24
Ref No. Description Part No. Qty.
1 Hanger 8484023 1
2 Washer rubber 2480200 2
3
4 Bar knob 2470200 2
5 Mounting bracket 57074002 1
6 Washer fender 3472232 4
7 Washer nylon 3443700 1
8 Rotating stop 8483923 1
9 Nut stop ½-13 3446432 1
10 Screw ½-13 x 1-1/2 2480132 1
11 Rotating Stop – Side 8484423 2
To convert an FES unit to a YES unit
order the Fostoria kit Model WMK-FES
p/n 04804102.
Ref No. Description Part No.
1 Handle 8480021
2 Washer flat ¼ 3442532
3 Screw ¼-20 x 2-3/4 2470032
4 Nut stop ¼-20 3440132
5 Axle 8481332
6 Cap plug 3409200
7 Leg 8480121
8 Washer rubber 2480200
9 Spacer 8480500
10 Washer flat ½ 3460156
11 Wheel 8492500
12 Push nut 8045700
13 Bar Knob 2470200
14 Spacer 2471932
15 Washer lock ¼ 3427900
16 Screw ¼-20 x 1-3/4 2471832
FES REPLACEMENT PARTS LIST& EXPLODED VIEWS
YES REPLACEMENT PARTS LIST& EXPLODED VIEWS
6
All manuals and user guides at all-guides.com
all-guides.com

Issue Date: 4-19-02 Rev. Date: 11-10-04 Rev. Level: 10 OIPM P/N 3420458 Page 12 of 24
ELECTRICAL SHOCK
HAZARD
• Serious injury or death
may occur.
• Disconnect from electrical
supply before servicing or
cleaning these heaters.
• Do not operate without
grills and access covers
fastened in place.
Other than periodic cleaning of the exterior, no maintenance
is required for these heaters.
• Do not hose these units down.
• Remove dust and dirt from inside heater with
compressed air.
• Do not operate these heaters without the grills or the
wiring compartment cover in place.
• Replace or repair feeder cable or cord set if visible
damage is observed.
• Motor bearings are permanently lubricated.
The warranty herein set forth is in lieu of all other warranties expressed o
r
implied.
Fostoria Industries, Inc. of Fostoria, Ohio 44830, warrants its products to the
owner against defects in material and workmanship for a twelve (12) month
period under normal use and service following date of manufacture or installation
when proof of such is provided to seller.
This Warranty requires that the owner, or his agent, install the equipment in
accordance with the National Electrical Code, any other applicable heating or
electrical codes and the manufacturer’s installation instructions. It further requires
that he perform reasonable and necessary maintenance on the unit. The
company is not liable for abuse or misuse of product as may be finally
determined by the company.
The obligation of Fostoria Industries, Inc. under the terms of this warranty, shall be to
supply a new part, repair of defective part, or a refund, at the company’s option with no
cost to owner for the new or repaired part. Such parts are to be returned to the factory, o
r
such other location as the company may designate. This warranty does not obligate
Fostoria Industries, Inc. to bear the cost of labor in replacing any assembly, unit o
r
component part thereof, nor does the company assume any liability for secondar
y
charges, expenses for installing or removal, or any other consequential losses. The
company’s maximum liability shall not in any case exceed the list price for the produc
t
claimed to be defective.
The warranty shall not apply to any product or parts of products which have been repaired
or altered outside of Seller’s factory in any manner. Warranty is void on products that have
been determined to have been subjected to misuse, negligence or accident or which have
been used in a manner contrary to Seller’s instructions.
FOSTORIA INDUSTRIES, INC. – 1200 North Main Street - Fostoria, Ohio 44830-1911 - [phone]
LIMITED WARRANTY
MAINTENANCE
All manuals and user guides at all-guides.com
