TPL BIRDY WPs-r2 User manual

User Manual
BIRDY WPs-r2
Firmware: Version 1.0.1

Date : 27/07/2015
BIRDY WPs-r2
Ref : User manual
Version 1.0.1
Page
2/12
REVISIONS TABLE
Version
Date
Description
Modified parts
V1.0.0
29/04/2015
Creation
all
V1.0.1
21/07/2015
Addition clip fitting
Paragraph III
Software Version Management Process : Vx.y.z
z is incremented for minor modification such as grammar error, detail addition, format change, and as a general manner, are the draft versions prior to official versions
y is incremented for validated official versions
x is incremented for major modifications such as provision or feature addition

Date : 27/07/2015
BIRDY WPs-r2
Ref : User manual
Version 1.0.1
Page
3/12
Table of content
I. BIRDY WPs-R2 presentation....................................................................................................4
1. Mechanical presentation.................................................................................................4
2. Icons description.............................................................................................................4
3. Symbols description.......................................................................................................5
4. Menus description...........................................................................................................5
II. Important information ...............................................................................................................6
III. Clip fitting on the rear case of the pager...................................................................................7
IV. Using........................................................................................................................................8
1. Switching on BIRDY WPs ...............................................................................................8
2. Switching off BIRDY WPs...............................................................................................8
3. Reading a received message .........................................................................................8
4. Erasing all the messages................................................................................................8
5. Identities management....................................................................................................8
6. Time setting.....................................................................................................................9
7. Winter/summer time........................................................................................................9
8. Alarm setting...................................................................................................................9
9. Quiet period setting ........................................................................................................9
10. Low battery warning ....................................................................................................10
11. Choice of ring................................................................................................................10
12. Vibrate............................................................................................................................10
13. Zoom..............................................................................................................................10
14. Charger light..................................................................................................................11
15. Keyboard sound............................................................................................................11
16. Language.......................................................................................................................11
17. Technical menu.............................................................................................................11
18. User profile....................................................................................................................12

Date : 27/07/2015
BIRDY WPs-r2
Ref : User manual
Version 1.0.1
Page
4/12
I. BIRDY WPs-R2 presentation
1. Mechanical presentation
2. Icons description
Power-on indicator light
Alert message in memory
Active ringtone
Read alert message
Programmed alarm clock
Battery level

Date : 27/07/2015
BIRDY WPs-r2
Ref : User manual
Version 1.0.1
Page
5/12
3. Symbols description
According to the chosen menu, keys may have different meanings. That’s the reason why a
symbol is displayed above the keys on the screen in order to give the meaning of the keys.
4. Menus description
Menu
Description
Profile : profile selection
Technical menu : composed by 7 sub-menus among which :
Version : EEPROM and software versions indication
Battery level : battery tension level indication
Time / alarm clock setting : time and alarm clock setting
Ringtone selection : selection of the ringtone
Vibrator : selection of the vibrator functionning mode
Zoom : selection of the characters’ display size
Language : selection of the pager language
Keyboard : composed by 2 sub-menus
Keyboard locking : activation or inactivation of the keyboard locking
Keyboard sound : activation or inactivation of the keyboard sounds
Switch off : BIRDY WPs shut down
Symbol
Description

The key relates to the « validation » function

The key relates to the « cancellation » function

The key relates to the « sound testing » function
↑ ↓
Possible using of keys and 
< >
Possible using of keys and 

Date : 27/07/2015
BIRDY WPs-r2
Ref : User manual
Version 1.0.1
Page
6/12

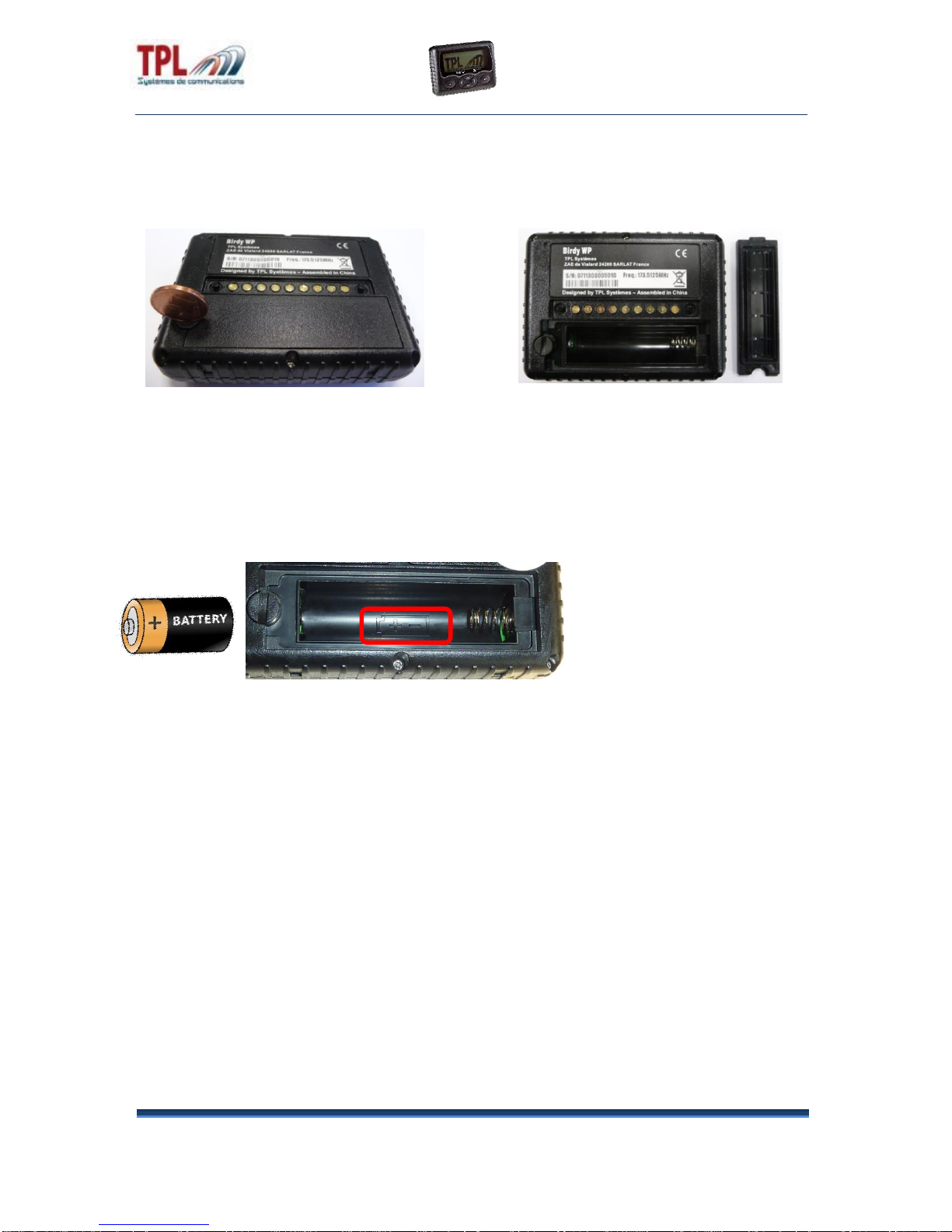

II. Important information
Open the Birdy WPs-R2 with a coin of 2 euros cents
Insert the battery in the indicated direction.

Date : 27/07/2015
BIRDY WPs-r2
Ref : User manual
Version 1.0.1
Page
7/12

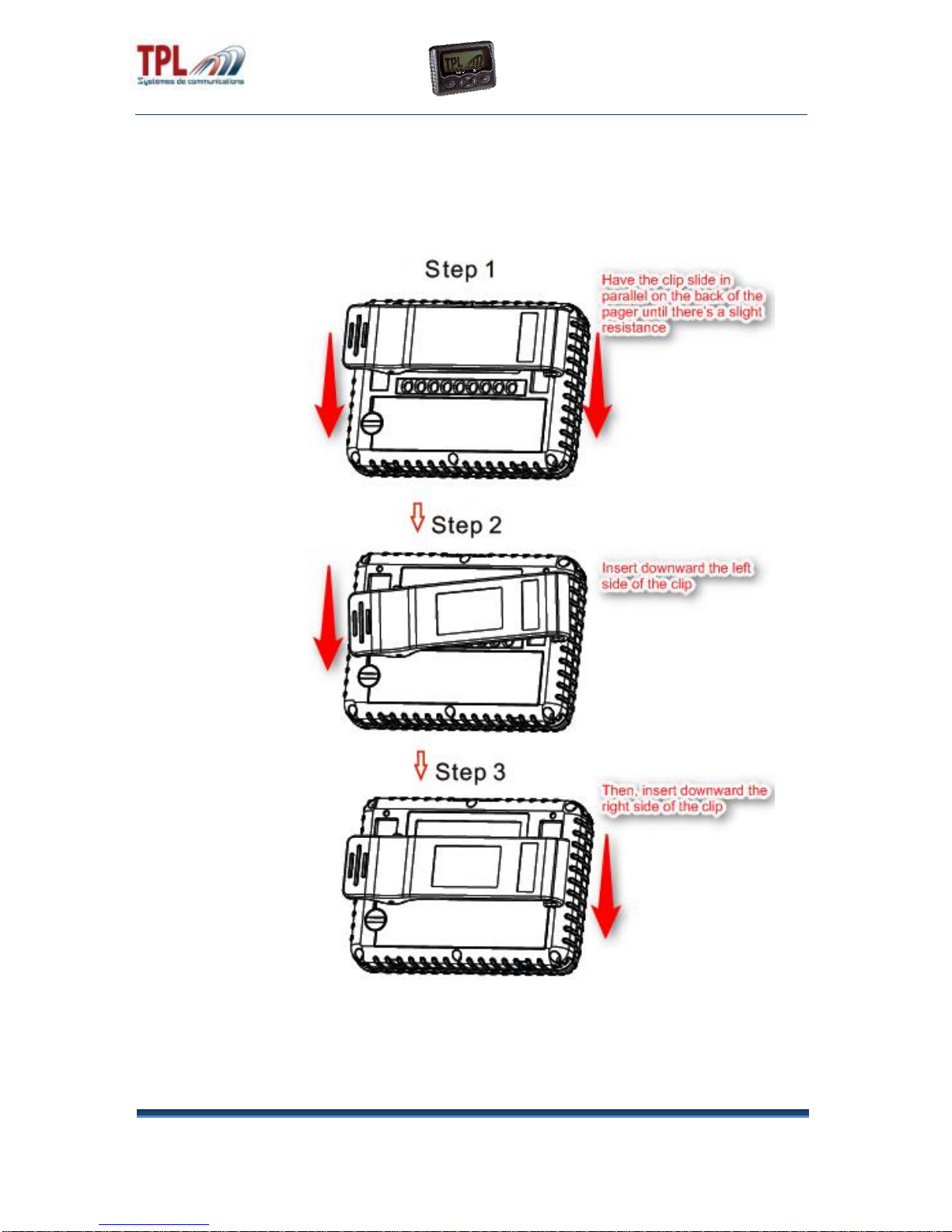

III. Clip fitting on the rear case of the pager

Date : 27/07/2015
BIRDY WPs-r2
Ref : User manual
Version 1.0.1
Page
8/12
IV. Using
1. Switching on BIRDY WPs
1. Press key during 5 seconds
2. Switching off BIRDY WPs
1. Press key
2. Go to SWITCH OFF menu thanks to the keys
3. Press key
4. Press key
3. Reading a received message
1. Press key
2. The first line displays the message number with date and time
3. The remaining part of the displayed text is the received message
4. If the text is long, press keys to scroll the message text
5. Key enables to save or erase the message
4. Erasing all the messages« »
1. Press key
2. Go to ERASE ALL menu thanks to keys
3. Press key
4. Press again to confirm
5. Identities management « »
1. Press key
2. Press key to go to TECHNICAL MENU
3. Press key
4. Press key to select identity
5. Press key to access to one identity
6. Press key or to change identity
7. Press key to confirm

Date : 27/07/2015
BIRDY WPs-r2
Ref : User manual
Version 1.0.1
Page
9/12
6. Time setting « »
1. Press key to access to the menu
2. Press key to go to the TIME SETTING menu
3. Press key to confirm menu
4. Press key or to set time
5. Press key to confirm
7. Winter/summer time « »
1. Press key to access menu
2. Press key to go to the CLOCK SETTING menu
3. Press key to go to SUMMER TIME or WINTER TIME
4. Press key to confirm menu
5. Press key to activate
8. Alarm setting« »
1. Press key to access menu
2. Press key to go to the CLOCK SETTING menu
3. Press key to go to ALARM SETTING
4. Press key to access menu
5. Press key or to set time
6. Press key to confirm
9. Quiet period setting « »
1. Press key to access menu
2. Press key to go to QUIET PERIOD
3. Press key to access menu
4. Press key or to set time
5. Press key to confirm

Date : 27/07/2015
BIRDY WPs-r2
Ref : User manual
Version 1.0.1
Page
10/12
10. Low battery warning « »
1. Press key to access menu
2. Press key to go to BATTERY WARNING
3. Press key to access menu
4. Press key or to set time
5. Press key to confirm
11. Choice of ring « »
1. Press key to access menu
2. Press key to go to the CHOICE OF RING menu
3. Press key to confirm
4. Press key to choose ring
5. Press key to listen to a ring tone
5. Press key to confirm
12. Vibrate « »
1. Press key to access menu
2. Press key to go to the VIBRATE menu
3. Press key to confirm
4. Press key to choose profile
5. Press key to confirm
13. Zoom « »
1. Press key to access menu
2. Press key to go to the ZOOM menu
3. Press key to confirm
4. Press key to choose
5. Press key to confirm

Date : 27/07/2015
BIRDY WPs-r2
Ref : User manual
Version 1.0.1
Page
11/12
14. Charger light « »
1. Press key to access menu
2. Press key to go to the CHARGER LIGHT menu
3. Press key to access menu
4. Press key to validate the option or to disable it
15. Keyboard sound« »
1. Press key to access menu
2. Press key to go to the KEYBOARD menu
3. Press key to confirm
4. Press key to go the KEYBOARD SOUND menu
5. Press key to confirm
16. Language « »
1. Press key to access menu
2. Press key to go to the LANGUAGE menu
3. Press key to confirm
4. Press key to choose language
5. Press key to confirm
17. Technical menu
Version « »
1. Press key to access menu
2. Press key to go to the technical menu
3. Press key to go the menu VERSION and check the version
LCD contrast « »
1. Press key to access menu
2. Press key to go to the technical menu
3. Press key to go to the LCD CONTRAST and check
4. Press key to manage contrast
5. Press key to confirm

Date : 27/07/2015
BIRDY WPs-r2
Ref : User manual
Version 1.0.1
Page
12/12
Serial number « »
1. Press key to access menu
2. Press key to go to the technical menu
3. Press key to go to the SERIAL NUMBER and check
Battery level « »
1. Press key to access menu
2. Press key to go to the technical menu
3. Press key to go to the BATTERY LEVEL and check
Autotest « »
1. Press key to access menu
2. Press key to go to the technical menu
3. Press key to go to the AUTOTEST
5. Press key to confirm
18. User profile « »
1. Press key to access menu
2. Press key to confirm PROFILE menu
2. Press keys to choose one profile
4. Press once more on to confirm the profile selection
