T+A R 1000 E User manual

Software Version V 1.0 Order No. 9103-0512 UK

USER MANUAL
E-SERIES
R 1000 E

2

3
Welcome.
We are delighted that you have decided to purchase a product. With your new R 1000 E you have acquired a top-
quality piece of equipment which has been designed and developed with the wishes of the audiophile music lover as
absolute top priority.
This system represents our very best efforts at designing practical electronic equipment incorporating solid quality, user-
friendly operation and a specification and performance which leaves nothing to be desired.
All these factors contribute to a piece of equipment which will satisfy your highest demands and your most searching
requirements for a period of many years. All the components we use meet the German and European safety norms and
standards which are currently valid. All the materials we use are subject to painstaking quality monitoring.
At all stages of production we avoid the use of substances which are environmentally unsound or potentially hazardous
to health, such as chlorine-based cleaning agents and CFCs.
We also aim to avoid the use of plastics in general, and PVC in particular, in the design of our products. Instead we rely
upon metals and other non-hazardous materials; metal components are ideal for recycling, and also provide effective
electrical screening.
Our robust all-metal cases exclude any possibility of external sources of interference affecting the quality of reproduction.
From the opposite point of view our products’ electro-magnetic radiation (electro-smog) is reduced to an absolute
minimum by the outstandingly effective screening provided by the metal case.
We would like to take this opportunity to thank you for the faith you have shown in our company by purchasing this pro-
duct, and wish you many hours of enjoyment and sheer listening pleasure with your R 1000 E.
elektroakustik GmbH & Co KG
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other
countries, used with permission. aptX is a trademark of Qualcomm Technologies International,
Ltd., registered in the United States and other countries, used with permission

4
About these instructions
All the controls and functions of the R 1000 E which are frequently used are described in the first section of these
operating instructions.
The second part 'Basic settings, Installation, Using the system for the first time' covers connections and settings
which are very seldom required; they are generally required only when the machine is set up and used for the first time.
Here you will also find a detailed description of the network settings required for connecting the R 1000 E to your home
network.
Symbols used in these instructions

Caution!
Text passages marked with this symbol contain important information which must be observed if the
machine is to operate safely and without problems.

This symbol marks text passages which provide supplementary notes and background information; they
are intended to help the user understand how to get the best out of the machine.
italic
Technical terms printed in italics are explained in detail at the end of the instructions.
Notes on software updates
Many features of the R 1000 E are software based. Updates and new features will be made available from time to time.
The update process takes only a few minutes. See the chapter entitled “Software update”for how to update your device
via the internet connection.
We recommend you to check for updates before using your R 1000 E for the first time. To keep your device up to date
you should check for updates from time to time.
IMPORTANT! CAUTION!
This product contains a laser diode of higher class than 1. To ensure continued safety, do not remove any covers or
attempt to gain access to the inside of the product.
Refer all servicing to qualified personnel.
The following caution labels appear on your device:
Rear Panel:
CLASS 1
LASER PRODUCT

All the components we use meet the European safety norms and standards which are currently valid. The ope-
ration instructions, the connection guidance and the safety notes are for your own good - please read them
carefully and observe them at all times.
This product complies with the Low Voltage Directive (2014/35/EU), EMV Directives (2014/30/EU) and the Eco Design
Directive (2009/125/EG).

5
Contents
Front panel controls...................................................................................................................8
Remote Control........................................................................................................................12
Basic settings of the R 1000 E ................................................................................................14

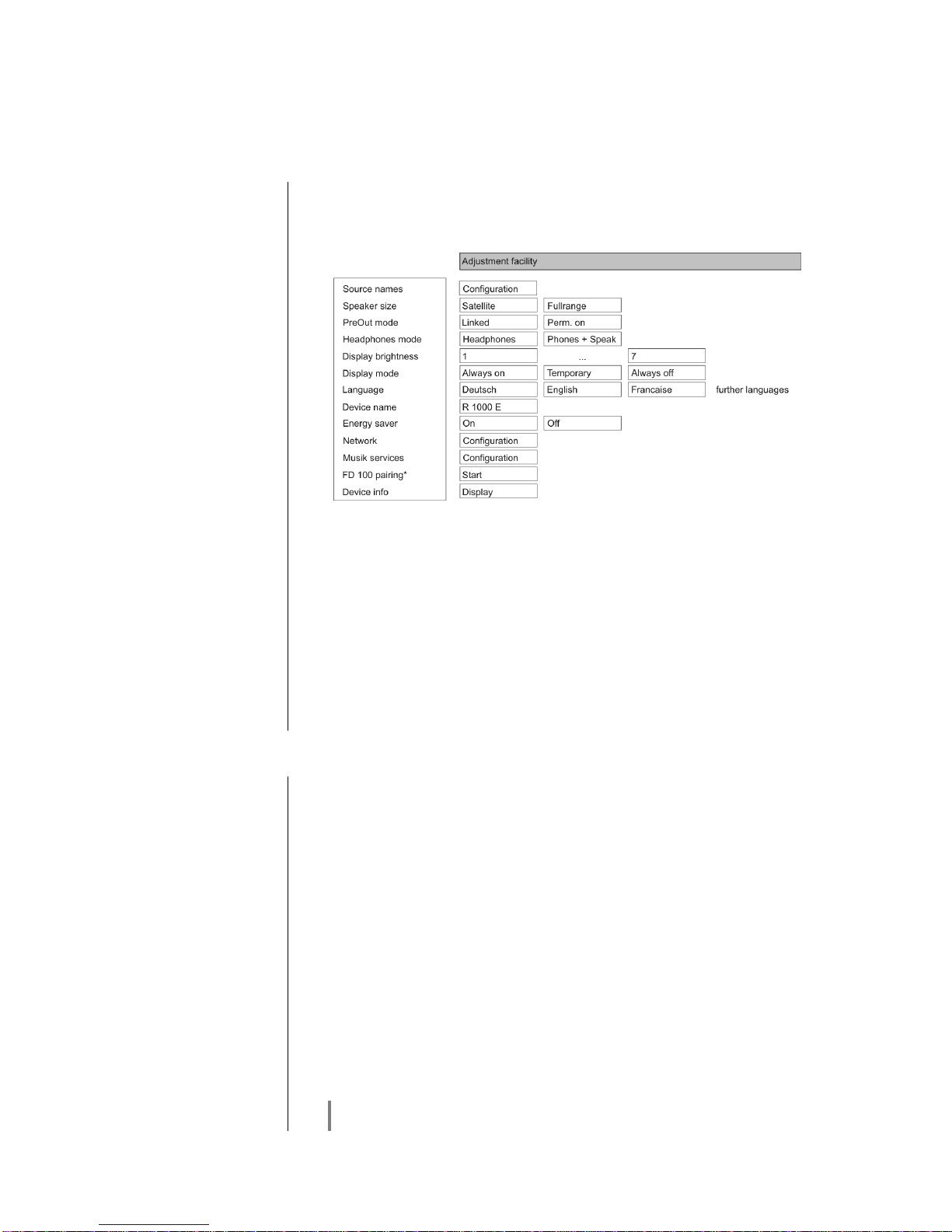

System Settings (System configuration menu) ...................................................................................14
Calling up and operating the menu....................................................................................................................14
Source names ...................................................................................................................................................14
Speakersize.......................................................................................................................................................15
PreOut mode.....................................................................................................................................................15
Headphone mode..............................................................................................................................................15
Display brightness .............................................................................................................................................15
Display mode.....................................................................................................................................................15
Language...........................................................................................................................................................16
Device name......................................................................................................................................................16
Energy saver .....................................................................................................................................................16
Network .............................................................................................................................................................16
Music services...................................................................................................................................................16
FD100 pairing....................................................................................................................................................17
Device Info.........................................................................................................................................................17
Tone control settings..............................................................................................................................18
Balance..............................................................................................................................................................18
Loudness...........................................................................................................................................................18
Tone Control......................................................................................................................................................18
Bass / Treble .....................................................................................................................................................19
Loudness Level..................................................................................................................................................19
D/A mode...........................................................................................................................................................19
Output................................................................................................................................................................19
Operating the sources in detail...............................................................................................20
Favourites lists........................................................................................................................................20
General information...........................................................................................................................................20
Calling up the Favourites list..............................................................................................................................20
Adding a favourite..............................................................................................................................................20
Erasing a favourite from the Favourites list........................................................................................................20
Selecting a favourite from the list.......................................................................................................................21
Directly selecting a favourite..............................................................................................................................21
Sorting Favourites lists ......................................................................................................................................21
Operating the radio.................................................................................................................................22
FM –Radio ...........................................................................................................................................................22
Selecting FM radio.............................................................................................................................................22
Display...............................................................................................................................................................22
Manual station search........................................................................................................................................22
Automatic station search ...................................................................................................................................23
Selecting a station from the Station list..............................................................................................................23
RDS functions....................................................................................................................................................23
Switching Radio Text on and off........................................................................................................................24
Mono / Stereo....................................................................................................................................................24
DAB - Radio..........................................................................................................................................................24
Selecting DAB radio...........................................................................................................................................24
Display...............................................................................................................................................................24
Automatic station search ...................................................................................................................................25
Selecting a station from the Station list..............................................................................................................25
RDS functions....................................................................................................................................................25
Internet-Radio ......................................................................................................................................................26
Selecting Internet Radio as source....................................................................................................................26
Selecting podcasts.............................................................................................................................................26
Playback............................................................................................................................................................26
Front panel display ............................................................................................................................................26
Search function..................................................................................................................................................27

6
Operating music services...................................................................................................................... 28
General information .......................................................................................................................................... 28
Selecting the music service .............................................................................................................................. 28
Playback........................................................................................................................................................... 28
Search function................................................................................................................................................. 29
Playlists and favourites..................................................................................................................................... 29
Operating the SCL source (Streaming Client)..................................................................................... 30
General information on the streaming client ..................................................................................................... 30
Selecting the SCL source ................................................................................................................................. 30
Playback........................................................................................................................................................... 30
Playback of directories...................................................................................................................................... 31
Search function................................................................................................................................................. 31
Playing USB memory media (USB Media source) .............................................................................. 32
General information .......................................................................................................................................... 32
Selecting USB Media as source........................................................................................................................ 32
Playback........................................................................................................................................................... 32
Playback of directories...................................................................................................................................... 33
Search function................................................................................................................................................. 33
Operating the CD player ........................................................................................................................ 34
Selecting CD as source .................................................................................................................................... 34
Inserting a CD................................................................................................................................................... 34
Playing a CD..................................................................................................................................................... 35
Variations.......................................................................................................................................................... 35
Track Select...................................................................................................................................................... 35
During playback................................................................................................................................................ 35
Fast Search....................................................................................................................................................... 35
CD Text............................................................................................................................................................. 35
Playback mode ................................................................................................................................................. 36
Repeat.............................................................................................................................................................. 36
Mix-mode.......................................................................................................................................................... 36
Playback Program............................................................................................................................................... 37
Creating a Playback Program........................................................................................................................... 37
Playing a playback program.............................................................................................................................. 37
Erasing a playback program ............................................................................................................................. 37
Operating the Bluetooth source ........................................................................................................... 38
Connecting the aerial........................................................................................................................................ 38
Selecting the Bluetooth Audio source............................................................................................................... 38
Setting up audio transfer................................................................................................................................... 38
Playback functions............................................................................................................................................ 39
Start and pause playback ................................................................................................................................. 39
Stop playback ................................................................................................................................................... 39
Skipping tracks.................................................................................................................................................. 39
Controlling the R 1000 E................................................................................................................................... 39
NOTES ............................................................................................................................................................. 39
The R 1000 E as D/A Converter............................................................................................................. 40
General Information on D/A Converter Operation............................................................................................. 40
D/A Converter Operation.................................................................................................................................... 40
Selecting a D/A Converter Source.................................................................................................................... 40
USB DAC operation in detail................................................................................................................. 41
System-requirements........................................................................................................................................ 41
Installing drivers................................................................................................................................................ 41
Settings............................................................................................................................................................. 41
Notes on software............................................................................................................................................. 41
Notes on operation............................................................................................................................................ 41
Notes on setting up........................................................................................................................................... 41
Installation, Using the system for the first time, Safety notes..............43
Back panel connections ..........................................................................................................44
Installation and wiring .............................................................................................................46
Loudspeaker and signal cables ........................................................................................................................ 47
Mains cables and mains filters.......................................................................................................................... 47

7
Care of the unit..................................................................................................................................................47
Changing the batteries.......................................................................................................................................47
Safety notes..............................................................................................................................48
Installation .........................................................................................................................................................48
Power supply.....................................................................................................................................................48
Mains leads / Mains plug ...................................................................................................................................48
Enclosure openings...........................................................................................................................................48
Supervision of device operation.........................................................................................................................48
Service, Damage...............................................................................................................................................48
Over voltage......................................................................................................................................................48
Approved usage.................................................................................................................................................49
Approval and conformity with EC directives.......................................................................................................49
Disposing of this product ...................................................................................................................................49
Network Configuration.............................................................................................................50
General Information...........................................................................................................................................50
Compatible hardware and UPnP servers...........................................................................................................50
Network settings menu......................................................................................................................................50
Opening the network settings menu ..................................................................................................................50
Operating the nenu, changing and storing IP addresses...................................................................................50
Closing the menu...............................................................................................................................................51
Interrupting the menu without storing the settings .............................................................................................51
The Configuration for a Wired Ethernet LAN or Power-Line LAN connection...............................................52
Setting the Parameters for a Wired Network .....................................................................................................52
The Configuration for a WLAN connection .......................................................................................................53
Setting the parameters for a wireless network...................................................................................................53
Searching for and Selecting the Network...........................................................................................................53
Entering the Password (for encoded networks).................................................................................................53
Storing Network Settings and Restarting...........................................................................................................53
FD 100 Radio Remote Control (optionally).............................................................................54
Connecting the aerial.........................................................................................................................................54
Pairing the FD 100.............................................................................................................................................54
Notes on Energy Saving..........................................................................................................55
General information...........................................................................................................................................55
Automatic power-down (Energy saver)..............................................................................................................55
Trouble shooting......................................................................................................................56
Glossary / Supplementary Information...................................................................................59
Network terminology................................................................................................................61
Software update.......................................................................................................................63
Appendix A...............................................................................................................................64
Wiring diagram........................................................................................................................................64
Wiring diagram........................................................................................................................................65
Appendix B...............................................................................................................................66
Specifications..........................................................................................................................................66

8
Front panel controls
All the important functions of the R 1000 E can be operated using the buttons on the front panel. Direct-acting buttons
are provided for fundamental functions such as source select, station change and track select. Functions not needed so
frequently are controlled using the menus which are called up using the / / button.
All information relating to the machine’s state, the current track and the associated transmitting station are displayed on
the integral screen. The following section explains the functions of the buttons on the machine, and the information
provided on the screen.

(On / Off switch)
A brief press on the button switches the unit on and off. When the
machine is switched on, the indicator light above the button glows.

Caution!
The mains button is not a mains isolation switch. Even when the LED is
not glowing, some parts of the machine are still connected to mains
voltage (Standby operation).
If you know you will not be using the machine for a long period, we
recommend that you disconnect it from the mains by withdrawing the
mains plugs from the wall socket.

(Headphones)
Socket for stereo headphones with an impedance of at least 32 Ω.

The use of headphones
Continuous listening to programme material via earphones or head-phones at
very high volume can result in permanent hearing loss. You can avoid
damaging your health by not listening via headphones or ear-phones at high
levels for long periods.

USB IN

Socket for a USB memory stick or an external hard disc.
The storage medium can be formatted with the FAT16, FAT32, NTFS, ext2,
ext3 or ext4 file system.

The USB storage medium can be powered via the USB socket provided that its
current drain meets the USB norm (< 500 mA). Normalised 2.5” USB hard discs
can be connected directly to this socket, i.e. they require no mains PSU.

CD drawer

The CD drawer is located below the display. Please insert the disc with the label
side facing upwards into the appropriate depression of the tray.


9



The drawer is opened and closed by pressing the button.



Selects the SCL function (e.g. access to music servers or similar) or the USB
DAC function (playback from a connected computer), or selects the USB Media
function (connected USB memory media) of the streaming client.
Press this button repeatedly until the desired source appears on the screen.

If you wish to select a USB memory medium connected to the USB IN socket
(front panel) or the USB HDD socket (back panel), then USB Media must be
set as source. To play back from a computer connected to the USB / DAC
socket, you must select USB DAC as source.



Selects the CD player or the Bluetooth function of the R 1000 E. Press this
button once or twice until the desired source appears on the screen.



Selects one of the following radio sources: FM / VHF (FM RADIO source), DAB
(DAB RADIO source) or Internetradio (Internetradio source). Press this button
repeatedly until the desired radio source is displayed on the screen.



A brief press on this button selects the analogue or the digital input you wish to
use. Press the button repeatedly until the desired input is displayed on the
screen.

If you wish to make the selection process easier, you can remove from the
select list those sources which are not used in your system. See chapter
‘System configuration menu / Source names’.

Source menu
Opens the setup menu for the source device just selected.


Not all sources have their own setup menu. For this reason the button does not
have a function with all sources.

System menu
Opens the ‘System configuration’ menu
(for details see Chapter ‘System settings’)

A Brief press: Opens the tone control settings menu
(for details see Chapter ‘Tone control settings’)
Navigation




Back to the previous point / change button


Confirms input / change button


Selects the next point within a list / select button


Selects the previous point within a list / select button

Confirm button

Ends playback
During menu navigation: a brief press takes you back (higher) by one menu
level or aborts the current input process; the change
is then abandoned.

10

Starts playback / halts playback (pause) / resumes playback after a pause

Brief press: Switches the display view from list navigation to the current
played music track.
Long press: Switches between different screen displays

Calls up the Favourites list
/ 
Brief press: Selects the previous / next track or piece during playback
(Depending on the selected source).
Long press: Fast forward / rewind: searches for a particular passage.
Tuner: Search



Fast forward / rewind is not for all sources possible.

Button for switching ON and OFF the loudspeaker output (Muting).
/ 
Increase / decrease volume
The volume can be increased / decreased in steps by tipping one of the volume
buttons. The current volume level is displayed on the display screen. If one of
the buttons is kept pressed for approx. 1 seconds the volume increases /
decreases continuously until the button is released.
The graphic screen of the R 1000 E displays all information regarding the status
of the machine, the music track currently being played and the radio station
currently tuned. The display is context-sensitive and varies according to the
capabilities and facilities of the service or medium to which you are currently
listening.
The most important information is highlighted on the screen in a context-
sensitive manner. Supplementary information is displayed above and below the
main text, or by means of symbols. The symbols used are listed and explained
in the table below.

The displays and symbols which appear on the screen vary according to the
currently active function.
The basic areas of the screen:
Display field (a) shows the currently active source.
Display field (b) shows information relating to the piece of music being
played. The essential information is displayed enlarged in the main line.
Display field (c) shows information relating to the device and playback.
The bottom line (d) displays supplementary context-sensitive information
(e.g. sampling frequency, elapsed time)

11

z.B.


The R 1000 E provides different screen displays for the Streaming Client (SCL),
the Disc player, Bluetooth, USB and the different radio sources.
Large-format display:
Enlarged display of the most important information, clearly legible even from a
distance
Detail display:
Small-text display showing a large number of additional information points, e.g.
bit-rate etc.
A long press on the button on the remote control handset is used to
switch between the display modes.
Screen symbols and their meaning
Making connection (Wait / Busy)
The rotating symbol indicates that the R 1000 E is currently processing a
command, or is attempting to connect to a service. These processes may take
some time to complete depending on the speed of your network and the load
upon it.
During such periods the R 1000 E may be muted, and may not respond to the
controls. Please wait until the symbol disappears, then try again.
Indicates a music track which can be played, or a playlist.
Indicates a folder which conceals further folders or lists.
Indicates that a source is being reproduced via a cable connection.
Indicates that a source is being reproduced via a radio connection.
Indicates that the R 1000 E is reproducing a station or playing back a music
track.
Pause indicator
128k
Data rate indicator (if available):
The higher the data rate, the better the quality of reproduction.
Display of the elapsed playback time.
This information is not available for all services.
0 / 0
Position indicator in select lists. The first number shows the current position in
the list, the second number the total number of list entries (length of list).
ABC or
Display of the symbol input modes
123 or
abc
Indicates the field strength of the radio signal.

12
Remote Control
General Information
All the R 1000 E’s mechanism control functions and auxiliary functions can be operated using the remote control
system. In general terms the remote control buttons have the same function as the corresponding buttons on
the R 1000 E’s front panel. The infra-red sensor for the remote control system is located in the display area of the
R 1000 E. There must be clear line-of-sight contact between the FM1000 handset and the screen. The following tables
show the remote control buttons and their general functions when operating the machine.

(red)
Switches the R 1000 E on and off
Direct source select buttons. If the integrated amplifier is
switched off, these buttons switch it on and simultaneously
select the corresponding source device.

Selects the SCL function (e.g. access to music servers or
similar) or the USB DAC function (playback from a connected
computer), or selects the USB Media function (connected
USB memory media) of the streaming client.
Press this button repeatedly until the desired source
appears on the screen.

R 1000 E’s CD function

A brief press on this button selects the analogue input you wish
to use. Press the button repeatedly until the desired input
is displayed on the screen.

A brief press on this button selects the digital input you wish to
use. Press the button repeatedly until the desired input is
displayed on the screen.

Selects FM, DAB, or Internet radio as source. Press this
button repeatedly until the desired source appears on the
screen.

Selects Bluetooth as source.


abc
...

xyz

Direct alpha-numeric input, e.g. track number, fast station
select, radio station.
The and buttons are also used for non-
standard characters.
During text input you can switch between numeric and alpha-
numeric input, and between capitals and lower case by
pressing the button.

(yellow)
Switches sound on and off (MUTING)
- +
(yellow)
Reduces / increases volume (volume control rocker)
Performs the same function as the corresponding buttons on
the R 1000 E’s front panel.

Tone settings
A brief press opens the tone control menu.
The menu points are called up using the / 
buttons, and can be changed using the / 
buttons.

Opens the setup menu for the source device just selected.
(Not all sources have their own Setup menu.)

Opens the ‘System configuration’ menu.
(for details see Chapter ‘Basic settings of the R1000E’)

13
Navigation



Returns to the previous point / change button



Confirms the input / change button



Selects the next point within a list / select button



Selects the previous point within a list / select button



Confirmation button during input procedures


Playback functions



Starts playback (Play function)
During playback: halts (Pause) or resumes playback



Stops playback.
Long press while disc is stopped opens and closes the disc drawer.
During menu navigation: a brief press takes you back (higher) by one menu level or aborts the
current input process; the change is then abandoned.



Selects the previous track during playback.



Selects the next track during playback.



Rewind to search for a particular passage.
FM Radio: Manual station search





Fast-forward to search for a particular passage.
FM Radio: Manual station search





Repeat functions (not possible with all media)
Brief press: Repeat Track, Repeat ALL, 'Normal'
Long press: Mix-Mode (Shuffle) ON / OFF
Brief button presses in MIX mode: Mix, Repeat Track, Repeat Mix





Adds a favourite to the Favourites list.
CD - player: Activates playback programming
Adds a track to the playback program during playback programming





Long press: Removes a favourite from the Favourites list.
CD - player: A Long press erases the playback program.





Button for switching between Stereo and Mono reception (only FM Radio)
The Stereo setting is constantly displayed in the screen window by a symbol.
The Mono setting is constantly displayed in the screen window by a symbol.





Switches between numeric and alpha-numericinput, andbetweencapitalsand lower case when pressed
(repeatedly)
Calls up the search function for SCL, USB-Media, Internetradio, Podcasts and Music services.
Activates the sort function within a Favourites list.





Displays the Favourites list created on the R 1000 E





Switches the display from the track list / station list navigation to the ‚Now Playing‘ view.
Switches the Radiotext / CD-text function ON/OFF.
A long press toggles between different screen displays.





Opens the D/A mode selection menu.


FD 100 bi-directional radio
remote control

The FD 100, a graphic radio remote control handset with integral colour screen,
is designed to make the R 1000 E even more convenient to operate, and is
available as part of the accessory range. (see chapter ‘FD 100 radio
remote control’)

Controling app

The R 1000 E can be controlled by the App 'TA Control' too.
For further information please visit our homepage www.ta-hifi.com/app

14
Basic settings of the R 1000 E
System Settings (System configuration menu)
In the System configuration menu general device settings are adjusted. This menu is described in detail in the following
chapter.
Calling up and operating the
menu
Briefly press the button on the front panel or on the remote control
handset to call up the menu.
When you open the menu, the following Select points appear on the screen:
* only visible with installed gateway module.
Use the / buttons to select a point in the menu.
If you wish to change a selected menu point, first press the button,
and then use the / buttons to alter it.
After making the change, press the button again to accept the
new setting.
You can press the button at any time to interrupt the process; the
change is then abandoned.
A brief press on the button also takes you back (higher) by one menu
level.
Press the button again to leave the menu.
Source names
menu item
At this menu item you can activate and disable external sources, and assign a
plain text name to each source; this name then appears in the screen displays.
When you call up this menu item using the button, a list of all the
external sources of the R 1000 E appears. Each source is followed by the
assigned name, or if you have disabled the source concerned the note
'disabled'.
If you want to activate / disable a source, or change the plain text name,
navigate to the appropriate line.
To activate a source, press the green button; pressing the red 
button disables the source.
To change the plain-text name, move to the appropriate line and press the
button. Now use the alpha-numeric keypad of the FM1000 to change
the name as required, then confirm your choice with ; this saves the
settings for that source.
The button is used to switch between numeric and alpha-numeric input,
and between capitals and lower-case letters. Letters can be erased by pressing
the button.
If you should wish to restore the factory default source name, erase the whole
name before saving the empty field with the button: this action resets the
display to the standard source names.

The only available method of entering the name is to use the alpha-
numeric keypad on the remote control handset.

15
Speaker size
menu item
Loudspeaker
Sets the size and bass response of the loudspeaker
SATELLITE
for very small loudspeakers (satellite speakers) with limited bass response.
The low-frequency bass signals (below 100 Hz) of the main channels are mixed
onto the subwoofer. If you are using SAT speakers a sub-woofer is a basic
necessity, otherwise bass response will be inadequate.
FULL-RANGE
for larger speakers.
The full, unrestricted range of frequencies is reproduced via the main channels.
If your system includes full-range speakers, no subwoofer is required. However,
under certain circumstances the use of a large, high-power subwoofer may still
be sensible in order to relieve the strain on the main loudspeakers during loud
passages, and passages with extreme low-frequency content.
PreOut mode
menu item
The preamp outputs (PreOut) can either switched ON and OFF together with
the speaker outputs or they can be set to be permanently ON.
The „permanent ON“ setting can be useful for example to supply audio signals
to an other room independently from the speaker state in the main room.
"Linked"
This setting enables the PreOut muting synchronously with the speaker outputs.
Switching ON/OFF all outputs is achieved by pressing the -button
(Mute).
"perm On"
This setting sets the PreOut outputs to be permantly switched ON.
Headphone mode
menu item
The R 1000 E detects headphones automatically.
In the “Headphones only”setting the loudspeaker output and pre-amplifier
output are automatically switched off when headphones are connected. If you
wish to be able to control these outputs separately, select the “Phones +
speakers”setting.
Display brightness
menu item
(screen brightness)
At this point you can adjust the brightness of the integral screen to suit your per-
sonal preference for normal use; seven levels are available.
Display mode
menu item
This menu item offers the choice between three different display operation
modes:
Always on
Temporary
Always off
Selecting 'Temporary' will switch the display is on for a short while each time
the R 1000 E is being operated. Shortly after operation the display will be
switched off again automatically.

The brightness of the display can be adjusted separately with the menu item
'Display Brightness' (see above).

16
Language
menu item
In this menu point you define the language to be used for the displays on the
screen of the front panel of the R 1000 E.
The language used for data transferred to the machine, e.g. from an iPod or
other Internet radio station, is determined by the supplying device or the radio
station; you cannot define the language on the R 1000 E..
Device name
menu item
This menu point can be used to assign an individual name to the R 1000 E. In a
home network the device then appears under this name.
Energy saver
menu item
The R 1000 E features two stand-by modes: ECO Standby with reduced stand-
by current drain, and Comfort Standby with additional functions, but slightly
higher current drain. You can select your preferred stand-by mode in this menu
point:
On (ECO standby):
Active functions in ECO standby mode:
Power-on at the device itself, or by remote control.
Automatic power-down after ninety minutes without signal (only possible
with certain sources).
Off (Comfort standby):
The following expanded functions are available:
Unit can be switched on using the app.
Can be switched on using the FD100 radio remote control handset
(the FD100 is an optional accessory)
The automatic power-down function is disabled in Comfort standby mode.
Network
menu item
All network settings can be carried out at this menu point. For a detailed
description on setting up a LAN or WLAN connection please also refer to the
section entitled “Network configuration”on page 48.
Music services
menu item
At this point you can enter the access data for the music streaming services
(TIDAL etc.) supported by the R 1000 E.
Calling up this menu point by pressing the button displays a list of the
supported music services.
Select the service you wish to use, then confirm your choice with the 
button.
Now use the alpha-numeric keypad of the FM1000 to enter the access data
which you have received from your service provider in the lines “User” and
“Passphrase”.
Use the button to switch between numeric and alpha-numeric input, and
between capitals and lower-case letters.
Press the button to erase any letter.
In each case confirm your input of user name and password by pressing the
button.
To conclude the procedure and save the data, select the menu entry “Store
and exit?” and confirm by pressing the button.

If access data for the selected music service has already been stored, the new
data will overwrite them. To use the new access data you must first perform a
“Logout” for the service in question, then switch the R 1000 E off and on again.

The music streaming services supported by the R 1000 E require a subscription
to the appropriate service provider.

17
FD100 pairing
menu item
The R 1000 E can be controlled remotely using the FD 100 bi-directional radio
remote control handset if a Gateway module is installed; this is available as an
optional extra.
When you call up this menu point, the R 1000 E attempts to create a connection
with the FD 100 radio remote control.

The menu item is only visible, if a gateway module is installed.
Menu item
Device Info
At this menu point you will find information on the status of the installed
software and the factory reset.
Sub-point
Update package
This point displays the currently installed software package.
Sub-point
Main
Display of the control software version
Sub-point
Client
Display of the Streaming Client software version
Sub-point
DAB / FM
Display of the tuner software version.
Sub-point
Decoder
Display of the CD mechanism decoder software
Sub-point
Bluetooth
Display of the Bluetooth module software
Sub-point
Update
At this point it is possible to initiate a firmware update. The update can be
accessed from a USB stick or an Internet connection.
Sub-point
Factory settings
Calling up and confirming this menu point erases all personal settings, and
restores the machine to the state as delivered (factory defaults).
Sub-point
USB-DSD playback
The USB DAC connection for playing back DSD files can be configured at this
menu point. If the setting is “off”, it is possible to play PCM-encoded files
exclusively.

18
Tone control settings
(Tone menu)
The R 1000 E features a range of facilities for fine-tuning the sound to suit your personal preference, the listening
environment and the particular recording currently being played. All the tone control settings are grouped in the TONE
menu.
Briefly press the button on the remote control handset to call up the
balance and tone control functions. This action brings up a set-up window which
displays the various adjustment options.
Use the / buttons to select an adjustment option.
The option displayed can now be changed using the / 
buttons.
If no action is taken for a period of a few seconds, the set-up window
disappears from the screen.
Balance
This menu item is used to alter the balance in level between the left and right
channels, e.g. to compensate for non-symmetrical loudspeaker positioning.

The balance can be adjusted in increments of 1,5 dB; the screen always
displays the current value.
The primary purpose of the Balance setting in the Tone menu is to compensate
for inadequacies in the audio mix of the recording currently being played.
Loudness

The R 1000 E is equipped with an automatic level-dependent volume control
system (LOUDNESS), designed to compensate for the frequency-dependent
sensitivity of the ear at very low volume, caused by the physiology of the human
auditory system.
This set-up option switches the level-dependent volume control on and off.
Tone Control
This menu point can be used to disable (by-pass) the R 1000 E`s tone controls.
To switch off the tone controls, select the “OFF” setting. When the tone controls
are switched off, any adjustments you make to the following menu points
“BASS” and “TREBLE” have no effect.

19
Bass / Treble
(Tone settings)
These two menu points can be used to alter the high-frequency (treble) and
low-frequency (bass) settings when required.

The primary purpose of the settings in the Tone menu is to compensate for
inadequacies in the audio mix of the recording currently being played.
If you wish to alter the fundamental tone settings for your loudspeakers, you
should make adjustments in the “Speaker size” menu item of the system
configuration menu.
Loudness Level

This menu point is used to adjust Loudness to suit the loudspeakers and the
listening room.

Dieser Menüpunkt erscheint nur bei eingeschalteter Loudnessfunktion.


The table below provides a starting point for setting the Loudness level
correctly. The Loudness level should be selected to suit the size of the listening
room and the efficiency of your loudspeakers. If the recommended setting is not
satisfactory, or you do not know the efficiency of the speakers, you can find the
appropriate value by carrying out listening tests. The setting is correct when the
sound image (bass and treble) is the same at low and high listening levels.


Roomsize
small
normal
big
Loudness
Level
high
< = 82
< = 84
82 –86
medium
83 –88
85 –90
87 –91
low
> = 89
> = 91
> = 92
Loudspeaker efficiency [dB / W –1m]
D/A mode
A number of special settings are available for the R 1000 E`s D/A converter;
they are designed to fine-tune the characteristics of your amplifier to suit your
listening preferences.
The R 1000 E can exploit two different filter types offering different tonal
characters:
LINEAR is the standard setting, which has an extremely linear frequency
response.
The IMPULSE setting delivers an improved impuls response with a minimal
reduced linearity.
Output

With particular instruments or voices the human ear is certainly capable of
detecting whether absolute phase is correct or not. However, absolute phase is
not always correctly recorded.
In this menu item the phase of the signal can be changed from normal to
inverse phase and back.

The correction is carried out at the digital level, and has absolutely no adverse
effect on sound quality.

20
Operating the sources in detail
Favourites lists
General information
The R 1000 E includes the facility to create Favourites lists. The purpose of
these lists is to store radio stations and podcasts, so that they can be accessed
swiftly.
Each of the sources FM radio,DAB radio, and Internetradio (incl. podcasts)
features its own Favourites list.
Once stored, the favourites can either be selected from the Favourites list, or
called up directly by entering the program location number. The option of
selecting using the location number is particularly useful when you wish to call
up favourites when the screen is not in view (e.g. from an adjacent room) or
using a house control system.

Favourites lists for the various music services (TIDAL etc.) are not supported.
Instead it is usually possible to add Favourites and Playlists on-line via the
provider’s account. These can then be called up and played via the R 1000 E.
Calling up the Favourites list
The first step is to switch to one of the sources listed above.
Press the button to call up the Favourites list.
a) Here the program location number is displayed within the list. Since it is
possible to erase individual list items, the numbering may not be continuous.
b) The selected list entry is displayed in enlarged form.
c) Position display in the Favourites list.
Adding a favourite

If you especially enjoy the piece of music or radio station to which you are
currently listening, simply press the green button on the FM1000; this
action stores the station in the corresponding Favourites list.

Each Favourites lists features 99 program locations.
Favourites lists can only be used to store the piece of music and station which
is currently playing.
Erasing a favourite from the
Favourites list
Open the Favourites list by pressing the button. Use the /
buttons to select the station in the list which you wish to erase, then
hold the red button pressed in; this action removes the item from the
Favourites list.

Erasing a Favourite does not cause the following Favourites to move up the list.
The station position is no longer displayed after erasure, but a new Favourite
can still be assigned to it.
