Tradedor TD77DM & TD77SEL Installation Guide
TD77DM & TD77SEL
Installation Guide

Tradedor TD77DM & TD77SEL Installation Guide
Finished door
1
Installation Guide

Tradedor TD77DM & TD77SEL Installation Guide
Equipment Required
• 2 x Step ladders or hop ups
• Spirit level
• Tape measure
• Power drill
• 10mm A/F Spanner
• 2 x Pozi-screwdrivers
• 7mm Metal drill bit
• 10mm Metal drill bit
• 7mm Masonry drill bit
• Hacksaw
• Small electrical screwdriver
• 4mm A/F Allen key
Tradedor Component Checklist
• Door Curtain.
• Barrel Assembly (Barrel, Tube End,
Security Springs, Security Collars).
• Head Plate with Motor Attached.
• Head Plate with Safety Break Attached.
• One Pair of Guide Runners.
• Control System with Two Remote Fobs.
• Fixings Kit (Qty 10: 5 x 50 screws 7mm brown rawl
plugs, plastic caps and Qty 1 plastic adjustment wand).
Please note: xings supplied work on the majority of
materials but if you know that you require specialised
xing please replace with these.
Door Overview
Please check all components for
any visible damage, if there is
any please contact your supplier.
1 Head Plate
2 Guides
3 Full Box
4 Tube End
5 Barrel
6 Security Straps
7 Curtain
8 Motor
9 Motor Plate
10 Guide Rail
11 Plastics Caps
12 End Lock
13 Base Rail
14 Safety Break
15 Remote Control Fob
16 Switches (if any)
10 11 12 13 7 16 15
1 14 2 3 4 5 6 7 8 9 1
Diagram 1
2
Checklist & Components

Tradedor TD77DM & TD77SEL Installation Guide
IMPORTANT SAFETY
INSTRUCTIONS
The RD77 Econ must be installed
and operated in accordance with the
instructions supplied; failure to do so
could result in damage to your door
and compromise your safety.
WARNING AND GUIDANCE NOTES
1 At least TWO people are required to install this product.
2 Prior to installing please remove all rings, watches and
sharp objects to avoid any possibility of damage.
3 Prior to installing please remove any items of loose
clothing to avoid any risk of entanglement or injury.
4 Your door comes complete with a 3 pin plug as standard
(this is supplied and must be tted with a 13amp fuse)
which should be plugged straight into a 13amp 3 pin
switched socket in the vicinity of your door, should you
need any extra electrical work. This must be carried out
by a suitably qualied person, if you have any doubts
please consult an electrician.
5 Your receiver box should be installed in a location that is
at a comfortable height to operate the push buttons, but
out of the easy reach of children.
6 Please do not allow children to operate the push buttons or
remote control fobs, as serious injury can occur from misuse.
7 Warning: you must have a clear line of sight of the whole
of your roller garage door when the door is in operation.
Failure to do so may result in harm to persons or damage
to your roller garage door.
These tting instructions are for guidance only, you should always assess your garage construction
for installation as each garage & opening has its own specic needs. Please read these instructions
carefully and in full before commencing the installation of the roller garage door.
3
Warning & Guidance

Tradedor TD77DM & TD77SEL Installation Guide
1 Check all the measurements of your new garage
door against your order conrmation and double
check your opening size to make sure everything
is correct (g.1.1) & (g.1.2).
2 Carefully remove your old garage door and
frame if applicable.
3 Sweep down the sides and lintel with a stiff
brush and clear all debris.
4 Make sure the opening is free from any
raised metal or brick work.
g.1.1
g.1.2
4
1. Preparing Site For Installation

Tradedor TD77DM & TD77SEL Installation Guide
g.2.1
g.2.2
g.2.3
1 On unpacking your door you will see that
the barrel has the motor in 1 end (fig.2.1)
and the adjustable bung end the other
(fig.2.2).
2 If your header plates are separate from the
casing please drill though the ‘L’ shaped front
case and the flange on the header plate at
each end, then secure ‘L’ shaped front case to
the ange with at least 4 rivets (2 per face)
(g.2.3).
3 If your header is already assembled please
remove any screws from each end and keep
safe for later, then lift the back case up so it
can be removed to expose the curtain inside
the case, place the back case safely out of
the way then remove curtain from header
assembly and keep safe for later.
4 Remove screws from header plate (g.2.4).
5 Remove the 2 screws from safety brake to
remove holding plate and loosen screw at
the end of adjustable bung end to allow it
to slide. Check the position of the safety
brake to make sure that the big silver allen
key bolt is running parallel to the shortest
edge near the inlet wheel as in (g 2.5).
6 (For Internal Manual Override system)
remove winding stem from your winding
handle where it has been taped securely.
7 (For External Manual Override system)
remove metal shaft via the plastic circlet
(pg 38, g.15.1, number 4).
8 Remove screw from end of stem and keep
safe for later.
5
2. Header Assembly Construction

Tradedor TD77DM & TD77SEL Installation Guide
g.2.4
g.2.5
g.2.7
g.2.6
g.2.8
9 Insert barrel assembly into casing, take the
winding stem and insert into head of motor,
turn until both the square bung shaft and the
square head of the motor line up for easy tment
into the safety brake and holder, make sure the
wire is facing towards the casing (downwards
so when installed into place later the wire
comes out of the top of the motor) (fig.2.6),
remove winding stem and keep safe for later
then ret screws to hold motor plate in place.
10 (g.2.7): Extend adjustable bung so it locates
all the way into safety brake until the groove
lines up so you can replace the plate and ret
the screws, slide the locking collar all the way
up to the bung and tighten into place (we advise
using a thread lock adhesive to hold in place).
The cable coming from the brake is a 2 core
wire which needs to be connected to the 2 core
extension wire via connection blocks as follows;
Red / Brown to Brown and Green / Blue to Blue.
11 Drill a hole through the ange of the header
plate so as to line up with the hole in the motor
(g.2.8) then reinsert the winding stem back into
the motor and secure in place with the screw.
12 There are cable glands at both ends which
can be removed and placed in a better position
if required.
6

Tradedor TD77DM & TD77SEL Installation Guide
1 Both guide runners will be marked
with the letter ‘F’ to indicate the front.
This has the at face when looking in
the rear box section of the guide runner
(g.3.1). It will t against the wall for a
behind xing or face out of the garage
for a between xing.
2 Measure from oor to lintel and refer to
diagram 2, checking the lintel is level.
Your guide runner will be oversized, make
sure you cut the guide runners to size
as needed using a hack saw, for best
results cut the end which will be the
bottom (g.3.2).
3 Offer both cut guide runners up against
the walls they will be xed to and mark
the xing points, either on the at face
for a behind fixing (fig.3.3) or for a
between xing in the opening (g.3.4).
For best results these should be as
follows;
A Top xing between 50mm to
100mm down from the top of
the guide rail.
B Bottom xing 50mm to 100mm
up from the oor.
C Marking at least one other xing,
spread these evenly between the
two already marked points on the
guide runners so that you have
a secure xing.
D Drill a 7mm hole all the way
through each of the marks on
the guide runners and then drill
a 10mm hole to countersink
through the rst layer only so you
can get the screw head through.
g.3.1 - Please be aware that guide rails may vary in prole from picture
g.3.2
g.3.4
g.3.3
Front Face
7
3. Preparing Guide Runners
For Installation

Tradedor TD77DM & TD77SEL Installation Guide
LINTEL
ROOF OR
JOISTS
GUIDE
RUNNER GUIDE
RUNNER GUIDE
RUNNER
TOP
ROLL
TOP
ROLL
TOP
ROLL
LINTEL LINTEL
ROOF OR
JOISTS
Behind lintel fixing’ 3Limited opening fixing 2Below lintel fixing 1
300
MM
< >
300
MM
< >
300
MM
< >
ROOF OR
JOISTS
123
Fixing Options
Below Lintel Fixing:
Cut guide runners to measured height less 310 mm.
Limited Opening Fixing:
Measure from oor to highest point, deduct 310 mm and cut guide runners to size.
Behind Lintel Fixing:
Cut guide runners to measured height.
Diagram 2
8

Tradedor TD77DM & TD77SEL Installation Guide
1 Place your hop ups / step ladders and one
guide runner each side of the opening.
2 With one person each end, lift the header
assembly by the header plate up and
into place, then guide the locating stem
at each end into the hollow section of
guide runners (this can be made easier by
slightly angling the header if there is not
enough room to simply drop the locating
stem in) (g.4.1).
3 Lift the whole unit ush into place and check
that the top box and guide runners are
plumb level and square (g.4.2 & g.4.3).
4 Drill a 7mm xing through the top hole
in the guide runners and secure into
place (g.4.4).
5 Check the case and guide runners are still
level and square, then proceed to drill
a 7mm xing through the remaining holes,
remembering to check the guide runners
are square and plumb after each xing.
6 Once the guide runners are xed you will
need to secure the top box. This is best
done through the end anges of the header
plate, either forward or sideways through
the header plate itself if a between xing
(g.4.5).
7 Check to make sure all xings have not
caused the front fascia to be pulled in,
as this will rub against the slats causing
damage and scratching to the face.
8 Seal down the sides and along the top
case (silicon sealant is recommended).
g.4.1
g.4.3
g.4.5
g.4.2
g.4.4
9
4. Installing Header Assembly

Tradedor TD77DM & TD77SEL Installation Guide
Finished door from inside
10

Tradedor TD77DM & TD77SEL Installation Guide

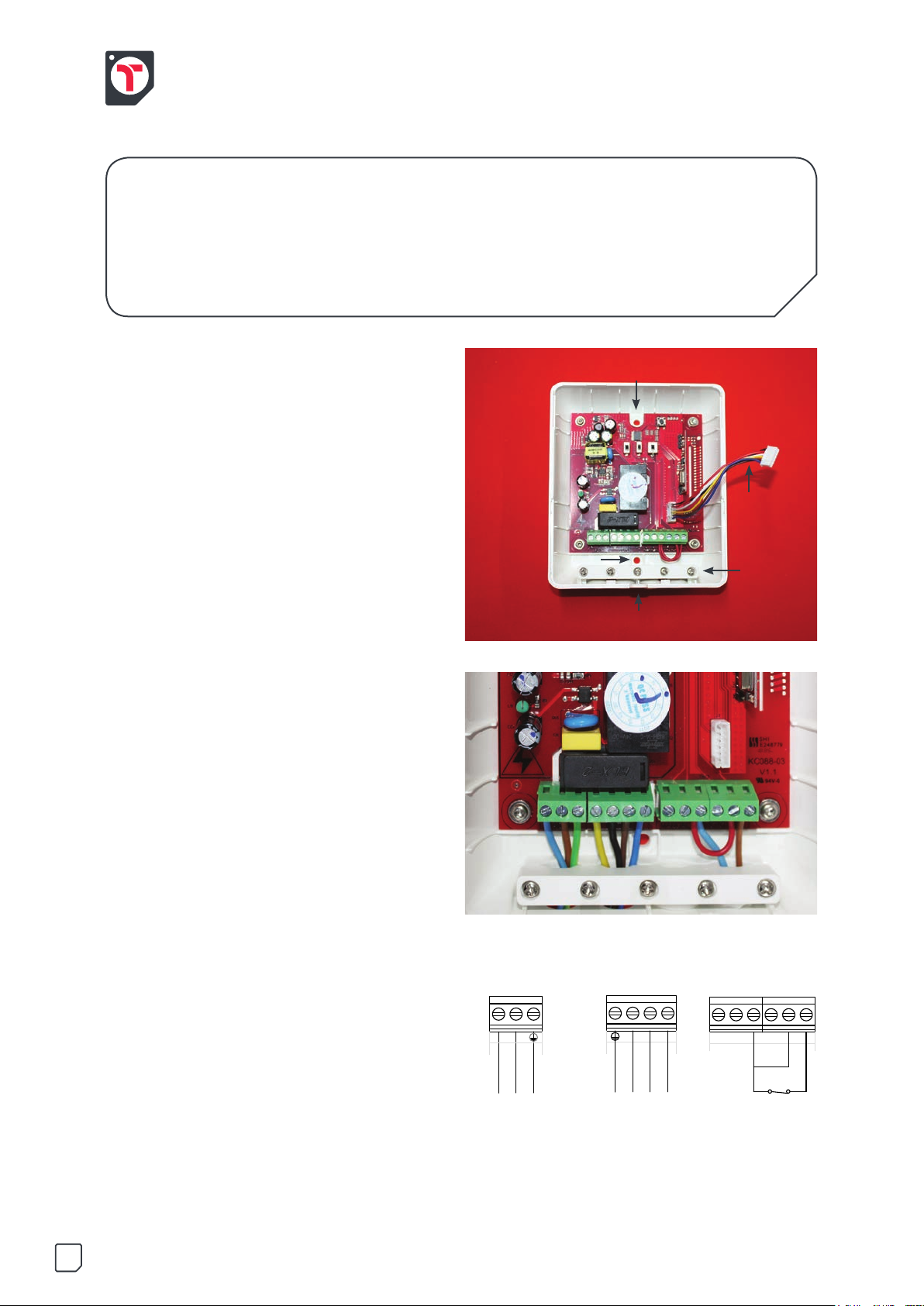

1 Carefully remove the cover by sliding
it upwards from the enclosure, there is
a membrane ribbon from the buttons
on the box to the internal pcb board,
please remove this from the pcb
board by pulling carefully upwards.
2 Drill a 5mm hole in the wall roughly
the centre of where you would like
to x the receiver box, then using the
supplied xings insert one of the 6mm
wall plugs into the hole and screw
one of the screws into this leaving
approximately 10mm of screw head
and thread showing.
3 Slide the rear of the receiver box at
against the wall and over the screw
to hold in place and make sure it is
level and square while you mark the
remaining two xings located at the
bottom of the receiver box.
4 Remove receiver box from wall and drill
5mm holes into these two marks then
place the remaining 6mm wall plugs
into the holes.
5 Slide the receiver box back over the
top screw and using xing provided
secure the bottom two lugs in place.
6 Remove the green 4 terminal motor
connector from the board (fig.5.1)
and you will see the letters on the
board underneath.
7 Run the two core cable from the
safety brake end across to the same
end as the receiver box, making
sure to securely x the cable out of
the way of the working mechanism
(usually on top of the top box).
g.5.1
8 Remove the green 4 terminal connector
from the board on left of motor connector
(g.5.1) you will see letters and symbols
underneath, please remove link wire.
9 Wiring as follows;
Pre wired Mains Power:
N– Neutral / Blue power cable
L– Live / Brown power cable
E– Earth / Green/Yellow power cable
Motor:
E- Green / Yellow motor cable
N- Blue motor cable (4 core)
L- Brown motor cable (4 core)
L- Black motor cable (core)
Safety Brake:
GND – Blue wire from safety brake cable
- Brown safety brake cable
11
5. Installing Reciever Box
(HOLD TO RUN) - TYPE 1

Tradedor TD77DM & TD77SEL Installation Guide
Direction Of Rotation (HOLD TO RUN)
1 Press and hold the right ( ) button on the handset and the door should start moving in the downward direction.
Should the barrel be turning in the upwards direction press the stop button ( ).
2 Swap the black and brown motor wires round in the green motor connection block.
3 Re-attach the membrane ribbon to the pcb board on to the 4 pins on the top right (g.6.2).
4 Press and hold the down button and the door should start to close. Should the barrel be turning in the upwards
direction press the stop button. Reverse the membrane ribbon on the pins.
5 Press and release the down button ( ). If the door closes, press the stop button and in the top left corner is a bank
of 5 dip switches (g 5.2) ick the second from top dip switch to the right. You should now have to press and hold
the down button for the door to close.
1 Slide the black cover down on the remote control handset
and you will reveal four buttons (g 6.1).
2 Press and hold the left button ( ), then press and hold
the right button ( ) if the door moves then the handset
is already programmed in, please repeat with all other
handsets if they are all programmed please proceed to
'Direction of rotation Section', if not then carry on to step 3.
3 With the handset in hand, located the red learn button
on the top right hand side of the board next to the digital
display (g.6.2) and press and hold till the digital display
comes up S.T.U then release.
4 Press and release the top button on the handset twice.
5 The S.T.U display will ash quickly to indicate success.
6 Repeat for all handsets.
g.6.1
g.6.2
Deleting Remote Control Handset’s Memory
1 Located the red learn button on the top right hand side of the board next to the digital display (g.6.2)
and press and old till the digital display comes up D.E.L then release.
2 Press and release the red learn button again and the D.E.L display should ash.
3 All handsets should now be deleted please test handset to see if this has worked.
12
6. Programming Remote Control
Handsets (HOLD TO RUN) - TYPE 1

Tradedor TD77DM & TD77SEL Installation Guide
13
Pre wired Mains Power:
N– Neutral / Blue power cable
L – Live / Brown power cable
Earth – Earth power cable
Motor:
L– Brown motor cable (4 core)
R– Black motor cable (4 core)
Earth – Earth connection motor cable (4 core)
N– Blue motor cable (4 core)
Safety Brake:
Remove red link wire from Gand S, wire 2
core cable as follows;
G– Blue safety break cable (2 core)
S– Brown safety break cable (2 core)
SPECIAL ATTENTION: red link wire
from Gto UMUST STAY IN
g.5.1
g.5.2
g.5.3
B
B
D
C
A
SAFETY BREAK
CONNECTION
Connect safety brake
where shown
Safety Break (N/C) Switch
Connection
230v TUBE MO-
TOR CONNECTION
Connect tube motor
where shown
Note: This connection will
supply 230v AC and is
specically for tube motor
operation
Tube Motor 230v AC 50Hz
Mains Supply
230v AC 50Hz
Stop
Gn/Yl
Brown
Blue
Mains Supply Connection
AC IN
N L
Connect mains
power supply
where shown
Recommended
Power Supply
Protection:-
13A fused Spur or
Single Pole
connected
protected by MCB
Type 'A'
Ext Key-Switch Connection
Close Open Com
Ext Push Button Connection
Open
Close
L
R
N
Motor Direction
Motor Earth
Motor Common
Motor Direction
Terminal Connections
U D G VU S
MANUAL PHOTOCELL
24v dc
Reflective
Photocell
0v
U D G V U S
MANUAL PHOTOCELL
24v DC Photocell Connection
+24v
N/C
com
UD G VUS
MANUA PHOTOCELL
N
LMains Power 230v AC (Live)
Mains Power 230v AC (Neutral)
Mains Power (Earth)
UExternal connection - Open
D External connection - Close
V +24v dc
G 0V / Switch Common / Photocell Common
Photocell connection - N/C contact
External connection - Stop
Mains Supply
Motor
Manual
Photocell
Basic Remote Control Operation
UDGVUS
MANUAL PHOTOCELL
External
Push Button
Connection
Safety Brake Connection
U D GVU S
MANUAL PHOTOCELL
Safety Brake
(N/C) Switch
Connection
MOTOR
L R N
230v Tube Motor Connection
Gn/Yl
Black
Brown
Blue
Connect tube
motor where
shown
Note:
This connection
will supply 230v
AC and is
specifically
for tube motor
operation
Tube Motor
230v AC 50Hz
MOTOR
L R
Volt free Switching Connection
N
Connection to
provide a 'volt
free' switching
operation
Com Close
Open
To add an additional external
push button station
Connect where shown leaving link
fitted between G + U
To add an additional external
key-switch
Connect where shown leaving link
fitted between G + U + S
To add an additional photocell for
safety
Connect where shown leaving
links fitted between G + S
Activating the photocell will stop
and re-open a closing door
External
Key switch
Connection
Date
Drawn by
Chk'd by
Drg #
Title
Ellard House
Floats Road
Roundthorn Industrial Estate
Wythenshawe, Manchester
M23 9WB
Tel: [phone]
Fax: [phone]
This drawing is the property of ELLARD LTD, it may not be reproduced without the written authorisation of Ellard Ltimited. All interlecual property rights are expressly reserved Revision / Notes:
04/07/2018
D. England
J. Monks
This is a special connection that
does not provide a voltage output
The unit must be factory modified
to give this function and will be
marked 'Volt Free' as such
For Basic remote Control
Operation
Leave links fitted between
G + U + S
Connect safety brake where
shown
Leave link fitted between
U + S
Connection Detail For
ATHENA 2nd GEN
(White Enclosure/White Transmitter)
elec-ATHENA2-001A
Com
MAINS SUPPLY
CONNECTION
Connect mains power supply
where shown
Recommended Power Supply
Protection:- 13A fused Spur
or Single Pole connected
protected by MCB Type 'A'
Mains Supply 230v AC
50Hz
Mains Supply
230v AC 50Hz
Stop
Gn/Yl
Brown
Blue
Mains Supply Connection
AC IN
N L
Connect mains
power supply
where shown
Recommended
Power Supply
Protection:-
13A fused Spur or
Single Pole
connected
protected by MCB
Type 'A'
Ext Key-Switch Connection
Close Open Com
Ext Push Button Connection
Open
Close
L
R
N
Motor Direction
Motor Earth
Motor Common
Motor Direction
Terminal Connections
U D G VU S
MANUAL PHOTOCELL
24v dc
Reflective
Photocell
0v
U D G V U S
MANUAL PHOTOCELL
24v DC Photocell Connection
+24v
N/C
com
UD G VUS
MANUA PHOTOCELL
N
LMains Power 230v AC (Live)
Mains Power 230v AC (Neutral)
Mains Power (Earth)
UExternal connection - Open
D External connection - Close
V +24v dc
G 0V / Switch Common / Photocell Common
Photocell connection - N/C contact
External connection - Stop
Mains Supply
Motor
Manual
Photocell
Basic Remote Control Operation
UDGVUS
MANUAL PHOTOCELL
External
Push Button
Connection
Safety Brake Connection
U D GVU S
MANUAL PHOTOCELL
Safety Brake
(N/C) Switch
Connection
MOTOR
L R N
230v Tube Motor Connection
Gn/Yl
Black
Brown
Blue
Connect tube
motor where
shown
Note:
This connection
will supply 230v
AC and is
specifically
for tube motor
operation
Tube Motor
230v AC 50Hz
MOTOR
L R
Volt free Switching Connection
N
Connection to
provide a 'volt
free' switching
operation
Com Close
Open
To add an additional external
push button station
Connect where shown leaving link
fitted between G + U
To add an additional external
key-switch
Connect where shown leaving link
fitted between G + U + S
To add an additional photocell for
safety
Connect where shown leaving
links fitted between G + S
Activating the photocell will stop
and re-open a closing door
External
Key switch
Connection
Date
Drawn by
Chk'd by
Drg #
Title
Ellard House
Floats Road
Roundthorn Industrial Estate
Wythenshawe, Manchester
M23 9WB
Tel: [phone]
Fax: [phone]
This drawing is the property of ELLARD LTD, it may not be reproduced without the written authorisation of Ellard Ltimited. All interlecual property rights are expressly reserved Revision / Notes:
04/07/2018
D. England
J. Monks
This is a special connection that
does not provide a voltage output
The unit must be factory modified
to give this function and will be
marked 'Volt Free' as such
For Basic remote Control
Operation
Leave links fitted between
G + U + S
Connect safety brake where
shown
Leave link fitted between
U + S
Connection Detail For
ATHENA 2nd GEN
(White Enclosure/White Transmitter)
elec-ATHENA2-001A
Com
Mains Supply
230v AC 50Hz
Stop
Gn/Yl
Brown
Blue
Mains Supply Connection
AC IN
N L
Connect mains
power supply
where shown
Recommended
Power Supply
Protection:-
13A fused Spur or
Single Pole
connected
protected by MCB
Type 'A'
Ext Key-Switch Connection
Close Open Com
Ext Push Button Connection
Open
Close
L
R
N
Motor Direction
Motor Earth
Motor Common
Motor Direction
Terminal Connections
U D G VU S
MANUAL PHOTOCELL
24v dc
Reflective
Photocell
0v
U D G V U S
MANUAL PHOTOCELL
24v DC Photocell Connection
+24v
N/C
com
UD G VUS
MANUA PHOTOCELL
N
LMains Power 230v AC (Live)
Mains Power 230v AC (Neutral)
Mains Power (Earth)
UExternal connection - Open
D External connection - Close
V +24v dc
G 0V / Switch Common / Photocell Common
Photocell connection - N/C contact
External connection - Stop
Mains Supply
Motor
Manual
Photocell
Basic Remote Control Operation
UDGVUS
MANUAL PHOTOCELL
External
Push Button
Connection
Safety Brake Connection
U D GVU S
MANUAL PHOTOCELL
Safety Brake
(N/C) Switch
Connection
MOTOR
L R N
230v Tube Motor Connection
Gn/Yl
Black
Brown
Blue
Connect tube
motor where
shown
Note:
This connection
will supply 230v
AC and is
specifically
for tube motor
operation
Tube Motor
230v AC 50Hz
MOTOR
L R
Volt free Switching Connection
N
Connection to
provide a 'volt
free' switching
operation
Com Close
Open
To add an additional external
push button station
Connect where shown leaving link
fitted between G + U
To add an additional external
key-switch
Connect where shown leaving link
fitted between G + U + S
To add an additional photocell for
safety
Connect where shown leaving
links fitted between G + S
Activating the photocell will stop
and re-open a closing door
External
Key switch
Connection
Date
Drawn by
Chk'd by
Drg #
Title
Ellard House
Floats Road
Roundthorn Industrial Estate
Wythenshawe, Manchester
M23 9WB
Tel: [phone]
Fax: [phone]
This drawing is the property of ELLARD LTD, it may not be reproduced without the written authorisation of Ellard Ltimited. All interlecual property rights are expressly reserved Revision / Notes:
04/07/2018
D. England
J. Monks
This is a special connection that
does not provide a voltage output
The unit must be factory modified
to give this function and will be
marked 'Volt Free' as such
For Basic remote Control
Operation
Leave links fitted between
G + U + S
Connect safety brake where
shown
Leave link fitted between
U + S
Connection Detail For
ATHENA 2nd GEN
(White Enclosure/White Transmitter)
elec-ATHENA2-001A
Com
1 Remove the lid of the receiver box by unscrewing
small screw at bottom (g 5.1 A) and then sliding
the lid up, being careful to remove plug-in cable
from board (g 5.1 C).
2 Place the Receiver box on the wall with the
cable pointing downwards at a comfortable
height to operate the push buttons, but out of
the easy reach of children. Between 1500mm
up from the oor and 300mm down from the
roof/ceiling is recommended.
3 Making sure the box is square, mark the two
xings (one top and one bottom), then drill
and secure with xings (g 5.1 B).
4 Run the two core cable from the safety brake
end across to the same end as the receiver
box, making sure to securely x the cable out
of the way of the working mechanism (usually
on top of the casing).
5 For ease of installation, undo the terminal clamp
at the bottom (g.5.1D).
6 Wiring as follows (g.5.2 & g.5.3);
7. Installing Reciever Box
(HOLD TO RUN) - TYPE 2

Tradedor TD77DM & TD77SEL Installation Guide
Direction Of Rotation (HOLD TO RUN)
1 Press and hold the bottom button ( ) on the handset and the barrel should start turning in the
downwards direction. Should the barrel be turning in the up direction, press the middle stop button
( ) so the barrel stops and then move the left of the three dip switches up (g.6.2 A).
2 Press and hold the bottom button ( ) on the handset, and the barrel should start turning in the
downwards direction.
3 Press and hold the right-hand button ( ) on the front of the receiver box and the barrel should
start turning in the downwards direction. Should the barrel be turning in the up direction, press the
middle button ( ) on the front of the receiver box so the barrel stops and then move the right of
the three dip switches up (g.6.2 C).
4 Press and release the down button ( ). If the door closes, press the stop button and flick the
middle dip switch up (g.6.2 B).You should now have to press and hold the down button for the
door to close, hold until barrel stops moving.
Deleting Remote Control Handset’s Memory
1 Press and hold the black programming button for roughly 3 seconds. The green LED will ash three times,
go solid, then rapidly ash. Keep hold until ashing stops.
2 Test to see if remote operates door.
1 Re-attach the front box cable to the board.
2 Press and hold the bottom button ( ), if the door
moves then the handset is already programmed in.
Repeat with all other handsets.
3 If not programmed then press and release the black
programming button located at the top of the receiver
box (g.6.2). The green LED on the front cover will
start ashing.
4 Press and hold the top button on the handset ( ).
The green LED will ash faster and go out.
5 Test handset by pressing either direction, the barrel
should move. Repeat with all other handsets that
need programming.
g.6.1
g.6.2
A B C
14
8. Programming Remote Control
Handsets & Push Button
(HOLD TO RUN) - TYPE 2

Tradedor TD77DM & TD77SEL Installation Guide
15
1 Open the lid of the receiver box by unscrewing the
four screws (one in each corner) (g.7.1).
2 Remove the two screws from the bottom of the
box (these can be found behind the glands) and the
wall mounting plate can be removed from the back
(g.7.2 & 7.3).
3 Making sure the xing plate is square with the screw
fixings at the bottom, mark the four fixings points.
This should be at a comfortable height to operate the
push buttons but out of the easy reach of children -
between 1500mm from the oor and 300mm down
from the roof/ceiling is recommended. Drill and then
secure in place (g.7.4).
4 Hook the top of the receiver box on to the wall xing
plate with the cable glands pointing downwards and
secure with the two screws.
5 Run the two core cable from the safety brake end across
to the same end as the receiver box making sure to securely
x the cable out of the way of the working mechanism
(usually on top of the casing).
6 Remove the green 5 terminal block in the bottom left
corner (g.7.5) and you will see letters printed on the
circuit board.
7 Wiring as follows:
g.7.1
g.7.2
g.7.3
Mains Power:
N– Neutral / Blue 3 core cable (power)
L– Live / Brown 3 core cable (power)
Earth – connect power cable directly to
earth from motor in plastic connector.
Motor:
U– Brown 4 core cable (motor)
V– Black 4 core cable (motor)
Earth - connect motor cable directly
to earth from motor in plastic connector.
W[c] – Blue 4 core cable (motor)
Safety Brake:
Remove black link wire from far right hand side stop
terminal, and replace with Brown (2 core cable)
and Blue (2 core cable), one each side (g.7.5).
9. Installing Receiver Box
(SAFETY EDGE) - TYPE 1

Tradedor TD77DM & TD77SEL Installation Guide
Direction Of Rotation (SAFETY EDGE)
1 Press and hold the bottom closed button on the receiver board (g.7.5). This is located at the bottom
right corner of the yellow transformer and the barrel should start turning in the downwards direction.
Should the barrel be turning in the upward direction, swap motor wires black to U and brown to V.
2 Press and hold the bottom closed button on the receiver board until barrel stops moving.
g.7.5
g.7.4
8 Before plugging in, check to make sure that
there are no bare cables touching and all wires
are securely fixed.
9 There is a four dipswitch block at the bottom
middle of the receiver board (usually blue or red).
Slide dipswitch 2 into the up position (g.7.5).
16
9. Installing Receiver Box
(SAFETY EDGE) - (CONTINUED) - TYPE 1

Tradedor TD77DM & TD77SEL Installation Guide
Motor Wiring
L1 N2 L
M
12 34
Bleu
Marron
Noir
Green/Yellow
Brown
Blue
Black
Connect the motor wires into terminals 1, 2, 3 & 4
as illustrated above.
Note: The motor direction can be reversed during
the commissioning procedure.
1Secure the motor supply cable
in place with the cable clamp.
2
Mounting The Rollixo Rts
Remove the
courtesy light
cover.
1 2 Unscrew and
remove the
panel cover.
3Mark the
wall drilling
positions.
4Secure the
Rollixo RTS
in place.
Somfy Rollixo RTS Control Panel
No Description
1Up Button
2Stop Button
3Down Button
4Prog Button
5Prog LED
6Motor & safety brake LED
7Safety Edge
8Battery LED
9Photocell LED
1
2
34
56 7 8 9
17

Tradedor TD77DM & TD77SEL Installation Guide
All the LED's
come on briey
and then out.
If the motor LED comes on, check the safety
brake or link connection.
If the safety edge LED comes on, the safety
edge transmitter has not been recognised.
(This is normal if the safety edge transmitter
has not been paired to the Rollixo RTS yet).
3 421
Prog
STOP
1
2
3 421
Prog
STOP
Plug in the supply cable and
connect the mains supply.
5
Safety Brake Wiring
Sec
Safety EdgeStop
K
56 78 9 1
Sec
Safety Edg eStop
K
56 78 9 1
Connect the
safety brake into
terminals 5 & 6.
1Connect link provided to
connect terminals 5 & 6 if
no safety brake is required.
2
Powering Up The Rollixo RTS
Unfold the aerial so
that it points vertically
downwards.
1Screw the bulb
supplied into
the light tting.
2Ret the panel
cover and secure
with the screw.
3Ret the courtesy
light cover.
4
18

Tradedor TD77DM & TD77SEL Installation Guide
(A) Security Locking Straps Type 1
1 Your straps will come attached to your barrel
(g.8.1).
2 Insert a large at screwdriver or 10 pence piece
into the green slot (g.8.2) and turn a quarter
turn anti-clockwise (g.8.5).
3 Remove straps from barrel and keep in a safe
place.
4 Press and hold the down button on receiver box
until it has travelled all the way to its bottom limit
and the barrel stops on its own.
5 Using the manual override handle, wind the barrel
Forwards (as if the door was going down) until
you have clear access to the rectangle cut outs
in the barrel (g.8.3).
6 Place a tool box or equivalent in the opening
roughly 300mm to 500mm high and arrange your
step ladder/hop ups one at each end.
7 Carefully unwrap garage door curtain and
remove packaging.
8 With at least 2 people, feed the curtain over the
barrel and lower carefully into the guide runners so
the curtain sits on top of the tool box (g.8.9).
9 Slide the straps on to the top slat of the curtain
making sure there is one each end 200mm in and
the rest evenly spread out across the barrel.
10 To reattach all straps, make sure the metal pins
on the back line up with the rectangle cuts in the
barrel (g.8.3 and g.8.4), place the strap at
on the barrel (g.8.5) and turn the green circle a
quarter turn clockwise (g.8.6).
11 There are optional xing positions on the straps
for them to be screwed to the barrel (g.8.6).
These are not needed, but if you would like to do
this PLEASE BE WARNED that no screws can be
secured 650mm from the head of the motor as
you will damage it! g.8.3
g.8.2
g.8.1
19
10. Installing Curtain To Barrel
And Setting Motor Limits
