TRADEDX JBOD76 User manual

Storage Carrier
User Manual
The information contained herein is subject to change without notice. The only warranties for TradedDX products
and services are set forth in the express warranty statements accompanying such products and services. Nothing
herein should be construed as constituting an additional warranty. TradeDX shall not be liable for technical
or editorial errors or omissions contained herein.

The information contained herein is subject to change without notice. The only warranties for TradeDX products
and services are set forth in the express warranty statements accompanying such products and services. Nothing
herein should be construed as constituting an additional warranty. TradeDX shall not be liable for technical
or editorial errors or omissions contained herein.

3
Contents
Component identification .................................................. 5
Front panel components ............................................................ 6
Front panel LEDs and buttons...................................................... 6
Rear panel components ............................................................. 7
EEB module ........................................................................ 7
System LEDs ....................................................................... 8
Power supply LEDs ................................................................. 9
Operations ............................................................... 10
Powering on ...................................................................... 10
Powering down .................................................................... 10
Verifying the power status.................................................. 10
Installation ............................................................. 11
Safety measures .................................................................. 11
Identifying the contents of the Storage Carrier shipping carton ................. 11
Hard disk drives ................................................................. 12

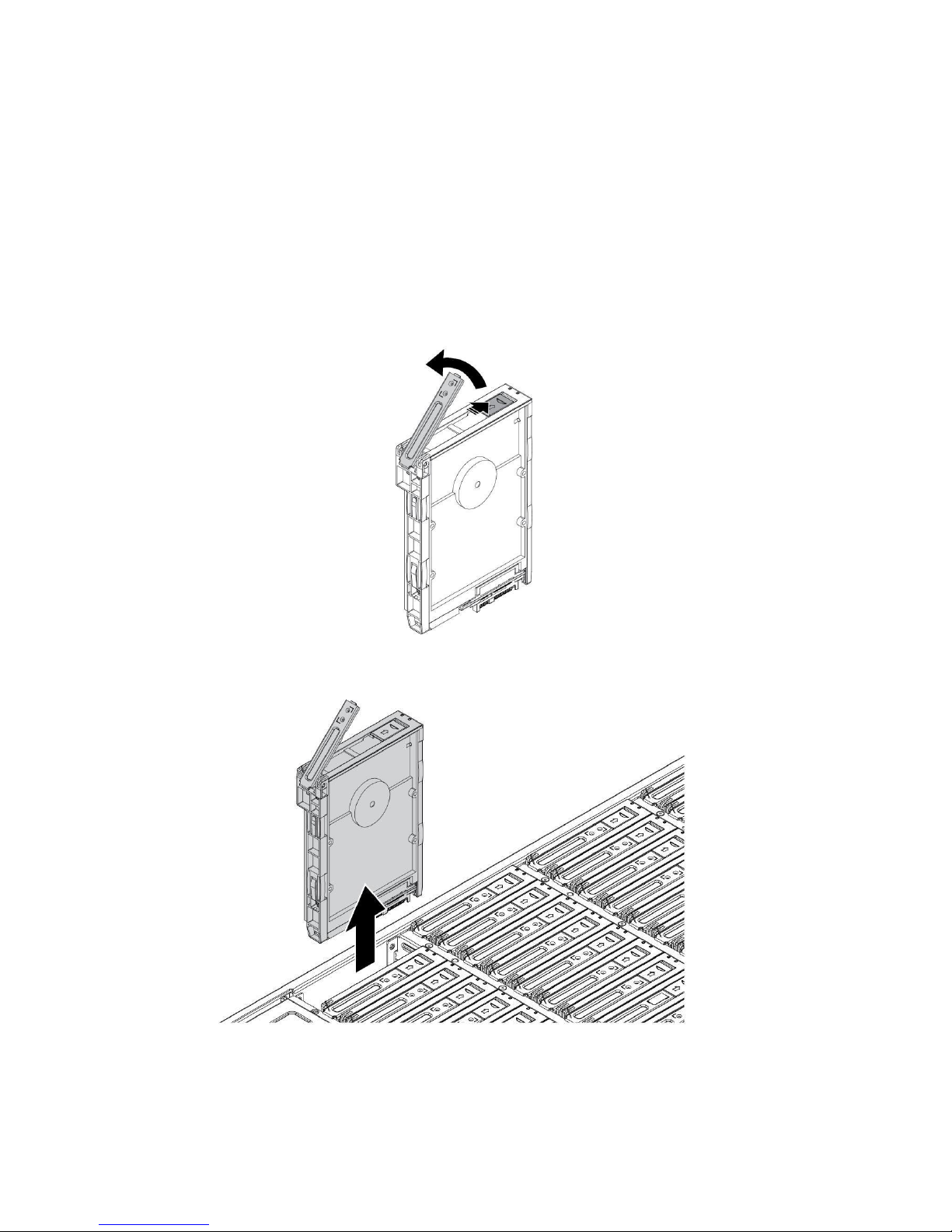

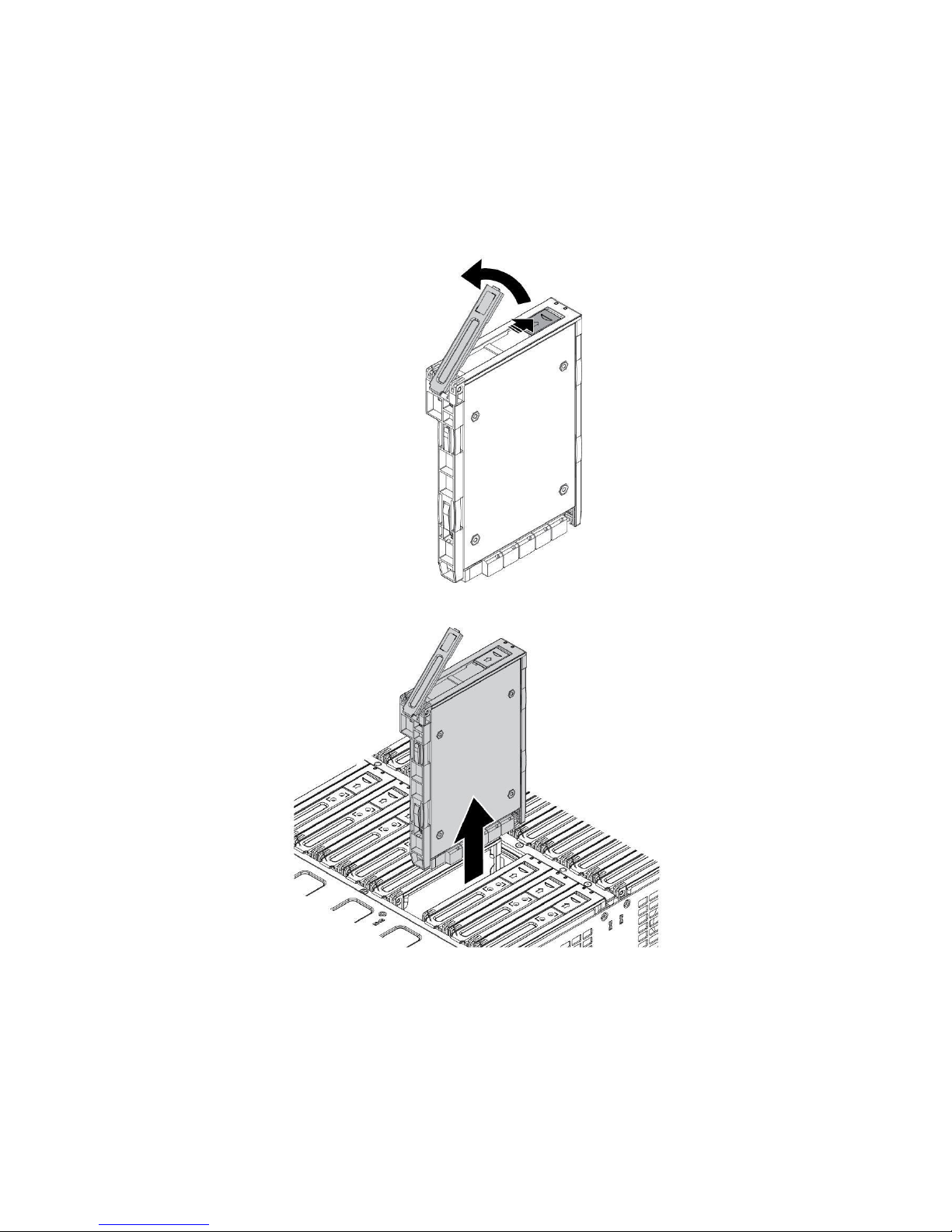

Removing the Hard Disk Drive................................................ 12
Installing the Hard Disk Drive.............................................. 13

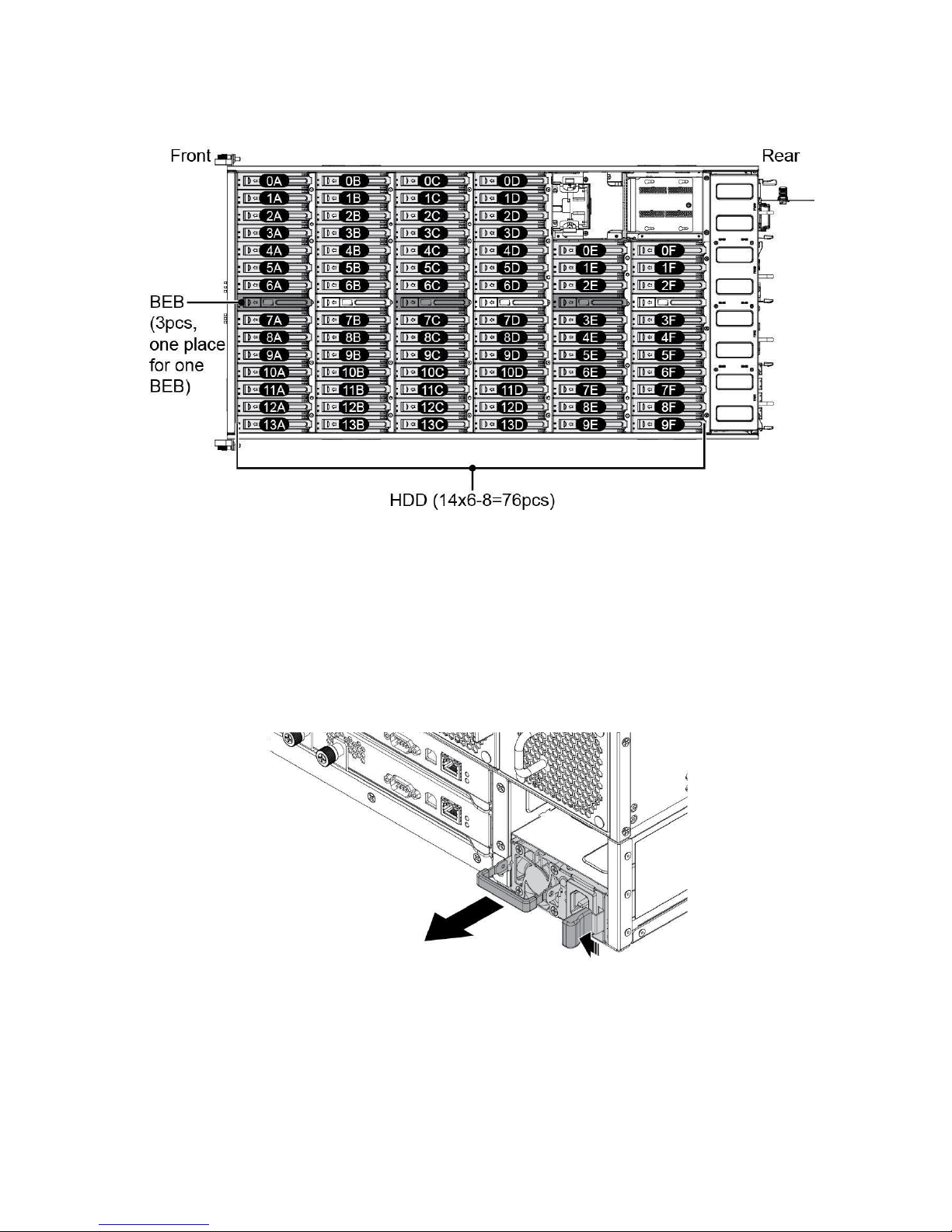

HDD matrix ....................................................................... 14
Power supply units ............................................................... 14
Removing the power supply unit.............................................. 14
Installing the Redundant Power Supply Unit ................................. 15
System Architecture ...................................................... 16
Storage Carrier SAS dual path.................................................... 16
................................................................................. 16
Storage Carrier SATA single path................................................. 16
Backplane Expander Board (BEB)................................................... 17
Installing a Backplane Expander Board (BEB) ..................................... 18
Front Control Module ............................................................. 19
Removing the Front Control Module................................................ 19
Installing the Front Control Module.............................................. 21
External Expander Board (EEB).................................................... 23
Supported External Expander Boards............................................... 23
Removing the External Expander Board (EEB) ...................................... 25
Installing the External Expander Board (EEB) .................................... 26
Fans ............................................................................. 28
Removing the System Fan .......................................................... 28
Installing the System Fan ........................................................ 28
Removing the System Fan (for PSU Cooling)........................................ 29
Installing the System Fan (for PSU Cooling) ..................................... 29
Power Distribution Board (PDB)................................................... 30
Removing the Power Distribution Board (PDB) ..................................... 30
Installing the Power Distribution Board (PDB) ................................... 32
Mid-plane ........................................................................ 34
Removing the Mid-plane ........................................................... 34
Installing the Mid-plane......................................................... 35
Power Interface Board (PIB) ...................................................... 36
Removing the Power Interface Board (PIB):........................................ 36
Regulatory information ................................................... 74
Class A .......................................................................... 74
European Union regulatory notice................................................. 74
Safety ........................................................................... 74

4
Warnings & Safety/ ....................................................... 75
Important safety and compliance information .............................. 75
Safety precautions.......................................................... 75
Safety Instructions......................................................... 75
Symbols .......................................................................... 76
Safety statements ................................................................ 77
Warnings and cautions ............................................................ 79
Electrostatic discharge .......................................................... 80
Specifications ........................................................... 81
Environmental specifications..................................................... 81
Mechanical specifications........................................................ 81
Support information ...................................................... 81
Customer support ................................................................. 81
Before you contact TradeDX ....................................................... 82

5

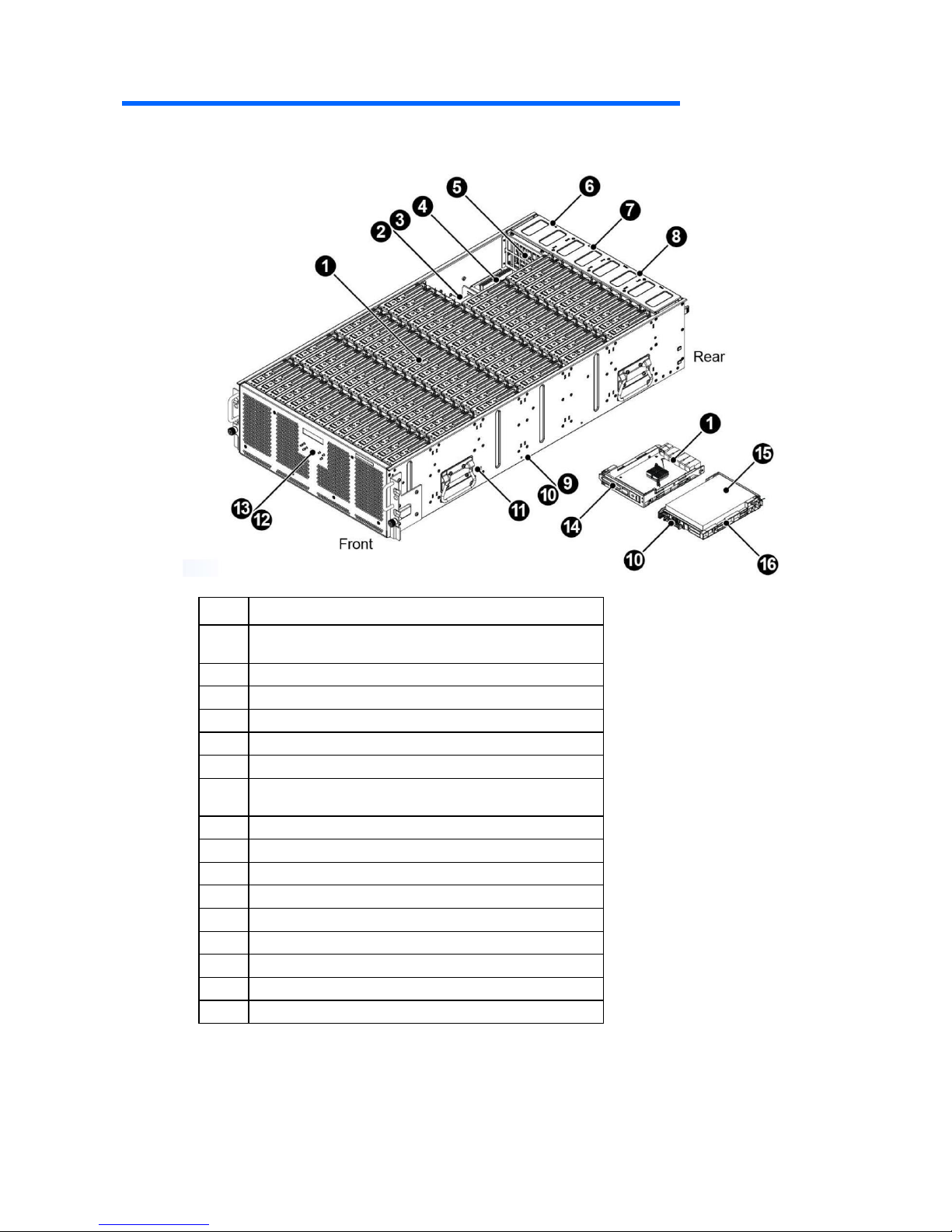

Component identification
Item
Description
1
BEB module x3 (SATA single path)
BEB module x6 (SAS dual path)
2
Power interface board
3
PSU Fan
4
Power distribution boards
5
Mid- plane
6
Power supply unit
7
EEB module x1 (SATA single path)
EEB module x2 (SAS dual path)
8
System Fans
9
HDD backplane
10
SAS interposer board
11
4U chassis
12
Fron panel board
13
LCD module
14
BEB carrier
15
SAS/ SATA HDD
16
SAS/ SATA HDD Carrier

6

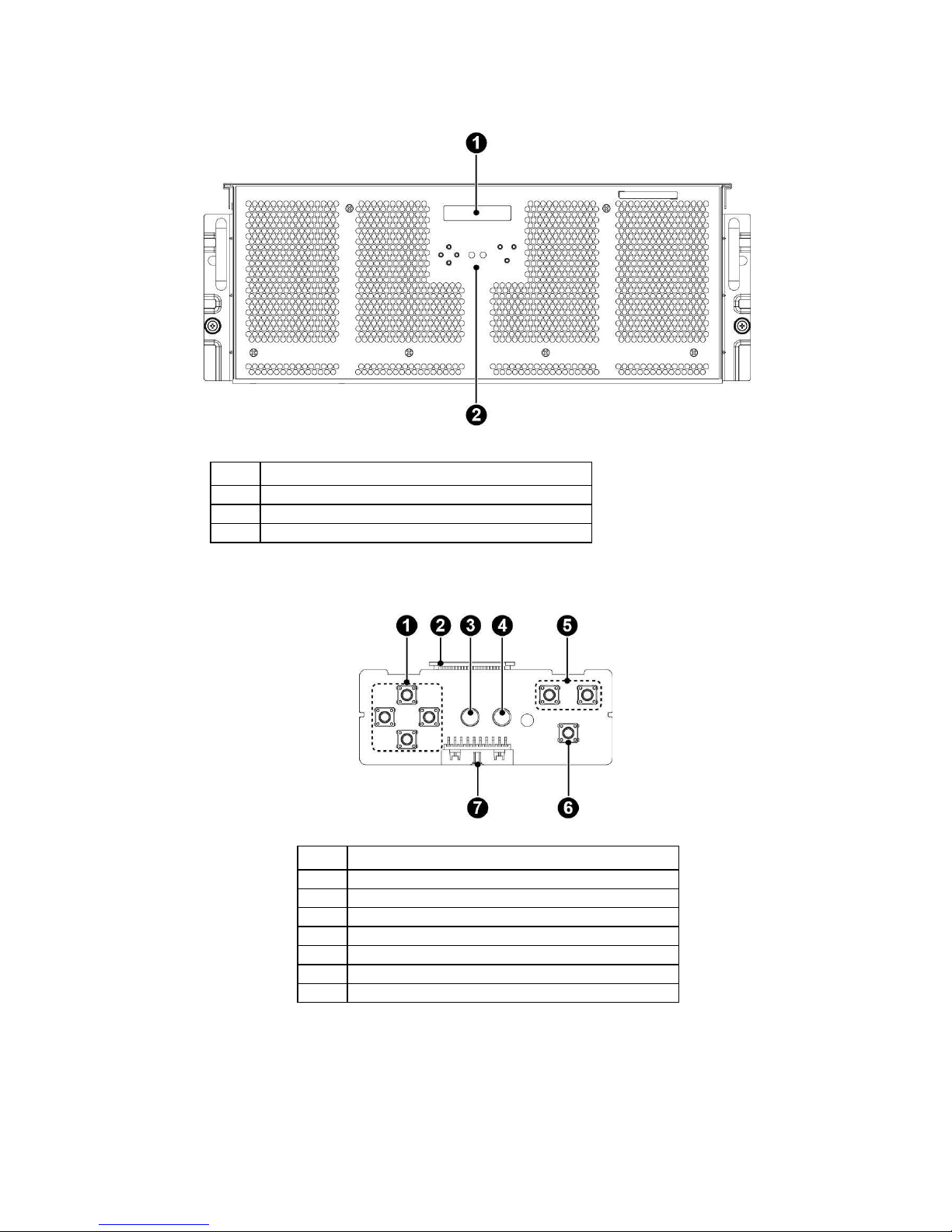

Front panel components
Front panel LEDs and buttons
Item
Description
1
LCD control buttons
2
LCD connector
3
UID LED
4
System Status LED
5
LCD control buttons
6
Power button
7
Fron panel board connector
Item
Description
1
LCD Module
2
Front panel board
3
Front control board

7
Rear panel components
Item
Description
1
System fans
2
EEB module x1 (SATA single path)
EEB module x2 (SAS dual path)
3
Power supply units
EEB module
Item
Description
1
External SAS ports
2
COM port
3
USB port
4
LAN port

8
System LEDs
Module
LED
Color
Condition
Description
Name
Front Panel
UID LED
Blue
Blinking
Enclosure identification
Blink on and off
System stand-by
rapidly
On
System power on
System Status
Red
On
System fault
LED
Blinking
System warning
Off
System good
UID LED/System
Red/
Intermittent
Firmware updating
Status LED
Blue
blinking
EEB
Status LED
Amber
On
EEB fault
Intermittent
FW Updating
blinking
Rapid blinking
System warning
Off
Normal
Identify LED
Blue
On
EEB firmware ready
Master EEB identification
Blinking
EEB identification
Off
Normal
SAS Link/Status
Green/
On (Green)
SAS link on
LED
Amber
Off (Amber)
Off (Green)
SAS link down
Off (Amber)
On (Green)
SAS link with activity
Blink (Amber)
BEB
Status LED
Amber
On
BEB fault
Intermitent
FW Updating
blinking
Rapid blinking
System warning
Off
Normal
Identify LED
Blue
On
BEB firmware ready
Blinking
BEB identify
Off
Normal

9
Module
LED
Color
Condition
Description
Name
HDD
Activity LED
Blue
On
HDD present, no activity
Blinking
HDD activity
Off
HDD not present
Locate/Fault LED
Amber
On
HDD fail
Intermittent
HDD rebuild
blinking
Off
Normal
Green
On
HDD hot sparing
Rapid blinking
HDD identify
Off
Normal
Power supply LEDs
The 1600W power supply comes with one LED and the LED is
visible from the rear of the power supply.
LED Staate
LED
Color
Description
AC Power
Green
On: Normal work
Off: No AC power to all power supplies
Blink (1Hz): AC present / Only 12VSB on (PS off) or
PS in CR state
Red
On:
oAC cord unplugged; with a second power
supply in parallel still with AC input power
oPower supply critical event causing a
shutdown; failure, OCP, OVP, Fan Fail
Blink (1Hz): Power supply warning events where the
power supply continues to operate; high temp, high
power, high current, slow fan, input voltage lower
than 90Vac (not warning above 90V condition, must
be warning state below 85V condition)

10
Operations
Powering on
Please follow these steps to turn on the system
1. Connect the power cord to the power socket at the rear
of the Storage Carrier and plug the other end into a
power outlet
2. Press the power button onc to turn on the Storage Carrier
Powering down
Please follow these steps to power down the system
1. Press and hold the power button and to turn off the
Storage Carrier
2. Disconnect the power cord from the power outlet
Verifying the power status
Verify all power LED indicators of the server and make sure
the power LED light is off before replacing and removing
the server components from the rack.
