Tradeflame 10000611 User manual

HOT FIX KIT - PORTABLE
12 PC - 3 x AA Batteries*
Part No. 10000611
PRODUCT MANUAL
WARNING - hot tip when in use, do not touch, keep Craft Tool clean and
away from oils and lubricants. Do not immerse Soldering Iron in water
Correct storage of Craft Tool when not in use and cool Do not place in coil holder
Do not modify or attempt to repair the Soldering Iron except as indicated
in the instructions for use and care.
zOn / Off button
Fig. 1
zCraft Tool
zStand
ILLUSTRATION ARE REPRESENTATION ONLY
zProtective cap
zComfort grip handle for ease of use
zBattery case

SAFETY WARNINGS
Your Tradeame Craft Tools is a very safe tool and complies with all the relevant
safety regulations in Australia. Nevertheless, like all electrical appliances, it
must be handled with care. Read all safety warnings, instructions, illustrations
and specications provided with this Tradeame Craft Tool. Failure to follow
all instructions listed below may result in electric shock, and/or serious injury.
Never forget that the tip and heater can reach high temperatures. Follow these
simple safety rules at all times. Keep Tradeame Craft Tool out of reach of
children. This is not a toy and not intended for use by children 12 years old
or younger without adult supervision. Keep your Craft Tool well away from all
ammable material. To avoid burns, always assume that the tip is hot. Be sure
the hot soldering tip and heater does not come into contact with the electric
power cord. Before making any adjustment (removing or replacing a tip, etc.)
make sure the Craft Tool is unplugged / switched off and cool. Do not dip the
Craft Tool into any liquid. Always work in a well-ventilated area. After use,
unplug/switch off the Craft Tool, allow the tip to cool, and store in a safe place.
Safety goggles are recommended for preventing hot materials from injuring
eyes. Save all warnings and instructions for future reference. The term “Craft
Tool” in the warnings refers to your mains-operated (corded) Craft Tools or
battery-operated (cordless) Craft Tools.
WORK AREA SAFETY
zKeep work area clean and well lit. Cluttered or dark areas invite accidents.
zDo not operate Craft Tool around explosive liquids, gases or dust.
zThis is not a toy and not intended for use by children 12 years old
or younger without adult supervision.
ELECTRICAL SAFETY
zIndoor use. Do not expose Craft Tool to rain or wet conditions.
Water entering a Craft Tool will increase the risk of electric shock
PERSONAL SAFETY
zStay alert, watch what you are doing and use common sense when operating
a Craft Tool. Do not use a Craft Tool while you are tired/distracted or under
the inuence. A moment of inattention while operating a Craft Tool may
result in serious personal injury.
zUse personal protective equipment. Always wear eye protection. Protective
equipment such as a dust mask, non-skid safety shoes, hard hat or hearing
protection used for appropriate conditions will reduce personal injuries.
zPrevent unintentional starting. Ensure the switch is in the off position
before connecting to power source, picking up or carrying the Craft Tool.
zDo not overreach. Keep proper footing and balance at all times. This enables
better control of the Craft Tool in unexpected situations.
zDress properly. Do not wear loose clothing or jewellery. Keep your hair and
clothing away from moving parts. Loose clothes, jewellery or long hair
can be caught in moving parts.
zDo not let familiarity gained from frequent use of the Craft Tools allow you to
become complacent and ignore Craft Tool safety principles. A careless action
can cause severe injury within a fraction of a second.
MAINTENANCE/SERVICING
Serviceable components: N/A
Servicing instructions: N/A
USE AND CARE
zDo not force the Craft Tool. Use the correct Craft Tool for your application.
The correct Craft Tool will do the job better and safer at the rate for which it
was designed.
zDisconnect the plug from the power source and/or turn off the battery,
from the Craft Tool before making any adjustments, changing accessories,
or storing Craft Tool. Such preventive safety measures reduce the risk of
starting the Craft Tool accidentally.
zStore idle Craft Tool out of the reach of children and do not allow persons
unfamiliar with the Craft Tool or these instructions to operate the Craft Tool.
Craft Tool are dangerous in the hands of untrained users.
zMaintain Craft Tool and accessories. Check for misalignment or binding of
moving parts, breakage of parts and any other condition that may affect the
Craft Tool’s operation.
zUse the Craft Tool, accessories and Craft Tool bits etc. in accordance with
these instructions, taking into account the working conditions and the work
to be performed. Use of the Craft Tool for operations different from those
intended could result in a hazardous situation.
zKeep handles and grasping surfaces dry, clean and free from oil and grease.
Slippery handles and grasping surfaces do not allow for safe handling and
control of the Craft Tool in unexpected situations.
zDo not expose a Craft Tool to re or excessive temperature. Exposure to re
or temperature above 130°C (265°F) may cause explosion.
zDo not attempt to use the Craft Tool on materials likely to melt (plastic,
synthetics or imitation leather)
SPECIFIC SAFETY RULES FOR CRAFT TOOLS
zContact with a hot tip could ignite ammable materials. Contact with a hot
tip could ignite a re.
zWhile in use do not stand or store Craft Tool on its side. Craft Tool could tip
resulting in contact between hot tip and ammable materials. Always set/
store Craft Tool on stand provided
zDo not place Craft Tool in coil stand.
zKeep hands clear of the tip serious burns can occur if skin contacts tip
zWork in well ventilated areas, as Craft Tool can produce fumes and smoke.
zUse personal protective equipment when using
zThis Craft Tool is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
zTo reduce the risk of re, personal injury, and product damage due to a
short circuit, never immerse your Craft Tool, battery pack or charger in uid
or allow a uid to ow inside them. Corrosive or conductive uids, such as
seawater, certain industrial chemicals, and bleach or bleach-containing
products etc., can cause a short circuit.
zTo reduce the risk of injury, always wear safety goggles or glasses with side
shields. Keep hands and ngers behind nger guard. Serious burns could
occur if skin contacts a hot tip.
zAfter nished using the tool, let the tool cool naturally, out of reach of
children.
zEnsure protective cap secures the sliding switch to the “OFF” position when
storing

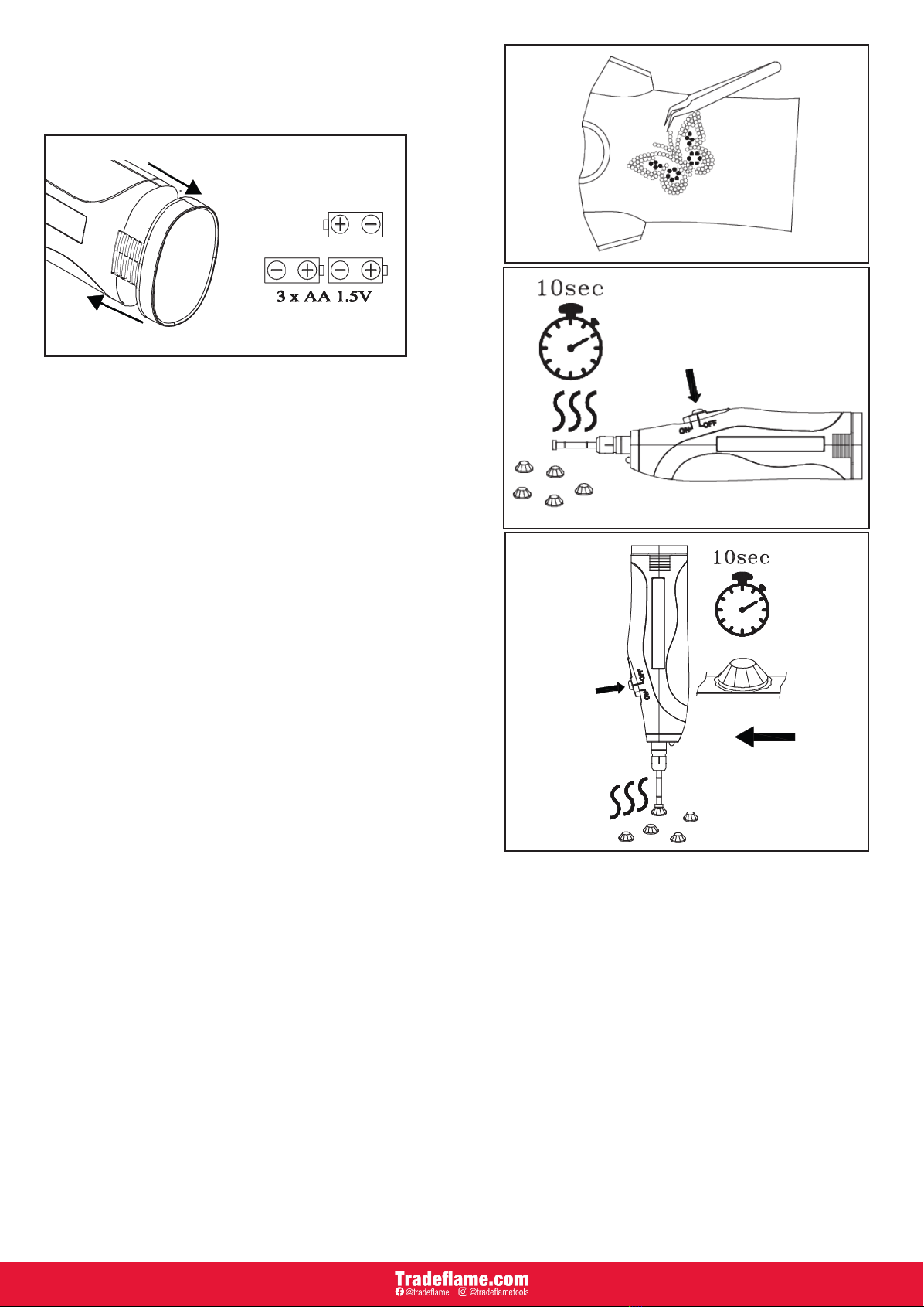

CHANGING THE BATTERIES
1. Using 2 ngers, press and open battery cover at the end of tool
2. Insert 3 x AA 1.5V alkaline batteries into the tool, following diagram on the
label on Craft Tool
3. Close battery cover properly - do not force it close
GETTING THE MOST FROM YOUR TRADEFLAME CRAFT KIT
Tips, Tricks, and Techniques for Better Results
The best way to get started is to familiarize yourself with the Craft Tool,
thevarious tips and the patterns they create. Do not attempt to use the Craft
Tool on materials likely to melt (plastic, synthetics or imitation leather)
zHot Fix Tradeame Craft Kit 10000611: Test the hot x tip by adding crystals
to an off cut of the chosen piece of fabric. This allows you to get a feel for
how the fabric will respond and to get your creative juices and technique
owing
GETTING STARTED
Always use the tool on a heatproof and uncluttered table.
TIPS AND THEIR USES
Your new Tradeame Craft Kit comes with a crystals and specialty tips
depending on which kit you have purchased. To get the most from your kit,
follow these instructions to create the results you want.
1. Flat tips can work on any size or irregular shape embellishments.
zKeep your tip clean for good performance and long life. Clean cool tip with a
damp sponge after use – do not le tip
zFor domestic use only. Use only for the intended purposes
OPERATION
1. Remove protective cap from the tool
2. Place Craft Tool on the safety stand and switch to on.
3. Wait for the tool to heat up in approx. 10 seconds
4. Work on a at hard counter top (ironing boards are too soft).
5. Hold the Craft Tool like a pencil. Do not touch any of the metal parts, as
they are hot.
6. Do not exert pressure on the embellishment. Let the hot tip do the work
USE ARRANGE PATTERNS WITH TWEEZERS
1. Use Tweezers provided to arrange the embellishments into desired pattern
on the fabric surface with the embellishments facing up. (g 1)
2. Wait for the tool to heat up in approx. 10 seconds (g 2.)
3. Hold the Craft Tool perpendicular to each embellishment and wait for
approximately 10 seconds. NOTE: Time differs with different size and glue
type of the embellishments. (g 3)
4. If the crystal gets stuck, use tweezers to help
5. Repeat the process until each embellishment is hot-xed.
6. Allow embellishment to cool before touching.
1.
2.
3.

HOT FIX KIT - PORTABLE
12 PC - 3 x AA Batteries*
Part No. 10000611
FEATURES
zPortable hot x applicator
zCompact and lightweight
zWorks with crystals, rhinestones, diamantes, and domes
SPECIFICATIONS
zPower source: 3 x AA batteries (6V)
zOutput: 6V
zHeat time: 15 Seconds
CONTENTS
zHot Fix portable tool
zProtective cap
zTweezers
zWrench tool
zSS10 “10” transparent crystals 120 pc
zSS16 “16” transparent crystals 40 pc
zSS16 “16” almond color crystals 15 pc
zSS16 “16” rose color crystals 15 pc
z3 x AA batteries
z2 x Blank cards 190 mm x 120 mm
zGuidebook
z*BATTERIES INCLUDED
Distributed by
TRADEPEM INDUSTRIAL PTY LTD.
