tradetested GS512-V1 Assembly instructions

GS512-V1
GARDEN SHED OWNER’S MANUAL
AND ASSEMBLY INSTRUCTIONS
AND ASSEMBLY INSTRUCTIONS
GARDEN SHED OWNER’S MANUAL
overall size: 3270 x 6110 x 2350mm
shed size: 3070 x 6110 x 2300mm
door size 1: 740 x 1950mm
door size 2: 1480 x 1950mm
floor size: 3030 x 6070mm
2350
3270
1650
2000
740 410
3070
6110
380

Before You Begin
● Check local building codes regarding shed location and any other local requirements.
● Check the packing list on page iv to make sure you have all of the necessary parts.
● Separate everything in the cartons by the part number while reviewing the parts list.
● Be sure the day you select to build your shed is dry and calm.
●Whenever possible, two or more people should work together to assemble the shed.
We suggest that one person positions parts while the other handles the fasteners and tools.
Before assembly, decide on a location for your building. We recommend a level area with
good drainage. Allow enough space around the building so there’s plenty of room to screw
the panels and then move the different parts into position. Remember to leave plenty of
room for the door to fully open.
● An electric drill/driver
● A Phillips screwdriver
● Gardening or work gloves
● Sealant or caulking gum (optional )
● Step ladder
●Tape measure
Safety First
Safety precautions are important to follow throughout the construction of your building.
●Take care when handling the various pieces of your building since some contain sharp
edges. Please wear work gloves, eye protection and long sleeves when assembling or
performing any maintenance.
● Keep children and pets away from your worksite to avoid distractions and any accidents.
● Never concentrate all your weight on the roof of the structure. When using a step ladder
make sure it’s fully open and on a level surface.
●To avoid any damage, do not attempt to assemble the building on a windy day. The larger
panels can act as sails making construction difficult and unsafe.
You Will Need...
i
Selecting & Preparing Your Site

Flooring & Foundations
A solid shed starts with a level floor and foundation. This is the single most important factor in making your
shed as watertight and stable as possible. It also makes the assembly process as simple as possible.
We recommend the following foundation options:
OPTION 1 - WOODEN FLOOR
We sell wooden floor kits designedto match your shed. Alternatively you can build your own using H4 treated
bearersandtimber floorboards.
● Build on a compacted and levelled base layer
● Plastic sheeting placed under the wood or concrete will prevent moisture wicking through
● We recommend the foundation is the same size as the footprint of your shed to prevent water ingress
ii
Regardless of which flooring option you choose
OPTION 2 - CONCRETE SLAB
For a more permanent solution, or for large sheds, we recommend a concrete foundation.

Assembly Overview
Step 1: Check all parts against the component list
Step 2: Assemble the rear wall panels
Step 3: Assemble the side wall panels
Step 4: Assemble the front wall panels
Step 6: Assemble the ridge beam
Step 7:
Step 8:
Handy Tips Before You Begin
How to drill rivet holes in panels – Use a 4.2mm drill bit , set your drill clutch to the drill bit icon. Make a
mark where you want to drill and use this to start the hole.
Drilling tek-screws – Drilling tek screws into the panels can sometimes cause the corrugation to buckle
in, making it tricky to get the screw all the way in. An easy fix for this is to place a small block of wood
underneath the corrugation as you drill, providing support for the panel until the screw is all the way in.
Make sure the block is not directly underneath the screw.
How to remove rivets if needed – Don’t worry if you have placed a rivet incorrectly or you need to
adjust a panel, they are easy to remove. Just drill directly through the top of the rivet using the same drill
bit you used to make the hole. This will remove the rivet head, causing the whole rivet to fall out.
OTHER TIPS
●Very Important – make sure you remove metal drill filings to prevent corrosion and scratches.
Removing metal filing andavoiding scratching the shed during assembly will help prevent any
corrosion later on.
● Peeloff partnumber stickersandclean soap/water.
● Use silicone to further weatherproof seals around the shed (not included).
iii
with
Step 5: Constructing the walls and gables
Assemble the roof
Assembling the Support square tube
Step 10: Assemble the door
Step 9: Fitting Wall Bracing

ASSEMBLY
INSTRUCTIONS
iii

12 W200
Front Wall 410 x 2000
2 8 W200
Rear Wall 410 x 2000
3 32 P165
Roof Panel 410 x 1650
4 30 W200410 x 2000
5
8
9
10
4 U155Rear Wall Channel
11
16 U155
Side Wall Channel 1550
12
8 U155
Roof Channel 1550
13
4G165
Roof Channel 1650 4U155
Front
Wall Channel 1550
2 ML200Left Door Frame 2000
2 MR200Right Door Frame 1 Z224
Door Top Frame 2245
1 U224
2245
Door Bottom Frame
ITEM QTY PART #NAME SIZE (mm)
PARTS LIST
6
7
GS512-V1
STEP 1 Check all parts against the component list
If you’re missing anything, just head to the Trade Tested website and get in touch.
Corner Anchor 4
Hook Anchor 12
Tek Screws 610
Wood Anchor Screws 15
Rivet 260
Corner Cover 4
Spacer 260
Rivet Gun 1
1
Tek Screwdriver Bit 1
2000
φ4.2 Drill Bit 1
Screw Head Sheath 150
Phillips Head Screws 26
15
16
17
18
19
20
32
33
34
35
36
37
1550
Side Wall
Please check your contents prior to starting assembly
Z119
E195 x 410
E195 x 350
U074
U195
D193
H074
DOOR PART QTY PART #
5
3
2
6
3
1
2
SIZE (mm)
410 x 1950
350 x 1950
740
1950
1930
740
1110
ITEM
47
48
49
51
52
53
56
57
59
NAME
Door Panel
Door Panel
Door Channel
Door Channel
Door Square tube
Door Bar
Door Brace 2
6
Bolt（door outside）
Hinge
Bolt（door outside）
Hinge
58 1
Bolt（door inside）Bolt（door inside）
2 C190Ridge Beam 2 F153
Gables 1530 2 B153
Gables 1530 2 U042 Gables Bracket 420 2 L030(L)
L Bracket LEFT
300 x 120
1900
38
39
40
41
42
2 L030(R)L Bracket RIGHT 300 x 120
43 Plastic Ridge End Cap 2
Bolt and Nut 10
44
45
14
2 C115Ridge Beam 1150
4V155 Roof Tiles 1550
21
22
23
24
4 C153Ridge Beam 1530
Galvanized square tube
Galvanized square tube 2010
2250
4
1
X201
X225
27
28
30 Bracket 22
1 Z0745
Door Top Frame 745
1 U0745
745
Door Bottom Frame
Galvanized square tube
Galvanized square tube 1740
1760
6
6X174
X176
25
26
46 Expansion screw（M10x80）12
Flat fastener31 4
U1124112050 Door Channel
H112
2
1120
54 Door Bar
Z145
4
1450
55 Door Brace
12 Z150
1500Wall Bracing
29

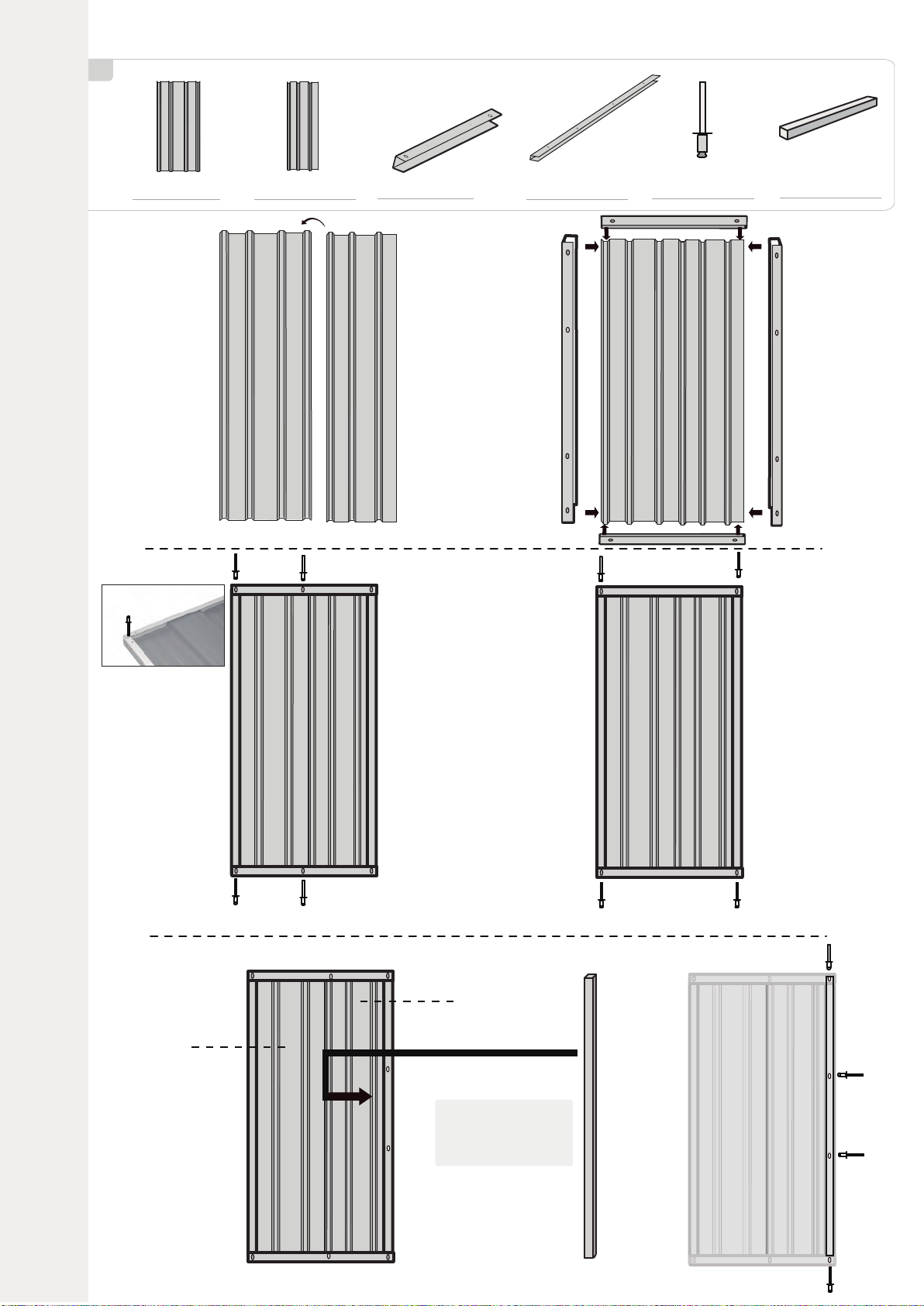

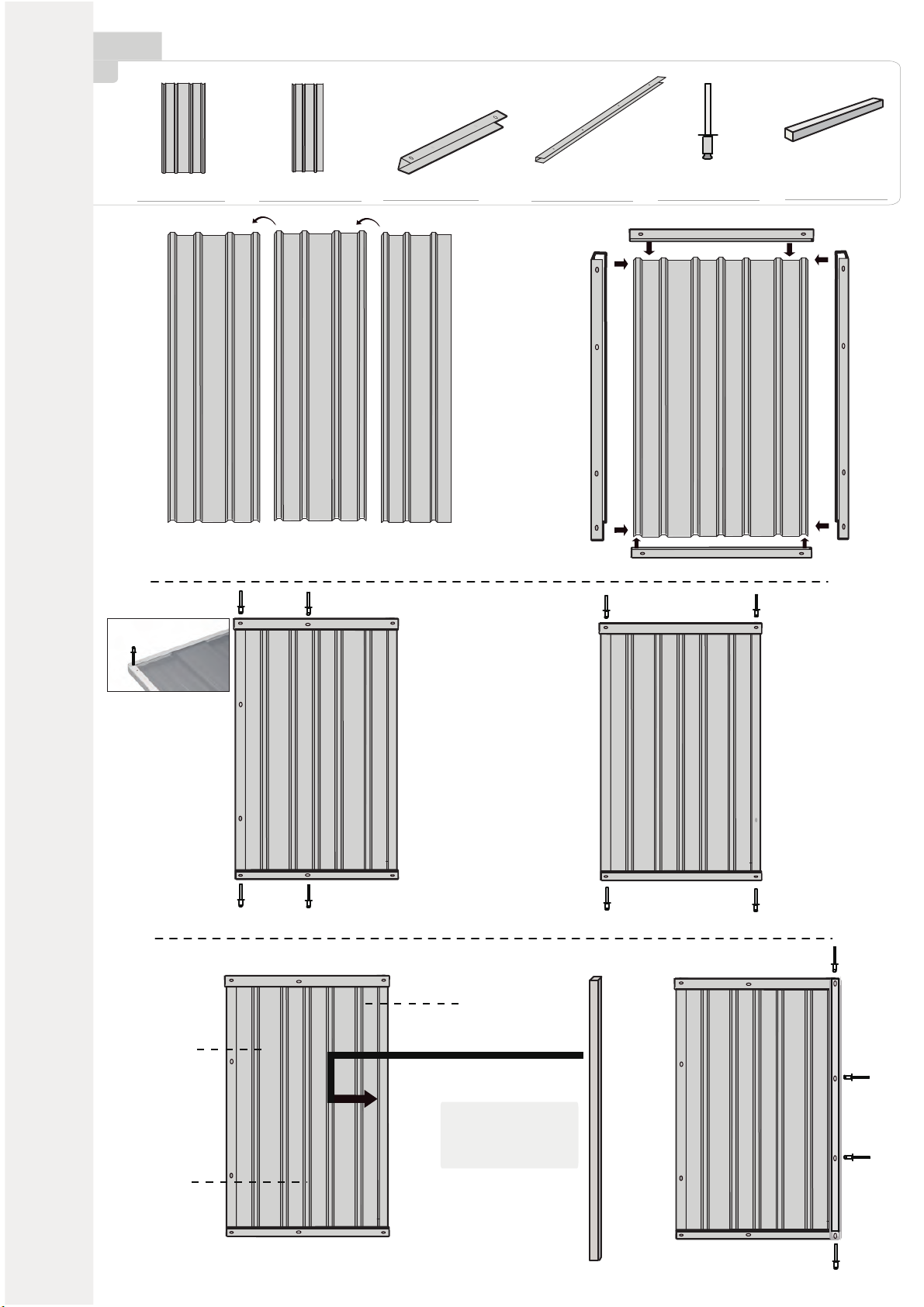

STEP 2
2
a
Part #W200 x8
i
The notched end of #U155 and #U079 must
be used at either end of the panel
Out side of shed
In side of Shed
Notched ends
are orientated
to the inside of
the shed
All panels should overlap by one corrugation.
i
#U155 x4
b
Lay the wall panels out with the large rib
overlapping the small.
Large Rib Small Rib
Assemble the rear wall panels
All pre-drilled holes should line up with the peaks of the steel sheet. If this varies
squeeze together or stretch out the panels to make sure they line up.
U-channel joint
Drill screw in joint
#U155
#U155
#U155
#U155

c
3
i
Joint outside
Do not add screws to the top and
bottom holes at each end of the panel.
These need to be left undone.
Tek Screw
Screw from the outside in, as per
the pre-drilled holes in the frame.
U-channel joint Drill screw in joint
STEP 3
a
Assembling the side walls
#W200x30 #U155x16
#MR 200x1
#ML200x1
Joint inside
#U155 #U155
#U155 #U155
#U155
#U155
#U155
#U155
#U155 #U155
#U155 #U155
#U155
#U155
#ML200x1
#MR 200x1
#U155
#U155

#W200x2
#MR 200x1
#ML200
#MR200
STEP 4
a
Assemble the front wall panels
#ML 200x1
#W200
#W200
b
i
.
.
Tek Screw
All pre-drilled holes should line up with the peaks of the steel sheet. If this varies
squeeze together or stretch out the panels to make sure they line up.
Do not add screws to the top and bottom holes at each end of the panel. These
need to be left undone.
4
#U0745
#Z0745
Leave the left and right door frames (#MR180, #ML180) un-fastened
at this stage. This will help with any adjustments needed later on.
Once the door positioning is finalised,add the necessary screws.

5
b
U
Z
Fit the top door spacer and the bottom door spacer to
the front wall panel as shown. Some pilot holes may
need to be drilled
U
Z Z
U
U
U
M M
U
U
c
Bottom
Top
Do not add screws to the top and bottom
holes at each end of the panel. These
need to be left undone.
Leave the left and right door frames (#MR200, #ML200)
un-fastened at this stage. This will help with any adjustments
needed later on. Once the door positioning is finalised,
add the necessary screws.
Tek Screw
#U224x1#Z224x1 #U155x4
Make sure you attach the bottom
frame into the slot frst. Then slide
the base of the door frame inside
the bottom frame.
Make sure that the holes are on the
correct side before fixing in place.
#Z224
#U224
#U155
#U155 #U155
#U155
Top
Bottom

F153
b
B153
Weather
Stripping
Tek Screw
Constructing the walls and Gables

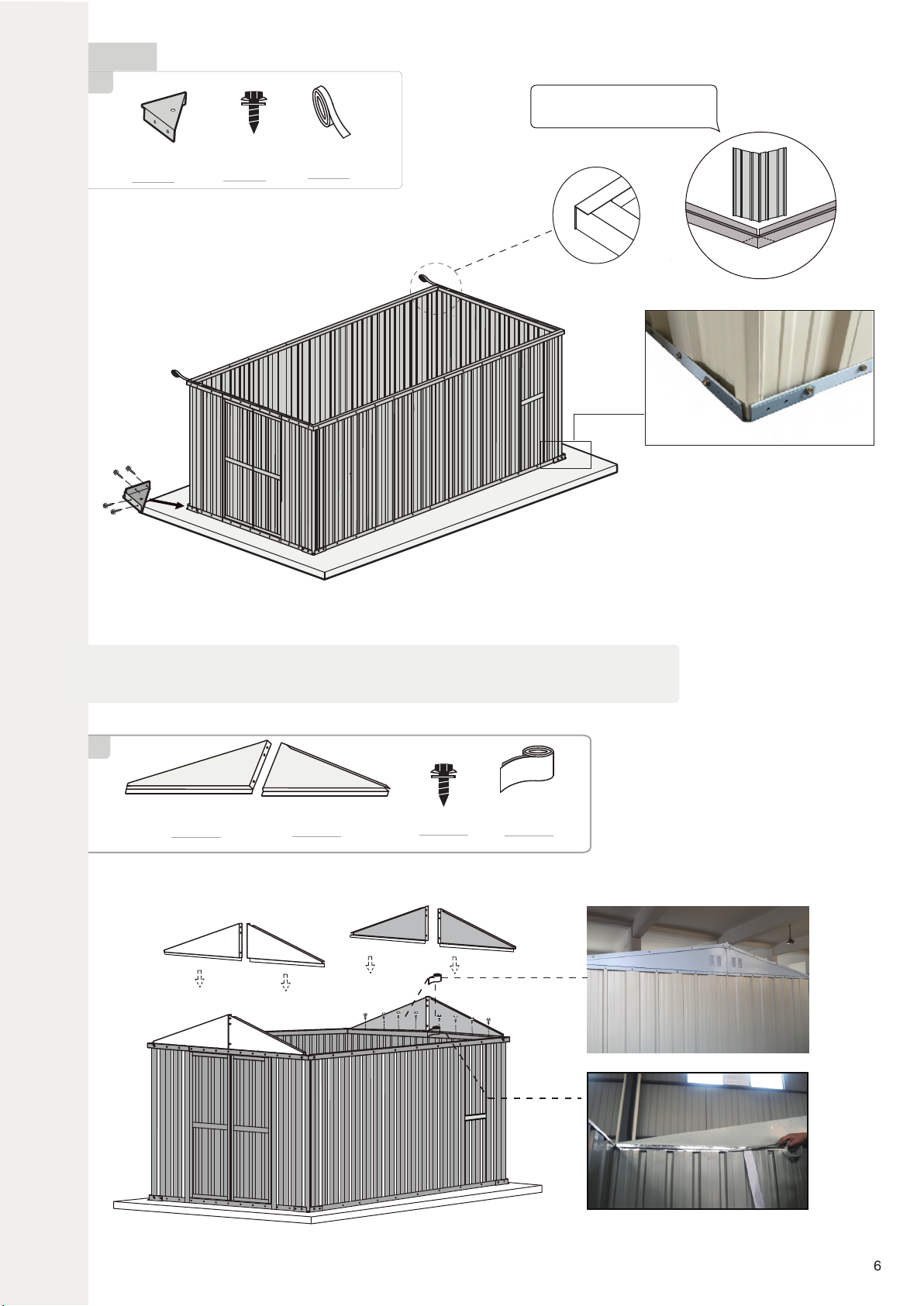

STEP 5
a
Corner
Anchor x4
6
Waterproof
tapes
Use weather stripping before
assembling roof panel
Tek Screw
To form a flush corner connection,
make sure the end corrugations
overlap as shown above.When
adding the lower corner brackets,
place a spirit level or block of wood
underneath the corner of the shed.
This will ensure that the two walls
being connected stay square as you
drill the screws in.
OPTIONAL - Once you have all four walls upandsecure, we suggest that you run sealant
between the overlapping panels on each corner of the shed. Thiswill protect itfrom
heavy weather. Afterwards, tack the sheets together down the length of each corner.
To form aflush corner, make
sure flaps overlap.
B153
F153 B153 F153

7
b
#U042x2
#U042
#F153
#L030 (R)
L030(L)
L030(R)
#L030(L) x2 #Bolt and nut
#L030(R) x2
STEP 6
a
Assembling the ridge beam
C190x2 C115x2 C153x4
When assembling the roof beam, avoid placing screws too
close to each end. Some play is needed in order to slide the
beam over each gable ridge
i
C190
C190
C153 C115
C153
C115 C153
C153
Tek Screw
Tek Screw

8

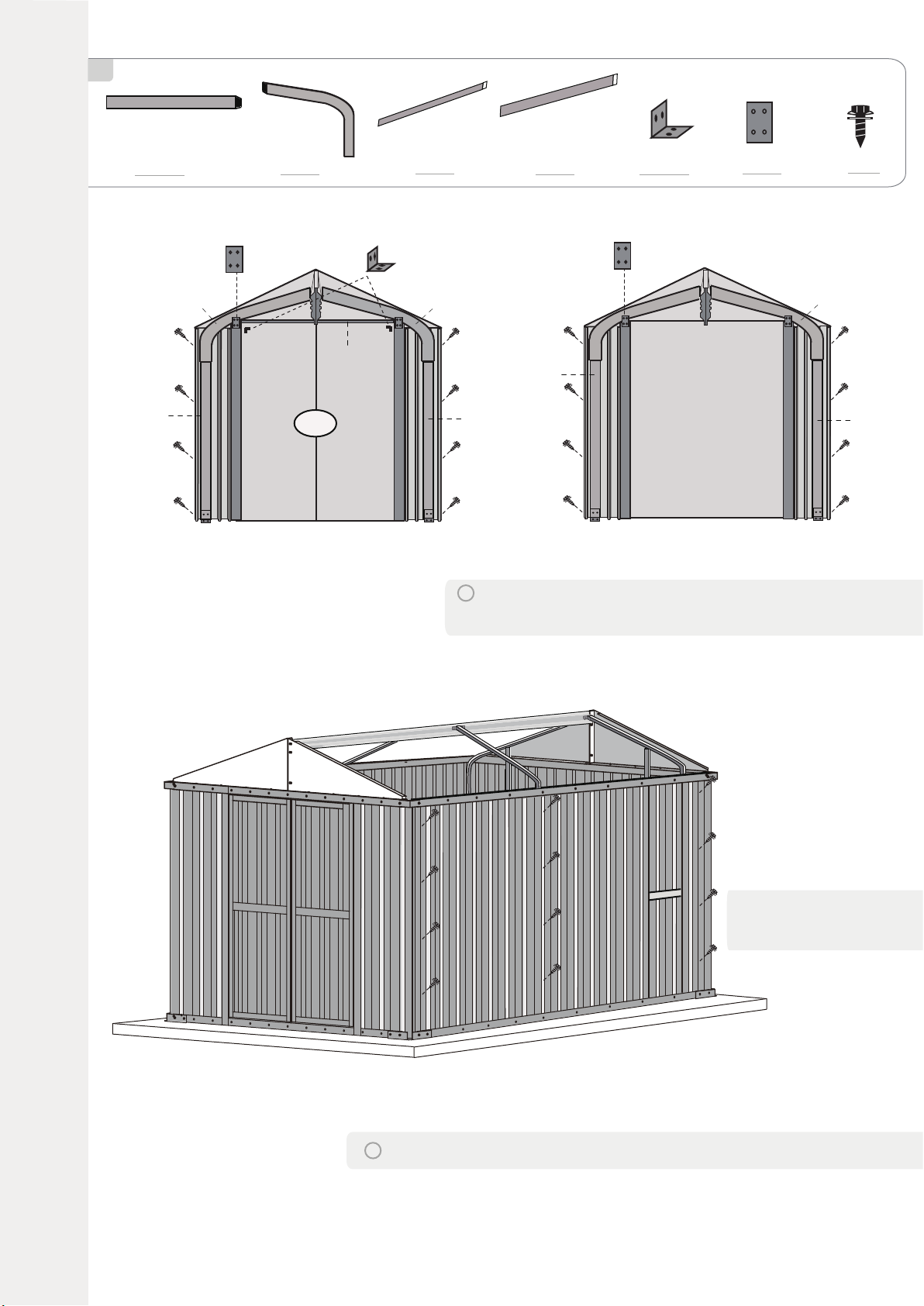

STEP 7
a
#X174x2 #X176x2 Bracket
x4
Assembling the Support square tube
Place the 55mm Bracket
as shown then fix it to the
portal leg. Make sure it is
square and flat to the slab.
Pre drill the Dia 8mm hole
to a depth of 50mm.
x2
iBefore and after the Support square tube of the wall
just need two L-Bracket piece to links
iSupport square tube
in the middle of the
Ridge beam need
four L-Bracket piece
MIDDLE
FRONT AND
BACK
x2
Bracket
Expansion
screw
Expansion screw
Tek Screw

Door
x2
b
#X174x4 Bracket
#X176x4 Flat fastener
#X201x4
#X225x1
Front wall Rear wall
iThe Bracket and Flat fasteners need very strong
#X174
#X176
#X225
#X201
#X201
#X174
#X176
And Need from exterior wall retaining screw to X201
#X176
#X176
#X174
#X174
#X201
#X201
Fit the Square tube using
four (4) screws on either
side of the side wall
Tek Screw
iAnd Need from exterior wall retaining screw to X174 and X176
9

b
#G165x4 #U155x8 Corner Cover
STEP 8
a

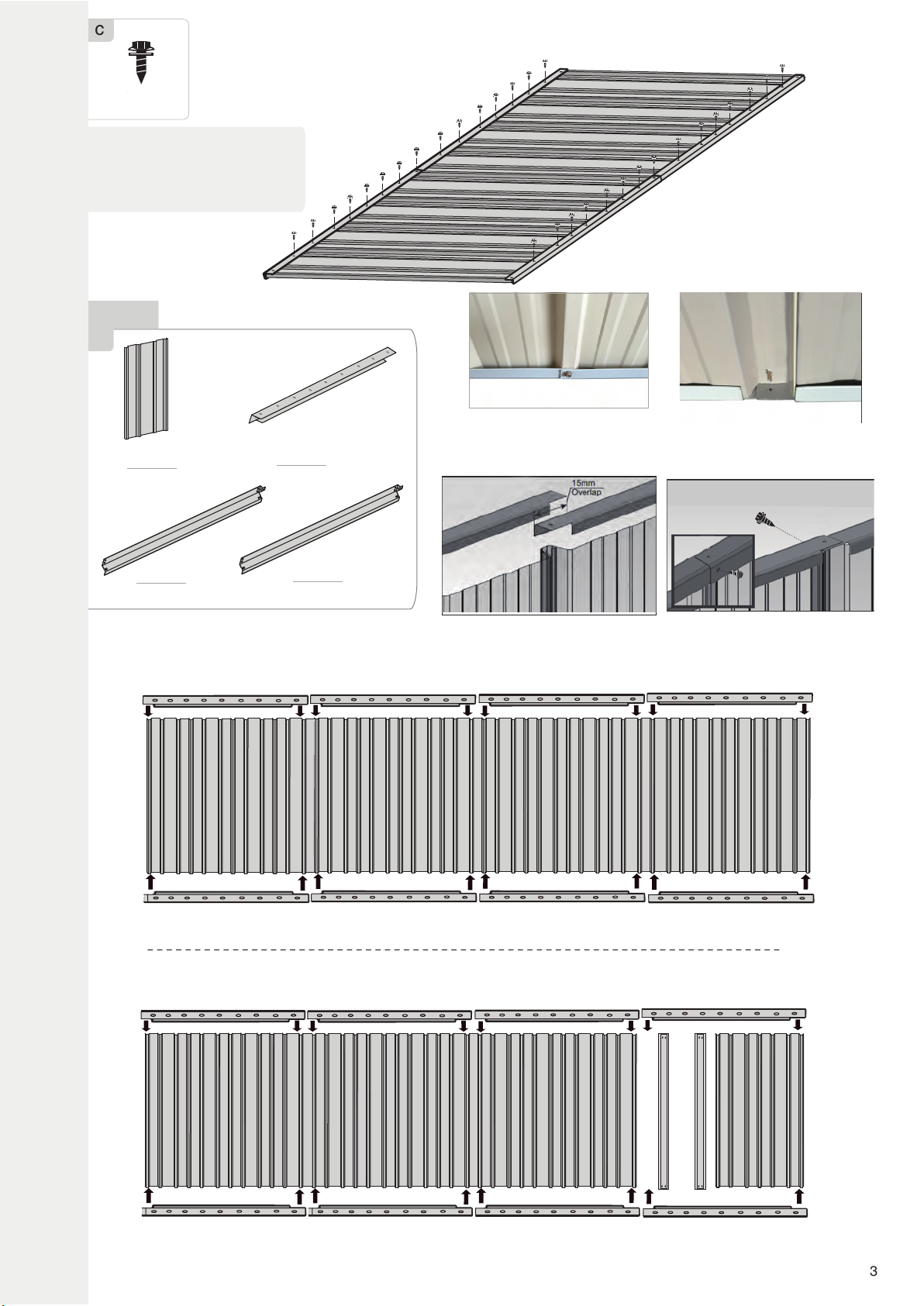

Assembling the roof
#P165x32 #V155x4
Screw the door side of the roof on first (do not start the rear
side yet).
OUTSIDEINSIDE
Tek Screw
Weather
Stripping Plastic Ridge End Cap
Plastic Ridge End Cap
Equidistant holes on the
roof channel (G)
When attaching roof panels, align them to the central roof beam, NOT to the walls
as these may shift during final fixing. Screw the panels to the central beam first, this
leaves some play available should you need to adjust the roof or walls to ensure the
best possible fit. Secure the roof to the wall channels when everything is square.
i
#V155
Adding the
roof
#V155
#V155
#V155
#V155
x4
U155
#G165
U155
U155
U155
Tek Screw
10

Z150x12 Rivet Electric drill Riveting gun
155cm
200cm
2.53cm
150cm
150cm
47cm
611cm
First drill a hole from inside of wall panel,
then fixed by revits from outside. please
make 2 holes in middle of connection
point and other equidistant holes for the
rest of brace.
Take care to ensure that both ends of brace
need insert into wall chanel when wall brace
fit on wall channel.
for side wall
not need bracings when door
assembled on here
top supporting
top supporting

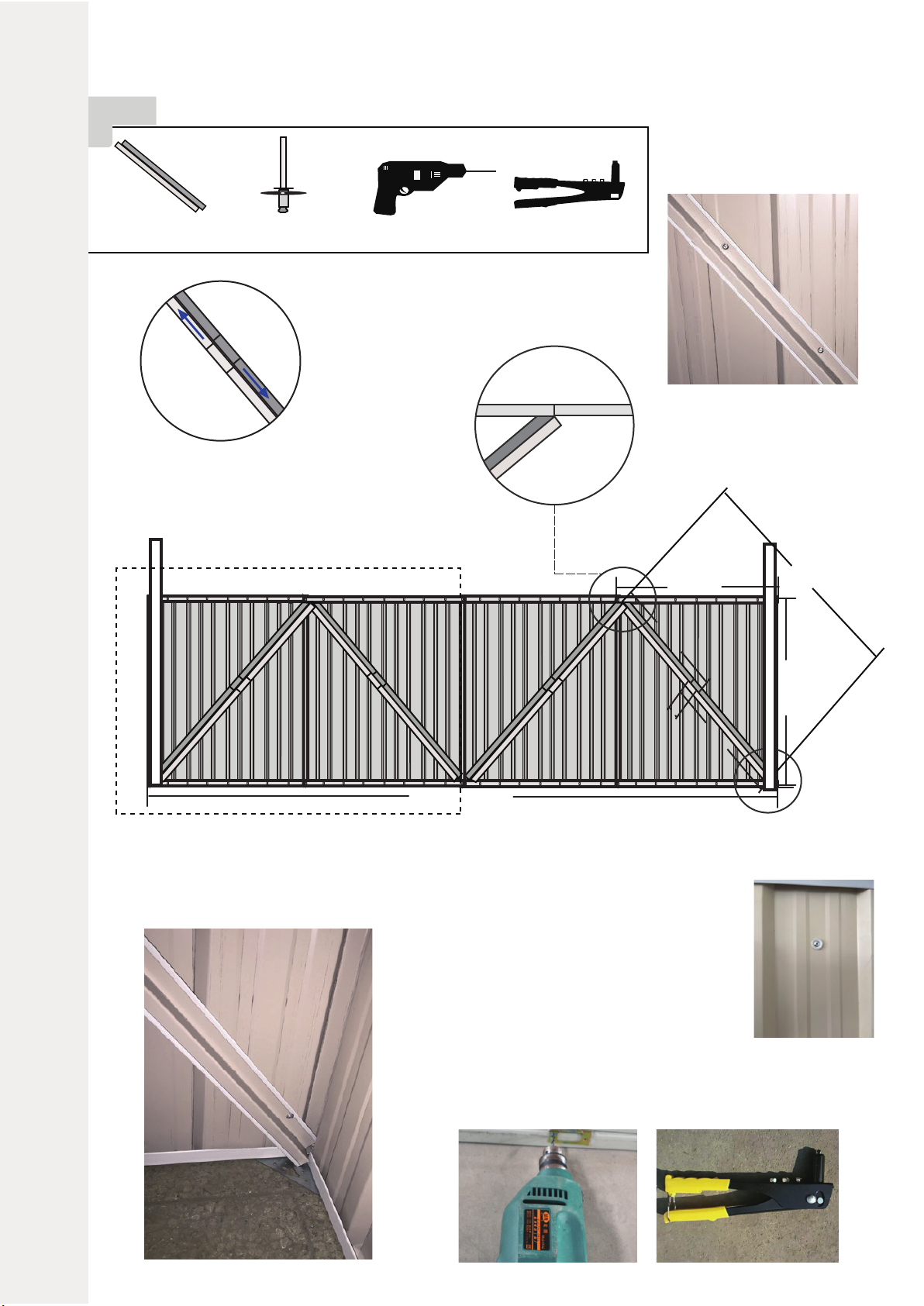

STEP 8 Fitting Wall Bracing
a
11

STEP 9 Assembling the door
a
#E195 x 410 x4 #E195 x 350 x2
#E195 x 350 x1#E195 x 410 x1
#U195 x 4
#U112x4 Rivet
D193x2
Square tube
In side of door
Out side of door
Rivet
Rivet
Out side of door
#E195 x 350
#E195 x 410
D193
Square tube
insert D193 square
tube into U195 frame
screw rivets
#U195
#U195
#E195 x 410 x1
#U112x1
#U112x1
#E195 x 410
11
（Front）

12
Z145
D193
Attach the door hinges 1 ‘hinge length’ from
each end of the door. To do this, place the
hinge flush with the end of the door frame
and make a mark on the frame at the end
of the hinge. Now move the hinge down
until it is level with mark, drill holes for your
rivets and attach.
Use the drill bit to drill pilot holes through the
door bracing into the door sheeting.Flip the
door back over to the front side facing up.
Using the pilot holes drilled before, fix the door
bracing from the front with Rivet and Spacer.
b
Rivet H112x2 Z145x4
D193 D173
H112 H112 H112
Hingex4
Bolt（door outside）x1

c
#E195 x 410 x1 #E195 x 350 x1
#E195 x 350 x1#E195 x 410 x1
#U195 x 2
#U074x2 Rivet
D193x1
Square tube
In side of door
Out side of door
Rivet
Rivet
Out side of door
#E195 x 350
#E195 x 410
D193
Square tube
insert D193 square
tube into U195 frame
screw rivets
#U195
#U195
13

14
Z119
D193
Attach the door hinges 1 ‘hinge length’ from
each end of the door. To do this, place the
hinge flush with the end of the door frame
and make a mark on the frame at the end
of the hinge. Now move the hinge down
until it is level with mark, drill holes for your
rivets and attach.
Use the drill bit to drill pilot holes through the
door bracing into the door sheeting.Flip the
door back over to the front side facing up.
Using the pilot holes drilled before, fix the door
bracing from the front with Rivet and Spacer.
d
Rivet H074x1 Z119x2 Hingex2
Bolt（door outside）x1
Rivet
Rivet
Rivet
H074
D193 D193
