13225001.en/MAS/© 10.02
OPERATION MANUAL / SPARE PARTS LIST
MANUAL SEALLESS
STEEL STRAPPING TOOL
MODEL A332
13.2250.01
INDEX
SAFETY INSTRUCTIONS
WARRANTY CONDITIONS AND LIABILITY
APPROPRIATE USE
TECNICAL DATA
CHART OF TYPES A332
OPERATION
SPARE PARTS LIST 13.2250.01
SEALCONTROL
SEAL ADJUSTMENT
CLEANING
ACCESSORIES
For Parts & Service 1-877-862-6699

2A332T1.en.fm
1 SAFETY INSTRUCTIONS
Read these instructions carefully. Failure to follow these instructions can result in severe personal injury.
Eye injury hazard
Failure to wear safety glasses with side shields can result in
severe eye injury or blindness. Always wear safety glasses with
side shields which conform to ANSI Standard Z87.1.
Operation
Tool must not be used by persons not properly trained in their use.
Before tensioning strap, read and understand the tool operating
instructions. Failure to follow the operating instructions or improper
load positioning could result in strap breakage.
Become familiar with your tool and keep fingers away from areas
that can pinch or cut.
Joints
You are fully responsible to review the joints made by your tool.
Become familiar with the seal control and seal adjustment
described in this operation manual. Misformed joints may not
secure the load and could cause serious injury. Never handle or
ship any load with improperly formed joints.
Dispensing strap
Only dispense strap from a dispenser specifically designed for
strap.
Tuck strap end back into dispenser when not in use.
Protective gloves
When handling strap, always wear protective gloves.
Strap warnings
Never use strap as a means of pulling or lifting loads. Failure to
follow these warnings can result in severe personal injury.
Strap breakage hazard
Improper operation of the tool, excessive tensioning, using strap
not recommended for this tool or sharp corners on the load can
result in a sudden loss of strap tension or in strap breakage during
tensioning, which could result in the following:
• A sudden loss of balance causing you to fall.
• Both tool and strap flying violently towards your face.
Note as follows:
• If the load corners are sharp, use edge protectors.
• Place the strap correctly around a properly positioned
load.
• Positioning yourself in-line with the strap, during
tensioning and sealing, can result in severe personal
injury from flying strap or tool. When tensioning or sealing,
position yourself to one side of the strap and keep all
bystanders away.
• Use the correct strap quality, strap width, strap gauge and
strap tensile strength recommended in this manual for
your tool. Using strap not recommended for this tool can
result in strap breakage during tensioning.
Cutting tensioned strap
When cutting strapping, use the proper strapping cutter and keep
other personnel and yourself at a safe distance from the strap.
Always stand to side of the strap, away from the direction the
loosened strap end will fly. Use only cutters designed for strap and
never hammers, pliers, hacksaws, axes, etc.
Fall hazard
Keep your working area tidy. Untidiness of your working area may
cause a risk of injury. Maintaining improper footing and/or balance
when operating the tool can cause you to fall. Before tensioning
and especially in elevated areas, always establish good balance.
Both feet should be securely placed on a flat, solid surface,
especially when working in elevated areas. Do not use the tool
when you are in an awkward position.
Pay attention to the rules and regulations for preventions of
accident which are valid for the work place.
Tool hazards
A well maintained tool is a safe tool!
Check tool regularly for broken or worn parts. Do not operate a
tool with broken or worn parts.
Never modify any tool. Modification can result in severe bodily
injury.
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

3
A332T1.en.fm
2 WARRANTY CONDITIONS AND LIABILITY
FROMM Holding AG warrants all its strapping tools and machine heads during a period of 90 days from the
date of sale. The warranty includes all deficiencies clearly resulting from poor manufacturing or faulty materials.
Damage claims as a result of production shutdowns and claims for damage to persons and to property resulting
from warranty deficiencies cannot be asserted by the customer.
The warranty excludes:
• wearing parts
• deficiencies resulting from improper installing, incorrect handling and maintaining the tool
• deficiencies resulting from using the tool without or with defective security- and safety devices
• disregard of directions in the operation manual
• arbitrary modifications of the tool
• deficient control of wearing parts
• deficient repair works of the tool
• Use of consumable products not recommended by FROMM Holding AG
We reserve the right to modify the product at any time in order to improve its quality.
3APPROPRIATEUSE
The tool model A332 has been designed to strap packages with steel strapping exclusively.
The warranty / liability excludes:
•non appropriate use of the tool,
•disregard of directions in the operation manual,
•disregard of control- and maintenance instructions.
4 TECNICAL DATA
Dimensions without suspension bracket
Tool Package
Length: 385 mm / 15.2" 405 mm / 15.9"
Width: 141 mm / 5.6" 360 mm / 14.2"
Height: 310 mm / 12.2" 165 mm / 6.5"
Weight: 3.3 kg / 7.3lbs 0.95 kg / 2.1lbs
Joint strength
Approx. 80% of the strap’s tensile strength.
Steel strapping
Width: 9.5 - 13 mm / 3/8"-1/2" (see chart of types)
Thickness: 0.38 - 0.50 mm / 0.015"- 0.020"
Quality: Fundamentally the A332 allows the use of all current steel straps with tensile
strengths ranging from 700 to 850 N/mm2/ 100 000 - 123 000 psi.
Straps with a low breaking elongation are unsuitable.
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

4A332T1.en.fm

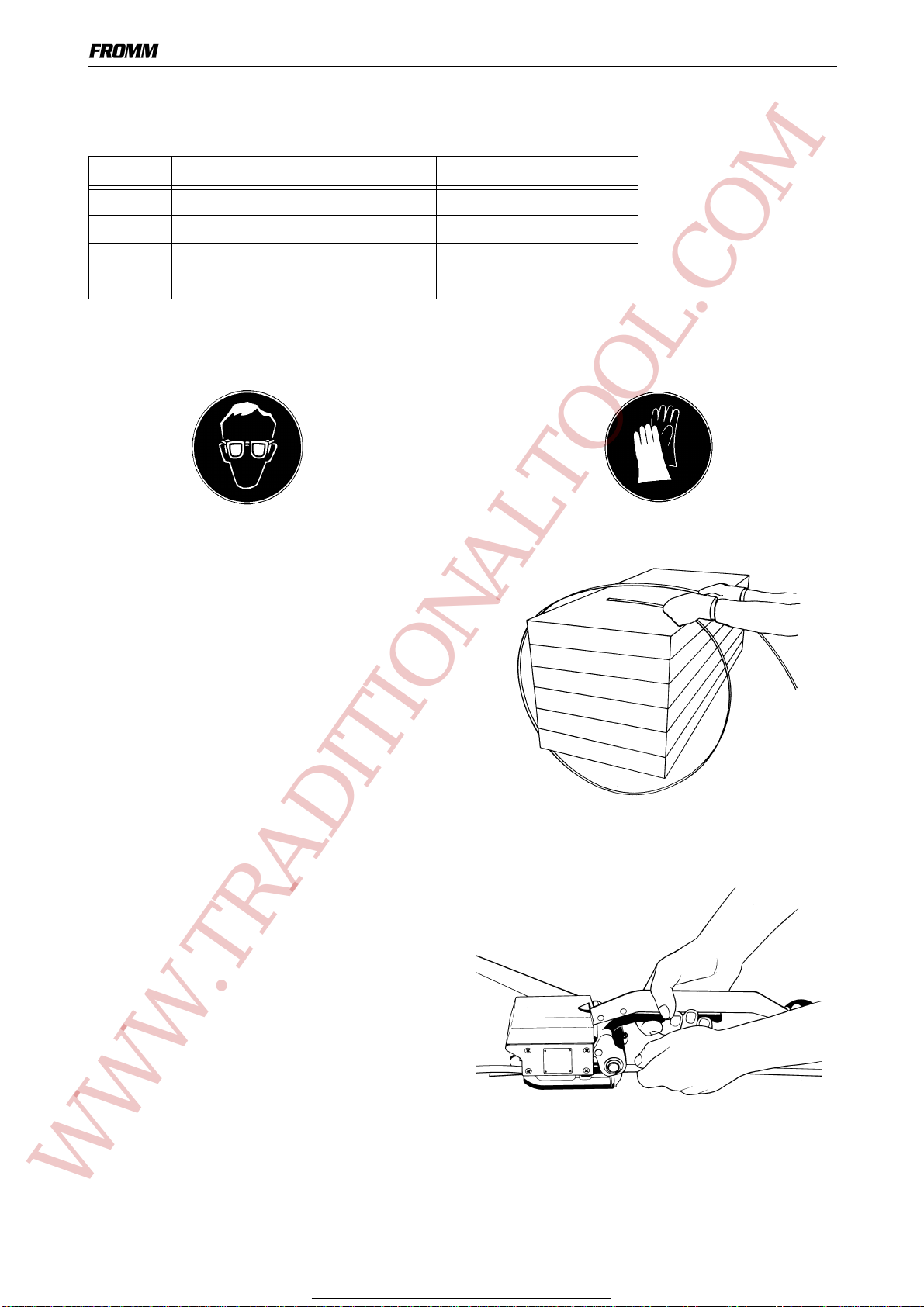

5 CHART OF TYPES A332
6 OPERATION
Feeding the strapping around the
package
The strapping is fed around the package in the
direction as shown in the illustration. The strapping
end is held tightly with the left hand and pulled firmly
towards the operator with the right hand.
Loading the strapping
The rocker is raised with the right hand. The left hand
inserts the two straps lying precisely upon another
into the tool until they hit the strap stops.
The lower strap end must slightly protrude the end of
the base plate.
Be certain that the strapping is held by the strap guide.
Item No. Model Strap width Strap thickness
13.2250 A332/9.5/0.38-0.50 9.5mm / 3/8" 0.38 - 0.50 mm / 0.015 - 0.020"
13.2260 A332/10/0.38-0.50 10.0mm 0.38 - 0.50 mm / 0.015 - 0.020"
13.2270 A332/12.7/0.38-0.50 12.7mm / 1/2" 0.38 - 0.50 mm / 0.015 - 0.020"
13.2280 A332/13/0.38-0.50 13.0 mm 0.38 - 0.50 mm / 0.015 - 0.020"
When handling strap, always wear protective
gloves and safety glasses with side shields
which conform to ANSI Standard Z87.1.
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

5
A332T1.en.fm

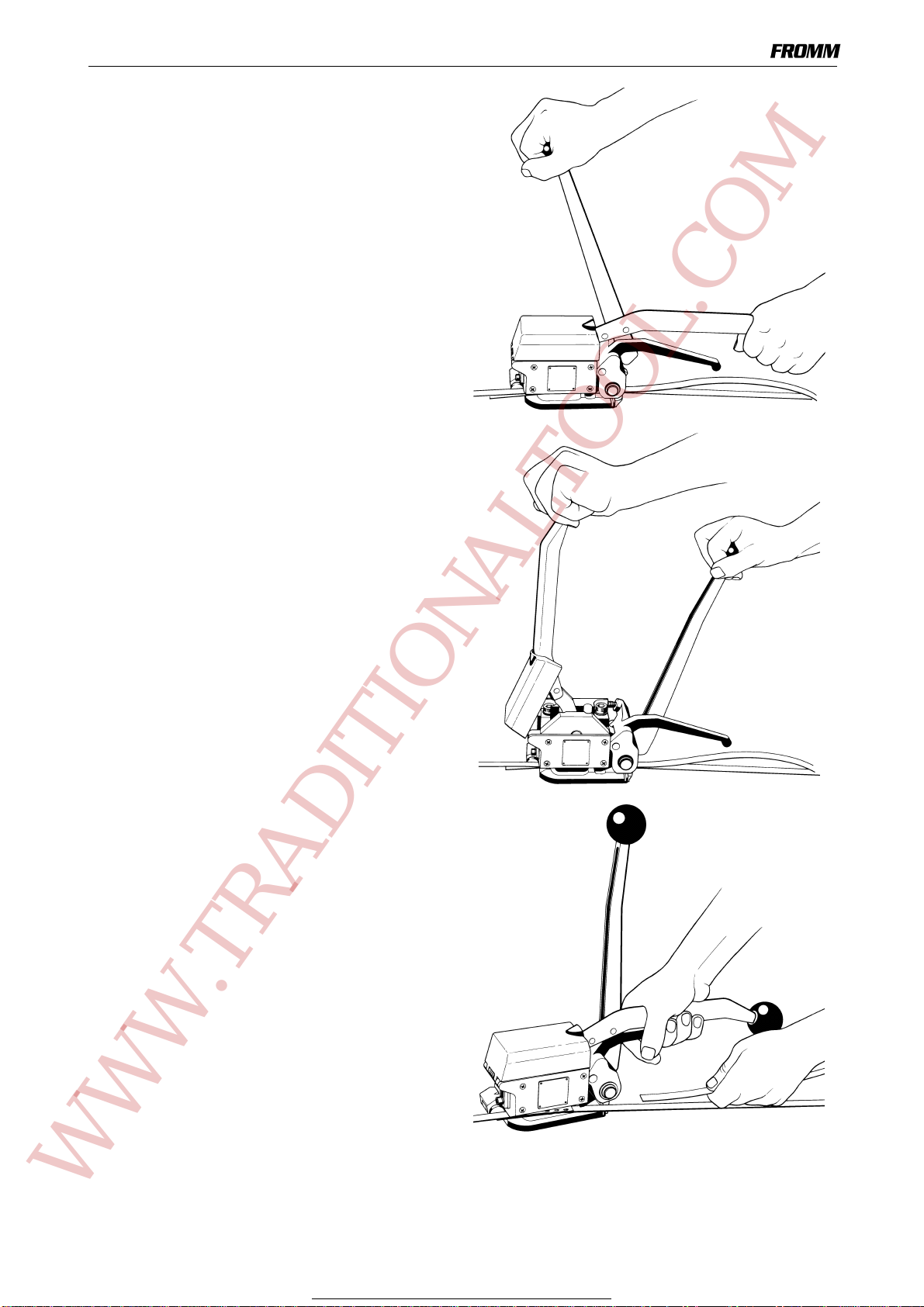

Tensioning the strapping
The tool is held tightly with the left hand being placed
on the sealing lever. The tensioning handle is now
moved forward and backward with the right hand until
the desired tension is attained.
Sealing the strapping
The sealing lever is moved forward using the left hand
until it hits the stop. The lever is then moved back to
its initial position. When sealing, the right hand
absorbs the sealing force by holding the tensioning
handle.
Releasing the tool
Hold the cut off strap end with the left hand, lift the
rocker with the right hand and push the tool from the
applied strap to the right.
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

2 31A
B
C
D
E
N1.1183
N4.1116
A33.3151
N2.2603
N1.5907
N1.1210
N2.3201
N2.5154
A33.3111
N2.1108
N2.5606
N2.5154
A33.3160 A33.3154A33.3152
A33.3124
A33.3153
N3.2329
N1.1165
N3.3124
N1.3120
N1.6117
N1.3203
N2.2151
N2.2231
A33.1178
A33.1158
A33.1161
N1.6103
N2.5807
N1.1168
A33.1157
A33.1153
N3.3124
N2.2151
N2.2143
A33.1151
A33.2167
A33.1136
A33.1135
N1.1806
A33.2120
N1.3106
N2.2145
N1.1303
13225001.z
N41.9130
N2.4902
A33.1191
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

4567
N4.1116
A33.1159
N1.1182
ESSO Beacon 2
Loctite 222
Loctite 243
Loctite 638
40 Nm
70 Nm
Compensation
N41.9128
N2.2441
A33.1155
A33.1180
N2.5170
N1.1202
A33.1163
A33.1176
N2.4906
N1.5131
N1.3116 A33.3150
N2.2156
N2.1119
N1.6133
N3.2324
A33.3161
A33.3157
N3.3124
N2.2142
A33.1160
N1.1808
N2.5171
N1.1181
A33.2169
N2.2401
N2.2136
N1.1806
A33.2152
A33.1120
A33.1152
N1.1110
A33.1164
N3.3124
N1.1104
N1.1303
N2.2146
A33.1150
A33.2172
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

[ ] = Group * = Wearing parts
813225001.een.fm
7 SPARE PARTS LIST 13.2250.01
13.2250.01 A332/9.5/0.38-0.50 A332.0006.01 26.11.99
Item-No. in group Pcs. Description Dimension Field
A33.1120 *1 SHEAR BLADE D5
A33.1135 *1DIEHALF E3
A33.1136 *1DIEHALF E3
[A33.1150] 1 HOUSING C5
A33.1151 A33.1191 1 DIE AND CUTTER SUPPORT D3
A33.1152 A33.1191 1 ROLLER D4
A33.1153 A33.1191 1 LINK D4
A33.1155 1 SEALING HANDLE A4
[A33.1157] 1 SHIM C3
A33.1158 1 STOP C3
A33.1159 1 COVER A5
A33.1160 1 COVER C6
A33.1161 1 BUSH C3
A33.1163 1 SOCKET SET SCREW C5
A33.1164 1 EJECTOR D5
A33.1176 1 WASHER B5
A33.1178 1 TRUNNION B3
A33.1180 1 SEALING CAM B4
[A33.1191] 1 DIE AND CUTTER SUPPORT D3
A33.2120 *1 PUNCH E3
A33.2152 *1 GRIPPER E5
A33.2167 1 LIMIT BOLT D3
A33.2169 1 STRAP STOP D5
A33.2172 1 BASE PLATE E5
A33.3111 2 CATCH PAWL B2
A33.3124 2 RING HALF B2
A33.3150 1 ROCKER B6
A33.3151 1 TENSION HANDLE A3
A33.3152 1 DRIVER B2
A33.3153 1 LOCKING RING B3
[A33.3154] 1 TENSION SHAFT B2
A33.3157 *1 TENSIONING WHEEL C5
A33.3160 *2 CATCH PAWL B2
A33.3161 1 STRAP GUIDE C5
N1.1104 1 SCREW M8 X 20 E4
N1.1110 1 SCREW M5 X 8 D5
N1.1165 A33.1150 1 SCREW M8 X 10 B3
N1.1168 2 SCREW M5 X 16 C3
N1.1181 2 SCREW M5 X 12 D5
N1.1182 1 SCREW M10 X 1 X 80 B5
N1.1183 1 SCREW M8 X 1 X 80 B3
N1.1202 1 SCREW M5 X 10 B4
N1.1210 1 SCREW M6 X 25 B2
N1.1303 2 SCREW M2 X 8 E4
N1.1806 4 SCREW M4 X 10 D4+
N1.1808 4 SCREW M4 X 10 D6
N1.3106 1 SOCKET SET SCREW M5 X 6 E3
N1.3116 1 SOCKET SET SCREW M5 X 25 B6
N1.3120 1 SOCKET SET SCREW M12 X 12 C3
N1.3203 1 SOCKET SET SCREW M4 X 8 C3
N1.5131 1 HEXAGON NUT M5 B6
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

[ ] = Group *=Wearingparts
9
13225001.een.fm
N1.5907 1 HEXACON NUT M6 B3
N1.6103 2 WASHER 5.3 X 9.5 X 1 C3
N1.6117 1 WASHER 8,4 X 17 X 1,6 B4
N1.6133 1 WASHER 12,2 X 22 X 1 C6
N2.1108 1 SECURITY RING E20 B1
N2.1119 1 SECURITY RING E10 C6
N2.2136 A33.1191 2 PARALLEL PIN 4 H6 X 10 E5
N2.2142 1 PARALLEL PIN 4 M6 X 28 C5
N2.2143 A33.1191 1 PARALLEL PIN 5 H6 X 16 D3
N2.2145 2 PARALLEL PIN 4 H6 X 18 E4
N2.2146 1 PARALLEL PIN 2 M6 X 10 E4
N2.2151 A33.1191 1 PARALLEL PIN 12 H6 X 39 D3
N2.2151 1 PARALLEL PIN 12 H6 X 39 B3
N2.2156 1 PARALLEL PIN 10 H6 X 58 B6
N2.2231 1 PARALLEL PIN 5 H8 X 50 C3
N2.2401 1 DOWEL PIN 3 X 10 E5
N2.2441 2 DOWEL PIN 6 X 20 MM B5
N2.2603 1 GROOVED PIN 6 X 16 A3
N2.3201 1 WOODRUFF KEY 4 X 6,5 X 15,72 B2
N2.4902 2 HAMMER HEAD BOLT 1,85 X 4,76 B2
N2.4906 1 HAMMER HEAD BOLT 5,31 X 12,7 B5
N2.5154 4 PRESSURE SPRING 0.45 X 3.9 X 7 B2
N2.5170 1 PRESSURE SPRING 2 X 9.8 X 96 B4
N2.5171 1 PRESSURE SPRING 1 X 8 X 26 C4
N2.5606 1 CUP SPRING 40X20.4X1 B2
N2.5807 1 TORSION SPRING C3
N3.2324 1 NEEDLE BUSH C6
N3.2329 1 NEEDLE BUSH B3
N3.3124 A33.1191 2 SLIDE-BEARING D4+
N3.3124 2 SLIDE-BEARING B3+
N41.9128 1 ADHESIVE LABEL A5
N41.9130 1 LABEL A332 C2
N4.1116 2 GRIP BALL A3+
13.2250.01 A332/9.5/0.38-0.50 A332.0006.01 26.11.99
Item-No. in group Pcs. Description Dimension Field
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

10 A332T2.en.fm
8 SEAL CONTROL
A regular control of the seal is necessary. The seal can be checked visually and the person controlling can
easily judge the quality of the seal. When checking the seal the following illustrations must be compared.
Correct seal
A correct seal must be conform to the illustration. This means that the depth with which the upper strap hooks
into the lower one must be 1 – 1.5 mm ( 0.039 – 0.059”) in min. and must not exceed 2 mm (0.079”). The upper
strap must be sheared clean and the cutter must not leave scratch marks on the lower strap.
Incorrect seal (the sealing mechanism is adjusted too high)
This stamped seal is not deep enough and the upper strap is not sheared.The tensile strength of this seal is
insufficient and the strapping must be taken away from the package. The tool must be readjusted immediately
(see SEAL ADJUSTMENT).
Incorrect seal (the sealing mechanism is adjusted too low)
This stamped seal is too deep and the lower strap is scratched by the cutter. Although the tensile strength of
this seal is sufficient the strapping must be taken away from the package because of the scratched lower strap.
The tool must be readjusted immediately (see SEAL ADJUSTMENT).
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

11
A332T2.en.fm

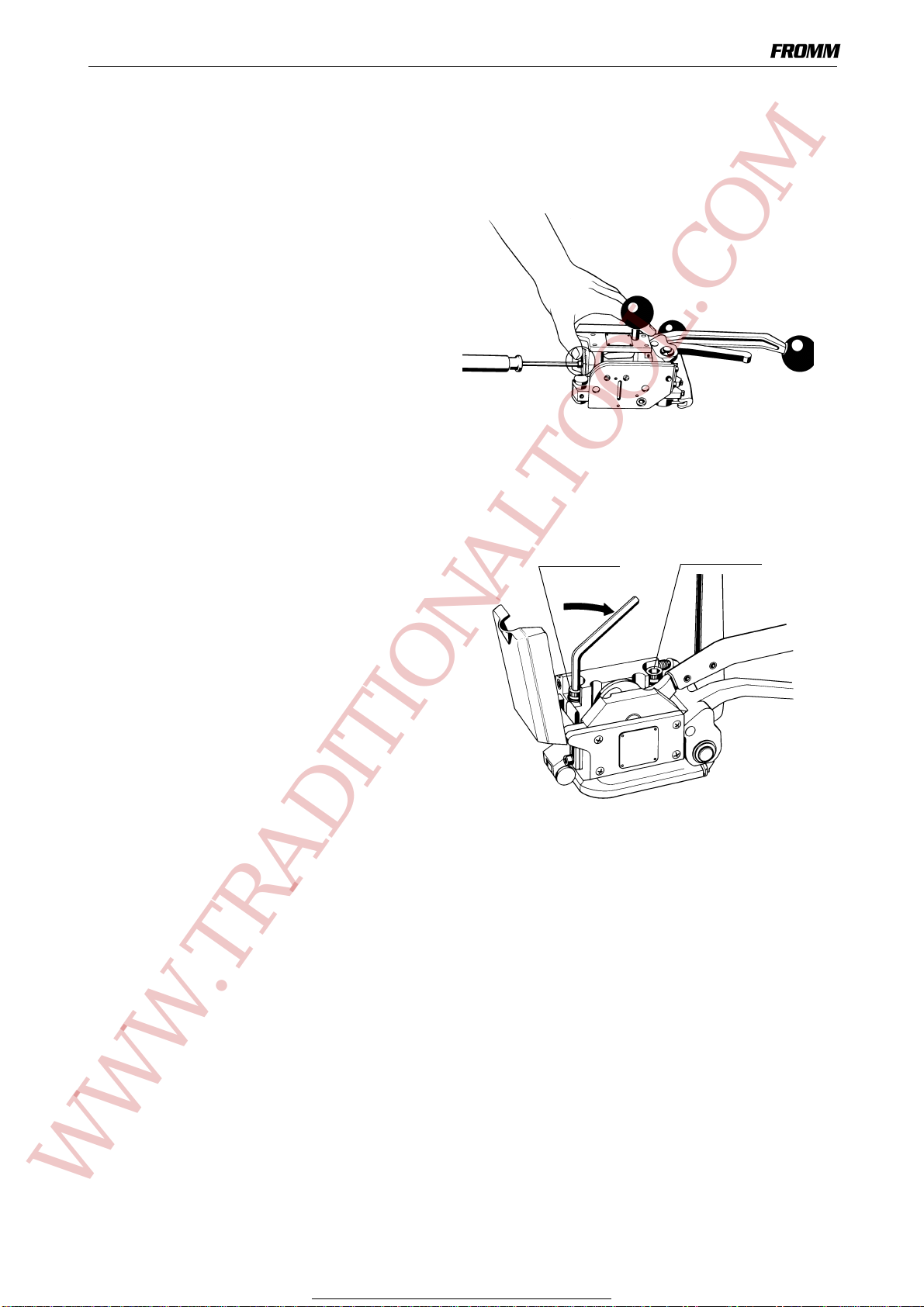

9 SEAL ADJUSTMENT
The sealing and cutting depth of the sealing mechanism and the cutter can be adjusted with the use of the
hexagon key N4.1408 which is supplied with the tool as follows:
• Place tool as shown above.
• Loosen both screws N1.1168 and open them
by approx. 3 revolutions.
• If sealing depth is not sufficient reset stop in the
direction of the base plate.
• If sealing depth is excessive reset stop in the
direction of the body cover.
• Retighten screws N1.1168.
Assembly Instructions
After every disassembly it is essential to retighten
screws N1.1182 and N1.1183 with the
recommended torque when reassembling. The
use of a torque key is necessary.
10 CLEANING
In case of heavy dirt and when painted straps are used the punch, dies, gripper and feed-wheel must be
cleaned regularly.
Normally it is sufficient to blow out the parts with the help of an air gun.
N1.1183=40 Nm N1.1182=70 Nm
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699

12 A332T2.en.fm
11 ACCESSORIES
Using tool with horizontal handle
Upon request the tool can be supplied with a bolt
A33.4101 and a grip ball N4.1116. When using tool
for horizontal applications, the operator holds the tool
on the grip ball during tensioning.
Install the handle as follows:
Remove side cover A33.1160 and break the marked
position.
Reassemble side cover and screw bolt with mounted
ball into the body.
Suspension
It is possible to suspend the tool for strapping in
vertical position.
Order the suitable suspension separately under item
no. A33.0113.
WWW.TRADITIONALTOOL.COM
For Parts & Service 1-877-862-6699
This manual suits for next models
12
Table of contents
Other Traditional Tool Repair Power Tools manuals
Popular Power Tools manuals by other brands

Craftsman
Craftsman 315.17500 owner's manual

Master
Master XL 61 User and Maintenance Book

Jet
Jet EQUIPMENT &TOOLS SBR-30N Operating instructions and parts manual

Sovereign
Sovereign M1Q-DD7-55BD Original instruction manual

Matco Tools
Matco Tools SK8MAT manual

Parkside
Parkside PSG 85 B2 Translation of the original instructions
