Trane E4AH5E24A1J30A User manual

Installation
Manual
High Efficiency Air Handlers
2-5 Ton Capacity
R-410A TXV Inside
E4AH5E48A1K30A
E4AH5E60A1K30A
NOTE: Appearance of unit may vary.
Installation must be performed in accordance
with the requirements of NEC and CEC by
authorized personnel only.
All phases of this installation must comply with National, State and Local Codes.
This document is customer’s property and is to remain with this unit. Please return it to customer with
service information upon completion of work.
These instructions are intended as an assist to qualified and licensed personnel for proper installation,
adjustment and operation of ECM air handler units. Read it thoroughly before attempting installation or
service work.
Failure to follow these instructions may result in fire, electrical shock, property damage,
personal injury or death.
The instructions do not cover all varitions in systems or provide for every possible contingency to be met
in connection with the installation.
88-E4AH5001-1B-EN

2
Table of contents
1. Safety.................................................................................... 3
2. Dimensions .........................................................................5
3. Applications........................................................................ 7
4. Electrical Wiring.............................................................12
5. Airflow Performance ....................................................24
6. Ductwork........................................................................... 25
7. Air Filter............................................................................. 26
8. Indoor Unit Function ....................................................27
9. Service Manual .............................................................. 29

3
1. Safety
Read the following safety instructions before installing the unit or doing service work.
WARNING may cause personal death or serious injury.
CAUTION may lead to injury or structural damage under some conditions.
THIS PRODUCT CAN EXPOSE YOU TO CHEMICALS
INCLUDING LEAD, WHICH ARE KNOWN TO THE
STATE OF CALIFORNIA TO CAUSE CANCER AND
BIRTH DEFECTS OR OTHER REPRODUCTIVE
HARM.
FOR MORE INFORMATION GO TO
www.p65Warnings.ca.gov
WARNING
FIRE HAZARD!
WITH HEAT PUMP INSTALLATIONS, SOME ELECTRIC
HEATERS ARE POSITION SENSITIVE. USE ONLY
APPROVED HEATER TO UNIT COMBINATIONS PER
NAMEPLATE AND SET BLOWER AIRFLOW SPEED
PER NAMEPLATE INSTRUCTIONS.
WHEN HEATERS COME SUPPLIED WITH CIRCUIT
BREAKERS, USE 240/208 VOLT SUPPLY POWER WITH
120 VOLTS (NOMINAL) TO GROUND.
FAILURE TO FOLLOW THE ABOVE COULD RESULT IN
DEATH, SERIOUS INJURY OR EQUIPMENT DAMAGE.
WARNING
HAZARDOUS VOLTAGE!
DISCONNECT ALL ELECTRIC POWER INCLUDING
REMOTE DISCONNECTS BEFORE SERVICING.
INSURE THAT ALL MOTOR CAPACITORS HAVE
DISCHARGED STORED VOLTAGE.
FAILURE TO DO THE ABOVE COULD RESULT IN
DEATH OR SERIOUS INJURY.
WARNING
SHARP EDGES!
AVOID CONTACT WITH COlL FINS AND SHEET METAL
EDGES.
FAILURE TO FOLLOW THE ABOVE COULD RESULT IN
DEATH OR SERIOUS INJURY.
WARNING
FLAMMABLE VAPORS!
THE USE AND STORAGE OF GASOLINE OR OTHER
FLAMMABLE VAPORS AND LIQUIDS IN OPEN
CONTAINERS IN THE VICINITY OF THIS FURNACE CAN
RESULT IN EXPLOSION OR FIRE.
FAILURE TO FOLLOW THE ABOVE COULD RESULT IN
DEATH OR SERIOUS INJURY, OR PROPERTY DAMAGE.
WARNING
FIBERGLASS WOOL EXPOSURE!
REFER TO OWNER'S INFORMATION MANUAL
PROVIDED WITH THIS UNIT FOR PROPER
INSTALLATION, OPERATING AND MAINTENANCE
INSTRUCTIONS.
DISTURBING THE INSULATION IN THIS PRODUCT
DURING INSTALLATION, MAINTENANCE OR REPAIR
WILL EXPOSE YOU TO AIRBORNE PARTICLES OF
GLASS WOOL FIBERS AND CERAMIC FIBERS KNOWN
TO THE STATE OF CALIFORNIA TO CAUSE CANCER
THROUGH INHALATION. GLASS WOOL FIBERS COULD
ALSO CAUSE RESPIRATORY, SKIN OR EYE IRRITATION.
WARNING
PRESSURIZED REFRIGERANT! —
IMPROPER REFRIGERANT!
SYSTEM CONTAINS OIL AND REFRIGERANT UNDER
HIGH PRESSURE. RECOVER REFRIGERANT TO
RELIEVE PRESSURE BEFORE OPENING THE SYSTEM.
DO NOT USE NON-APPROVED REFRIGERANTS OR
REFRIGERANT SUBSTITUTES OR REFRIGERANT
ADDITIVES. SEE OUTDOOR UNIT NAMEPLATE FOR
REFRIGERANT TYPE.
FAILURE TO FOLLOW THE ABOVE COULD RESULT IN
DEATH, SERIOUS INJURY OR EQUIPMENT DAMAGE.
WARNING

4
USE COPPER CONDUCTORS ONLY!
UNIT TERMINALS ARE NOT DESIGNED TO ACCEPT
OTHER TYPES OF CONDUCTORS.
FAILURE TO DO THE ABOVE COULD RESULT IN
EQUIPMENT DAMAGE.
WARNING
ROTATING FAN BLADE!
DISCONNECT ALL ELECTRIC POWER INCLUDING
REMOTE DISCONNECTS BEFORE SERVICING.
FAILURE TO DISCONNECT POWER BEFORE
SERVICING CAN CAUSE SEVERE PERSONAL INJURY
OR DEATH.
WARNING

5
2. Dimensions
NOTE: 25'' CLEARANCE IS REQUIRED IN THE FRONT OF THE UNIT FOR FILTER AND COIL
MAINTENANCE
Figure 2-1 Unit dimensions
Inlet (Front View) Primary drain
connection 3/4'' Female pipe thread (NPT)Inlet (Left Side View)
Gas Line
Liquid Line

6
Table 1. Unit Dimensions
Model
Dimensions (in.)
H
W
D
A
Liquid Line
Connection
Gas Line
Connection
E4AH5E24A1J30A
E4AH5E36A1J30A
46-1/2
21
21
19-1/4
3/8
3/4
E4AH5E48A1K30A
E4AH5E60A1K30A
56
24-1/2
21
22-3/4
3/8
7/8
Select a solid and level site, keep enough space for proper installation and maintenance.
Adjust motor speed tap on indoor main control board (MCB) to select correct air flow according to
blower performance table.
a) Horizontal position
b) Vertical position
Figure 2-2 Clearance requirement

7
3. Applications
3.1 Vertical up-flow and Horizontal right-flow
Vertical up-flow and horizontal right-flow configurations are the factory settings on all models.
If return air is to be ducted, install duct flush with floor. Use fireproof resilient gasket 1/8’’ to 1/4’’ thick
between the ducts, unit and floor. Set unit on floor over opening.
IMPORTANT
Lightly tighten the drain connections so they do not leak.
Using excessive force may cause damage to the drain connections. Torque applied to drain
connections should not exceed 10.ft.lbs.
Figure 3-1 Dimensions for front connection coil
3.00
1.75
3.00”
1.70”
1.40”
2.36
2.70
3.96

8
3.1.1 Installation of drainpipe
1.When the air handler is installed vertically, please block the upper drainage hole with a cover. The
lower right of the drainage hole is connected with the drainage pipe, and the lower left of the drainage
hole is connected with the overflow pipe that should be exposed to the air; lf the pipe ① is draining,
which means the pipe ② is blocked. Contact maintenance personnel as soon as possible.
A

9
2. When installing the air handler lying down, the upper drainage hole is covered the lower left of the
drainage hole is connected with the drainage pipe, the lower right of the drainage hole is connected
with the overflow pipe that should be exposed to the air. lf the pipe ① is draining, which means the
pipe ② is blocked. Contact maintenance personnel as soon as possible.
Figure 3-3 Horizontal right

10
,QVWDOODWLRQRIGUDLQSLSH
Keep the coil connections sealed until refrigerant connections are made. Refer to condensing unit
installation instructions for details on pipe size and insulation.
Coil is shipped with nitrogen. Evacuate the system before charging with refrigerant.
Make sure the refrigerant pipes layout do not block service access.
Purge the refrigerant pipes and indoor coil with dry nitrogen while brazing.
Use a wet rag or an approved heat paste to protect the TXV sensing bulb during the brazing
process.
Condensate Drain Connection
Use a thin layer of Teflon paste, silicone or Teflon tape when making drain fitting connections.
Do not over tighten fittings resulting in splitting pipe connections on the drain pan.

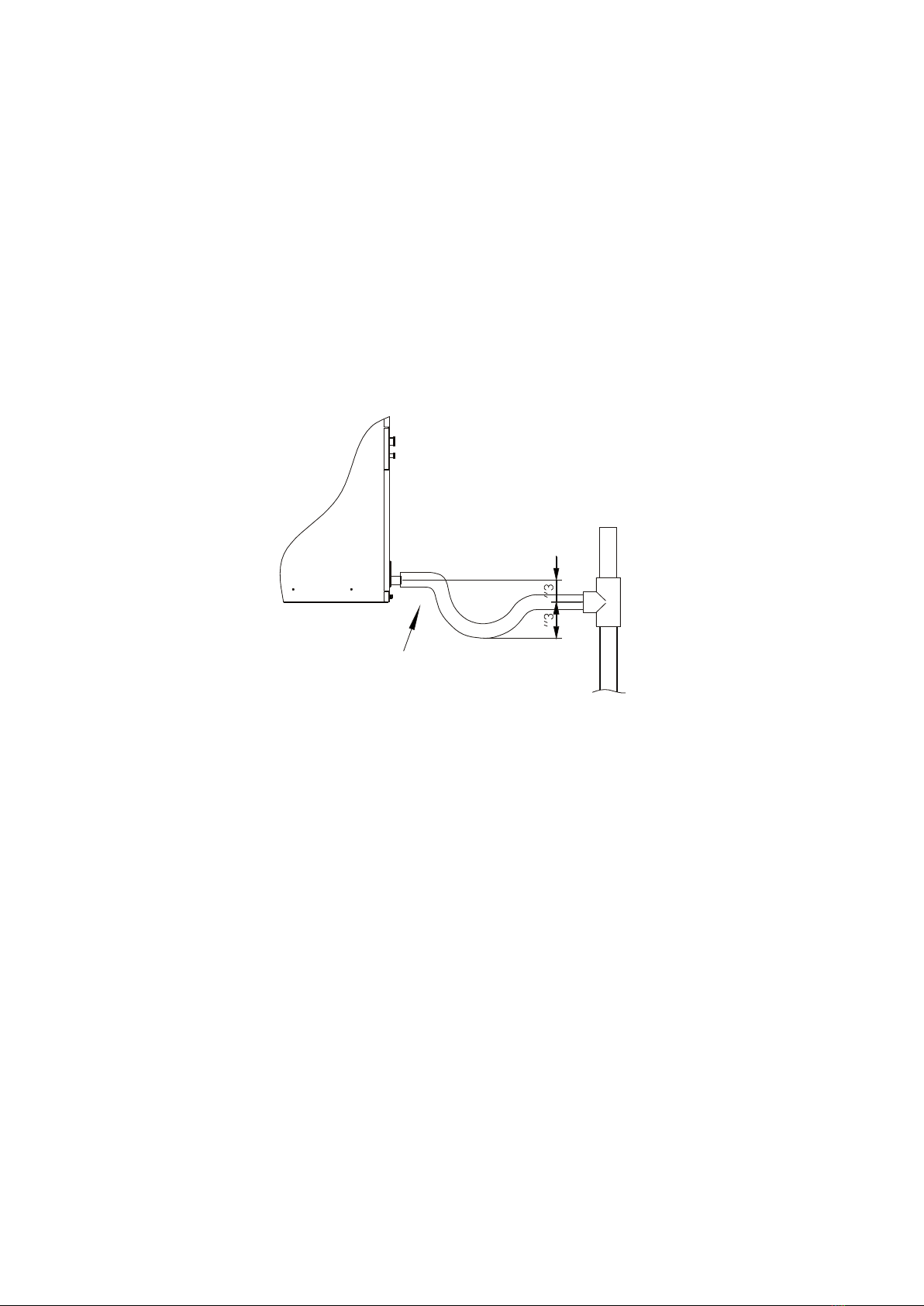

Figure 7-1 Condensate drain trap
Make sure the drain pipes layout do not block service access. Minimum clearance of 25’’ is required
for filter, coil or blower removal and service access.
Ensure the unit is level or pitched slightly toward primary drain connection so that water will drain
smoothly from the pan. All horizontal drain pipes must be pitched downward away from the unit a
minimum of 1/8” per foot of line to ensure proper drainage.
Do not reduce drain pipe size less than connection size provided on condensate drain pan.
Do not connect condensate drain pipe to a closed or open sewer pipe.
The drain pipe should be insulated where necessary to prevent sweating and damage due to
condensate forming on the outside surface of the line.
Make provisions for disconnecting and cleaning of the primary drain pipe if it become necessary.
Install a 3 inch trap in the primary drain pipe as close as possible to the unit. Make sure that the top
of the trap is below connection to the drain pan to allow complete drainage of pan.
Auxiliary drain pipe should be connected to a place where it will be noticeable. Homeowner should
be warned that a problem exists if water begins running from the auxiliary drain pipe.
Test condensate drain pan and drain pipe after installation is complete. Pour enough water into
drain pan, make sure that the drain pan is draining completely, no leaks are found in drain pipe
fittings, and no water is draining from the termination of the primary drain pipe.
CONDENSATE DRAIN TRAP
UNIT
TO APPROVED
DRAIN
DO NOT OPERATE UNIT WITHOUT
CONDENSATE DRAIN TRAP.
DO NOT OVERTIGHTEN DRAIN FITTING
UNIT MUST BE SLIGHTLY PITCHED
TOWARD DRAIN CONNECTION

11
3.Horizontal left-flow
Horizontal left-flow is another default factory configuration for the units. These units may be
converted to horizontal left-flow by removing indoor coil assembly with drain pan and reinstalling it
as shown below.
Rotate the unit 90° into the horizontal left position, with the coil compartment on the right and the
blower compartment on the left.
Reinstall the indoor coil 180° from original position. Ensure the retaining channel is fully engaged
with the coil rail(Figure 3-4 and 3-5).
Aftermarket drain pan kits are required when the unit is configured for the horizontal position over
a finished ceiling and living space.
Figure 3-4 Horizontal left-flow application
A
14
ENSURE THE RETAINNG CHANNEL IS FULLY
ENGAGED WITH THE COIL RAIL.
DETAIL
RAILS
RAILS
AIRFLOW

12
Figure 3-5 Evaporator diagram
CAUTION
Horizontal units must be configured for right hand air supply or left hand air supply.
Horizontal drain pan must be located under indoor coil. Failure to use the drain pan can result in
property damage.
3.Installation in an unconditioned space
There are two pairs of coil rails in the air handler for default and counter flow application. If the air
handler is installed in an unconditioned space, the two unused coil rails should be removed to minimize
air handler surface sweating. The coil rails can be easily removed by taking off the 6 mounting screws
from both sides of the cabinet.
4. Electrical Wiring
Field wiring must comply with the National Electric Code (C.E.C. in Canada) and any applicable local
ordinance.
WARNING
Disconnect all power to unit before installing or servicing. More than one disconnect switch may be
required to de-energize the equipment. Hazardous voltage can cause severe personal injury or death.

13
4.1 Power Wiring
It is important that proper electrical power is available for connection to the unit model being installed.
Refer to the unit nameplate, wiring diagram and electrical data in the installation instructions.
If required, install a branch circuit disconnect of adequate size, located within sight of, and readily
accessible to the unit.
When the electric heat is installed, units may be equipped with one or two 30~60 amp circuit
breakers. These breakers protect the internal wiring in the event of a short circuit and serve as a
disconnect. Circuit breakers installed within the unit do not provide over-current protection of the
supply wiring and therefore may be sized larger than the branch circuit protection.
Supply circuit power wiring must be 167 ℉ minimum copper conductors only. Refer to electrical data
in this section for ampacity, wire size and circuit protector requirements. Supply circuit protective
devices may be either fuses or “HACR” type circuit breakers.

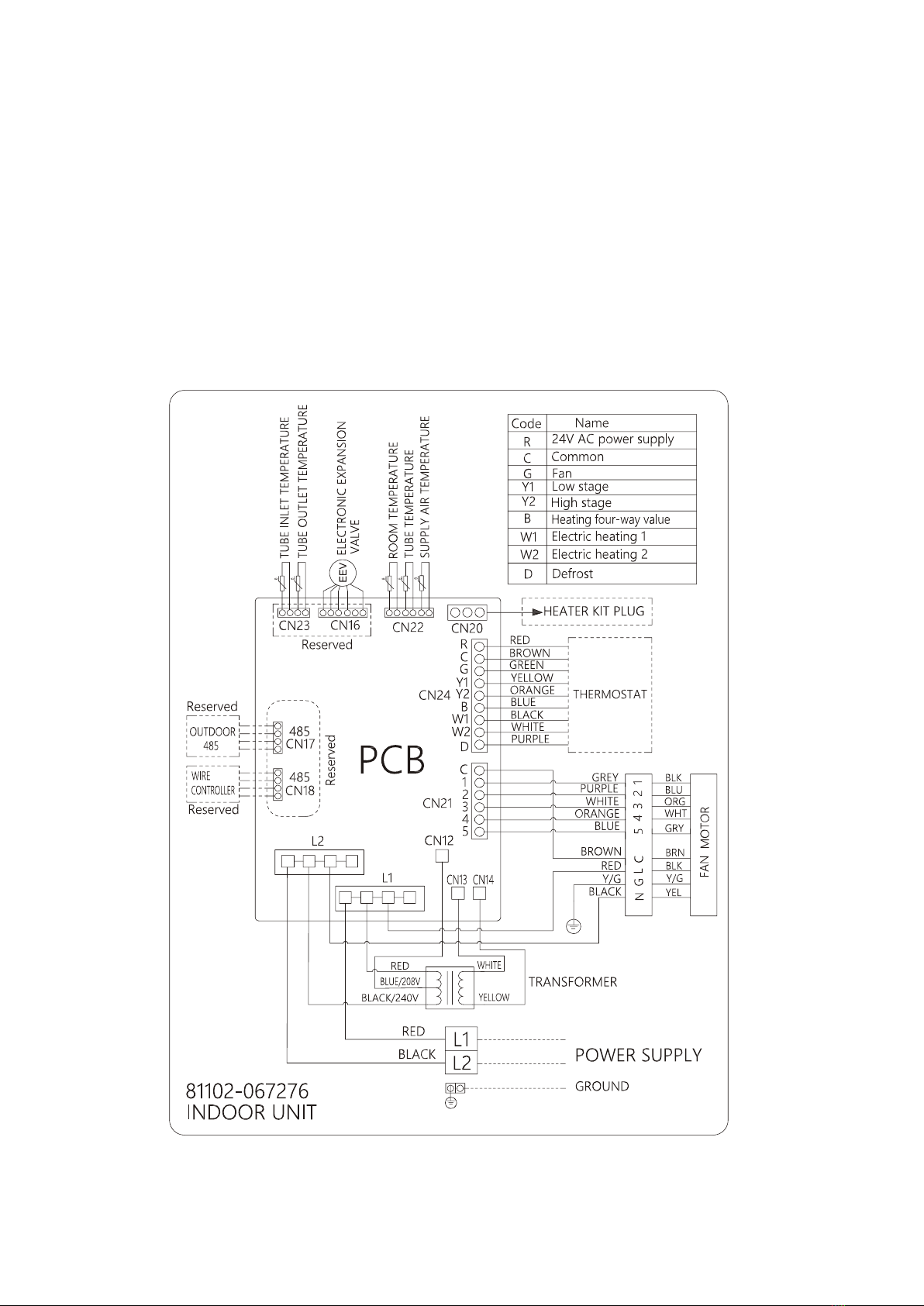

Figure 4-1 Wiring diagram

14
4.2 Control Wiring
Class 2 low voltage control wiring should not be run in conduit with main power wiring and must be
separated from power wiring, unless class 1 wire of proper voltage rating is used.
Low voltage control wiring should be color-coded 18 AWG. For lengths longer than 100 ft, 16 AWG
wire shall be used.
Refer to wiring diagrams attached to indoor and outdoor sections to be connected.
Make sure separation of control wiring and power wiring has been maintained.
Two-Stage Thermostat
Heat Pump
Outdoor Unit
Air
Handler
One-Stage Thermostat
Air
Handler
Heat Pump
Outdoor Unit

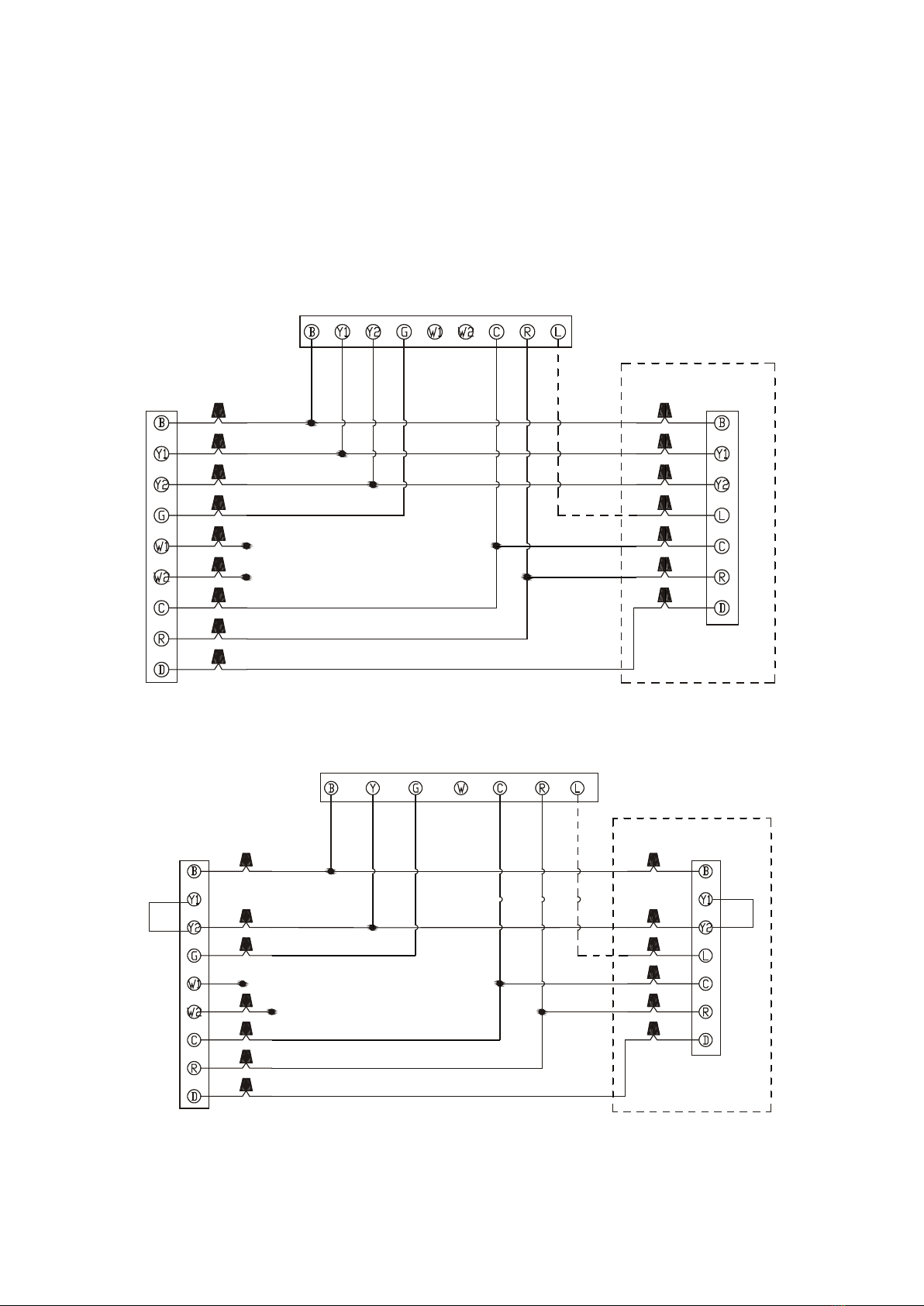

a) Two-Stage thermostat
b) Single-Stage thermostat
Figure 4-2 Schematic diagram for control wiring connection

15
Table 2. Thermostat terminal definition chart.
Unit Terminal
Terminal defination
R
24VAC power supply for thermostat from secondary transformer.
C
Common wire.
G
Fan motor relay.
Y1
Compressor stage 1, low load-output control.
Y2
Compressor stage 2, high load-output control.
B
Reversing valve for heating pump systems.
W1
Heating stage 1, electrical heater low load-output control.
W2
Heating stage 2, electrical heater high load-output control.
D
Defrosting single wire.
NOTES:
1. Be sure power supply agrees with equipment nameplate.
2. Power wiring and grounding of equipment must comply with local codes.
3. Low voltage wiring to be No. 18 AWG minimum conductor.
4. Some thermostats may use W2/AUX for heat pump.
5. The electrical heater may be not avaliable for some model (need to be checked later).
6. For single stage thermostat with Y/Y1 terminal only, place both Y1 and Y2 wire together to Y/Y1
terminal.
4.3 Grounding
WARNING
The unit must be grounded.
Failure to do so can result in electrical shock causing personal injury or death.
Grounding may be accomplished by grounding metal conduit when installed in accordance with
electrical codes to the unit cabinet. Grounding may also be accomplished by attaching ground
wire(s) to ground lug(s) provided in the unit wiring compartment.
Use of multiple supply circuits require grounding of each circuit to lug(s) provided in the unit.

16
4.4 Electrical Data
Table 3. Electrical data
Model
Voltage-
Phase-Hz
Power
Supply
Wiring Gauge
Motor HP
Motor
Steps
Minimum
Circuit
AMPS
MAX overcurrent
protective(A)
E4AH5E24A1J30A
208/230-
1Ph-60Hz
14
1/3
5
3.5
15
E4AH5E36A1J30A
1/2
5.0
E4AH5E48A1K30A
3/4
7.0
E4AH5E60A1K30A
3/4
7.0
4.5 Electric Heat Data
Table 4. Electric heat data
Kit Model
Model
Electric
Heat (kW)
MIN. Circuit
Ampacity
MAX. Fuse or
Breaker (HACR)
Ampacity
Fan speed
208
230
208
230
1
2
3
4
5
BAYHTR16
05BRKA
E4AH5E
24A1J30A
5
23
25
25
30
×
×
●
●
●
BAYHTR16
10BRKA
10
45
50
50
60
×
×
●
●
●
BAYHTR16
05BRKA
E4AH5E
36A1J30A
5
23
25
25
30
×
×
●
●
●
BAYHTR16
10BRKA
10
45
50
50
60
×
×
●
●
●
BAYHTR16
15BRKA
5+10
23+45
25+50
50+25
60+30
×
×
●
●
●
BAYHTR16
05BRKA
E4AH5E
48A1K30A
5
23
25
25
30
×
×
●
●
●
BAYHTR16
10BRKA
10
45
50
50
60
×
×
●
●
●
BAYHTR16
15BRKA
5+10
23+45
50+25
50+25
60+30
×
×
●
●
●
BAYHTR16
20BRKA
10+10
45+45
50+50
50+50
60+60
×
×
×
●
●
BAYHTR16
05BRKA
E4AH5E
60A1K30A
5
23
25
25
30
×
×
●
●
●
BAYHTR16
10BRKA
10
45
50
50
60
×
×
●
●
●
BAYHTR16
15BRKA
5+10
23+45
50+25
50+25
60+30
×
×
●
●
●
BAYHTR16
20BRKA
10+10
45+45
50+50
50+50
60+60
×
×
×
●
●
*MCA and Max Fuse Ampacity contains the motor amps.


17
Safety Cautions All electric work must be performed by qualified personnel.
BAYHTR16** series is designed and approved to be installed in the AMERISTAR or RUNTRU series
air handlers.
Warning
Disconnect all external power supplies before performing installation and servicing. Turn off
accessory heater power switch if applicable. Failure to do so may cause serious injury.
BAYHTR16** series must be properly grounded and use copper supply wires.
Make sure to follow national electric code and local regulations.
When installing it in an enclosed area such as a garage, heater elements should have a minimum
clearance of 18’’ from the floor to insure the proper ventilation.
Check the BAYHTR16** series label to confirm BAYHTR16** series size based on room load under
lowest ambient temperature.
Inspect all heating elements and whether heater element wires.Contact local distributor immediately
if there is any occurred damage.

18
4.6 INSTALLATION INSTRUCTIONS
“BAYHTR16**” Electric Heater Kits For use in Air
Handlers
ATTENTION INSTALLING PERSONNEL
Prior to installation, thoroughly familiarize yourself with this installation manual. Observe all safety
warnings. During installation or repair, caution is to be observed. It is your responsibility to install the
product safely and to educate the customer on its safe use.
STEP 1. Unfasten 4 screws to take away the blower access panel of the air handler.
STEP 2. Remove the cover plate from the air handler.

19
STEP 3. Slide the heater kit into the slot and secure element plate with previously removed screws.

20
When sliding the heater kit into the slot ensure that it is installed in the correct orientation
described below. Thermostat will be on the left hand side and the fuse will be on the right
hand side.
When two elements are being used ensure that "UPPER" and "LOWER" elements are
installed in the correct slots and orientations.
THERMOSTAT FUSE
UPPER
LOWER
UPPER
LOWER
（5KW）
（10KW）
（ 15KW ）
（20KW）
FUSE
FUSE
FUSE
THERMOSTAT
THERMOSTAT
THERMOSTAT
