Trane BAYSPEK060F Assembly instructions

© 2010 Trane
Single Power Entry Kit
Models:
18-HB20D5-7
HAZARDOUS VOLTAGE - DISCONNECT POWER BEFORE SERVICING
WARNING:
General
Follow these instructions to install the Single-point
Power Entry Kit (SPEK) in single package units de-
scribed in Table 1 on page 1.
1. Check for any shipping damage, and if any, report it to
the carrier immediately.
2. Check the single power entry kit nameplate and com-
pare with Table 1 on page 1. Make certain that the avail-
able power supply complies with the particular single
power entry kit, heater, and unit model being used.
3. The field electrical connections and wiring must be done
in accordance with the “National Electrical Code” and
must comply with local electrical codes.
Installer’s Guide
ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES
IMPORTANT — This Document is customer property and is to remain with this unit. Please return to service
information pack upon completion of work.
BAYSPEK060F
BAYSPEK061E
BAYSPEK062F
Table 1. Used with Heater and Unit Models
Used With:
See Table 1
BAYSPEK063F
BAYSPEK064E
BAYSPEK065E
SINGLE POWER ENTRY KIT HEATER MODEL UNIT MODEL
BAYHTRV105E 2WC*3024-048A1; 4WC*3018-036A1; 4TC*3018-048A1 ; 4TCY4024-060A1; 4WCY4024-036A1;
4WCZ6036A1
BAYHTRV108E 2WC*3024-030A1; 4WC*3018-024A1; 4TC*3018-048A1; 4TCY4024-060A1; 4WCY4024A1
BAYHTRV110E 4TC*3024-048A1; 4TCY4024-036A1
BAYHTRV305E 4WC*3036-060A3; 4TC*3036-060A3; 4TCY4036-060A3; 4WCY4036-060A3; 4WCZ6036-060A3
BAYHTRV308E 4WC*3036-060A3; 4TC*3036-060A3; 4TCY4036-060A3; 4WCY4036-060A3; 4WCZ6036-060A3
BAYHTRV310E 4WC*3036-048A3; 4TC*3036-060A3; 4TCY4036-060A3; 4WCY4036-048A3; 4WCZ6036-048A3
BAYHTRV315E 4TC*3036-060A3; 4TCY4036-060A3
BAYHTRV405E 4WC*3036-060A4; 4TC*3036-060A4; 4WCZ6036-060A4
BAYHTRV408E 4WC*3036-060A4; 4TC*3036-060A4; 4WCZ6036-060A4
BAYHTRV410E 4WC*3036-060A4; 4TC*3036-060A4; 4WCZ6036-060A4
BAYHTRV415E 4WC*3036-060A4; 4TC*3036-060A4; 4WCZ6036-060A4
BAYHTRV420E 4WC*3048-060A4; 4TC*3048-060A4; 4WCZ6048-060A4
BAYHTRV105E 4WC*3042-060A1; 2WC*3060A1; 4TC*3060A1; 4WCY4042-060A1; 4WCZ6048-060A1
BAYHTRV108E 4TC*3060A1; 2WC*3036-060A1; 4WC*3030-060A1; 4WCY4030-060A1; 4WCZ6036-060A1
BAYHTRV110E 2WC*3024-060A1; 4WC*3024-060A1; 4TC*3060A1; 4TCY4042-060A1; 4WCY4024-060A1;
4WCZ6036-060A1
BAYHTRV115E 2WC*3030-060A1; 4WC*3030-060A1; 4TC*3030-060A1; 4TCY4030-060A1; 4WCY4030-060A1;
4WCZ6036-060A1
BAYHTRV120E 2WC*3048-060A1; 4WC*3042-060A1; 4TC*3048-060A1; 4TCY4048-060A1; 4WCY4042-060A1;
4WCZ6042-060A1
BAYHTRV315E 4WC*3036-060A3; 4WCY4036-060A3; 4WCZ6036-060A3
BAYHTRV320E 4WC*3048-060A3; 4TC*3048-060A3; 4TCY4048-060A3; 4WCY4048A-060A3;
4WCZ6048-060A3
BAYSPEK065E BAYHTRV310E 4WC*3060A3; 4WCY4060A3; 4WCZ6060A3
BAYSPEK060F
BAYSPEK062F
BAYSPEK063F
BAYSPEK064E
BAYSPEK061E

Installer's Guide
PAGE 2 Pub. No. 18-HB20D5-7
High Voltage Field Wiring
NOTE: All field wire to be rated 75°C minimum.
Maximum field wire size is 2/0 AWG.
1. Check to make certain the proper size fuses are installed
per the fuse table (located on the wiring diagram) and
Tables 2 (page 3), 3 (page 3), and 4 (page 4) for the par-
ticular SPEK being used.
2. Remove the required electrical knockout from the unit
conduit panel and route the field wires through the unit
heater section (not the Control Box section).
3. Connect the power supply to the terminal block or fuse
block (depending on SPEK kit being used) on the SPEK.
See appropriate wiring diagram for hookup connections.
Connect the power supply ground wire to the ground
lug on the single power entry kit. The BAYSPEK060E
and 061E wire terminals connect to the installed heater
terminal block on the Heater Control box base to power
the unit.
4. Close the Heater/SPEK control box cover.
5. Reinstall the Control/Heat access panel.
6. Apply power to unit.
Low Voltage Wiring (24 Volts)
All low voltage connections have been made to the heater
via polarized plugs. The low voltage controls are connected
to the room thermostat from the air conditioner or heat
pump low voltage leads. See the field wiring diagram with
the unit.
Install Single Power Entry Kit
1. Remove the Control/Heat access panel.
2. Open the louvered Heater Control box door and mount
the SPEK inside of the Heater Control box. Secure the
SPEK with the screws provided in the kit. See pages
7,8,9,10 for illustrations and wiring diagrams.
3. Insert the included grommet in the hole in the Heater
Control box base that leads to the unit Control/Heater
compartment. The unit power wires provided with the
SPEK will pass through this grommet and be routed
up to the unit contactor.
4. Make all electrical connections to the unit and heater
in accordance with the appropriate wiring diagram in
this instruction and included with the specific SPEK.
5. Place the included SPEK wiring diagram on the inner
surface of the Control/Heater access panel next to the
unit wiring diagram and extra heater wiring diagram.
IMPORTANT: The two (2) nameplate labels included with
the single power entry kit must be attached to the air con-
ditioning unit or heat pump unit as illustrated below.
The smaller label MUST be placed over the unit rating
nameplate to cover the unit only MIN CKT AMPS and
Fuse/Circuit Breaker Size.
The “single power entry installed” nameplate MUST be
placed over the “heater installed” nameplate.
Check the appropriate kit, heaters and unit combination
using the table on page 1.
Figure 1. Single Point Power Entry Kit Label Positions
Unit Nameplate
Place Smaller Label
to Cover Unit Only MCA
and Fusing
Heater
Installed
Nameplate
Place SPEK
Nameplate
Over Heater
Label
Single Power Entry Knockout
Electrical Shock Hazard! To prevent injury oR death due to
electrical shock or contact with moving parts, lock unit
disconnect switch in open position before servicing unit.
▲
▲
WARNING
!

Installer's Guide
Pub. No. 18-HB20D5-7 PAGE 3
Table 2. BAYSPEK060F Ampacity and Max Fusing/Circuit Breakers

Installer's Guide
PAGE 4 Pub. No. 18-HB20D5-7
Table 3. BAYSPEK061E Ampacity and Max Fusing/Circuit Breakers

Installer's Guide
Pub. No. 18-HB20D5-7 PAGE 5
Table 4. BAYSPEK062F,63F,64E & 65E Ampacity and Max Fusing/Circuit Breakers

Installer's Guide
PAGE 6 Pub. No. 18-HB20D5-7
BK - 2
RD - 1
BAYSPEK060F
D673487P01
BAYSPEK060F

Installer's Guide
Pub. No. 18-HB20D5-7 PAGE 7
BK - 2
BL - 3
RD - 1
BAYSPEK061E
BAYSPEK061E

Installer's Guide
PAGE 8 Pub. No. 18-HB20D5-7

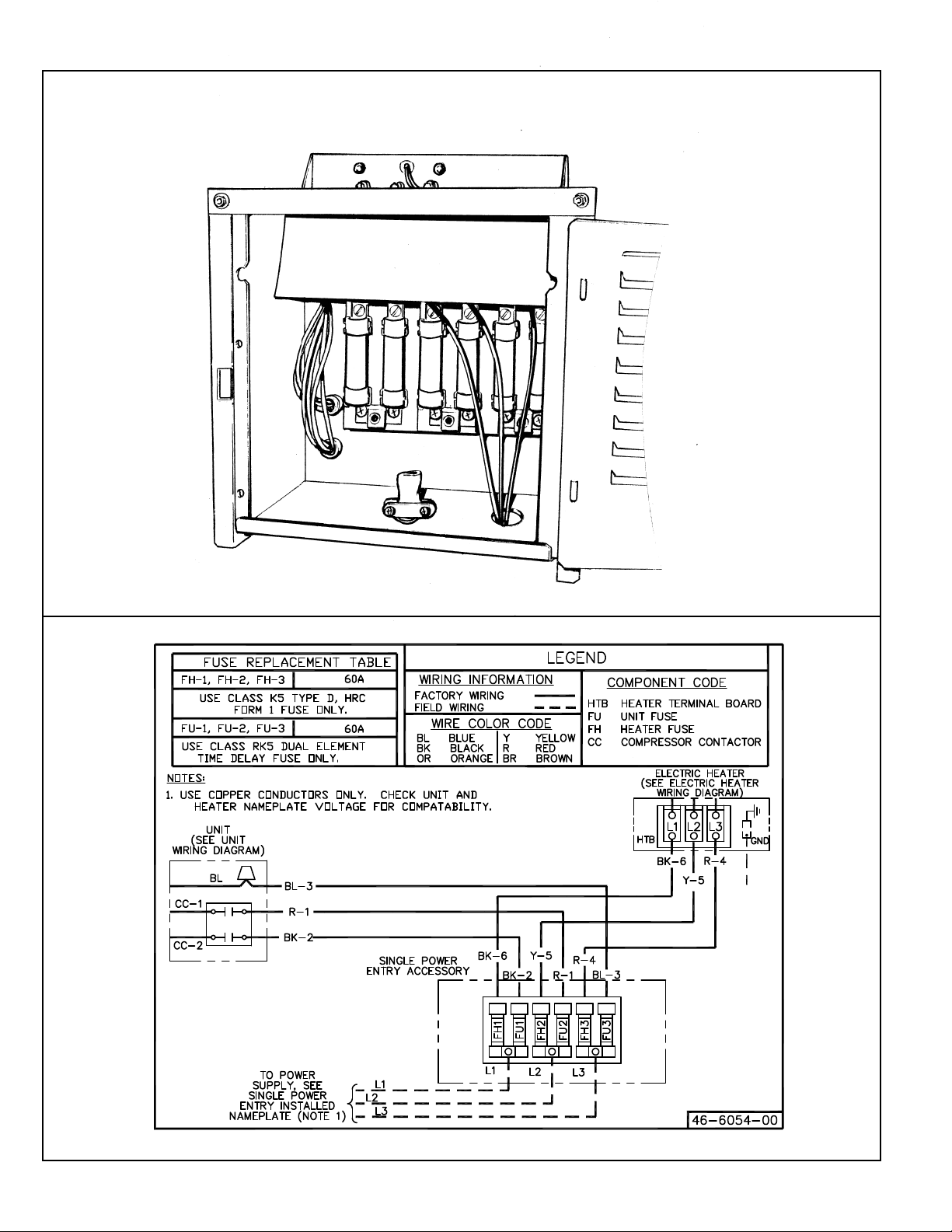

BAYSPEK062F
BAYSPEK062F

Installer's Guide
Pub. No. 18-HB20D5-7 PAGE 9
BAYSPEK063F
BAYSPEK063F

Installer's Guide
PAGE 10 Pub. No. 18-HB20D5-7
From Dwg. 21C756986P01
BAYSPEK064E
BAYSPEK064E

Installer's Guide
Pub. No. 18-HB20D5-7 PAGE 11
BAYSPEK065E
BAYSPEK065E

Installer's Guide
PAGE 12 Pub. No. 18-HB20D5-7
