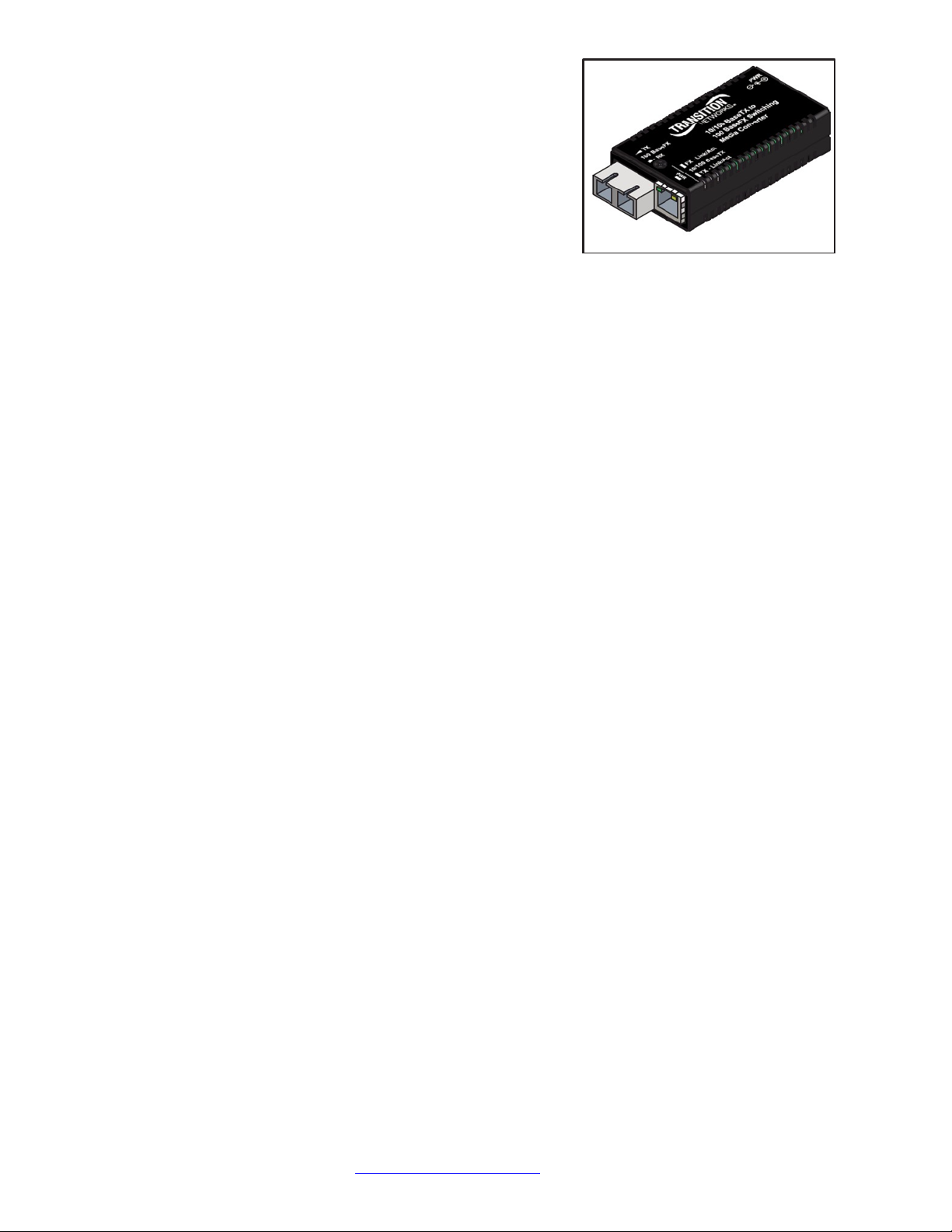

Introduction
The miniature, plug-and-play operation Ethernet/Fast Ethernet bridging media converter allows
connecting 10Base-T Ethernet and/or 100Base-TX Fast Ethernet twisted-pair copper network devices to
network devices on a 100Base-FX Fast Ethernet fiber network.

Transition Networks ME-PSW-FX-02 User Guide
33487 Rev. C http://www.transition.com/ Page 2 of 12
Models / Part Numbers

Transition Networks ME-PSW-FX-02 User Guide
33487 Rev. C http://www.transition.com/ Page 3 of 12
Installation
Copper and fiber ports

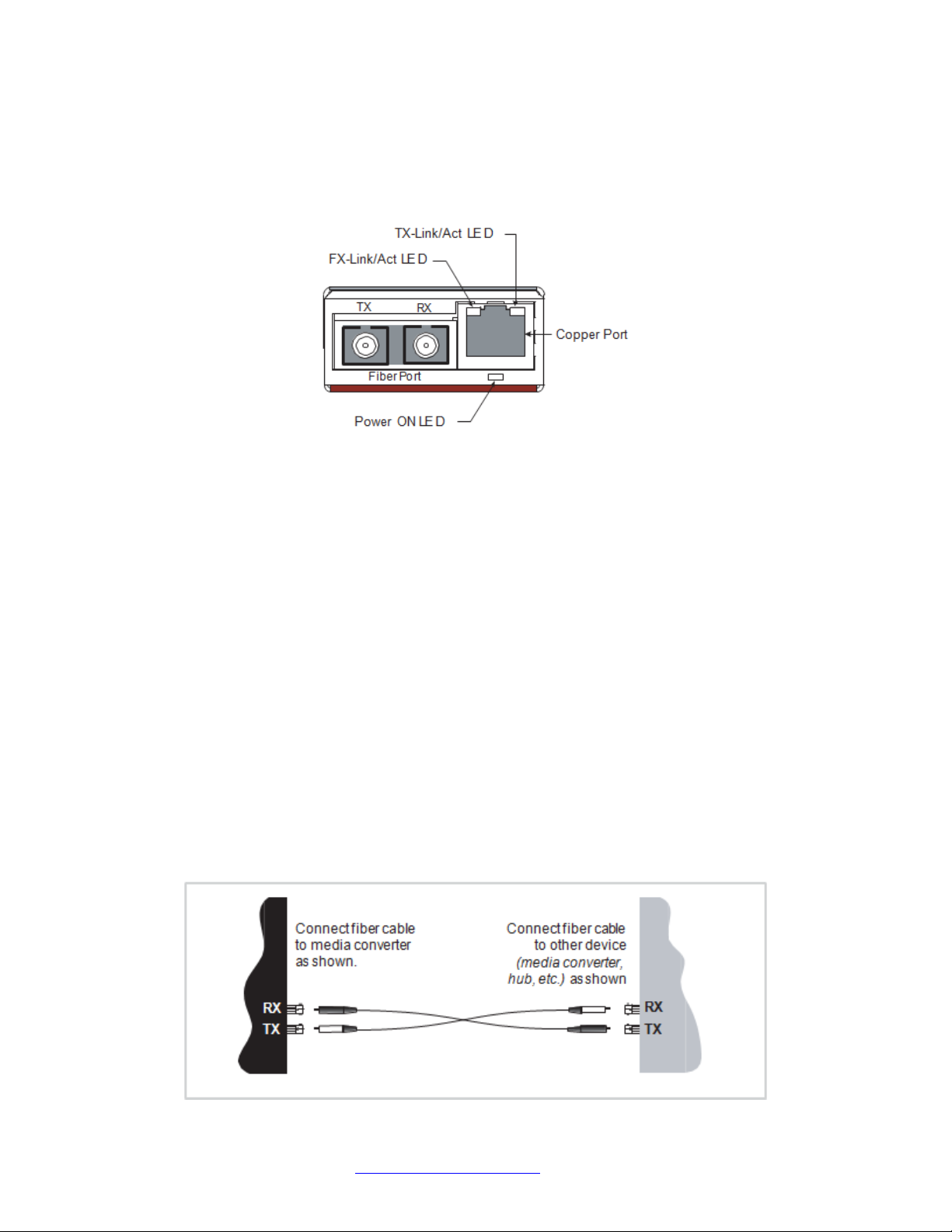

The illustration below shows the front panel of the M/E-PSW-FX-02 media converters.
Electrostatic Discharge (ESD)
Always observe the following ESD precautions when installing or handing the M/E-PSW-FX-02 media
converter:
•Do not remove the converter from its protective packaging until you are ready to install it.
•Wear an ESD wrist grounding strap before handling any module or component. If you do not
have a wrist strap, maintain grounded contact with the unit throughout
any procedure requiring
ESD protection.
Connect the fiber cable
Full duplex (always ON) is on the fiber side only, therefore, the 512-Bit Rule does not apply. The cable
lengths are constrained by the cable requirement.
1. Locate or build IEEE 803.2 compliant 100Base-FX fiber cable with male, two- stranded TX to RX
connectors installed at both ends.
2. Connect the fiber cable to the M/E-PSW-FX-02 media converter as follows:
•Connect the male TX cable connector to the female TX port.
•Connect the male RX cable connector to the female RX port.
3. Connect the fiber cable to the other device (media converter, hub, etc.) as follows:
•Connect the male TX cable connector to the female RX port.
•Connect the male RX cable connector to the female TX port.

Transition Networks ME-PSW-FX-02 User Guide
33487 Rev. C http://www.transition.com/ Page 4 of 12
Connect the twisted-pair copper cable
The AutoCross feature allows either MDI (straight-through) or MDI-X (crossover) cable connections to
be configured automatically, according to network conditions.
•If half-duplex mode is used, refer to the 512-Bit Rule.
•If full-duplex mode is used, the 512-Bit Rule does not apply. The cable lengths are constrained
by the cable requirements.
1. Locate or build IEEE 803.2™ compliant 10Base-T or 100Base-TX cable, with RJ-45
connectors installed at both ends.
2. Connect the RJ-45 connector at one end of the cable to the RJ-45 port on the M/E-PSW-FX-
02 media converter.
3. Connect the RJ-45 connector at the other end of the cable to the RJ-45 port on the other
device (switch, workstation, etc.).
Powering the media converter
The power options for the M/E-PSW-FX-02 media converter are product dependent. The following
shows the various power configurations associated with each model.

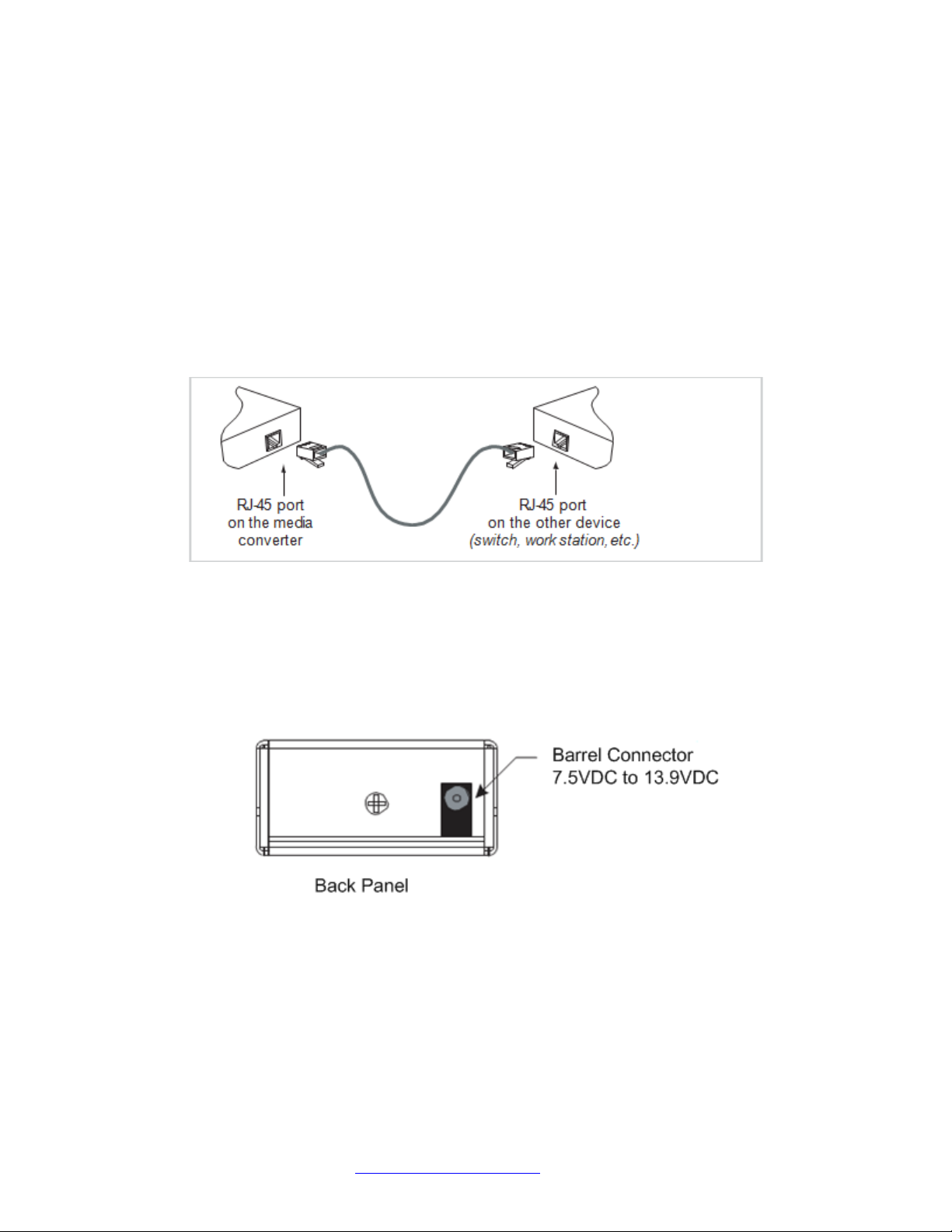

M/E-PSW-FX-02 Back Panel Power

Transition Networks ME-PSW-FX-02 User Guide
33487 Rev. C http://www.transition.com/ Page 5 of 12
Power adapter
AC power
1. Connect the barrel connector of the power adapter to the media converter’s power port
(located on the back panel of the media converter).
2. Connect the power adapter plug to AC power.
3. Verify that the media converter is powered up by observing the illuminated LED power
indicator light on the front panel.
DC power
Consult the user’s guide for the Transition Networks SPS-1872-SA DC external power supply
for powering the media converter.
Operation
Status LEDs
Use the status LEDs to monitor the media converter operation in the network. LED descriptions are as
follows:

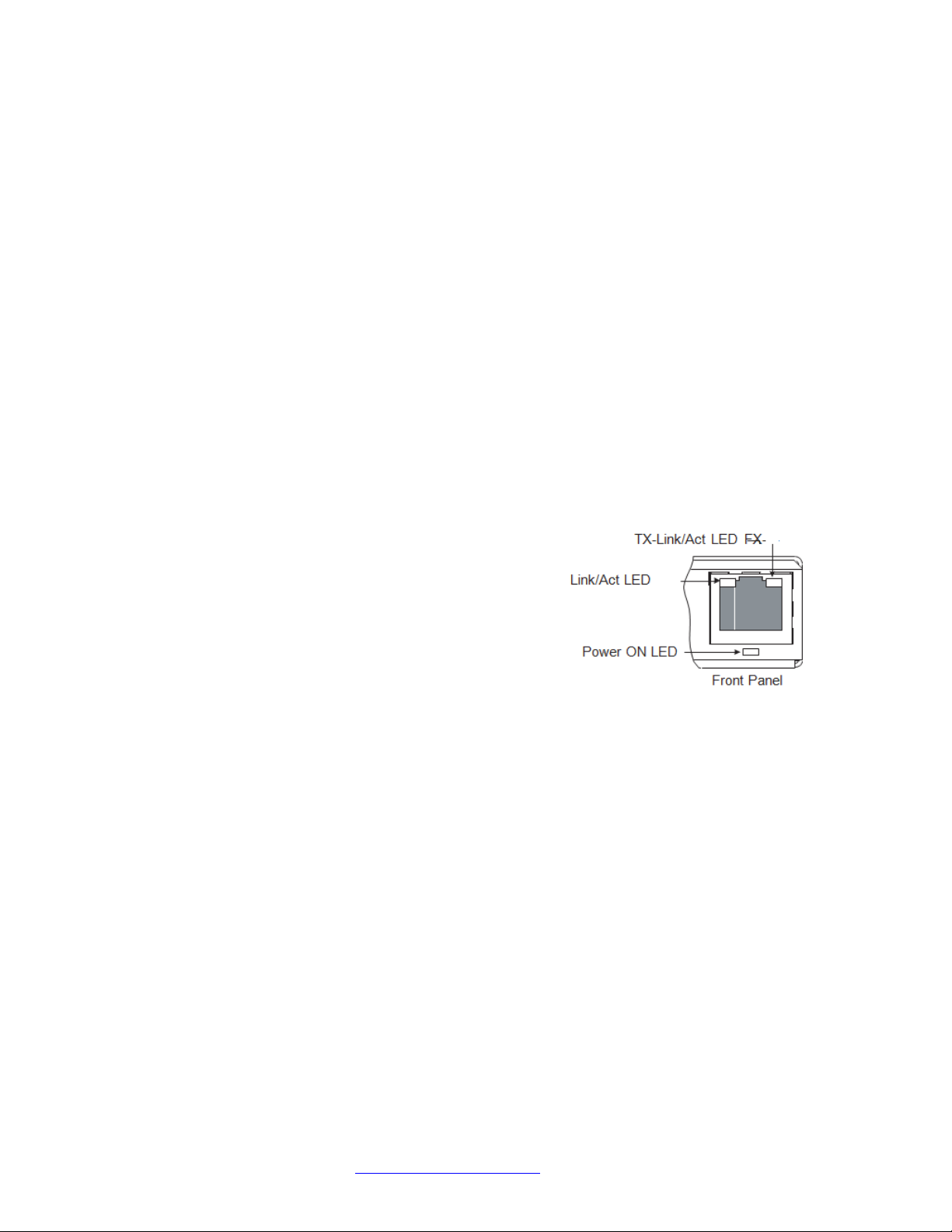

FX-Link/Act LED
Green ON = Link (fiber)
Flashing = Activity
TX-Link/Act LED
Green ON = Link Flashing = Activity
Power LED
Green ON = Connected to power
Product Features
Congestion reduction
The M/E-PSW-FX-02 media converters do not forward collision signals or error packets from one collision
domain to another, resulting in improvements in baseline network performance. In addition, the media
converter filters packets destined for local devices, which reduces network congestion.
Auto-Negotiation
The Auto-Negotiation feature is ON permanently for the M/E-PSW-FX-02 media converters. Auto-
Negotiation allows the media converter to configure itself automatically to achieve the best possible mode
of operation over a link. It broadcasts speed (10 Mb/s or 100 Mb/s) and duplex capabilities (full or half) to
the other device and negotiates the best mode of operation. Auto-Negotiation allows quick and easy
installation because the optimal link is established automatically.
In a scenario where an auto-negotiation device is linked to a non-negotiating device, the negotiating
device via parallel detection recognizes the speed of that second device then establishes the best
operating speed (10Mb/s or 100Mb/s) at half- duplex.

Transition Networks ME-PSW-FX-02 User Guide
33487 Rev. C http://www.transition.com/ Page 6 of 12
AutoCross™
The AutoCross feature allows using either straight-through (MDI) or crossover (MDI-X) copper cables
when connecting to 10Base-T or 100Base-TX devices. AutoCross determines the characteristics of the
connection and automatically configures the device to link up, regardless of the copper cable
configuration, MDI or MDI-X.
Auto-Negotiation, AutoCross, Link Pass-Through, Far End Fault
Automatic link restoration
The media converter will automatically re-establish the link when connected to switches if the link is lost,
even with Auto-Negotiation and Link Pass-through (both directions) enabled.
Full-Duplex flow control
In a full-duplex network, maximum cable lengths are determined by the type of cables used. See front
cover for M/E-PSW-FX-02 cable specifications. The 512-Bit Rule does not apply in a full-duplex network.
Note: Full duplex is ON permanently for the fiber port only.
Half-Duplex flow control (512-Bit Rule)
In a half-duplex network, the maximum cable lengths are determined by the round- trip delay limitations of
each Fast Ethernet collision domain. (A collision domain is the longest path between any two terminal
devices; e.g., a terminal, switch, or router.)
The 512-Bit Rule determines the maximum length of cable permitted by calculating the round-trip delay in
bit-times (BT) of a particular collision domain. If the result is less than or equal to 512 BT, the path is
good.
For more information on the 512-Bit Rule, see the white paper titled “Collision Domains” on the Transition
Networks website at: www.transition.com
Flow Control
The process of adjusting the flow of data from one device to another ensures that the receiving device
can handle all of the incoming data. This is particularly important where the sending device is capable of
transmitting data much faster than the receiving device can accept it.
Distance extension
The M/E-PSW-FX-02 media converters can segment one (1) 10Base-T copper Ethernet and/or 100Base-
TX copper Fast Ethernet, and one (1)100Base-FX fiber Fast Ethernet collision domain:
• In a half-duplex Ethernet or Fast Ethernet environment, the M/E-PSW-FX-02 media converters extend
network distances by segmenting collision domains so that the 512-Bit Rule applies separately to each
collision domain.
• In a full-duplex Ethernet or Fast Ethernet environment, the M/E-PSW-FX-02 media converters extend
network distances to the physical cable limitations imposed by the selected twisted-pair copper fiber
cables.
Rate conversion
The M/E-PSW-FX-02 media converters allow connection of 10Mb/s terminal devices on a 10Base-T
legacy Ethernet copper network to 100Mb/s terminal devices on a 100Base-TX Fast Ethernet copper
network and/or to 100Mb/s terminal devices on a 100Base-FX Fast Ethernet fiber network.

Transition Networks ME-PSW-FX-02 User Guide
33487 Rev. C http://www.transition.com/ Page 7 of 12
Far-End Fault

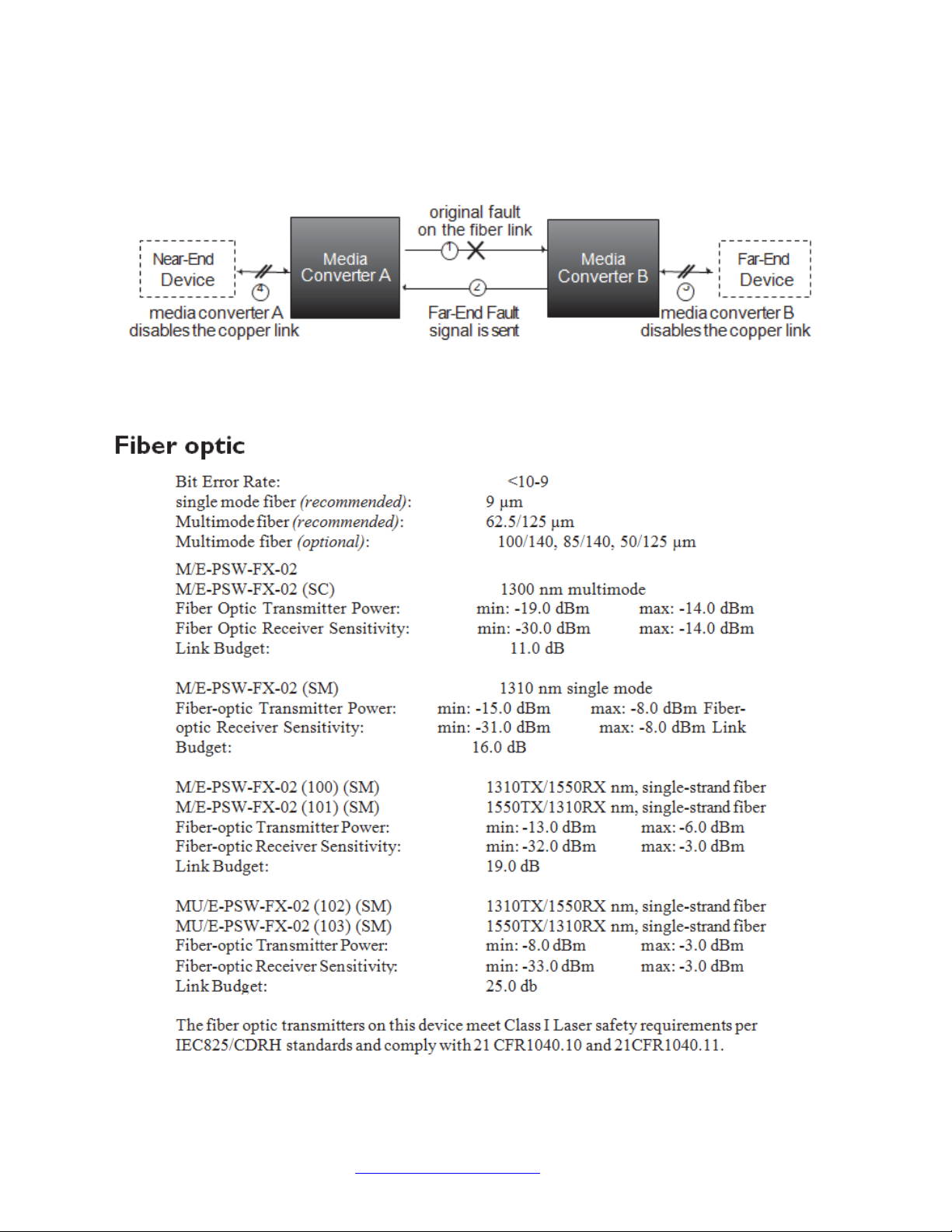

When a fault occurs on an incoming fiber link (1), the media converter transmits a Far-End Fault signal on
the outgoing fiber link (2). In addition the Far-End Fault signal also activates the Link Pass-Through,
which in turn, disables the link on the copper portion of the network (3) and (4).
Optic and Cable Specifications
The physical characteristics must meet or exceed IEEE 802.3™ specifications.

Transition Networks ME-PSW-FX-02 User Guide
33487 Rev. C http://www.transition.com/ Page 8 of 12

Transition Networks ME-PSW-FX-02 User Guide
33487 Rev. C http://www.transition.com/ Page 9 of 12

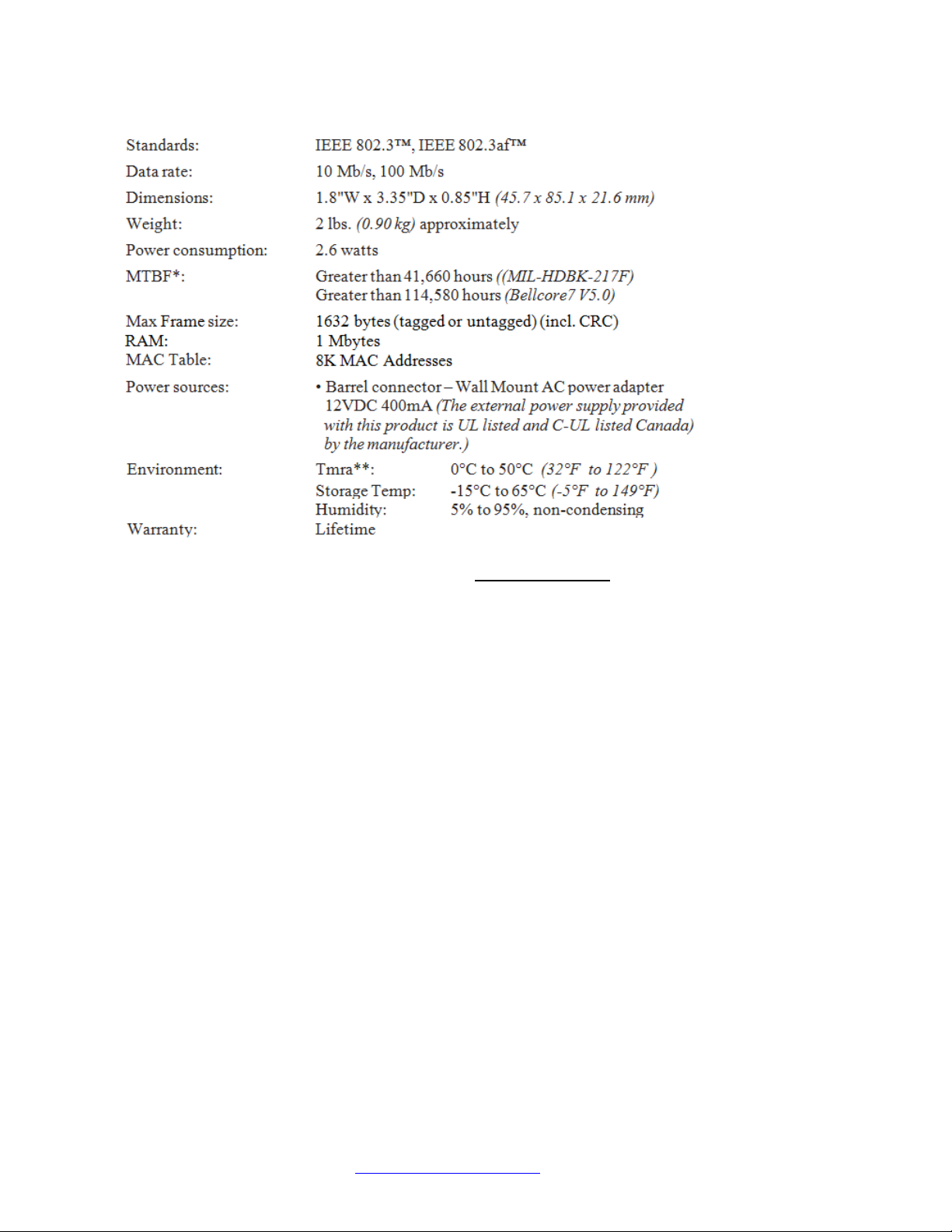

Technical Specifications
For current information view the online user guide at www.transition.com.
* MTBF (Mean Time Between Failure) is estimated using the predictability method. The computation is
based on the MIL-HDBK-217 F and Bellcore standards..
**Manufacturer’s rated ambient temperature.
WARNING: If the media converter is an IEEE802.3-2005 Powered Device (PD) capable of receiving
power via the Media Dependent Interface (MDI) leads, the power source, connector, and cable attached
to the barrel power connector must meet the isolation requirement specified in IEEE802.3-2005. Failure
to observe this warning could result in an electrical shock.
CAUTION: Copper based media ports, e.g., Twisted Pair (TP) Ethernet, USB, RS232, RS422, RS485,
DS1, DS3, Video Coax, etc., are intended to be connected to intra- building (inside plant) link segments
that are not subject to lightening transients or power faults. Copper-based media ports, e.g., Twisted Pair
(TP) Ethernet, USB, RS232, RS422, RS485, DS1, DS3, Video Coax, etc., are NOT to be connected to
inter- building (outside plant) link segments that are subject to lightening transients or power faults.
Failure to observe this caution could result in damage to equipment.
Copper-based media ports, e.g., Twisted Pair (TP) Ethernet, USB, RS232, RS422, RS485, DS1, DS3,
Video Coax, etc., are intended to be connected to intra-building (inside plant) link segments that are not
subject to lightening transients or power faults. Copper based media ports, e.g., Twisted Pair (TP)
Ethernet, USB, RS232, RS422, RS485, DS1, DS3, Video Coax, etc., are NOT to be connected to inter-
building (outside plant) link segments that are subject to lightening transients or power faults.
WARNING: Visible and invisible laser radiation when open. Do not stare into the beam or view directly
with optical instruments. Failure to observe this warning could result in an eye injury or blindness.
WARNING: Use of controls, adjustments, or the performance of procedures other than those specified
herein could result in hazardous radiation exposure.
The information in this user’s guide is subject to change. For the most up-to-date information, view the
user’s guide on-line at: www.transition.com. and the click on Product/Prouduct Finder.

Transition Networks ME-PSW-FX-02 User Guide
33487 Rev. C http://www.transition.com/ Page 10 of 12
Troubleshooting
If the media converter fails, isolate and correct the failure by determining the answers to the following
questions, and then taking the indicated action:
1. Is the power LED illuminated and did the TX and FX LEDs turn ON and then turn OFF?
NO
•Is the power adapter the proper type of voltage and cycle frequency for the AC outlet?
•Is the power adapter properly installed in the media converter and in the outlet?
•If PoE, is the RJ-45 jack receiving power from the input device? (See Technical Spec.)
•Contact Technical Support: US/Canada: 1-800-260-1312, International: 00-1-952-941-
7600.
YES
•Proceed to step 2.
2. Are the “TX and FX-Link/ACT” LEDs illuminated on the RJ-45 port ? NO
•Check the copper cables for proper connection.
•Check the fiber cables for proper connection.
•Contact Technical Support: US/Canada: 1-800-260-1312, International: 00-1-952-941-
7600.
YES
•Contact Technical Support: US/Canada: 1-800-260-1312, International: 00-1-952-941-
7600.
Contact Us
Technical support
Technical support is available 24-hours a day
US and Canada: 1-800-260-1312
International: 00-1-952-941-7600
Transition now
Chat live via the Web with Transition Networks Technical Support.
Log onto www.transition.com and click the Transition Now link.
Web-based seminars
Transition Networks provides seminars via live web-based training.
Log onto www.transition.com and click the Learning Center link.
E-Mail Ask a question anytime by sending an e-mail to our technical support staff.
[e-mail]
Address
Transition Networks
10900 Red Circle Drive
Minnetonka, MN 55343, U.S.A.
telephone: [phone]
toll free: 800-526-9267
fax: [phone]

Transition Networks ME-PSW-FX-02 User Guide
33487 Rev. C http://www.transition.com/ Page 11 of 12
Compliance Information

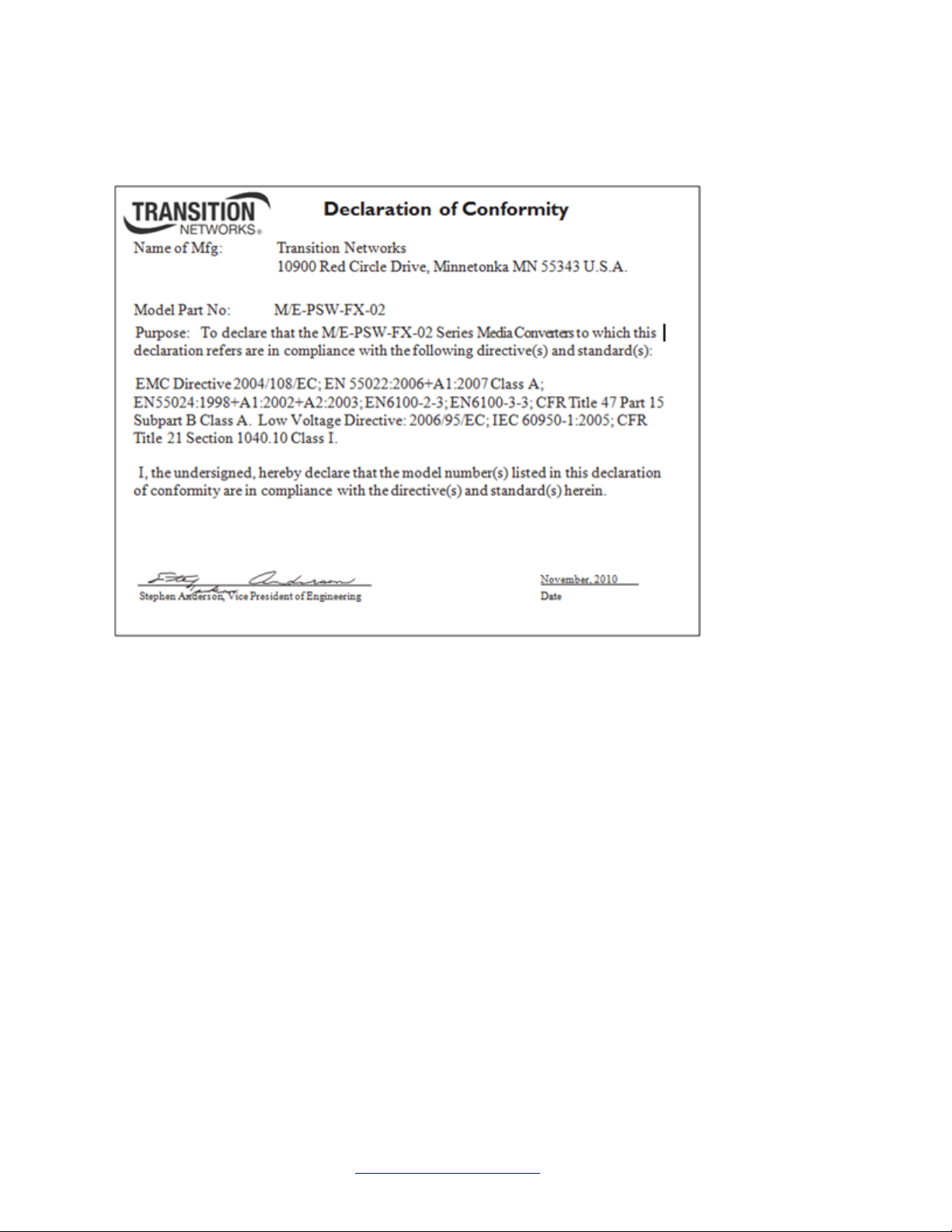

Declaration of Conformity
FCC regulations
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference, in which
case the user will be required to correct the interference at the user's own expense.
Canadian regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set
out on the radio interference regulations of the Canadian Department of Communications.
Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites
applicables aux appareils numériques de la Class A prescrites dans le Règlement sur le brouillage
radioélectrique édicté par le ministère des Communications du Canada.

Transition Networks ME-PSW-FX-02 User Guide
33487 Rev. C http://www.transition.com/ Page 12 of 12
European regulations
Warning
This is a Class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
Achtung !
Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb dieses
Gerätes Rundfunkstörungen auftreten. In diesem Fäll is der Benutzer für Gegenmaßnahmen
verantwortlich.
Attention !
Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de créer des
interférences radioélectriques, il appartiendra alors à l'utilsateur de prende les measures spécifiques
appropriées.
In accordance with European Union Directive 2002/96/EC of the European Parliament and
of the Council of 27 January 2003, Transition Networks will accept post usage returns of
this product for proper disposal. The contact information for this activity can be found in the
'Contact Us' portion of this document.
CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE PUBLIC
TELEPHONE NETWORK. Failure to observe this caution could result in damage to the
public telephone network.
Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den
EGMitgliedstaaten
verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur
Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen
einschliesslich der gegenseitigen Anerkennung ihrer Konformität.
Record of Revisions
Rev
Date
Notes
A
11-17-10
Initial release.
B
3-20-15
Updated Technical Specifications.
C
9-16-15
Updated Back Panel Power drawing on page 6.
Trademark Notice
All trademarks and registered trademarks are the property of their respective owners.
Copyright restrictions
© 2010-2015 Transition Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic
or mechanical - without written permission from Transition Networks.
