Traxxas TQi 6533 User manual

TQi 2.4GHz Receiver with Traxxas Stability Management (TSM)
and Traxxas Link Instructions
TRAXXAS.com
Traxxas, 6250 Traxxas Way, McKinney, TX 75070, Phone: [phone], Fax: [phone], e-mail: [email protected] KC2280-R03 Rev 160506
Covers Part #6533
LED Color / Pattern Name
G
R
R
G
Solid green Normal Driving Mode
GR
R
G
GR
R
G
Slow red (0.5 sec on / 0.5 sec o) Binding
GR
R
G
GR
R
G
Flashing fast red (0.125 sec on / 0.125 sec o)
Fail-Safe / Low Voltage Detect
Note: Consistent Low Voltage in the
receiver triggers Fail-Safe so there is
enough power to center the throttle
servo before it completely loses power.
RECEIVER LED CODES
Apple, the Apple logo, iPhone, iPad, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
App Store is a service mark of Apple Inc. Android and Google Play are trademarks of Google Inc.
*Compatible with:
iPod touch (5th generation and later)
iPad (3rd generation and later)
iPad mini
Android 4.4 (and later)
iPhone 4S
iPhone 5
iPhone 5C
iPhone 5S
™
Traxxas Support
If you have any questions, please contact our customer support team for fast,
friendly answers and solutions. Contact information is at the bottom of this page.
Receiver Installation
For best performance, it is recommended that this receiver be installed in the
same orientation as the original receiver (with the label facing upward). Refer to
your owner’s manual for additional information, wiring diagrams, and detailed
instructions on maintaining a watertight seal.
Use double-sided adhesive foam tape to install the receiver into the
receiver box. Once installed, plug the wires into the receiver.
TQi 2.4GHz Binding Instructions
For proper operation, the transmitter and receiver must be electronically “bound”.
Note: The receiver must be connected to a 4.8-6.0v (nominal) power source for
binding and the transmitter and receiver must be within 5 feet of each other.
1. Press and hold the transmitter’s SET button as you switch transmitter on.
The transmitter’s LED will flash red slowly. Release the SET button.
2. Press and hold the receiver’s LINK button as you switch the model on. Release
the LINK button.
3. When the transmitter and receiver’s LEDs turn solid green, the system is bound
and ready for use.
4. Confirm that the steering and throttle operate properly before driving your
model. If you have installed the receiver in a stock Traxxas model, refer to your
owner’s manual for additional information. Follow the steps to set your radio
system to the default servo reversing and/or ESC settings for your model. If
you have installed the receiver in a non-Traxxas model, refer to the TQi 2.4GHz
transmitter’s instructions for information on how to adjust the transmitter’s
servo reversing, trims, and other functions manually.
Using the Traxxas Link App with the #6533 Receiver
A Traxxas TQi transmitter with the Traxxas Link Wireless Module (part
#6511) installed is required to control the receiver within the Traxxas Link
App (see Related Parts List). A TQi transmitter equipped with the multi-
function knob is required to adjust the TSM assistance. The Traxxas Link
Wireless Module is also required in order to load the proper software for
your specic vehicle model into the receiver.
The Traxxas Link™ App* (available in the Apple App Store
℠ or on Google Play™)
includes customized Traxxas Stability Management (TSM) settings for each Traxxas
model. Download the Traxxas Link App to your Apple® iPhone®, iPad®, iPod touch®,
or Android™ device and select your model from the Home screen. This will set the
Multi-Function knob on the TQi transmitter to control TSM, and provide the best
performance results from the #6533 receiver.
About Traxxas Stability Management (TSM)
Traxxas Stability Management or TSM allows you to experience all the speed
and acceleration that was engineered into your Traxxas model by helping you
to maintain control of the vehicle in low-traction situations. TSM helps provide
straight ahead full-throttle acceleration on slippery surfaces, without fishtailing,
spinouts, or loss of control. TSM also dramatically improves braking control. High
speed cornering and control is also made possible as TSM makes corrections for
you, without intruding on your fun, or creating unexpected side effects.

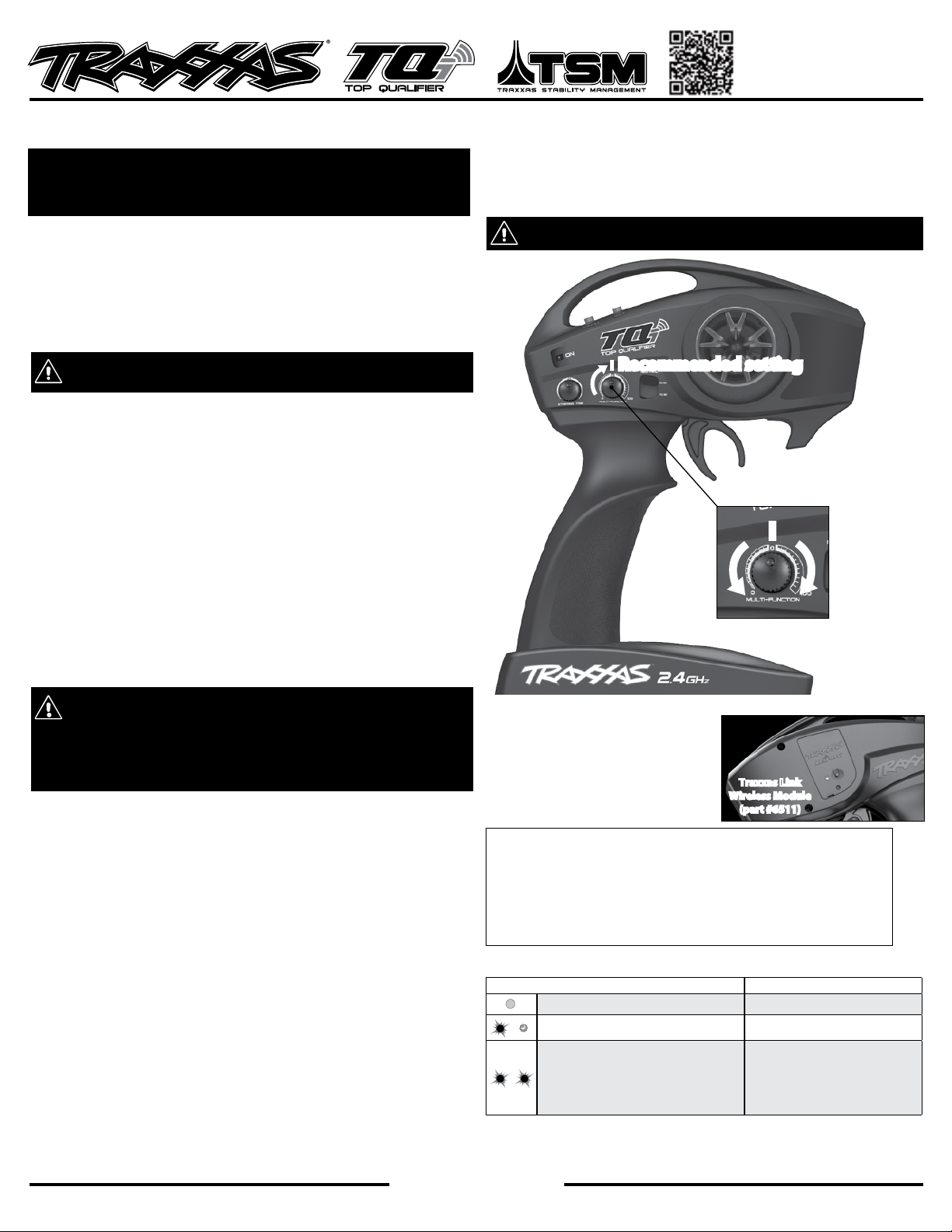

The recommended (default) setting for TSM is to rotate the knob to the 12:00
position (the zero mark on the dial). Turn the knob clockwise to increase
assistance; turn the knob counterclockwise to decrease assistance. Turn the
knob counterclockwise to its stop to turn TSM completely off.
Note: TSM is deactivated automatically when driving or braking in reverse.
When driving on surfaces with some traction, decrease the TSM setting to allow
the vehicle to feel more “loose” for power sliding, drifting, and so on.
On surfaces with very little traction (loose dirt, smooth concrete, ice/snow),
increase TSM to maximize acceleration and control.
Drive with TSM on and off to test how it is making your control of the vehicle
easier and more precise. For more information, visit Traxxas.com/tsm.
Note: TSM must be completely turned off while adjusting steering trim.
Recommended setting
Decrease
assistance
Increase
assistance
Traxxas Link
Wireless Module
(part #6511)
RELATED PARTS LIST
Initial setup of the #6533 receiver requires a
Traxxas TQi transmitter with the Traxxas Link
Wireless Module installed. Consider using
the Traxxas Power-UP Program to upgrade
to the newest TQi radio system. Visit
Traxxas.com for more information.
6528 Transmitter, TQi Traxxas Link enabled, 2.4GHz high output,
2-channel (transmitter only) .....................................................................$100.00
6529 Transmitter, TQi Traxxas Link enabled, 2.4GHz high output,
3-channel (transmitter only) .....................................................................$105.00
6530 Transmitter, TQi Traxxas Link enabled, 2.4GHz high output,
4-channel (transmitter only) ....................................................................$115.00
6511 Traxxas Link Wireless Module ................................................................... $45.00
Visitez Traxxas.com/manuals pour télécharger
les instructions dans votre langue.
Visite la página Traxxas.com/manuals para
descargar el instrucciones en su idioma.
Auf Traxxas.com/manuals, können Sie
anleitung in Ihrer Sprache downloaden.
Note: The #6533 receiver only works with the TQi radio system with the
Multi-Function knob. Initial setup of the receiver requires a Traxxas TQi
transmitter with the Traxxas Link Wireless Module installed
(see Related Parts List below).

FCC Compliance
This device complies with the limits for a Class B digital device as described in part
15 of the FCC rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
The limits for a Class B digital device are designed to provide reasonable protection
against harmful interference in residential settings. This equipment generates, uses,
and can radiate radio frequency energy and, if not operated in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
The user is cautioned that changes or modifications not expressly approved by
the party responsible for compliance could void the user’s authority to operate the
equipment.
Canada, Industry Canada (IC)
This Class B digital apparatus complies with Canadian ICES-003. This device
complies with Industry Canada license exempt RSS standard(s). Operation is subject
to the following two conditions: (1) This device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Radio Frequency (RF) Exposure Statement
This equipment complies with radio frequency exposure limits set forth by FCC
and Industry Canada for an uncontrolled environment. This equipment should
be installed and operated with a minimum distance of 0 millimeters between
the radiator and your body or bystanders and must not be co-located or
operated in conjunction with any other antenna or transmitter.
End Product Labeling
This module is marked with an FCC ID and IC certification number. The host
system using this module must be labeled in a visible area with the following:
“Contains FCC ID: XVE-TRX1019, IC: 8668A-TRX1019”. This LMA is tested and
approved as a stand-alone configuration. Additional evaluation may be required
for any system integrated with this radio module. This module and its antenna
should not be installed or operated in conjunction with any other transmitter.
