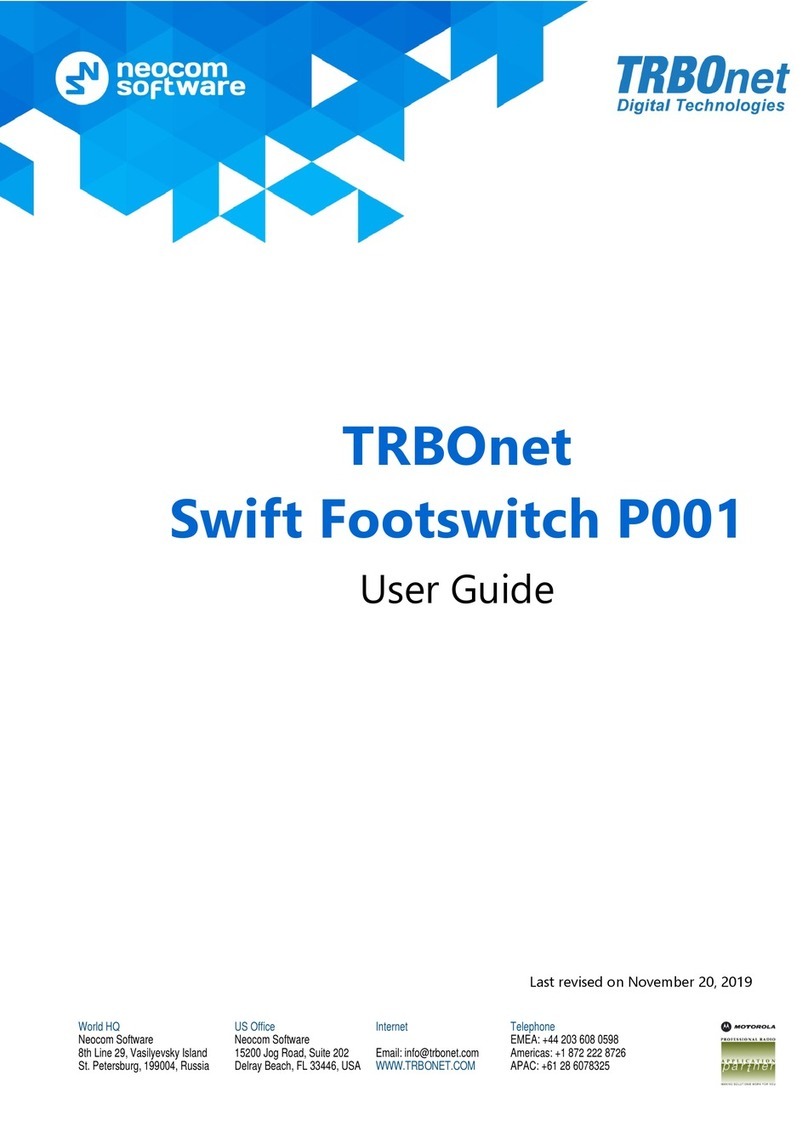

TRBOnet
Swift Footswitch P001
User Guide

Notices
This document is for informational purposes only. Neocom Software offers no
warranties, express or implied, in this document.
Neocom and the Neocom logo, TRBOnet and the TRBOnet logo are either
registered trademarks or trademarks of Neocom Software, Ltd.
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M logo are
trademarks or registered trademarks of Motorola Trademark Holdings, LLC.
Intellectual property rights protect the voice coding technology embodied in
this product including patent rights, copyrights and trade secrets of Digital
Voice Systems, Inc. This voice coding technology is licensed solely for use
within this communications equipment. U.S. Pat. Nos. 6,199,037, 5,870,405,
5,754,974, 5,664,051, 5,630,011, 5,517,511, 5,491,772, 5,247,579, 5,226,108,
5,226,084, 5,216,747 and 5,081,681.
Microsoft, Windows, SQL Server and the .NET logo are either registered
trademarks or trademarks of Microsoft Corporation in the United States and/or
other jurisdictions.
Other product or company names mentioned herein may be trademarks of
their respective owners.
© 2022 by Neocom Software, Ltd. All rights reserved.
This document was last revised on April 14, 2022.

ii
Contents
1Introduction ....................................................................................................................... 1
1.1 Technical features .................................................................................................. 1
2Configuration in TRBOnet Enterprise.............................................................................. 2
2.1 Connecting via COM-port ...................................................................................... 2
2.2 Connecting via USB-port ....................................................................................... 4
2.3 Connecting via USB-port using M002 adapter .................................................... 5
2.4 Associating with PTT boxes ................................................................................... 7

1.1 Technical features 1
TRBOnet Swift Footswitch P001 — User Guide
1Introduction
The TRBOnet Swift Footswitch P001 (hereinafter "footswitch") allows the
dispatcher to push and release the PTT button while their hands are free. There
are three design versions of the footswitch: with RS-232, RJ-45, or USB
connectors.
1.1 Technical features
•Plug connection: RS-232, RJ-45, or USB
•Connector cable: 1,8 m
•Dimensions: 78/103/39 mm
•Weight: 250 g
•Material: plastic
•Color: black

2 2 Configuration in TRBOnet Enterprise
2Configuration in TRBOnet Enterprise
2.1 Connecting via COM-port
This section describes how to connect the footswitch to the PC via a COM-port
and configure required parameters in TRBOnet Dispatch Console.
•Connect the footswitch to the PC via a COM-port.
•Run TRBOnet Dispatch Console.
•On the Tools menu, click Options.
•In the Options dialog box, select the Hardware tab.
•In the External Devices section, click the Add link and from the drop-
down menu select TRBOnet Footswitch (RS232).
The TRBOnet Footswitch dialog box appears on top of the Options
dialog box.

2.1 Connecting via COM-port 3
TRBOnet Swift Footswitch P001 — User Guide
Name
Enter the name of the footswitch device.
Device
From the drop-down list, select COM3.
The Footswitch PTT button appears in the table below.
Press the footswitch button and see if the indicator box becomes
green. Release the footswitch button and see if the indicator box
returns to red.
Note: If pressing the footswitch button doesn't change the
indicator's color to green, try toggling the polarity
inversion switch.
Click OK.
As a result, the footswitch device will appear in the list of External Devices.

4 2 Configuration in TRBOnet Enterprise
2.2 Connecting via USB-port
This section describes how to connect the footswitch to the PC via a USB-port
and configure required parameters in TRBOnet Dispatch Console.
•Connect the footswitch to a USB-port of the PC.
•Run TRBOnet Dispatch Console.
•On the Tools menu, click Options.
•In the Options dialog box, select the Hardware tab.

2.3 Connecting via USB-port using M002 adapter 5
TRBOnet Swift Footswitch P001 — User Guide
•In the External Devices section, click the Add link and from the drop-
down menu select TRBOnet Footswitch (USB).
The TRBOnet Footswitch dialog box appears on top of the Options
dialog box.
Name
Enter the name of the footswitch device.
Device
From the drop-down list, select TRBOnet Footswitch USB.
The Footswitch PTT button appears in the table below.
Press the footswitch button and see if the indicator box becomes
green. Release the footswitch button and see if the indicator box
returns to red.
Note: If pressing the footswitch button doesn't change the
indicator's color to green, try toggling the polarity
inversion switch.
Click OK.
2.3 Connecting via USB-port using M002 adapter
You can also connect a footswitch with RJ-45 connector to the PC via a USB-port
by using an additional TRBOnet Swift Adapter M002 (hereinafter, "M002
adapter").
•Connect the footswitch to a USB-port of the PC by using the M002
adapter.
•Run TRBOnet Dispatch Console.
•On the Tools menu, click Options.
•In the Options dialog box, select the Hardware tab.

6 2 Configuration in TRBOnet Enterprise
•In the External Devices section, click the Add link and from the drop-
down menu select HID.
The HID dialog box appears on top of the Options dialog box.
Click the Add link.
One more dialog appears on top:
•Name
Enter the name of the button.

2.4 Associating with PTT boxes 7
TRBOnet Swift Footswitch P001 — User Guide
•Autodetect
Click this link and press the footswitch button. See if the other fields
(Mask, Press, and Release) get populated with the appropriate hex
values.
•Click OK.
As a result, the footswitch button will appear in the list of buttons in
the HID dialog box.
Press the footswitch button and see if the indicator box becomes
green. Release the footswitch button and see if the indicator box
returns to red.
Note: If pressing the footswitch button doesn't change
the indicator's color to green, try toggling the
polarity inversion switch.
2.4 Associating with PTT boxes
•In the Radio Interface pane, right-click on a PTT box for which you want
to use the TRBOnet footswitch, and on the context menu, select
Specify External PTT > [Device Name].
