TreasureHouse JJB-202 User manual

TreasureHouse
Thank you for purchasing our Treasure House Ⅱ private
container with mechanical combination lock. Please read
this User's Manual carefully before using this product.
It is a new type of private container developed
meticulously by Shanghai Diebold, being succinct in
appearance, reliable in structure and easy to operate. It
is one of the best choices for your family.
This User's Manual applies to model JJB-202, JJB-212, JJB-222,
JJB-232, JJB-242, JJB-252, JJB-252S private containers.
No. : B-05017
reasure ouse
Non CCC Certified Chests

CONTENTS
1
Private Containers with Mechanical Combination Lock
9
Useful Items
10
Customer Support
11
Maintenance Guarantee
3
Mechanical Combination Lock
9
Accessory List
4
To Open
7
To Close
TreasureHouse

1
Dail
Body
Dail lock
Bolts Main key
Door
TreasureHouse
PRIVATE CONTAINERS WITH MECHANICAL
COMBINATION LOCK
Body
Bolts
Door
Shelves
Inner door
Inner door
lock
Inner door
key
Figure 1
Figure 2

小门
小门
PRIVATE CONTAINERS WITH MECHANICAL
COMBINATION LOCK
Dail
Body
Main lock
Door
Shelves
Inner door
Inner door
lock Figure 4
Knob
Hint: JJB-252S private container (double doors) operates the same as
the single door model.
Figure 3
2

x 5 H , I n
MECHANICAL COMBINATION LOCK
Open Index Dial Graduation
Main Lock
3

TO OPEN

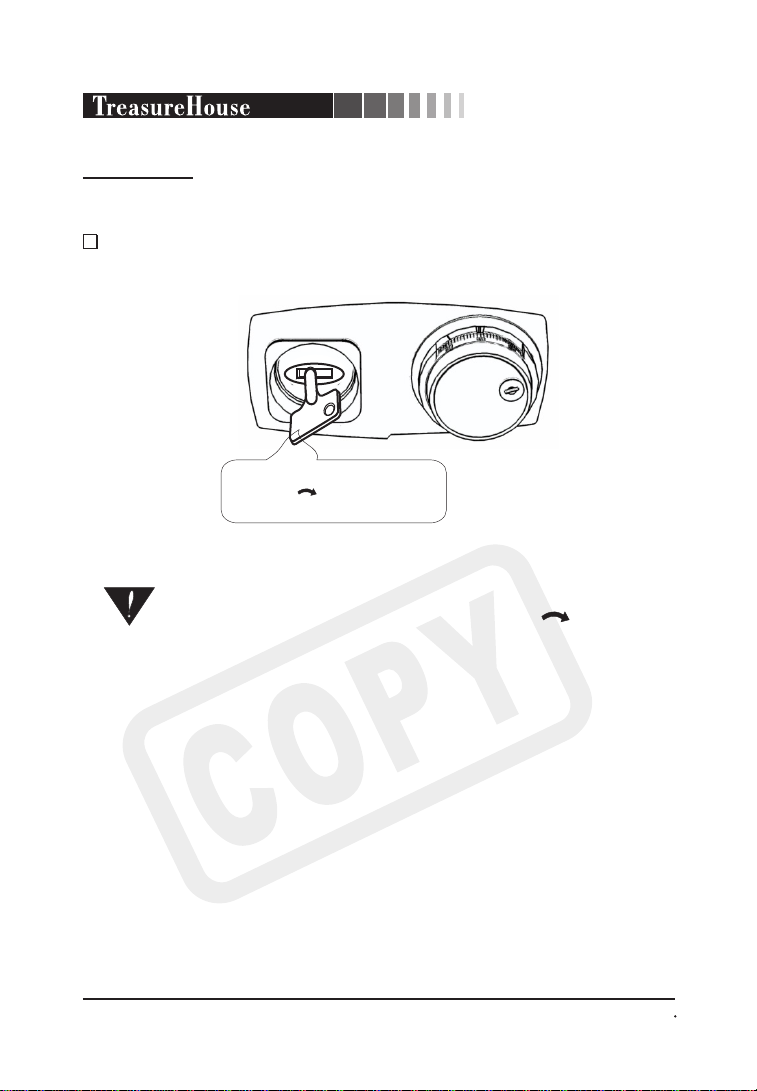

Step 1
Insert the dial lock key into its
keyhole and turn it clockwise by
180 degrees to unlock the dial lock.
The combination to this mechanical combination lock you
purchased is consisted of three numbers:
_____, _____, _____.
The following unlocking steps are illustrated with combination
46, 22, 51 as an example.
Step 2 Turn the dial counterclockwise ,
and stop turning it when the graduation
of the combination first number ' 46 '
aligns with the open index the third
time or above. (Note: Don't turn the dial
back to regain proper alignment. If the
number is turned beyond the open
index, you can turn the dial one more
round to align with it.)
4

TO OPEN
Step 3
Turn the dial clockwise , and
stop turning it when the graduation
of the combination second number
' 22 ' aligns with the open index the
second time. (Note: If the number
is turned beyond the open index,
you have to restart from Step 2.)
It will be counted as one time when the dial is turned from the
first combination number to the second combination number.
Step 4 Turn the dial counterclockwise ,
and stop turning it when the graduation
of the combination third number ' 51 '
aligns with the open index the first time.
(Note: If the number is turned beyond
the open index, you have to restart
from Step 2.)
It will be counted as one time when the dial is turned from the
second combination number to the third combination number.
5

TO OPEN
Step 5
Turn the main lock key
clockwise by 135 degrees
to open the door.
For model JJB-232, JJB-242, JJB-252 private container, need to
further turn the handle (See Figure 3) clockwise to open the
door.
6

7
TO CLOSE
Step 1 Close the private container door.
For model JJB-232, JJB-242, JJB-252 private container, first turn the knob
(See Figure 3) counterclockwise .
Step 2
Turn the main lock key
counterclockwise by 135
degrees until it assumes a
horizontal position.
Step 3
Turn the dial counterclockwise for
at least three rounds.

TO CLOSE
Step 4

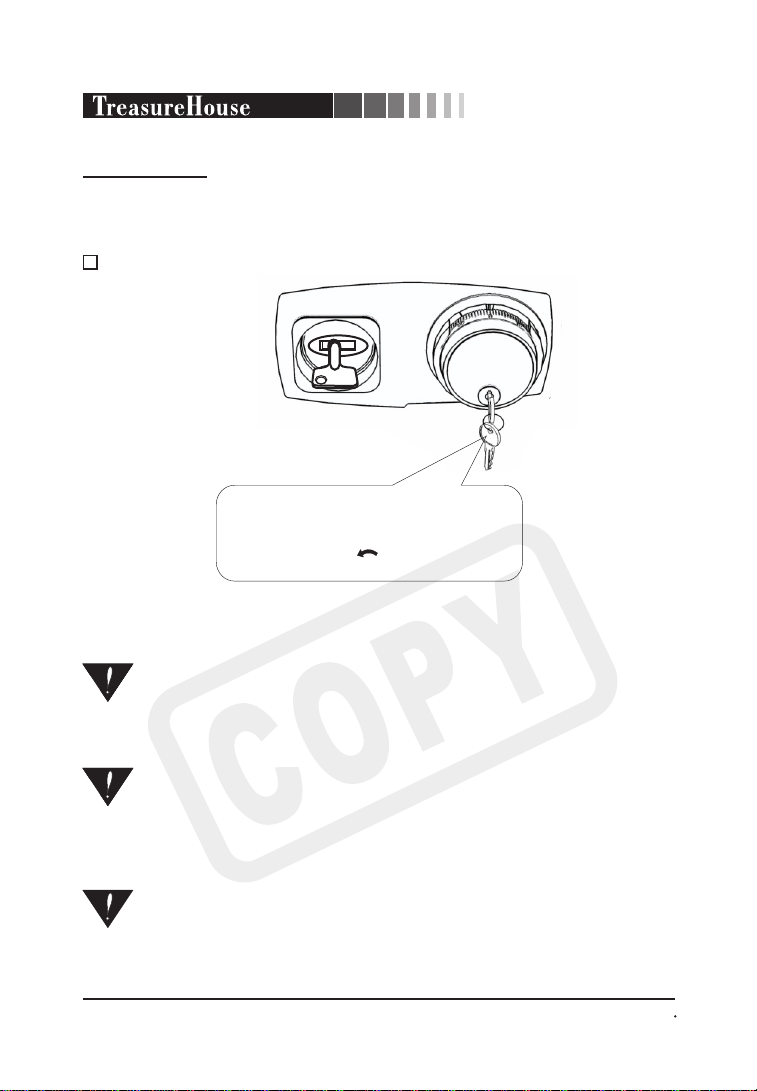

Turn the dial to align the graduation of
' 0 ' with the open index. Then insert the
dial lock key into its keyhole and turn it
counterclockwise by 180 degrees to
lock the dial.
Note: Be sure to remove the dial lock key
after locking the private container according
to the above steps.
The combination of this private container
cannot be changed, but it's very safe for you
to use it as it was generated at random.
Note: Be sure to remove the dial lock key
after locking the private container according
to the above steps.
Hint: JJB-252S private container (double
doors) operates the same as the single door
model.
8

USEFUL ITEMS
With the following items provided to our customer
support people, you will get assistance from us sooner.
Product Factory Number (On the label posted at one side of the product)
Product Model
Product Sales Invoice
Maintenance Guarantee
ACCESSORY LIST
User's Manual 1 piece
Main key 2 pieces
Conformity Certificate 1 piece
Dial lock key 2 piece
Inner door key 2 piece (Applicable for JJB-212, JJB-222,
JJB-232, JJB-242, JJB-252 and
JJB-252S models)
9

Http://www.diebold.cn
HOW TO OBTAIN ASSISTANCE
