TREBLAB HD-Force User manual

Qfi]% TRESBLAS
Portable wireless speaker
HD-Force
User’'s Manual
Please read this
manual before
using the product

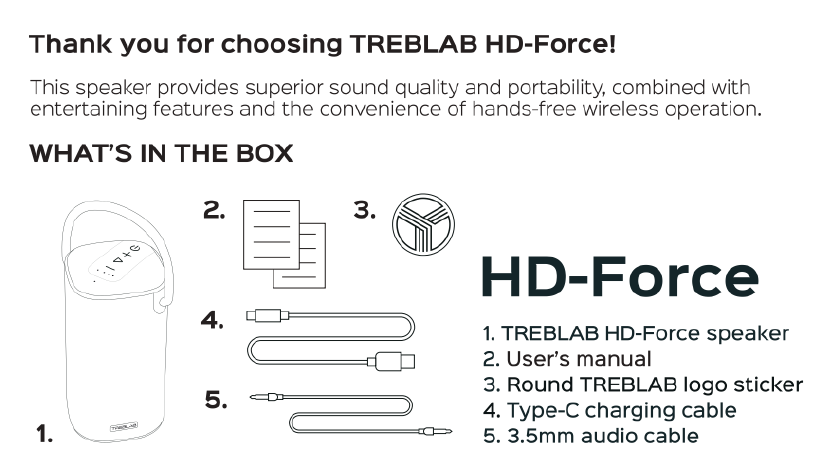

Thank you for choosing TREBLAB HD-Force!
This speaker provides superior sound quality and portability, combined with
entertaining features and the convenience of hands-free wireless operation.
WHAT'S IN THE BOX
2. 3.
J HD-Force
4. E 1. TREBLAB HD-Force speaker
2. User's manual
3. Round TREBLAB logo sticker
S. CDEQ; 4. Type-C charging cable
1. =
5. 3.5mm audio cable

BUTTONS AND PARTS
STATE
INDICATOR
~
HANDLE
BATTERY
LEVEL
——
POWER
ON/OFF
INDICATOR
ey
MICROPHONE
[\
.
VOLUME
+
(MIO) S Ty PLAY/PAUSE
e | ~
MULTICOLOR T PREVIOUS/
LED LIGHT | VOLUME -
UsB 2.0
OUTPUT PORT
35MM AUX CABLE _
PORT
TYPE-C
CHARGING
PORT
T HARD RESET
MICROSD CARD SLOT
/

SPEAKER FUNCTION
Function
Power ON
Power OFF
Play /Pause
Volume +
Volume -
Next track
Previous track
Switch between Wireless /
AUX/SD card modes
Operation
Press and hold the POWER button for 2 seconds
Press and hold the POWER button for 3 seconds
Press the PLAY / PAUSE button
Press the VOLUME + button
Press the VOLUME - button
Press and hold the VOLUME + button for 2 seconds
Press and hold the VOLUME - button for 2 seconds
Press the POWER button

Switch the multicolor LED
light mode/Turn OFF LEDs
Answer a phone call
Reject a phone call
End a phone call
TWS mode
Disconnect
Double-press the PLAY / PAUSE button
Press the PLAY / PAUSE button during incoming
call
Press and hold the PLAY / PAUSE button for
2 seconds during incoming call
Press the PLAY / PAUSE button when on call
Take two HD-Force, double-press the POWER
button on both speakers while two of them are
turned ON and not connected
Press and hold the VOLUME + and the VOLUME -
buttons simultaneously for 3 seconds when
connected to a device

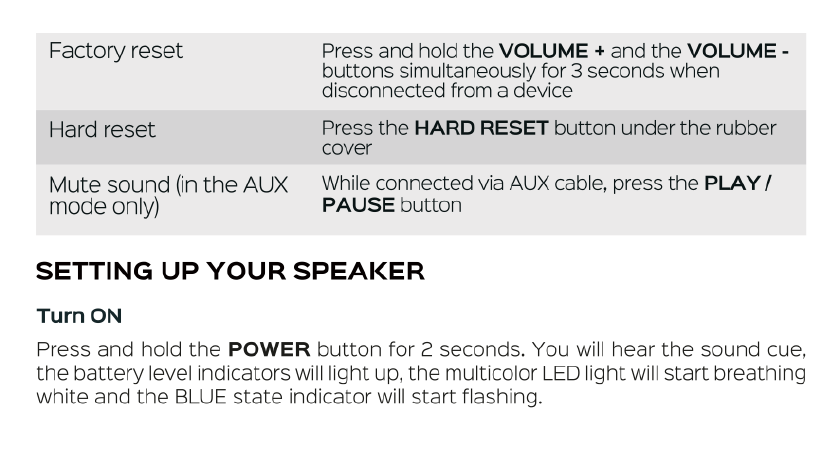

Factory reset Press and hold the VOLUME + and the VOLUME -
buttons simultaneously for 3 seconds when
disconnected from a device
Hard reset Press the HARD RESET button under the rubber
cover
Mute sound (in the AUX While connected via AUX cable, press the PLAY /
mode only) PAUSE button
SETTING UP YOUR SPEAKER
Turn ON
Press and hold the POWER button for 2 seconds. You will hear the sound cue,
the battery level indicators will light up, the multicolor LED light will start breathing
white and the BLUE state indicator will start flashing.

Turn OFF
Press and hold the POWER button for 3 seconds. You will hear the sound cue
and all the lights will go OFF.
WIRELESS PAIRING
Make sure TREBLAB HD-Force is fully charged.
1. Turn ON your speaker. You will see the BLUE state indicator flashing, meaning
that the speaker is in pairing mode.
2. Activate the Bluetooth mode on the source device (smartphone, tablet, laptop).
3. Select TREBLAB HD-Force from the Bluetooth devices list. Keep the speaker
within 3 feet /1 meter from the source device while pairing.
4. If prompted to connect by your device, select Yes.
5. If requested a passcode, enter 0000.

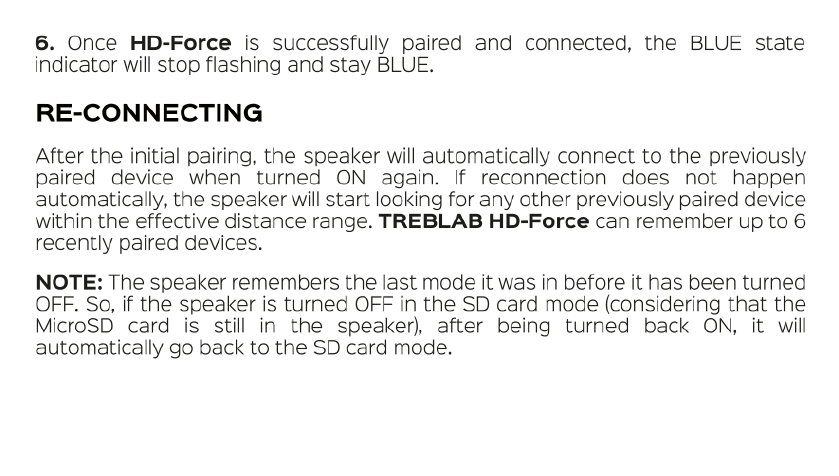

6. Once HD-Force is successfully paired and connected, the BLUE state
indicator will stop flashing and stay BLUE.
RE-CONNECTING
After the initial pairing, the speaker will automatically connect to the previously
paired device when turned ON again. If reconnection does not happen
automatically, the speaker will start looking for any other previously paired device
within the effective distance range. TREBLAB HD-Force can remember up to 6
recently paired devices.
NOTE: The speaker remembers the last mode it was in before it has been turned
OFF. So, if the speaker is turned OFF in the SD card mode (considering that the
MicroSD card is still in the speaker), after being turned back ON, it wil
automatically go back to the SD card mode.

TRUE WIRELESS STEREO (TWS)- PAIRING TWO SPEAKERS
The TWS technology allows you to use two speakers paired wirelessly to create a
wireless dual-channel system, delivering a true stereo sound effect. While using
this function, one speaker (Master, left channel) is paired with a source device, the
other (Slave, right channel) speaker is paired with the Master speaker.
o Make sure that both speakers are turned ON, in Wireless mode and not
connected to any source device.
¢ Double-press the POWER button on both speakers to enter the TWS mode.
You will hear the sound prompt, and both speakers’ state indicators
will start flashing BLUE and GREEN.
& Once the speakers are paired in TWS, you will hear the sound prompt and one
of the speakers’ state indicator will start flashing BLUE slowly. This will be the
Master speaker. The other speaker’s state indicator will turn BLUE. This will be
the Slave speaker.

@ Enable Bluetooth on the source device and select TREBLAB HD-Force from
the Bluetooth devices list.
¢ If prompted to connect by your device, select Yes.
If requested a passcode, enter 0000.
@ Now you can use the speakers in stereo mode. Kindly note that the maximum
distance between speakers should not exceed 33 feet /10 meters.
o
There are a few ways to disable the TWS function:
© When the speakers are connected to the source device, press the VOLUME + and
the VOLUME - buttons simultaneously for 3 seconds on the Master speaker
- the connection with the source device will interrupt, but the speakers will
remain in the TWS mode. This way you can connect another source device.
& When the speakers are connected to the source device, press the VOLUME + and
the VOLUME - buttons simultaneously for 3 seconds on the Slave speaker - the
Master speaker remain connected to the source device, but the Slave speaker
will disconnect and enter the pairing mode.

e When the speakers are NOT connected to the source device, press the
VOLUME + and the VOLUME - buttons simultaneously for 3 seconds on
either speaker - TWS connection between them will be interrupted.
NOTE:
1. When connected in TWS mode, the calling feature is available on the Master
speaker only.
2. Once both speakers are turned back ON, they will try to reestablish the TWS
connection. If you need to use the speakers separately, you need to factory
reset at least one of them.
AUDIO PLAYBACK
To pause and resume playback when connected wirelessly, press the PLAY /
PAUSE button.
To adjust the volume, press the VOLUME + or the VOLUME - button while
listening to music.

To change the track on the HD-Force, press and hold the VOLUME + or the
VOLUME - button for 2 seconds.
AUX MODE
You can connect TREBLAB HD-Force to compatible devices using the supplied
3.5mm AUX cable.
Turn the speaker ON.
@ Plug one end of the supplied 3.5mm AUX cable into the 3.5mm AUX cable port
on the back of the speaker (under the rubber cover). Plug the other end into the
3.5mm jack on your device.
¢ The state indicator will turn GREEN. Now you can play music and audio.
To mute the audio, press the PLAY / PAUSE button.

NOTE: On-device control is not supported for the NEXT, PREVIOUS and PAUSE
functions when using the 3.5mm AUX cable. Phone calls management using the
PLAY / PAUSE button is not supported as well. You will need to make
adjustments using your smart device.
SD CARD MODE
The TREBLAB HD-Force speaker can play music from the MicroSD cards up to
512GB. All you need to do is to copy music to the memory card (in folders or just
to the card root), insert it into the MicroSD card slot on the back of the speaker
(under the rubber cover). You will hear the sound prompt and the state indicator
will turn green.
To start playing from the MicroSD card, press the PLAY / PAUSE button.
The playlist is arranged according to song addition date (the older tracks play
first).

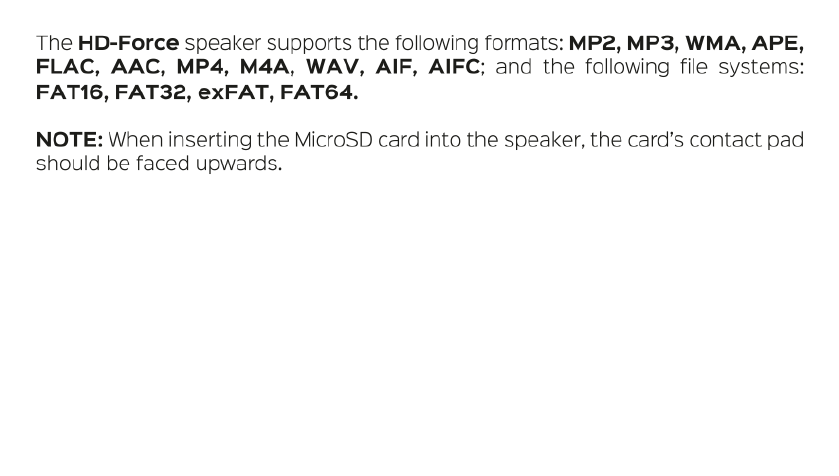

The HD-Force speaker supports the following formats: MP2, MP3, WMA, APE,
FLAC, AAC, MP4, M4A, WAV, AIF, AIFC; and the following file systems:
FAT16, FAT32, exFAT, FAT64.
NOTE: When inserting the MicroSD card into the speaker, the card’s contact pad
should be faced upwards.

PHONE CALLS
TREBLAB HD-Force can be used to make and receive phone calls when
connected wirelessly. Audio playback will be paused during calls.
To answer/end a call Press the PLAY / PAUSE button
To reject a call Press and hold the PLAY / PAUSE button for
2 seconds
To redial Press and hold the PLAY / PAUSE button for
2 seconds
NOTE: For better call quality, face the microphone when you speak.

CHARGING
When the battery is running low, you will hear a sound signal.
TREBLAB HD-Force may be used while charging in the Wireless, AUX and SD
card modes.
To charge the speaker, plug one end of the supplied cable into the TYPE-C
charging port under the rubber cover on the back of the speaker. Plug the other
end of the charging cable into a standard USB port. It takes up to 4-5 hours to
fully charge.

Once plugged in, the battery level indicators will start flashing slowly showing
the current battery level (for more details, please check the BATTERY LEVEL
INDICATION section). This means that the speaker is charging. When the speaker
is fully charged, all tree battery level indicators will stop flashing and become
steady.
Be sure to use a 5V DC, 0.5-2A adaptor or charger. Using the power source with
lower power will increase the overall charging time.
Unplug HD-Force from the charging cable and the cable itself from the power
source when not in use.
If the speaker is left unused, even the fully charged battery will lose its charge
over time. We recommend fully charging the HD-Force speaker at least twice a
month to maintain sufficient battery life.

BATTERY LEVEL INDICATION
The HD-Force speaker is equipped with the battery level indicators - LEDs. The
current charge level is displayed when the speaker is ON and when the speaker
is used as a power bank in OFF state.
® Charge level is between 0% and 30%: one LED is ON (flashing during the
speaker charging or in the power bank mode).
® Charge level is between 30% and 70%: two LEDs are ON (flashing during the
speaker charging or in the power bank mode).
@ Charge level is between 70% and 100%: three LEDs are ON (flashing during the
speaker charging or in the power bank mode).

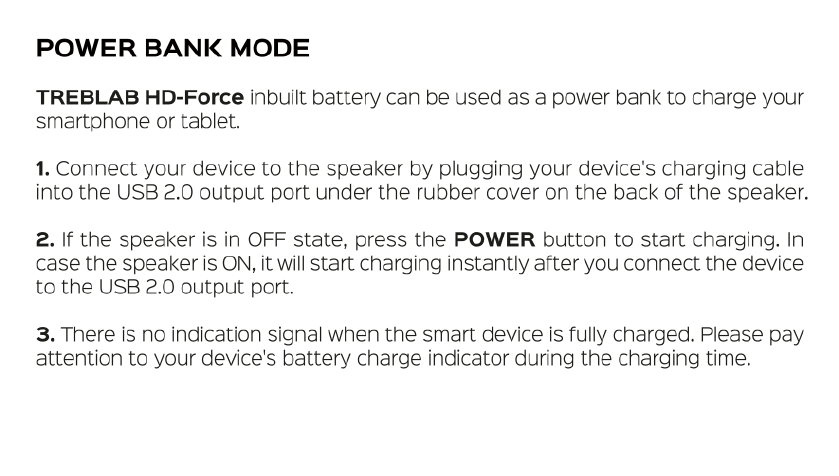

POWER BANK MODE
TREBLAB HD-Force inbuilt battery can be used as a power bank to charge your
smartphone or tablet.
1. Connect your device to the speaker by plugging your device's charging cable
into the USB 2.0 output port under the rubber cover on the back of the speaker.
2. If the speaker is in OFF state, press the POWER button to start charging. In
case the speaker is ON, it will start charging instantly after you connect the device
to the USB 2.0 output port.
3. There is no indication signal when the smart device is fully charged. Please pay
attention to your device's battery charge indicator during the charging time.
