Treedental TR-CWL07 Specification sheet

1
Operation and Installation Manual
Without WI-FI Type

2
Contents
1. Introduction………………….............................................3
1.1. Introduction of products ....................................................................................3
1.2. Standard configuration........... ......................................................................... 3
1.3. Optional configuration........... ...........................................................................4
1.4. Characteristic....................................................................................................4
2. Function..………………………………………………………….4
2.1 LCD monitor…. …………………………………..……………………………………4
2.2 Teeth bleaching………………………………………………………………………...5
2.3 intra oral camera ...…………………………………………………………………….5
3. Operation......................................................................6
3.1 Teeth bleaching……………………………………………………………….…………6
3.2 intra oral camera……………………………………………………………..………….8
3.3 Assembling instruction illustration……………………………………………………12
4. How to resolve troubles…………………………………………14
5 Notice…………………………………………………………….....15

3
1. Introduction

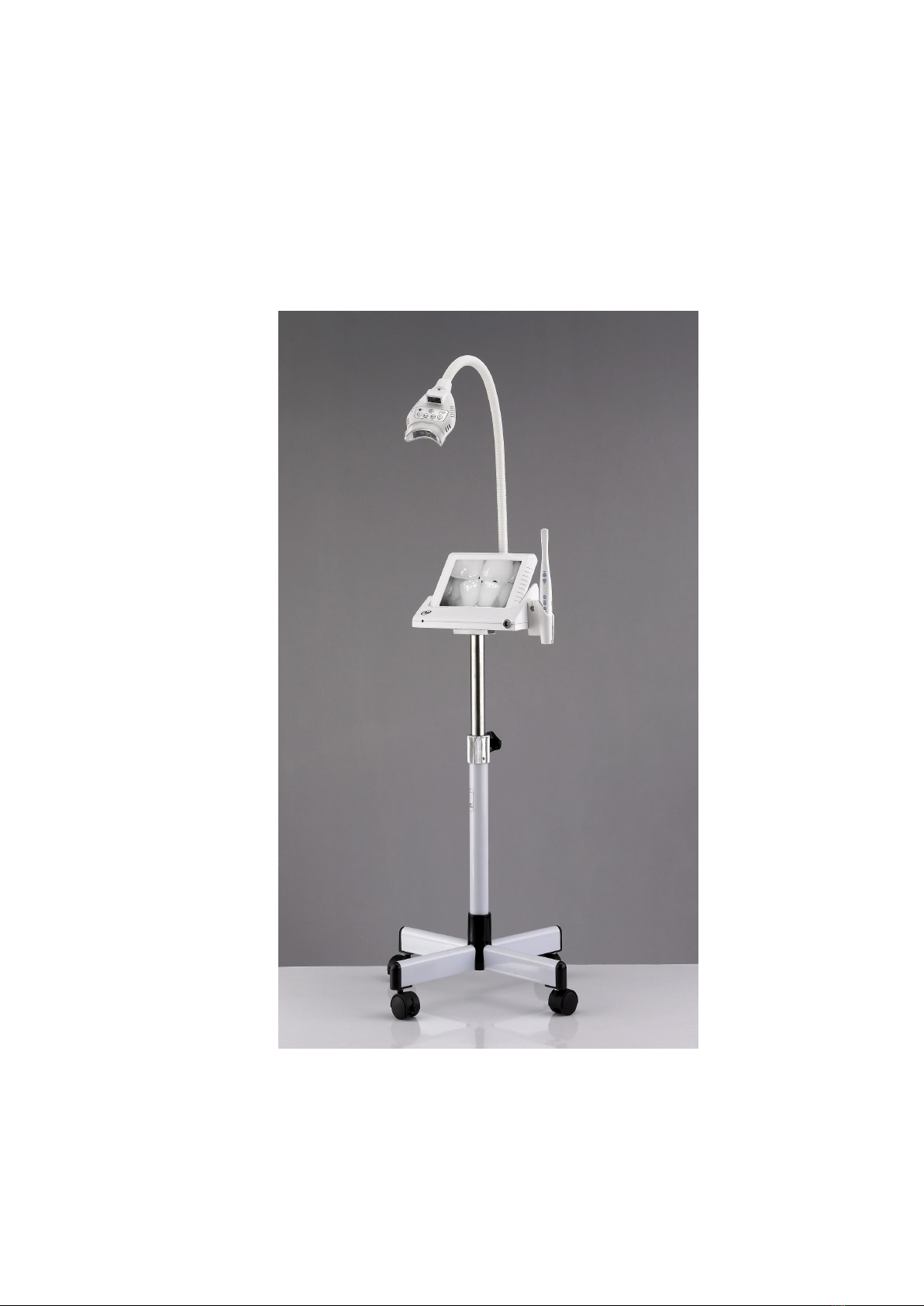

1.1. Introduction of products
Dear customers,
Thanks for buying our company’s products, this product is a multifunctional teeth
bleaching machine, it contains teeth bleaching, intra oral camera and 8inch monitor.
It makes the machine more useful and convenient.
1.2. Standard configuration
1.M-86 Teeth Whitening Accelerator
1 piece
2. M-868A (Special for M-86) LCD
1 piece
3 CF-986 intra oral camera
1 piece
4. Teeth Whitening Accelerator’s foot
stand
1 piece
5. Teeth Whitening Accelerator’s remote
control
1 piece
6. camera 5pin cable(1.5M)
1 piece
7. TF card+card converter+small white
box+USB card reader
1 set
8. 12V adaptor( white colour)
1 piece
9.Goggles
2 piece
10.Camera sleeves
50 piece
11. Power supply
1 piece
12.Mouth retractor
1 piece
13. lampshade
20 piece
14. Assembly Tool
1 piece
15.Camera holder
1 piece
16.AV cable
1 piece
17.Disk( Manual inside)
1 piece
1.3. Optional configuration

4
1, Wireless transmitter M-91B
2, Wireless receiver M-97B
3, Small screen M-99
1.4. Characteristic
1. Combines 8inch LCD monitor, teeth whitening machine and an intra oral camera. It’s a
multi-functional all-in-one teeth whitening machine. .
2. High efficiency goose pipe design, adjust angle at random, convenient for use.
3. Combination of 4 pieces High power LED.
4. Tunable bleaching time with microprocessor-controlled timer presets.
5. High pixels for dental camera with built-in SD card, it can save the pictures
permanently.
6. Convenient for dentist to make a contrast before and after treatment from the screen.
7. High sensitive infrared remote control function.
8. Small base size design, suitable use in dental clinic
9. Can upgrade to wireless and wired system
2. Function
2.1 8 inch LCD monitor Specification:
1．LCD size: 8 inch (Diagonal)
2．Driver element: a-Si TFT active matrix
3．Resolution: 640* 3(RGB) *480
4．Display mode: Normally white. Transmissive
5．Dot pitch: 0.0529(W)*0.1587(H)mm
6．Active area: 101.568(W)* 76.176(H) mm
7．Module size: 117.56(W) * 88.43(H) *5.7(D) mm
8．Surface treatment: Anti-Glare
9．Color arrangement: RGB-stripe
10. Interface: Digital
11. Backlight Power consumption: 1. 2000W (Typ.)
12. Panel Power consumption: 0.193(Typ.)
13. Weight: 175g

5
2.2 Teeth bleaching Specification:
Broad Spectrum: 420nm~472.5nm (Host lamps)
Light Output power: up to 2000Mw/CM2
100-240V, 50/60Hz, 1.2 A for global use
Weight: 8 Kg
Max. Working Radius: 50cm

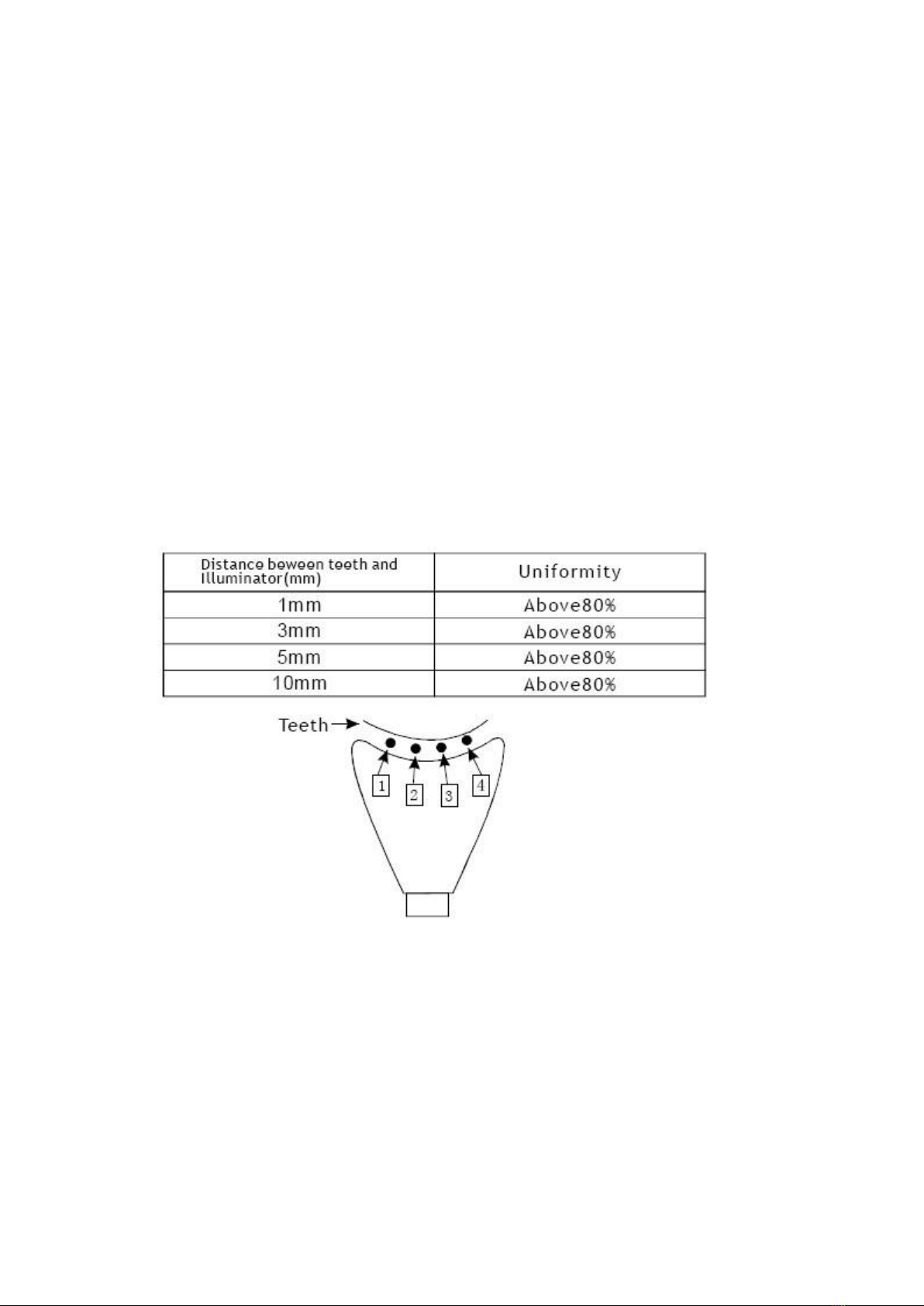

High Uniformity of light output
2.3 Intra oral camera Specification:
1.1/4 CMOS 1.3 MP
2.Video or USB output
3. High resolution, High sensitivity, High performance
4. Reliable light source with 6 pieces of white light LED
5. Compact Size, Easy to use and focus

6
6. 2 or 3 buttons control, can control previous picture, next picture, and delete picture
from the cameras directly
7. 2 capture angles, display the clear images
8. Built in protection voltage
9. Camera with 512mb Micro TF card inside it, it can save more than 500 pictures.
3. Teeth bleaching operation

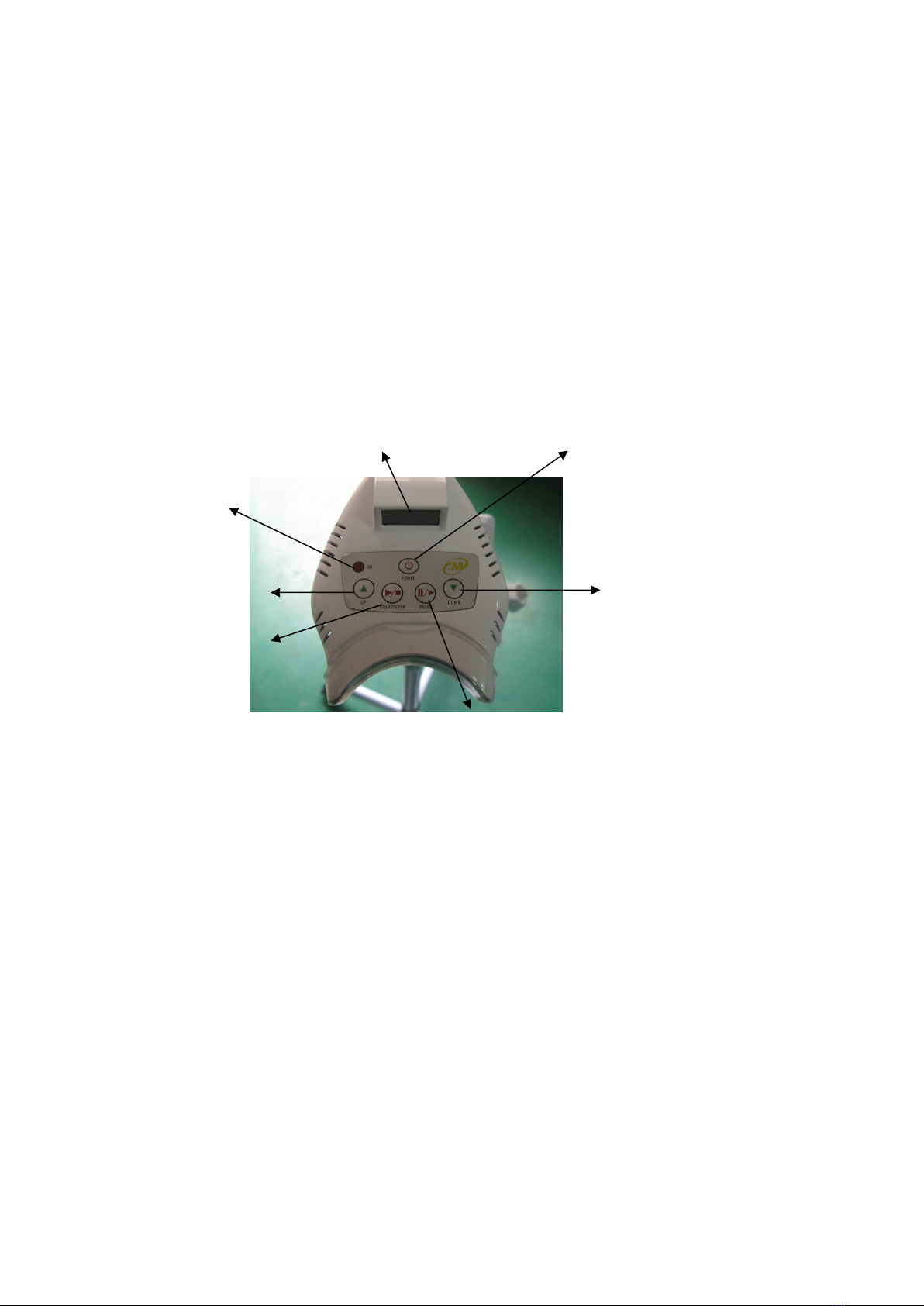

Front

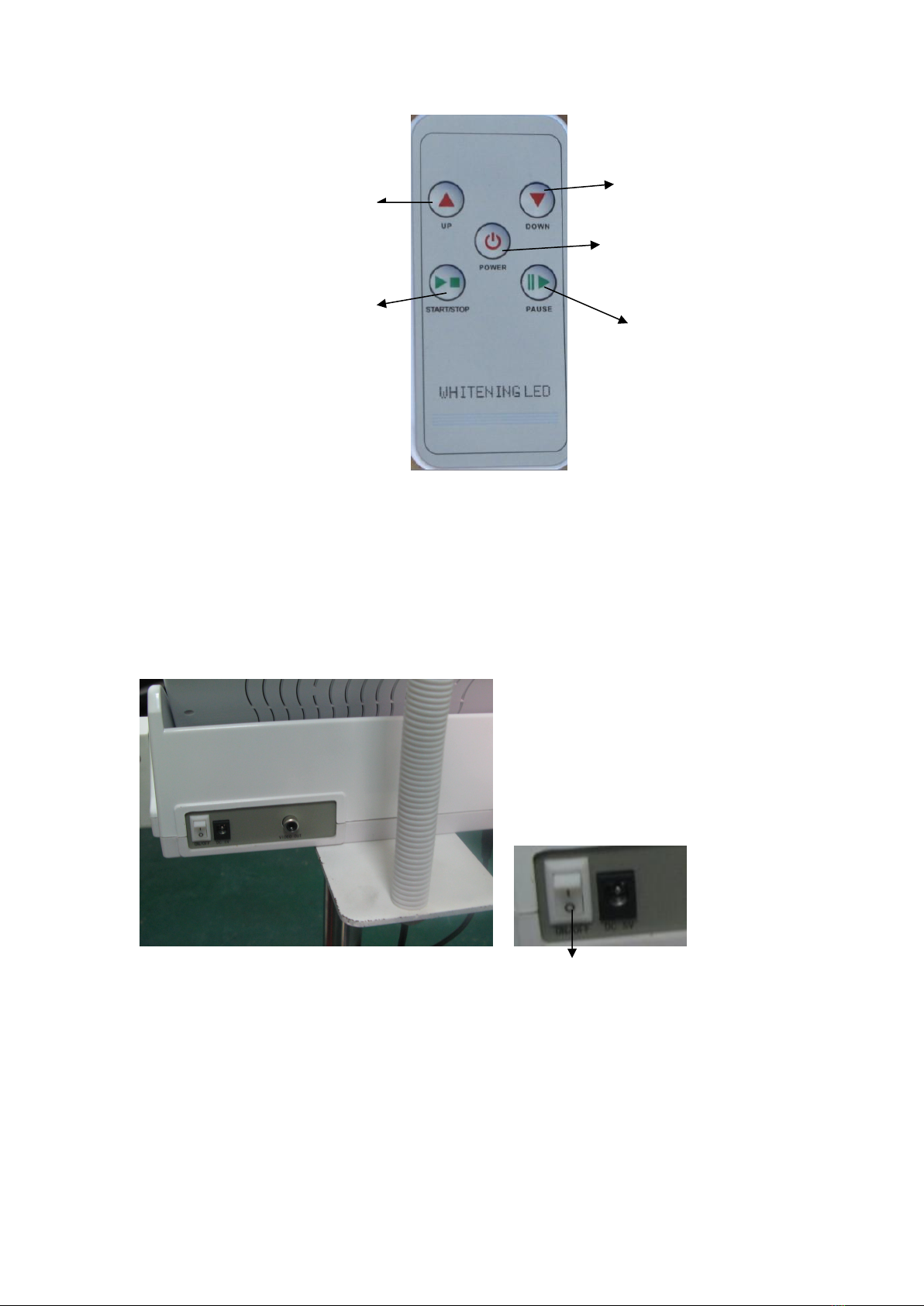

Remote control
Time setting (up)
Start / Stop
Time setting (Down)
Pause/continue
Power
IR
Time display

7
Reverse:
Power on/off
Turn on the teeth Whitening Accelerator:
A) plug in the teeth whitening Accelerator
B) Turn on the power switch.
Warning: When overload, bulit-in fuse blows, teeth whitening accelerator will power off, after
change the fuse, the teeth whitening accelerator will be in normal operating condition.
Time down
Power
Pause
Start/stop
Time up

8
Operating the Teeth whitening Accelerator:
A) Start/ Stop Button: Turn on /off the light by pressing the “STOP/START “button.
B) Pause button: Stop the time counting and emitting light by pressing the “Pause” button,
the remaining whitening time will sparkle on the digital indicator. Press the “Pause”
button again, light will emit and time will count continually.
C) UP/Down Button: Use “UP” or “Down” button to set whitening time. 5 minute counting
with memory , the longest whitening time is 30 minutes each cycle
3.2 Intra oral camera’s operation

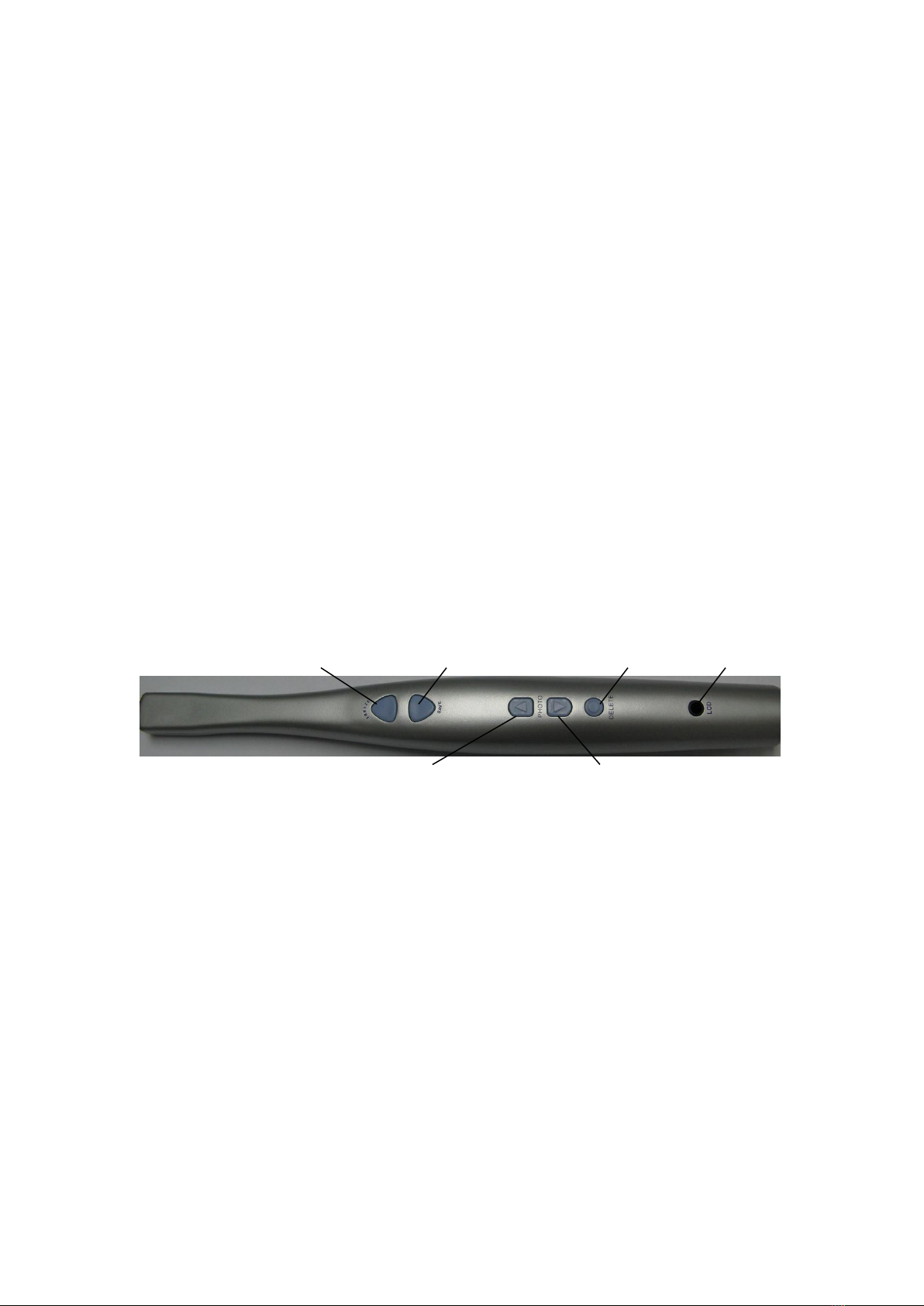

A. The right side
1. Freeze/Power off 2.Save/ power on 5.Delete 6.M-99 insert
3. Check previous image 4,Check next image
1. Press option 1, Power on the camera; press option 2 for a longer time, power off the
camera
2. Press option 1, freeze the image; press option 2, save image into SD card.
3. Press option 3, check the previous image
4. Press option 4, check the next image
5. Delete the image
6. M-99 small screen is an optional part

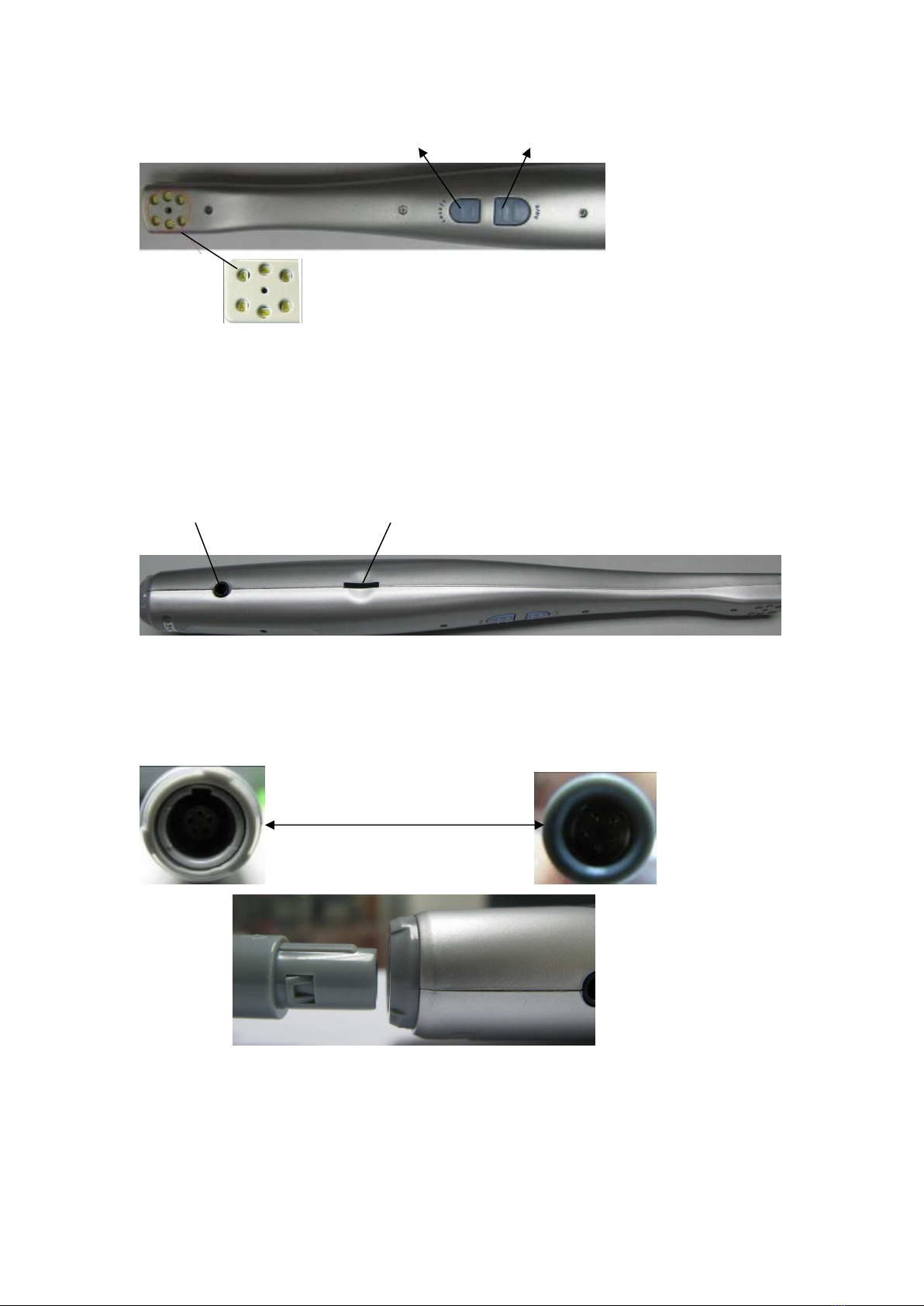

B. The back side

9
1.Freeze 2. Save
The Camera lens and the six LED light
1. Press option 1, Power on the camera; press option 2 for a longer time, power off the
camera
2. Press option 1, freeze the image; press option 2, save image into SD card.
C. Side
M-99 insert Mini SD card insert
Wired operation sketch map
.
A. Let the cable connect with camera

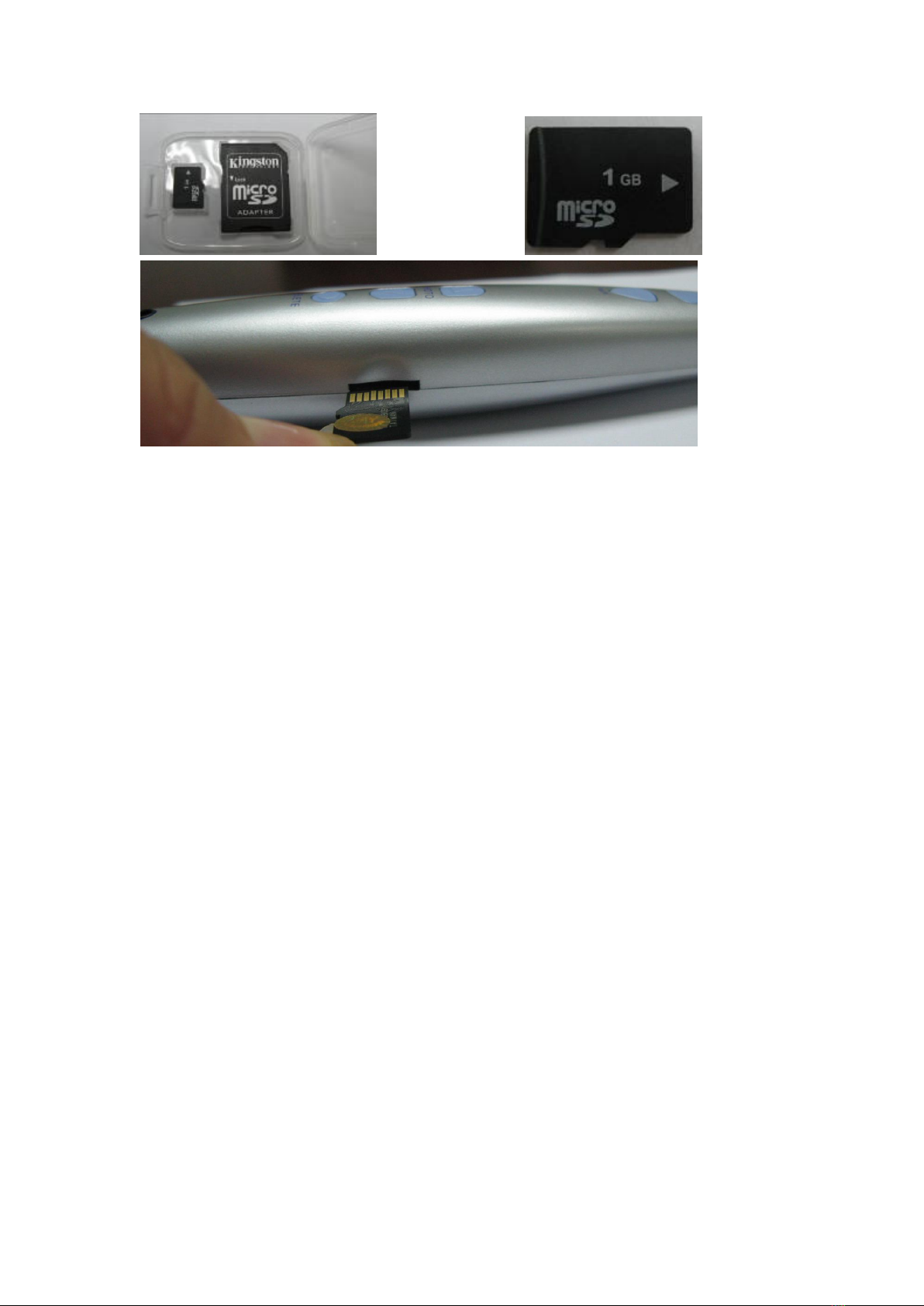

B. Let the MINI SD card insert into the camera

10
Notice: Please let the back of SD card insert into the camera.
D, Let another side connect with this machine
E. Use the camera
Press the Freeze button, the camera will be power on, After capture the image, press
Save button , the images will be saved into Micro SD card, press the previous and next
buttons, customers can check the images which has been captured by camera , Micro SD
card can save 500 pictures. Press the switch button, LCD monitor will display the image
between X-ray reader and intra oral camera. Press button 1 or 2 on camera, customers
can check the captured images anytime. Press button 3, the image will be deleted.

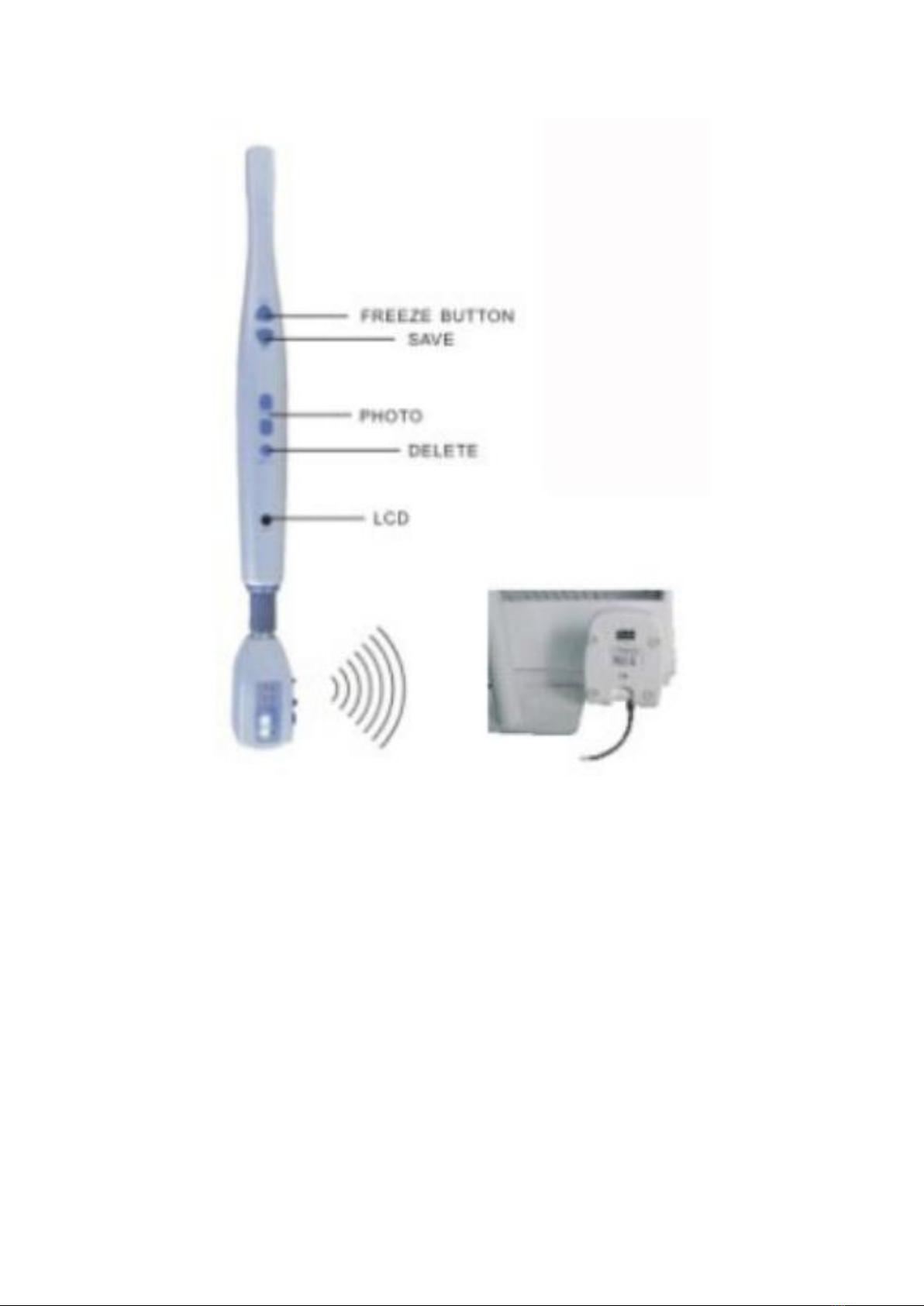

F, Upgrade to wireless system
Connect the intra oral camera with wireless transmitter, and insert the wireless receiver as
below picture.

11
Same as wired camera’s operation, press Freeze button, and the camera will be power on,
after capture the image, press save button, the images can be saved in the SD card, and
press the previous and next buttons, customers can check the images what had been
captured by camera.

12

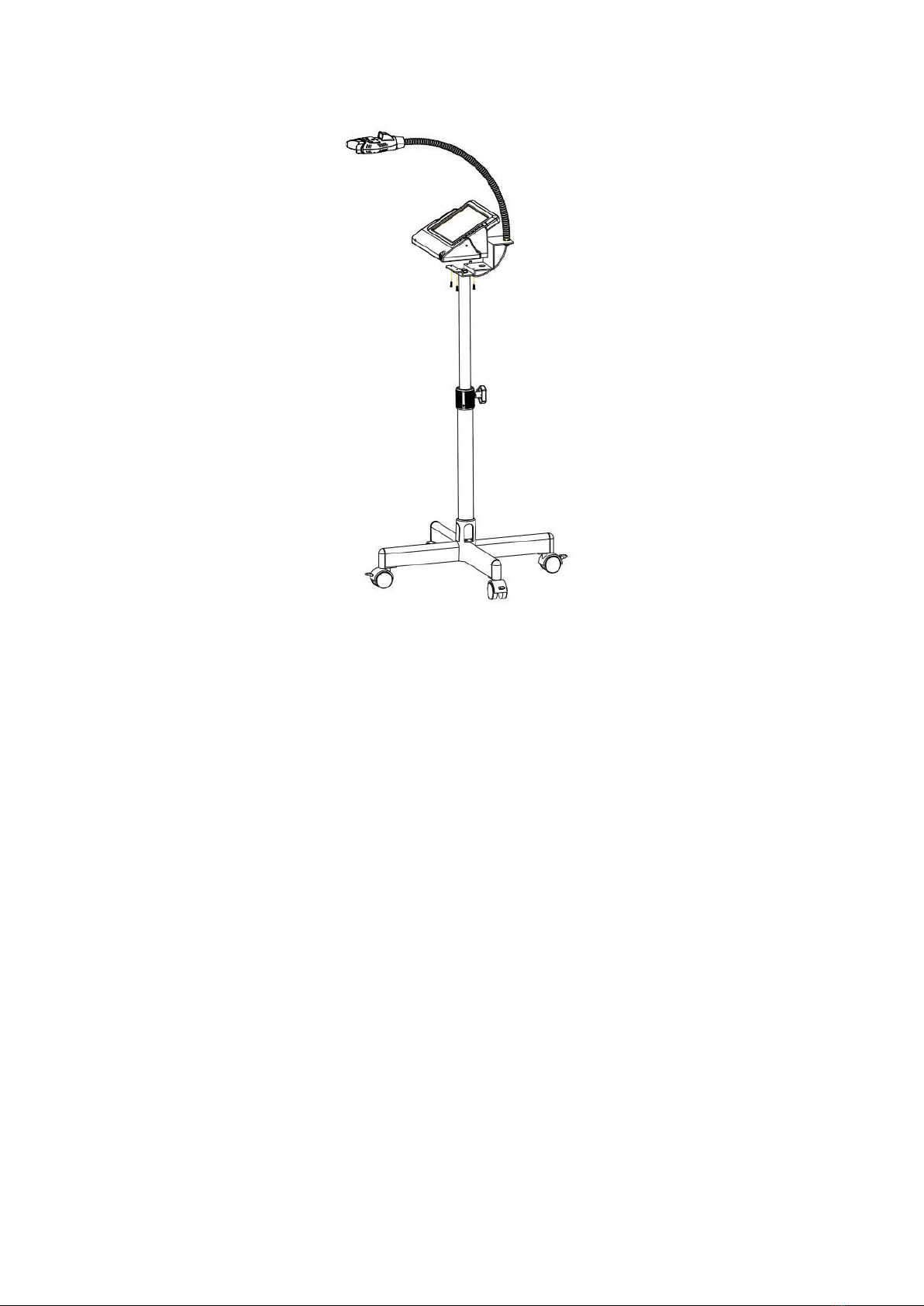

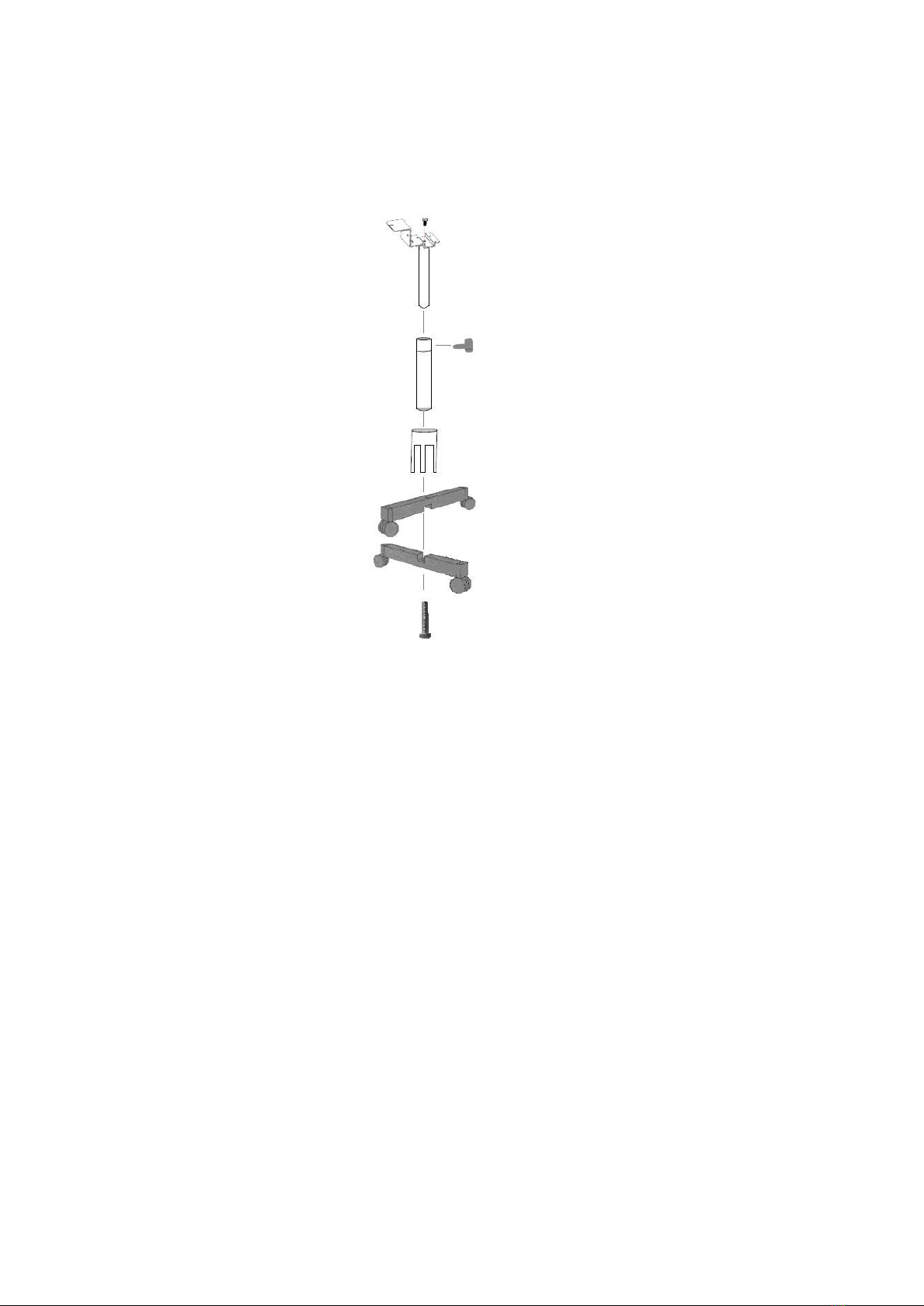

3.3 Assembly Instruction illustration
Warning: When this screw is loose, the spring will come out!

13

14
4. How to solve troubles
If there are some troubles of products, Please see below special case firstly. If still can’t
be solved, please contact your local dealer.
Item
trouble states
resolve methods
1
the products can't be startup when
open (ON/OFF)switch)
1.check the power socket if it is
ok
2.check the cable if it is connected
2
computer or TV can't reveal images
1.check the connection between
products and computer or TV if it is
correct
2.check the Driver Setup if it is
finished,
3
in the process of use, the image will
be a little blurry
If you use it in the first time, it
belongs to natural reaction. It will be
better later on
4
freezing images then appears
dithering
the hand shakes when uses camera
to capture image, when users are
skillful for use products, the
phenomena can be changed
5
the images of computer or TV have
spots
1.check the screen if it has spot
2.check the lens if it has spot
3.if the spot can't be cleaned, please
contact the local dealer

15
5. Notice
Prior to installation and start-up of the unit, carefully read the instructions provided
herein ,As with all technical devices, the proper function and safe operation of this unit
depend on the users compliance with the safety recommendations presented in these
operating instructions.
A) CAUTION: It is important to observe the following precautions:
Do not shine the light directly onto or toward unprotected gingival or skin.
B) CAUTION: Persons with a history of photosensitivity or who are using
photosensitizing drugs should not be exposed to light from this unit.
C) CAUTION: This is equipment is not suitable for use in presence of flammable
anesthetic mixtures with air or nitrous oxide.
D) CAUTION: Please do not look into emitted light by the machine when it is in use or it
will hurt your eyes. Please be sure to wear goggles.
E) CAUTION: For the bend angle, please do not exceed 90 degree, or easily broken
elbow, it may cause noise in the future.
