We hope you enjoy your TrekStor MiniPC W1.
Please read the following sections carefully to familiarise yourself with the
functions of this product and how to operate it.
IMPORTANT!
Follow the safety information in Section 2.
IMPORTANT!
Please keep these instructions in a safe place for future reference. Should
the device change hands, please pass these instructions on to the new owner.
Up-to-date product information is available on the TrekStor website:
www.trekstor.de
Visit www.trekstor-onlineshop.de for additional products and accessories.
Detailed instructions on the Windows 8.1 Update operating system can be found at:
https://support.microsoft.com/Product/windows/windows-8-1
1) About the MiniPC
The MiniPC is a PC in a small format with the Windows 8.1 Update operating
system. Thanks to its compact construction and passive ventilation, its operation
is especially energy-saving and completely noiseless.
Only ever use the device for its intended purpose. The manufacturer is not liable
for damages resulting from improper use. Furthermore, the manufacturer shall
not be responsible for damages or loss of data and any subsequent damage
caused.

EN
5
2) Safety information
These instructions use the following warning symbols and key words:
aDANGER
Indicates possible danger to life and/or danger of severe, irreversible injuries.
rCAUTION
Follow instructions to avoid injuries and material damage.
rWARNING
Follow instructions to avoid material damage.
iNOTE
Further information about the use of the device.
Operational safety
rCAUTION Those who, as a result of their physical, sensory or mental capabilities,
or lack of experience or knowledge, are not in a position to use the product
safely must not be allowed in the vicinity of the product without supervision
or instruction by a person responsible for their safety. Supervise children
around the product.
aDANGER
Keep packaging materials out of reach of children (e.g., plastic sheets).
There is a danger of suffocation.
aDANGER
Some accessories can pose a choking hazard for babies and young children.
Keep these accessories out of reach of babies and young children.
aDANGER
Never open the casing of the device or the power adapter: This may cause
an electrical shock, short circuit or fire!
aDANGER
Do not insert any object into the ports or openings of the device or
power adapter: This may cause an electrical shock, short circuit or fire!

EN 6
aDANGER
Do not cover the device or power adapter during operation. This may
cause the device/power adapter to overheat and potentially catch fire!
uCAUTION
This device can generate high sound volumes. Never listen at high volumes
for long periods. Doing so can result in immediate or gradual hearing
damage. Remember: Permanent hearing damage may only emerge
later in life. You may become used to listening to high volumes over time,
making them appear normal to you. However, your hearing may have
already been damaged. The higher you set the volume, the more quickly
your hearing can be damaged.
aDANGER
Your safety is very important to us! Safety always has first priority
in road transport. Protect yourself and other road users by operating
the device only if the traffic situation allows it and you do not endanger
or hinder anyone. Adjust the volume of the device for your safety so that
you can continue to react to all the sounds around you. Local legislation
in force applies.
rWARNING
Do not exert excessive pressure on the display, as it may break.
oAvoid using USB cables over 3 m in length.
Exposing the device to electrostatic discharge can interrupt the data
ptransfer between the device and the computer or impair the functions
of the device. Should this happen, disconnect the device from the USB
port and reconnect it or rebuild the WiFi connection from scratch.
Repair
rWARNING
No parts inside the device require maintenance or cleaning.
rWARNING Should the device become wet, immedeately disconnect it from the
power source. Ensure the device is checked for operational safety before
using it again.

EN
7
Intended operating conditions
jProtect the device from extremely high or low temperatures and fluctuations in temperature. Use it at an ambient temperature between 10º C and 40º C.
mDo not place the device near a heat source and protect it from direct sunlight.
eNever expose the device to humidity, condensation or moisture.
hEnsure you use and store the device in a dust-free environment.
Power supply
rCAUTION Only ever use the original power adapter or a power adapter with the
correct voltage and amperage to prevent damage to the device. If you
have to resort to a universal power adapter, pay attention to the
polarity of the power adapter as well as the voltage and amperage.
Your device may suffer irreparable damage if these specifications are
not properly adhered to.
Care and maintenance
gNever clean the surface of the device with solvents, paint thinners, cleaning agents or other chemical products. Use a soft, dry cloth or a soft paintbrush.
Information on the memory capacities indicated
qThe storage capacity indicated on the packaging and in the technical
specifications refers to the total storage capacity of your device.
The storage capacity of the device indicated by your operating system
may differ from the stated storage capacity, as a portion of the total
storage is also used by the operating system and system applications.

EN 8
3) Technical specifications
Processor (CPU): Intel® Atom™ Z3735F processor
(up to 1.83 GHz, 2 MB Intel® Smart
Cache) / quad core
RAM: 2 GB DDR3
Storage capacity: 32 GB
Graphics processing unit (GPU): Intel® HD Graphics
Interfaces: Micro-USB 2.0 (with host function),
2 x USB 2.0, WiFi,
DC IN, audio out/mic in,
memory card reader, Bluetooth®,
HDMI®, Ethernet
WiFi: 802.11 b/g/n: 2.4 GHz
Ethernet: RJ45, 100 Mbps
Power supply: DC IN / 5V
Supported memory cards: microSD, microSDHC, microSDXC
Dimensions (W x H x D): 97.5 x 22.5 mm x 97.5 mm
Weight: 215 g
Housing material: Plastic
Operating system: Windows® 8.1 Update
4) Package contents
• MiniPC W1
• Power adapter (100 V – 240 V)
• Quick guide
• Product safety and legal information

EN
9
DC IN 5VUSBHDMILAN
USB 1 USB 2
Input: 5V 3000mA
MiniPC W1
Designed in Germany | Made in China
TrekStor GmbH, Kastanienallee 8-10
64653 Lorsch, Germany
A B
F
G
H
CDE
JI
K

EN 10
5) Controls and ports
A) DC IN
B) Micro-USB socket
C) HDMI socket
D) RJ45 socket
E) Audio out socket
F) USB-A socket
G) USB-A socket
H) Memory card slot
I) Status LED
J) On/off switch
K) Ventilation slots

EN
11
6) Starting up the MiniPC for the first time
Connecting the MiniPC
USB
USB
HDMI
a) Connect the MiniPC to a HDMI-compatible output device (for example,
television, projector, PC monitor, and so on) using a HDMI cable, and on the
output device, select the correct HDMI input as the source (the HDMI input
to which the cable is connected).
b) Connect a USB keyboard to the MiniPC (USB A socket).
c) Connect a USB mouse to the MiniPC (USB A socket).
iYou can connect a commercial USB hub to one of the two USB A sockets on the
MiniPC to expand the amount of USB sockets already available.

EN 12
Switching on the MiniPC
2 sec.
DC IN

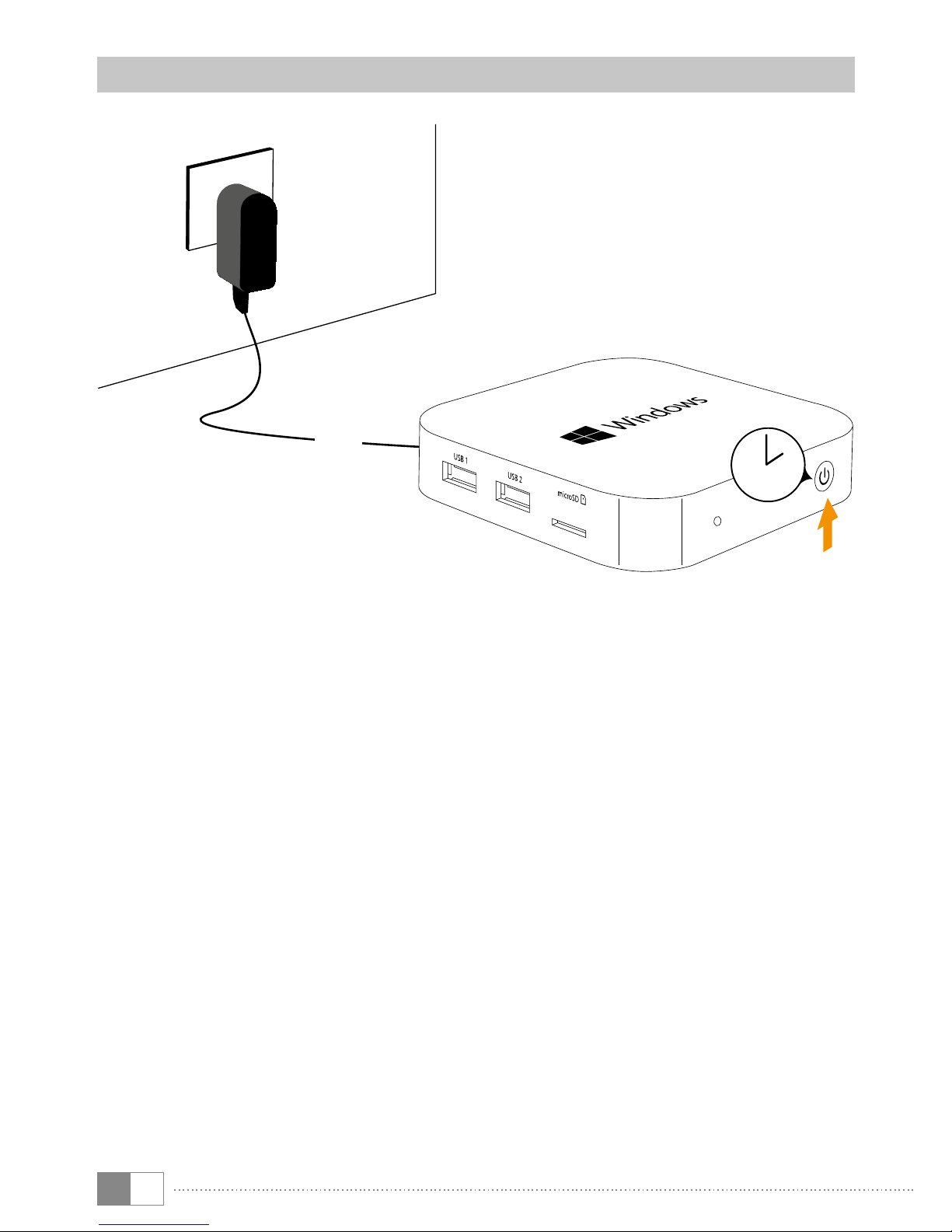

a) Connect the MiniPC to a plug socket using the power adapter provided.
b) Press the on/off switch for approximately two seconds. The MiniPC starts
up and the status LED lights up blue.
rWARNING
Only operate the MiniPC on hard surfaces in order to ensure sufficient
ventilation of the device. Soft surfaces, such as bed covers or cushions,
should be avoided as they cover the ventilation slots (K) on the bottom
of the device and can lead to the device overheating.
iA configuration assistant appears when you start the device for the first time.
During the setup process, the configuration assistant will prompt you to sign in
with your Microsoft account. If you do not yet have a Microsoft account, please
set one up at this point.
iIf your MiniPC enters sleep mode after a while (no image on the connected
monitor), briefly press the on/off switch (J) to "wake it up again" and unlock the
screen.

EN
13
Unlocking the screen
As soon as the device has been set up (and every time it is switched on and
booted up), the lock screen appears. Hold down the left mouse button and
"drag" the screen up to unlock it.
iIf your MiniPC is password-protected, you must then enter the password.

EN 14
7) Charm Bar

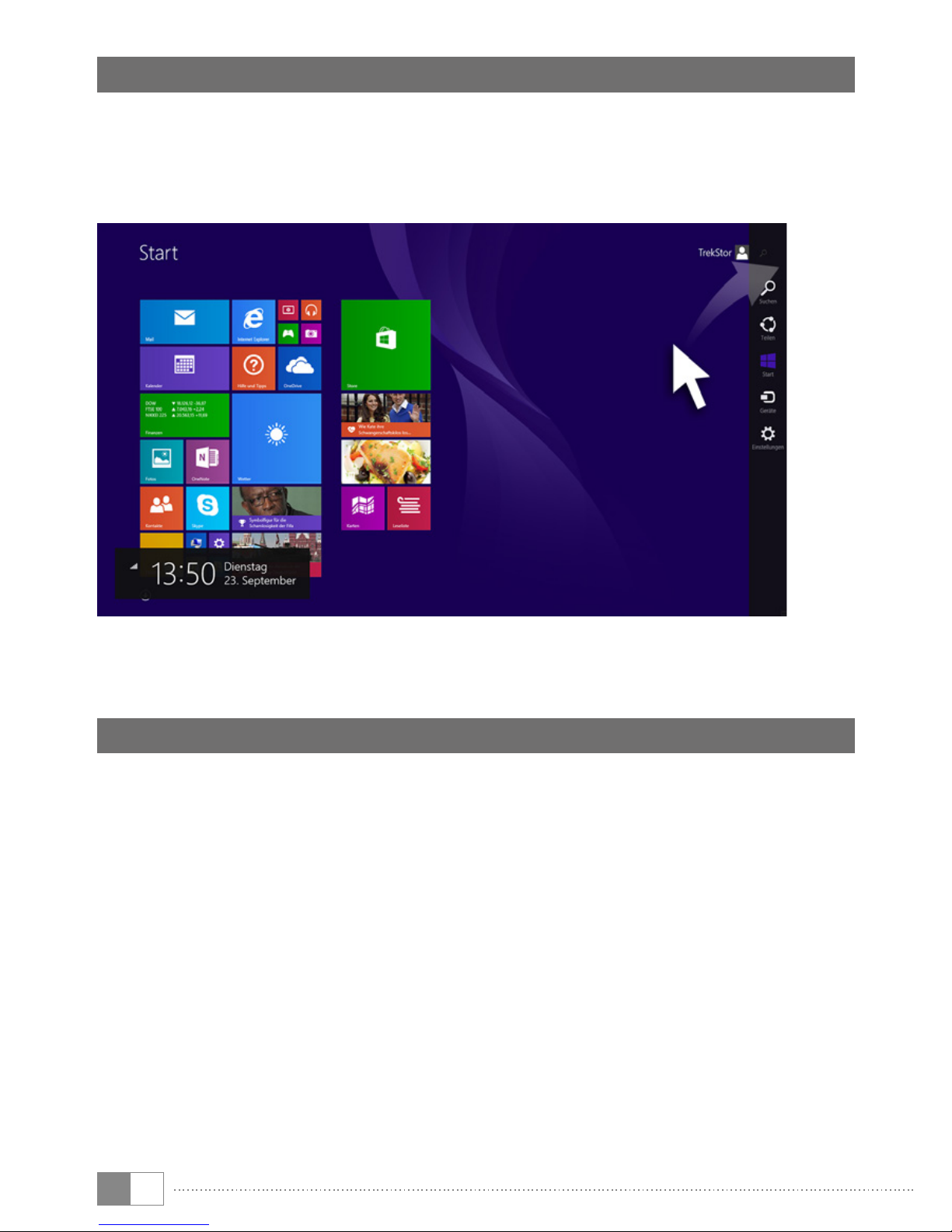

The Charm Bar is a bar with quick links to some of the important functions of the
MiniPC. You can call it up from the start screen or the desktop view. To access it,
move the mouse (without clicking) to the right top corner of the screen and wait
a moment.
iThe Charm Bar is accessed the same way in both views (start screen and desktop view).
8) Start screen and desktop view
Depending on needs and preferences, you can decide whether to use the
start screen with live tiles (this screen is optimised for mobile devices) or the
traditional desktop view.
iWe recommend using the traditional desktop view for the MiniPC.
The first time you switch on your MiniPC, the start screen with live tiles appears.
To switch to the desktop view, click the live tile named "
Desktop
" located in the
bottom-left area.
To return to the start screen, click the Windows symbol at the bottom left of the
task bar.

EN
15
Start screen
Desktop view

EN 16
9) Accessing the Applications menu
The Applications menu is located "beneath" the start screen. To access it, click
the arrow symbol on the circle at the bottom left of the start screen.
10) Connect the MiniPC with a network/the Internet
Connecting to the Internet via WiFi
a) Open the Charm Bar (see Section 7)
b) Click "
settings
" in the Charm Bar.
c) Now click the WiFi symbol (five vertical bars) in the bottom-right area. A list
of all available wireless networks appears under the heading "
Wi-Fi
".
iIf no list appears, move the slider for WiFi from "
Off
" to "
On
".
d) Click the network that you wish to connect to.
iIf you do not want the MiniPC to automatically connect to the selected network if
available, remove the check mark next to "
COnneCt autOmatiCally
".
e) Now click "
ConneCt
".
Depending on the configuration of your router, you will be prompted to
authenticate yourself to the network. Generally speaking, a wireless network is
secured through a WPA network key or a WPS authentication method.

EN
17

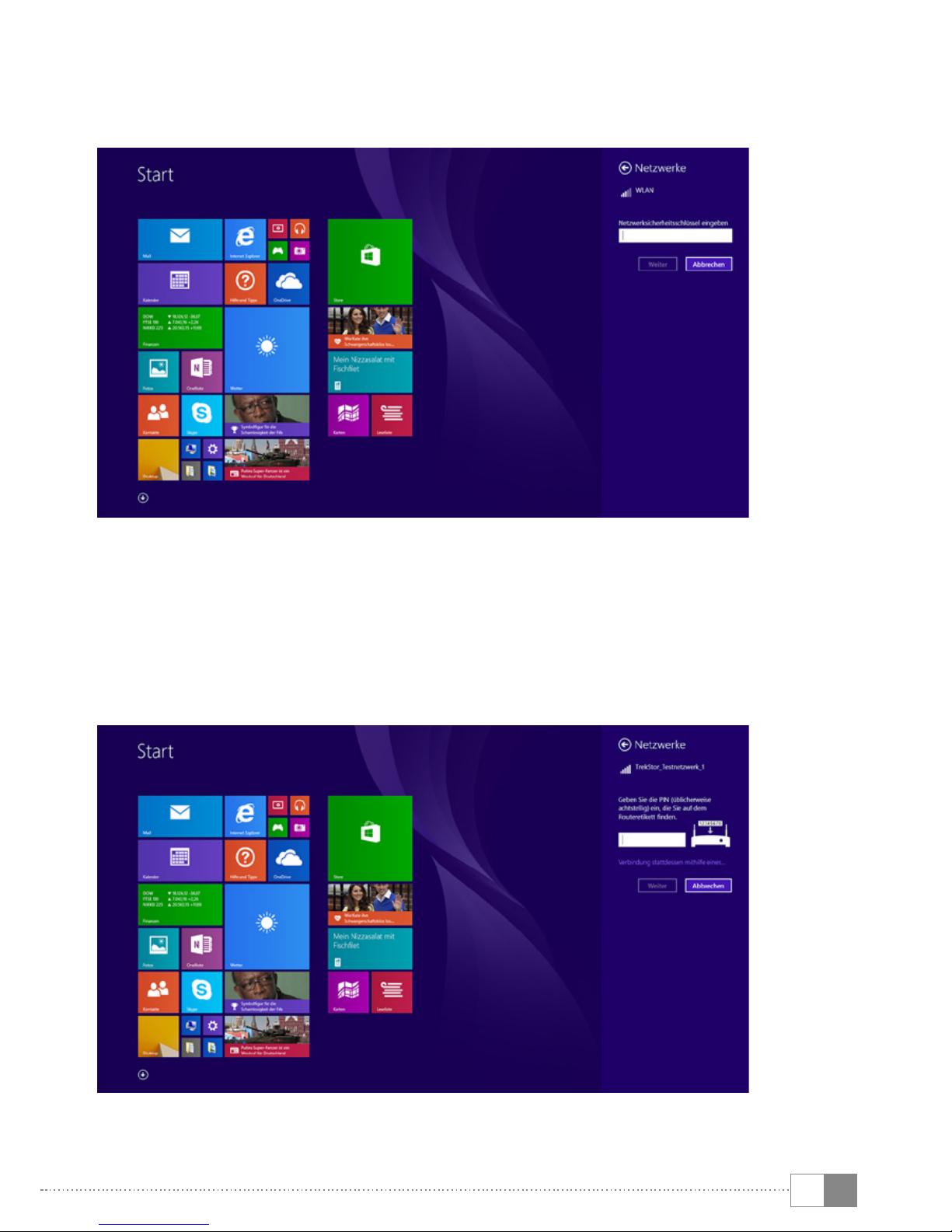

WPA
Enter the network key in the input field and click "
next
" to confirm. The network
key can generally be found on the back of your router.
WPS
If a WPS authentication method (for example, a PIN) was set up for your router,
the MiniPC shows a different input field. Enter the PIN in the input field (or follow
the selected authentication method) or tap "
ConneCt using aseCurity key insteaD
" to
ignore this step and go directly to the entry of the WPA network key.
The MiniPC now connects to the wireless network.

EN 18
rWARNING
You will be asked whether the MiniPC should search for additional
devices in the selected network and whether it should automatically
connect to these devices (for example, printers or television sets).
This is recommended in private home networks that you can trust. If
you connect to a public wireless network, we recommend that you
decline this option by clicking "
nO"
. In this way, you protect your private sphere.
You can now surf the Internet as usual using the Internet browser.
Connecting to a network/the Internet via a cable (LAN)
To connect the MiniPC to a network via a LAN cable, connect a commercial
network cable (with RJ45 jack) to the RJ45 socket of the MiniPC and the other
end with your router.
No additional steps on the MiniPC are required for a connection with the network.
iDepending on the configuration of your router, the IP address is assigned
automatically or the IP address has to be issued manually. Read the operating
instructions for your router for more information.
After you have successfully connected to your local network, network sharing
allows you to transfer files between the MiniPC and other devices in the network
or play files from the MiniPC.
iIf you would like to connect to the Internet via the network, make sure that the
router can access the Internet. Read the operating instructions for your router for
more information.
11) Downloading applications from the Windows Store
The Windows Store is available as a live tile on the start screen. You can identify
the Windows Store by its icon, a shopping bag featuring the Windows logo.
The following two requirements must be met in order to access the Windows
Store:
1. You must be connected to the Internet.
To connect, follow the instructions in Section 10.
2. You must have a Microsoft account and be signed in with it.
Ideally, you will have created a Microsoft account or signed in with your existing
Microsoft account during the initial setup process when you first switched on
your MiniPC. In this case, all you have to do is open the Windows Store, select the
desired app and click "
install
".

EN
19
If you do not yet have a Microsoft account or are not signed in with it,
you must perform these steps. Open the Windows Store and select the
desired app. Click the app and then "
install
". An assistant now appears to
guide you through the process of setting up a Microsoft account.
iIf you set up a Microsoft account and link it to your MiniPC, the password for
unlocking the MiniPC changes. From now on, you have to enter the password for
your Microsoft account to unlock the MiniPC.
12) Transferring files between the MiniPC and other devices
Transferring files via Bluetooth
a) Activate the Bluetooth function on the device you want to connect and
make the device visible to other devices, if necessary. To do so, refer to the
operating instructions of the device to be connected.
b) Open the Charm Bar.
c) Click "
settings
" in the Charm Bar.
d) Now click "
Change pC settings
" in the bottom-right area.
e) Next, click "
pC anD DeviCes
" on the left and then "
Bluetooth
", also on the left.
f) Move the Bluetooth slider (in the middle of the screen) from left to right.
The word "
on
" now appears next to the slider.
This activates the MiniPC Bluetooth function and the MiniPC searches for
available devices nearby.
g) Select the device you would like to connect from the list of available devices
by clicking on the name of the device. Next, click "
pair
".
h) The MiniPC sends a verification code to the device to be connected. Check
that the code displayed on the device to be connected matches the code
displayed on the MiniPC and confirm with "
yes
" on the MiniPC.
iYou may also have to confirm the pairing procedure on the device to be connected.
i) The status message "
ConneCteD
" appears under the selected device after
successful pairing.
j) Exit the device settings and open the file browser of the MiniPC (file folder symbol).
k) Go to the file that you would like to send in the file browser.
l) Right-click the file that want to send. A drop-down menu appears. Select the
"
senD to
" option in this window and then click "
Bluetooth DeviCe
". A list of all
paired Bluetooth devices appears.

EN 20
n) Click the desired device and confirm with "
next
". The MiniPC now sends the
selected file to the desired device.
o) You may also have to confirm receipt of the file on the destination device.
iAfter a successful file transfer, deactivate the Bluetooth function on the MiniPC
(and your destination device) to save energy.
Transferring files between the MiniPC and another PC
You will need an external storage device such as a USB-Stick to transfer files
between your MiniPC and another computer. Direct data transfer between the
MiniPC and a PC via USB cable is not possible.
a) Connect the USB-Stick to your computer and move the desired file onto the
USB-Stick.
b) Remove the USB-Stick from the computer and insert the USB-Stick into the
USB A port on the MiniPC.
c) Switch to desktop view (see Section 8).
d) Open the file browser by double-clicking the briefcase symbol on the
bottom left.
e) Click "
this pC
" on the left in the file browser. All available drives and folders
are displayed.
f) Double-click the USB-Stick to select it. All of the files stored on the stick are
displayed.
g) When you right-click the desired file, a drop-down window opens.
Click "
Copy
" in the drop-down window.
h) Now click "
this pC
" again on the left in the file browser.
i) Open the desired destination folder by clicking twice.
j) Right-click a free area in the destination folder. The drop-down window
appears again.
k) Click the "
paste
" function in the drop-down window. The file is copied to the
selected folder.
l) Return to the drive overview ("
this pC
") and right-click the USB-Stick.
A drop-down window appears again.
m) Click "
remove
" in the drop-down window to safely remove the USB-Stick and
avoid any data loss.
